Official Journal of the Japan Wood Research Society

Journal of Wood Science Cover Image
  • Original article
  • Open Access

Characterization of wood-based molding bonded with citric acid

Journal of Wood ScienceOfficial Journal of the Japan Wood Research Society201158:1214

https://doi.org/10.1007/s10086-011-1214-x

  • Received: 27 April 2011
  • Accepted: 12 August 2011
  • Published:

Abstract

The wood-based moldings were fabricated by using only citric acid as an adhesive. The mechanical properties, water resistances, thermal properties and chemical structure were investigated. Wood powder obtained from Acacia mangium was mixed with citric acid under certain weight ratios (0–40 wt%), and each powder mixture was molded using two types of metal molds at 200°C and 4 MPa for 10 min. The modulus of rupture and the modulus of elasticity values of the wood-based molding containing 20 wt% citric acid were 35.8 MPa and 5.4 GPa, respectively. The maximum impact strength was 0.94 kJ/m2 with the same citric acid content. The water resistance increased with increasing citric acid content, and the good resistance to boiling water was also recognized. However, some elution of substances derived from citric acid was observed at high levels of citric acid, causing a decrease in the thermal properties. The ester linkages were detected by Fourier transform infrared spectroscopy, indicating that the citric acid reacted with the wood. Our results demonstrated that citric acid brought about good adhesiveness for fabricating the wood-based molding.

Keywords

  • Wood-based molding
  • Citric acid
  • Natural wood adhesive
  • Physical properties

Introduction

The demand for sustainable wood-based materials is expected to continue to increase. At present, synthetic resin adhesives derived from fossil resources are required when manufacturing wood-based materials. Considering the concerns about the future global environment and the potential shortage of fossil resources, it is desirable to reduce the consumption of synthetic resin adhesives. Recently, studies on natural adhesives using bio-resources have been performed with protein, tannin and lignin used as the main adhesive materials [1]. However, when synthesizing these natural adhesives, chemical agents derived from fossil resources that cause health disorders and environmental problems are commonly necessary. In the further development of natural adhesives, the use of chemical agents should be restrained as much as possible.

In our previous research, we were able to make bark molding using only citric acid as an adhesive [2]. The molding had good mechanical properties and water resistance. Citric acid (2-hydroxy-1,2,3-propanetricarboxylic acid) is an organic polycarboxylic acid containing three carboxyl groups. It is contained in citrus fruits such as lemons and limes and is commercially produced by fermentation of glucose or glucose- and sucrose-containing materials [3, 4]. It is widely used in food, beverages and pharmaceuticals. In addition, citric acid has been researched as a cross-linking agent for wood [5], plant fiber [6], paper [7], starch [8] and bio-based elastomers [9]. In this study, wood-based molding was fabricated to clarify the possibility of using citric acid as a wood adhesive. The effects of citric acid content on the physical and chemical properties of the molding were investigated.

Materials and methods

Materials

A wood block of Acacia mangium obtained from a Japanese wood company was pulverized, and wood powder was obtained by using a sieve of 250-μm mesh size. Citric acid was purchased from Nacalai Tesque, Inc. and was also pulverized into less than 250-μm mesh size. These materials were vacuum dried at 60°C for 15 h.

Molding preparation

The citric acid powder was put into a plastic cup with the wood powder. The citric acid contents (wt%) were adjusted to 0, 11.1, 20.0, 33.3 and 40.0, giving weight ratios of wood/citric acid of 10:0, 8:1, 4:1, 2:1 and 1.5:1, respectively. Details regarding the formulations are shown in Table 1. The top of the cup was covered with aluminum foil, and the cup was shaken vigorously by hand for a few seconds. A cylindrical mold with a 70-mm inner diameter and a dumbbell-shaped mold of the Japanese Industrial Standard (JIS) K 7139-1966 A type were used for making molding. The mixture powder was poured into the molds and hot-pressed at 200°C and 4 MPa for 10 min. The moldings obtained were stored in a desiccator with silica gel.
Table 1

Formulation of the moldings

Citric acid content (wt%)

Weight ratio of citric acid to wood

Mold for JIS K 7139

Cylindrical mold

Wood (g)

Citric acid (g)

Wood (g)

Citric acid (g)

0.0

10:0

10.00

0.00

10.00

0.00

11.1

8:1

8.89

1.11

1.25

20.0

4:1

8.00

2.00

2.50

33.3

2:1

6.67

3.33

5.00

40.0

1.5:1

6.00

4.00

6.67

Bending test

Both edges of the dumbbell-shaped molding were cut, and rectangular specimens of 80 × 10 × 4–6 mm were prepared. The static 3-point bending test was carried out under 50 mm of span and 5 mm/min of loading speed. The test was performed in triplicate, and each average value with standard deviation of the modulus of rupture (MOR) and the modulus of elasticity (MOE) was calculated.

Charpy impact test

According to JIS K 7111, the Charpy impact test was carried out using a digital impact tester DG-CD (Toyo Seiki Seisaku-sho, Ltd). A rectangular specimen of 80 × 10 × 4–6 mm was prepared, and the impact strength in the flatwise direction was measured with 5 unnotched sample replicates. The average value with standard deviation was calculated.

Water immersion treatment

Water immersion treatment was performed at 20°C for 24 h using three rectangular specimens (50 × 20 mm) cut from the circular molding. After the treatment, thickness swelling (TS), linear expansion (LE) and weight increase were measured under wet condition. The wet specimens were then vacuum dried at 60°C for 15 h, and the weight change based on the weight before treatment was calculated.

Repeated boiling treatment

The weight and thickness changes caused by repeated boiling treatment were observed using the edge (about 20 × 20 mm) of the dumbbell-shaped molding. The treatment condition was boiling water immersion for 4 h, drying at 60°C for 20 h in an oven, boiling water immersion for 4 h and vacuum drying at 60°C for 15 h. The experiment was performed in triplicate, and the average value with standard deviations was calculated.

Thermal analysis

The molding obtained was pulverized into less than 150-μm mesh size, and the powder was vacuum dried at 60°C for 15 h. The thermogravimetric analysis (TGA) was carried out using a TGA 2050 (TA Instruments Japan). The powder was scanned from room temperature to 550°C at a rate of 10°C/min under nitrogen purging. The differential scanning calorimetry (DSC) measurement was conducted using a DSC 2910 (TA Instruments Japan). The powder was encapsulated in an aluminum pan and scanned from room temperature to 350°C at a rate of 10°C/min under nitrogen purging.

Fourier transform infrared spectroscopy (FT-IR)

All of the infrared spectra were obtained with a Fourier transform infrared spectrophotometer (FT/IR-4200, JASCO Corporation) using the KBr disk method and were recorded by means of an average of 16 scans at a resolution of 4 cm−1.

Results and discussion

Mechanical properties

When the mixture of wood and citric acid powders was molded, rigid molding was obtained. Table 2 shows the density of the molding specimen used for the bending test. The molding density ranged from 0.75 to 1.21 g/cm3, and the density increased with increasing citric acid content. Figure 1 shows the effects of citric acid content on the bending properties. The average MOR and MOE values of the wood-only molding (0 wt%) were 1.2 MPa and 0.27 GPa, respectively. This indicated that the molding made of only wood powder developed almost no bending properties. The bending properties were increased drastically by the addition of citric acid. The maximum average MOR value was 35.8 MPa with a 20.0 wt% citric acid content, and the specific MOR considering the density was 30.4 MPa. The maximum average MOE value was 5.9 GPa with a 33.3 wt% citric acid content, and the specific MOE was 4.9 GPa. The citric acid content of 40.0 wt% brought a decrease in the bending properties due to the excess citric acid in the molding. Compared to the results obtained with molding composed of Acacia mangium bark and citric acid in our previous paper [2], high bending properties were recognized. Figure 2 shows the effect of citric acid content on the impact strength. The maximum average value was 0.94 kJ/m2 with a 20.0 wt% citric acid content, which was about three times higher than the value of the wood-only molding. A further addition of citric acid did not contribute to the enhancement of the strength. Based on the results shown in Figs. 1 and 2, the optimum citric acid content for the mechanical properties was 20.0 wt%.
Table 2

Density of the specimens for bending test

Citric acid content (wt%)

0

11.1

20

33.3

40

Density (g/cm3)

0.75

0.91

1.18

1.21

1.21

Standard deviation

0.004

0.009

0.02

0.019

0.015

Fig. 1

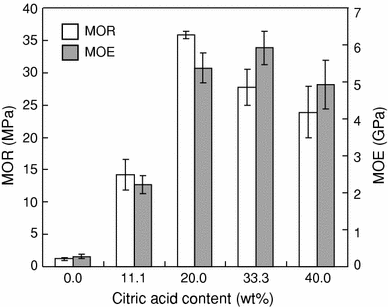

Fig. 1

Bending properties of the moldings

Fig. 2
Fig. 2

Impact strength of the moldings

Water resistance

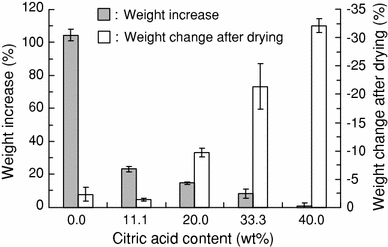

Figure 3 shows the relationship between the molding weight and citric acid content in the water immersion treatment. The weight increase in the wood-only molding (0 wt%) exceeded 100%, and the weight change after drying was about −2.3%. This indicated that absorption and desorption of water mainly occurred during treatment. In the case of the molding with citric acid, the weight increase was inhibited as the citric acid content increased. However, the weight change after drying decreased in opposition to the increasing citric acid content, and the value of the molding with 40.0 wt% citric acid content was −32.1%. Judging from the behavior of the wood-only molding, substances related to citric acid would be eluted. Figure 4 shows the dimensional stabilities of the molding in water immersion treatment. In the case of the wood-only molding, both the TS and LE exhibited high values. When citric acid was added, the dimensional stabilities of the molding were improved drastically. Compared to the values of the wood-only molding, the values of the molding with 11.1 wt% citric acid content were less than one-third as much. The values of TS and LE were less than 10 and 1% as much, respectively, in samples with 20.0 wt% citric acid content and more.
Fig. 3
Fig. 3

Weight change of the moldings in water immersion treatment for 24 h

Fig. 4

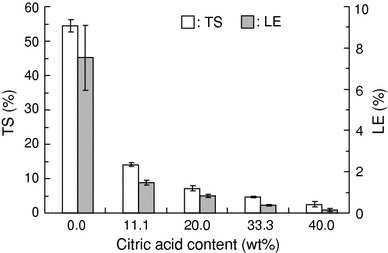

Fig. 4

Dimensional stabilities of the moldings in water immersion treatment for 24 h

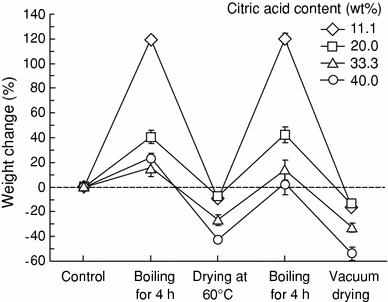

To further clarify the effect of citric acid content on water resistance of the molding, a repeated boiling treatment was performed. Figure 5 shows the effect of citric acid content on the weight change in the treatment. The wood-only molding decomposed completely during the first boiling treatment, while the form of the molding containing citric acid was maintained, irrespective of the amount of citric acid added during the treatment. The weight increase of the molding in the first boiling treatment was inhibited with increasing citric acid content. A marked effect was observed in samples of 20.0 wt% or more. Weight decreases ranging from −7.6 to −42.6% were observed after the first drying treatment, indicating that some elution from the molding occurred during the first boiling treatment. The range of weight decrease in the second drying treatment following the second boiling treatment was −14.3 to −54.2%. Figure 6 shows the thickness changes in the treatment. The measurement of the molding with 40.0 wt% citric acid content was difficult because of marked deformation. In the case of molding with 11.1 wt% citric acid content, the thickness change after the first boiling treatment was 65.1% and the value following the second treatment was 72.9%. The final dried thickness change after the treatment was 52.6%. Though the molding kept its form even after the treatment, a remarkable increase in the thickness was observed. The thickness change of the molding with 20.0 wt% citric acid was greatly suppressed, and the final dried thickness change was 6.2%. The molding with 33.3 wt% citric acid became even smaller. Based on the results of Figs. 3, 4, 5 and 6, it was clarified that the molding with citric acid had water resistance. In particular, the molding with 20.0 wt% citric acid content had excellent properties.
Fig. 5
Fig. 5

Weight changes of the moldings in a repeated boiling treatment

Fig. 6

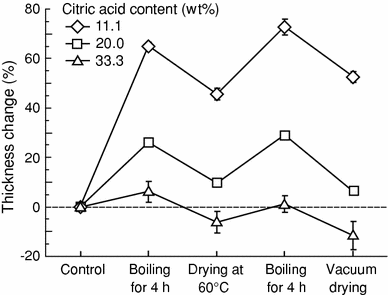

Fig. 6

Thickness changes of the moldings in a repeated boiling treatment

Thermal properties of the molding

Figure 7 shows the thermogravimetric (TG) and derivative TG (DTG) curves of the moldings. The pure citric acid measured as a reference had one-stage degradation in the temperature range of 150–250°C. Citric acid melts at 153°C and dehydrates to give aconitic acid on heating to 175°C [10]. In the DTG curve, the wood-only molding (0 wt%) exhibited two-step degradation. The first stage was observed at around 270°C as a shoulder, and can be attributed to the decomposition of hemicellulose and the slower decomposition of lignin. The second stage was at around 350°C, and can be attributed to the decomposition of cellulose [11]. The shoulder at around 270°C decreased with increasing citric acid content, indicating the change of the hemicellulose and lignin components. The second peak at around 350°C was observed irrespective of citric acid content. Another peak appeared clearly at around 200°C with increasing citric acid content. Considering the weight loss behavior of pure citric acid, this peak seemed to be caused by substances derived from citric acid. The TG of the molding excluding the effect of substances derived from citric acid was investigated using the molding after a repeated boiling treatment. The results are shown in Fig. 8. According to the DTG, the peak at around 200°C was not observed, indicating that the substances were completely removed in the treatment. The small shoulder at around 270°C was only observed in 11.1 and 20.0 wt% citric acid. The maximum peak at around 350°C was observed in all moldings as it was in the molding without treatment.
Fig. 7
Fig. 7

TG and DTG curves of the moldings

Fig. 8
Fig. 8

TG and DTG curves of the moldings after a repeated boiling treatment

Figure 9 shows DSC curves of the moldings. Citric acid had a sharp endotherm at 157°C and a broad endotherm at around 220°C, indicating melting and decomposition, respectively [10]. In the wood-only molding, a broad endotherm was observed at around 130°C. The weight change was scarcely recognized at that temperature, as shown in Fig. 7. Therefore, the endotherm was due to the weakening of the hydrogen bonds between carbohydrates [12]. The curve change at above 250°C was attributed to a marked degradation of wood [13, 14]. In the case of molding with citric acid, the endotherm at around 130°C disappeared gradually with increasing citric acid content, indicating the effect of substances derived from citric acid. The endotherm at around 157°C derived from citric acid was not observed, even when the citric acid content was 40.0 wt%, probably because of a chemical change in the citric acid during molding. The endotherm at around 210°C gradually appeared. Judging from the results shown in Fig. 7, this would have been due to the decomposition of substances derived from citric acid. Figure 10 shows DSC curves of the molding after a repeated boiling treatment. The endotherm at around 120°C was observed irrespective of citric acid content. However, the peak tended to become small with increasing citric acid content. Based on the results shown in Figs. 8 and 9, the endotherm resulted from the weakening of the hydrogen bonds. The broad endotherm between 200 and 300°C was also observed irrespective of citric acid content. This was probably derived from the degradation of the molding, but a marked difference was scarcely recognized.
Fig. 9
Fig. 9

DSC curves of the moldings

Fig. 10
Fig. 10

DSC curves of the moldings after a repeated boiling treatment

Chemical structure of the molding

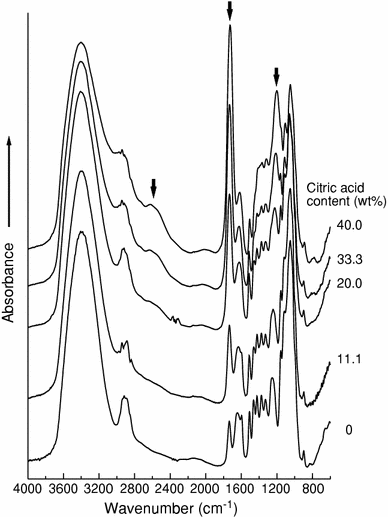

The effect of citric acid content on the chemical structure of the molding was investigated by FT-IR, and the results are shown in Fig. 11. The absorption bands at around 2628, 1733 and 1209 cm−1 increased as citric acid content increased. The broad absorption band at around 2628 cm−1 was ascribed to the vibration of H-bonded carboxylic OH groups [15]. The peak at around 1733 cm−1 was attributed to C=O stretching derived from the carboxyl group and/or C=O ester group [15, 16]. The peak at around 1209 cm−1 was attributed to C–O stretching and –OH bending motions [17, 18]. The peaks derived from citric acid appeared strongly when the citric acid content was high. According to the results shown in Figs. 3 and 5, the moldings contained some water-soluble substances. To observe the chemical structure of the molding that excluded the water-soluble substances, FT-IR measurements were taken of the moldings after a repeated boiling treatment. The results are shown in Fig. 12. The result of the wood-only molding was not obtained because of decomposition in the treatment. The absorption bands at around 2628 and 1209 cm−1 were hardly recognized in any moldings. The absorption band at around 1733 cm−1 increased a little as citric acid content increased, implying that the ester linkages increased. Therefore, citric acid reacted with wood, and as a result, moldings with good physical properties were fabricated.
Fig. 11
Fig. 11

Infrared spectra of the moldings

Fig. 12

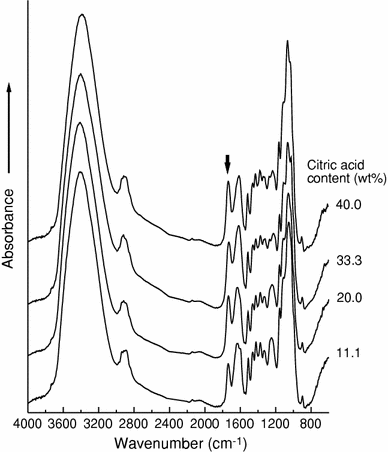

Fig. 12

Infrared spectra of the moldings after a repeated boiling treatment

Conclusions

The physical and chemical properties of molding composed of wood powder and citric acid were investigated. The molding had good bending properties and impact strength. In particular, the molding with 20.0 wt% citric acid content showed excellent values. The water resistance increased with increasing citric acid content, and good resistance against boiling water was also recognized. However, marked elution caused by substances derived from citric acid was observed in samples with high citric acid content. The thermal properties of the molding decreased with increasing citric acid content. However, a significant difference of the thermal properties was scarcely observed in the moldings after a repeated boiling treatment, irrespective of citric acid content. Based on the results of FT-IR, it was clarified that the bonding mechanism of the molding was ester linkages between wood and citric acid. We therefore concluded that citric acid can be used as an adhesive for wood-based molding.

Declarations

Acknowledgments

This work was financially supported by Grant-in-Aid for Scientific Research (C) (No.21580206) from the Ministry of Education, Culture, Sports, Science and Technology, Japan, and Special Coordination Funds for Promoting Science and Technology entitled “Creation of the paradigm of sustainable use of tropical rainforest by the intensive forest management and advanced utilization of forest resources”.

Authors’ Affiliations

(1)
Research Institute for Sustainable Humanosphere, Kyoto University, Gokasho, Uji Kyoto, 611-0011, Japan
(2)
Eidai Co., Ltd., Eidai cho, Tsuruga Fukui, 914-0825, Japan

References

  1. Pizzi A (2006) Recent development in eco-efficient bio-based adhesives for wood bonding: opportunities and issues. J Adhes Sci Technol 20:829–846View ArticleGoogle Scholar
  2. Umemura K, Ueda T, Sasa SM, Kawai S (2011) Application of citric acid as natural adhesive for wood. J Appl Polym Sci. doi:10.1002/app.34708
  3. Abou-Zeid A-ZA, Ashy MA (1984) Production of citric acid: a review. Agric Wastes 9:51–76View ArticleGoogle Scholar
  4. Tsao GT, Cao NJ, Du J, Gong CS (1999) Production of multifunctional organic acids from renewable resources. Adv Biochem Eng Biotechnol 65:243–278PubMedGoogle Scholar
  5. Vukusic SB, Katovic D, Schramm C, Trajkovic J, Sefc B (2006) Polycarboxylic acids as non-formaldehyde anti-swelling agents for wood. Holzforschung 60:439–444View ArticleGoogle Scholar
  6. Ghosh P, Das D, Samanta AK (1995) Modification of jute with citric acid. J Polym Mater 12:297–305Google Scholar
  7. Yang CQ, Xu Y, Wang D (1996) FT-IR spectroscopy study of the polycarboxylic acids used for paper wet strength improvement. Ind Eng Chem Res 35:4037–4042View ArticleGoogle Scholar
  8. Reddy N, Yang Y (2010) Citric acid cross-linking of starch films. Food Chem 118:702–711View ArticleGoogle Scholar
  9. Tran RT, Zhang Y, Gyawali D, Yang J (2009) Recent development on citric acid derived biodegradable elastomers. Recent Plants Biomed Eng 2:216–227View ArticleGoogle Scholar
  10. Barbooti MM, Al-Sammerrai DA (1986) Thermal decomposition of citric acid. Thermochim Acta 98:119–126View ArticleGoogle Scholar
  11. Shebani AN, Reenen AJ, Meincken M (2008) The effect of wood extractives on the thermal stability of different wood species. Thermochim Acta 471:43–50View ArticleGoogle Scholar
  12. Mehrotra R, Singh P, Kandpal H (2010) Near infrared spectroscopic investigation of the thermal degradation of wood. Thermochim Acta 507–508:60–65View ArticleGoogle Scholar
  13. Beall FC (1971) Differential calometric analysis of wood and wood components. Wood Sci Technol 5:159–175View ArticleGoogle Scholar
  14. Tsujuyama S, Miyamori A (2000) Assignment of DSC thermograms of wood and its components. Thermochim Acta 351:177–181View ArticleGoogle Scholar
  15. Žagar E, Grdadolnik J (2003) An infrared spectroscopic study of H-bond network in hyperbranched polyester polyol. J Mol Struct 658:143–152View ArticleGoogle Scholar
  16. Yang CQ, Wang X (1996) Formation of cyclic anhydride intermediates and esterification of cotton cellulose by multifunctional carboxylic acids: an infrared spectroscopy study. Text Res J 66:595–603View ArticleGoogle Scholar
  17. Lackovic K, Johnson BB, Angove MJ, Wells JD (2003) Modeling the adsorption of citric acid onto Muloorina illite and related clay minerals. J Colloid Interface Sci 267:49–59PubMedView ArticleGoogle Scholar
  18. Schwanninger M, Rodrigues JC, Pereira H, Hinterstoisser B (2004) Effects of short-time vibratory ball mill on the shape of FT-IR spectra of wood and cellulose. Vib Spectrosc 36:23–40View ArticleGoogle Scholar
