Kinetic analysis of color changes in cellulose during heat treatment

Abstract

This paper deals with the kinetics of the color changes of cellulose during heat treatment. The color of cellulose heated at 90–180°C was measured by a spectrophotometer and expressed by CIELAB color parameters. The values of L* decreased and those of a*, b* and Δ E* _ab increased at all the treatment temperatures. Several kinetic models, namely, the zero-order, first-order, second-order and autocatalytic model, were applied to the changes in the color values. Furthermore, the results of kinetic analysis using the best-fit model were compared to the results obtained from conventional kinetic models. It was suggested that the kinetic analysis using the best-fit model was the better way to accurately predict color changes during heat treatment. The values of apparent activation energy calculated from the changes of L*, a*, b* and Δ E* _ab were 125, 124, 118 and 120 kJ/mol, respectively. These values were similar to the reported values calculated from other chemical or mechanical properties.

Introduction

Cellulose is the major component of ligno-cellulosic materials such as paper, textile and wood, and the chemical and mechanical degradation of cellulose has a great influence on the degradation of ligno-cellulosic materials. Kinetic study has been of great importance not only for understanding the degradation mechanism but also for predicting the degradation of chemical and mechanical properties. Numerous kinetic studies on cellulose have been reported using thermally and hygrothermally treated cellulose, mainly focusing on the degradation of electrical insulation paper in electrical power transformers [1, 2] and the degradation of acidic paper, which has been widely used from the 18th century and has caused catastrophic degradation of books and documents [3–5].

The degradation of cellulose has been widely elucidated by weight decrease, degree of polymerization (DP), mechanical properties, crystallinity and morphological characteristics. In addition, the color difference and the yellowing index are also used [6, 7]. In the field of paper and textile science, the change in color of cellulose is important not only from an aesthetic point of view but also as a possible index of the degradation of materials [8]. Several investigations have reported a correlation between color parameters and either DP or mechanical properties [9–11]. Color measurement is non-destructive and only requires a small area, unlike the measurements of chemical and mechanical properties. Therefore, color measurement is also suitable when the aesthetic aspects of measuring objects are important and destructive tests are unacceptable, for example, for the investigation of culturally significant properties or the quality monitoring in industrial processing.

The color of cellulose turns brown or yellow during heat treatment [11, 12]. However, the mechanism of this change has not been clarified yet and only a few reports were found in kinetic analysis based on the color changes of cellulose [13].

This study examines the color changes of cellulose during heat treatment to elucidate and predict desirable/undesirable color changes of ligno-cellulosic materials. For an accurate analysis, we have applied several kinetic models and a best-fit model employing a kinetic approach based on the time–temperature superposition (TTSP) method.

Materials and methods

Materials

Whatman No.1 cellulose filter paper was used as a cellulose sample. The basic information of the samples is summarized in Table 1. Specimens of approximately 20 × 40 mm were dried in an air-circulating oven and then in a vacuum oven at 60°C for 24 h each. The low drying temperature was set to avoid undesirable reactions of cellulose. Each dried specimen was heated in an air-circulating oven at 4 temperature levels from 90 to 180°C for a duration ranging from an hour to approximately 1.8 years. Table 2 shows the treatment times of the specimens at each treatment temperature. They were planned under the assumption that a 10°C increase of the reaction temperature halves the reaction time to obtain a similar intensity of reaction among the treatment of different temperatures [14]. The treatment at 90°C is now in process with the planned treatment time shown in parentheses in Table 2.

Table 1 The basic information of the cellulose sample and the average initial color values with their standard deviations in parentheses

Table 2 Treatment temperatures and times of cellulose samples

Color measurement

The color of the specimens was measured with a spectrophotometer (KONICA MINOLTA CM-2600d) under a D65 light source and an observed angle of 10°. The sensor head of the spectrophotometer was 8 mm in diameter. The size of paper specimens was sufficiently large relative to the sensor head. The CIELAB color parameters (L*, a* and b*) were used to express the color changes. The differences in parameters Δ L*, Δ a* and Δ b* and the total color differences Δ E* _ab were calculated using the following formulas: [19, 20]

$$ \begin{gathered} \Delta L^{*} = L^{*} - L_{0}^{*} \\ \Delta a^{*} = a^{*} - a_{0}^{*} \\ \Delta b^{*} = b^{*} - b_{0}^{*} \\ \end{gathered} $$

(1)

$$ \Delta E^{*}_{ab} = \sqrt {\Delta L^{*2} + \Delta a^{*2} + \Delta b^{*2} } $$

(2)

where L* is the lightness and a* and b* are the color coordinates under any testing condition, respectively, and L ₀ *, a ₀ * and b ₀ * are the corresponding reference values obtained as the average of untreated specimens shown in Table 1, respectively. The color values of 3 specimens were averaged and the standard deviations were also calculated. The average of the coefficients of variation for each treatment condition were 0.23, 2.70, 1.38 and 1.89% for L*, a*, b* and Δ E* _ab , respectively. Since the variation in the color values was negligibly small, the error bars displaying standard deviations were not drawn in the following figures.

The specimen preparation and the color measurement were always performed using rubber gloves.

Weight reduction

The sample amount for each condition was approximately 3 g, which was measured before and after heat treatment under the dry condition. The weight reductions were calculated based on the following equation:

$$ {\text{Weight reduction}} = 100 \times \frac{{W_{0} - W_{t} }}{{W_{0} }}(\% ) $$

(3)

where W ₀ and W _t are the dry weight of cellulose before treatment and at treatment time t, respectively.

Kinetic analysis for color changes of cellulose

Numerous reports have discussed the applicability of kinetic models, especially with respect to the degree of polymerization and some mechanical properties [21, 22]. However, there have been few reports dealing with the kinetic analysis of color properties [13].

The rate of change of a material property P at time t can be represented by:

$$ \frac{{{\text{d}}P}}{{{\text{d}}t}} = \pm kP^{n} $$

(4)

where n is the order of reaction.

By integrating Eq. (4), the zero-order (Eq. 5), first-order (Eq. 6) and second-order (Eq. 7) kinetic models can be derived as:

$$ P = P_{0} \pm kt $$

(5)

$$ P = P_{0} \exp \left( { \pm kt} \right) $$

(6)

$$ P = \frac{{P_{0} }}{{1 \pm ktP_{0} }} $$

(7)

where P is the color value at a treatment time t, P ₀ the initial value of color, and k the rate constant of the chemical reaction. Many cellulose degradation kinetics have been based on these reaction models. Zervos et al. [13] reported that a kinetic model based on autocatalysis (Eq. 8) fitted well the changes of L* and b* during the heat treatment in sealed vessels:

$$ P = P_{0} \pm C\left( {2^{kt} - 1} \right) $$

(8)

where C is constant.

In general, it is known that a chemical reaction can be described by the Arrhenius equation:

$$ k = A\exp \left( { - \frac{{E_{\text{a}} }}{RT}} \right) $$

(9)

where A is the frequency factor, E _a the apparent activation energy, R the gas constant, and T the absolute temperature of the reaction. The apparent activation energy is then obtained from the slope of the Arrhenius plot, which is the logarithm of k versus the reciprocal of T [23].

To determine the activation energy more accurately, a TTSP method has been proposed [24–27]. An Arrhenius approach applying the TTSP method is briefly described below. When the measured material property is plotted as a function of logarithmic treatment time at different temperatures, the shift distance used to superpose the plotted curves to the curves at a fixed reference temperature T _ref along the logarithmic time axis is called the time–temperature shift factor a _T , and is given as:

$$ a_{T} = \frac{{t_{T} }}{{t_{\text{ref}} }} $$

(10)

where t _ref is the test time at T _ref, and t _T is the time required to give the same response at the test temperature T. Combining Eqs. (9) and (10) gives:

$$ a_{T} = \exp \left[ {\frac{{E_{a} }}{R}\left( {\frac{1}{T} - \frac{1}{{T_{\text{ref}} }}} \right)} \right] $$

(11)

where both T and T _ref are absolute temperatures. Plotting ln(a _T ) versus 1/T is another way to calculate E _a.

Data analysis was performed using the FlexPro 8 software package (Weisang GmbH, Germany). All parameters of the model functions and the values of a _T were estimated using a non-linear iterative curve-fitting method. The coefficient of determination (R ²) and the root mean square error (RMSE) were used as the criteria to express the fitting of the tested models to the experimental data:

$$ R^{2} = \frac{{\sum\nolimits_{i = 1}^{N} {\left( {\hat{Y}_{i} - \bar{Y}} \right)^{2} } }}{{\sum\nolimits_{i = 1}^{N} {\left( {Y_{i} - \bar{Y}} \right)^{2} } }} $$

(12)

$$ {\text{RMSE}} = \sqrt {\frac{{\sum\nolimits_{i = 1}^{N} {\left( {Y_{i} - \hat{Y}_{i} } \right)} }}{N}} $$

(13)

where $\hat{Y}_{i}$ and Y _i are the measured and modeled values, respectively, $\bar{Y}$ is the average of the measured data and N is the total number of observations. The higher the value of R ² and the lower the value of RMSE, the better the model fits the data.

Results and discussion

Color changes of cellulose during heat treatment

As shown in the representative specimen presented in Fig. 1, the color of cellulose turned brown and dark with increasing treatment time. Figure 2 shows the changes of the color parameters according to the duration and temperature of treatment. The decrease in L* at all temperatures indicates that the specimens became darker with increasing treatment time. The increases in a* and b* indicate that the specimens became more red and yellow. These results corresponded to the increase in Δ E* _ab . Similar behavior irrespective of treatment temperatures suggested that the same reaction processes might cause the color changes, irrespective of temperatures.

Fig. 1

Cellulose specimens treated at 180°C with the treatment time (h)

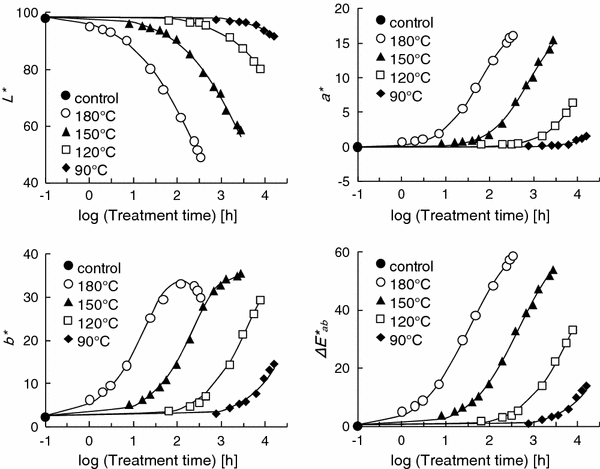

Fig. 2

Changes in L*, a*, b*, and Δ E* _ab during heat treatment as a function of time

Kinetic analysis of the color changes of cellulose

Several kinetic models were applied to the experimental data. In addition, in an analysis independent of these models, the function giving the best fit was selected. Since a similar behavior was observed irrespective of treatment temperatures, the data from the 180°C treatment were used to determine the best-fit model.

Judging from the values of R ² and RMSE, the autocatalytic model fit the color changes well in all color parameters, while the zero-, first- and second-order kinetic models did not fit the color parameters well except in the case of L*.

As the function giving the best fit for all color parameters, the NIST Hahn1 model was selected:

$$ P = \frac{{C_{0} + C_{1} t + C_{2} t^{2} + C_{3} t^{3} }}{{1 + C_{4} t + C_{5} t^{2} + C_{6} t^{3} }} $$

(14)

where C _i (i = 0, …, 6) is constant. However, it should be noted that we only used this function to numerically analyze the color changes. Thus, the function might have no meaning in terms of the reaction mechanism. The obtained values of R ² and RMSE for each model are summarized in Table 3.

Table 3 Comparison of coefficients of determination (R ²) and root mean square errors (RMSE) of regression curves among several kinetic models and a best-fit model to changes in the color values during the treatment at 180°C

From the results obtained above, the Arrhenius plots were described using the autocatalytic model and the best-fit model. Figure 3 shows the autocatalytic model fitted to the changes in Δ E* _ab at each temperature. High values of R ² were obtained for all treatment temperatures (R ² > 0.988). However, in spite of the high values of R ², the experimental data deviated from the saturation of sigmoidal curve characteristic with the autocatalytic model as shown in Fig. 3, and the autocatalytic reaction is not likely to occur in the ventilated conditions as in the studies like ours [22, 28]. Using the rate constant k of each color parameter at each temperature calculated according to Eq. (8), the activation energy E _a was calculated from Eq. (9). The values of E _a ranged from 101 to 125 kJ/mol, as shown in Table 4. Figure 4 shows the data superposed to the best-fit model using a _T at each treatment temperature. The regression and the superposition fit the data set extremely well (R ² > 0.998). The activation energy E _a was calculated according to Eq. (11) and the values of E _a ranged from 118 to 125 kJ/mol. The values of E _a for L* and Δ E* _ab calculated from the autocatalytic model were approximately 20 kJ/mol smaller than those calculated from the best-fit model. This may be because the experimental data were a little outside the range of autocatalytic model under the present experimental conditions, as mentioned above. Therefore, it is better to use the best-fit model with the TTSP method to accurately predict the color changes during heat treatment.

Fig. 3

Change in Δ E* _ab and its model: autocatalytic model fitted to each temperature

Table 4 Comparison of apparent activation energies (E _a) calculated from the Arrhenius equation

Fig. 4

Change in Δ E* _ab and its model: best-fit model and superposed data using a _T at each temperature

Figure 5 shows the Arrhenius plots of Δ E* _ab and their linear regression line as an example using the best-fit model. The regression lines for Arrhenius plots showed a good linearity for all color parameters (R ² > 0.987), suggesting that kinetic analysis can be applied to cellulose color properties and the prediction of color changes. The results also suggested that the color changes during heat treatment at the temperatures ranging from 90 to 180°C can be explained as the same reaction mechanism, presumably thermal oxidation, which occurs in the presence of oxygen and the absence of moisture. The values of E _a calculated from the color parameters were similar to the reported values obtained from the other properties of cellulose, such as the degree of polymerization and mechanical properties [14, 21, 24, 29]. However, these reported values have wide variation and are still controversial [21].

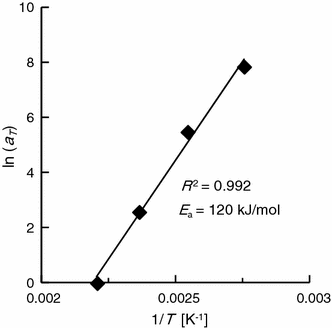

Fig. 5

Arrhenius plots of the change in Δ E* _ab using the best-fit model (Eq. 14) and TTSP method

Figure 6 shows the weight reduction as a function of time. The weight was reduced with increasing time at 120, 150, and 180°C and slightly reduced at 90°C. As shown in the representative case in Fig. 7, the color changed drastically before the remarkable weight reduction started, indicating that the color changes of cellulose are mainly due to the denaturation of cellulose and/or a slight amount of decomposition products of cellulose rather than the major decomposition of cellulose. The factors responsible for the color changes of cellulose were estimated to be carbonyl groups in the cellulose chains and the formation of colored low-molecular substances such as furan-type compounds [10, 30]. Łojewski et al. [9] reported that the increase of Δ E* _ab had a significant linear relationship with the amount of furfural formed during heat treatment of cellulose at 90°C. Matsuoka et al. [31, 32] concluded that colored substances were formed at the reducing ends of cellulose during heat treatment at 60–280°C. These results suggested that the color changes were due to the denaturation of the reducing ends, the formation of furan-type compounds, or a combination of both these effects. The results obtained from this study will contribute to a better understanding of the degradation of cellulose and provide further evidence of the effectiveness of color parameters as an index of cellulose degradation.

Fig. 6

Weight reduction during heat treatment as a function of time

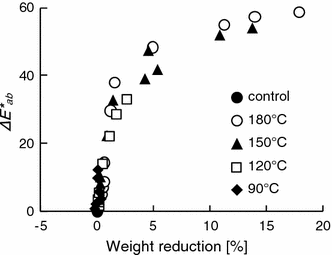

Fig. 7

The relationship between Δ E* _ab and weight reduction

The contributions of cellulose to color changes of ligno-cellulosic materials were estimated by comparing them to color changes of hinoki (Chamaecyparis obtusa Endl.) wood which was treated and analyzed in almost the same conditions and procedures with the present study [33]. The values of L* decreased and a*, b* and Δ E* _ab increased both in cellulose and wood. But in the later reaction stages of hinoki wood, the values of a* and b* started to decrease. The increase and subsequent decrease of a* and b* were also observed in the other wood species [34, 35]. The changes in L* and Δ E* _ab of hinoki wood were similar degree to those of cellulose. These results show that cellulose is a major component that contributes to color changes of wood, however, other wood components such as extractives, lignin, hemicelluloses and minor components also have effects on color changes of wood, especially on the chromatic characteristics. The successful kinetic analysis indicated that the thermal oxidation might cause the color changes of wood as well as cellulose, irrespective of treatment temperatures. The values of activation energy calculated from each color parameters of wood were lower than those of cellulose in all color parameters. The lower activation energy may be due to wood components other than cellulose. While color changes of ligno-cellulosic materials are due to the multiple and/or interactive effect of their components, the color changes of cellulose certainly contributes to that of ligno-cellulosic materials.

Conclusions

Color changes of cellulose heated at 90–180°C were measured and expressed by CIELAB color parameters. The value of L* decreased and the values of a*, b* and Δ E* _ab increased during heat treatment at all the temperatures. Among the several kinetic models applied to the experimental data, the autocatalytic model best explained the changes in all color parameters. However, according to the fitting of the autocatalytic model and a review of the results in the literature, it is concluded that color changes during heating could not be explained by an autocatalytic reaction. To accurately predict the color changes during heat treatment, it was better to use the best-fit model with the TTSP method. The Arrhenius plot showed good linearity in the best-fit model, implying that the color changes might be induced by the same mechanism at the temperature range from 90 to 180°C. The apparent activation energies calculated from color parameters using the TTSP method ranged from 118 to 125 kJ/mol, which are similar to the reported values obtained from other chemical and mechanical properties of lingo-cellulose materials.
