Homoplastic occurrence of perforated pit membranes and torus-bearing pit membranes in ancestral angiosperms as observed by field-emission scanning electron microscopy
Journal of Wood Science volume 59, pages 95–103 (2013)
Abstract
Recent studies demonstrated that perforated pit membranes (i.e., pit membranes with a large opening in their central portion) are commonly present between wood fibers in core eudicots. It is unclear whether this type of pit membranes might also occur in ancestral angiosperms. Therefore, structure of interfiber pit membranes was examined by field-emission scanning electron microscopy in nine species representing seven families that are located at more ancestral position than core eudicots. We found perforated pit membranes in three of the nine species. Our observations indicate that perforated pit membranes are relatively common even in ancestral groups of angiosperms. In the non-perforated pit membranes of the other six species, we found a range of structural variations. Thin-walled pit membranes without apparent intercellular layers were always found in three of the six species and the porosity of sheet-like pit membranes differed among the three species. Unlike the thin-walled pit membranes, interfiber pit membranes of Buxus microphylla var. japonica were thick-walled with obvious intercellular layers, and in Schisandra chinensis, we often observed torus-bearing pit membranes. Such variations in layered structure of pit membranes and homoplastic occurrence of torus-bearing pit membranes have not yet been reported for ancestral angiosperms. Our observations indicate that the structure of interfiber pit membranes might be more complicated than previous studies might suggest.
Introduction
Pit pairs are pathways that allow water to flow between cells in wood. A thin partition, known as the pit membrane, is present in each pit pair and divides one cell from an adjacent cell. The structures of pit membranes have a major effect on the movement of water in living trees and on the permeability of woods. Therefore, the structure of pits has been the focus of considerable attention. Our understanding of pit structures increased dramatically with the advent of electron microscopy. Since the structure of pits was first revealed by the pioneers of transmission electron microscopic studies of wood structures, most notably Harada et al. [1], Côté [2] and Schmid [3], large amounts of information have been accumulated and, as a result, the structure of pits in wood are fairly well understood. In recent years, there have been many studies of the functions of intervessel pit membranes of angiosperms and the intertracheary pit membranes of gymnospermae [e.g., 4–7]. However, attention has still been concentrated on only a few types of pits and our understanding of the structure and function of certain types of pits, such as the interfiber pits in angiosperms, remains limited and fragmentary.
Perforated pit membranes between wood fibers were found in some angiosperms [8, 9] after they had already been reported in Carya tomentosa [10] and Fraxinus mandshurica var. japonica [11], but this type of pit membrane was considered to be relatively rare and attracted scant attention. However, recent studies revealed that (1) perforated pit membranes are common in various taxa of angiosperms and (2) wood fibers with perforated pit membranes are non-conductive while wood fibers with sheet-like pit membranes are conductive [8, 9, 12]. In previous studies, the selection of species was limited to core eudicots. It remained to be determined whether such pit membranes might also be common in taxonomic groups that are located at more ancestral positions in the angiospermous clade. Therefore, as described in this report, we examined the structural variations in interfiber pit membranes of nine species that represented seven families, chosen from among so-called basal angiosperms and basal eudicots.
Materials and methods
Wood samples

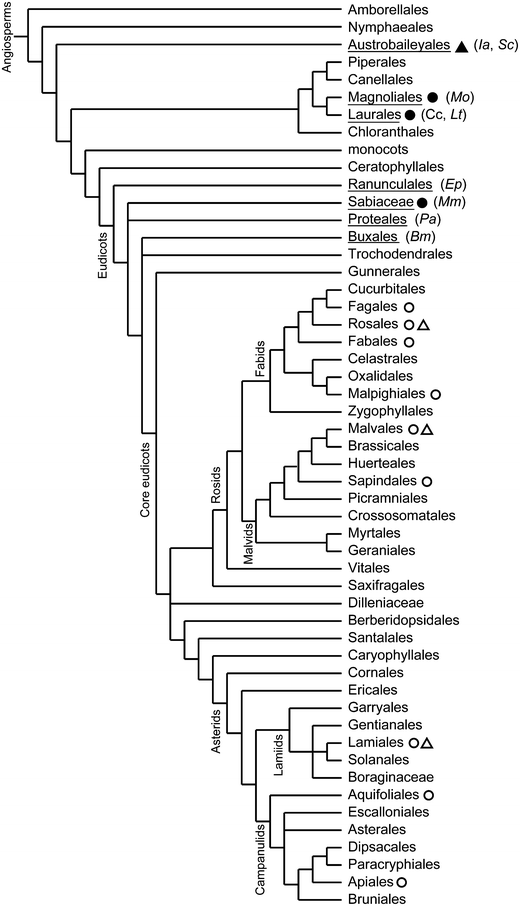

Nine species were selected on the basis of their positions on a phylogenetic tree according to Angiosperm Phylogeny Group (Fig. 1) [13] and the availability of material. The origins of the materials used are listed in Table 1. Discs of stems or blocks of the outer layer of sapwood were taken from one or two trees of each species. The specimens were stored in 30 % ethanol either after fixation in FAA (a mixture of 37 % aqueous solution of formaldehyde, acetic acid and 50 % ethanol; 7:3:90, v/v) or without such treatment. We found no apparent differences in terms of the structure of interfiber pit membranes between specimens that had been treated with FAA and those that had not been treated with FAA prior to storage in 30 % ethanol.
Field-emission scanning electron microscopy
Specimens were prepared by two techniques. For observations of the surface of pit membranes, we trimmed wood into blocks of approximately 5 × 5 × 5 mm3 after rinsing in distilled water while wood was still wet. We dehydrated the blocks in a graded ethanol series and air-dried them on the laboratory bench. Then, the wood blocks were split longitudinally along a radial or a tangential plane. To allow observations of complementary images of a divided pit pair, each pair of split samples was mounted on the same aluminum stub with electron-conductive carbon paste.
Sectional views of interfiber pits were also recorded since it was often difficult to confirm the nature of pit pairs on a longitudinal split face. For such observations, specimens were prepared by the method devised by Yumoto et al. [14]. In brief, cubic blocks of approximately 3 × 3 × 3 mm3 were cut from wood and embedded in methacrylate resin (a mixture of n-butyl methacrylate and methyl methacrylate, 1:1, v/v). A transverse or a tangential plane was exposed on an ultramicrotome with a glass knife. Then the methacrylate resin was removed by immersion in acetone and the specimen was air-dried.
Both types of specimen were coated with platinum by vacuum evaporation and examined with a field-emission scanning electron microscope (JSM-6301F; Jeol, Akishima) at an accelerating voltage of 2.5 kV.
Anatomical measurements
Diameters of interfiber pit membranes were measured for an examination of the relationship between the type of pit membrane and its size. Twenty-five pits were selected at random, and vertical and horizontal diameters of each pit membrane were measured on the monitor of the microscope under the same conditions as observations of specimens had been made after exposure of pits by splitting. For species in which we found different types of interfiber pit membranes, we calculated the frequency of each type of pit membranes. Such calculations were based on observations of 25–100 pit membranes.
Terminology
Classification of the various types of imperforate tracheary elements has been a matter of debate [15–18] and no consensus has yet been reached [9, 19]. Therefore, we use the generic term ‘wood fiber’ to include various types of imperforate tracheary elements, e.g., fibers with distinctly or minutely bordered pits according to IAWA Committee [19], or libriform fibers, fiber-tracheids and tracheids according to IAWA Committee on Nomenclature [20, 21].
Results
In each species examined, wood fibers were monomorphic in terms of the extent of pit borders and pit density, which have been traditionally considered as characters for distinguishing fiber types, except for Meliosma myriantha (Awabuki).
Species with perforated pit membranes
Perforated pit membranes were found in three of nine species examined (Table 1). The frequency of perforated pit membranes differed among species. In Cinnamomum camphora (Kusunoki), approximately 20 % of the interfiber pit membranes were perforated (Figs. 2, 3), while the remaining 80 % were densely packed with cell wall materials without any visible openings. In M. myriantha (Awabuki), dead fibers and septate fibers coexisted. Perforated pit membranes were occasionally visible between the dead fibers (Figs. 4, 5, 6) while pit membranes without visible openings were always present between septate fibers. The frequency of perforated pit membranes between dead fibers was approximately 20 %. In Magnolia obovata (Ho’onoki), more than 90 % of the interfiber pit membranes were perforated (Figs. 7, 8).
Species without perforated pit membranes
In six of the species examined, there were no perforated pit membranes but inter- and intraspecific variations in structure were found among the non-perforated pit membranes.
In Euptelea polyandra (Fusazakura), Illicium anisatum (Shikimi) and Platanus × acerifolia (Momijibasuzukakenoki), sheet-like pit membranes were always present between wood fibers (Table 1; Figs. 9, 10, 11). These pit membranes were thin-walled and lacked apparent intercellular layers. The porosity of the pit membranes differed among these species. In E. polyandra (Fusazakura), microfibrils were evenly deposited throughout the entire region, and minute openings of up to 50 nm in diameter were evenly distributed (Fig. 9). By contrast, microfibrils were sparsely deposited in small areas of the sheet-like pit membranes and openings of up to 200 nm in diameter were found in these areas in some of the interfiber pit membranes of I. anisatum (Shikimi) and P. × acerifolia (Momijibasuzukakenoki) (Figs. 10, 11). Such small porous zones tended to be located near the periphery of the pit membranes in I. anisatum (Shikimi) (Fig. 10) but no similar tendency was evident in P. × acerifolia (Momijibasuzukakenoki) (Fig. 11). The frequency of interfiber pit membranes with these small porous zones was approximately 50 % in I. anisatum (Shikimi) and approximately 30 % in P. × acerifolia (Momijibasuzukakenoki).
Sheet-like pit membranes were also observed between wood fibers of Buxus microphylla var. japonica (Tsuge) and Lindera triloba (Shiromoji) (Figs. 12, 13, 14, 15, 16, 17). Unlike the thin-walled pit membranes of the above-mentioned three species, the interfiber pit membranes in these two species were densely packed with cell wall materials and no openings were visible (Figs. 12, 13, 16). We observed intercellular layers in B. microphylla var. japonica (Tsuge) when we examined sections from this species (Fig. 14, arrow) but no intercellular layers were apparent in L. triloba (Shiromoji) (Fig. 15). In L. triloba (Shiromoji), pit membranes were often covered with granular and/or amorphous material (Figs. 16 and 17).
In Schisandra chinensis (Chosengomishi), torus-bearing pit membranes were commonly found between wood fibers (Figs. 18, 19, 20). Such torus-bearing pit membranes were frequently aspirated, with one side of the pit aperture being tightly sealed by tori (Fig. 20). The porosity of the margo region varied among individual pit membranes, and small porous zones resembling those in I. anisatum (Shikimi) were occasionally found. In S. chinensis (Chosengomishi), sheet-like or mesh-like pit membranes without tori were also present (Figs. 21, 22).
Diameter of pits

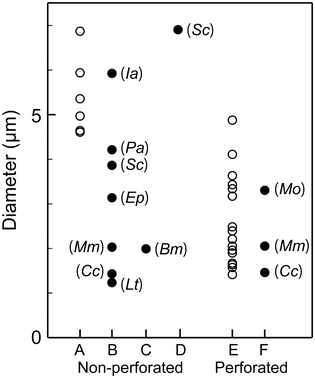

The diameters of pits with perforated pit membranes were consistently small, while those of pits with non-perforated pit membranes were variable (Table 1; Fig. 23). In S. chinensis (Chosengomishi), diameters of torus-bearing pit membranes were larger than those of pit membranes without tori (Table 1; Fig. 23). In C. camphora (Kusunoki) and M. myriantha (Awabuki), diameters of perforated pit membranes were similar to those of pit membranes without visible openings (Table 1; Fig. 23).
The results of this study are summarized in Fig. 23
Discussion
The presence of perforated pit membranes between wood fibers has been demonstrated in several taxa of core eudicots (Table 1) [8–12]. The present study of more ancestral groups of angiosperms revealed that perforated pit membranes between wood fibers also exist in such ancestral groups, although their frequency and morphology varied among species examined. Our results suggest that the presence of perforated pit membranes is not unusual even in ancestral groups of angiosperms. It is likely that this feature exists and will be found in increasing numbers of species from basal to derived groups of angiosperms.
According to previous studies, perforated pit membranes tend to occur in smaller interfiber pits while homogeneous pit membranes tend to occur in larger interfiber pits [8, 9]. A similar trend was noted in the case of perforated pit membranes in the present study. By contrast, it was obvious that homogeneous pit membranes were not exclusively present in larger pits. Densely packed pit membranes without any visible openings were always found in Buxus microphylla var. japonica (Tsuge) and Lindera triloba (Shiromoji) which have very small interfiber pits with an average vertical diameter of less than 2 μm. Moreover, the frequency of perforated interfiber pit membranes was lower than in Magnolia obovata (Ho’onoki) in both Cinnamomum camphora (Kusunoki) and Meliosma myriantha (Awabuki), in which diameters of pit membranes are smaller than in those in M. obovata (Ho’onoki). Clearly, the relationship between the type of pit membrane and the pit diameter is not straightforward.
The present study also indicated new finding of phylogenic distribution of torus-bearing pit membranes. To our knowledge, our observation of torus-bearing pit membranes in Schisandra chinensis (Chosengomishi) is the first record of this feature in this taxonomic group. Torus-bearing pit membranes in angiospermous species were first reported by Ohtani and Ishida [22], who found them in species in the genera Daphne (Thymelaceae) and Osmanthus (Oleaceae). To date, this kind of pit membrane has been found in species that belong to Cannabaceae, Oleaceae, Rosaceae, Thymelaceae and Ulmaceae [23–25]. All these five families are located within the taxonomic group of core eudicots (Fig. 1). The presence of torus-bearing pit membranes in basal angiosperms has not previously been reported [26]. However, it is not surprising that this feature is found in basal angiosperms because of the homoplastic nature of tori in angiosperms [27].
In view of recent examinations of the anatomical features of imperforate tracheary elements that are associated with their conductive properties, we can postulate that the wood fibers of the three species with sheet-like pit membranes contribute to water conduction while the wood fibers of the three species with perforated pit membranes do not [9]. Indeed, it has been reported that all or some of the xylem elements that surround vessels contribute to water conduction in Euptelea polyandra (Fusazakura), Illicium anisatum (Shikimi) and L. triloba (Shiromoji), whereas such xylem elements do not contribute to water conduction in M. myriantha (Awabuki) and Magnolia obovata (Ho’onoki) [28, 29]. Wood fibers of B. microphylla var. japonica (Tsuge) and S. chinensis (Chosengomishi) might contribute to water conduction but no relevant data are available, to our knowledge. In these two species, pit pairs were commonly found between vessel elements and wood fibers (data not shown). This anatomical feature is also closely associated with the conductive nature of wood fibers [9].
Wood fibers with perforated pit membranes are dehydrated after the cells are formed, whereas wood fibers with sheet-like pit membranes retain water in their lumina after formation [9]. It is likely that the presence of larger pores in the perforated pit membranes is an important factor of the dehydration, because the larger the pores of pit membranes, the easier the cavitation progresses from a cavitated cell to a water-filled cell, according to air-seeding [30]. The dehydration from lumina of wood fibers obviously results in reduction in weight of tree body. This is advantageous to relieve mechanical stresses like strong winds. Perforated pit membranes between wood fibers might help trees to grow higher.
Carlquist [31] regarded wood fibers of Schisandra species as “tracheids” according to IAWA Committee on Nomenclature [20, 21] because their lumina are wide, their pits are large, and the pit borders are extended. Wood fibers of E. polyandra (Fusazakura) and I. anisatum (Shikimi) are also regarded as tracheids because they also have similar morphological features of those of S. chinensis (Chosengomishi). By contrast, wood fibers of L. triloba (Shiromoji) are regarded as libriform fibers according to IAWA Committee on Nomenclature [20, 21] on the basis of the morphological features of their pits. In spite of this classification based on morphological features, it is indicated that wood fibers of E. polyandra (Fusazakura), I. anisatum (Shikimi) and L. triloba (Shiromoji) are water conductive [28]. The relationship between the morphology of pits and conductive capacity in wood fibers of vessel-bearing angiosperms might be rather complicated. More information about the structural variations among fiber pits and their association with conductive capacity might clarify issues related to the classification of wood fibers.
In the literature, anatomical descriptions of the wood fibers in M. obovata (Ho’onoki) are inconsistent. Some sources note that septate fibers are present [32] while others do not mention such fibers [33, 34]. Alternatively, Saiki [35] regarded septa that are found in wood fibers of M. obovata (Ho’onoki) as tyloses on the basis of their morphological features and infrequent occurrence in sapwood. In the present study, we found neither septa nor tylosis-like partition in wood fibers of M. obovata (Ho’onoki) during our observations by scanning electron microscopy. Therefore, we should not regard this feature as important in the identification of the wood of this species. Careful studies using sapwood and heartwood from various are needed to reveal the true nature of the septa found in wood fibers of M. obovata (Ho’onoki).
References
Harada H, Miyazaki Y, Wakashima T (1958) Electronmicroscopic investigation on the cell wall structure of wood. Bull For Exp Sta Meguro 104:1–115
Côté WA Jr (1958) Electron microscope studies of pit membrane structure, implications in seasoning and preservation of wood. For Prod J 8:296–301
Schmid R (1965) The fine structure of pits in hardwoods. In: Côté WA Jr (ed) Cellular ultrastructure of woody plants. Syracuse University Press, Syracuse, pp 291–304
Choat B, Cobb AR, Jansen S (2008) Structure and function of bordered pits: new discoveries and impacts on whole-plant hydraulic function. New Phytol 177:608–626
Pittermann J (2010) The evolution of water transport in plants: an integrated approach. Geobiology 8:112–139
Plavcová L, Hacke UG, Sperry JS (2011) Linking irradiance-induced changes in pit membrane ultrastructure with xylem vulnerability. Plant Cell Environ 34:501–513
Schulte PJ (2012) Computational fluid dynamics models of conifer bordered pits show how pit structure affects flow. New Phytol 193:721–729
Sano Y, Jansen S (2006) Perforated pit membrane in imperforate tracheary elements of some angiosperms. Ann Bot 97:1045–1053
Sano Y, Morris H, Shimada H, Ronse De Craene PP, Jansen S (2011) Anatomical features associated with water transport in imperforate tracheary elements of vessel-bearing angiosperms. Ann Bot 107:953–964
Thomas RJ (1976) Anatomical features affecting liquid penetrability in three hardwood species. Wood Fiber 7:256–263
Sano Y, Fukazawa K (1993) Structural variations and secondary changes in pit membranes in Fraxinus mandshurica var. japonica. IAWA Bull New Ser 15:283–291
Zhang C, Abe H, Sano Y, Fujiwara T, Fujita M, Takabe K (2009) Diffusion pathways for heartwood substances in Acacia mangium. IAWA J 29:37–48
Angiosperm Phylogeny Group (2009) An update of the angiosperm phylogeny group classification for the orders and families of flowering plants: APGIII. Bot J Linn Soc 161:105–121
Yumoto M, Ishida S, Fukazawa K (1982) Studies on the formation and structure of the compression wood cells induced by artificial inclination in young trees of Picea glauca. 2. Transition from normal to compression wood revealed by a SEM-UVM combination method. J Fac Agric Hokkaido Univ 60:312–335
Baas P (1986) Terminology of imperforate tracheary elements—in defense of libriform fibres with minutely bordered pits. IAWA Bull New Ser 7:82–86
Carlquist S (1986) Terminology of imperforate tracheary elements. IAWA Bull New Ser 7:75–81
Carlquist S (1986) Terminology of imperforate tracheary elements. A reply. IAWA Bull New Ser 7:168–170
Baas P, Magendans JFC (1999) Review and debate: hardwood fibre pits—again! IAWA J 20:456–459
Committee IAWA (1989) IAWA list of microscopic features for hardwood identification by an IAWA Committee. IAWA Bull New Ser 10:219–332
IAWA Committee on Nomenclature (1964) Multilingual glossary of terms used in wood anatomy. Verlagsanastalt Buchdrukerei Konkordia, Winterthur
Japan Wood Research Society (1975) International glossary of terms used in wood anatomy. Mokuzai Gakkaishi 21(9):A1–A21
Ohtani J, Ishida S (1978) Pit membrane with torus in dicotyledonous woods. Mokuzai Gakkaishi 24:673–675
Dute R, Patel J, Jansen S (2010) Torus-bearing pit membranes in Cercocarpus. IAWA J 31:53–66
Dute R, Jandrlich MD, Thornton S, Callahan N, Hansen CJ (2011) Tori in species of Diarthron, Stellera and Thymelaea (Thymelaeaceae). IAWA J 32:54–66
Dute R, Elder T (2011) Atomic force microscopy of torus-bearing pit membranes. IAWA J 32:415–430
Carlquist S (2009) Xylem heterochrony: an unappreciated key to angiosperm origin and diversifications. Bot J Linn Soc 161:26–65
Jansen S, Sano Y, Choat B, Raebaey D, Lens F, Dute RR (2007) Pit membranes in tracheary elements of Rosaceae and related families: new records of tori and pseudotori. Am J Bot 94:503–514
Umebayashi T, Utsumi Y, Koga S, Inoue S, Fujikawa S, Arakawa K, Matsumura J, Oda K (2008) Conducting pathways in north temperate deciduous broadleaved trees. IAWA J 29:247–263
Umebayashi T, Utsumi Y, Koga S, Inoue S, Matsumura J, Oda K, Fujikawa S, Arakawa K, Otsuki K (2010) Xylem water-conducting patterns of 34 broadleaved evergreen trees in southern Japan. Trees 3:571–583
Zimmermann MH (1983) Xylem structure and the ascent of sap. Springer, Berlin
Carlquist S (1999) Wood and bark anatomy of Schisandraceae: implications for phylogeny, habit, and vessel evolution. Aliso 18:45–55
Ito T (1996) Anatomical description of Japanese hardwoods II. Wood Res Tech Notes 32:66–176
Ohtani J (2000) Wood micromorphology. Hokkaido University Press, Sapporo
FFPRI Microscopic Identification of Japanese Woods [http://f030091.ffpri.affrc.go.jp/IDB-E/home.php]. Accessed 10 May 2012
Saiki H (1982) The structure of domestic and imported woods in Japan: an atlas of scanning electron micrographs. Japan Forest Technical Association, Tokyo
Acknowledgments
The authors thank Mr. K. Kubota, Mr. Y. Kabemura and Ms. S. Inoue (Miyazaki Research Forest, Kyushu University) for assistance with the collection of samples. This work was supported by Grants-in-Aid for Scientific Research from JSPS, Japan (nos. 18580158 and 23580223).
