Official Journal of the Japan Wood Research Society

  • Original article
  • Published:

Surface deterioration of wood plastic composites under outdoor exposure

Abstract

Outdoor exposure tests of wood plastic composites (WPCs) were conducted at seven sites in Japan. The tests examined the process of chalking on the surface of the WPCs and the weather factors affecting chalking. Observations using a scanning electron microscope and a polarization optical microscope (POM), analyses of Fourier transform infrared spectroscopy, as well as differential scanning calorimetry showed that the deterioration of both wood and polyolefin elements occurs on the surface of WPCs. The POM observations revealed that surface sanding of WPCs in the manufacturing process promoted more chalking. Furthermore, it became clear that among the weather conditions studied, temperature and global solar radiation had the greatest influence on chalking, as determined from the results of single regression analysis.

Introduction

Recently, wood plastic composites (WPCs) have attracted considerable attention as materials with the combined characteristics of wood and plastic [1, 2]. WPCs are manufactured as easily as plastic, by extrusion molding. In addition, because ligneous wastes and recycled plastic can be used as raw materials, WPCs are favored from an environmental perspective [3]. In 2010, the global production of WPCs was about 1540000 tons per year, with 980 000 tons in the United States, 300000 tons in China, 167000 tons in Europe, and 21000 tons in Japan [4].

As WPCs are primarily used on exteriors, concerns about their water resistance and decay resistance have increased. It is clear that water resistance and decay resistance depend on the proportion of wood in WPCs [5–7]. Water and decay resistance decline remarkably, especially on the surface of WPCs, when the proportion of wood is more than 50 % [6–8].

Recently, the durability of WPCs has been a topic of growing interest, with several reports on the decrease in strength and surface deterioration [9–11]. A large scale outdoor exposure test is effective for evaluating the influence of weather factors on the durability of wood-based composites [12–14]. However, there have been few examples of such tests using WPCs [15]. Furthermore, little attention has been paid to research on the occurrence of chalking, which is one of the surface deterioration phenomena of WPCs [16]. Chalking is a phenomenon through which powders separate from the surface of WPCs. Chalking is seldom a problem when WPCs are used as decking, because it affects only footwear. So some commercial products of WPCs improved chalking generation using photo stabilizers or reducing wood content of the surfaces. However, the mechanism of chalking has not been cleared.

This study is aimed at explaining the principal causes of chalking in WPCs. Outdoor exposure tests of WPCs were carried out at seven sites in Japan, and the process of chalking with respect to various weather factors was investigated.

Materials and methods

Samples

The raw materials of the WPCs used in this research were building wood waste and recycled plastic (polyolefin). The ratio of wood flours to polyolefin [polyethylene (PE) and polypropylene (PP)] was about 55:45 (w/w). About 5 % of compatibilizers and pigments were added. But any photo stabilizers such as UV absorbers (UVA) or hindered amine light stabilizers (HALS) were not added because of easy generation of chalking. Test specimens used in this study were made by the extrusion method. Sanding was then carried out on the surface of the WPCs to give the appearance of wood. The specimens with a size of 145–174 (longitudinal) × 70 (width) × 7 mm (thickness) were prepared from the 30 mm thick commercial hollow decks. Polyethylene reference samples, PE-RS (Japan weathering test center [17, 18]), were prepared to evaluate the oxidation–degradation of polyolefin in WPCs. The PE-RS were exposed outdoors at the same sites that were used for the WPCs outdoor exposure tests.

Outdoor exposure tests at seven sites in Japan

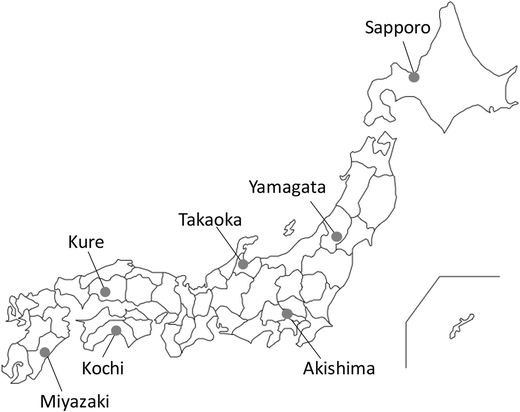

The WPCs and PE-RS were subjected to outdoor exposure tests at seven sites in Japan (Fig. 1): Sapporo (43°N, 141°E), Yamagata (38°N, 140°E), Akishima (36°N, 139°E), Takaoka (37°N, 137°E), Kure (34°N, 133°E), Kochi (34°N, 134°E), and Miyazaki (32°N, 131°E). The annual average temperature, annual sunlight hours, and annual precipitation are listed in Table 1. These data were obtained from the Japan meteorological agency observation sites cloth to the test sites. The monthly average temperature, monthly sunlight hours, and monthly precipitation over the two-year test duration are shown in Fig. 2. Average temperatures of the snow sites (Sapporo, Yamagata, and Takaoka) were lower than those of the other sites. Sunlight hours were greater at lower latitudes, with the exception of Yamagata and Takaoka. Yamagata and Takaoka had fewer sunlight hours compared to Sapporo. Takaoka, Kochi, and Miyazaki had high precipitation levels.

Fig. 1
figure 1

Map of the outdoor exposure test sites in Japan

Table 1 Weather conditions of the seven test sites in Japan

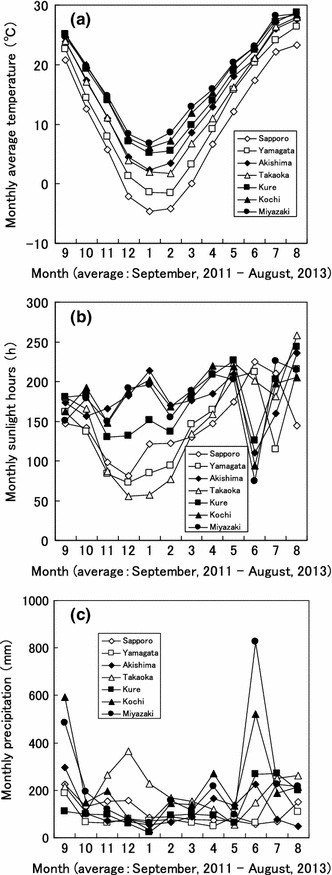

Fig. 2
figure 2

Climate conditions at the seven test sites. a Monthly average temperature, b monthly sunlight hours, c monthly precipitation

The WPCs and PE-RS were set facing the south. Exposure angles were 45° for Sapporo, Yamagata, Akishima, Takaoka, and Kochi, and to latitude—10° for Kure and Miyazaki. The WPCs and PE-RS were placed on a test frame, and the outdoor exposure tests were started on August 24 or 25, 2011, and lasted for 2 years. The WPCs were removed from test rack after 3, 6, 9, 12, and 24 months of exposure. The PE-RS were exchanged for new specimens every month during the exposure period of 2 years.

Evaluation of chalking

WPCs surface abrasion tests were used to evaluate the extent of chalking [19]. Abrasion was conducted manually using a finger wrapped in white cloth. Abrasion was carried out once for each specimen, and the distance moved by the finger was set at 80 mm. The pressure of abrasion was approximately 72 kPa. The white cloth used was measured for color before and after the abrasion tests, using a spectrophotometer (X-Rite, SP88) that reads L *, a *, and b * values in the CIE-LAB system. The color differences (ΔE * ab) were calculated using Eqs. (1)–(4).

$$ \Delta L^{ * } = L_{n}^{ * } - L_{0}^{ * } $$
(1)
$$ \Delta a^{ * } = a_{n}^{ * } - a_{0}^{ * } $$
(2)
$$ \Delta b^{ * } = b_{n}^{ * } - b_{0}^{ * } $$
(3)
$$ \Delta E^{ * } ab = \{ (\Delta L^{ * } )^{2} + (\Delta a^{ * } )^{2} + (\Delta b^{ * } )^{2} \}^{1/2} $$
(4)

The number of specimen was two in each exposure test site. The measurement points of the WPCs were set at one point for each specimen, and the means were calculated. The resulting ΔE * ab values were defined as the extent of chalking [19].

Polyethylene carbonyl index

Fourier transform infrared spectroscopy (FT-IR) spectra of the PE-RS were obtained by measuring the transmittance (THERMO Scientific, Nicolet 6700 FT-IR), which was then converted to absorbance. All the spectra obtained were the averages of 24 scans at 4 cm−1. Absorbance of the 1715 cm−1 wave number, which corresponds to a carbonyl functional group, and absorbance of the 2020 cm−1, which corresponds to a methylene functional group, were calculated. The polyethylene carbonyl index (PE-CI) was calculated using Eq. (5) and Fig. 3 [17, 18].

$$ {\text{PE-CI }} = \, A_{1715} /A_{2020} $$
(5)

where, A 1715 is the absorbance of the nearby 1715 cm−1, A 2020 is the absorbance of the nearby 2020 cm−1. Each absorbance was calculated from Eq. (6).

$$ A = I - I_{0} $$
(6)

where, I is the absorbance of each wave number, I 0 is the absorbance of the base line in each wave number, as shown in Fig. 3.

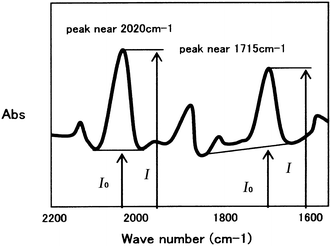

Fig. 3
figure 3

Measurement method for the polyethylene carbonyl index (PE-CI) [17, 18]

Analysis of the surface deterioration

Scanning electron microscope (SEM)

Scanning electron microscope observations were carried out to evaluate the shape of the chalking products. The surfaces of the WPCs exposed outdoors in Yamagata for 12 months (Yamagata 12 months) were placed in contact with conductive tape. The chalking products, which stuck to the tape, were observed using the low vacuum mode of the SEM without metal evaporation (FEI, Quanta400).

Polarization optical microscope (POM)

Polarization optical microscope observation was carried out to verify the dispersion of wood elements and polyolefin on the surface of the WPCs before and after the outdoor exposure. Films with a thickness of 30 μm were cut off from the vertical cross-sections of the extrusion direction of the WPCs [Yamagata 12 months and the original (un-exposed specimen)] using a rotary type microtome. The films were observed using a polarization microscope (Olympus BH2).

Fourier transform infrared spectroscopy analysis

FT-IR-ATR analysis was carried out to investigate the change in the main functional group on the surface of the WPCs before and after the outdoor exposure. The surface of the Yamagata 12 months and the un-exposed specimens were measured by FT-IR-ATR (PerkinElmer, Frontier Gold FTIR). All the spectra obtained were the averages of 8 scans at 4 cm−1.

Differential scanning calorimetry analysis (DSC)

Differential scanning calorimetry analysis was carried out to obtain information on the deterioration of the polyolefins on the surface of the WPCs before and after the outdoor exposure. Films with a thickness of approximately 50 μm were cut off from the surface of the WPCs (Yamagata 12 months and the original) with an ultra-microtome, and measured by DSC (PerkinElmer, DSC8500) under a nitrogen atmosphere. The film specimens were heated to 200 °C at a rate of 10 °C/min (1st heating) and kept at that temperature for 3 min. They were then cooled down to 30 °C at a rate of 10 °C/min and kept at that temperature for 3 min. And they were finally heated up to 200 °C (2nd heating).

Results and discussion

Results of the outdoor exposure test

Chalking

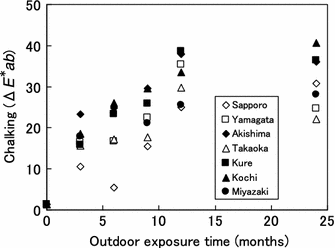

Figure 4 shows the extent of chalking for the different specimens. The data from cold areas (Sapporo, Yamagata, and Takaoka) and warm areas (Akishima, Kure, Kochi and Miyazaki) were plotted as outlined symbols and filled symbols, respectively. The color difference of chalking (ΔE * ab) continued to increase for up to 1 year of outdoor exposure. After 1 year, ΔE * ab was saturated. The tendency of ΔE * ab to change can be compared in the cold areas and the warm areas.

Fig. 4
figure 4

Comparison of chalking (ΔE * ab) among the outdoor exposure test sites. Outlined symbols cold area, filled symbols warm area

Figure 5 shows the relationship between ΔE * ab and various weather factors [(a) sum of daily average temperatures, (b) sum of daily global solar radiation, and (c) sum of daily precipitation] during one year of outdoor exposure. Data from the Japan Meteorological Agency were adopted for each weather condition [20]. Global solar radiation was adopted as a substitute for sunlight hours, as more accurate analytical results can be expected compared to sunlight hours. However, global solar radiation data on Akishima, Takaoka, and Kure did not exist in the database of the Japan Meteorological Agency. Therefore, the global solar radiation for these regions was estimated using the number of sunlight hours and the latitude [21]. Single linear regression analysis was then performed on the data. The coefficients of determination were 0.80, 0.79, and 0.53 for the (a) sum of daily average temperature, (b) sum of daily global solar radiation, and (c) sum of daily precipitation, respectively.

Fig. 5
figure 5

The relationship between chalking (ΔE * ab) and various weather factors during 1 year of outdoor exposure. a Sum of daily average temperatures, b sum of daily global solar radiation, c sum of daily precipitation

From these results, it was determined that temperature and global solar radiation had the greatest influence on chalking.

Polyethylene carbonyl index

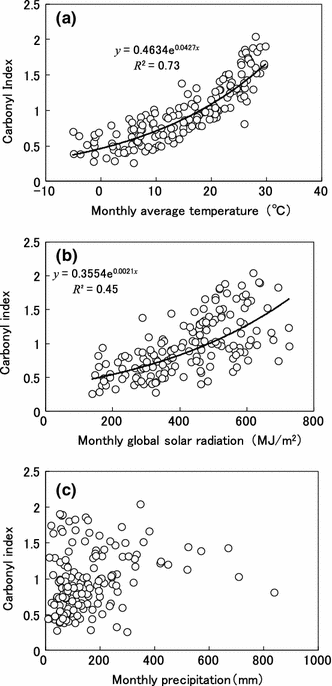

Figure 6 shows the relationships between the PE-CI and various weather factors during 2 years of outdoor exposure: (a) monthly average temperature, (b) monthly global solar radiation, and (c) monthly precipitation. A regression curve was applied to the data on PE-CI and the monthly average temperature (Fig. 6a) [22], and the coefficient of determination was 0.73. As shown in Fig. 6b, the PE-CI increased with an increase in global solar radiation, although the coefficient of determination was much lower (0.45) compared to the monthly average temperature. On the other hand, no correlation was found between PE-CI and monthly precipitation (Fig. 6c). From these results, it was found that the temperature had the greatest influence on the oxidative reaction of PE, which suggests that the same effect occurs on polyolefin elements in WPCs.

Fig. 6
figure 6

The relationship between the polyethylene carbonyl index and various weather factors during outdoor exposure for 2 years. a Monthly average temperature, b monthly global solar radiation, c monthly precipitation

Analytical results of the surface deterioration layer

SEM

Figure 7 shows an SEM image of the chalking products of the Yamagata 12 months specimen. Fibrous substances with a length of about 200 μm and particulate matter under 50 μm in diameter were observed. In a previous study, in which chalking products were measured with IR [16], it was suggested that the chalking products might be composed of wood elements and plastic elements. This SEM image thus showed that both wood elements and plastic elements came from the surface of the WPCs.

Fig. 7
figure 7

SEM image of the chalking products generated from the surface of the WPCs (Yamagata 12 months)

POM

Figure 8 shows POM images of the surface of the WPCs (Yamagata 12 months and the original). Particles that have a light color are polyolefins. Particles that are dark in color were assumed to be wood elements or compound areas consisting of wood and polyolefin elements.

Fig. 8
figure 8

POM images of the surfaces of the WPCs. a The original, b Yamagata 12 months specimen

The surface of the original specimen already had some roughness. However, surface roughness increased when subjected to outdoor exposure.

FT-IR

Figure 9 shows FT-IR spectra of the surface of the WPCs (Yamagata 12 months and the original). The peak near 1720 cm−1 increased a little after 1 year of outdoor exposure. This implies that oxidation of both wood and polyolefin occurred [23]. The peak at 1509 cm−1 almost disappeared after outdoor exposure. This implies that degradation of lignin occurred.

Fig. 9
figure 9

FT-IR-ATR spectra of the WPCs

DSC

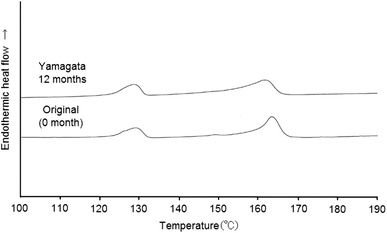

Figure 10 shows DSC 2nd heating curves of the approximately 50 μm thick films cut off from the surfaces of the WPCs (Yamagata 12 months and the original). Peaks at nearly 129 °C and 163 °C correspond to the melting temperature of PE and PP, respectively. The peak due to the melting of PE was relatively unchanged by outdoor exposure, whereas the peak due to the melting of PP became broader. Furthermore, the peak temperature of PP decreased by 1.6 °C. These results suggest that molecular weight of PP decreased.

Fig. 10
figure 10

DSC second heating curves of the WPCs

Factors responsible for the occurrence of chalking

Factors responsible for the occurrence of chalking were determined from statistical analyses of chalking and PE-CI by various weather factors, and from results of SEM, POM, FT-IR and DSC. Chemical degradation of lignin begins on the surface of WPCs due to outdoor exposure. As for polyolefins, an oxidative reaction occurs in both PE and PP. However, PP deteriorates more easily than PE, and the molecular weight of PP decreases. The bond strength between polyolefin (especially PP) and the wood elements decreases. It has already been shown that separation products are easily formed from the surface of WPCs before outdoor exposure by surface sanding. In addition, the surface of WPCs becomes rougher due to outdoor exposure. Therefore, it is believed that chalking occurs due to the combined effect of the deterioration reaction and the sanding process when an abrasive force is added to the surface.

Temperature and global solar radiation have the greatest influence on the occurrence of chalking. These are likely to be because the oxidation reaction on the surface of WPCs is more susceptible to temperature and chemical degradation of lignin and a decrease of the molecular weight of PP is more susceptible to global solar radiation.

There was almost no difference in the amount of chalking between 1 and 2 years of exposure (Fig. 4). A similar saturation phenomenon was reported in a previous study on the change in oxygen content on the surface of a Japanese lacquer film, as measured by an outdoor exposure test [24]. The oxides were gradually eroded off the surface of the Japanese lacquer film due to wind and rain [24]. Therefore, it is assumed that the same phenomenon may have occurred in the case of the WPCs. Initially, the amount of oxides eroded by the wind and rain in the absence of frictional forces increased after an exposure period of 1 year. Next, deterioration began in the areas where the oxides were eroded by wind and rain, which resulted in new chalking products on the surface. Finally, the amount of chalking measured by frictional examination settled down to a certain fixed value.

Conclusions

Outdoor exposure tests of WPCs were carried out at seven sites in Japan, and chalking on the surface of the WPCs was examined. It was determined that deterioration of wood elements, oxidation of polyolefins, and a decrease in the molecular weight of PP occurred on the surface of the WPCs. Surface sanding of the WPCs also promoted the occurrence of chalking. Furthermore, the results of a single regression analysis indicated that temperature and global solar radiation were the most dominant weather factor influencing chalking. In addition, chalking products can be washed away to a certain extent due to precipitation.
