Hydrogen cyanide for treating wood against pine wood nematode (Bursaphelenchus xylophilus): results of a model study
Journal of Wood Science volume 61, pages 204–210 (2015)
The pine wood nematode (Bursaphelenchus xylophilus) belongs to economically most important quarantine plant parasitic nematodes in Asia and Europe. As wood transported within the international trade plays major role in B. xylophilus spreading into new areas, attention should be given to wood treatment. With methyl bromide ban in the EU in 2000 new chemicals should be investigated. This work describes results obtained from model fumigation of hollow wooden blocks containing B. xylophilus nematodes in sawdust with gaseous hydrogen cyanide (HCN). Data considering HCN concentration in gas chamber and treated wooden blocks are also presented; HCN concentrations inside wooden blocks were recounted to ct product values which show irregular sorption of HCN by the wood. Total B. xylophilus mortality was observed in the variants treated with the initial HCN concentration of 12.30 g m−3 and exposure times from 8 to 20 h, 18.21 g m−3 and exposure times of 2, 4, 6, 10 and 16 to 20 h, 21.71 g m−3 and exposure times of 12, 18 and 20 h and 24.12 g m−3 and exposure times of 2, 6, 12 and 18 h. Results show overall good efficiency of HCN treatment on B. xylophilus mortality, however, research on naturally infested wood should be desirable.
Goods exchanges play major roles in spreading quarantined pest organisms. This is especially true for wood-borne pests, which can also be transported within the packing wood. A major pest that can be transported this way is the pine wood nematode (Bursaphelenchus xylophilus). This nematode species currently presents a major threat to pine trees in large parts of Europe  and East Asia . B. xylophilus originates from North America, where it lives in the local conifers from the genus Pinus without causing any substantial damage . However, bringing the B. xylophilus nematode to Japan during the beginning of the 20th century has led to widespread mass devastation of the local pines. From the end of World War II to 2002, pine wilt disease caused the loss of 26 million m3 of timber in Japan. The B. xylophilus nematode was first isolated and described as the cause of pine tree damage from the timber of Japanese black pine (Pinus thunbergii) as late as 1969 . The presence of B. xylophilus in Japan is presumed to come from the United States, where this species was initially described in 1934 as one of many parasites of pines .
The presence of B. xylophilus was also identified in other Asian countries in the 1980s (Taiwan, 1985; China and South Korea, 1989) . B. xylophilus occurrence was described in Europe in 1999 and in Portugal on Pinus pinaster . The presence of B. xylophilus in Europe prompted the European Plant Pathology Organization (EPPO) to immediately include the species in its A1 list of pests recommended for regulation as quarantine pests.
The range of hosts for B. xylophilus include conifers from the genus Pinus (nigra, silvestris, pinaster, thunbergii, bungeana, densiflora, luchuensis) and conifers from other genera that could be inhabited, even in the absence of damage by B. xylophilus—e.g., Picea sp., Pseudotsuga sp. Picea sp., Larix sp., Abies sp., Cedrus sp. [1, 7, 8]. For susceptible Pinus species, the nematodes can destroy a fully grown tree within several weeks. The life cycle of B. xylophilus includes development through the phytophagous and mycophagous phases and their transport by beetle vectors—especially sawyer beetles from the genus Monochamus [7–12]. Passive transport of the nematodes in infested wood is crucially important when considering the spread of B. xylophilus on an international scale. Thus, wooden pallets, shipping crates and construction timber can easily transport B. xylophilus .
A triangular system that encompasses pine trees, nematodes and its vector is a perfect system for B. xylophilus survival and spreading and makes most pest management measures ineffective. Even if extensive research of the flight traps intended to capture B. xylophilus insect vectors is conducted [14–16] with promising results according to authors’ opinion vector targeting management techniques could be used rather for B. xylophilus monitoring than direct tree protection. Chemical treatment aimed at protecting pine trees in affected countries is expensive and does not persist long. The only option is then the absolute decontamination of the affected area, which involves removing all of the host trees, including the roots, and establishing an extensive quarantine zone .
Thus, preventive measures are key to dealing with the possibility of B. xylophilus introduction into unaffected areas. Heat treatment of timber transported across borders was designed and described by EPPO standard no. PM 10/6 . This type of treatment requires heating the core of the treated wood to at least 56 °C  for at least 30 min. However, this could be difficult to successfully perform with large logs. This technique also requires special facilities that are energetically expensive and complicated, especially when bulky construction timber has to be treated. The quality changes of the treated wood could also be problematic, in addition to the overall efficiency of the heat treatment technique [20, 21]. Therefore, alternative techniques for treating timber should be investigated.
Considering that chemical methyl bromide application is phased out by most industrial countries, no chemical is currently routinely used for B. xylophilus management. Experimental work now focuses on chemicals such as sulphuryl fluoride , methyl iodide  as fumigation agents or copper sulphate as liquid treatment . Gaseous hydrogen cyanide (HCN) possesses certain advantages over other chemicals: it is naturally occurring, it is lighter than air gas and thus easy to ventilate after treatment, HCN’s simple molecular structure makes it highly permeable in plant material and its considerable reactivity results in its rapid degradation without any undesirable residues. Currently, HCN is routinely used for fumigating food production and storage facilities [21, 25]. The main disadvantage of HCN in treating wood-borne organisms is its extreme acute toxicity to warm-blooded organisms, so treatment with HCN places a high demand on the staff. However, these drawbacks could be mitigated by ensuring that only trained workers interact and carefully handle HCN .
The main aim of this study was to evaluate the efficiency of the gaseous hydrogen cyanide treatment on pine wood nematode (B. xylophilus) mortality in a model experimental system. Because HCN affects the mortality of the free-living nematode Caenorhabditis elegans and of B. xylophilus was recently demonstrated [21, 27], this work focuses more precisely on different HCN concentrations and exposition times necessary to kill B. xylophilus in wood. Four HCN concentrations and ten exposition periods were tested. The experimental design enabled us to measure the HCN concentrations during treatment.
Materials and methods
Fumigation chamber, sample preparation and experimental design
All experiments were performed in a fumigation chamber localised within the Draslovka Kolín a.s.—the only European industrial manufacturer of gaseous HCN (trade name Uragan D2). The experiments were conducted in a stainless steel gas chamber (volume 650 l) equipped with forced ventilation, an air lock and glove manipulators, which enabled gas withdrawal from the samples and measurement of HCN concentrations using gas chromatography (Shimadzu GC-17A, RT-QPLOT, 30 m, ID 0.53 mm, GC Software Clarity DataApex). The GC method is based on comparing the detector response from the sample with an external standard with a known concentration. 0.5 vol.% HCN in nitrogen was used as the standard (Linde Gas). Four HCN concentrations in the gas chamber were tested: 12.30, 18.21, 21.71 and 24.12 g m−3 in exposition times 2, 4, 6, 8, 10, 12, 14, 16, 18 and 20 h.
B. xylophilus individuals were obtained from in vitro cultures on Botrytis cinerea fungus maintained on MEA medium. Two weeks after inoculation on B. cinerea, the nematodes were extracted from the fungal mycelium using Baermann’s funnel extraction technique. Extracted nematodes were concentrated and transferred into fresh water to ensure their viability for subsequent experiments.

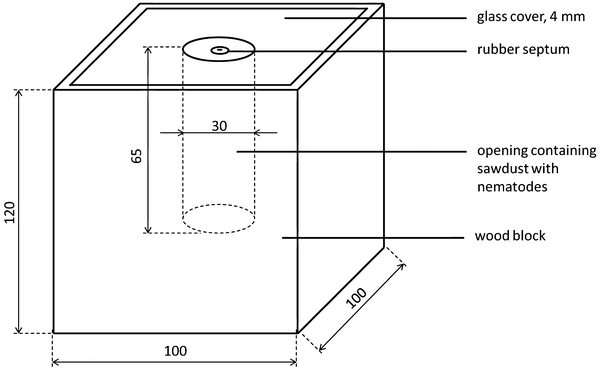

Pinewood sawdust was prepared by sawing P. sylvestris logs using a chainsaw. Two grams of sawdust (average moisture content 6.7 % with standard deviation 0.7) were inserted into Uhelon fabric bags with a mesh size of 18 µm to allow HCN free access to the sawdust and to restrict the possibility of spreading the nematodes from bags. 2 ml of tap water was pipetted into bags containing the sawdust to ensure that there was sufficient moisture in the bags for nematode survival. The moisture content of the sawdust was measured during sample preparation and evaluation using the data loggers. On average, moister content of sawdust containing nematodes was 32.30 % 2 h after inserting into gas chamber and 21.69 after 24 h lasting exposition (Table 1). Next, 500 µl of the nematode suspension containing approximately 1200 B. xylophilus individuals was pipetted into each bag. A magnetic stirrer was used during inoculation to ensure inoculum homogeneity. No water drops were observed on the bottom of the bags; whole volume of 2.5 ml of water was absorbed into sawdust as is apparent from its moisture content (Table 1). Next, the bags were sealed using steel wire and inserted into hollow spruce blocks (100 × 100 × 120 mm) covered by glass containing a silicon septum. The glass was fitted to the wood block using HCN impenetrable glue (Fig. 1). Five replicates were prepared for each exposition time and HCN concentration.
Sample treatment and evaluation
Prepared wood blocks containing the nematodes were transferred into a gas chamber and exposed to HCN at specific concentrations and exposure times at 24 °C. Because of the fumigation chamber, capacity samples were treated always in two separate batches, 1st from 2 to 10 h, 2nd from 12 to 20 h. HCN was introduced into the chamber in a liquid form, and vapours of the desired concentration were produced. HCN samples were withdrawn during treatment using the air lock and septum on the glass seal of the wood block, and the HCN concentrations were established using gas chromatography. The HCN concentration inside the gas chamber was also measured. After treatment, the HCN was ventilated from the blocks, the glass seals were crushed, the bags with sawdust and nematodes were removed and the nematodes were extracted from the sawdust for 24 h using Baermann’s extraction technique. The obtained suspensions were surveyed using the stereomicroscope, and the nematodes were quantified. An untreated control variant was prepared in the same manner, and the control samples were placed next to the gas chamber during treatment of the experimental ones. The nematode numbers were expressed as the means of surviving nematodes. Cumulative Ct product values expressing effectiveness of a fumigant (concentration × time presented in g hm−3) for the wooded blocks were calculated separately for both series of concentration measurements (2–10 h and 12–20 h) according to the following formula , where T n is the time the first reading was taken in hours, T n+1 is the time the second reading was taken in hours, C n is the concentration reading at T n in g m−3, T n+1 is the concentration reading at T n+1 in in g m−3 and Ct n,n+1 is the calculated Ct product between T n and T n+1, in g hm−3:
Calculated cumulative Ct product values underwent basic statistical analysis (Statistica 12, StatSoft, Inc., Tulsa, OK, USA, 2013).
Results and discussion
The results demonstrated that HCN possesses an overall good efficiency as a nematode killing agent. All data considering nematode survival are presented in Table 1. The HCN treatment almost completely removed the nematode population; the overall mortality obtained was between 99.00 and 100 %. A complete nematode mortality was observed in the variants treated with the initial HCN concentration of 12.30 g m−3 and exposure times from 8 to 20 h, 18.21 g m−3 and exposure times of 2, 4, 6, 10 and 16–20 h, 21.71 g m−3 and exposure times of 12, 18 and 20 h and 24.12 g m−3 and exposure times of 2, 6, 12 and 18 h. In all cases where living nematodes were present at the time of extraction, no more than four individuals were identified thus indicating that no reproduction of nematodes occurred after treatment.

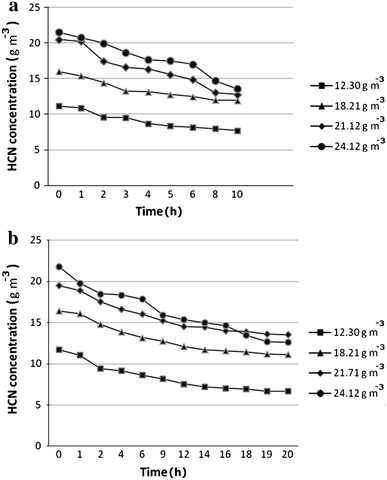

The HCN concentration inside the gas chamber decreased almost constantly (Fig. 2a, b) with gas sorption into wooden blocks. However, some HCN concentration variations occurred in the second half of the exposure periods with the HCN concentrations 18.21 and 21.71. The HCN concentration in the experimental wooden blocks varied substantially, though the observed variations did not considerably affect nematode mortality.
Considering the experiment design we can conclude that the methods used in this study are suitable for researching the nematicidal properties of HCN. The system used to maintain nematodes in sawdust worked well because nematodes in the untreated control survived the experiment period (Table 1). They appeared healthy and even multiplied if gravid females were present. Under no circumstances the moisture content of the sawdust was lower than 15 % during treatment—the level which correlates with nematode population decline .
Hydrogen cyanide possesses a strong potential as a nematode killing agent. The treatment was effective, even at the lowest concentration and shortest exposure times in this study. A fact that living nematodes were detected after treatment with highest HCN dose even if in minimal numbers could be connected with temperature in fumigation treatment and higher presence of eggs in samples at temperatures around 20 °C as was probably observed by  in the case of fumigation with sulfuryl fluoride. According to our results longer exposition periods would be desirable for B. xylophilus eggs treatment using the HCN. The high permeability of HCN, which was apparent from the concentrations measured in this study (Tables 2, 3), causes a relatively high sorption of the gas into the treated wood. This is advantageous when designing treatment protocols, especially if large volumes will need to be treated. Some varying HCN concentrations in wooden blocks during the experiment could be explained solely by the different wood structures of the separate wood blocks used in the experiments and fluctuation of the absorption of the gas in wood because the gas chamber is made of non-absorbing material and is perfectly sealed. The wood from younger trees with denser annual rings likely absorbs HCN less readily. This fact should be considered when planning model fumigation experiments. Ct product values (Tables 2, 3) show that establishment of the HCN concentration in sample wood blocks was rather fast, especially in the cases of higher initial HCN concentrations 21.71 and 24.12 g m−3. From this reason no expected linear increase of nematode mortality in consequence of longer exposition and higher HCN concentration was observed. Hydrogen cyanide concentrations inside the fumigation chamber (Fig. 2a, b) show clearly sorption of the HCN into wooden blocks and decreasing of the HCN concentration in the chamber.
Earlier experiments have demonstrated the nematicidal effects of HCN against free-living Caenorhabditis elegans , where 100 % mortality was observed after 270 min of HCN exposure at 7 g m−3. The nematicidal properties of gaseous HCN against B. xylophilus were observed earlier . In this case, no living nematodes were observed after 18 h of HCN exposure at 20 g m−3or after 40 h of exposure at 10 g m−3. Similar results were obtained in this study with one substantial exception—in two cases, living B. xylophilus individuals were observed after 20 h of HCN exposure at 24.12 g m−3. This exception could be caused by different nematode numbers used in the experiments. Only 450 nematodes were used in the inoculum in the previous trial , whereas we used an average of at least 2.5 fold more individuals. The number of nematodes used in this study is more similar to the number observed in trees that are naturally infested with B. xylophilus, where the nematode population exceeds 1,000 individuals per gram of dry wood from 40 to 60 days after inoculation . Nevertheless, the experimental treatment of naturally infested wood with HCN would be desirable, especially for treating construction timber.
Hydrogen cyanide efficiency as nematode killing agent is comparable to other methyl bromide alternatives that are currently being studied, such as sulphuryl fluoride and methyl isothiocyanate. However, comparison is informative only due to the different experimental designs used in several surveys. A fairly high number of B. xylophilus individuals were observed after 48 hours of treating naturally infested wooden blocks with sulphuryl fluoride . However, in a subsequent study, 100 % of the B. xylophilus individuals were dead in naturally infested wood boards treated with sulphuryl fluoride after 24 h of fumigation at 15 and 30 °C , indicative of good efficiency. In the case of sulphuryl fluoride, its chemical properties must be closely monitored because sulphuryl fluoride is a powerful greenhouse gas and has a rather long atmospheric lifetime . Even if it does not currently pose a problem because of the low amount of sulphuryl fluoride used globally for fumigation the rapid decomposition of HCN in the atmosphere represents an advantage when comparing the potential of those two fumigants. The effect of HCN on B. xylophilus appears to be comparable to methyl isothiocyanate , which is currently used as a soil fumigant and against soil-borne plant parasitic nematodes. However, its rather slow decomposition in soil  precludes its use in treating wood, especially package wood, although more research is needed to assess the properties of methyl isothiocyanate as a wood fumigant.
We conclude that the results of this study confirmed the nematicidal effects of gaseous HCN against B. xylophilus. The main issues in next testing are related with the size of the contaminated wood pieces submitted to fumigation. Thus further evaluation of the effects of HCN on B. xylophilus and a discussion about its possible commercial applications will require testing of large volumes of infested wood e.g. construction timber and package wood to see and understand behaving and mode of action of HCN in wood with intact wood structure and to meet numbers of nematodes exposed to each assay (HCN concentration/time) required by EPPO protocols [34, 35].
Suzuki K (2002) Pine wilt disease - a threat to pine forest in Europe. Dendrobiol 48:71–74
Kikuchi T, Shibuya H, Jones JX (2005) Molecular and biochemical characterization of an endo-beta-1, 3-glucanase from the pinewood nematode Bursaphelenchus xylophilus acquired by horizontal gene transfer from bacteria. Biochem J 389:117–125
Mamiya Y (1983) Pathology of the pine wilt disease caused by Bursaphelenchus xylophilus. Annual Rev Phytopathol 21:201–220
Steiner G, Buhrer EM (1934) Aphelenchoides xylophilus n. sp. a nematode associated with blue-stain and other fungi in timber. J Agric Res 48:949–951
Li Y, Li F, Yu D, Yang W, Zhang H (2003) Bursaphelenchus xylophilus was intercepted from imported wood packaging materials from Portugal in Shenzhen. Port Plant Quar 17:110
Mota MM, Braasch H, Bravo MA, Penas AC, Burgermeister W, Metge K, Sousa E (1999) First report of Bursaphelenchus xylophilus in Portugal and in Europe. Nematology 1:727–734
Malek RB, Appleby JE (1984) Epidemiology of pine wilt in Illinois. Disease distribution. Plant Dis 68:180–186
Duncan LW, Moens M (2006) Migratory endoparasitic nematodes. In: Moens M, Perry RN (eds) Plant nematology. CABI, Wallingford, pp 123–152
Mamiya Y, Enda N (1972) Transmission of Bursaphelenchus lignicolus (Nematoda: Aphelenchoididae) by Monochamus alternatus (Coleoptera: Cerambycidae). Nematologica 18:159–162
Yi C, Byun B, Park J, Yang S, Chang K (1989) First finding of the pine wood nematode Bursaphelenchus xylophilus (Steiner et Buhrer) Nickle and its insect vector in Korea. Res Rep For Res Inst Seoul 38:141–149
Yang B (2004) The history, dispersal and potential threat of pine wood nematode in China. In: Mota M, Vieira P (eds) The pinewood nematodes Bursaphelenchus xylophilus: proceedings of an international workshop University of Évora, Nematology Monographs and Perspectives. Leiden–Boston, pp 21–24
Chang R, Chao J, Fan Y, Lu S, Jou W (1995) Investigation the insect vector of pine wilt disease in Taiwan. Plant Prot Bull 37:448
Webster J (2004) The pine wood nematode: implications of factors past and present for pine wilt disease. In: Mota M, Vieira P (eds) The pinewood nematode, Bursaphelenchu sxylophilus: proceedings of an international workshop University of Évora, Nematology Monographs and Perspectives. Leiden–Boston, pp 55–64
Pajares JA, Ibeas F, Diez JJ, Gallego D (2004) Attractive responses by Monochamus galloprovincialis (Col., Cerambycidae) to host and bark beetle semiochemicals. J Appl Entomol 128:633–638
Allison JD, Borden JH, McIntosh RL, De Groot P, Gries R (2001) Kairomonal response by four Monochamus species (Coleoptera: Cerambycidae) to bark beetle pheromones. J Chem Ecol 27:633–646
Ibeas F, Gallego D, Diez JJ, Pajares JA (2007) An operative kairomonal lure for managing pine sawyer beetle Monochamus galloprovincialis (Coleoptera: Cerymbycidae). J Appl Entomol 131:3–20
Nakamura K, Yoshida N (2004) Successful control of pine wilt disease in Fukiage-hama seacoast pine forest in southwestern Japan. In: Mota M, Vieira P (eds) The pinewood nematode, Bursaphelenchus xylophilus: proceedings of an international workshop University of Évora, Nematology Monographs and Perspectives. Leiden–Boston, pp 269-281
EPPO (2009) Heat treatment of wood to control insects and wood-borne nematodes. EPPO standard nr. PM 10/6 (1) EPPO Bull 39:31
Uzunovic A, Gething B, Coelho A, Dale A, Janowiak JJ, Mack R, Hoover K (2013) Lethal temperature for pinewood nematode, Bursaphelenchus xylophilus, in infested wood using radio frequency (RF) energy. J Wood Sci 59:160–170
Hillis WE, Rozsa AN (1978) The softening temperatures of wood. Holzforschung-Int J of the Biol Chem Phy Technol Wood 32:68–73
Stejskal V, Douda O, Zouhar M, Manasova M, Dlouhy M, Simbera J, Aulicky R (2014) Wood penetration ability of hydrogen cyanide and its efficacy for fumigation of Anoplophora glabripennis Hylotrupes bajulus (Coleoptera) and Bursaphelenchus xylophilus (Nematoda). Int Biodeterior Biodegrad 86:189–195
Bonifácio LF, Sousa E, Naves P, Inácio ML, Henriques J, Mota M, Barbosa P, Drinkall MJ, Buckley S (2013) Efficacy of sulfuryl fluoride against the pinewood nematode Bursaphelenchus xylophilus (Nematoda: Aphelenchidae) in Pinus pinaster boards. Pest Manag Sci 70:6–13
Soma Y, Komatsu H, Abe Y, Itabashi T, Matsumoto Y, Kawakami F (2006) Effects of some fumigants on pine wood nematode Bursaphelenchus xylophilus infecting wooden packages. 6 mortality of pine wood nematode and longhorn beetles by methyl iodide tarpaulin. Fumigation Res Bull Plant Prot Serv Jpn 42:7–13
Tan QQ, Wu HY, Jiang SX, Ma HB (2013) Mortality and movement behaviour of Bursaphelenchus xylophilus under different dosages of copper sulphate. Plant Prot Sci 49:98–103
Aulický R, Stejskal V, Dlouhý M, Lišková J (2014) Validation of hydrogen cyanide fumigation in flourmills to control the confused flour beetle. Czech J Food Sci. In press 303/2014-CJFS
Stejskal V, Aulicky R, Kučerová Z (2014) A review of pest control strategies and damage potential of seed-infesting pests in the Czech stores. Plant Prot Sci 50:165–173
Maňasová M, Douda O, Zouhar M, Nováková E, Mazáková J, Ryšánek P (2012) Gaseous hydrogen cyanide as an agent to control nematodes in plant materials. Sci Agri Bohem 43:53–57
Morallo-Rejesus B, Rejesus RS (1992) Chemical control methods insecticides and pesticides Cited in Towards integrated commodity and pest management in grain storage. In: Semple RL, Hicks PA, Lozare JV, Castermans A (eds) Proceedings and selected papers from the Regional Training Course on Integrated Pest Management Strategies in Grain Storage Systems conducted by the National Post Harvest Institute for Research and Extension (NAPHIRE). Department of Agriculture, Philippines
Sousa E, Naves P, Bonifácio L, Inácio L, Henriques J, Evans H (2011) Survival of Bursaphelenchus xylophilus and Monochamus galloprovincialis in pine branches and wood packaging material. EPPO Bull 41:203–207
Buckley S, Drinkall MJ, Thoms EM (2010) Review of research on the control of pine wood nematode (Bursaphelenchus xylophilus) using the fumigant sulphuryl fluoride and current status for inclusion in ISPM No 15. In: 10th International Working Conference on Stored Product Protection, Julius-Kühn-Archiv, Berlin, vol 425, pp 1024–1030
Papadimitriou VC, Portmann RW, Fahey DW, Mühle J, Weiss RF, Burkholder JB (2008) Experimental and theoretical study of the atmospheric chemistry and global warming potential of SO2F2. J Phys Chem A 112:12657–12666
Soma Y, Naito H, Misumi T, Mizobuchi M, Tsuchiya Y, Matsuoka I, Kawakami F (2001) Effects of some fumigants on pine wood nematode Bursaphelenchus xylophilus infecting wooden packages. Res Bull Plant Prot Serv Jpn 7:19–26
Smelt JH, Leistra M (1972) Conversion of metham-sodium to methyl isothiocyanate and basic data on the behaviour of methyl isothiocyanate in soil. Pestic Sci 5:401–407
Schröder T, McNamara DG, Gaar V (2009) Guidance on sampling to detect pine wood nematode Bursaphelenchus xylophilus in trees, wood and insects. EPPO Bull 39:179–188
Magnusson C, Schröder T. (2009) Technical protocol for testing nematodes during treatment development. International Forestry Quarantine Research Group-7, 14–17 September 2009, Rome
This research was supported by the research project nr. QI111B065 of the Ministry of Agriculture of the Czech Republic. Authors would like to thank Mr. Pedro Barbosa and Dr. Václav Čermák for providing nematodes for the establishing of the laboratory cultures, to Ms. J. Wenzlová and Ms. Jana Vavřičková for technical assistance and to Dr. Václav Stejskal and Dr. Radek Aulický for review of the manuscript.
