Evaluation of larval growth process and bamboo consumption of the bamboo powder-post beetle Dinoderus minutus using X-ray computed tomography

Abstract

The bamboo powder-post beetle Dinoderus minutus is a major pest of felled bamboo in Japan. In this study, X-ray computed tomography (CT) was utilized to non-destructively trace the movement of the larvae of D. minutus inside infested bamboo specimens and to evaluate the bamboo consumption of the larvae. The infested specimens, which had been enclosed with adult D. minutus beetles, were scanned using a microfocus X-ray CT system every 2 to 5 days. Larvae and other stages of the beetles were clearly recognizable in the CT images with a voxel size of 61.9 μm, and they were distinguishable from the bamboo, insect tunnels, and frass. The larvae were traced until pupation, and the length and volume of their tunnels were measured to evaluate their bamboo consumption. The tunnel length and volume bored by one larva was estimated to be 0.98 mm and 1.06 mm³ (0.70 mg of oven-dry mass) per day within the average observation period of 22 days, respectively, and the active larval period was estimated to be 39 days in our experimental conditions.

Introduction

Bamboo has been widely used in Japan as a building material for decorative elements in traditional wooden houses, and for furniture or craft products. However, its vulnerability to insect attack limits its use, and thus measures to protect bamboo materials from insects are necessary. This is especially important when bamboo is employed as laths that contribute to the strength of clay walls in wooden houses. Because bamboo laths are covered with clay, insect damage is not easily detected and the damage may become widespread, making the laths brittle and causing the wall to lose strength.

The bamboo powder-post beetle Dinoderus minutus (Fabricius) (Coleoptera: Bostrichidae) is one of the most significant pests of felled bamboo in Japan, whether it is in use or in storage. Mated adults enter bamboo from the cut surfaces, especially the end surfaces of culms, and oviposit inside. The hatched larvae develop by boring into and feeding on the parenchyma in the inner layer of culms and undergo ecdysis four times before pupation. The adults also feed on bamboo after emergence and leave via an exit hole to mate. D. minutus has one to four broods per year in Japan, and adults are seen from March to November. Tunnels bored by larvae run parallel to the grain and are filled with frass, which is a powdery mixture of excrement and bamboo fragments. Tunnels bored by adults, in contrast, run in various directions and are hollow, discharging frass [1–4].

The most desirable process for insect control for bamboo in storage or in use is to determine first if insect attack exists. If it exists, bamboo being stored before use should be disposed of, and bamboo in use should be either replaced or treated with insecticide if the attack is active. Effective insect-preventative measures should then be taken for new bamboo without attack or old bamboo to avoid attack in the future. The use of chemical preservatives effectively increases bamboo resistance to insects, but it is not always recommendable considering both the expense and impacts on human health and the environment. Felling bamboo in the proper felling season, traditionally said to be from September to November, reduces the risk of insect attack because the starch content in culms is lower in this season [5]. However, prevention based solely on felling season is imperfect, and it is disadvantageous that the felling season is limited to only few months per year. Therefore, appropriate measures of insect control are required. Nevertheless, the biology of D. minutus, especially feeding activity, remains poorly understood. This data is especially relevant to establishing control measures. Furthermore, it is difficult to analyze the feeding activity of the larvae of D. minutus because they never leave the bamboo culm before emergence.

X-ray computed tomography (CT), which allows for the non-destructive analysis of the 3D-density distribution of an object, has been widely applied to assess the internal structures or defects of wood. X-ray CT has also been used to detect termite or beetle damage in wood [6–10]. For example, X-ray CT was used to visualize the gallery system of two drywood termite species, Cryptotermes secundus [6] and Incisitermes minor [7], and the oak platypodid beetle Platypus quercivorus [8] developed in wood. It was also used to image the bodies of the Asian longhorn beetle Anophophora glabripennis [9] and the anobiid beetle Priobium cylindricum [10] in wood. We, therefore, conducted this study to non-destructively observe the boring process of D. minutus larvae inside infested bamboo specimens using a microfocus X-ray CT system. We then used the data to estimate the bamboo consumption by the larvae.

Materials and methods

Experimental insects and bamboo specimens

Adult D. minutus were collected from infested bamboo culms in Oita Prefecture, Japan and were bred using an artificial diet made of buckwheat flour, which was reported to be suitable for laboratory culture [11]. Bamboo pieces (100 mm in length and ca. 35 mm in width), each with a node in the middle of its length, were prepared from non-treated, partly moist culms of madake (Phyllostachys bambusoides Siebold and Zucc.) felled in May 2013 in Kyoto Prefecture, Japan. A total of 25 adult beetles and 4 bamboo pieces were enclosed together in a plastic container with a vent hole and were left undisturbed at room temperature (25–29 °C) for 2 months so that the adults could oviposit in the bamboo pieces. X-ray CT scans confirmed the existence of larvae inside the pieces.

In this experiment, one out of the four bamboo pieces was used for CT scanning. This piece was split into 3 thinner specimens as scanning objects so that their cross section would fit into the xy field of view when scanning (Fig. 1). All of the 3 split specimens were kept in a glass bottle with the fiber direction vertical and were scanned every 2–5 days (mostly every 3 days). During the 2 month exposure, the specimens were considered to have reached an equilibrium moisture content of 12 %, which was obtained by oven drying of an uninfested bamboo piece under the same conditions.

Fig. 1

Bamboo piece infested with D. minutus, split into three specimens. The holes and tunnels seen from outside were produced by adult beetles

CT scanning

Scans of the bamboo specimens were performed using a Microfocus X-ray CT System (SMX-160CT-SV3S, Shimadzu Co., Japan) with half-scan cone-beam CT (Fig. 2). The X-ray source was operated with a tube voltage of 70 kV and a tube current of 80 mA. The tomogram consisted of 464 slices, each of which contained the cross-sectional image and was 512 × 512 pixels. The voxel size and the slice pitch of the tomogram were both 61.9 μm under these scanning conditions, and the field of view was 31.7 mm along the x and y axes and 28.7 mm along the z axis. The scanning time was 320 s, during which time the scanned object was irradiated and rotated by approximately 180°. The specimens were set at a constant height for every scan, but the height was adjusted when a target larva had moved out of the z-axis field of view. The 3D tomogram acquired from each CT scan was displayed in 2D grayscale images of three orthogonal planes, which are referred to as “CT images” in this paper. In a CT image, the gray level of a pixel is an index of density; the brighter the pixel, the denser the area.

Fig. 2

Schematic diagram of the X-ray CT system. SID source to image intensifier distance, SOD source to object distance

Results and discussion

Larval growth in CT images

The CT images provided a clear macroscopic view of the inside of the scanned bamboo specimens. Figure 3 shows example CT images capturing the silhouettes of the beetles. First, the bundle sheath fibers of the bamboo culm were separated from surrounding fundamental tissue composed of parenchyma cells, owing to the difference in density; the former were relatively brighter than the latter. Then, the silhouettes of insect bodies were apparent and had high gray value. The insect tunnels, whether they were hollow or filled with frass, were also visible, although in cases where the frass was as dense as the fundamental tissue of the specimens, the tunnels were not clearly separated. Furthermore, the stages of the beetle, larva, prepupa, pupa, and adult, were identified by the silhouettes.

Fig. 3

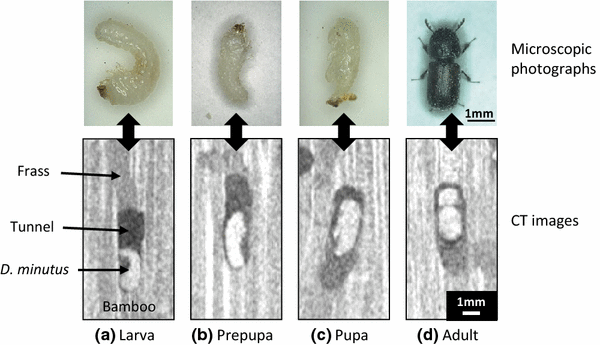

Life stages of D. minutus captured in CT images (below), in comparison with microscopic photographs (above). The individuals shown in CT images are not the same as in the microscopic photographs

In this experiment, a total of seven larvae were traced until pupation. Figure 4 shows an example of a series of CT images representing the movement of one of the larvae from the day it was first observed until it pupated. The larva was first observed on day 0 near the inner surface of the specimen. It bored downward along the fiber direction at all times. The entire tunnel was filled with dense frass, except for where the larva was present, until day 9. After day 13, a hollow part of the tunnel appeared, probably because the larva had bored a hole to the inner surface and frass was discharged from the hole. The size of the larva seemed to have changed by day 13, which suggested that it had undergone ecdysis and was in the final instar. On day 22, the silhouette of the larva is not seen clearly in the CT image, suggesting that it was not still during the 320 s of scan. The boring activity had stopped by day 22, and it was confirmed from the silhouette that the larva had pupated by day 25.

Fig. 4

CT images representing the movement of a larva. Dashed lines indicate the same height

Figure 5 shows the 3D elongation of the tunnels of two larvae, Larvae 1 and 2, in one specimen, which were first observed on the same day. Larva 1 is the same individual as shown in Fig. 4. The 3D image of the larval tunnels in Fig. 5 was created by marking only the pixels of the cross-section of the tunnels in each slice of the tomogram. Some parts of the tunnels where they are hollow were easily marked automatically by adjusting the threshold gray level. However, it was difficult to automatically identify the parts of the tunnels where they were filled with dense frass, so they were marked manually. The 3D image was displayed using volume graphic software VGStudio MAX 2.0.5 (Volume Graphics GmbH, Germany). In contrast to the tunnel of Larva 1, which was always bored linearly along the fiber direction, the tunnel bored by Larva 2 was somewhat more complex. Larva 2 reversed its boring direction twice by day 13 and it bored slightly obliquely to the fiber direction between day 3 and day 9. The reason for this pattern of movement was not clear. Between day 17 and day 22, it bored in two different directions, probably to avoid encountering the nearby tunnel of Larva 1.

Fig. 5

3D elongation of the tunnels of Larva 1 (left) and Larva 2 (right; labels italicized) in the same specimen

The rest of the larvae exhibited similar movement patterns; they mostly bored along the fiber direction, but they sometimes reversed direction or bored obliquely to the fiber direction, possibly to avoid encountering other individuals or tunnels that could obstruct their movement. However, it was not possible to trace larvae when they were smaller than that shown in the first image of Fig. 4 because they were easily lost sight of in the CT images.

The influence of X-ray irradiation on larval growth was considered in this experiment, but none of the observed larvae died before pupation and the estimated larval period (see the next section) was within the 20–40 days reported previously [1]. This led us to conclude that there was no apparent influence of X-ray irradiation in the experimental conditions employed, yet it needs to be confirmed in a more rigorous study by comparing the growth of irradiated larvae to that of control larvae.

Bamboo consumption of larvae

In order to evaluate the bamboo consumption by the larvae, the length and volume of their tunnels were calculated. Tunnel length was measured in pixels using image processing software ImageJ 1.45s (National Institutes of Health, USA), and the change in length from the previous scanning date was calculated in millimeters, converted from pixels. One method for calculating the volume of the tunnel was to accumulate the number of pixels in each slice that represented the cross section of the tunnel and convert it to a volume. However, it was often difficult to automatically identify the parts of the tunnel, as mentioned in the previous section, making this approach impractical. Therefore, we assumed that the cross section of the tunnel was elliptic (Fig. 6) and used the following steps. First, the lengths of the major and minor axes of the cross section were measured in pixels in order to calculate the cross-sectional area of the tunnel. The cross-sectional area was multiplied by the length change to calculate the volume change from the previous scanning date in cubic millimeters. It should be noted that the image of a plane that included or was close to the target larva was used to measure the cross-sectional area of the tunnel because there was usually no frass around the larva.

Fig. 6

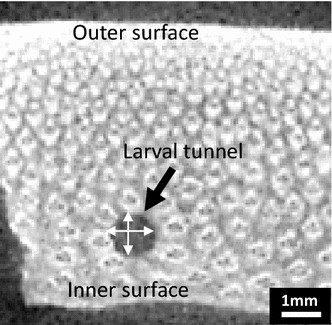

The cross section of a tunnel assumed to be elliptical. White arrows represent the two axes used to calculate tunnel area

Figure 7 shows the time courses of tunnel length obtained for seven larvae that were traceable until pupation. The last plot of each graph represents the last day of the larval stage, when it had stopped boring activity in order to pupate. The seven larvae were traced for 22 days on average until pupation. Because they were not traced from the point of hatching and their instars were uncertain, the last plots of all graphs were placed at the origin. Thus, the abscissa represents the number of days before the end of larval boring activity, and the ordinate represents the length that would be bored by the end of larval boring activity. Many of the line graphs show step-wise increments, suggesting that the larvae underwent ecdysis when the length did not increase. However, this remains uncertain because X-ray CT only provides information regarding the moment of the scan, and another approach is necessary to evaluate activity continuously. Although many of the graphs in Fig. 7 are step-wise, we assumed that the tunnel length increased proportionally over time in order to formulate the increase. The straight line in Fig. 7 is the regression line for all plots through the origin and has a slope of 0.98. Thus, the tunnel length of one larva in these experimental conditions was estimated to increase by 0.98 mm per day within the average tracing period of 22 days.

Fig. 7

Time courses of tunnel length extension of all larvae. The abscissa represents the time until the end of larval boring activity. The ordinate represents the length that would be bored by the end of larval boring activity

Figure 8 shows the time courses of tunnel cross-sectional area for all larvae. The abscissa of the plots in Fig. 8 represents the number of days before the end of larval boring activity, as in Fig. 7. Increased tunnel cross-sectional area suggests that body size of larvae enlarged as they grew. The seven larvae were not traced from hatching and their actual larval period was unknown. Therefore, the length of the larval period was estimated by assuming that the cross-sectional area of the tunnel increased proportionally with time as a whole. The straight line in Fig. 8 is the regression line for all plots, which has an x-intercept of −39. Thus, the active boring period of the larvae in these experimental conditions was estimated to be 39 days.

Fig. 8

Time courses of tunnel cross-sectional area of all larvae. The abscissa represents the time until the end of larval boring activity

Figure 9 shows the time courses of tunnel volume for all larvae, which were calculated from the data represented in Figs. 7 and 8. The increase in tunnel volume was formulated in the same manner as tunnel length. The slope of the regression line in Fig. 9 was 1.06, and thus the tunnel volume of one larva was estimated to increase by 1.06 mm³ per day within the average tracing period of 22 days. By multiplying the increase in tunnel volume by the oven-dry density of the inner layer of the bamboo culm, which was obtained from the same culm as the specimens, the oven-dry mass of bamboo bored by one larva was estimated to be 0.70 mg per day. This amount represents the daily damage caused by a larva.

Fig. 9

Time courses of tunnel volume increase of all larvae. The abscissa represents the time until the end of larval boring activity. The ordinate represents the volume that would be bored by the end of larval boring activity

The consumption in entire larval period is also important for understanding the biology and establishing control measures. The increases in tunnel length, volume, and bamboo mass consumed by one larva per day were multiplied by the estimated larval period of 39 days to estimate that each larva bored 38 mm, produced tunnels that were 41 mm³, and consumed 27 mg of bamboo in its entire larval period. However, these values may be overestimated since the consumption in early larval stage was not investigated in our experiment, and the certainty of these values should be verified in future research.

One major disadvantage of applying X-ray CT to monitor insect activity is that the obtained data are momentary and discontinuous. In our experiment, the scan intervals were mostly 3 days, and uncertainty remained regarding the activity of larvae between the scans. Therefore, a different approach with higher temporal resolution that could be used in a continuous, long-term measurement would be desirable. When wood-attacking insects, such as termites [12] and lyctus beetles [13], bite off a wood fragment, elastic waves called acoustic emission (AE) are produced. Because AE is directly related to the feeding activity of insects, AE monitoring may meet these requirements and is expected to be a valuable approach for future analysis.

Conclusions

Bamboo specimens infested with D. minutus larvae were scanned using a microfocus X-ray CT system intermittently. The CT images clearly showed the silhouettes of the larvae and other stages, prepupa, pupa, and adult, and the movement of the larvae was traceable. The length, cross-sectional area, and volume of the tunnels obtained from the CT images were useful for estimating the daily bamboo consumption and active larval period of one larva. These findings draw the conclusion that X-ray CT scanning is a highly effective method for non-destructively and quantitatively assessing the extent of attack of D. minutus larvae in bamboo over time.
