Skip to main content

Official Journal of the Japan Wood Research Society

  • Original article
  • Published:

Application of peroxymonosulfuric acid as a modification of the totally chlorine-free bleaching of acacia wood prehydrolysis-kraft pulp

Abstract

The totally chlorine-free (TCF) bleaching process avoids the generation of organochlorine substances. In this study, the application of peroxymonosulfuric acid (H2SO5: Psa) to TCF bleaching was proposed as a modification of the bleaching process of hardwood prehydrolysis-kraft pulp. Acacia mearnsii pulps were treated by oxygen bleaching, followed by Psa treatment, ozone bleaching, alkali extraction, and finally, hydrogen peroxide bleaching. The Psa treatment was conducted with 10 % pulp consistency at pH 3 and 70 °C. The use of Psa increased the removal of hexenuronic acid from the pulp and improved pulp brightness. After the final hydrogen peroxide bleaching, pulp brightness increased to 86.0 % ISO with a 0.6 % Psa dosage. The Psa treatment showed better selectivity, i.e., kappa number decrement per unit of viscosity, compared with ozone bleaching. A dosage of 0.2 % Psa afforded a 3.4 kappa number decrement with a 10.9 cP viscosity loss, while ozone treatment with a dosage of 0.5 % resulted in a 2.6 kappa number decrement with a 12.5 cP viscosity loss. The results showed that the Psa treatment can enhance pulp quality in terms of brightness and reduce ozone consumption, which improves the TCF bleaching process.

Introduction

Indonesia is the ninth largest pulp producer and is the sixth in production of paper and paper board in the world, with the largest volumes generated by two pulp and paper mill groups, Asia Pulp and Paper and Asia Pacific Resources International Limited [1]. The pulp production capacity in Indonesia was 8.8 million tons in 2013, and should increase to 10 million tons by 2017. During production, almost all the Indonesian pulp bleaching mills use chlorine dioxide in elemental chlorine-free (ECF) bleaching.

The switch from chlorine bleaching to ECF bleaching has significantly lowered the quantity of organochlorine substances released in effluent streams and, accordingly, has reduced environmental toxicity. In Japan, the 2007 emissions of adsorbable organic halogen (AOX) or organochlorine substances were reduced to one-fifth of 1997 levels by the switch to ECF bleaching [2, 3]. However, ECF bleaching still discharges organochlorine compounds in the form of chloroform from the bleaching and wastewater treatment processes [2, 4]. In addition, organochlorine species are still present in the effluent and accumulate in the activated sludge during wastewater treatment.

In contrast, totally chlorine-free (TCF) bleaching is a process that eliminates the possibility of AOX formation. The interchange of ECF with TCF bleaching will further diminish AOX emissions as well as the amounts of organochlorine substances found in effluents, activated sludge, and the air. However, we must also note that TCF bleaching can produce harmful non-chlorinated environmental pollutants [5]. Furthermore, based on investigations [6], the TCF bleaching process also has the potential to produce halogenated compounds. Even in low concentrations, chloride ions can be incorporated into halogenated byproducts. In a practical sense, to diminish AOX formation in the system, all processes should be totally free from supplemental chloride ions, including the closed water system.

Hexenuronic acid (HexA) is considered to cause the brightness reversion (yellowing) of pulp and increases the consumption of bleaching reagents [79]. HexA is an unsaturated molecule that contributes to the consumption of permanganate during the determination of the kappa number, which is proportional to the lignin content, and results in higher values during lignin determinations. It has been reported that the removal of HexA from TCF pulp affects the pulp properties [10].

Peroxymonosulfuric acid (H2SO5: Psa) has been identified as a promising alternative reagent for the delignification of wood and the bleaching of chemical [1113]. During oxygen delignification, the treatment of a chelated pulp with Psa was shown to afford kappa number reduction [14]. Psa can improve the brightening of chemical pulp from the perspective of ECF bleaching [15], as well as solubilize lignin [16] and decompose HexA [17, 18]. Recently, it was found that highly stable Psa, as Caro’s acid (a mixture of concentrated sulfuric acid and hydrogen peroxide) could be produced on industrial scale [19], and was successfully incorporated in the bleaching process in Japanese paper mills as a substitute for the acid washing stage during hardwood ECF bleaching [20].

In this study, to determine a new sequence for TCF bleaching, the application of Psa as a modification of the TCF bleaching process was investigated on hardwood prehydrolysis-kraft (Ph-kraft) pulp.

Experimental

Materials

Acacia (Acacia mearnsii) wood chips were obtained from South Africa. Psa was synthesized by dropping 95 % sulfuric acid (Wako Pure Chemical Industries, Ltd.) into 45 % hydrogen peroxide aqueous solution (Mitsubishi Gas Chemical Company, Inc.) at 70 °C. The molar ratio of H2SO4 to H2O2 was 3.0. After mixing, the solution was immediately diluted with chilled water. The Psa concentration was determined by subtracting the amount of redox titration with cerium (IV) sulfate, which can oxidize residual H2O2, from the total amount of peroxide determined by iodometric titration using Na2S2O3. Oxygen-bleached hardwood kraft pulp (LOKP) was prepared from eucalyptus–acacia mixed hardwoods as a non-prehydrolysis-kraft pulp, and was provided by the Niigata Mill, Hokuetsu Kishu Paper Co., Ltd., Japan.

Prehydrolysis and kraft cooking

Acacia wood chips were prehydrolyzed at 147 °C for 90 min, and kraft-cooked with 18 % active alkali and 30 % sulfidity at 150 °C for 1–3 h (H-factor: 165–496). The liquor-to-wood ratio was 4 mL/g.

Psa treatment

Laboratory-prepared pulps and the Niigata mill LOKP were treated with Psa for 70 min at 70 °C at a pulp consistency (PC) of 10 %. A target amount of Psa solution and aqueous sodium hydroxide to adjust the acidity to pH 3 was added to the pulp suspension.

To determine the required dosage of Psa to the pulp, it was considered that the required molar ratio of Psa to a HexA model compound (hexenuronosyl-xylotriose: ∆-X3) for degradation was about 3.4 [21]. When the Psa dosage is 1.0 % of the pulp weight, it is estimated that 87.7 mmol Psa is added to 1 kg pulp. It is expected that approximately 26 mmol HexA can be removed from 1 kg pulp.

TCF bleaching

Pulps were treated under the following conditions:

  1. 1.

    Oxygen bleaching (O)

    • PC: 30 % (high consistency); oxygen pressure: 0.5 MPa; NaOH dosage: 1 %; reaction temperature and time: 115 °C for 60 min.

  2. 2.

    Psa treatment (Psa)

    • Conditions are as described above.

  3. 3.

    Ozone bleaching (Z)

    • PC: 30 % (high consistency); pH 3; ozone dosage: 0.5 %; reaction temperature and time: 28 °C for 15 min.

  4. 4.

    Alkali extraction (E) and hydrogen peroxide bleaching (P)

    • E: PC:10 %; NaOH dosage: 1 %; reaction temperature and time: 60 °C for 60 min.

    • P: PC:10 %; H2O2 dosage: 1.4 %; NaOH dosage: 1 %; reaction temperature and time: 70 °C for 60 min.

Pulp testing

Kappa number, viscosity and brightness were determined according to TAPPI Test Methods: T236 om-13, T254 cm-10 and T452 om-08, respectively [22]. The brightness (ISO) was measured using a Tokyo-Denshoku Digital Color Meter Model TC-1500 SX. HexA content was determined from 2-furancarboxylic acid and 5-formyl-2-furancarboxylic acid after formic acid hydrolysis at pH 2.5 and 120 °C for 3 h, using high-performance liquid chromatography with 4:1 acetonitrile–water (pH 2.5) solution as eluent and a detection wavelength of 265 nm [23]. A Zorbax ODS column (Φ 4.6 × 250 mm) was used. Acid-insoluble lignin was measured using the Klason lignin method (TAPPI Test Method T222 om-11 [22]), and acid-soluble lignin was determined by UV–Vis spectrophotometry [24]. The carbohydrate composition of the pulp and the monosaccharide and oligosaccharide contents of the hydrolyzate were determined using a Dionex ICS 3000 ion chromatograph after 4 % sulfuric acid hydrolysis at 121 °C for 1 h [25].

Calculations of selectivity and effectiveness

Selectivity was calculated as the kappa number decrease per unit of decreased viscosity (∆kappa number/∆viscosity), while effectiveness was calculated as the kappa number decrement per unit chemical dosage (∆kappa number/unit chemical dosage).

Results and discussion

Characterization of raw materials

The prehydrolysis process is an important step for producing dissolving pulp with kraft cooking, which consists of removing part of the hemicelluloses [26]. As shown in Table 1, xylan was a major component removed during the prehydrolysis process. The prehydrolysis also removed a very small part of the lignin.

Table 1 Chemical composition of Acacia mearnsii wood, hydrolyzate, and Ph-kraft pulp

Table 2 shows that the kappa number of the Ph-kraft pulp was lower than that of the non-Ph-kraft pulp, indicating a lower lignin content. It was reported that holes that are created in the cell walls of the material after the dissolution of amorphous hemicellulose would allow the favorable penetration of chemicals in the subsequent cooking [27]. In addition, the final conditions of the prehydrolysis treatment are acidic (pH 4.5), which may cause the cleavage of lignin–carbohydrate complex bonds, and thus improve the subsequent alkaline delignification.

Table 2 Effect of Prehydrolysis on yield, kappa number, and HexA content of pulp

Effects of Psa treatment on kappa number and HexA content

Kuwabara et al. [8] reported on the relationship between Psa dosage and the decomposition of HexA in pulp. A higher dosage of Psa contributes to increased HexA decomposition. The reaction displays a linear correlation in the range of 0.5–1.5 % Psa dosage for LOKP. This implies that a 1.0 % Psa loading contributes to the decomposition of 13–15 mmol/kg HexA. If HexA in the pulp could react with Psa with an efficiency similar to that of the HexA model compound ∆-X3, a 1.0 % Psa dosage to the pulp would contribute to the decomposition of 26 mmol/kg HexA [21]. In fact, the efficiency of HexA removal from the pulp was almost half that of the model ∆-X3, because the pulp contained other components such as residual lignin which can react with Psa, in addition to the reactions limited to the solid phase of the pulp.

Ph-kraft pulps with various kappa numbers were treated with Psa before oxygen bleaching. The results showed that the kappa number and HexA content decreased while brightness increased. Niigata LOKP was also treated with several Psa dosages, resulting in decrements of kappa number and HexA, while the brightness was increased (Table 3). The experimental data indicated that Psa treatment effectively lowered the kappa number, which is an indicator of lignin removal. Furthermore, the effects were dose related: a higher dosage of Psa contributed to a larger decrement in the kappa number. Thus, the Psa treatment was able to reduce a part of the residual lignin in the pulp.

Table 3 Effect of Psa dosage on kappa number, HexA content, brightness, and viscosity of pulp

Comparing the Ph-kraft pulp and LOKP, the HexA decrement at a 1.0 % Psa dosage for the former was in the range 9.0–12.0 mmol/kg, whereas that for LOKP was in the range 19.3–21.5 mmol/kg. It was found that HexA in the pulp was degraded more easily by Psa treatment when the content was higher.

These experiments showed that the Psa treatment decreased both the kappa number and HexA content, while increasing the brightness. The application of Psa in TCF bleaching, using the sequence O-Psa-Z-E-P, was next investigated.

Effects of Psa treatment on kappa number determined using vanillyl alcohol

Figure 1a (symbol filled diamond) shows the relationship between the HexA content and Psa dosage applied to oxygen-bleached Ph-kraft pulp. Application of Psa to the oxygen-bleached Ph-kraft pulp caused the removal of HexA. The 0.5 % H2SO5 dosage means that 44 mmol H2SO5 is added to the 1 kg of pulp during the treatment, and the HexA decrement was 7 mmol/kg at this dosage. Meanwhile, the kappa number decrement as shown in Fig. 1b (symbol filled diamond) was 3.5. A previous study has shown 1 mmol/kg of the HexA decrement corresponds to approximately 0.086 of the kappa number decrement [28]. The 7 mmol/kg of the decrement indicated 0.6 of the kappa number decrement in this study, and then the difference in 3.5 of the observed decrement and 0.6, which was equal to 2.9, should be caused by the oxidation of residual lignin. To confirm this phenomenon, the kappa number decrement using vanillyl alcohol as a free-phenolic lignin model compound was estimated after the Psa treatment.

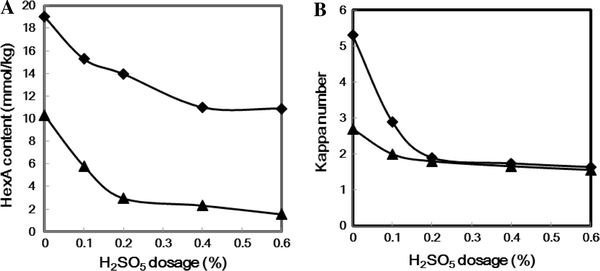

Fig. 1
figure 1

HexA content and kappa number of the pulp after Psa treatment of oxygen-bleached Ph-kraft pulp, with and without 0.5 % ozone application. Filled diamond Psa treated; filled triangle Psa-Z bleached

First, 0.244 mmol (37.5 mg) or 0.061 mmol (9.3 mg) of vanillyl alcohol as a lignin model was mixed with 1 ml (789 mg) of ethanol as a carbohydrate model. Then, 9 ml of water containing 0.044–0.132 mmol (0 as control) of H2SO5 was added to the mixture. After the Psa treatment for 70 min at 70 °C, 400 ml of water, 50 ml of 20 % H2SO4 and 50 ml of 0.1 N KMnO4 were poured into a total mixture, and then the consumed KMnO4 was determined according to TAPPI Test Method T236 om-13. Figure 2 shows that 0.044 mmol of H2SO5 addition contributed to the 1.6–3.1 of the kappa number decrement. It was confirmed that a part of the kappa number decrement observed in the Psa treatment was caused by the lignin oxidation.

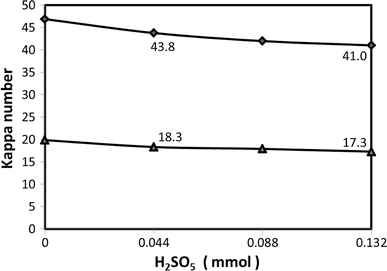

Fig. 2
figure 2

Psa treatment of vanillyl alcohol. Filled diamond 0.244 mmol; filled triangle 0.061 mmol

Application of Psa to TCF bleaching

Effects of Psa on HexA removal from oxygen-bleached Ph-kraft pulp

Figure 1a agreed with previous results for LOKP [8, 21] in which Psa was an effective reagent for reducing HexA. Next, the HexA contents of oxygen-bleached Ph-kraft pulps treated with Psa after ozone bleaching were examined. After ozone bleaching, the HexA content of the Psa-treated pulp was further reduced (Fig. 1a, symbol filled triangle). HexA increases the consumption of bleaching reagents [7, 8]. Therefore, the reduction of HexA content would imply that Psa treatment has the potential to reduce ozone consumption in the next stage.

Figure 1b shows that after treatment with Psa at a dosage 0.1 %, ozone treatment did have an effect on kappa number decrement. Notably, ozone treatment showed no significant kappa number decrement after the 0.2–0.6 % Psa treatment. This was an unexpected result, because the acidic oxidation treatment could lead to modification of the molecular structure of lignin [29].

Effects of Psa on brightness and viscosity

The relationship between the Psa dosage and brightness showed that a higher dosage of Psa increased pulp brightness. Figure 3a shows that a brightness above 85 % ISO was achieved with a Psa dosage above 0.2 %. It was found that a Psa dosage of 0.1 % could increase the final brightness by 1.0 unit % ISO, while at a 0.6 % dosage, brightness was increased by 2.2 unit % ISO.

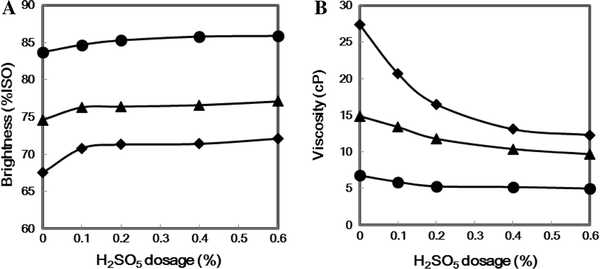

Fig. 3
figure 3

Brightness and viscosity of pulp produced by modified TCF bleaching with Psa application to oxygen-bleached Ph-kraft pulp. Filled diamond Psa treated, filled triangle Psa-Z bleached, filled circle Psa-Z-E-P bleached

However, Psa applications from 0.1 to 0.6 % decreased pulp viscosity by 6.7–15.1 cP (Fig. 3b), which indicates that cellulose is partly degraded. The treatment may have low selectivity due to residual H2O2 in the solution. For example, the loss of viscosity during ozone treatment is reportedly due to the reaction between carbohydrates and hydroxyl and perhydroxyl radicals generated as by-products [29]. It is presumed that the viscosity loss during Psa treatment would be caused by hydroxyl radicals formed from the residual H2O2. This residual oxidant remains from the synthesis of peroxymonosulfuric acid in which 55 % hydrogen peroxide reacts with sulfuric acid at equilibrium. The viscosity loss, as similarly observed during alkaline hydrogen peroxide treatment to improve TCF performance, might be mitigated by the addition of a chelation (Q) stage, but the effects would not be totally identical.

The decreasing pulp viscosity is an indicator of carbohydrate degradation in the pulp. According to Brasileiro et al. [16], peracids could be applied in the bleaching process without harming pulp strength properties, and could therefore be used in TCF bleaching without reducing pulp quality. As a result, further research is required to investigate pulp strength properties and viscosities after the application of Psa in TCF bleaching. Next, the selectivity of the Psa and ozone treatments is compared based on kappa number and viscosity.

Selectivity and effectiveness of Psa based on kappa number decrement

Figures 1b and 3b show plots of changes in the kappa number and viscosity vs Psa dosage, respectively. A dosage of 0.2 % Psa resulted in a kappa number decrease of 3.4 and a 10.9 cP viscosity loss, whereas ozone treatment at a dosage of 0.5 % gave a lower decrement of kappa number (2.6) but a higher loss of viscosity (12.5 cP). The selectivity was calculated from the kappa number and viscosity data in Figs. 1b and 3b. Table 4 reveals that ozone treatment had a selectivity of 0.21 at a dosage of 0.5 %, whereas Psa application exhibited selectivity in the range 0.36–0.25 with 0.1–0.6 % dosages. Thus, Psa demonstrates better selectivity than ozone treatment. The effectiveness as determined from the kappa number decrement, and the chemical dosage of Psa or ozone was calculated on the basis of the data in Fig. 1b. The Psa treatment has a higher effectiveness than ozone: ozone treatment with a 0.5 % dosage had an effectiveness of 5.2, whereas Psa treatment had an effectiveness range of 24.0–6.2 for Psa dosages of 0.1–0.6 %. These results suggest a potential benefit the decreased consumption of oxidant in the Z stage. The selectivities calculated for the Z and Psa stages indicate that we may theoretically decrease ozone consumption by increasing the peroxymonosulfuric acid dosage.

Table 4 Selectivity and effectiveness of Psa and ozone treatment

Bleaching was conducted using the sequence O-Psa-E-P, with a Psa dosage of 0.2 %. The final pulp brightness achieved was 82.2 % ISO, implying that Psa is a promising alternative reagent for pulp bleaching. However, the application of Psa as a main bleaching agent without ozone treatment is still under further investigation.

Conclusions

  1. 1.

    The application of Psa to the TCF bleaching of Acacia mearnsii Ph-kraft pulp using the sequence O-Psa-Z-E-P indicated the potential for obtaining high brightness. The experiments resulted in a lower HexA content and a lower kappa number. When the Psa dosage was in the range 0.2–0.6 %, the brightness reached 85–86 %ISO.

  2. 2.

    Although the application of Psa in bleaching effectively removed HexA, cellulose was partially depolymerized during the treatment, resulting in a loss of pulp viscosity. The viscosity loss was presumed to result from attack by hydroxyl radicals, which must originate from residual hydrogen peroxide.

  3. 3.

    Psa application also strongly suggested the possibility of decreased ozone consumption. Compared with 0.5 % ozone treatment, the application of Psa demonstrated higher selectivity and effectiveness, based on kappa number and viscosity decrements. The preliminary results suggest that Psa can be applied as an alternative to ozone.

References

  1. Ministry of Industry Indonesia (2014) http://agro.kemenperin.go.id/1949-Kapasitas-Produksi-Kertas-dan-Pulp-Naik-di-2017. Accessed 20 Mar 2014

  2. Nakamata K, Motoe Y, Ohi H (2004) Evaluation of chloroform formed in process of kraft pulp bleaching mill using chlorine dioxide. J Wood Sci 50:242–247

    Article  CAS  Google Scholar

  3. Takagi H, Nakagawa M (2009) Reduction of pollutants from bleached kraft pulp mills by the process conversion to elemental chlorine free bleaching (Part 1)—organic halogens in bleach filtrates and in whole mill effluents. Jpn TAPPI J 63:1091–1104

    Article  CAS  Google Scholar

  4. Juuti S, Vartiainen T, Joutsenoja P, Ruuskanena J (1996) Volatile organochlorine compounds formed in the bleaching of pulp with ClO2. Chemosphere 33:437–448

    Article  CAS  Google Scholar

  5. Stauber J, Gunthorpe L, Woodworth J, Munday B, Krassoi R, Simon J (1996) Comparative toxicity of effluents from ECF and TCF bleaching of eucalypt kraft pulps. Appita J 49:184–188

    CAS  Google Scholar

  6. Suess UH, Schmidt K (2000) Generation of halogenated compounds in bleaching without chlorine. Can TCF be chlorine-free? IPW 5. Keppler Junius Gmbh & Co. KG, pp T69–T73

  7. Vourinen T, Teleman A, Fagerstrom P, Buchert J, Tenkanen M (1996) Selective hydrolysis of hexenuronic acid groups and its application in ECF and TCF bleaching of kraft pulps. Int Pulp Bleach Conf 1:43–51

    Google Scholar

  8. Kuwabara E, Koshitsuka T, Kajiyama M, Ohi H (2011) Impact on the filtrate from bleached pulp treated with peroxymonosulfuric acid for effective removal of hexenuronic acid. Jpn TAPPI J 65:1071–1075

    Article  CAS  Google Scholar

  9. Silva VL, Lino AG, Ribeiro RA, Colodette JL, Forsstrom A, Wackerberg E (2011) Factors affecting brightness reversion of hardwood kraft pulps. Bioresources 6:4801–4814

    Google Scholar

  10. Cadena EM, Vidal T, Torres AL (2010) Influence of the hexenuronic acid content on refining and ageing in eucalyptus TCF pulp. Bioresour Technol 101:3554–3560

    Article  CAS  PubMed  Google Scholar

  11. Springer EL (1990) Delignfication of aspen wood using hydrogen peroxide and peroxymonosulfate. TAPPI J 73:175–178

    CAS  Google Scholar

  12. Allison RW, McGrouther KG (1995) Improved oxygen delignification with interstage peroxymonosulfuric acid treatment. TAPPI J 78:134–142

    CAS  Google Scholar

  13. Sun R, Tomkinson J, Zhu W, Wang SQ (2000) Delignification of maize stems by peroxymonosulfuric acid, peroxyformic acid, peracetic acid, and hydrogen peroxide. 1. Physicochemical and structural characterization of the solubilized lignins. J Agr Food Chem 48:1253–1262

    Article  CAS  Google Scholar

  14. Jafari V, Sixta H, van Heiningen A (2014) Multistage oxygen delignification of high-kappa pine kraft pulp with peroxymonosulfuric acid (Px). Holzforschung 68:497–504

    Article  CAS  Google Scholar

  15. Kronis JD, Sundara RP (1998) Caro’s acid—an improvement over hydrogen peroxide for brightening of chemical pulp. In: TAPPI Pulping Conference Proceedings, Bk. 2. TAPPI Press, Montreal, pp 863–881

  16. Brasileiro LB, Colodette JL, Piló-Veloso D, de Oliveira RC (2002) Bleaching of eucalypt kraft pulp with peracids—the effect on pulp characteristics. Appita J 55:461–467

    CAS  Google Scholar

  17. Petit-Breuilh X, Zaror C, Melo R (2004) Hexenuronic acid removal from unbleached kraft eucalyptus pulp by peroxymonosulfuric acid. J Chil Chem Soc 49:355–360

    Article  CAS  Google Scholar

  18. Kuwabara E, Zhou X, Homma M, Takahashi S, Kajiyama M, Ohi H (2012) Relationship between hexenuronic acid content of pulp and brightness stability in accelerated aging. Jpn TAPPI J 66:743–757

    Article  CAS  Google Scholar

  19. Yoshida K, Koshitsuka T (2008) On-site production of peroxymonosulfuric acid for hexenuronic acid removal from kraft pulp. Int. Pulp Bleach. Conf. PAPTAC, Quebec, pp 165–168

  20. Tomoda I, Uchida Y (2008) Peroxymonosulfuric acid bleaching-The brief of bleaching reaction and the result of mill trials-. Int. Pulp Bleach. Conf. PAPTAC, Quebec, pp 177–180

  21. Yoon K, Kuwabara E, Zhou X, Ohi H (2012) Relationship between hexenuronic acid contents of pulp and brightness stability—peroxymonosulfuric acid treatment for effective removal of hexenuronic acid. 2012 Pulp Pap. Res. Conf. Jpn TAPPI, Tokyo, pp 48–53

    Google Scholar

  22. TAPPI (2015) Fibrous materials and pulp testing; paper an paperboard testing. http://www.tappi.org/Bookstore/Standards-TIPs/Standards/. Accessed 31 Jan 2015

  23. Takahashi S, Nakagawa-izumi A, Ohi H (2010) Differential behavior between acacia and Japanese larch woods in the formation and decomposition of hexenuronic acid during alkaline cooking. J Wood Sci 57:27–33

    Article  Google Scholar

  24. Dence CW (1992) “The determination of lignin”. In: Lin SY, Dence CW (eds) Methods in lignin chemistry. Springer-Verlag, Berlin Heidelberg, p 33

  25. Tanifuji K, Takahashi S, Kajiyama M, Ohi H (2011) Advantage of acid sulfite cooking as processes of bioethanol production. Jpn TAPPI J 65:494–505

    Article  CAS  Google Scholar

  26. Li H, Saeed A, Jahan MS, Ni Y, Heiningen A (2010) Hemicellulose removal from hardwood chips in the pre-hydrolysis step of the kraft-based dissolving pulp production process. J Wood Chem Technol 30:48–60

    Article  CAS  Google Scholar

  27. Ma XJ, Huang LL, Chen YX, Cao SL, Chen LH (2011) Preparation of bamboo dissolving pulp for textile production. Part 1. Study on prehydrolysis of green bamboo for producing dissolving pulp. Bioresources 6:1428–1439

    CAS  Google Scholar

  28. Gellerstedt G, Li J (1996) An HPLC method for the quantitative determination of hexeneuronic acid groups in chemical pulps. Carbohyd Res 294:41–51

    Article  CAS  Google Scholar

  29. Van Lierop B, Skothos A, Liebergott N (1996) “Ozone delignification”. In: Dence CW, Reeve DW (eds) pulp bleaching: principles and practice. TAPPI Press, Atlanta, p 32

Download references

Acknowledgments

The authors are grateful for support from Mr. T. Koshitsuka, Mitsubishi Gas Chemical Company, Inc., and for Dr. E. Wang, Researcher & Division Chief, Taiwan Forestry Research Institute, Chairman of Organizing Committee at the 2014 Pan Pacific Conference of the TAPPI.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Hiroshi Ohi.

Additional information

This paper was partly presented at the Conference, May 21–23, 2014, Taipei, Taiwan and at the 2014 (81st) Japan TAPPI Pulp and Paper Research Conference, June 2–3, 2014, Tokyo, Japan.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Rizaluddin, A.T., Liu, Q., Panggabean, P.R. et al. Application of peroxymonosulfuric acid as a modification of the totally chlorine-free bleaching of acacia wood prehydrolysis-kraft pulp. J Wood Sci 61, 292–298 (2015). https://doi.org/10.1007/s10086-015-1465-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10086-015-1465-z

Keywords
