Dynamic viscoelastic properties of Chinese fir under cyclical relative humidity variation

Journal of Wood Science volume 61, pages 465–473 (2015)Cite this article

Abstract

The dynamic viscoelastic properties of Chinese fir (Cunninghamia lanceolata) with a moisture content of 10.65 % (30 °C, 58 % RH) under cyclical relative humidity (RH) variation (90–10 % RH) were examined. After seven-cycle RH changes, moisture content of specimens decreased. The storage modulus and loss factor increased and decreased, respectively. The occurrences of local maximum or minimum values of the storage modulus and loss factor lagged behind the occurrences of the maximum or minimum values of RH. Both lagged time and changing rate of storage modulus and loss factor decreased with the increasing cyclical times. When RH decreased from 90 to 10 % RH, the increasing rate of the storage modulus decreased with the decreasing of RH, while the loss factor decreased almost linearly. The unsteady effect and its partial recovery were observed during the desorption and the adsorption process, respectively. With the increasing cyclical times, the unsteady effect decreased and wood returned back to the dynamic equilibrium state gradually.

Introduction

The moisture content (MC) influences nearly all the physical and mechanical properties of wood. Wood cell walls are made from polymers which are more or less hydrophilic. Hydroxyl groups of the wood polymers are the main chemical component in terms of attracting water molecules. When entering the cell walls, water absorbs on the microfibril surfaces or into the surrounding matrix of hemicelluloses and lignin. Hydrogen bonds within the polymer network are replaced by the bonds to water molecule. As water plays a role of plasticizer, its entrance into wood cell walls may cause the decrease of wood stiffness.

The dynamic viscoelastic behavior of wood is essential in the wood industry, particularly in the processing and manufacturing operations, such as the drying, wood forming, veneer cutting, and panel pressing. The viscoelasticity of wood is closely related to its anatomy structure and chemical components, as well as ambient temperature and relative humidity (RH). Investigations of influence of the temperature on the dynamic viscoelasticity of wood are helpful in providing insight into mechanical relaxation and thermal degradation of constituents of wood cell walls [1–5]. The viscoelastic properties of wood change also with varying ambient RH. In 1961, Armstrong and Kingston [6] reported the viscoelastic behavior of wood during cyclical RH changing process, and which was referred to as the mechano-sorptive effects [7]. Numerous investigators studied the mechano-sorptive effect experimentally and theoretically [8–14], and some explanations regarding physical mechanisms were proposed. The MC variation caused the breaking and reforming of hydrogen bonds [8], created free volume which provided a destabilized condition [15] and molecular mobility, and the internal stress gradients varied with the presence of moisture gradients [11]. The changing of temperature and RH disturbed the equilibrium packing of molecular, which offered a destabilized condition that slowly returned to the equilibrium condition [16–19]. This asymptotic return to equilibrium is known as physical aging [15]. One of the most means of detecting the changes associated with destabilization and aging was the dynamic mechanical test. Ebrahimzadeh and Kubát [20] and Ebrahimzadeh et al. [21] observed the increase in loss factor (tanδ) at the early stages of the adsorption or desorption process due to the transient moisture effect and close relationship between the rate of adsorption/desorption and the shape of the tanδ peak. Furthermore, the tanδ was higher in a given moisture content if wood was in adsorption state rather than in desorption.

Studies of the influence of RH to dynamic viscoelastic properties of wood mainly focused on water equilibrium state, namely under different MCs which were conditioned by different RHs [2, 22–24]. However, limited studies describing the responses of viscoelasticity under non-equilibrium moisture states [25, 26] were found in the literature review. With the aim of obtaining findings on the viscoelastic properties of wood with cyclical RH variation, the present study described the time dependence of the dynamic viscoelasticity under non-equilibrium states. The discrepancy of responses of elastic fiber and viscous matrix to cyclic RH variation was also discussed through the wood behaviors of elastic and viscous properties examined by DMA.

Materials and methods

Materials

With the same growth ring ranges, Chinese fir (Cunninghamia lanceolata [Lamb.] Hook) specimens were cut into a size of 60 mm × 12 mm × 2.5 mm (L × R × T). These specimens were selected without any visible defects and knots. All specimens were conditioned at about 30 °C in a sealed container over a saturated solution of NaBr which gave 58 % RH. The corresponding MC and raw density of specimens used were about 10.65 % and 0.40 g/cm3, respectively.

Measurement of dynamic viscoelasticity

The forced-oscillation-type equipment (Q800 by TA Instruments) was used for obtaining the viscoelasticity parameters: storage modulus E′, loss modulus E″ and loss factor tanδ (tanδ = E″/E′). Based on the feasibility of testing the responses of dynamic viscoelasticity to RH variation, 3-point bending mode (with a span of 50 mm) was selected for the measurements instead of cantilever mode, which was the most common type among the dynamic test. The shrinkage loosed the alignment between the specimen and cantilever clamp during the cyclical variation of RH so that we chose the 3-point bending mode instead of the cantilever mode. The dynamic viscoelastic properties were determined at a frequency of 1 Hz. The displacement amplitude was 15 μm and the force track was 125 %. Force track, the ratio of static to dynamic force, was used to make sure tightly contact between sample and clamp and avoid the overstraining or creep of sample also. The preload force was 0.01 N. This applied force value was so small that the creep or mechano-sorptive creep effects could be negligible. The testing temperature was kept the same with the conditioning temperature at 30 °C to avoid any change of viscoelasticity caused by the heating temperature.

After mounted on the clamp in the testing chamber, the specimens were placed under a constant RH value of 58 % before the actual viscoelastic measurements. The constant RH atmospheres in the equipment were conducted as follows. The air in the chamber was firstly increased to 58 % RH (2 %/min) within 30 min and remained unchanged. After the specimens stabilized for more than 10 min, constant RH and cyclical RH tests were conducted, respectively. During the constant RH test, RH value in the testing chamber was kept 58 % within the whole time duration of 560 min. As for the cyclical RH test: RH increased from 58 to 90 % firstly, and then experienced 7 times of decrease (90–10 % RH) and 6 times of increase (10–90 % RH) alternately, finally RH increased to 58 % to end up. The whole cyclical RH progress took 560 min with a RH changing rate of 2 %/min. The MC changes were determined by weighing the specimens before and after the constant and cyclical RH tests. At least three replicates were carried out and one representative curve is shown here.

Results and discussion

Storage modulus and loss factor during the constant RH test

The values of storage modulus E′ and loss factor tanδ during the constant RH (58 %) condition were 6038.77 MPa and 0.0599, respectively. Generally, the viscoelasticity values were influenced by the wood species, test method and clamp type. The 3-point bending clamp, as a kind of tensioning clamp, applied a preload force to pretension the sample before the oscillation. The pretension load increased the energy dissipation of wood comparing to the cantilever clamp (non-tensioning clamp), but the measurement values could be considered to be reasonable comparing to previous studies [27, 28]. The values of coefficient of variation of E′ and tanδ under constant RH condition were 0.06 and 0.05 %, respectively. The testing temperature (30 °C) was not high enough to provide sufficient energy for wood softening [29]. In addition, no change in MC was found after the test. Therefore, wood dynamic viscoelasticity remained unchanged at the constant environment (30 °C, 58 % RH).

Storage modulus during the cyclical RH test

Figure 1 shows a typical example of E′ curves during the cyclical RH variation, and presents the responses of wood to the changes of RH in the surrounding atmospheres. The E′ displayed fluctuated with the change of RH. E′ decreased with the increase of RH, and increased with the decrease of RH. During the cyclical progress of the increasing and decreasing of imposed RH, 7 times of local minimum or local maximum values of E′ (E′min and E′max, respectively) alternately occurred. The occurrences of E′min and E′max lagged behind the corresponding maximum value or minimum value of RH (RHmax, 90 % RH or RHmin, 10 % RH, respectively). Both values of E′min and E′max occurred each time were higher than that of the previous time they occurred. The ultimate value of E′ increased compared to the initial value after 560 min RH changing progress.

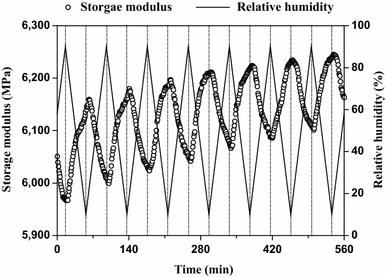

Fig. 1
figure 1

Changes of storage modulus during the cyclical relative humidity variation

Full size image

The movement of water molecular into and out of wood cell walls was probably the main reason that E′ fluctuated with the change of ambient RH. When RH increased, water molecular entered into cell walls and were absorbed on the microfibril surfaces or into the surrounding matrix. As water played a role of plasticizer, it formed water–lignin, water–hemicellulose, and water–paracrystalline cellulose bonds, which replaced hydrogen bonds within the polymer and caused the decrease of wood stiffness [3]. When RH decreased, the vapor pressure in wood was higher than that in air. The difference in vapor pressure caused the desorption at the sample surfaces and the formation of MC gradient and vapor pressure gradient in the samples. The vapor pressure gradient forced the movement of water from sample cores to the surfaces [30]. When the water was out of cell walls, the bonds formed with cellulose, hemicellulose and lignin vanish. The spaced water molecular occupied the cells before diminishing due to the shrinkage of the cells. The polymers became close and formed hydrogen bonds again, resulting in the increase in wood stiffness. After 560 min cyclic RH changed, MC decreased by about 2.35 %. The decrease in MC could be the main reason that giving E′ a higher ultimate value than the initial one.

Table 1 lists the changes of E′min and E′max during 7 times of RH cycles. It was also illustrated that the lagged time between occurrences of E′min or E′max and corresponding RHmax or RHmin decreased with the increasing cycle times. With the increasing occurrences, lagged time of E′min and E′max decreased from 4.83 and 4.89 to 3.09 and 3.16 min, respectively. The lagged responses of E′ to RH showed a close relationship with anatomy structure of wood. Diffusion rates of water in coniferous wood mainly depended on longitudinal tracheids and transverse bordered pit pairs. The overall diameter of the pit chambers of bordered pits had an approximate range from 6 to 30 μm [30], which provided a large resistance against water diffusion. When RH reached the maximum (minimum) value and began to decrease (increase), water desorbed from (absorbed into) sample surfaces. Since the water diffusion speed was much slower than the RH changing rate, the occurrences of E′min or E′max lagged behind RHmax or RHmin. After a transient period of 7 cycles, lagged time of E′min and E′max decreased and leveled off with the increasing cyclic time. Chomcharn and Skaar [31] believed that the response of wood more nearly followed the humidity changes with the increasing cyclic time and approached constant values as the number of cycles increased.

Table 1 Changes in local minimum or maximum value of storage modulus during the cyclical relative humidity variation
Full size table

The E′min and E′max values occurred each time were always higher than the previous time they occurred. Although the increasing rate of E′min was higher than that of E′max, both the increasing rates decreased with the increasing cyclic time. Their increasing rates decreased from 0.54 and 0.33 to 0.31 and 0.17 %, respectively. These changes were mainly related to the reciprocated diffusion of water into and out of wood cell walls. The water diffusion caused the breaking and reforming of hydrogen bonds [8], increasing the fluidity of polymer molecular [11], creating or vanishing the free volume which gave a destabilized condition to cell walls [15]. The destabilized state of cell wall provided wood a lower stiffness comparing to that under a stabilized state [25]. The changes in wood stiffness during the changing of RH were attributed to two aspects. The first factor was the MC-caused changing of stiffness. Another factor was the destabilized-caused changing of stiffness resulted from the changes in RH, no matter increment or decrement of RH. During the increasing period of RH, destabilized-dependent effect to stiffness aggravated the decrease in stiffness caused by MC. In reverse, the increase in stiffness during the decreasing period of RH was the multi-effects of MC and the destabilized state. Before the test, the samples were conditioned at 58 % RH for over 8 weeks. When RH increased to 90 %, E′min occurred at the first time with the most destabilized state comparing to other E′min and E′max occurred subsequently. With the cyclic changes of RH, polymers asymptotically returned to the dynamic equilibrium state. The progress that polymers returning to equilibrium manifested as the increasing rate of E′min was more than E′max and both the increasing rates decreased with the increasing cyclic time.

Loss factor during the cyclical RH test

Figure 2 presents the response of tanδ to cyclical RH changes. Similar to the responses of E′, tanδ fluctuated with the change of RH also. Tanδ increased with the increasing RH and decreased with the decreasing RH. Changes of tanδ lagged behind the changing of humidity and occurred tanδ max and tanδ min. The occurred times of tanδ max and tanδ min corresponded with E′min and E′max, respectively. The ultimate value of tanδ decreased by about 10.31 % compared to the initial value.

Fig. 2
figure 2

Changes of loss factor during the cyclical relative humidity variation

Full size image

Generally, adsorbed water molecular increased interactions within wood substance and between water and wood substance. When polymolecular adsorbed water within wood cell walls, the mechanical relaxation could be mainly due to the orientation of water molecular in wood cells [2]. The increasing RH led to both increases in MC and tanδ. When RH decreased, the decreasing trend of both MC and tanδ could be observed.

Table 2 lists the changes of tanδ min and tanδ max during 7 times of the RH cycles. Occurrences of tanδ min and tanδ max matched with that of E′max and E′min, respectively. When RH reached the RHmax (RHmin), MCmax (MCmin) lagged behind. Then, the amount of the created hydrogen bonds water–polymers increased (decreased). Subsequently, the wood stiffness decreased (increased) to E′min (E′max). Meanwhile, interactions between water and polymers increased (decreased) to tanδ max (tanδ min).

Table 2 Changes in local minimum or maximum value of loss factor during the cyclical relative humidity variation
Full size table

During the cyclic RH changing process, the values of tanδ min and tanδ max occurred each time were always higher than that of the previous time they occurred. Although the decreasing rate of tanδ min was lower than that of tanδ max, both the decreasing rates decreased with the increasing of cyclic time. Their decreasing rates decreased from −1.88 and −2.59 to −0.66 and −0.20 %, respectively. These results matched with the changes of E′min and E′max. The decreasing changing rates of both E′ and tanδ were attributed to the returning of the dynamic equilibrium state from a destabilized state of cell wall. The changes of E′ and tanδ may also be related to the swelling/shrinkage properties of microfibril and matrix under changing RH [32]. The different responses of microfibril and matrix to the varying RH caused a phase lag of dimensional changing between these two parts. The dissipated energy increased with the existing dimensional phase lag. With the increase in cyclic time, the phase lag between microfibril and matrix gradually decreased and was corresponding to less energy dissipation.

Storage modulus vs RH

It is possible to transform the time x axis of Fig. 1 to a RH axis based on the RH time setting program. The results of 7 times of cyclic RH changes are shown in Fig. 3 where E′ is plotted versus the RH values. The whole RH changing region was divided into 3 parts for further discussion: (1) 58 % RH → 90 % RH (Fig. 3a), (2) 90 % RH → 10 % RH (Fig. 3b), (3) 10 % RH → 58 % RH (Fig. 3c). Based on E′ vs RH curves, one cycle was proposed as RH changed from 58 % RH and back to 58 % RH again (58 % RH → 90 % RH → 10 % RH → 58 % RH). As seen in the whole RH changing regions, E′ decreased with the increased RH and increased with the decreased RH. These trends were consistent with the results in Fig. 1. Regardless of RH value, E′ increased with cyclic time. During the RH changing process from 58 to 90 % RH (Fig. 3a), the changing rate of E′ at the second cycle compared to the first one was significantly higher than subsequent cyclic times. At the beginning of RH change, polymers of cell wall had the most destabilized state. The effect of physical aging of polymer molecular on the decreasing wood stiffness was observed most obviously at this period [15]. With the subsequently RH changing process, polymers were back to the dynamic equilibrium state gradually. When RH varied from 90 % RH to 10 % RH (Fig. 3b), E′min occurred at about 80 to 85 % RH. The RH value that E′min occurred increased and leveled off with the increasing cyclic time. The RH lag phase between E′min and RHmax (90 % RH) is presented as time lag phase in Fig. 1. When E′ reached E′min and went through the increasing progress, its increasing rate decreased with the decreasing RH. These phenomena were probably related to the sorption properties of wood. Like other polymers, typical of the moisture sorption isotherms of wood was the type II isotherm [33]. During the decreasing period of RH, the wood MC decreasing rate decreased also, which led to the similar changing trends of E′. When RH increased from 10 to 58 % RH, E′max occurred at the ranges from 15 to 20 % RH.

Fig. 3
figure 3

Influence of relative humidity on storage modulus during the cyclical relative humidity variation a 58 % RH → 90 % RH, b 90 % RH → 10 % RH, c 10 % RH → 58 % RH

Full size image

Loss factor vs RH

When transforming the time x axis of Fig. 2 to a RH axis, curves of tanδ versus RH are obtained in Fig. 4. The same as E′, discussions in tanδ as a function of RH were also based on 3 parts of RH regions: (1) 58 % RH → 90 % RH (Fig. 4a), (2) 90 % RH → 10 % RH (Fig. 4b), (3) 10 % RH → 58 % RH (Fig. 4c). Consisted with the trends of E′, tanδ increased with the increasing RH and decreased with the decreasing RH at the whole RH region. Tanδ decreased with the increased cyclic time at the any same RH value. In Fig. 4a, the changing rate of tanδ at the second cycle was significantly higher than subsequent cyclic times compared to the first one. When RH decreased from 90 to 10 % RH (Fig. 4b) and increased from 10 to 90 % RH (Fig. 4c), difference values between the occurrence RH value of tanδ min or tanδ max and RHmin or RHmax decreased and leveled off with the increased cyclic time. The decreasing rate of tanδ presented as almost the same during the RH decreasing period (90–10 % RH). It was probably related to the phase lag of the dimensional change between the microfibril and matrix. The chemical properties of the microfibril and matrix mainly determined the dynamic mechanical properties of wood, but also their volume fractions [22].

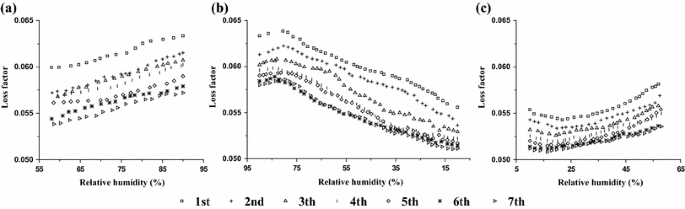

Fig. 4
figure 4

Influence of relative humidity on loss factor during the cyclical relative humidity variation a 58 % RH → 90 % RH, b 90 % RH → 10 % RH, c 10 % RH → 58 % RH

Full size image

Loss factor vs storage modulus

As discussed before, E′ was inversely proportional to the variation of RH, while tanδ was proportional to the variation of RH. These two parameters revealed the influence of MC and the unsteady effect on wood. Basically, E′ was likely affected by the direct effect of MC, and tanδ exhibited the unsteady effect as well. To investigate how the tanδ varies with E′ (MC), the curves of tanδ as a function of E′ in the first 90 % RH → 10 % RH process and the first 10 % RH → 90 % RH process are presented in Fig. 5.

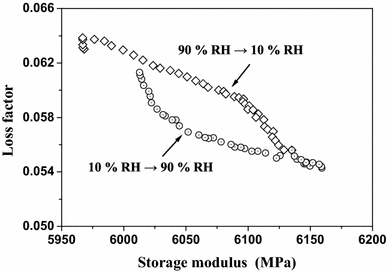

Fig. 5
figure 5

Changes of loss factor as a function of storage modulus at the first 90 % RH → 10 % RH process and the first 10 % RH → 90 % RH

Full size image

The curves’ shapes of tanδ against E′ were presented as arcs (A). When the points (E′, tanδ) at 10 and 90 % RH during each RH variation process were linked by a line (L), tanδ on A was lower than on L with a same value of E′ during the RH increasing process, and higher during the RH decreasing process. Namely, the ratio tanδ A/tanδ L was lower or higher than 1 during adsorption or desorption process, and was equal to 1 at each 10 or 90 % RH time-point. The arc A, line L and according tanδ A, tanδ L of a typical adsorption and desorption processes are shown in Fig. 6. The value of tanδ A/tanδ L manifested the unsteady effect of polymer molecular in wood cell walls during the desorption processes, while some degrees of unsteady recovery were observed during the adsorption processes. Compared to adsorption process, much unsteady effect of wood polymer during desorption process was investigated by other researchers. Takemura believed that during the desorption process additional space produced and provided more room for movements of the surrounding adsorption sites of wood polymer or other units [34]. Mukudai suggested that the loose area would take place between the S1 layer and S2 layer in secondary cell wall during the desorption process, resulting in the stress on I (intercellular layer) + P (primary wall) + S1 increased rapidly [35, 36]. Based on the Eyring’s hole theory and Doolittle’s free volume theory, Nakano proposed that part of additional entropy decrease was the reason for the recovery during adsorption process [37].

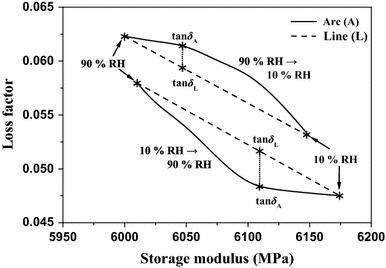

Fig. 6
figure 6

Schematic diagram of tanδ A and tanδ L during typical relative humidity increasing and decreasing processes

Full size image

The minimum or maximum value of tanδ A/tanδ L during each RH increasing or decreasing process is listed in Table 3. The value of tanδ A/tanδ L increased and decreased with the increasing cyclical RH time at RH increasing and decreasing process, respectively. With the increasing cyclical RH time, unsteady effect of wood polymer diminished due to the dynamic equilibrium state being back gradually. This result was consistent with the gradual reduction of lagged time and the changing rate of extreme E′ and tanδ.

Table 3 Changes in tanδ A/tanδ L during the relative humidity variation processes
Full size table

Conclusions

The time-dependent and RH-dependent viscoelasticity of Chinese fir was examined under cyclical RH changes and the conclusions were drawn as follows:

  1. 1.

    Both MC and dynamic viscoelasticity remained unchanged during the constant RH test at 30 °C, 58 % RH. After 7 times of cyclical RH variation, MC of specimens decreased by about 2.35 %. The ultimate values of storage modulus and loss factor increased and decreased, respectively.

  2. 2.

    The occurrences of E′min (E′max) and tanδ max (tanδ min) lagged behind RHmax (RHmin). The lagged time decreased with the increasing cyclic time.

  3. 3.

    The values of E′min (E′max) or tanδ max (tanδ min) were always higher or lower than the previous time they occurred. Both the changing rates decreased with the increasing cyclic time. The increasing (decreasing) rate of E′min (tanδ max) was higher than E′max (tanδ min).

  4. 4.

    When RH increased from 58 to 90 % RH, the changing rates of E′ and tanδ at the second cycle were significantly higher than the subsequent cyclic times compared to the first ones. During RH decreased from 90 to 10 % RH, the increasing rate of storage modulus decreased with the decreasing RH, while loss factor decreased almost linearly.

  5. 5.

    The unsteady effect and its partial recovery were observed during the desorption and the adsorption process. With the increasing cyclical times, the unsteady effect decreased and wood returned to the dynamic equilibrium state gradually.

References

  1. Obataya E, Furuta Y, Gril J (2003) Dynamic viscoelastic properties of wood acetylated with acetic anhydride solution of glucose pentaacetate. J Wood Sci 49:152–157

    Article  CAS  Google Scholar

  2. Jiang JL, Lu JX (2006) Moisture dependence of the dynamic viscoelastic properties for wood. J Beijing For Univ 28:118–123

    Google Scholar

  3. Placet V, Passard J, Perré P (2007) Viscoelastic properties of green wood across the grain measured by harmonic tests in the range 0–95 °C: hardwood vs. softwood and normal wood vs. reaction wood. Holzforschung 61:548–557

    Article  CAS  Google Scholar

  4. Jiang JL, Lu JX, Huang RF, Li XL (2009) Effects of time and temperature on the viscoelastic properties of Chinese fir wood. Dry Technol 27:1229–1234

    Article  CAS  Google Scholar

  5. Jiang JL, Lu JX, Zhao YK, Wu YZ (2010) Influence of frequency on wood viscoelasticity under two types of heating conditions. Dry Technol 28:823–829

    Article  CAS  Google Scholar

  6. Armstrong LD, Kingston RS (1960) Effect of moisture changes on creep in wood. Nature 185:862–863

    Article  Google Scholar

  7. Grossman PUA (1976) Requirements for a model that exhibits mechano-sorptive behaviour. Wood Sci Technol 10:163–168

    Article  Google Scholar

  8. Gibson EJ (1965) Creep of wood: role of water and effect of a changing moisture content. Nature 206:213–215

    Article  Google Scholar

  9. Hunt DG (1986) The mechano-sorptive creep susceptibility of two softwoods and its relation to some other materials properties. J Mater Sci 21:2088–2096

    Article  CAS  Google Scholar

  10. Zhou Y, Fushitani M, Kubo T, Ozawa M (1999) Bending creep behavior of wood under cyclic moisture changes. J Wood Sci 45:113–119

    Article  CAS  Google Scholar

  11. Navi P, Pittet V, Plummer CJG (2002) Transient moisture effects on wood creep. Wood Sci Technol 36:447–462

    Article  CAS  Google Scholar

  12. Zhang W, Tokumoto M, Takeda T (2007) Effects of temperature on mechano-sorptive creep of delignified wood. J Wood Sci 53:187–191

    Article  CAS  Google Scholar

  13. Navi P, Stanzl-Tschegg S (2009) Micromechanics of creep and relaxation of wood. A review COST action E35 2004–2008: wood machining–micromechanics and fracture. Holzforschung 63:186–195

    Article  CAS  Google Scholar

  14. Olsson AM, Salmén L (2014) Mechano-sorptive creep in pulp fibres and paper. Wood Sci Technol 48:569–580

    Article  CAS  Google Scholar

  15. Hunt DG, Gril J (1996) Evidence of a physical ageing phenomenon in wood. J Mater Sci Lett 15:80–82

    Article  CAS  Google Scholar

  16. Wang Y, Iida I, Minato K (2007) Mechanical properties of wood in an unstable state due to temperature changes, and analysis of the relevant mechanism IV: effect of chemical components on destabilization of wood. J Wood Sci 53:381–387

    Article  Google Scholar

  17. Wang Y, Minato K, Iida I (2007) Mechanical properties of wood in an unstable state due to temperature changes, and analysis of the relevant mechanism III: effect of quenching on stress relaxation of chemically modified woods. J Wood Sci 53:94–99

    Article  CAS  Google Scholar

  18. Kojiro K, Furuta Y, Ishimaru Y (2008) Influence of heating history on dynamic viscoelastic properties and dimensions of dry wood. J Wood Sci 54:196–201

    Article  Google Scholar

  19. Kojiro K, Furuta Y, Ishimaru Y (2008) Influence of histories on dynamic viscoelastic properties and dimensions of water-swollen wood. J Wood Sci 54:95–99

    Article  Google Scholar

  20. Ebrahimzadeh PR, Kubát DG (1993) Effects of humidity changes on damping and stress relaxation in wood. J Mater Sci 28:5668–5674

    Article  CAS  Google Scholar

  21. Ebrahimzadeh PR, Kubát J, McQueen DH (1996) Dynamic mechanical characterization of mechanosorptive effects in wood and paper. Holz Roh-Werkstoff 54:263–271

    Article  Google Scholar

  22. Obataya E, Norimoto M, Gril J (1998) The effects of adsorbed water on dynamic mechanical properties of wood. Polymer 39:3059–3064

    Article  CAS  Google Scholar

  23. Backman AC, Lindberg KAH (2001) Differences in wood material responses for radial and tangential direction as measured by dynamic mechanical thermal analysis. J Mater Sci 36:3777–3783

    Article  CAS  Google Scholar

  24. Jiang JL, Lu JX (2008) Dynamic viscoelasticity of wood after various drying processes. Dry Technol 26:537–543

    Article  CAS  Google Scholar

  25. Takahashi C, Nakazawa N, Ishibashi K, Iida I, Furuta Y, Ishimaru Y (2006) Influence of variation in modulus of elasticity on creep of wood during changing process of moisture. Holzforschung 60:445–449

    CAS  Google Scholar

  26. Kubojima Y, Suzuki Y, Tonosaki M (2010) Real-time measurement of the viscoelasticity of green juvenile wood of Japanese cedar at high temperature. Wood Fiber Sci 42:328–334

    CAS  Google Scholar

  27. Kelley SS, Rilas TG, Glasser WG (1987) Relaxation behavior of amorphous components of wood. J Mater Sci 22:617–624

    Article  CAS  Google Scholar

  28. Kutnar A, Widmann R, Brémaud I (2013) Preliminary studies for use of dynamic mechanical analysis (DMA) to verify intensity of thermal wood modifications. Int Wood Prod J 4:158–165

    Article  Google Scholar

  29. Jiang JL, Lu JX (2014) Hydrothermal effects on dynamic viscoelastic properties of wood. Sci Silvae Sin 50:101–108

    Google Scholar

  30. Siau JF (1995) Wood: influence of moisture on physical properties. Department of Wood Science and Forest Products, Virginia Polytechnic Institute and State University, Blacksburg

    Google Scholar

  31. Chomcharn A, Skaar C (1983) Dynamic sorption and hygroexpansion of wood wafers exposed to sinusoidally varying humidity. Wood Sci Technol 17:259–277

    Article  Google Scholar

  32. Ma EN, Zhao GJ (2006) Hygroexpansion of wood: from equilibrious state to non-equilibrious state. J Beijing For Univ 28:133–138

    Google Scholar

  33. Skaar C (1988) Wood-water relations. Springer-Verlag, New York

    Book  Google Scholar

  34. Takemura T (1967) Plastic properties of wood in relation to the non-equilibrium states of moisture content. Mokuzai Gakkaishi 13:77–81

    Google Scholar

  35. Mukudai J, Yata S (1986) Modeling and simulation of viscoelastic behavior (tensile strain) of wood under moisture change. Wood Sci Tech 20:335–348

    Article  Google Scholar

  36. Mukudai J, Yata S (1987) Further modeling and simulation of viscoelastic behavior (bending deflection) of wood under moisture change. Wood Sci Tech 21:49–63

    Google Scholar

  37. Nakano T (1996) Viscosity and entropy change in creep during water desorption for wood. Wood Sci Tech 30:117–125

    Article  CAS  Google Scholar

Download references

Acknowledgments

This work was financially supported by the Fundamental Research Funds of the Institute of Forestry New Technology, Chinese Academy of Forestry (CAFINT2014C03) and the National Natural Science Foundation of China (No. 30825034).
