Official Journal of the Japan Wood Research Society

  • Note
  • Published:

Effects of drying and/or quenching histories on lateral tensile deformation properties of water-swollen wood

Abstract

Lateral tensile deformation properties of wood were studied to clarify the tensile deformation properties of wood with drying and/or quenching histories, and it was discussed whether giving these histories was effective to increase the lateral tensile deformation of wood. The results obtained are as follows. In all of the samples with drying and/or quenching histories, failure strain was increased and elastic modulus was decreased. In all of the measurement conditions, the failure strain of 45° angle sample with history was the largest. This result was caused by the shearing deformation of cells which showed diamond-shaped deformation during increasing tensile stress. This shearing deformation of the cell shape was promoted by increase of fluidity and decrease of elastic modulus which were caused by treatment of drying and/or quenching. These results suggest that giving drying and/or quenching histories is effective for wood to increase the tensile deformation even in water saturated condition at 25 °C.

Introduction

Techniques for deforming wood into various shapes are required to improve the processability of wood products. However, wood has a low ductility. When veneers are press molded into a tray or pasted on the curved surface, cracks often occur in large parts of the curvature. It is considered that the reasons for these problems are due to small lateral tensile deformation and strength. Therefore, to improve the processability of wood, first of all, it is necessary to understand the characteristics of the lateral tensile deformation of wood. And then, these studies should be applied to the various deformation processes technology of wood. However, physical properties of lateral tensile deformation have not been made sufficiently clear in previous studies. So, in our previous report, we have studied lateral tensile deformation properties at various moisture content, temperatures, angle to annual rings, and species in the same size of samples [1, 2].

On the other hand, it was reported that physical properties of water-swollen wood are affected by drying and/or quenching histories [3, 4]. In these reports, elastic modulus and strength were reduced, and fluidity was increased in comparison to annealed sample of water-swollen wood. And these physical properties depended on the soaking time in water after drying and/or quenching. Thus, many physical properties of wood are affected by change of environment such as moisture and temperature. These physical property changes of wood due to drying and/or quenching histories were observed from the bending test in most cases [3, 4]. On the other hand, the lateral tensile deformation property of wood with drying and/or quenching histories is not clear.

For these reasons, lateral tensile deformation properties of water-swollen wood with drying and/or quenching histories were studied. From the results obtained, the influence of these histories on lateral tensile deformation of wood were clarified, and then it was discussed whether giving these histories was effective to increase the lateral tensile deformation of wood.

Materials and methods

Samples

Test samples of block-shaped were taken from the outer region of the log of Hinoki (Chamaecyparis obtusa). The samples with different angles of the tensile direction to the annual rings (0°, 45°, 90°) were made. The average ring width of the sample was about 1.1 mm. Cross section of the block sample was sliced by a sliding microtome, because fine roughness caused by the circular saw blade can be a starting point of the failure of the sample in the tensile test. The sample size was 0.1 mm thickness (L), 3.2 mm width, and 20 mm length.

The samples were conditioned in the manners shown in Fig. 1. Control samples were boiled for 15 min and were cooled slowly to 25 °C for 24 h, and then soaked in water at 25 °C for 1 week. The samples with quenching history were boiled for 15 min and were put immediately into water at 25 °C. The samples with drying history were obtained as follows. First, the samples were boiled for 15 min and were cooled slowly to 25 °C for 24 h. Next, the samples were dried at room temperature for 1 day and dried overnight in an oven at 105 °C. And then, dried samples were impregnated with water at 25 °C under vacuum.

Fig. 1
figure 1

The methods of conditioning

Measurements

The measurements were carried out in water at 25 °C by thermo-mechanical analyzer (Seiko Instruments Co., Inc. TMA/SS6100). The measurement span was 10 mm and the rate of load was 1 N/min. Figure 2 shows the appearance of the samples attached to the chuck. The typical stress–strain curve and average values were obtained from 10 samples where the failure occurred around the center of the span.

Fig. 2
figure 2

The appearance of the sample attached to the chuck

Results and discussion

Stress–strain curves of wood with drying and/or quenching histories

Figure 3 shows typical stress–strain curves of different angle samples with different histories. In the 0° angle sample, significant difference in the behavior of stress–strain curves between each sample was not found. In the 45° angle sample with each history, failure strain and strength were larger than that of control sample. In all of the measurement conditions, the strain of angle 45° was larger than those of angle 90° and 0°. This result suggests as follows. It is reported the cells of the 45° angle sample deformed like diamond shape during tensile test [5, 6]. Therefore, the deformation of cell for the 45° angle sample is shared larger than other angle samples. In the 90° angle sample with quenching history, the gradient of stress–strain curve was smaller and strain was larger than those of control samples and samples with drying history. The gradient of the stress–strain curve of angle 90° was steeper and linear than those of other angle samples. In the 90° angle sample, ray tissue is arranged in the tensile direction. This should be reflected in the above result. Thus, effect of some history on the lateral tensile deformation properties was different in the each angle sample.

Fig. 3
figure 3

The typical stress–strain curves of different angle samples with different histories. Each angle means the tensile direction to the annual rings. Symbol means each failure point

Physical properties of wood with drying and/or quenching histories

To investigate the effect of drying and/or quenching histories in detail, tensile failure strain, strength and elastic modulus of each sample were obtained. Figure 4 shows a relationship between the tensile properties and tensile directions to the annual rings. The average values were obtained from 10 samples where the failure occurred around the center of the span. Samples with drying and/or quenching histories tended to have larger failure strain than those of control samples. The tendency like this was quite similar in every angle of samples. The 45° angle sample with drying and/or quenching histories showed maximum value of failure strain of about 15 %. This result suggests that the tensile deformation of wood was increased by giving drying and/or quenching histories. The reason was considered as follows. According to the present research, the wood quenched has the value of lower modulus of elasticity (MOE) and higher fluidity than those of wood annealed which is kept at a constant temperature for a long time [3]. Kudo et al. reported that the fluidity of wood quenched from 80 to 40 °C or below was increased remarkably [4]. However, the fluidity of wood quenched from 80 to 50 °C or above did not change significantly. On the other hand, Nakano suggested the increase in relaxation behavior of wood was caused by increase in free volume in the amorphous polymer of wood constituents due to quenching treatment [7]. And, he succeeded that theoretical formula which explains the relaxation behavior of amorphous polymer could be adapted to the relaxation behavior of wood quenched. Kojiro et al. [8] studied the pore-size distribution determined by adsorption of CO2 with samples dried by outgas at various temperatures from 30 to 190 °C. As a result, it was observed that the micro-spaces were decreased with elevating outgas temperature. Nakatani et al. [9] confirmed some interesting facts by measuring the adsorption of various organic liquids and CO2 for wood. That is, most of the sub nanometer order of micro-pores of wood was present in lignin. From those mentioned above, it might be considered that the value of the failure strain was increased by increasing fluidity due to free volume mainly in lignin which was increased by giving drying and/or quenching histories.

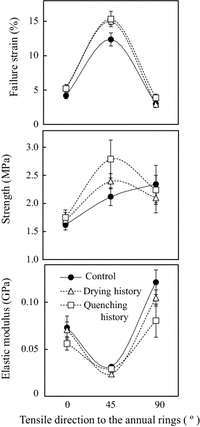

Fig. 4
figure 4

Relationship between the tensile properties and tensile direction to the annual rings. Symbols mean the average value and error bars mean 95 % confidence interval

Focusing on the strength, the values of control samples were increased in the order of 0°, 45°, 90°. The 45° angle sample with drying and/or quenching histories showed maximum strength. The strength in 90° angle sample was larger than that of 0° angle sample. In addition, between the samples with different histories, the difference of strength was not significant in the 0° and 90° angle samples. However, in the 45° angle sample, the strength of the samples with drying and/or quenching histories was larger than that of control. From previous studies, bending strength of water-swollen wood was decreased by giving quenching history [3]. Therefore, the results obtained in this study were differed from that of previous study. In the 45° angle sample with each history, the reason for the significant increase in strength was considered as follows. In 45° angle sample, gradient of stress–strain curve is steeper with increase in strain as shown in Fig. 3. In the deforming process, cells of early wood are especially shared like diamond shape. With increasing tensile strain, the angle between the ray tissue or the late wood layer which have higher elastic modulus than that of early wood and tensile direction is decreased. Then, these tissues become bearing larger tensile stress. Therefore, it can be said that strength was also increased because the tensile strain was increased by giving drying and/or quenching histories.

Focusing on the elastic modulus, in the 45° angle sample, elastic modulus was the lowest in any angle samples. In the 0° angle sample, the elastic modulus was lower than that of 90° angle sample. In samples of each angle, the elastic moduli of samples with some histories were smaller than that of control. Similar tendencies were seen in the previous studies, that is, the bending elastic modulus of water-swollen wood with some histories was smaller than those of green wood or wood annealed [3, 4, 10]. Additionally, bending elastic modulus which was decreased by giving some histories was increased with the passage of time. The reason of these results was considered as follows. When wood is given drying and/or quenching histories, molecular state of wood constituents is disturbed and microscopic strain is occurred in microstructure of wood. These microscopic strains are eliminated with the passage of time. In the eliminating process of microscopic strain, in other words, in unstable state in which the thermodynamic state of wood component transitions toward stable state, resistance of wood to external force is recovered. Therefore, it might be considered that lateral tensile elastic modulus of wood, given some histories, was also decreased as well as those of bending.

Influence of drying and/or quenching histories on failure strain

As mentioned above, the lateral tensile deformations were different in the angles of the tensile direction to the annual rings. Therefore, to consider the influence of the drying and/or quenching histories on the failure strain, it is necessary to compare the increasing value of failure strain between samples. Figure 5 shows relative failure strain of different angle samples with each history. Relative failure strain means the value in sample with each history relative to that in the control. In the 45° and 0° angle samples with each history, failure strain was increased about 20 % in comparison to that of control samples. In 90° angle sample with quenching history, failure strain was increased about 20 % as well as the results of the 0° and 45° angle samples. On the other hand, in the sample with drying history, the failure strain did not increase. The cause of the difference in relative failure strain was considered that fine roughness which was caused during drying process contributed to tensile failure in 90° angle sample. It is necessary to study in the future to clarify the cause.

Fig. 5
figure 5

Relative failure strain of different angle samples with each history. Relative failure strain means the value in sample with each history relative to that in control sample

From the results above, except for the 90° angle sample with drying history, failure strain of the water-swollen wood at 25 °C was increased about 20 % in comparison to the control sample by giving drying and/or quenching histories.

Conclusions

To clarify the influence of drying and/or quenching histories on lateral tensile deformation of wood, we studied lateral tensile deformation properties of water-swollen wood with those histories. The results obtained are as follows. In the 45° angle sample with drying history, the failure strain was about 15 %. The value was about 3–4 times as compared to the results in the 0° and 90° angle samples. Further, except for the 90° angle sample with drying history, failure strain was increased about 20 % by giving drying and/or quenching histories. These results show that giving drying and/or quenching histories is the effective method for wood to increase the tensile deformation of the wood even in the water-swollen condition at 25 °C because of some unstable states caused by these histories. Therefore, largely unstable states given by various kinds of histories should make it possible to increase in the lateral tensile deformation of wood.

References

  1. Miyoshi Y, Kojiro K, Furuta Y (2014) Deformation properties of wood in lateral tension effect of tensile direction to the annual rings, moisture, and temperature on lateral tensile deformation of Hinoki (Chamaecyparis obtusa) (in Japanese). Mokuzai Gakkaishi 60:241–248

    Article  CAS  Google Scholar

  2. Miyoshi Y, Kojiro K, Furuta Y (2015) Effect of anatomy and thermal-softening properties on lateral tensile deformation properties of various wood species (in Japanese). J Soc Mat Sci Jpn 64:356–361

    Article  CAS  Google Scholar

  3. Iida I, Ooi K, Asada T, Wang Y, Furuta Y, Ishimaru Y (2006) The effects of quenching on the mechanical properties of wet wood (in Japanese). Mokuzai Gakkaishi 52:93–99

    Article  CAS  Google Scholar

  4. Kudo M, Iida I, Ishimaru Y, Furuta Y (2003) The effects of quenching on the mechanical properties of wet wood (in Japanese). Mokuzai Gakkaishi 49:253–259

    Google Scholar

  5. Fujita S (1972) Studies on drying check VIII: deformation of structural layer during transverse tensile test (in Japanese). Mokuzai Gakkaishi 18:427–433

    Google Scholar

  6. Kanaya N, Yamada T (1967) Wood by transverse tensile tests (in Japanese). Wood Res Bull Wood Res Inst Kyoto Univ 41:47–62

    Google Scholar

  7. Nakano T (2005) Effects of quenching on relaxation properties of wet wood. J Wood Sci 51:112–117

    Article  Google Scholar

  8. Kojiro K, Furuta Y, Ishimaru Y (2008) Influence of heating and drying history on micropores in dry wood. J Wood Sci 54:202–207

    Article  Google Scholar

  9. Nakatani T, Ishimaru Y, Iida I, Furuta Y (2006) Absorption of some organic liquids onto the main constituents of wood (in Japanese). Mokuzai Gakkaishi 52:285–292

    Article  CAS  Google Scholar

  10. Furuta Y, Norimoto M, Yano H (1998) Thermal-softening properties of wood of water-swollen wood (in Japanese). Mokuzai Gakkaishi 44:82–88

    CAS  Google Scholar
