Effect of stereo-configurational difference of carbohydrate model compound on the reaction with active oxygen species under oxygen delignification conditions

Abstract

We examined how the stereo-configurational difference affects the reaction of a carbohydrate model compound with active oxygen species (AOS) generated in situ by reactions between O2 and a phenolic compound under conditions similar to those of oxygen delignification or with oxyl anion radical, the conjugate base of hydroxyl radical, generated by the decomposition of H2O2 under alkaline conditions. As the phenolic compound, 2,4,6-trimethylphenol or 4-hydroxy-3-methoxybenzyl alcohol (vanillyl alcohol) was used. The carbohydrate model compounds employed were methyl β-d-glucopyranoside (MGPβ) and its 4 epimers, methyl α-d-glucopyranoside (MGPα), methyl β-d-mannopyranoside (MMP), methyl β-d-allopyranoside (MAP), and methyl β-d-galactopyranoside (MGaP). Their stabilities were in the order of MGPα > MGPβ > MMP > MGaP > MAP, indicating that the reactivity of the carbohydrate model compound is significantly dependent on where the stereo-configurational difference is. Only the co-existence of MMP enhanced the degradation of MGPβ, when a pair of MGPβ and another carbohydrate model compound was reacted with the AOS. This result suggests that the profile of AOS in the system is dependent not only on the type of phenolic compound, the generator of AOS, but also on that of the carbohydrate model compound.

Introduction

It is still a serious problem that oxygen delignification is accompanied by severe damage to carbohydrates. The degradation of carbohydrates is not caused by direct attack of O2 but by active oxygen species (AOS) generated in situ by reactions between O2 and phenolic units in lignin [15]. We have studied the fundamental chemistry of oxygen delignification since the 1990s. It has been a recent topic of this fundamental chemistry which position of carbohydrate model compound is preferentially attacked by AOS under conditions of oxygen delignification [610].

As another topic, we partially examined the effect of stereo-configurational differences of a carbohydrate model compound on the reaction with AOS generated in situ by reactions between O2 and a phenolic compound, 2,4,6-trimethylphenol (TMPh, Fig. 1) or 4-hydroxy-3-methoxybenzyl alcohol (vanillyl alcohol, Valc, Fig. 1), under conditions similar to those of practical oxygen delignification, and published several reports [68]. In these reports, a pair of a carbohydrate model compound, methyl β-d-glucopyranoside (MGPβ, Fig. 1), and an epimer, methyl α-d-glucopyranoside (MGPα, Fig. 1) or methyl β-d-mannopyranoside (MMP, Fig. 1), was reacted with the AOS under the specified conditions [68]. The degradation of MGPβ is greater or less than that of MGPα or MMP, respectively, when each of 2 pairs is reacted with the AOS (Fig. 2) [68]. These results indicate that the effect of the stereo-configurational difference on the reaction with the AOS is dependent on where the stereo-configurational difference is.

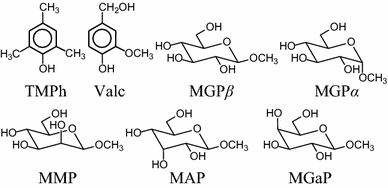

Fig. 1
figure 1

Chemical structure of the phenolic and carbohydrate model compounds employed in this study

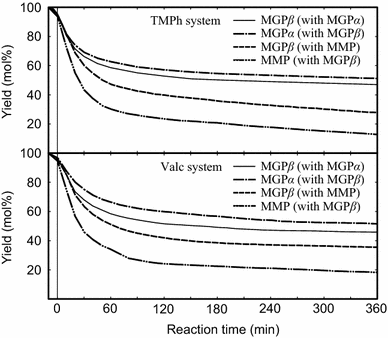

Fig. 2
figure 2

Change in the yields of MGPβ, MGPα, and MMP when a pair of MGPβ and MGPα or of MGPβ and MMP was subjected to the oxygen-alkali treatment in the presence of TMPh (upper) or Valc (lower) in our previous reports [68] (the best-fit curves are shown. Refer to the literatures [68] for the actual data points)

In this paper, we further examined how the stereo-configurational difference of the carbohydrate model compound affects the reaction with AOS under conditions of oxygen delignification. A carbohydrate model compound, MGPβ, MGPα, MMP, methyl β-d-allopyranoside (MAP, Fig. 1), or methyl β-d-galactopyranoside (MGaP, Fig. 1), or a pair of MGPβ and one of these compounds was reacted with AOS generated in situ by reactions between O2 and a phenolic compound, TMPh or Valc, under the same oxygen delignification conditions as those employed in our previous studies [68] or with oxyl anion radical (\({\text{O}}^{\bullet-}\)), the conjugate base of hydroxyl radical (\({\text{HO}}^{\bullet}\)), generated by the decomposition of H2O2 under the same alkaline conditions as those employed in our previous reports [68]. In the alkaline H2O2 treatment, \({\text{O}}^{\bullet-}\) is the only AOS that can attack and degrade the carbohydrate model compound [68].

Materials and methods

Materials

Semiconductor grades (99.99+ %) of NaOH and FeCl3 (Sigma-Aldrich Japan K. K., Tokyo, Japan), an H2O2 solution (30 %) containing no stabilizer, and all the other chemicals used in this paper were purchased from Wako Pure Chemical Industries, Ltd., Osaka, Japan or Tokyo Chemical Industry Co., Ltd., Tokyo, Japan. All the chemicals were used without further purification except for the carbohydrate model compounds. Ultra-high-purity water (Puric-Z, Organo Co., Tokyo, Japan) was used in all the experiments.

MGPβ and the epimers at the anomeric, C-2, C-3, and C-4 positions, MGPα, MMP, MAP, and MGaP, respectively, were used as carbohydrate model compounds in this paper. MGPβ, MGPα, and MGaP were purchased from Wako Pure Chemical Industries, Ltd. or Tokyo Chemical Industry Co., Ltd., and used after recrystallization. MMP was purchased from Toronto Research Chemicals Inc. (North York, ON, Canada) as the hemi-isopropylate. The removal of isopropyl alcohol was described in our previous report [7].

MAP was synthesized from MGPβ according to the method of Weinges et al. [11]. Diethyl azodicarboxylate was slowly added to THF containing MGPβ, triphenylphosphane, and benzoic acid, and the mixture was maintained at 60 °C for 1 h with stirring to undergo the Mitsunobu reaction. The obtained syrup consisting mainly of methyl 3-O-benzoyl-β-d-allopyranoside was added to a NaOCH3/CH3OH solution for the debenzoylation, followed by desalination using a cation exchange resin and a strong base anion exchange resin in this order. The yield was 35 % after purification. The structure and purity of MAP were confirmed by 1H-NMR (JNM-A500, 500 MHz, JEOL Ltd.) (Fig. 3) 1H-NMR (D2O): δ 3.41–3.44 (dd, 1H, J = 3.0, J = 8.0, C2-H), 3.54–3.57 (s, 3H, –OCH 3), 3.58–3.62 (dd, 1H, J = 3.0, J = 10.0, C4-H), 3.67–3.72 (dd, 1H, J = 6.0, J = 12.0, C6-H a), 3.75–3.79 (m, 1H, C5-H), 3.88–3.92 (dd, 1H, J = 2.0, J = 12.0, C6-H b), 4.13–4.16 (dd, 1H, J = 3.0, J = 3.0, C3-H), 4.58–4.62 (d, 1H, J = 8.0, C1-H).

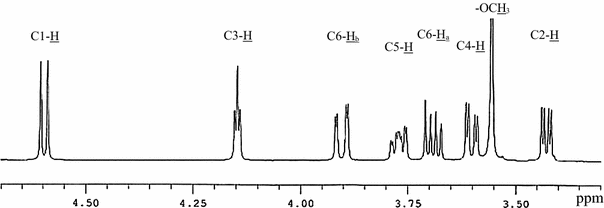

Fig. 3
figure 3

1H-NMR spectrum of MAP

Oxygen-alkali treatment

A reaction solution (300 mL) was prepared to contain NaOH (0.50 mol/L), FeCl3 (0.36 mmol/L), TMPh or Valc as a phenolic compound (0 or 9.0 mmol/L), and 1 or 2 carbohydrate model compound(s) [4.0 mmol/L (each)]. The solution was transferred into a Teflon-coated stainless steel vessel (500 mL, Taiatsu Techno® Co., Tokyo, Japan), and O2 (or N2) was added to a pressure of 1.1 MPa (1.0 MPa as the gauge level). The vessel was heated to 95 °C for 10 min, which was maintained for 360 min with stirring. The reaction time was defined as 0 when the temperature reached 95 °C. At prescribed times, a portion of the solution was withdrawn for quantification of the residual carbohydrate model and phenolic compounds.

The reaction system using TMPh or Valc is described as “the TMPh or Valc system.” respectively, in this paper.

Alkaline hydrogen peroxide treatment

A reaction solution (29.8 mL) was prepared to contain NaOH (0.50 mol/L), FeCl3 (0.36 mmol/L), and a carbohydrate model compound, MGPβ, MGPα, MMP, MAP, or MGaP (4.0 mmol/L). The solution was transferred into a Teflon vessel (50 mL) and heated to 95 °C in a bath containing saturated NaCl solution. A H2O2 solution (30 %, 0.2 mL) was added to the vessel to initiate the reaction, and the reaction time at this moment was defined as 0. The initial concentration of H2O2 was 58.8 mmol/L. At prescribed times, a portion of the reaction solution was withdrawn to quantify the carbohydrate model compounds. The withdrawn solution was primarily reacted with NaBH4 at room temperature for 30 min to quench possibly residual H2O2.

The reaction system is described as “the H2O2 system” in this paper.

Quantification of carbohydrate model and phenolic compounds

The work-up and analytical procedures for quantification of the residual carbohydrate model and phenolic compounds were as described in our previous reports [68]. Basically, the residual carbohydrate model compounds and Valc were quantified by GC as the acetyl derivatives with the internal standard compound (myo-inositol). TMPh was separately quantified by GC with the internal standard compound (4-chlorophenol) as the dichloromethane extracts.

Results and discussion

Stability of carbohydrate model compound in the absence of phenolic compound

As described in the introduction, O2 does not directly attack carbohydrates, but AOS generated in situ by reactions between O2 and the phenolic units in lignin mainly attack and degrade them in an oxygen delignification process. To confirm the stability of the carbohydrate model compounds in the absence of a phenolic compound, MGPβ, MGPα, MMP, MAP, or MGaP was subjected to the oxygen-alkali treatment as a sole carbohydrate model compound without the addition of phenolic compound (Table 1). MGPβ, MGPα, MAP, and MGaP were almost stable but MMP was slightly degraded. We observed, on the other hand, that MMP was stable in the nitrogen-alkali treatment under otherwise the same conditions as those of the oxygen-alkali treatment (Table 1). We suggest, therefore, that MMP is attacked directly by O2 or degraded by radical chain-type reactions initiated by some tiny amounts of AOS generated from unknown contaminants more easily than the others. Because the degradation of MMP was not great, however, we can state that the degradation of the carbohydrate model compounds observed in this paper was caused by the attack of AOS in the TMPh and Valc systems or by \({\text{O}}^{\bullet-}\) in the H2O2 system.

Table 1 List of the yield of each carbohydrate model compound at a reaction time of 360 min when solely subjected to the oxygen-alkali treatment without the addition of phenolic compound

Reaction of single carbohydrate model compound with AOS

Figure 4 illustrates the degradation of MGPβ, MGPα, MMP, MAP, or MGaP, when each compound was treated as a sole carbohydrate model compound in the TMPh system. The degradation of TMPh almost always showed the same behavior in any reaction, as shown in Fig. 5 in which a pair of MGPβ and MAP was treated. TMPh always disappeared from the system at a reaction time of about 45 min. The degradation of any carbohydrate model compound was severe in the early stage of the reaction where TMPh still existed, and gradually became moderate after this period. The degrees of the degradations were in increasing order of MGPα < MGPβ < MMP < MGaP < MAP (Fig. 4). The degradation of MAP was especially great. The degrees seem to be roughly categorized into three groups, MGPβ and MGPα, MMP and MGaP, and only MAP, which may suggest that the orientation of their three secondary hydroxy groups is a determining factor for the degree of degradation. MGPβ and MGPα, which are relatively more stable, have three equatorially oriented secondary hydroxy groups, and the orientational relationships between the C-2 and C-3 and between the C-3 and C-4 hydroxy groups are trans. MMP and MGaP have two equatorially and one axially oriented secondary hydroxy groups, and the orientational relationships between the C-2 and C-3 and between the C-3 and C-4 hydroxy groups are cis and trans in MMP, respectively, and trans and cis in MGaP, respectively. MAP also has two equatorially and one axially oriented secondary hydroxy groups, but both orientational relationships are cis. The presence of cis-related orientation in two neighboring secondary hydroxy groups may make the carbohydrate model compound vulnerable to attack by AOS. It was previously reported that the degradation of methyl β-d-ribopyranoside was greater than that of methyl β-d-xylopyranoside when each compound was treated as a sole organic compound under conditions similar to but severer than those employed in this study and hence the model compound was degraded by AOS generated by chain-type reactions during a prolonged period of time [12]. It was suggested in this report that the cis-related orientation between the C-2 and C-3 hydroxy groups in the former compound results in the degradation severer than the latter compound. The lower stability of MGPβ compared with MGPα should be dependent on the higher thermodynamic stability of the latter due to the anomeric effect.

Fig. 4
figure 4

Change in the yields of MGPβ, MGPα, MMP, MAP, and MGaP when each was subjected to the TMPh system as a sole carbohydrate model compound

Fig. 5
figure 5

Change in the yields of MGPβ, MAP, and MGaP when a pair of MGPβ and MAP (upper) or of MGPβ and MGaP (lower) was subjected to the TMPh system

Table 2 lists the yields of the carbohydrate model compounds, when each of them was treated in the H2O2 system as a sole carbohydrate model compound. In this system, the decomposition of H2O2 generates \({\text{O}}^{\bullet-}\) and \({\text{O}}_2^{\bullet-}\), and the former is the only AOS that can attack the carbohydrate model compound. A relatively large amount of H2O2 was added (58.8 mmol/L). The requirement for the large amount was explained in our previous report [13]. H2O2 disappeared from the system before a reaction time of 5 min, which was confirmed by iodometric titration. No epimeric methyl glycopyranoside was produced by the post-reduction of each withdrawn solution with NaBH4 to quench possibly residual H2O2. This result indicates that the primary degradation products of the carbohydrate model compounds, which should have a carbonyl group at a position, are significantly labile under alkaline conditions as those employed in this study and instantaneously converted to further degradation products. This instantaneous conversion should also occur in the oxygen-alkali treatment. Degradation of the carbohydrate model compounds occurred until this time, and their yields were almost constant after this time. The degradability of carbohydrate model compounds was in the same order as with the TMPh system. The degradation of MAP was also especially great. This order can correspond to that of the vulnerability of these carbohydrate model compounds to attack by \({\text{O}}^{\bullet-}\) because the reaction was conducted in air and hence their degradations caused by chain-type reactions should be negligible. This result suggests that \({\text{O}}^{\bullet-}\) operates as a main AOS in the TMPh system, although the generation of some AOS specific only to the TMPh system was proposed in our previous reports [9, 10]. In biological systems, it was indicated that d-allose has a potent inhibitory effect on the production of AOS from stimulated neutrophils [14]. Although this inhibitory effect does not originate from an alloside but from the mother d-allose, it is indicated here that an alloside, MAP, also has a relatively high scavenging effect on AOS in the purely chemical TMPh and H2O2 systems.

Table 2 List of the yield of each carbohydrate model compound at a reaction time of 15 min when solely subjected to the H2O2 system

Reaction of a pair of MGPβ and another carbohydrate model compound with AOS

To examine the effect of a co-existing carbohydrate model compound, a pair of MGPβ and another carbohydrate model compound was reacted in the TMPh or Valc system. Figures 5 and 6 show the degradations of TMPh and Valc, respectively, in the reaction of a pair of MGPβ and MAP. The degradation of TMPh was always as described in the previous section. The degradation of Valc was always the same in any reaction. Valc always disappeared from the system at a reaction time of about 60 min, which indicates that Valc is slightly more resistant to the O2 oxidation than TMPh in accordance with our previous reports [810, 15]. The degradation of any carbohydrate model compound was severe in the early stage of the reaction when Valc still existed, and gradually became moderate after this period. Especially, the degradation of MAP was greater than that of Valc, the generator of AOS, in the early period. This result may indicate that MAP is degraded not only by AOS generated readily by reactions between O2 and Valc but also by those generated as intermediates of chain-type reactions, although the chain-type reaction should not propagate significantly owing to the scavenging effect of Valc.

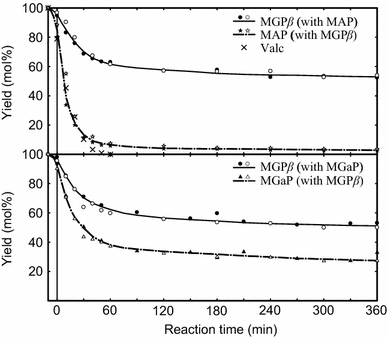

Fig. 6
figure 6

Change in the yields of MGPβ, MAP, and MGaP when a pair of MGPβ and MAP (upper) or of MGPβ and MGaP (lower) was subjected to the Valc system

The data for the reactions of two pairs of MGPβ and MGPα and of MGPβ and MMP are from our previous reports (Fig. 1) [68]. Figures 5 and 6 illustrate the degradations of the carbohydrate model compounds when a pair of MGPβ and MAP or of MGPβ and MGaP was treated in the TMPh or Valc system, respectively. Figure 7 is created by combining the data illustrated in Figs. 4 and 5, and shows the degradation of MGPβ in the TMPh system, when MGPβ was a sole carbohydrate model compound, or when a pair of MGPβ and another carbohydrate model compound was treated. Figure 7 indicates how the degradation of MGPβ was affected by the co-existence of another carbohydrate compound. The degradation of MGPβ was suppressed by the co-existence of MGPα, MAP, or MGaP but enhanced by that of MMP. The suppression is understandable, because these co-existing carbohydrate model compounds compete with MGPβ in the reaction with AOS. It is suggested that the degradation of MMP is efficiently accompanied by the generation of some AOS that attack MGPβ. Figure 8 is created similar to Fig. 7, and shows the degradation of MGPα, MMP, MAP, or MGaP in the TMPh system, when each of them was a sole carbohydrate model compound or a pair of MGPβ and each of them was treated. It is similarly seen from Fig. 8 how the degradation of each compound was affected by the co-existence of MGPβ. The co-existence of MGPβ did not largely change the degradation of MGPα, suppressed that of MAP or MGaP, and enhanced that of MMP, although the suppression is understandable as described above. The obtained results seem to suggest that the generation of AOS is relatively efficient when MMP is present in the system and that the profile of AOS generated in the system is dependent not only on the type of phenolic compound [810], the generator of AOS, but also on that of the carbohydrate model compound.

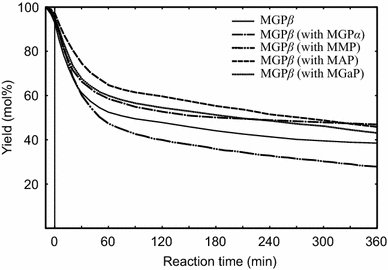

Fig. 7
figure 7

Change in the yield of MGPβ when MGPβ as a sole carbohydrate model compound or a pair of MGPβ and another carbohydrate model compound was subjected to the TMPh system

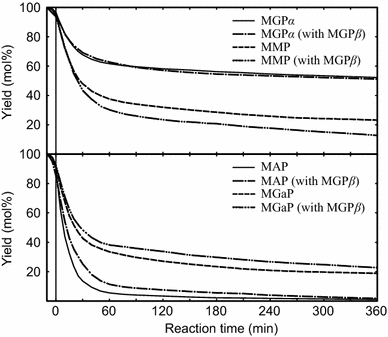

Fig. 8
figure 8

Change in the yields of MGPα (upper), MMP (upper), MAP (lower), and MGaP (lower) when each of them as a sole carbohydrate model compound or a pair of MGPβ and each of them was subjected to the TMPh system

Figure 9 illustrates the quantitative correlation between the degradation of a carbohydrate model compound and that of a phenolic compound, TMPh or Valc. Several phenomena can be recognized from Fig. 9. The difference in degradation between MGPβ and the other carbohydrate model compound seems to be smaller in the TMPh than in the Valc system for the reaction of any pair, when TMPh or Valc still exists. However, the degradation of any carbohydrate model compound seems to be greater in the TMPh than in the Valc system after TMPh or Valc disappears. The degradation of the carbohydrate model compound is clearly greater in the Valc than in the TMPh system only for the reaction of a pair of MGPβ and MAP, when TMPh or Valc still exists. On the other hand, the degradation is similar in both systems in the reaction of the other three pairs, when TMPh or Valc still exists. These phenomena indicate that the profile of AOS is not exactly the same in both systems both before and after TMPh or Valc disappears from the system. The degradation products of TMPh may generate some AOS that initiate chain-type reactions more efficiently than those from Valc. MAP as well as co-existing MGPβ is sensitive to the difference in the profile of AOS between the TMPh and Valc systems.

Fig. 9
figure 9

Correlation between the residual yields of carbohydrate model and phenolic compounds when a pair of MGPβ and MGPα (upper left), of MGPβ and MMP (upper right), of MGPβ and MAP (lower left), or of MGPβ and MGaP (lower right) was subjected to the TMPh (filled marks) or Valc (open marks) system

Conclusions

The stereo-configurational difference of the carbohydrate model compound affects the reaction with AOS differently depending on the location of the difference. The degrees of degradation of the employed carbohydrate model compounds were in the order of MGPα < MGPβ < MMP < MGaP < MAP in all systems, and the degradation of MAP was especially great. We suggest that the orientation of their three secondary hydroxy groups is a determining factor in their degradability. In the reaction of a pair of MGPβ and another carbohydrate model compound, only the co-presence of MMP enhanced the degradation of MGPβ and the co-presence of MGPβ enhanced the degradation of MMP, although as expected co-existence of the other carbohydrate model compounds mostly suppressed the degradation of MGPβ and co-existing MGPβ suppressed the degradation of other co-existing carbohydrate model compounds. These results suggest that the profile of AOS in the system is dependent not only on the type of phenolic compound, the generator of AOS, but also on that of carbohydrate model compound. MAP as well as co-existing MGPβ is sensitive to the difference in the profile of AOS between the TMPh and Valc systems.

References

  1. Ericsson B, Lindgren BO, Theander O (1971) Factors influencing the carbohydrate degradation under oxygen-alkali bleaching. Svensk Papperstidn 74:757–765

    CAS  Google Scholar

  2. Gierer J, Imsgard F (1977) The reaction of lignins with oxygen and hydrogen peroxide in alkaline media. Svensk Papperstidn 80:510–518

    CAS  Google Scholar

  3. Yokoyama T, Matsumoto Y, Yasumoto M, Meshitsuka G (1996) The role of peroxide species in the carbohydrate degradation during oxygen bleaching part 2: effect of oxygen pressure on the degradation of lignin and carbohydrate model compounds and on the reaction selectivity. J Pulp Pap Sci 22:J151–J154

    Google Scholar

  4. Yokoyama T, Matsumoto Y, Meshitsuka G (1999) Reaction selectivity of active oxygen species in oxygen-alkali bleaching. J Wood Chem Technol 19:187–203

    Article  CAS  Google Scholar

  5. Yokoyama T, Matsumoto Y, Meshitsuka G (2005) Characterization of active oxygen species under oxygen-alkali bleaching conditions. Holzforschung 59:269–275

    Article  CAS  Google Scholar

  6. Konishi F, Yokoyama T, Matsumoto Y (2009) Investigation of hydrogen abstraction from methyl glucoside by active oxygen species under oxygen delignification conditions part 1: study on the anomeric position. Holzforschung 63:52–60

    Article  CAS  Google Scholar

  7. Nakagawa A, Yokoyama T, Matsumoto Y (2012) Investigation of hydrogen abstraction from methyl glucoside by active oxygen species under oxygen delignification conditions part 2: study on the C-2 position. J Wood Chem Technol 32:10–22

    Article  CAS  Google Scholar

  8. Yokoyama T, Nakagawa A, Konishi F, Matsumoto Y (2011) Investigation of hydrogen abstraction from methyl glucoside by active oxygen species under oxygen delignification conditions III: effect of the origin of active oxygen species. J Wood Sci 57:512–519

    Article  CAS  Google Scholar

  9. Nakagawa A, Yokoyama T, Matsumoto Y (2012) Investigation of hydrogen abstraction from methyl glucoside by active oxygen species under oxygen delignification conditions IV: appearance of kinetic isotope effect in the reaction between methyl glucoside and deuterated methyl glucoside. J Wood Sci 58:563–569

    Article  CAS  Google Scholar

  10. Yokoyama T, Nakagawa A, Matsumoto Y (2015) Investigation of hydrogen abstraction from methyl glucoside by active oxygen species under oxygen delignification conditions part 5: comprehensive results on experiments using deuterium labeled methyl glucosides. J Wood Chem Technol. doi:10.1080/02773813.2015.1039134

    Google Scholar

  11. Weinges K, Haremsa S, Maurer W (1987) The Mitsunobu reaction on methyl glycosides as alcohol component. Carbohydr Res 164:453–458

    Article  CAS  Google Scholar

  12. Hearne DO, Thompson NS, Schroeder LR (1991) Degradation of methyl β-d-ribopyranoside and methyl β-d-xylopyranoside by oxygen in aqueous sodium hydroxide solution. J Wood Chem Technol 11:307–327

    Article  CAS  Google Scholar

  13. Yokoyama T, Matsumoto Y, Meshitsuka G (2002) Enhancement of the reaction between pulp components and hydroxyl radical produced by the decomposition of hydrogen peroxide under alkaline conditions. J Wood Sci 48:191–196

    Article  CAS  Google Scholar

  14. Murata A, Sekiya K, Watanabe Y, Yamaguchi F, Hatano N, Izomori K, Tokuda M (2003) A novel inhibitory effect of d-allose on production of reactive oxygen species from neutrophils. J Biosci Bioeng 96(1):89–91

    Article  CAS  PubMed  Google Scholar

  15. Yokoyama T, Matsumoto Y, Meshitsuka G (2007) Detailed examination of the degradation of phenol derivatives under oxygen delignification conditions. J Agric Food Chem 55(4):1301–1307

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgments

The authors gratefully acknowledge financial support from the Japan Society for the Promotion of Science [Grant-in-Aid for JSPS Fellows (No. 24·7723) and Grant-in-Aid for Scientific Research (C) (No. 25450237)].
