Rheological consideration in fracture of wood in lateral tension

Abstract

For the purpose of elucidating the effect of rheological property of wood on lateral tensile fracture, failure strain, elastic modulus, and creep at various temperature conditions were measured. And, relationship between the degree of softening or fluidity and lateral tensile failure strain was examined. To discuss the fracture mechanism from the results of the failure strains, broken specimens were observed and each appearance ratio of fractures in different tissue was calculated. The results obtained are as follows: (1) Failure strains were reduced in the temperature from 80 to 95 °C, because the weakest parts as a starting point of fracture changed in all of the specimens and the weakest parts for fractures were increased with temperature rise. (2) The effects of softening of wood are important for increasing failure strains up to the temperature range in which the fracture mechanism changes. (3) Creep deformation, that is, fluidity was included in the wood deformation process, and the fluidity had different characteristics dependent on the anatomical characteristics. It also became clear that the creep deformation measured in the load range of this study did not affect the increase in failure strain significantly.

Introduction

The effects of tensile direction to annual rings, moisture and temperature conditions, tree species and histories of drying or heating on lateral tensile deformation characteristics of the wood were examined for the purpose of elucidating the mechanism of the lateral tensile deformation of wood previously [13]. The results of their examination indicated that the failure strain of wood increased under the influence of its softening through moisture and heat effects. Then, it was thought that rheological properties were contributable to fracture.

On the other hand, some previous studies of failure strain of wood have been reported, such as the relationship between structural factors such as the lignin content or the crystallinity of wood and failure strains [47], the relationship between the strain distribution in the specimen and the fracture surface [8], and the relationship between failure strains and factors such as the moisture content and temperature [911]. There is a mathematical modeling study related to the time dependent of creep behavior of wood [12], however, the study of evaluating rheological properties of wood both qualitatively and quantitatively and refer to the relationship between fracture and rheological properties have not been found. If the relationship between rheological properties of wood and its fracture could be clarified, it will be possible to determine a softened state required for the processing and indicate the optimum moisture and temperature conditions. Therefore, it is significant to elucidate the relationship between fractures and rheological properties of wood, which has not been discussed yet, in terms of both studies on wood properties and the development of control technologies for wood.

In this study, therefore, failure strain, elastic modulus, and creep at various temperature conditions were measured. And, relationship between the degree of softening or fluidity and lateral tensile failure strain was examined. To discuss the fracture mechanism from the results of the failure strains, fracture surface was observed and appearance ratio of fractures was calculated.

Materials and methods

Materials

The specimens were determined to be of Hinoki (Chamaecyparis obtusa Endl.). The block-shaped specimens with the annual ring inclinations of 0° (tangential direction), 45° (angle between tangential and radial direction), and 90° (radial direction) against the tensile direction were collected from the sapwood part. Thin cross-sectional specimens with the thickness of about 0.1 mm (longitudinal direction) and with the dimensions of 3.4 mm in width × 20 mm in length were used for the tensile breaking test. This shape of specimen was selected because the most reliable results were obtained within the load range of the test device in pretest and the origin of the fracture could be clearly observed at cellular level. Furthermore, the thin specimens were prepared with extreme care not to generate scratches or knife marks which could be the origin of fracture. For the creep test, specimens in the same shape as that for the tensile breaking test were used.

Cross-sectional specimens with the thickness of about 1.6 mm (longitudinal direction) and with the dimension of about 3.6 mm in width and 20 mm in length were used for measuring the elastic modulus. This shape was decided because providing repeated load may cause fatigue fracture in the measurement of elastic modulus. Therefore, specimens were made in the maximum shape that could be nipped by chuck, and were cut from the block-shaped specimen using a circular saw. Similarly to the tensile breaking test, specimens were prepared with the annual ring inclinations of 0° (tangential direction), 45° (angle between tangential and radial direction), and 90° (radial direction) against the tensile direction in the measurement of elastic modulus. Furuta et al. [1315] reported that the values of elastic moduli vary sensitively under the influence of drying and heat history given to the specimens before the measurement. To unify the histories of specimens, they were cooled down to 1 °C at 1 °C/min after boiled and measured in water-swollen state.

Tensile breaking test

A thermo-mechanical analyzer (manufactured by Seiko Instruments Co., Ltd.; TMA/SS6100) was used in the measurement. All of the measurements were carried out in water kept at the constant temperature, and the temperatures were 5, 20, 40, 60, 80, and 95 °C. The distance between chucks was set to 10 mm, and the specimens were measured with the load of 1 N/min until they were fractured. The measurement results were adopted only for the specimens fractured roughly at their central portion, and the specimens had exceptional deformation behaviors were excluded. The number of specimens in the results was adopted 5–8 pieces per condition.

Creep test

Creep test was carried out with the same device and in the same temperature conditions. The specimens were attached with the same state as those in the tensile breaking test. The creep load was determined to be 25 % of the strength obtained in the tensile breaking test in each temperature condition. At 30 s after the load was reached at creep load, the creep amount was calculated as the creep compliance (J(30)). The average value of 3–5 specimens per condition was used as the results, except extremely large or small results caused by the slip of the specimens at the chuck site or the distortion of their mounting.

Measurement of elastic modulus

Elastic modulus was measured by applying load half as large as the creep load in each temperature repeatedly. The following load rates were adopted; 1 N/min which was the same loading rate in the tensile breaking test and 9.8 × 106 N/min which was the maximum loading rate controlled by the device. In this study, the elastic modulus obtained by measuring load rate of 1 N/min is defined as the elastic modulus (E) and the elastic modulus obtained by measuring load rate of 9.8 × 106 N/min is defined as the instantaneous elastic modulus (IE). For the purpose of unifying the histories of the specimens, as described in “Materials”, the specimens were held at about 100 °C for about 5 min, then cooled down to 1 °C at 1 °C/min, heated up again to about 100 °C at the temperature rising ratio of 2 °C/min, and furthermore cooled down to 1 °C at 1 °C/min and raised again to around 100 °C at the temperature rising ratio of 2 °C/min prior to the measurements. The measurements were performed during the heating process. The IE was measured in the first heating process and E was measured in the second heating process, respectively.

Observation of fracture surface

Fracture surfaces of the specimens that were fractured under the tensile breaking test were observed with an electron microscope [TM3030Plus (Bruker AXS Co. Ltd)]. The appearance ratios of fracture surfaces were observed in five specimens showing typical fracture surfaces. The appearance ratios were obtained from the percentage of the projected length of the fracture along the annual ring boundary and the ray tissue in the tensile direction. The definition of the projected length of the fracture is illustrated in Fig. 1, using the photograph of the fracture surface of the specimen with the annual ring inclination of 90°. The fractures were observed along the ray tissues arranged parallel to the tensile direction in the specimens with the inclination of 90°. These fracture surfaces could be observed prominently only for the specimens with the inclination of 90°. With regard to the specimens with the inclination of 90°, therefore, breaking length which was judged to be along the ray tissues and was fractured linearly over four cells were also measured. Then, the percentage of the breaking length of ray tissue in horizontal direction was measured when the breaking length measured at 20 °C was defined as 100 %.

Fig. 1
figure1

An example of photograph used for calculating appearance ratios of fractures along each tissue. From these photographs, projected lengths of fracture surfaces along each tissue and ray tissues in horizontal direction were measured and calculated

Results and discussion

Effects of the temperature on the fracture

The relationship between the failure strain and the temperature is shown in Fig. 2. Significant differences in failure strains between the specimens with the annual ring inclination of 0° and 90° were not found, and failure strains were tended to increase from about 3–6 % with increase in temperature. On the other hand, in the specimens with the annual ring inclination of 45°, failure strains were larger than those with the inclination of 0° and 90°. And, failure strain increased with increase in temperature, but the failure strains at 95 °C were reduced to the same extent as the result at 5 °C. Comparing the relative failure strains in Fig. 2, in the specimens with the annual ring inclination of 0°, relative failure strains increased largely with increase in temperature. In addition, decrease in failure strain at 95 °C was observed in all the specimens regardless of their annual ring inclination, and the decrease was the largest for the specimens with the annual ring inclination of 45°.

Fig. 2
figure2

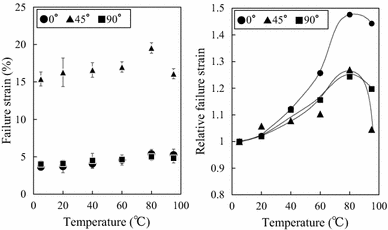

Failure strains and relative failure strains measured at each temperature. Relative failure strain is relative to the failure strain measured at 5 °C in each annual ring inclination. Symbols mean the average value and error bars mean 95 % confidence interval

As a reason for the decreasing of failure strain, the fracture mechanism was considered to be different between 80 and 95 °C. In water-swollen wood, fracture in the intercellular layers is easy to occur at high temperature [16, 17]. Thus, fracture surface was observed to discuss the fracture mechanism.

The appearance ratios of various fractures and photographs of broken specimen with the annual ring inclination of 0° are shown in Fig. 3. The photographs show that the fractures tended to occur in the intercellular layers along the ray tissues even at any temperature. The appearance ratio of fractures along the ray tissues was also as high as about 60–70 % at 20 and 80 °C. Such a fracture tendency appeared at 95 °C pronouncedly, where the appearance ratio of fractures along the ray tissues was 90 %. From these results, fractures in the intercellular layers along the ray tissue tended to occur in the specimens with the annual ring inclination of 0° in the temperature range up to 80 °C. On the other hand, intercellular layers along the ray tissues became weak in the higher temperature range, therefore, the factures along the ray tissues increased and failure strains decreased as shown in Fig. 2.

Fig. 3
figure3

Appearance ratio of fractures along each tissue and photographs of broken specimen with the annual ring inclination of 0º

The appearance ratios of various fractures and photographs of broken specimen with the annual ring inclination of 45° are shown in Fig. 4. The photographs show that fractures tended to occur in the intercellular layers along the ray tissues for the specimens with the inclination of 45°. Focusing on the appearance ratios of fractures, the ratio along the ray tissues was almost equal at 20 and 80 °C. For the specimens at the 95 °C, however, the appearance ratio of fractures along the ray tissues decreased and the fractures along the annual rings were observed, and the tendency was not found up to 80 °C. From these results, the fractures tend to occur in the intercellular layers along the ray tissues in the temperature range of up to 80 °C. Whereas the intercellular layers between early wood and late wood were also considered to become weak part which was easy to be fractured in addition to the intercellular layers along the ray tissues in the temperature range above 80 °C. In other words, the range between 80 and 95 °C is the temperature range where the weak parts as the starting point of fracture are changed, and where the fractures tend to occur because weak parts are increased in the specimens. Therefore, failure strains decreased largely, as shown in Fig. 2.

Fig. 4
figure4

Appearance ratio of fractures along each tissue and photographs of broken specimen with the annual ring inclination of 45º

The appearance ratios of various fractures and photographs of broken specimen with the annual ring inclination of 90° are shown in Fig. 5. The photographs show that fractures tended to occur in the intercellular layers along the annual rings for the specimens with the inclination of 90°. Focusing on the appearance ratios of fractures, the fractures along the annual rings were less frequent in their ratio as low as about 20 % at 20 °C, whereas the ratios were more or less 50 % at 80 °C or higher. Thus, the fractures along the annual rings should tend to occur with increase of temperature. Focusing on the percentage of breaking length of the ray tissues in horizontal direction, it decreased at 80 °C as compared with 20 °C, and few fractures were found along the ray tissues at 95 °C. From the results above, in the specimens with the inclination of 90°, fractures tended to occur in the intercellular layers along the ray tissues at 20 °C, whereas the intercellular layers between early wood and late wood also became weak with increase in the temperature. Therefore, annual ring boundaries became the weakest in the specimens at 95 °C, and failure strains were reduced at 95 °C as shown in Fig. 2.

Fig. 5
figure5

Appearance ratio of fractures along each tissue and photographs of broken specimen with the annual ring inclination of 90º

It was suggested from these results that the weakest parts as starting points of fractures changed for all of the specimens in the temperature range between 80 and 95 °C. Therefore, the weak parts for fractures were increased as the temperature rose, as the result failure strains decreased.

Changes in the rheological properties of wood with increase in temperature

Then the thermal softening of wood was assessed from the elastic modulus measured in various temperatures to discuss the effect of softening on increase of failure strain. To obtain the information about decrease in E at the tensile breaking in this study, E was measured at the same loading rate of the tensile breaking test. On the other hand, the IE was also measured to have the information about the pure elastic modulus that does not include the creep deformation in the loading process as far as possible. The results obtained are shown in Fig. 6. E and IE had larger values in the order of the annual ring inclination of 90°, 0°, 45°, and the values tended to decrease with increase in temperature. IE had larger value than E at any temperature, and the difference between their values was larger in the higher temperature especially for the specimens with the annual ring inclination of 90° and 0°. The reason why E is smaller than IE at the higher temperatures is considered to be as follows:

Fig. 6
figure6

Elastic modulus and elastic compliance measured at each temperature. Open symbols are elastic modulus and closed symbols are instantaneous elastic modulus

The load speed for measuring E was much slower than that in IE, therefore, larger creep amount of wood is included for E than that for IE. Because the creep amount during the deformation is greater at the high temperature side where the wood is softened [18], the difference between E and IE values was shown prominently at higher temperatures.

Elastic compliance which means the ease of elastic deformation was determined from the values for the elastic modulus. Elastic compliance was the largest in the specimens with the annual ring inclination of 45° and followed by those with the annual ring inclination of 0° and 90° as shown in Fig. 6. In all of the specimens, the IE compliance and the E compliance increased with increase in temperature, and in which the E compliance obviously indicated the larger value than the IE compliance at higher temperatures.

From the results above, it was predicted that the tensile failure strains measured in this study were affected by creep deformation. Therefore, creep of each specimen was measured at each temperature and calculated the creep compliance (J(30)) as an index of fluidity to clarify the effect of fluidity contained at the time of deformation. Figure 7 shows the relationship between J(30) and the temperature. As common to all of the specimens, the tendency was observed that J(30) increased with increase from about 40 °C where the wood started to be softened [18]. The largest J(30) was shown in the specimens with the annual ring inclination of 45° at any temperature. J(30) of the annual ring inclination of 0° and 90° was comparable up to around 60 °C, whereas J(30) of the annual ring inclination of 0° was larger than those of 90° at higher temperatures. The reason why J(30) has different characteristics among annual ring inclinations can be assumed as follows:

Fig. 7
figure7

Relationship between creep compliance and temperature. Symbols mean the average values and error bars mean 95 % confidence interval

In the specimens with the angle of 0°, late wood layers are arranged in parallel against the tensile direction, and creep amount should depend on the amount of fluidity caused in wood substance. Therefore, J(30) increased as the temperature increased because the fluidity of late wood layers aligned in the tensile direction increased the above around 40 °C which was the temperature range where Hinoki started to be softened [15].

On the other hand, in the specimens with the annual ring inclination of 90°, late wood layer and early wood layer are arranged alternately against the tensile direction. J(30) is determined from the sum of the creep amount of late wood with thick cell wall and early wood with thin cell wall. Therefore, in the specimens with the annual ring inclination of 90°, J(30) was smaller than that of 0° which late wood layers arranged in a row against the tensile direction. In the specimens with the annual ring inclination of 90°, ray tissues are also arranged in parallel to the tensile direction, therefore, the increase in J(30) was also disturbed by those tissues.

In the specimens with the inclination of 45° with the largest J(30), the shape of cell is deformed roughly from a square shape to a diamond shape against the tensile load [1, 19]. Furthermore, ray tissue which disturbs the deformation of cells is oriented to the direction with the inclination of 45° to the tensile direction. Thus, these tissues should effect on J(30) complicatedly with increase of tensile deformation. However, too large deformation did not occur, because the stress applied in this experiment was 25 % of the strength and the tensile failure strain was approximately 3 %. Therefore, the larger J(30) in the specimens with the inclination of 45° are due to not those tissues, but the deformation of cells, and the cell deformation should be accelerated with increase in temperature.

From these results, the effects of creep deformation, that is, fluidity are included in the tensile deformation process of wood, and the fluidity has different characteristics dependent upon the tissue structure and the load direction.

The relationship between the rheological properties of wood and failure strains

To examine the effects of changes in rheological properties of wood on failure strains, the relationship between relative values of the E compliance and those of failure strains is shown in Fig. 8. The elastic modulus measured at the same loading rate was used as the index of the degree of softening with increase in temperature. Except of the temperature range in which failure strains decreased, linear relationship was found between the relative value of the E compliance and that of failure strains. The relationship between the relative failure strains and the relative E compliance was also clearly shown in the specimens with the inclination of 0° which the increase ratio of failure strain was particularly large. The reasons of these results were considered as follows:

Fig. 8
figure8

Relative failure strain and relative elastic compliance are those measured at 5 °C in each annual ring inclination

Deformation mode of the specimen with the inclination of 0° is hardly affected by the ray tissues which disturb the deformation. Therefore, increase in failure strains was affected primarily by the softening, thus relationship was observed clearly between the relative failure strain and the relative E compliance. From the results described above, effects of softening of wood is important for increasing failure strains up to the temperature range in which the fracture mechanism changes. Moreover, effect of softening on failure strains was most clearly found in annual ring inclination of 0° which the ray tissues and deformation of cells did not affect the deformation of the specimens.

On the other hand, the effects of creep deformation of specimens with each annual ring inclination on failure strain were examined, because the creep deformation caused in the loading process is also included in the amount of deformation until the wood fracture. The relationship between the relative values of J(30) and relative failure strains is shown in Fig. 9. In the specimen with the annual ring inclination of 0° and 45°, roughly linear relationship was found between the increase ratios of J(30) and failure strains up to the temperature range where failure strains decreased. However, that relationship was not clearer than that of the elastic compliance, and the relationship was not found in the specimen with the inclination of 90°. In other words, the creep deformation occurred before fracture did not significantly affect the increase in failure strain.

Fig. 9
figure9

Relative failure strain and relative creep compliance are those measured at 5 °C in each annual ring inclination

Conclusions

For the purpose of elucidating the effect of rheological property of wood on lateral tensile fracture, failure strain, elastic modulus, and creep at various temperature conditions were measured. And, relationship between the degree of softening or fluidity and lateral tensile failure strain was examined. To discuss the fracture mechanism from the results of the failure strains, fracture surfaces were observed and appearance ratio of breaking was calculated. The results obtained are as follows:

  1. 1.

    The range between 80 and 95 °C is the temperature range where the weak parts as the starting point of fracture are changed, and where the fractures tend to occur because weak parts are increased in the specimens.

  2. 2.

    The effects of softening of wood are important for increasing failure strains up to the temperature range in which the fracture mechanism changes. Moreover, effect of softening on failure strains was most clearly found in annual ring inclination of 0° which the ray tissues and deformation of cells did not affect the deformation of the specimens.

  3. 3.

    Creep deformation, that is, fluidity was included in the wood deformation process, and the fluidity had different characteristics dependent on the anatomical characteristics. It also became clear that the creep deformation measured in the load range of this study did not affect the increase in failure strain significantly.
