Preparation of (ruthenium (II) complex)-bound cellulose derivative for photocurrent generation system

Abstract

6-O-[Acetylacetonato-bis(2,2′-bipyridine)ruthenium(II)]-2,3-di-O-myristyl cellulose (3) was prepared from 2,3-di-O-myristyl cellulose (1) by two reaction steps in 37.7 % total yield. The LB monolayer film of compound 3 was successfully deposited onto an indium tin oxide electrode by a vertical dipping method and showed photocurrent generation performance in the range of 400–600 nm. Compound 3 was expected as a complementary material of porphyrin-bound cellulose derivative for biomaterial-based solar cells.

Introduction

Cellulose is the main component of wood. Numerous functional cellulose derivatives have been proposed for new applications [13]. However, attention is still focused on the development of the high-value added utilization for cellulose and its derivatives. From this point of the view, our group has reported that Langmuir–Blodgett (LB) films constructed from porphyrin-bound cellulose derivatives exhibited high photocurrent generation performances, suggesting that such cellulose derivatives are promising materials with potential applications in biomaterials-based solar cells [4, 5]. However, the effective utilization of solar light by the LB films was insufficient, because the photocurrent was generated only at the range of the porphyrin absorption band from 400 to 420 nm as shown by spectrum (a) in Fig. 1, although the target wavelength range for an ideal solar cell should be considered from 300 to 1200 nm [6]. Therefore, other photosensitizer-bound cellulose derivatives which generate photocurrent at the unused region of solar light were strongly desired for the combination of the porphyrin-bound cellulose derivatives. In the previous papers, phthalocyanine- and squaraine-bound cellulose derivatives which covered photocurrent generation at the range from 650 to 720 nm [spectrum (b) in Fig. 1] and the range from 550 to 680 nm [spectrum (c) in Fig. 1] have been reported as the complementary materials of the porphyrin-bound cellulose derivatives (from 400 to 420 nm), respectively [79]. However, the new photosensitizer-bound cellulose derivative was still required for the photocurrent generation performance at the range from 420 to 600 nm (Fig. 1).

Fig. 1
figure1

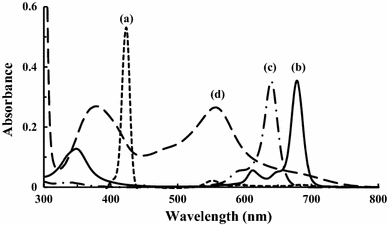

Target UV–Vis spectra of porphyrin- (a), phthalocyanine- (b), squaraine-(c), and ruthenium (II) complex- (d) bound cellulose derivatives

Polypyridyl ruthenium (II) complexes, which are ruthenium coordination compounds with 2,2′-bipyridine ligands (bpy), are well-known as the panchromatic sensitizers for dye-sensitized solar cells (DSSCs) [1012]. Indeed, LB films consist of tris(2,2′-bipyridine) ruthenium complex for photocurrent generation systems around 450 nm have been reported [13]. Then, (ruthenium (II) complex)-bound cellulose derivative seemed to be an attractive as a new complementary material of the porphyrin-bound cellulose derivatives.

In this paper, acetylacetonato-bis(bipyridyl)-ruthenium (II) [acac(bpy)2Ru (II)] complex-bound cellulose derivative (3) was selected as a target material for the photocurrent generation performance in the range of 420–600 nm. This was inspired by a report that the coordination reaction of acetoacetyl groups of the polyester with 2,2′-bipyridine complex of ruthenium dichloride (cis-(bpy)2 RuCl2) formed [acac(bpy)2Ru (II)] complexes [14] and by another report that acetoacetyl cellulose acted as a metal absorbent [15]. The present paper describes the preparation of compound 3 as shown in Fig. 2, the fabrication of its LB monolayer film, and evaluation for photocurrent generation performance of the film.

Fig. 2
figure2

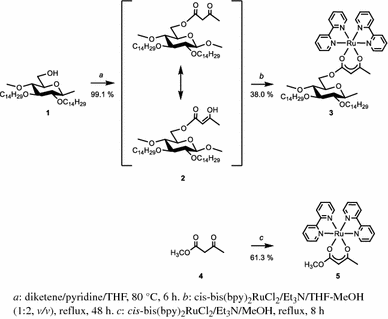

Synthetic route for 6-O-[acac(bpy)2Ru (II)]-2,3-di-O-myristyl cellulose (3) and methyl [acac(bpy)2Ru (II)] complex (5)

Materials and methods

Materials

2,3-Di-O-myristyl cellulose (1) with degree of substitution of myristyl group (DSmyristyl) of 1.70 (determined by 1H NMR method) and degree of polymerization (DPn) of 39 (M w/M n = 1.7) was prepared according to the reported procedure [7]. 2,2′-Bipyridine complex of ruthenium dichloride dihydrate (cis-(bpy)2 RuCl2·2H2O) was prepared by the known method [16]. Diketene was distilled from CaH2 under reduced pressure before use. All other chemicals were purchased from commercial sources and used without further purification.

Measurements

The 1H and 13C nuclear magnetic resonance (NMR) spectra were recorded on a Varian 500 MHz FT-NMR (500 MHz) spectrometer (Agilent Technologies, Santa Clara, CA, USA) in CDCl3. The chemical shift (δ) values were given in parts per million (ppm). The Fourier transform infrared (FT-IR) spectra were recorded from KBr pellets using a Shimadzu IRPrestige-21 spectrophotometer (Shimadzu Co., Kyoto, Japan). The UV–vis spectra were recorded on a Jasco V-560 UV–vis spectrophotometer (Jasco, Tokyo, Japan) in CHCl3. Gel permeation chromatography (GPC) was performed on a Shimadzu LC-10 system equipped with a Shimadzu UV–vis detector (SPD-10Avp) and a Shimadzu RI detector (RID-10A) under the following conditions; columns: Shodex columns K-802, K-802.5, and K-805 connected in series (Showa Denko K. K., Tokyo, Japan); column temperature: 40 °C; eluent: CHCl3; flow rate: 1.0 mL/min; standards: polystyrene standards (Shodex, Showa Denko K.K.).

6-O-Acetoacetyl-2,3-di-O-myristyl cellulose (2)

To a solution of 2,3-di-O-myristyl cellulose (1) (0.400 g, 0.807 mmol) in tetrahydrofuran (THF, 7 mL), pyridine (0.33 mL, 4.03 mmol) and diketene (0.32 mL, 4.03 mmol) were added. The reaction mixture was stirred at 80 °C for 6 h. MeOH (0.2 mL) was added to the mixture to stop acetoacetylation. The mixture was then concentrated in vacuo to give a residue. The residue was extracted with CH2Cl2. The organic-layer was washed with distilled water twice, dried with anhydrous Na2SO4, and concentrated to give a yellow residue. The solution of the residue in CH2Cl2 (5 mL) was added to MeOH (100 mL) in a drop-wise manner, and the resulting precipitate was collected by centrifugation (14,000×g, 10 min), washed with MeOH twice, and dissolved in CHCl3 (5 mL). The solution was added to MeOH (100 mL) in a drop-wise manner, and the resulting precipitate was collected by centrifugation (14,000×g, 10 min), washed with MeOH twice, and dried in vacuo at 70 °C overnight to afford compound 2 (0.470 g, 99.1 % yield). The degree of substitution of acetoacetyl groups (DSacac) of compound 2 was calculated based on the area of the methyl groups of acetoacetyl groups (from 2.32 to 2.10 ppm) and that of the ring-proton of cellulose and the methylene group of myristyl groups (from 5.28 to 2.80 ppm) in the 1H NMR spectrum.

Compound 2; DSacac: 1.13; DPn: 32 (M w/M n = 1.94); 1H NMR (CDCl3): δ 12.05–11.92 (acac-COCHC(OH)CH3 (enol form)), 6.20–5.95 (acac-COCHC(OH)CH3 (enol form)), 5.38–2.80 (CELL ring-H, myristyl-OCH2–, acac-COCH 2COCH3 (keto form)), 2.32–2.10 (acac-CH3), 1.60–1.38 (myristyl-OCH2CH 2–), 1.38–1.04 (myristyl-CH2-), 0.96–0.80 (myristyl-CH3) ppm; 13C NMR (CDCl3): δ 199.9 (acac-C=O), 166.4 (acac-O–C=O), 102.6 (C-1), 82.7 (C-3), 81.9 (C-2), 78.8–70.6 (C-4, myristyl-OCH2–, C-5), 63.6 (C-6), 49.9, 49.6 (acac-CH2−), 31.9, 30.3, 29.7, 29.3, 26.3, 26.2, 26.0, 22.6, 22.5 (myristyl-CH2–, acac-CH3), 14.1 (myristyl-CH3) ppm; FT-IR (KBr): ν 3435, 2926, 2854, 1751, 1720, 1668, 1635, 1462, 1409, 1361, 1315, 1259, 1236, 1151, 1091, 1062, 918, 721, 540 cm−1.

6-O-[Acetylacetonato-bis(2,2′-bipyridine)ruthenium(II)]-2,3-di-O-myristyl cellulose (6-O-[acac(bpy)2Ru(II)]-2,3-di-O-myristyl cellulose) (3)

To a suspension of 6-O-acetoacetyl-2,3-di-O-myristyl cellulose (2) (34.2 g, 0.581 mmol) in THF/MeOH (1/2, v/v, 15 mL), cis-bis(bpy)2RuCl2·2H2O (92.5 mg, 0.191 mmol) and Et3N (180 μL, 1.29 mmol) were added. The reaction mixture was refluxed for 48 h, and added into EtOH (100 mL) in a drop-wise manner. The resulting precipitate was removed by centrifugation (14,000×g, 10 min). The supernatant was dialyzed by Spectra/Por dialysis tube (MWCO = 1000) (Spectrum Laboratories Inc., Rancho Dominquez, CA, USA) against EtOH for 8 days, and concentrated in vacuo to afford compound 3 as a red solid (16.8 mg, 38.0 % yield). The DSRu-complex of compound 3 was estimated by UV–Vis method (UV detection: 522 nm) with calibration curves from compound 5.

Compound 3; DSRu-complex: 0.42; DPn: 4 (M w/M n = 1.44); 1H NMR (CDCl3): δ 9.08–6.84 (2-2′-bipyridine-H), 6.19–5.92 (acac-COCHC(OH)CH3 (enol form)), 5.20–2.65 (CELL ring-H, myristyl-OCH2-, acac-COCH 2COCH3 (keto form)), 2.45–1.70 (acac-CH3), 1.70–1.42 (myristyl-OCH2CH 2-), 1.42–1.00 (myristyl-CH2-), 1.00–0.80 (myristyl-CH3) ppm; FT-IR (KBr): ν 3425, 2924, 2852, 1741, 1716, 1668, 1627, 1597, 1560, 1541, 1506, 1462, 1419, 1367, 1311, 1265, 1153, 1068, 798, 767, 725 cm−1; UV–Vis (in CHCl3): λ (log ε) 522 (3.6), 370 (3.6), 297 (4.3), 250 (4.2) nm.

Methyl acetylacetonato bis(2,2′-bipyridine)ruthenium (II) complex (5)

To a suspension of cis-bis(bpy)2RuCl2 (32.1 mg, 0.0663 mmol) in MeOH (10 mL), methyl acetoacetate (4) (27 μL, 0.247 mmol) and Et3N (61 μL, 0.438 mmol) were added. The reaction mixture was refluxed for 8 h, and concentrated in vacuo to give a crude product. The product was purified by silica gel column chromatography using 10 % MeOH/CH2Cl2 (v/v) as an eluent, followed by preparative thin-layer chromatography developed with 10 % MeOH/CH2Cl2 to yield compound 5 as a red solid (21.5 mg, 61.3 %).

Compound 5; 1H NMR (CDCl3): δ 8.84 (d, 1H, J = 8.0), 8.77 (d, 1H, J = 4.5), 8.75–8.67 (m, 3H), 8.52 (d, 1H, J = 8.0), 8.18–8.10 (m, 2H), 7.84 (t, 1H, J = 7.5), 7.76 (t, 1H, J = 7.5), 7.66–7.60 (m, 4H), 7.14 (t, 1H, J = 6.2), 7.09 (t, 1H, J = 6.5) (2,2′-pyridinyl-H), 4.75 (s, 1H, CH), 3.34 (s, 3H, –OCH3), 1.82 (s, 3H, –CH3) ppm; 13C NMR (CDCl3): δ 188.4 (C = O), 170.2 (–C=C(OH)–), 159.7, 159.3, 158.18, 158.15, 153.1, 152.6, 150.3, 149.9, 136.7, 136.3, 135.3, 134.7, 126.1, 126.0, 125.5, 125.4, 124.0, 123.8, 123.7, 123.5 (2,2′-bypyridyl-C), 83.5 (CH), 51.6 (–OCH3), 27.8 (–CH3) ppm; FT-IR (KBr): ν 3429, 3061, 3010, 2949, 2760, 2659, 2482, 1595, 1508, 1456, 1419, 1274, 1180, 1064, 1014, 804, 767, 731, 657, 638 cm−1; UV–Vis (in CHCl3): λ (log ε) 527 (3.8), 372 (3.9), 297 (4.6), 250 (4.4) nm.

Preparation and characterization of LB monolayer film of compound 3

The LB monolayer films of compound 3 were prepared according to the reported procedure [7]. The photocurrent measurements were performed according to the method reported by Sakakibara and Nakatsubo [5].

Results and discussion

Synthesis of 6-O-[acac(bpy)2Ru(II)]-2,3-di-O-myristyl cellulose (3)

Acetoacetylation of 2,3-di-O-myristyl cellulose (1) was carried out using the method for wood meal [17] to give compound 2 in 99 % yield. The characteristic β-ketoester bands at 1751 and 1720 cm−1 [18] appeared in the FT-IR spectrum of compound 2 (Fig. 3b), suggesting that acetoacetylation of compound 1 proceeded smoothly. The signals derived from acetoacetyl groups around 2.20 ppm in the 1H NMR spectrum of compound 2 and those derived from carbonyl groups at 199.9 and 166.4 ppm [15] in the 13C NMR spectrum also supported successful synthesis of compound 2. The equilibrium between the enol and keto forms of the β-diketones has been reported [19]. Indeed, the equilibrium was found in the 1H NMR spectrum of compound 2, that is, the signals assigned to hydroxyl groups (–OH) and vinyl protons (–CH=) of the enol structure of acetoacetyl groups around 12.0 and 6.10 ppm [14, 19] were clearly found, although the signals assigned to methylene protons (–CH2−) of the keto structure of acetoacetyl groups overlapped with the signals of cellulose ring protons and methylene groups (–OCH2−) of myristyl groups. The DSacac of compound 2 was calculated to be 1.13 by 1H NMR method. Compound 2 was soluble in CHCl3, CH2Cl2, ClCH2CH2Cl and THF, but insoluble in MeOH, DMSO and DMF.

Fig. 3
figure3

FT-IR spectra of compounds (a) 1, (b) 2, (c) 3 and (d) 5

First, the coordination reaction of compound 2 with cis-bis(bpy)2RuCl2·2H2O was performed under the reaction conditions (Et3N/THF/reflux/48 h) [14]. However, compound 3 could not be obtained. The reason might be caused by poor solubility of cis-bis(bpy)2RuCl2·2H2O in THF. Then, the coordination reaction of compound 2 was performed in THF-MeOH (1:2, v/v) in the presence of Et3N under reflux for 48 h to give compound 3 as a red solid in 38.0 % yield, although the purification was a tedious and time-consuming work. Compound 5 was also prepared as an authentic sample by the reaction of methyl acetoacetate (4) with cis-bis(bpy)2RuCl2 in ClCH2CH2Cl in the presence of Et3N. Compound 3 was subjected to FT-IR, NMR, UV–Vis and GPC measurements. The characteristic enol-form bands at 1597 1506, 1265 and 767 cm−1 [20] were clearly observed in the FT-IR spectrum of compound 3 (Fig. 3c). The presence of bipyridyl groups was confirmed by the 1H NMR spectrum of compound 3. Furthermore, the UV–Vis spectrum of compound 3 had the same profile as that of compound 5 (Fig. 4). These results suggested that the coordination reaction proceeded successfully. However, the DP of compound 2 decreased significantly during the coordination reaction. The DSRu-complex was calculated to be 0.42 by UV–Vis method with calibration curves made by compound 5.

Fig. 4
figure4

UV–Vis spectra of compounds 3 (solid line) and 5 (dotted line) in CHCl3

Preparation and characterization of LB monolayer film of compound 3

The surface pressure (π)–area (A) isotherms of compounds 1 and 3 at the air–water surface at 20 °C are shown in Fig. 5. The degree of slope and collapsed pressure in the isotherm of compound 3 was similar to the corresponding degree and pressure in that of compound 1, although the limiting area of compound 3 (0.83 nm2/AGU) was somewhat larger than that of compound 1 (0.60 nm2/AGU), but was smaller than that of phthalocyanine-bound cellulose derivative (1.11 nm2/AGU) reported in the previous paper [8]. These results suggested the low DP of compound 3 did not significantly influence the LB film fabrication. Indeed, LB monolayer film of compound 3 could be successfully deposited onto an indium tin oxide (ITO) electrode by a vertical dipping method at a surface pressure at deposition of 10 mN/m. The transfer ratio of the LB monolayer film was 0/1.38 (downward/upward strokes), indicating that the film is a Z-type film.

Fig. 5
figure5

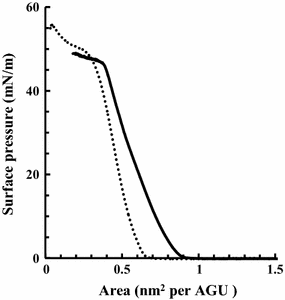

Surface pressure (π)–area (A) isotherms of compounds 1 (dotted line) and 3 (solid line)

The photoelectrochemical response of the LB monolayer film of compound 3 when irradiated by the light at 510 nm is shown in Fig. 6a. A steady-state anodic photocurrent appeared upon light illumination. The action spectrum (the relationship between generating photocurrent and wavelength of the irradiated light) of film 3 from 400 to 800 nm is also shown in Fig. 6b; the spectrum at less than 400 nm could not be measured because of lack of interference filters (less than 400 nm) in our laboratory. The action spectrum was similar to the absorption spectrum of compound 3 in CHCl3, indicating that the ruthenium complex moieties in compound 3 serves as the photoactive species for the photocurrent generation in the region of 400–600 nm. The photocurrent density (photocurrent per unit area of a working electrode) of film 3 at 510 nm was found to be 7.10 nA/cm2, although further improvement of the photocurrent density is required.

Fig. 6
figure6

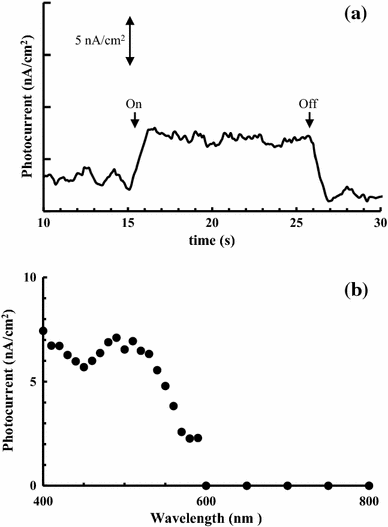

a Photoelectrochemical response of the LB monolayer film of compound 3 with illumination at 510 nm, and b action spectrum of the film of compound 3

Conclusion

6-O-[Acac(bpy)2Ru(II)]-2,3-di-O-myristyl cellulose (3) was prepared from 2,3-di-O-myristyl cellulose (1) by two reaction steps in 37.7 % total yield. The LB monolayer film of compound 3 was successfully deposited onto ITO electrode by a vertical dipping method, suggesting the low DP of compound 3 did not influence the LB film fabrication. It showed photocurrent generation performance in the range of 400–600 nm in which LB films of other photosensitizer-bound cellulose derivatives did not generate photocurrent. Compound 3 is expected to be a third complementary material of porphyrin-bound cellulose derivative for biomaterial-based solar cells, as well as phthalocyanine-bound cellulose derivatives [7, 8] and squaraine-bound cellulose derivative [9]. It is thought that the low DP of compound 3 might be covered by the combination of other photosensitizer-bound cellulose derivatives with high DP.
