Research on design value of compressive strength for Chinese fir dimension lumber based on fullsize testing
Journal of Wood Science volume 63, pages 56–64 (2017)
Abstract
The objective of this study was to obtain design value, which was calculated according to the limit states design method, for the utilization of Chinese fir in the building structure field as a green building material. A total of 342 specimens were tested by static compression method. The normal and lognormal distributions were selected to fit the experimental data. The results indicated that reliability index increased nonlinearly with the livetodead ratio and resistance partial coefficient increased. To meet the target index (β _{0} = 3.2), it was suggested that design values of compressive strength of Chinese fir were set to 13.751, 13.186, and 13.123 MPa for SS, No. 1, and No. 2 grade, respectively.
Introduction
With the rapid development of the wooden structure in China, the demand for wood resources has been increasing in recent years. However, due to enforcing loggingban at the natural forest effective in 2015 in China, wood nature resources is in serious shortage. Therefore, plantation resources need to be developed and utilized in China. Chinese fir (Cunninghamia lanceolata) is one of the three main plantation tree species in China. It distributes from latitude 22–34°N and longitude 100–122°E. Chinese eighth national forest resources survey shows that the area of plantation of Chinese fir is 9.21 million ha [1, 2]. In the meantime, Chinese fir has many advantages, such as fastgrowing, good mechanical performance, and decay resistance. It has been widely used to fabricate dimension lumber, glued lumber, and woodbased composites [3, 4]. However, due to the lack of design values of mechanical properties for engineered wood products, thus it is unsafe to use these in the building structure filed.
Dimension lumber has standardized design dimensions. It has been used in a variety of applications including in building frame, floor, and wall components [5, 6]. The visual grading and machine stress rated methods were applied to evaluate the strength grading of dimension lumber. According to National Lumber Grades Authority (NLGA)–Standard Grading Rules for Canadian Lumber [7], the visual grading divided lumber into four grade including SS, No. 1, No. 2, and No. 3, based on wood growth characteristics. It lines up with the classification in Chinese National Code [8] including Ic, IIc, IIIc, and IVc grade.
There are significant differences on the design value of mechanical properties for the same grade dimension lumber, because different countries have different evaluation methods, load statistics, and load combinations. For example, the statistics of snow load (q), which equals the ratio average value and standard value, is 1.04 in China, but q value ranges from 0.61 to 0.82 in the United States [9]. Furthermore,design value of wood strength is generally determined by fullsize testing and small clear specimens testing [10]. Comparing these two methods, the fullsize testing takes natural defect, size effect, and other factors into consideration. Therefore, the test results are much closer to the actual situation. The previous research [11] reported that the length had significant effect on tensile strength of visually graded Chinese fir dimension lumber. Currently,the fullsize testing method has been applied in the United States, Canada, and Japan to determine the flexural, compressive, and tensile strength of dimension lumber [12, 13]. However, according to Code for design of timber structures [8], the design value is still based on small clear specimens testing for dimension lumber fabricated with native tree species.
In this study, a total of 342 specimens were tested by static compressive method. The object was to determine design values of fullsize compression strength parallel to grain (UCS) for Chinese fir dimension lumber based on the firstorder secondmoment reliability analysis. The research on design value will provide basic data for the application of Chinese fir in the building structures filed.
Materials and methods
Materials
To ensure random and representative of samples, Chinese fir (Cunninghamia lanceolata) was harvested from Huangshan mountain forest farm of Anhui Province, Xuefeng mountain forest farm of Hunan Province, and Helong forest farm of Sichuan Province, China. In total, 80 logs with 3 m long and the diameter at breast heights ranged from 250 to 320 mm were selected. The logs were cut into dimension lumber using four sawing method. Due to measure in millimeters (mm) using in Chinese Code, sizes of the 40 mm × 90 mm were deemed identical to 2 × 4 of North American commercial lumber sizes. The length of dimension lumber was 2550 mm. The samples were graded by visual grading according to NLGA. The samples were divided into SS, No. 1, and No. 2 grade. Two compression samples with dimensions 40 × 90 × 350 mm for UCS testing were cut from the normal dimension lumbers of Chinese Fir, and one of them contained the maximum strengthreduced defect. Sample size for each grade is shown in Table 1.
Static test methods
The compressive tests were performed in accordance with ASTM D47612009 [14]. The required failure time was between 3 and 10 min. To accommodate the time to failure requirement, loading speed was adjusted to 2 mm/min. The specimens were tested using a universal machine (INSTRON 5582) and the maximum load was recorded as the failure load. All specimens were conditioned at 20 °C and at 65% relative humidity (RH). Weight, dimensions, and moisture content of each specimen were measured after the equilibrium moisture content reached. The compressive strength of Chinese Fir dimension lumber was calculated using Eq. 1.
where \( \sigma \) is the compressive strength, F _{max} is the maximum compressive strength applied to the specimens during the test (N), b is the width of the specimens (mm), and t is the thickness of the specimens (mm).
The UCS for each specimen, adjusted to 15% moisture content (UCS_{15}) in accordance with ASTM D19902007 [13], can be calculated by the following equation:
where M _{1} is the moisture content of the specimen (%).
Probability distribution
The normal and lognormal distributions are generally adopted as parametric statistical model in the analysis of mechanical properties. The probability density function
f (x) and cumulative distribution function of standard normal distribution ϕ (x) can be expressed as follows:
1. Normal distribution
where x is the random variable, μ and σ are mean and standard deviation, respectively. p is percentile value of cumulative distribution function.
2. Lognormal distribution
where M is the mean value of logarithm of x, and S is the standard deviation of In x.
Kolmogorov–Smirnov test
The Kolmogorov–Smirnov test (K–S test) can be used to verify fitting optimization of distribution curve [15]. The formula can be expressed as follows:
where ϕ(x) and s(x) represent the cumulative probability value and theoretical distribution value, respectively. D is the maximum absolute difference between ϕ(x) and s(x).
At the 0.05 level of significance,the D _{0.05} is equal to \( {{1.36} \mathord{\left/ {\vphantom {{1.36} {\sqrt n }}} \right. \kern0pt} {\sqrt n }} \) and n is the number of samples. If D is smaller than D _{0.05}, the theoretical distribution s(x) can provide a good fit to the cumulative probability value ϕ(x) obtained by the static testing. If D is larger than D _{0.05}, the theoretical fitting distribution s(x) failed.
Results and discussion
Results of compressive test
The mean value, standard deviation, and coefficient of variance of compressive strength adjusted to 15% moisture content for Chinese Fir dimension lumber were shown in Table 2. The mean values of UCS_{15} for SS, No. 1, and No. 2 grade were 30.71, 28.38, and 29.37 MPa, respectively. And the mean value of UCS_{15} for No. 1 grade was lower than the SS and No. 2 grade. It is due to the great influence of knots on wood strength. Besides, No. 1 grade lumber contained more knots [16]. In addition, the wane and skips in No. 2 grade had no significant effect on the wood strength [17]. The coefficient of variance (COV) of UCS_{15} for SS, No. 1, and No. 2 grade were 15.90, 13.55, and 15.70%, respectively. The COV for strength was mainly affected by size, defect, and species. Previous research reported that the COV of dimension lumber ranged from 10.70 to 36.70% [18]. Thus, comparison of COV obtained in this study to those publications shows that the characteristic of large variability for wood could be reflected by the test data.
Difference between measurement data of each grade was conducted through analysis of variance (ANOVA). The results showed that the UCS_{15} values showed the highly significant differences between each grade of dimension lumber (P < 0.05, at the significance level of 0.05). Therefore, the NLGA visual grading method is an adequate method to divide the UCS_{15} for Chinese fir dimension lumber.
Probability distribution

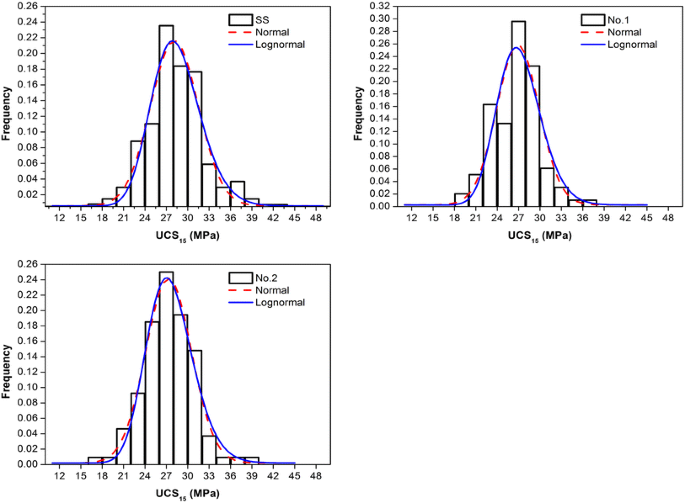

It is important to determine the probability distribution of mechanical strength of dimension lumber for its utilization in building structures filed. Histogram, the normal and lognormal distributions curves of UCS_{15} for each grade were shown in Fig. 1. The basic fitted parameters were important to determine the characteristic values, and the values of fitted parameters for two models were shown in Table 2.
K–S test was performed using SPSS Statistics software and the results are listed in Table 3. Different sample size had different critical D values. Table 3 indicated that all D values of UCS_{15} for each grade were less than the critical D values. It proved that the normal and lognormal distributions were judged to be good fit for the actual distribution of UCS_{15} for Chinese Fir dimension lumber. Smaller D value indicates better fitting, the D value of lognormal distribution for SS grade is less than that of normal distribution. Therefore, the lognormal distribution fitted the UCS_{15} data for SS grade seems to be better than normal distribution. In contrast, normal distribution fitted No. 1 and No. 2 grade better than lognormal distribution. To assess the strength index more safely, both the normal and lognormal distribution of UCS_{15} for Chinese fir dimension lumber were selected to calculate the characteristic values in this study.
Characteristic values
According to the Chinese national standards GB 500682001 [19] and ASTM D 29152010 [20], the characteristic values of UCS_{15} for Chinese Fir dimension lumber could be estimated at 5% percentile with 75% confidence. As a lognormal distribution, the calculated characteristic values can be calculated by the following equation:
where μ _{ f } is the mean value of logarithmic UCS_{15} for SS, No. 1, and No. 2 grade, δ _{ f } is the COV of logarithmic UCS_{15} (Table 2). k is a confidence level factor. Different standards and samples have different k values (k = 1.645 in Chinese national standards GB 500682001 [19] for all grades and k = 1.739 for SS grade; k = 1.758 for No. 1 and No. 2 grade in ASTM D 29152010 [20] at 5% percentile with 75% confidence).
As a normal distribution, the calculated characteristic values can be expressed as follows:
where μ _{ f } is the mean value of UCS_{15} for SS, No. 1, and No. 2 grade; s is the standard deviation of UCS_{15} for each grade (Table 2). The characteristic values of UCS_{15} for SS, No. 1, and No. 2 grade were shown in Table 4.
Table 4 indicated that the calculated characteristic value for SS grade was the highest. There were no significant differences for the characteristic values of UCS_{15} calculated according to the GB 500682001 [19] and ASTM D29152010 [20]. It is because confidence level factor k value is not significantly different between GB 500682001 [19] and ASTM D29152010 [20]. Meanwhile, according to the Chinese National Standards, the calculated characteristic values of UCS_{15} (f _{3}) were 22.67, 22.05, and 21.78 MPa for SS, No. 1, and No. 2 grade, respectively, corresponding with the normal distribution, which were less than those of lognormal distribution (f _{1}). From the structure security concerns, the calculated characteristic values of UCS_{15} using Chinese National Code (f _{3}) were selected to calculate the design values.
Design values
The design value (f _{ d }) of UCS_{15} for Chinese fir dimension lumber based on the fullsize testing and the reliability analysis is calculated using Eq. 10. The mean value (μ _{ R }) and coefficient of variance (δ _{ R }) of the resistance stress (R) can be calculated using Eqs. 11 and 12.
where f _{3} is the characteristic values (Table 4). μ _{ f } is the mean value of UCS_{15} and δ _{ f } is the coefficient of variance of UCS_{15} (Table 2). γ _{ R } is the resistance partial coefficient. k _{ 1 } , k _{ 2 }, and k _{ 3 } are adjusting factors for the equation precision, geometric character, and the effect of duration of load, respectively. The statistical parameters of the adjusting factors according to literature [8] are shown in Table 5. According to statistical theory, the R value of dimension lumber with different grades is also in line with the normal distribution. The mean value and COV of R are shown in Table 6.
To obtain the resistance partial coefficient, the limit state design equation and performance function are established based on firstorder secondmoment reliability analysis [19]. The limit states design method can aim to satisfy the criteria of a target safety level. The reliability evaluation of the design values can provide the reference for the future strength values updating of the dimension lumber in the Chinese standard [9]. The limit state design equation is expressed as follows:
where γ _{0} is the structure importance coefficients and equals to 1.0 for design life of 50 years. γ _{ D } is the dead load effect factor and equals to 1.2. γ _{ L } is the live loads effect factor and equals to 1.4. ψ _{ c } is the combination factor for the live load and equals to 1.0. E(D)_{ n } is the nominal dead load effects. E(L) _{ n } is the nominal live load effects. Therefore, the Eq. 13 can be written \( 1.2E(D)_{n} + 1.4E(L)_{n} \le f_{d} . \)
The performance function (G) is expressed as follows:
where E(D) is the dead loads effects (random variable), which includes the selfweight of structural members and other materials. E(L) is the live loads effects (random variable), which includes the office occupancy load (L _{ O }), residential occupancy load (L _{ R }), wind load (L _{ W }), and snow load (L _{ S }). According to Chinese National Standard GB500092012 [21], the data of dead loads are in line with the normal distribution, and the data of different live loads are fitted to the extreme typeI distribution. The statistical parameters of the dead and live loads are shown in Table 7.
Combined with Eqs. 11, 13, and 14, the performance function can be expressed as follows:
where g is the ratio of live load to nominal live load (E(L)/E(L)_{ n }). q is the ratio of dead load to nominal dead load(E(D)/E(D) _{ n }). ρ is the load ratio E(D)_{ n } /E(L)_{ n }.
In addition, livetodead load ration is an important factor to determine the target reliability assessment. The reliability index (β), which needs to meet the target index (β _{0} = 3.2), is used to determine the design value of UCS_{15}. This is acquired by taking an average of the reliability index under the livetodead load ratio (ρ), which is specified as 0.25, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, and 4.0. Four load combinations, including G + L _{ O }, G + L _{ R }, G + L _{ W }, and G + L _{ S }, were used in the target reliability assessment.

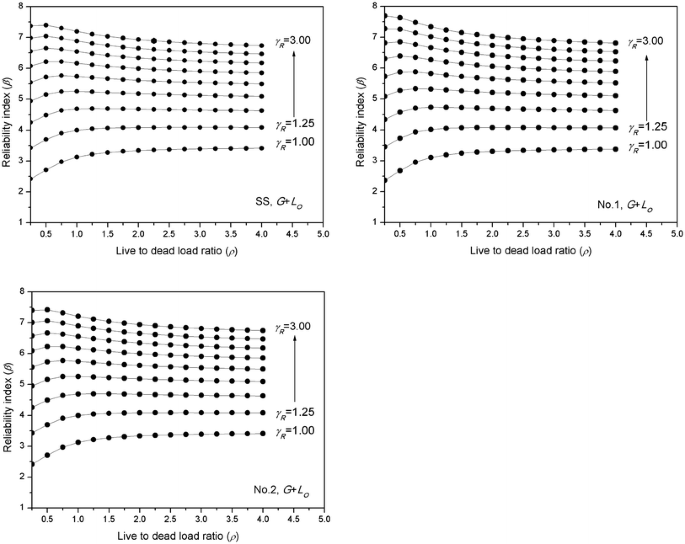

Figure 2 showed that the relationship between reliability index (β) and livetodead load ratio (ρ) of each grade, under dead load (G) plus live office load (L _{ O }). With the increase of ρ, the β increased nonlinearly, but the increasing trend was gradually slowed down.
Meanwhile, the relationship between reliability index (β) and resistance partial coefficient (γ _{ R }) for each grade, taking the average of all simulation load cases including G + L _{ O }, G + L _{ R }, G + L _{ W }, and G + L _{ S }, is shown in Fig. 3. The reliability index increased with the resistance partial coefficient ranged from 1.0 to 3.0. Different load combinations have different reliability index. The maximum β value was corresponding to dead load (G) plus live office load (L _{ O }). The results obtained in this study are similar to those of previous researchers [22, 23].
To determine the resistance partial coefficient (γ _{ R }), the correlation between reliability index (β) and resistance partial coefficient (γ _{ R }) fitted by cubic, logarithm, and allometric models for SS grade Chinese fir was shown in Fig. 4.
Table 8 indicated that the logarithm model could better fit the data than other models. The value of adjusted rsquare is equal to 1.000 for each grade, respectively. Moreover,the stander error of logarithm model for each grade was the smallest. Therefore, logarithm model was selected to calculate the resistance partial coefficient (γ _{ R }).
To meet the reliability index (β) of 3.2, the resistance partial coefficients (γ _{ R }) were 1.187, 1.204, and 1.195 for SS, No. 1, and No. 2 grade, respectively. And the design values of compressive strength calculated by Eq. 10 were set to 13.751, 13.186, and 13.123 MPa for SS, No. 1, and No. 2 grade, respectively.
Conclusions
The objective of this study was to determine the design value of compression strength parallel to grain for Chinese fir dimension lumber based on fullsize testing. The results will provide fundamental parameters for the application of Chinese fir in the building structure field as a green building material. The conclusions are as follows:

1.
The mean values of UCS_{15} for SS, No. 1, and No. 2 grade were 30.71, 28.38, and 29.37 MPa, respectively.

2.
The results of reliability analysis indicated that reliability index increased nonlinearly with the livetodead ratio and resistance partial coefficient increased. The logarithm model fitted the data better than other models.

3.
To meet the reliability index (β = 3.2), it was suggested that the design values of compressive strength were set to 13.751, 13.18, and 13.123 MPa for SS, No. 1, and No. 2 grade, respectively.
