Lignification in developing culms of bamboo Sinobambusa tootsik

Journal of Wood Science volume 63, pages 551–559 (2017)Cite this article

Abstract

Bamboos are among the largest woody grasses and grow very rapidly. Although lignin is a crucial factor for the utilization of bamboo biomass, the lignification mechanism of bamboo shoots is poorly understood. We studied lignification in the bamboo Sinobambusa tootsik during culm development. Elongation growth began in May and ended in late-June, when the lignin content was approximately half that in mature culms. Thioacidolysis analysis indicated that p-hydroxyphenyl units in lignin formed even at late stages of lignification. The syringyl/guaiacyl ratio varied during culm development. Various lignin precursors were detected in developing culms by liquid chromatography–mass spectrometry. The ferulic acid content decreased from May to June, indicating that ferulic acid was utilized in early stages of cell wall formation. Monolignol glucosides were detected at early stages of lignification, whereas the contents of monolignols, coniferaldehyde, sinapaldehyde, p-coumaric acid, and ferulic acid peaked at later stages of lignification. Therefore, lignin precursors may be supplied differentially during the lignification process. In August, the rate of lignification decreased, although the contents of various lignin precursors peaked, implying that the rate-limiting step in the cessation of lignification in bamboo is transport or polymerization of lignin precursors, rather than their biosynthesis.

Introduction

Bamboos are among the largest woody grasses and typically show a rapid growth rate. Utilization of bamboo biomass is an increasingly important research focus [1,2,3,4,5]. Information on the content and distribution of lignin at each developmental stage is crucial for the exploitation of bamboo biomass [6,7,8]. However, the mechanism of lignification in bamboo shoots remains poorly understood.

The lignification process involves three steps: biosynthesis, transport, and polymerization of lignin precursors. Enzymes involved in the biosynthesis or polymerization of lignin precursors have been investigated in bamboo as well as gymnosperm and angiosperm trees [9,10,11]. A few studies have explored the transport mechanisms of lignin precursors [12,13,14].

A knowledge of the distribution of lignin and lignin precursors may provide insights into the lignification mechanism, including the transport step. Several studies have elucidated the distribution of lignin and coniferin, the glucoside of coniferyl alcohol, in differentiating xylem of gymnosperm [15,16,17]. Lignification and the occurrence of lignin precursors have been examined in the angiosperms Magnolia kobus [18] and poplar [16]. The results of those studies suggested that the lignin precursors are coniferin in gymnosperms and M. kobus, and sinapyl alcohol in poplar.

In bamboo, lignin distribution at the subcellular level has been investigated using electron microscopy and ultraviolet microscopy [19]. In the previous studies, lignification during growth was studied at the cellular level by Wiesner staining of different internodes of the culm [20, 21]. Lignin content during elongation growth was examined at several heights in shoots of the bamboos Phyllostachys pubescens [22] and Phyllostachys bambusoides [8]. However, structural changes in lignin and the occurrence and distribution of lignin precursors in bamboo culms have not been elucidated.

In this study, we investigated the development and lignification of culms of the bamboo Sinobambusa tootsik. We also determined the distribution of lignin precursors, including p-coumaric acid and ferulic acid, in developing culms. These findings provide novel insights into the lignification mechanism in bamboo.

Materials and methods

Chemicals

Coniferin and syringin were donated by Professor Emeritus N. Terashima, Nagoya University, Japan. Other chemicals, except for p-coumaryl alcohol and p-glucocoumaryl alcohol, were purchased from Wako Pure Chemical Industries (Osaka, Japan), Tokyo Chemical Industry Co. (Tokyo, Japan), or Sigma-Aldrich (St Louis, MO, USA).

Syntheses of p-glucocoumaryl alcohol and p-coumaryl alcohol

p-Glucocoumaryl alcohol was synthesized as described previously [23]. Synthesis of p-coumaryl alcohol basically followed p-glucocoumaryl alcohol synthesis with some modifications. Briefly, a mixture of p-hydroxybenzaldehyde (6.0 g), monoethyl malonate (8.4 g), pyridine (6 mL), and piperidine (10 drops) was heated at 60 °C for 24 h. After acidification (pH 3), the reaction mixture was extracted with ethyl acetate followed by extraction with saturated sodium hydrogen carbonate solution and with 10% sodium hydrogen sulfite. The organic layer was washed with water, and then concentrated. Recrystallization from the mixture with ethyl acetate and hexane yielded p-coumaric acid ethyl ester (5.6 g, yield 59%).

Lithium aluminum hydride (0.8 g) was placed in a flask and absolute tetrahydrofuran (50 mL) was added. p-Coumaric acid ethyl ester solution (1.0 g in 15 mL of absolute tetrahydrofuran) was added drop-wise over 1 h with stirring, and the reaction was maintained for 2 h. After acidification (pH 3), the reaction mixture was extracted three times with ethyl acetate. The organic layer was washed with brine and then removed to obtain p-coumaryl alcohol (0.12 g, yield 15%).

Extraction of lignin precursors

The S. tootsik plants used in these experiments were growing at the University of Miyazaki campus. The samples were collected between May and September (see Table 1), and in November (Fig. 1c). Three culms of bamboo with a similar total height were collected at each sampling. Culms that were more than 1 year old were collected as “mature” samples, although their exact age was unknown. The lowest internode above the ground or the rooted internode was designated as 0, and internodes were numbered from the bottom to the top of the culm. Blocks containing both the outer- and inner-most cells of the internode were excised from the top portion of the 2nd, 4th, 6th, 8th, and 10th internodes. The blocks were frozen in liquid nitrogen and stored at −80 °C until use in the following experiments.

Table 1 Samples used in the present study
Full size table
Fig. 1
figure 1

Elongation growth of Sinobambusa tootsik culms. a Total length of culm samples (see Table 1). Data are mean ± SD of three biological replicates. b Length of 2nd, 4th, 6th, 8th, and 10th internodes of culms (see Table 1). Data are means of three biological replicates. c Length of each internode of mature (>1 year old) culms collected in November

Full size image

Transverse cryosections were obtained from each frozen specimen block and placed in a 1.5-mL vial at −20 °C. The vials were weighed before and after adding the sections to determine the weight of fresh sections. After weighing the vial, 1-mL 80% methanol was added and the sections were extracted overnight at 4 °C. The extract was collected and lignin precursors were determined by liquid chromatography–mass spectrometry (LC–MS). The sections were treated with acetone overnight after the methanol extraction. After discarding the supernatant, the sections were dried and used for lignin analyses.

Quantification of lignin

The thioglycolic acid (TGA) method [24] was used to quantify lignin. Briefly, samples were reacted with 1-mL 3 N HCl and 0.1-mL TGA in 2-mL tubes with screw caps at 80 °C for 3 h. The tubes were centrifuged at 20,000×g for 10 min, the pellet was washed with 1-mL distilled water, then 1-mL 1 N NaOH was added, and the tube was shaken vertically at 80 rpm overnight. After centrifugation as described above, 1-mL supernatant was mixed with 0.2-mL concentrated HCl. The TGA lignin was precipitated at 4 °C for 4 h and collected by centrifugation as described above. The pellet was dissolved in 1 N NaOH and absorption at 280 nm was measured to determine the amount of TGA derivatives from a standard curve prepared using known concentrations of bamboo milled-wood lignin [24].

Characterization of lignin

Extractive-free samples were used to characterize lignin using the microscale thioacidolysis method [25]. Tetracosane was used as the internal standard. Gas chromatographic–mass spectrometric (GC–MS) analyses were performed on a GCMS-QP 2010 SE instrument (Shimadzu, Kyoto, Japan) equipped with an Inert Cap column (60 m × 0.25 mm i.d.; GL Sciences, Tokyo, Japan). The sample volume injection was 1 µL in the pulsed splitless mode. The injector and transfer line were operated at 250 and 280 °C, respectively. The initial oven temperature was 200 °C (held for 1 min) and increased at 4 °C min−1 to 280 °C and held for 10 min. Quantitative evaluation of p-hydroxyphenyl (H), guaiacyl (G), and syringyl (S) monomers was conducted using ion chromatograms reconstructed from their prominent benzylic ions at m/z 239, 269, and 299, respectively.

LC–MS analysis

The methanol extract stored at −80 °C was centrifuged at 20,000×g for 20 min, and then, the supernatant was filtered through a membrane filter (0.45 µm) before LC–MS analysis. The LC–MS analysis was carried out using a Dionex Ultimate 3000 UHPLC system (Thermo Scientific, Waltham, MA, USA) connected to a Q-Exactive mass spectrometer (Thermo Fisher, Rockford, IL, USA). A 2-µL aliquot of each sample was injected onto a reversed-phase InertSustain C18 column (100 mm × 2.1 mm i.d., 2 µm; GL Sciences, Tokyo, Japan) controlled at 35 °C. The flow rate was 0.3 mL min−1, and the gradient program was as follows: 15% (v/v) methanol held for 5 min, increased to 35% methanol at 15 min, increased to 80% methanol at 20 min, and held until 28 min with constant 0.1% acetic acid. The mass spectral data were collected in positive or negative ion polarity using a quadrupole mass spectrometer equipped with a heated capillary electrospray interface. Lignin precursors were identified and determined by comparisons with standard curves calculated from MS data for authentic compounds. The retention time and mass of each authentic compound (mass tolerance = 3 ppm) used for identification were as follows: p-coumaryl alcohol (10.1 min, +, m/z 133.065), p-glucocoumaryl alcohol (4.1 min, +, m/z 335.110), coniferaldehyde (15.5 min, −, m/z 177.056), coniferyl alcohol (12.3 min, +, m/z 163.075), coniferin (6.2 min, +, m/z 365.121), sinapaldehyde (16.4 min, −, m/z 207.066), sinapyl alcohol (13.3 min, +, m/z 233.078), syringin (8.7 min, +, m/z 395.131), p-coumaric acid (13.2 min, −, m/z 163.040), and ferulic acid (15.0 min, −, m/z 193.050).

Results and discussion

Lignification and elongation growth of S. tootsik shoots

Shoots of S. tootsik began growing in mid-May, and finished elongating at the end of June, by which time the shoots were about 13-m high (Fig. 1a). The lowest measured internode (2nd) finished growing earlier and attained a shorter length than did the other internodes (Fig. 1b). The internode length on mature culms gradually increased towards the center of the culm (Fig. 1c), as reported for other bamboo species [22, 26]. Given that S. tootsik has comparatively long and few internodes, the 10th internode was at approximately the longitudinal center of the culm (Table 1; Fig. 1c). The leaf sheaths had entirely abscised in July. Foliation of S. tootsik shoots occurred in late October.

In the early stage of culm development (May and June), the lignin content was higher in the lower internodes than in the higher ones (Fig. 2a), as reported previously [20, 22]. After elongation finished at the end of June, the lignin contents became almost identical among all the analyzed internodes. At the end of June, when culms had finished elongating, the lignin content was approximately half that in mature samples. Lignification in S. tootsik shoots appeared to cease during August. The lignification rate (change in lignin content per day, % d−1; Fig. 2b) gradually decreased in August and September. At 4 months after shoot initiation, the lignin content of culms was approximately 80% of that in mature samples (Fig. 2a). In Phyllostachys heterocycla, lignification was completed within one growing season as determined by the Klason method [20]. In another study, microspectrophotometric analyses suggested that lignification of fiber and parenchyma cell walls continued for up to 7 years [21]. Other studies have indicated that cell wall thickening may occur in 12-year-old culms [27]. Thus, cell wall formation and lignification in bamboo may continue incrementally over several years.

Fig. 2
figure 2

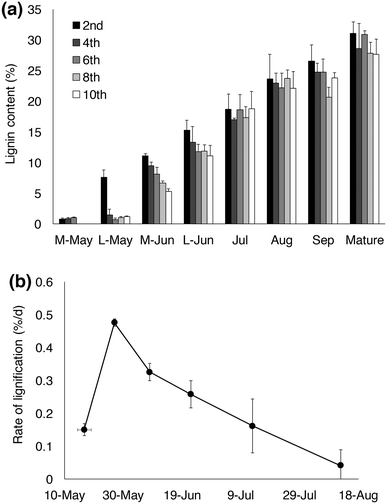

a Distribution of lignin in developing culms of S. tootsik. Lignin content was determined by thioglycolic acid method [24]. See Table 1 for sampling details. b Rate of lignification in S. tootsik culms. Lignification rate (% d−1) was calculated as follows: v n  = (C n+1 − C n )/(D n+1 − D n ), where v n is lignification rate of nth sampling, C n is average lignin content (%) of all internodes investigated at nth sampling, and D n is data of nth sampling. Data were plotted as (x, y) = (v n , D n ). Data are mean ± SD of three biological replicates

Full size image

Lignin structure in developing shoots of S. tootsik

Although several studies have investigated lignification in bamboo, little is known about lignin structure in developing bamboo. Thioacidolysis, which specifically cleaves β-O-4 linkages, can reveal aspects of lignin structure in the cell wall. Lignin in shoots of S. tootsik had fewer β-O-4 linkages in the early stage of lignification, as indicated by yields of thioacidolysis-releasable monomers (Fig. 3). The ratio of thioacidolysis-releasable H:G:S units in lignin of mature culms was 5:41:55.

Fig. 3
figure 3

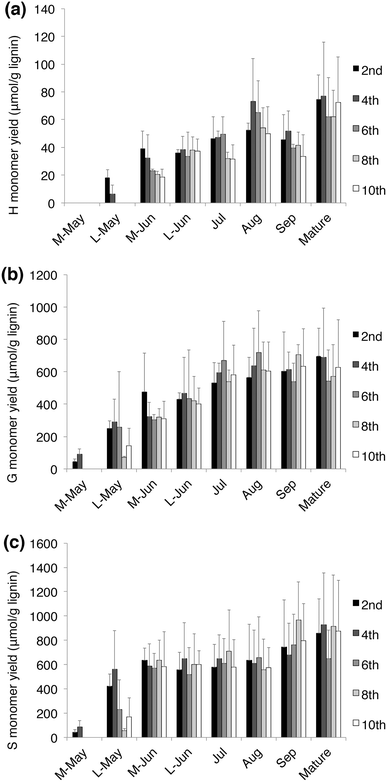

Thioacidolysis yields from developing culms of S. tootsik. Yield of thioacidolysis-releasable monomers derived from a p-hydroxyphenyl (H) units, b guaiacyl (G) units, and c syringyl (S) units. H units were not detected in mid-May sample or in 6th, 8th, and 10th internodes of late-May sample. See Table 1 for sampling details. Data are mean ± SD of three biological replicates

Full size image

Heterogeneous formation of lignin occurs in the differentiating xylem of trees [28, 29]; the H monomer is mainly incorporated into the lignin polymer during the early stages of lignification, followed by the incorporation of substantial amounts of G units, and subsequently the incorporation of S units. In shoots of S. tootsik, however, thioacidolysis-releasable yields of H monomers continued to increase even in August, during the late stages of lignification (Fig. 3a). The H/G ratio in developing shoots of S. tootsik showed no apparent trend, but remained relatively constant or increased incrementally towards maturity (Fig. 4a). The role of H units in lignin polymers may differ between grasses and trees.

Fig. 4
figure 4

Ratios of H/G and S/G units in developing culms of S. tootsik. Ratios of a H/G and b S/G units of lignin released by thioacidolysis. H/G ratio was not calculated for mid-May sample or 6th, 8th, and 10th internodes of late-May sample, because H monomers were not detected. See Table 1 for sampling details. Data are mean ± SD of three biological replicates

Full size image

In contrast to the H/G ratio, the S/G ratio varied in developing shoots of S. tootsik (Fig. 4b). In the thioacidolysis analysis, the yield of monomer G units gradually increased from May to August, whereas that of S units increased from May to mid-June, remained stable until late August, and then increased again after August (Fig. 3b, c). Consequently, the S/G ratio tended to increase from mid-May to mid-June, and significantly decrease from mid-June to August at all internodes except the 2nd one (p < 0.05, t test; Fig. 4b). This variation in the S/G ratio indicated that the formation rate of β-O-4 linkages or the transport rate of precursors differed between G and S units during the development of S. tootsik shoots.

Contents of lignin precursors in developing shoots of S. tootsik

Understanding the occurrence and distribution of lignin precursors will contribute to our knowledge of lignin biosynthesis; however, no studies have investigated these topics in bamboo. Here, we determined the distribution of several lignin precursors in developing shoots of S. tootsik by LC–MS analyses (Fig. 5). There were larger amounts of monolignols than their corresponding glucosides at their peaks. The monolignols and their glucosides showed different patterns of accumulation. The monolignols contents peaked during late stages of lignification in August (Fig. 5a, c, e), whereas the monolignol glucosides contents peaked during early stages (Fig. 5b, d, f). These results suggest that lignin precursors may be supplied differentially as lignification proceeds.

Fig. 5
figure 5

Distribution of lignin precursors in developing culms of S. tootsik. Contents of a p-coumaryl alcohol (pCmAlc), b p-glucocoumaryl alcohol (pCmAlcG), c coniferyl alcohol (CAlc), d coniferin, e sinapyl alcohol (SAlc), and f syringin as determined by LC–MS. See Table 1 for sampling details. Data are mean ± SD of three biological replicates. FW fresh weight of sample

Full size image

Although monolignols are known to be direct precursors of lignin, whether monolignol glucosides are also involved in lignification is controversial. The biosynthesis and hydrolysis of monolignol glucosides have been investigated in several studies [30,31,32,33,34,35]. A single-gene knockout mutant defective in β-glucosidase, which is responsible for coniferin and syringin hydrolysis, did not show a lignification-deficient phenotype [36]. However, a recent study revealed that UDP-glycosyltransferase, which is involved in coniferin biosynthesis, is essential for normal lignification in Arabidopsis thaliana [37]. In the present study, coniferin and syringin contents in May and mid-June samples was higher at the upper internodes where vigorous lignification occurs (Fig. 5d, f). The p-glucocoumaryl alcohol content showed a different pattern from those of coniferin or syringin; it peaked in late-June and then decreased as lignification gradually diminished (Fig. 5b). These results suggest that monolignol glucosides are involved in the early stage of lignification in S. tootsik. There were much smaller amounts of monolignol glucosides than monolignols (Fig. 5), implying that there are lower biosynthesis or faster turnover rates of monolignol glucosides. Further research is required to determine the role of monolignol glucosides in bamboo lignification.

Coniferaldehyde and sinapaldehyde were detected in these samples and changes in their contents were almost identical to that of monolignols (Fig. 6). The plasma membranes of rosette leaves of A. thaliana showed transport activity not only for monolignols but also for coniferaldehyde and sinapaldehyde [12]. Thus, these aldehydes may be transported and used for lignification.

Fig. 6
figure 6

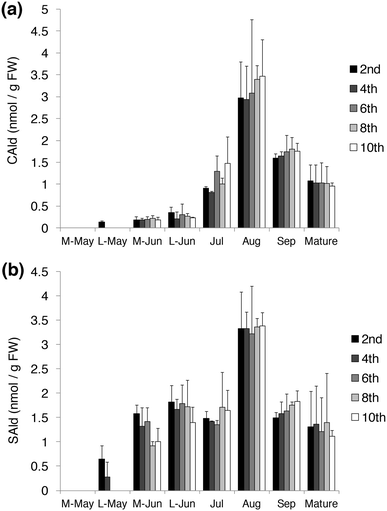

Distribution of coniferaldehyde and sinapaldehyde in developing culms of S. tootsik. Distribution of a coniferaldehyde (CAld) and b sinapaldehyde (SAld) as determined by LC–MS. See Table 1 for sampling details. Data are mean ± SD of three biological replicates. FW fresh weight of sample

Full size image

Monocots, including bamboos, contain p-coumaric acid and ferulic acid [38]. In late-May, the p-coumaric acid content increased from the top to the bottom of the culm (Fig. 7a), whereas the ferulic acid content increased from the bottom to the top of the culm (Fig. 7b). Similar results were reported for shoots of the bamboo P. pubescens sampled in May [22]. In grasses, p-coumaric acid is mainly incorporated into lignin [38]. The p-coumaric acid detected in S. tootsik in late-May appeared to be related to lignification. Ferulic acid is mainly attached to arabinoxylan by an ester linkage that strengthens the cell wall by cross-linking. A portion of the arabinoxylan-attached ferulic acid might function as an initiation site for lignification [38]. The higher content of ferulic acid in elongating internodes (Figs. 1, 7) suggests that ferulic acid plays a role in the early stages of cell wall formation in S. tootsik.

Fig. 7
figure 7

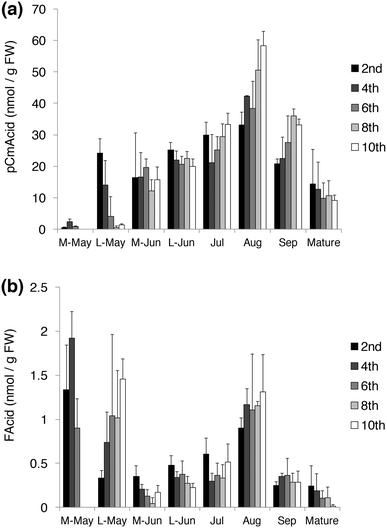

Distribution of p-coumaric acid and ferulic acid in developing culms of S. tootsik. Distributions of a p-coumaric acid (pCmAcid) and b ferulic acid (FAcid) as determined by LC–MS. See Table 1 for sampling details. Data are mean ± SD of three biological replicates. FW fresh weight of sample

Full size image

The contents of various lignin precursors, monolignols, p-hydroxycinnamaldehydes, p-coumaric acid, and ferulic acid peaked in August in S. tootsik (Figs. 5, 6, 7). This may be a consequence of a delay in the consumption of lignin precursors and the pool of intermediate compounds; indeed, the rate of lignification decreased during August (Fig. 2b). Accumulation of lignin precursors and declining lignification in August may result from diminished transport activity if the precursors are localized in the cytosol, or decreased polymerization activity if the precursors are present in the cell wall. The rate-limiting step for the cessation of lignification in bamboo may not be the biosynthesis of lignin precursors, but rather their transport or polymerization. Further research is needed to elucidate how lignin precursors are transported to the cell wall, and how lignification is controlled during culm development.

Conclusion

In this study, we evaluated the patterns of culm elongation, lignification, lignin structure, and the distribution of lignin precursors during the development of S. tootsik shoots. Elongation growth was completed by late-June when the culm lignin content is approximately half that of mature culms. Thioacidolysis analysis indicated that H units were almost constantly incorporated into lignin polymers during culm development, whereas the ratio of S/G units was variable. The contents of monolignol glucosides peaked during the early stages of lignification, whereas the contents of monolignols peak at later stages of lignification. These details of the variations in lignin structure and the contents of lignin precursors in developing shoots of S. tootsik contribute to our understanding of lignification in bamboo, and will help to optimize the use of the bamboo biomass.
