Development of bark-based adhesives for plywood: utilization of flavonoid compounds from bark and wood. II

Abstract

Although many conventional adhesives for plywood are formulated with tannins (polyflavanoid compounds) extracted from bark or wood, adhesives using tannin directly without extraction from the bark have also been made. In 2003, the first bark particle (< 63 μm) adhesive was developed from radiata pine bark. In this present study, the quality of the bark adhesive has been improved by fibrillating the bark. Finely ground bark was fibrillated using a disc mill and formulated into plywood adhesives, which consisted of fibrillated bark, phenol–formaldehyde (PF) resin and water in different ratios. The gluability of the fibrillated bark adhesives was evaluated according to the Japanese Agricultural Standard for Plywood (JAS) and was found to be excellent. These bark adhesives have a number of advantages in that there is no tannin extraction, there is a total use of the bark, a low-level requirement of PF resins, no other components required and there is a high glue bond quality. Considering that very small amounts of fibrillated bark adhesives produced high-quality wood bonding, the bark components such as tannin, hemicellulose, lignin, cellulose nanofibers and other components may well be contributing to produce such a good bonding.

Introduction

The flavonoid compounds, which have been used commercially, are tannins derived from barks and woods. One of the most commonly used tannins is wattle tannin, which is obtained as a hot water extract from the bark of black wattle (Acacia mearnsii De Wild.) [1, 2]. As reported in the early history of Australia, Acacia mearnsii bark was first identified in 1814 as one of the excellent sources of tannins for the tanning of leather and a textile factory was opened at Botany Bay in New South Wales in 1815 with a tannery established before 1820 [3].

The major components of wattle tannin are polyflavanoids consisting of flavan-3-ols as monomers and their polymers. Although the use of wattle tannin in leather tanning commenced in the early 1820s, the commercial use of wattle tannin as a major component in the manufacture of wood adhesives commenced only in the middle of the 1960s. Details of the historical development of tannin adhesives for use in structural and external application wood products and a new approach to the use of the tannin in the bark without extraction, which was described as “bark adhesives” from radiata pine, were reported in 2015 [1].

Unlike the rapid industrial acceptance and the large-scale commercial use of wattle tannin adhesives for more than 50 years, the commercial use of tannin adhesives derived from radiata tannin, which is extracted from the bark of radiata pine (Pinus radiata D. Don), has not been realized, except for a small industrial particleboard and medium-density fiberboard (MDF) production and trials in Chile lasting approximately 15 years [4].

In the normal use of tannins in wood adhesives, the tannins have to be extracted from bark or wood using water as the solvent. However, an attempt has been made to use tannins directly without extracting them from the bark. This was based on the discovery that a fine particle fraction (< 63 µm) of radiata pine bark contained up to 70% tannin. Therefore, a technology to use the tannin in the finely ground bark particles without extraction has been developed for the production of wood adhesives [5]. A plywood adhesive has been formulated with bark particles (< 63 µm, 100 parts), paraformaldehyde (10 parts), water (165 parts) and a small amount of aqueous sodium hydroxide to adjust the pH to 8. However, paraformaldehyde is not desired for factory use due to its toxicity and the quality of the formulations was found to be quite variable. Therefore, formulations producing a better quality of wood adhesives were required.

Since early 2000, interest has been focused on the use of wood as a renewable resource for the purpose of resolving the problem of depleting fossil resources and research is being conducted that attempts to extract cellulose nanofibers from wood. Since cellulose nanofibers have demonstrated superior properties such as light weight, high strength and low thermal expansion, they are attracting considerable attention for use in next-generation industrial materials [6,7,8]. Attempts to obtain cellulose nanofibers from bark have been reported only from the bark of lodgepole pine (Pinus contorta) in Canada [9, 10]. However, the authors of that study were not interested in the tannins contained in the lodgepole pine bark, but actually removed the tannins from the bark as part of their investigation. Since radiata pine bark contains significant amounts of procyanidin polymers (polyflavanoids), which consist of linear chains of 3′,4′-dihydroxy flavan-3-ol units that have undergone varying degrees of condensation as shown in Fig. 1 [11,12,13], radiata pine bark was fibrillated using a disc mill and formulated into plywood adhesives. The gluability of the fibrillated bark adhesives was evaluated according to the Japanese Agricultural Standard for Plywood (JAS) [14] and found to be excellent; the details of this newly developed technology using fibrillated bark as a constituent of the adhesives are described below together with the technology of using fine bark particles in the adhesive.

Fig. 1

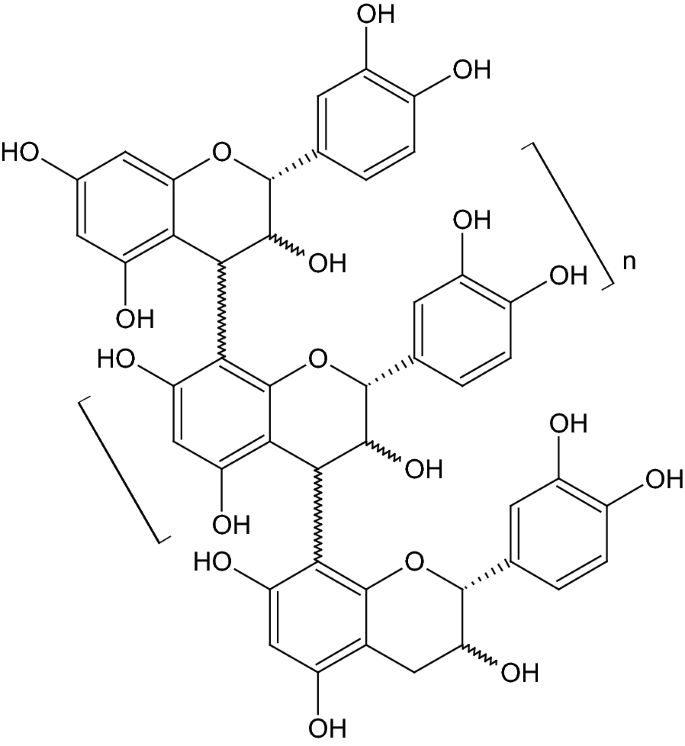

Structure of procyanidin polymers contained in radiata tannin

Materials and methods

Radiata pine bark

The bark used was obtained from 30- to 35-year-old radiata pine logs (Pinus radiata D. Don) from Kaitaia in New Zealand and collected from debarkers. It was dried at 100 °C for 24 h, and then sent to WOOD ONE CO., LTD. in Hiroshima, Japan.

Sample preparation

Bark particles (< 63 μm)

The dried radiata pine bark was roughly ground using a garden shredder, and then further size reduced using a hammer mill having a screen opening of 1 mm. The fine bark was classified using a sieve having a sieve opening of 63 μm, and bark passing through the screen that is having a particle size of 63 μm or less was used in the adhesion tests.

Fibrillated bark

Bark particles (< 63 μm, 1 kg) were soaked in water (10 l) for 24 h and then fibrillated using a disk mill (Supermasscolloider MKZA10-15J; MASUKO SANGYO CO., LTD., Japan) at 1800 rpm. Bark slurry was fed continuously to the disk mill consisting of two grinding disks positioned on top of each other. The fibrillation was operated at contact grinding with the gap between the two disks decreasing from 80 to 0 μm at the end. The fibrillated bark was collected after 10 passes and then freeze-dried.

Phenol–formaldehyde (PF) resins

The PF resins used were commercially available resins. PF resin A and PF resin B were used for the experiments of the bark particle adhesives and the fibrillated bark adhesives, respectively. The properties of these PF resins are shown in Table 1.

Table 1 Properties of PF resins

Adhesives formulations

Formulations, total solids contents and viscosities of the adhesives are shown in Tables 2 and 3. Bark particle adhesives were prepared by mixing the bark particles (< 63 μm) with a PF resin A and wheat flour at a solids content ratio as shown in Table 2. Fibrillated bark adhesives were prepared by mixing the fibrillated bark with a PF resin B at a solids content ratio as shown in Table 3. The viscosity of each adhesive was adjusted by adding water as shown in these tables.

Table 2 Bark particle adhesive composition and bonding quality from the continuous 72-h boiling test (JAS)

Table 3 Fibrillated bark adhesive composition and bonding quality from the continuous 72-h boiling test (JAS)

Gluing conditions

Gluing conditions for plywood production were not optimized for each adhesive, but were set at these conditions on the assumption that the adhesive would completely cure. Three-ply plywood samples were prepared by bonding radiata pine veneers (250 mm × 250 mm × 3 mm) conditioned to 4% moisture content. Each of the adhesives was applied at a spread rate of 200 g/m² in a single glue line. The spread panels were prepressed at room temperature at 1.0 MPa for 30 min. All panels were then pressed at 135 °C at 1.0 MPa for 10 min.

Assessment of bonding quality

The assessment of the bonding quality was made according to the criteria for the adhesive bonding level of “Type special” as defined in the JAS [14]. “Type special” is the type of plywood the main purpose of which is for use outdoors or in places (environments) where conditions are continuously wet. The plywood samples were tested according to the “Continuous Boiling Test” defined in the JAS. Bonding strength tests on all specimens were carried out in the wet state after 72-h immersion in boiling water and the average of shear strength and average wood failure ratio determined. The bonding quality was regarded as “PASS” if shear strength (MPa) and average wood failure ratio (%) were not less than the values in the following combinations: 0.7 MPa—(no limit)%, 0.6 MPa—50%, 0.5 MPa—65% and 0.4 MPa—80%.

General methods

The extraction of radiata tannin and the determination of the adjusted Stiasny values and polyflavanoid contents of the extracts have been described previously [11, 13, 15], although hot methanol was used as the solvent for the tannin extraction.

The viscosity of each of the adhesives was determined at 23 °C using a coaxial cylinder rotational viscometer (HAAKE Viscotester 550 (VT 550); Thermo Electron Co., Germany) with a SV-DIN type measuring system.

The solids content (%) of the adhesives was calculated using the equation indicated as follows:

$$ {\text{Solids content }}\left( \% \right)\, = \,\left( {{{\text{weight after drying}} \mathord{\left/ {\vphantom {{\text{weight after drying}} {\text{weight before drying}}}} \right. \kern-0pt} {\text{weight before drying}}}} \right)\, \times \, 100. $$

The gelation time (135 °C) and the pH of adhesives were determined in accordance with Japanese Industrial Standard (JIS) K 6807 “General testing methods of formaldehyde resin adhesives for wood” [16].

The fibrillated bark was examined using a field emission scanning electron microscope (SEM) (JSM-7800F Prime; JEOL Ltd., Japan) at the Research Institute for Sustainable Humanosphere, Kyoto University, Uji, Kyoto. The fibrillated bark slurry was solvent-exchanged with t-butyl alcohol and freeze-dried. The dried bark samples were vacuum coated with platinum before the SEM observations were undertaken.

Statistical analysis

The data obtained from the bonding quality test (shear strength and wood failure) were analysed, respectively, by one-way analysis of variance (ANOVA) and Tukey’s test. The statistical analyses were performed using the R open-source statistical software package (version 3.5.1; R Development Core Team, Austria).

Results

Gluing properties

Bark particle (< 63 µm) adhesives

Adhesives 1-1 and 1-2 were formulated to give mass ratios of PF resin (solids) to bark particles of 70:30 and 60:40, respectively, whilst Adhesives 1-3 and 1-4 contained PF resin, bark particles and wheat flour. The mass ratios of PF resin (solids), bark particles and wheat flour were 60:28:12 and 50:35:15, while a constant mass ratio of the bark particles to wheat flour was maintained at 7:3. The plywood samples were bonded with Adhesives 1-1 to 1-4 and their gluing properties were assessed under the continuous 72-h boiling test in accordance with JAS. The composition, properties of the adhesives and the results from these continuous 72-h boiling tests are summarized in Table 2.

The ratios of PF resin (solids), bark particles (< 63 µm) and water in Adhesives 1-1 to 1-4 are shown in Fig. 2. All Adhesives 1-1 to 1-4 achieved excellent bonding quality namely “PASS” on the JAS criteria, despite the lower total solids contents (35–40%), compared to those of commercial PF resin adhesive formulations (ca. 55%) named as Commercial formulation A (CF-A). In the results of the shear strength and the wood failure ratio, the standard deviations were high, since the results differ depending on whether the loading direction and lathe check direction were forward or reverse. The results of statistical analysis both on shear strength and wood failure ratio showed that Adhesives 1-2 and 1-3 were not significantly different from CF-A (p < 0.05). The results showed that Adhesives 1-2 and 1-3 were similar in both the shear strength and the average of wood failure ratio to commercial adhesive CF-A.

Fig. 2

The ratios of the PF resin (solids), bark particles and water in bark particle adhesives. “PF resin” and “P” indicate phenol–formaldehyde resin. “RP Bark” and “B” indicate the bark particles (< 63 µm). “F” indicates wheat flour. “CF-A” means “Commercial formulation A” and refers to the formulation of a commercial adhesive for plywood using PF resin A. It consists of PF resin, inorganic components such as calcium carbonate and water

The results shown in Table 2 confirmed that the Adhesives 1-2 and 1-3 formulations which contain 60, 40, 0 and 60, 28, 12 parts by mass of PF resin (solids), bark particles and wheat flour, provided excellent glue bonding similar to commercial adhesive CF-A and that the adhesives which contain 30–40 parts by mass of the bark particles also provided very good glue bonding, which satisfied the requirements of the JAS for exterior use of plywood.

Fibrillated bark adhesives

Fibrillated bark adhesives were formulated with only PF resin and fibrillated bark in which the mass ratios of the PF resin to the fibrillated bark ranged from 70:30 (Adhesive 2-1) to 20:80 (Adhesive 2-6). Bonding quality (shear strength and wood failure ratio) of plywood samples, which were bonded with these adhesives, were assessed again using the JAS continuous 72-h boiling tests for plywood adhesives. The adhesive composition and results from the 72-h boiling tests are summarized in Table 3.

The ratios of PF resin (solids), fibrillated bark and water in Adhesives 2-1 to 2-6 are shown in Fig. 3. The solids contents of the PF resin of Adhesives 2-1 to 2-6 were reduced from a mass ratio of 70 to 20 with the amount of fibrillated bark increased from a mass ratio of 30 to 80. The solids content of Adhesives 2-1 to 2-6 decreased from 39 to 21%. However, even with the low total solids content compared to those of commercial PF resin adhesive formulations (ca. 55%) named as Commercial formulation B (CF-B), the gluing properties of the adhesives were able to achieve a “PASS” on the basis of the JAS continuous 72-h boiling test. The standard deviations of the shear strength and the wood failure ratio were high. The results of statistical analysis both on shear strength and wood failure ratio showed that Adhesives 2-1 and 2-2 were significantly different from the other adhesives (p < 0.05). These results showed that Adhesive 2-1 and 2-2 were superior in both the shear strength and the average of wood failure ratio to the other adhesives including CF-B, which was similar to Adhesive 2-3.

Fig. 3

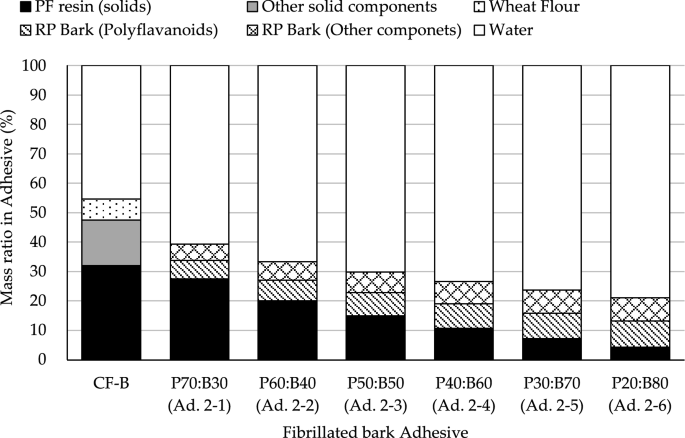

The ratios of the PF resin (solids), fibrillated bark and water in fibrillated bark adhesives. “PF resin” and “P” indicate phenol–formaldehyde resin and “RP Bark” and “B” indicate the fibrillated bark. “CF-B” means “Commercial formulation B” and refers to the formulation of a commercial adhesive for plywood using PF resin B. It consists of PF resin, inorganic components such as calcium carbonate, sodium bicarbonate, sodium hydroxide and water

The results from the JAS continuous 72-h boiling test shown in Table 3 confirmed that adhesives containing 30–80 parts by mass of fibrillated bark provided excellent glue bonding.

Comparison of bark particle adhesives and fibrillated bark adhesives

In order to compare the bark particle adhesives and the fibrillated bark adhesives, a statistical analysis was conducted using the results from all 12 adhesives (Adhesives 1-1 to 1-4, Adhesives 2-1 to 2-6 and Commercial formulations). The results of the statistical analysis are summarized in Table 4. Tukey’s test confirmed that there was a significant difference between Adhesives (2-1 and 2-2) and the other adhesives in both shear strength and wood failure (p < 0.05).

Table 4 Comparison of bark particle adhesives and fibrillated bark adhesives

Discussion

Bonding quality of adhesives

The results of this study showed that both the bark particle adhesives and the fibrillated bark adhesives provided excellent glue bonding meeting the criteria of the JAS. In the bark particle adhesives, although all adhesives had sufficient bonding quality, that both shear strength and wood failure of the Adhesive 1-3 were higher than these properties found with Adhesives 1-2, 1-1 and 1-4. In the fibrillated bark adhesives, even with the low total solids content, the gluing properties of the adhesives were able to achieve a “PASS” on the basis of the JAS continuous 72-h boiling test. However, the results from the statistical analysis and the JAS tests showed that the best gluing properties were obtained with the Adhesives 2-1 and 2-2 when adhesives containing fibrillated bark were considered. Comparing the bark particle adhesives and fibrillated bark adhesives, Adhesives 2-1 and 2-2 showed the best performance among all ten adhesives (Adhesives 1-1 to 1-4 and 2-1 to 2-6). When the adhesives with the same blending ratio of PF resin and bark (Adhesives 1-1, 1-2 and 2-1, 2-2), were compared, the performances of Adhesives 2-1 and 2-2 were found to be significantly better. When adhesives with the same PF resin content ratios in the adhesive (Adhesives 1-3 and 2-2) were considered, Adhesive 2-2 showed a better result.

This study showed that bark particle adhesives and fibrillated bark adhesives both gave excellent bonding qualities which satisfy the requirements of the JAS for exterior use of plywood, despite the fact that they contained low total solids contents. Adhesives containing fibrillated bark contained much lower total solids contents and were simple formulations in that they only contained PF resin, fibrillated bark and water.

The gluing conditions used in this study are our laboratory standard, which assesses the gluability of adhesives for plywood. The hot pressing time of 10 min at 135 °C is quite a long time for a 3-layered plywood and would not be economic in commercial practice. The next stage in the study for the industrial application of bark adhesives will be to optimize the gluing conditions. We are confident that the 10-min hot pressing time can be substantially reduced.

Amounts of reactive components and high-quality gluing properties

In order to provide excellent gluing properties, it has been found in the reported studies that approximately 30% polyflavanoid content was required in the radiata tannin adhesives for plywood production, in which the total solids content was 47.4% [17, 18]. In comparison, the PF resin content of commercial PF resin adhesives is approximately 32% with the total solids content of approximately 55%.

The polyflavanoid compounds react with formaldehyde and/or PF resins at higher temperatures, so that glue bonding can be made. The Stiasny value can provide an estimate of the total amount of polyflavanoids in the extract, which reacts with formaldehyde. However, the Stiasny values for purified tannins or tannin monomers (controls) are always higher than 100% [19]. Therefore, the Stiasny values for tannin extracts must be divided by those of the controls, so that “adjusted Stiasny values” are obtained. The adjusted Stiasny values more accurately indicate the percentage of reactive polyflavanoids in the extracts, which react with formaldehyde in the adhesive formulation. The content of polyflavanoids in the bark can be calculated by multiplying the yield of tannin extract by its adjusted Stiasny value [15]. Since the yield of tannin extract and its adjusted Stiasny value for the fibrillated bark were 61.9% and 85.1%, respectively, the content of polyflavanoids was 52.7%, whilst the yield of tannin extract, the adjusted Stiasny value and the content of polyflavanoids for the bark particles (< 63 µm) were 46.2%, 91.2% and 42.1%, respectively. Consequently, the polyflavanoid content in the total solids can be obtained by multiplying the total solids, the bark ratio and the content of polyflavanoids 0.421 (42.1%) for the bark particles (< 63 µm) or 0.527 (52.7%) for the fibrillated bark. For example, in the gluing trial using the bark particles adhesive 1-4 in Table 2, the total solids content of 35% in which PF resin, bark particles and wheat flour were 50%, 35% and 15%, respectively. Therefore, the PF resin content is 17.5% and the polyflavanoid content (35% × 0.35 × 0.421) is 5.2%, the content of reactive components responsible for good gluing in Adhesive 1-4 was calculated to be 22.7%. In the plywood gluing trial using the fibrillated bark adhesive 2-6 in Table 3, the total solids content is 21%, in which the ratio of PF resin and the fibrillated bark is 20% and 80%, respectively. Since the reactive components of PF resin and the fibrillated bark were 4.2% and 8.9%, the amount of reactive components for good gluing was calculated to be only 13.1%. The contents of reactive components (PF resin and polyflavanoid compounds) of the adhesives are shown in Tables 2 and 3.

Considering that the contents of reactive components (polyflavanoids) in radiata tannin adhesives [17, 18] and also in commercial PF resin adhesives are approximately 30%, the amount of reactive components of 13.1% in the fibrillated bark adhesive (Adhesive 2-6) is small indeed. This strongly suggests that all the components in the fibrillated bark contribute to providing the excellent bonding properties. Chemical compositions of radiata pine bark are approximately 20% cellulose, 15% lignin, 7% hemicellulose, 30% neutral solvent extractives including tannin and 25% phenolic acids (1% NaOH solubles) [11]. Therefore, these components of the bark could play an important role in providing the high-quality plywood gluing.

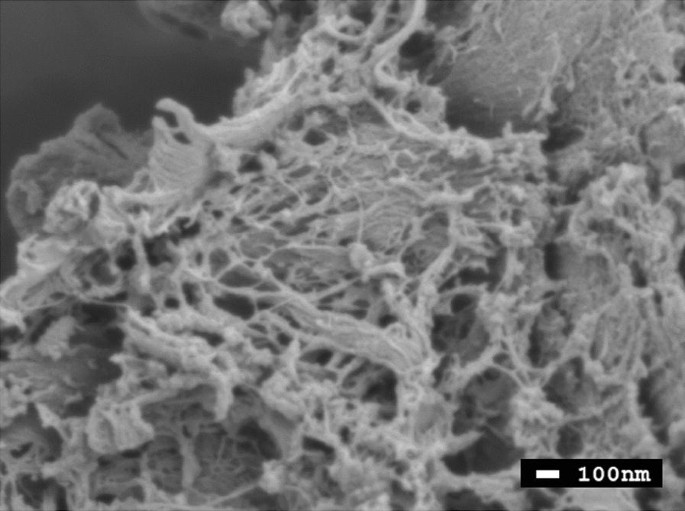

An SEM image of the fibrillated bark is shown in Fig. 4. It was observed that nano-sized fibres having a diameter of 40 nm or less existed in the fibrillated bark. These nano-sized fibres were presumed to be cellulose nanofibers formed from the disintegrated cell walls of the bark [20]. Since it has been reported that the addition of the cellulose nanofibers enhances physical and mechanical properties of plastics [6,7,8], it is suspected that the existence of cellulose nanofibers in the fibrillated bark adhesives enhances the glue bond quality. The roles of lignin and hemicellulose must be elucidated by future studies.

Fig. 4

SEM image of the fibrillated bark

Conclusions

This study revealed for the first time that the gluability of fibrillated bark adhesives, which were formulated with PF resin, fibrillated bark and water only, gave excellent results despite optimum gluing conditions not being used. These fibrillated bark adhesives have a number of advantages in that there is no requirement for tannin extraction, there is a total use of bark, a low-level requirement of PF resins, no other components required and there is a high glue bond quality.

Considering the results from this study, small amounts of fibrillated bark adhesives, which contain a very small amounts of reactive components, produced high-quality wood bonding. This suggests that other bark components such as tannin, hemicellulose, lignin, cellulose nanofibers and other components may well be contributing to produce such a good bonding. Therefore, further study is required in order to find the bonding mechanisms for fibrillated bark adhesives.

These results suggest the possibility that fibrillated bark adhesives could be used not only for plywood production, but also for the other wood-based panels (fiberboard, particleboard, strand board, etc.), and so further research is anticipated.
