Performance study about a new kind wood fiber filter element utilized in capturing diesel particulate material

Abstract

A new kind diesel particulate filter (DPF) with gear-shaped wood fiber filter element is researched and it has very low cost and less requirement for fuel quality. In this paper, the mathematical models of the filtration resistance and the structural parameters of the wood fiber filter element were established first. Then by SEM, the advantages of this material can be proved. Finally, to verify reliability and efficiency of the filter elements with different structure parameters, the filtration resistance change were compared and analyzed through a DPF bench test based on meeting the demand of filtration efficiency that is above 85%. The test results showed that the filtration efficiency is more than 85% and the filtration resistance is below 3 kPa. Meanwhile, the life span of this new kind wood fiber filter is more than 90 h and the cost of it is very low.

Introduction

With the more and more serious problems of air pollution, water pollution, land desertification and persistent organic pollution, people are paying greater attention to environmental issues. Particularly, the particular matter (PM) 2.5, namely the particles in the atmosphere whose aerodynamics diameter is less than or equal to 2.5 μm, are rising in its concentration, thus leading to the fact that most parts of China have been frequently shrouded in fog and haze for the last few years [1]. Annual Report of China Vehicle Emission Control in 2013, released by Ministry of Environmental Protection at the beginning of 2014, showed that the diesel engine was one of the main sources of soot particles, and its particulate emissions added up to 602,000 tons, accounting for 90% of the total car emissions [2]. Therefore, the environmental problems caused by exhaust emissions from diesel vehicles should be extensively concerned.

Diesel particulate filters (DPFs) technology is one of the most effective methods for purifying PM emitted by diesel engines [3, 4], which has many advantages such as high collection efficiency, long life service and so on. So it has significant economic value and broad market prospects [5]. The filtration performance of the DPFs is primarily determined by its structure parameters and material properties. The existing filter elements of the DPFs are mostly solid cylinder shape and adopt cordierite, honeycomb ceramic or silicon carbide as the material. Although the DPFs have been used in many developed countries successfully, their spreading in developing countries is hampered mainly due to the high-quality fuel requirement and expensive price. To reduce the pollution of PM in many developing countries as soon as possible, a lot of innovative researches both on the material and the structure of the filter elements are extensively conducted. The wood fiber, as a kind of widespread porous materials in nature, has many virtues of high adsorption efficiency, low filtration resistance, less requirement for fuel quality, simple manufacturing procedure and very low price. The wood fiber DPF, combined with air cooling device, can be easily installed at the position of the tail pipe where the temperature is lower than other place of the exhaust system [6]. Different structure, such as solid cylindrical and gear-shaped wood fiber filter has different structural stability and filtering ability. In this paper, the optimum structure parameters of a new kind of gear-shaped wood fiber filter element are studied by numerical simulation according to considering of two aspects: one is to increase the effective filtration area for improving the filtration efficiency; another is to reduce the filter filtration resistance and enhance the structural stability of the filter. Meanwhile, the simulation results are tested by experiments successfully based on meeting the demand of filtration efficiency that is above 85%.

Experiment and method

Structural design of the gear-shaped wood fiber filter element

The structure of the filter element has great influence on the filtration efficiency, the exhaust back pressure and the service life. The design principle of the structure is that the filter element can be kept a state of structural stability and integrity under the instant impact of enormous back pressure and make the exhaust gas through it smoothly. Furthermore, the lower filtration resistance should be assured, which can improve engine performance and fuel economy and increase the durability of filter element in the whole service life. During our initial study work, by longitudinal cutting the Cunninghamia lanceolata and processing it into filamentous, we manufactured wood fiber that was dozens of microns thick, hundreds of microns wide, thousands of microns length. Using special pressing machine, micron wood fiber was made into four filter elements (Fig. 1), of which the packing density is 0.3 and the diameter is the same with the internal diameter of a detached DPF case (Fig. 2). We put these four filter elements into the detached DPF case in the order of A, B, C and D, in which the filter A is the nearest to the inlet of the DPF. After that, we installed the DPF in the exhaust system of a single-cylinder diesel engine named Lister Petter AA1. When the engine worked for about 52 h under 50% load and 3000 r/min, the filtration efficiency of the DPF declined rapidly and Fig. 3 is the picture of the filter elements taken out from the attached DPF case. As can be known from Fig. 3, the solid cylindrical filter elements will be deformed and damaged unavoidably under the high intake velocity and back pressure, which makes them lose the trapping effect, and the damage of the filter element closer to the inlet end is more serious and cannot keep the integrity of the structure [7].

Fig. 1
figure1

Wood fiber filter elements. A Is the nearest to the inlet of the DPF, B close to A, C close to B, and D is the nearest to the outlet of the DPF

Fig. 2
figure2

Detached DPF case

Fig. 3
figure3

The used wood fiber elements. A Is the nearest to the inlet of the DPF, B close to A, C close to B, and D is the nearest to the outlet of the DPF

Wood fibers were extracted from the unused filter D in Fig. 1 for SEM and the result was shown in Fig. 4. Similarly, some wood fibers were taken out from the used filter D in Fig. 3 for SEM and the result was shown in Fig. 5. The magnification of Figs. 4 and 5 are 500, 1000 and 3000 times from left to right, respectively. Through comparison, it can be seen that there are a lot of micropores in wood fiber, which can make it not only good permeability, but also low back pressure, and can absorb a large amount of PM particles, so it is a very good filtering material.

Fig. 4
figure4

SEM of the unused wood elements (the filter D) in Fig. 1

Fig. 5
figure5

SEM of the used wood elements (the used filter D) in Fig. 3

Since the solid cylindrical filter elements will be damaged by the impulse force of the exhaust gas when the back pressure is increasing instantly, a gear-shaped filter element is designed under the condition of a certain structure size of DPF case, the height and the diameter of which are 150 mm and 140 mm, respectively. Figure 6 is the diagram of the gear-shaped wood fiber filter element with a hollow interior.

Fig. 6
figure6

The gear-shaped wood fiber filter element with a hollow interior

The assembly drawing of the filter element and the DPF case is shown in Fig. 7. When the diesel exhaust gas reaches the inlet of the device, an air deflector guides the gas uniformly crossing the outer surface of the filter element, then into the hollow interior, and during this process the particles are collected and the exhaust gas is filtered. After that, the clean gas flows along the hollow interior and eventually out from the outlet of the DPF device. This structure design can increase the filtration surface area, reduce the filtration resistance, improve the filtration efficiency and prolong the service life of the filter element effectively.

Fig. 7
figure7

The assembly drawing of the gear-shaped filter element and the DPF case

Determination of optimum structure parameters of the gear-shaped filter based on resistance

The gear-shaped wood filter mainly experiences the airflow interference resistance caused by the gear-shaped structure and the airflow medium resistance caused by the porous wood fiber, respectively. The former is primarily affected by its structure parameters such as number of teeth, tooth thickness and nominal pressure angle, and the latter by the intake velocity and the material properties of wood fiber.

The establishment of numerical model

In this study, the diameter and the height of the DPF case are 140 mm and 150 mm, respectively. To simplify the numerical model and simulate the airflow flowing through the filter, the following assumptions are given:

  1. a.

    The exhaust gas is viewed as an incompressible fluid;

  2. b.

    The exhaust gas flows to the filter element uniformly;

  3. c.

    The exhaust gas flows through the filter without heat exchange;

  4. d.

    There is no deformation of filter in the filtering process;

  5. e.

    Parameters of master gear are used when doing some data processing.

According to the proposed structure of Fig. 6, the numerical model is established as shown in Figs. 8 and 9.

Fig. 8
figure8

The cross section of the gear-shaped filter model

Fig. 9
figure9

The tooth structure of the gear-shaped filter; where h is the tooth height, ha the addendum, W the tooth thickness, L the thickness of filter, θ nominal pressure angle, Z the number of teeth, d the root diameter, D the tip diameter, respectively

According to the assumptions above and the range of the parameters in this research, the Reynolds number (Re) of this simulation can be worked out as follows [8]:

$$\text{Re} = \frac{\rho Vl}{\mu } = \frac{4A\rho V}{\mu x} < 2000$$
(1)

where ρ is the fluid density, V the average velocity of the fluid flowing through the medium, l the geometric characteristic size of the flow field, μ the kinematic viscosity of the fluid, A the cross-sectional area of flow, x the wet perimeter. Thus, the airflow in this simulation belongs to the laminar flow, which obeys Darcy’s equation and by it we can get:

$$Q = {{\left( {\Delta P \cdot A} \right)} \mathord{\left/ {\vphantom {{\left( {\Delta P \cdot A} \right)} {\left( {\mu \cdot R_{\text{m}} } \right)}}} \right. \kern-0pt} {\left( {\mu \cdot R_{\text{m}} } \right)}}$$
(2)

where Q is the seepage discharge, ΔP the pressure difference, A the filtering surface area, μ the fluid viscosity, and Rm resistance of filtering media.

As seen from Eq. (1), the pressure difference is inversely proportional to the filtering surface area, and when other parameters are constant, the pressure difference increases with the decrease of the filtering surface area. Accordingly, the resistance of the filter element can be effectively reduced by increasing its filtering surface area.

Based on the assumptions above, the airflow should obey Darcy Laws [9], which is expressed as:

$$\frac{\Delta P}{L} = \frac{\mu }{K}V$$
(3)

where ΔP is the pressure difference (Pa), L the thickness of the porous medium, μ the dynamic viscosity (Pa·s) of the fluid, K the permeability (m2), V is the average velocity (m/s) of the fluid.

The permeability K was measured experimentally or calculated by the empirical formula [10] as follows:

$$K = \frac{{d_{\text{f}}^{2} }}{{2.653\alpha + 39.34\alpha^{2} + 144.5\alpha^{3} }}$$
(4)

where df is the diameter of the wood fibers, α packing density of the wood fibers.

As was proposed in reference, the pressure loss caused by the filter medium can be expressed in Eq. (5) while the exhaust gas passes through the filter with a tilt angle.

$$\begin{aligned} \Delta P_{\text{M}} & = \frac{\mu \cdot L}{K} \cdot V \cdot \sin \theta \cdot \left[ {1 + \frac{{K \cdot \rho \cdot V \cdot \sin \theta \cdot \left( {\frac{1}{{\sin^{2} \theta }} - 1} \right)}}{2\mu \cdot L}} \right] \\ & = \frac{\mu \cdot L}{K} \cdot V \cdot \sin \theta + \frac{{\cos^{2} \theta }}{2} \cdot \rho \cdot V^{2} \\ & = \frac{{\mu \cdot L \cdot (2.653\alpha + 39.34\alpha^{2} + 144.5\alpha^{3} )}}{{d_{\text{f}}^{2} }} \cdot V \cdot \sin \theta + \frac{{\cos^{2} \theta }}{2} \cdot \rho \cdot V^{2} \\ \end{aligned}$$
(5)

The teeth of the gear can be regarded as doubly folded structure, according to the research and analysis on the pleated filter conducted by Fu Haiming’s team [11], so the differential pressure of the filter caused by its structure is determined by Eq. (6).

$$\begin{aligned} \Delta P_{\text{G}} & = \left| {\Delta P_{\text{G}}^{'} } \right| \cdot \rho V^{2} \\ \Delta P_{\text{G}}^{'} & = \frac{\mu }{\rho V} \cdot \frac{{\cos^{2} \theta \cdot \sin \theta }}{L} \cdot \left[ {1 - \left( {\frac{L}{h \cdot \sin \theta }} \right)^{3} } \right] + \frac{3\mu }{\rho V} \cdot \frac{{\cos^{2} \theta }}{{\tan^{2} \theta }} \cdot \frac{\sin \theta }{L} \\ & \quad \cdot \left[ {1 - \left( {\frac{L}{h \cdot \sin \theta }} \right)} \right] + \frac{1}{2}\cos^{2} \theta \left( {1 + \frac{1}{2}\cos^{2} \theta } \right) \cdot \left[ {1 - \left( {\frac{L}{h \cdot \sin \theta }} \right)^{2} } \right] \\ & \quad + \frac{1}{4}\cos^{4} \theta \cdot \left[ {1 - \left( {\frac{L}{h \cdot \sin \theta }} \right)^{3} } \right] - \frac{9}{40}\cos^{4} \theta \cdot \left[ {1 - \left( {\frac{L}{h \cdot \sin \theta }} \right)^{4} } \right] \\ \end{aligned}$$
(6)

The overall pressure difference of the exhaust gas is the total of both the one generated by medium resistance and the other caused by its gear-shaped structure, namely:

$$\Delta P = \Delta P_{\text{G}} + \Delta P_{\text{M}}$$
(7)

Because of the master gear structure of the filter element, Eq. (8) and Eq. (9) can be obtained according to the model of Fig. 9 and the calculation formula of gear.

$$\left\{ \begin{aligned} &h = h_{\text{a}} + h_{\text{f}} = (2h_{\text{a}}^{*} + c^{*} )m \hfill \\ & e = \frac{\pi m}{2} \hfill \\ &h_{\text{a}} = h_{\text{a}}^{*} m \hfill \\ \end{aligned} \right.$$
(8)
$$\left\{ \begin{aligned} &W = 2h \cdot \tan \theta + W^{'} \hfill \\ & e = 2h_{\text{a}} \cdot \tan \theta + W^{'} \hfill \\ & Z = \frac{{\pi \left( {D - 2h} \right)}}{W} \hfill \\ \end{aligned} \right.$$
(9)

where the addendum coefficient ha* is 1 and the tip clearance coefficient c* is 0.25.

Deduced from Eq. (8) and Eq. (9), the tooth width W and number of teeth Z can be given by Eq. (10) and Eq. (11):

$$W = \frac{\pi h + 5h \cdot \tan \theta }{4.5}$$
(10)
$$Z = \frac{4.5\pi (D - 2h)}{\pi h + 5h \cdot \tan \theta }$$
(11)

Selection of model parameters

The diameter and the height of the DPF case in this paper are 140 mm and 150 mm. According to the assumptions, the gas is at steady state of incompressibility. As the emission temperature of most tail pipe where the DPF researched in this paper is installed usually ranges from 70 to 273 °C [12], the coefficient of viscosity μ and the density ρ of the exhaust gas can be obtained by referring to the table in reference that shows how the two parameters changes with temperature. Furthermore, some specific parameters of the numerical model are given in Table 1.

Table 1 Parameters of the model

The effects of structural parameters on the resistance of filter element

According to the national standards, the filtration resistance of the DPF used widely in the developed countries is no more than 20 kPa. However, based on extensive PM filtration experiments of wood fiber DPF, it is known that when the filtering performance decreased obviously and the filter element reaches its longest service life, its maximum pressure drop is only about 3 kPa. Therefore, in this study, the largest filtration resistance allowed is 3 kPa. Furthermore, it is assumed that the amount of exhaust passing through the DPF is certain and the other structural parameters of the filter are constant. Then the values in Table 1 are introduced into Eq. (7) and input to MATLAB 7.11.0, and the Fig. 10a, b can be obtained. When the tooth height of the filter is 30 mm, and the thickness, respectively, takes the values of 6 mm, 8 mm and 10 mm, the curve of the filtration resistance changing with nominal pressure angle is shown in Fig. 10a. When the thickness of the filter is 10 mm and the filter tooth height took the values of 20 mm, 30 mm, and 40 mm, respectively, the curve of the filtration resistance changing with the nominal pressure angle is shown in Fig. 10b. As seen from Fig. 10a, b, when the nominal pressure angle is less than 6°, the filtration resistance increases as the angle is reduced, and when nominal pressure angle ranges from 3° to 6°, the filtration resistance can reach a minimum. Furthermore, when the angle is greater than 6°, the filtration resistance will increase with the angle increasing. So it is proposed that the gear-shaped filter element should have its optimal nominal pressure angle within 3° to 6°, and the final choice of the simulation value in this paper is 5°.

Fig. 10
figure10

The curve of the filtration resistance changing with nominal pressure angle. a The tooth height of the filter is unchanged. b The thickness of the filter is unchanged

With the filter element’s nominal pressure angle being 5° and the other structure parameters being constant, substituting values in Table 1 into Eq. (7) and inputting relative data to MATLAB7.11.0, the curve of the filtration resistance changing with the height of tooth can be obtained (Fig. 11). As seen from Fig. 11, when the nominal pressure angle is constant and the tooth height is more than about 10 mm, the resistance raises slightly with the increase of the tooth height, which can be negligible due to the small influence. As well known that the filtration efficiency can be improved by increasing the tooth height of the filter as filtering area is enlarged effectively. But the tooth height cannot be too high for the limited size of DPF. So the tooth height can be increased within a reasonable range of 10 mm to 30 mm recommended, and its value is 30 mm in the simulation of this paper.

Fig. 11
figure11

The tooth height changes with pressure

When the filter element’s nominal pressure angle is 5°, the tooth height is 30 mm, and the other structural parameters remain constant, substituting the values in Table 1 into Eq. (7) and inputting data into MATLAB 7.11.0, the curve of the thickness of the filter changing with resistance can be obtained (Fig. 12). As shown in Fig. 12, the filtration resistance rises with the increasing of the thickness of the filter, and when the thickness is greater than 7 mm the growth trend becomes much more obvious. Therefore, the optimal range of the thickness should be L ≤ 7 mm, and the choice of the value in this simulation is 7 mm.

Fig. 12
figure12

The thickness of the filter changes with pressure

Since the tooth height (h = 30 mm), the nominal pressure angle (θ = 5°) and the thickness of the filter (L = 7 mm) are introduced into Eqs. (10) and (11), the tooth thickness (W = 23.93 mm) and number of teeth (Z = 8) can be obtained.

With various factors such as the material utilization, the size of DPF, stability of the structure and complexity of processing technique considered, it is proposed by numerical simulation analysis that the structural parameters of the gear-shaped wood fiber filter are the nominal pressure angle θ = 5°, tooth height h = 30 mm, the thickness of the filter L = 7 mm, the tooth thickness W = 23.93 mm and the number of teeth Z = 8.

The design of DPF bench test

To test the resistance pressure and the filtration efficiency of the gear-shaped wood fiber filter elements, a DPF test bench was designed based on some relevant requirements in this paper. The test devices mainly involved a single-cylinder diesel engine named Lister Petter AA1 (as shown in Table 2), a detachable DPF case, a smoke opacimeter (NHT-6, China), a exhaust gas analyzer (NHA-500, China), some various types of sensors, muffler and computer equipment, etc. The overall structure of the test devices can be seen in Fig. 13.

Table 2 Technical parameters of diesel engine Lister Petter AA1
Fig. 13
figure13

The overall structure of the DPF test bench

The working condition of the DPF testing was as follows: atmospheric pressure is 101.3 kPa, the indoor temperature 20 °C, the relative air humidity 50% ± 15% and the working condition is 50% load and 3000 r/min. The structure parameters of the filters were listed in Table 3. When manufacturing the filter elements, besides the wood fibers, some additional additives or adhesives such as glass fiber and phenolic resins were added, whose influence on the experimental data were neglected. The picture of the gear-shaped filter elements are shown in Fig. 14.

Table 3 The structural parameters of the filter element
Fig. 14
figure14

The picture gear-shaped wood fiber filter

Results and discussion

First, we manufactured 8 gear-shaped filter elements according to the structural parameters shown in Table 2. Then we chose one of the filter elements and put it into the detachable DPF case. Finally, the wood fiber DPF was installed in the DPF test bench and the experiment was started. Before recording data and analyzing the properties of the wood fiber DPF, the engine was maintained to run steadily for about 10 min to ensure that the remaining exhaust gas in the pipe was evacuated and the engine worked stably. During the test, the values of the filtration resistance and the filtration efficiency were recorded at different times and when both of them rose sharply, the engine was turned off and then the used filter element was substituted by the next one until the eight filter elements from NO. I to NO. VIII listed in Table 2 were all tested. In this research, the total testing time for each filter element is around 95 h and the filtration efficiency of all the filter elements is more than 85%, which is satisfied with the application requirement. The test results of the filtration resistance and filtration efficiency are shown in Figs. 15 and 16.

Fig. 15
figure15

The filtration resistance of gear-shaped wood fiber filter as a function of the time

Fig. 16
figure16

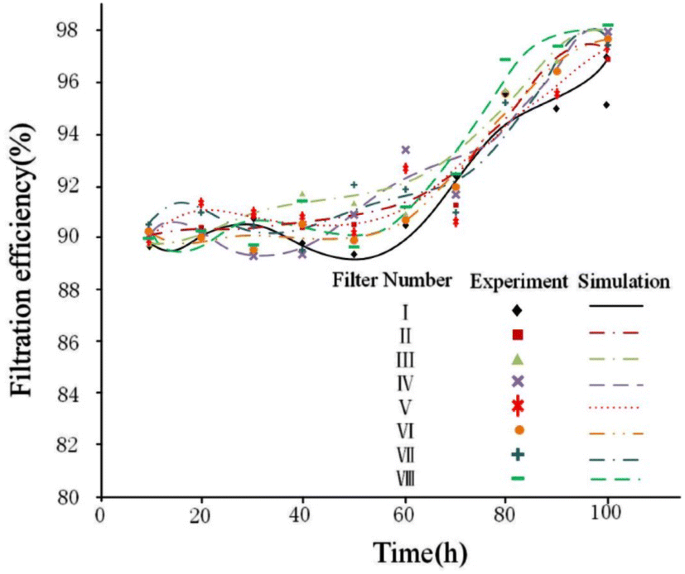

The filtration efficiency of gear-shaped wood fiber filter as a function of the time

As seen from Fig. 15, the filtration performance of the filter elements of NO. V, VI and VII are significantly better than that of the others, among which the performance of NO. V is the best. Compared to the other filters with different structural parameters, NO. V has less filtration resistance, lower growth rate of back pressure, more stable structure and longer service life. Furthermore, when the structural parameters of the gear-shaped wood fiber filter elements are kept in the optimum range obtained from this study, the filters have better filtration performance and the difference between them is very slight. However, when the structural parameters of the filters are outside the range of optimum values, the filtration performance will decrease obviously. Thus, the optimality of structural parameters for the gear-shaped wood fiber filter has been proved. Furthermore, from Fig. 16, we can see the filtration efficiency of all filters is more than 85%, which means they all can meet with the demand of national standards. Meanwhile, as known from above research, there might be some filtration resistance errors between the results obtained from experiments and the numerical simulations mainly because the numerical model developed under the premise of ideal conditions, and some factors such as the media properties, unevenness of filter material, and the instability of air speed would cause some deviations of the data. In summary, the structure parameters of the gear-shaped wood fiber filter element, obtained by establishing the numerical model, are feasible and effective. Compared with traditional filter element whose material is cordierite, honeycomb ceramic or silicon carbide, etc., the tooth-shaped wood fiber filter has obvious advantages. According to Ref. [13], the traditional DPFs have back pressure ranging from 2 to 20 kPa, which seriously affects the engine performance. However, for wood fiber filter, a high porosity volume may definitely reduce the pressure drop, so its back pressure only ranging from 300 to 3000 Pa. In terms of filtration efficiency, the traditional filter element and wood fiber filter element can all meet the requirements of national standards. Because of the large porosity, the wood fiber filter has huge dust capacity and long service life and after use it can be replaced directly and the replaced filter can be recycled easily, whereas the traditional filter element needs to be regenerated, which greatly increases the running cost of DPF. Therefore, the tooth-shaped wood fiber filter has a broader application prospects.

Conclusions

The gear-shaped wood fiber filter has very low cost and less requirement for fuel quality, and it can be changed easily after about 6000 km trip when automobile maintenance. The replaced filter element can be used as fuel or fertilizer. According to our experiments, the filters with optimum structural parameters obtained by numerical simulation have better properties. The conclusions as follows:

  1. 1.

    To increase the filtration area and reduce filtration resistance, a gear-shaped wood fiber filter element is developed whose filtration resistance is smaller, filtration area larger and the work efficiency higher.

  2. 2.

    The theoretical equation of filtration resistance with the tooth height h, nominal pressure angle θ and the thickness of the filter element L were deduced by establishing structural parameter model referring to existing researches and empirical formulas; the optimal tooth height h, the nominal pressure angle θ and the thickness of the filter element L were obtained by MATLAB analysis. Furthermore, the tooth thickness W and number of teeth Z were worked out with some relevant formulas.

  3. 3.

    The optimal structural parameters of the gear-shaped filter elements are obtained by numerical simulation as: h = 30 mm, θ = 5°, L = 7 mm, W = 23.93 mm, Z = 8, respectively, the reliability and efficiency of which were verified by the comparison and analysis of the results from the DPF bench tests.
