Properties of low-density cement-bonded composite panels manufactured from polystyrene and jute stick particles

Journal of Wood Science volume 65, Article number: 53 (2019) Cite this article

Abstract

This study was conducted to evaluate the properties of cement-bonded composite (CBC) manufactured using jute stick particles and expanded polystyrene (EPS) beads to reduce the density of CBC for mitigating the main limitation of CBC in its applications. The CBCs were manufactured by using cement, jute stick particle, EPS and jute fiber by cold pressing having the pressure of 5 MPa and pressing time of 24 h. CBCs were also manufactured by replacing the jute stick particles with EPS beads, the processing conditions remaining the same. There were at least 5 replications for each type of board. Waste jute fibers were added for improving the degenerated mechanical properties of CBC caused by the addition of EPS beads. Important physical properties, i.e., density, water absorption (WA) and thickness swelling (TS) and mechanical properties, i.e., modulus of elasticity (MOE) and modulus of rupture (MOR) of the manufactured CBCs were tested following the Malaysian Standards. Higher percentage of EPS beads significantly reduced the density of CBCs and the lowest density (0.91 ± 0.02 g/cm3) was found when the EPS beads replaced 30% jute stick particles. As expected, mechanical properties decreased with the gradual replacement of jute stick particles by EPS beads. However, the degraded mechanical properties significantly increased when waste jute fibers were added in the CBCs. Addition of EPS beads in CBCs reduced the density, which might increase the potentiality for the utilization of cement-bonded composites for various applications.

Introduction

Cement-bonded composites (CBCs) are emerging as an important class of construction materials made of cementitious matrix and fibers or particles [1] obtained from wood, agricultural residues and other natural origins [2,3,4]. However, the increased consumption of wood is causing depletion of the forest and need to be saved for the future [3, 5] in most of the countries. Whilst developing countries have accelerated the generation of wastes from agro-forestry-based industries like jute sticks, bagasse, rice husk and straw, wheat straw, oil palm strands and from the demolition of old structures such as buildings, railways, telephone and fencing poles, bridges [1]. The utilization of these lignocellulosic wastes for making cement-bonded construction materials, a substantial materials consuming industry, offers an attractive alternative to their disposal and raw material for the industry of CBCs. This can also add a number of suitable features to the CBCs including low-density products, low requirements of processing equipment, negligible abrasion to the processing machinery and abundant raw material availability along with the forest conservation. In comparison to the resin-bonded composites, the advantages of CBCs are low processing temperature, low-cost binder, less air pollution and reduction in CO2 emission, better acoustic and thermal insulation, dimensionally stable and a finished product with better resistance to water, fire and biodegradation [1, 2, 6]. Alongside the construction, these materials have also the potentiality to use for furniture, packaging and decorative purposes [7,8,9].

Numerous studies were carried out on the production of CBCs using lignocellulosic materials by many researchers [1, 4, 9,10,11,12,13,14]. However, the development of CBCs has been slowed down by the lack of basic understanding of the mechanisms involved in the bonding of cement and lignocellulosic particles [15]. Additionally, these have higher density until now compared to the synthetic resin based panels [16], longer curing time [13] and water absorption [4]. Lignocellulosic materials contain many inhibitory substances, e.g., hemicelluloses, starches, sugars, phenols, hydroxylated carboxylic acids which dissolve during hydration of cement and affect its crystallization. This negative impact can be minimized by drying of lignocellulosic particles [17, 18] or washing the particles or using additives such as calcium chloride and sodium silicate [19, 20]. Alternatively, injection of carbon dioxide in the mixture can significantly improve the wood–cement compatibility [13], which also reduces the water absorption properties of the panels [21], and promote rapid strength development for the composites [22]. However, larger amount of cement is used in the CBCs for bonding in comparison to particles (cement:particles ratio is higher than 3:1), thus, the final products have higher density (> 1.3 g/cm3) [2, 4, 23]. This higher weight of the panel has a significant drawback and impedes this material against many applications as a commercial building component. Additionally, since cement is more expensive than wood residue, adding greater quantities of cement will increase panel raw material costs. The use of low-density non-wood lignocellulosic materials like jute stick, kenaf core, straws, rice husk might help to reduce the density of CBCs [1, 24, 25] which can be further decreased by the addition of ultra-light weight materials, i.e., expanded polystyrene (EPS) beads [26, 27]. The addition of EPS beads to produce lightweight concrete is the fastest growing sectors in the building construction industry. However, not a single study has so far reported to use the EPS beads for the production of CBCs. Bangladesh, an agrarian country, produces a substantial quantity of agricultural residues every year, especially jute sticks which is obtained after separating the fiber becoming a waste and possess no/limited value [28]. Thus, this study was designed to produce lower density CBC by using the jute sticks particles and EPS beads for wider applications of CBCs. Retaining the strength after lowering the density by adding the waste jute fibers was also the objective of this study.

Materials and methods

Reinforcement particles, i.e., jute stick, waste jute fiber, EPS beads, and ordinary Portland cement (OPC), were collected from the local commercial market of Khulna district, Bangladesh. The properties of the collected EPS beads, jute stick particles and jute fiber in the study are summarized in Table 1. The collected EPS beads were stored in airtight packs until further use. The jute sticks were dried under the sun for 3 weeks. The sticks were then cut into small pieces, and the small pieces were converted into smaller particles using a grinder. The particle size ranged between 1 and 2 mm were collected by using the sieve. The bulk density of the jute stick particles was measured following SCAN-CM 46:92 standard [29]. Later, the jute fibers and particles were dried using an oven for 8 and 24 h, respectively, at 103 ± 2 °C to achieve the moisture content of less than 5%. Distilled water was used as setting agent for OPC.

Table 1 Physical and mechanical properties of the collected jute stick, waste jute fiber and EPS beads
Full size table

Manufacturing of composite panels

A constant ratio of cement, reinforcement particles and water (2.2:1.0:1.1, w/w basis) was used for manufacturing of all the panels using a constant pressure of 5 MPa and time of 24 h at room temperature of 24 ± 2 °C [30]. Jute stick particles, EPS beads and jute fibers were mixed in the panels at varying ratio (w/w basis) of 100, 0, and 0; 95, 5 and 0; 90, 10 and 0; 88, 12 and 0; 85, 15 and 0; 82, 18 and 0; 80, 20 and 0; 75, 25 and 0; 70, 30 and 0; 70, 27.5 and 2.5; 70, 25 and 5; 70, 22.5 and 7.5; and 70, 20 and 10 as shown in Table 2.

Table 2 Ratios of reinforcing materials for the fabrication of different types of CBC
Full size table

All the raw materials, i.e., OPC, jute stick particles, EPS beads, waste jute fibers and water, were mixed for each type of board in a rotary drum blender and blended for 6 min to get a homogenous mixture of the components. For CBCs containing waste jute fibers, OPC was pre-blended with waste jute fibers in a high-speed blender and then placed into the rotary drum blender with other components. A standardized mat was formed using the mixture expecting a panel thickness of 8 mm in a forming box on aluminum caul plate. The mat was then pressed in a single daylight cold press following the manufacturing parameters mentioned above. The manufactured panels were conditioned at room temperature for 28 days when water was sprayed twice in a day for proper curing of the boards [31]. Five panels were produced for each type of the sample. All the manufactured panels were trimmed to a size of 35 × 25 × 0.7 cm and dried at room temperature for 28 days before testing of the properties.

Evaluation of physical and mechanical properties of the samples

The physical properties, i.e., density, water absorption (WA) and thickness swelling (TS) and mechanical properties, i.e., modulus of rupture (MOR) and modulus of elasticity (MOE) of the manufactured CBCs were tested according to the Malaysian Standards for Wood Cement Boards [32]. The testing samples were prepared following the standard and put into a conditioning room (24 ± 2 °C temperature and 60 ± 2% relative humidity) for 24 h before testing of the properties. Density of the samples was determined by measuring the dimension and weight of the samples. WA and TS of the samples were determined after 2 and 24 h of immersion of samples in water. MOE and MOR of the samples were determined by the three-point bending test using universal testing machine (SHIMADZU AG-50KNXplus, Japan). There were 10 samples for testing each of the physical and mechanical properties.

Statistical analysis

Data analysis was performed using ‘RStudio’ version 1.1.463 [33]. The descriptive statistics (means, standard deviation (SD), standard error (SE), etc.) were calculated using the ‘psych’ package [34]. Normality and homogeneity were tested with the ‘car’ package [35]. An analysis of variance (ANOVA) model and least significant difference (LSD) test were also applied with the ‘car’ package at 5% significance level. All graphs were made with the ‘ggplot2’ package [36].

Results and discussion

Physical properties

The lowest density (0.91 g/cm3) among the manufactured CBCs was observed for the PB-30 board while the highest density (1.32 g/cm3) was observed for the control one. The density of the manufactured CBCs decreased gradually with the increase of EPS beads percentage (Fig. 1). However, gradual addition of jute fiber with the EPS beads did not increase the density significantly though this addition regenerated the relapsed strength properties. The density of the board is dependent on compaction of the mat, pressing pressure, particle size and the density of raw material and binding agent [37]. In this study, density of raw materials (0.180 g/cm3 for jute stick particles and 0.01301 g/cm3 for EPS beads) was lower compared to the binding agent, i.e., Portland cement (1.44 g/cm3). Thus, the lower density of lignocellulosic raw materials helped to bring down the final density of the board. The variability of density was dependent on the raw material combination and their compaction due to having particle–particle bondability since the pressure and cement ratio were constant for all of the boards. Hydroxyl (OH) group is responsible for making bond with particles in the cement-bonded particleboard, which increases the compactness among particles resulting in higher density of the manufactured particleboard [27]. Special surface criteria of lignocellulosic material, i.e., fiber origins interfacial interactions such as adhesion to non-polar and polar materials help to make a strong bond with lignocellulosic and inorganic particles; this enhances the compactness in the board matrix [38, 39]. On the other hand, EPS beads, which are inert material, cause small voids by the reduction of inter-particle bondability [27]. Therefore, the increasing percentage of inert EPS beads by replacing the jute stick particles in the panel reduced the number of OH groups and thus, reduced the bonding strength among particles, which ultimately lowered the density of board with higher percentage of EPS beads (Fig. 1). This is again improved by the addition of lignocellulosic fiber (waste jute fibers) replacing the EPS beads resulted higher density illustrated in Fig. 1. The minimum density requirement for CBC is 1.00 and 1.25 g/cm3 according to ISO 8335 [40] and IS 14276 [41] standards, respectively. Density of the manufactured control and PB-5 panel met the minimum requirement of all the standards [40, 41]. Different lignocellulosic particles were used to produce CBCs by different researchers [4, 23, 27] where the density ranged between 1.0 and 1.80 g/cm3 because of the raw materials variations, and it was higher than the present study. Statistical analysis indicated that there was significant difference (p < 0.05) among the densities obtained from the different manufactured CBCs.

Fig. 1
figure 1

Density variation for different types of CBCs produced using different raw materials. Different letters below each point indicate statistically significant differences among groups (p < 0.05)

Full size image

WA was observed after 2 (WA2) and 24 h (WA24) of immersion of samples in water. WA after 2 h (WA2) was lower than that of 24 h (WA24) for each type of panel (Fig. 2). The soaking time has the effect on the WA, i.e., WA increases with the increase of soaking time [42]. As expected, the addition of hydrophobic EPS beads in CBC decreased WA of the manufactured panels for both after 2 and 24 h of immersion and it decreased more by the addition of higher percentage of EPS beads in the mixture (Fig. 2). Water absorption is affected by the polarity and size of material; the lignocellulosic polar material, which contains OH group in cellulose, has a tendency to absorb more moisture [4, 37, 43]. EPS beads are non-polar and they do not have affinity to water [27], thus, retarding water absorption water by the panel even after adding small quantity of fiber in this study. The EPS beads reduced the capillary porosity of the board, and it is one of the reasons for this lower water absorption for the CBC [11]. Additionally, EPS beads reduced the amount of hydrophilic OH group in the CBCs resulting in lower water absorption. Thus, water absorption was higher when there was higher amount of jute stick particles in the CBCs. It was observed that PBJF-10 showed the lowest water absorption of 9.12 and 16.73% after 2 and 24 h of immersion, respectively, for both of the cases, while the control had the highest water absorption of 16.96 and 24.38% after 2 and 24 h of immersion, respectively. The addition of jute fiber may cause strong OH bond with jute stick particle and suppressed the TS, which may reduce the water absorption for jute fiber induced panels in this study. According to the IS 14276 standard [41], the maximum WA for CBCs is 13 and 25% for 2 and 24 h, respectively. Addition of waste jute fibers with EPS helped to follow the IS 14276 standards [41] for water absorption. Because of the use of cement as binder, WA is always higher in the CBCs, and it was at least 20% after 2 h of immersion and 32.5% after 24 h of immersion according to the different studies [23, 44]. Compared to the previous studies, water absorption both after 2 and 24 h of immersion was lower in the study, however, it varied significantly (p < 0.05) among the manufactured different types of CBCs.

Fig. 2
figure 2

Water absorption variation for different types of CBCs after 2 and 24 h of immersion in water. Different letters below each point indicate statistically significant differences among groups (p < 0.05)

Full size image

As can be seen from Fig. 3, TS followed the trend of water absorption where 24 h of immersion had higher percentage of TS compared to the 2 h of TS for all the cases. TS of the manufactured CBCs increased with the increase of EPS beads; however, it decreased when waste jute fibers were added in the mixer. EPS beads decreased the WA, however, increased the thickness swelling as the trapped air in EPS beads start to expand during water absorption creating more open space, which allows more swelling resulting in weaker bonding strength [27]. Alongside water absorption, the deformed jute stick particles also initiate swelling for restoring original forms, which decreases the bonding strength between jute stick particles and cement resulting in the expansion of the deformed EPS beads. Addition of waste jute fibers in CBCs forms a network with polar, i.e., jute stick particle and jute fiber and non-polar, i.e., EPS beads materials through higher OH groups in cellulose of jute fibers compared to jute stick particles in the CBCs matrix [4]; thus, this strong network arrests the TS of the panel made with jute fibers. The highest TS was 3.15 and 4.18%, respectively, for 2 and 24 h of immersion in water, when the CBCs contained the highest amount of EPS beads (30%). According to ISO 8335 standard [40], the acceptable range of TS was 2.0% after 2 h of immersion in water. There was higher TS in comparison to the standard for CBCs in the present study.

Fig. 3
figure 3

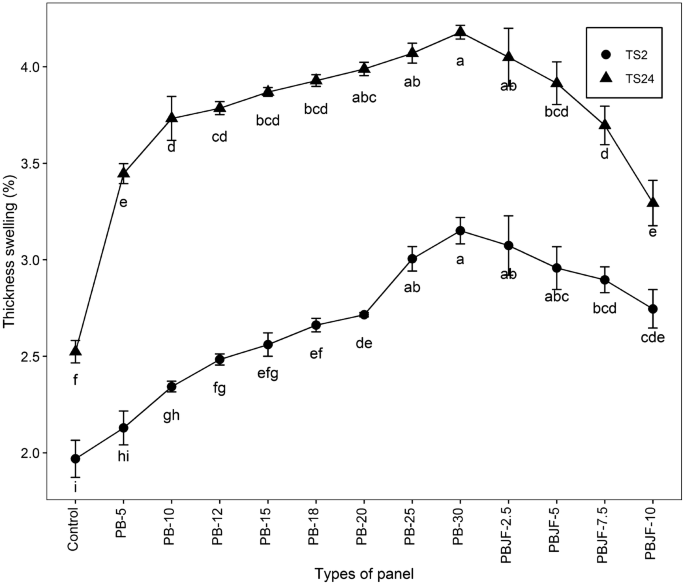

Thickness swelling variation for different types of CBCs after 2 and 24 h of immersion in water. Different letters below each point indicate statistically significant differences among groups (p < 0.05)

Full size image

Mechanical properties

The values of modulus of elasticity (MOE) for the manufactured CBCs are shown as a variation of MOE of different types of boards in Fig. 4. MOE decreased with the increase of EPS beads percentage, however, addition of jute fiber with the EPS beads once again increased the MOE, which was even more than the controlled one during incorporation of 10% jute fiber. The highest MOE (4072 MPa) was found for PBJF-10, and the lowest (1252 MPa) was found for the PB-30 CBC. As per the investigation of Maloney [45], the MOE of particleboards depends on particle quality, compaction and density of board. EPS beads have higher void volume, thus, these have lower strength. During the pressing of EPS beads, most of the air goes out, however, some voids still remain reducing the bondability among the OH groups [27]. Incorporation of jute fiber with homogenous distribution in the CBCs results in better fiber matrix bond through OH group in cellulose [4] and thus, it increased the MOE. Savastano Jr et al. [46] also reported similar results and mentioned that addition of fiber increased flexural strength, toughness, reinforcing efficiency and durability. Fiber is longer compared to particles and it transfers the stress from one fiber to another [47] resulting in higher MOE for the panel. Earlier studies had found very low MOE ranging from 28.81 to 428.95 MPa when the researchers produced EPS beads-based concrete without pressure [23, 27]. The MOE was increased with the increase of board density (Fig. 5) and similar trends were also observed between density and MOE by previous researchers [48, 49]. According to ISO 8335-87 standard, the MOE requirement of cement-bonded panel is 3000–4500 MPa. Some of the manufactured CBCs met the requirement of standard MOE.

Fig. 4
figure 4

Modulus of elasticity and density variation for different types of CBCs. Different letters below each point indicate statistically significant differences among groups (p < 0.05)

Full size image
Fig. 5
figure 5

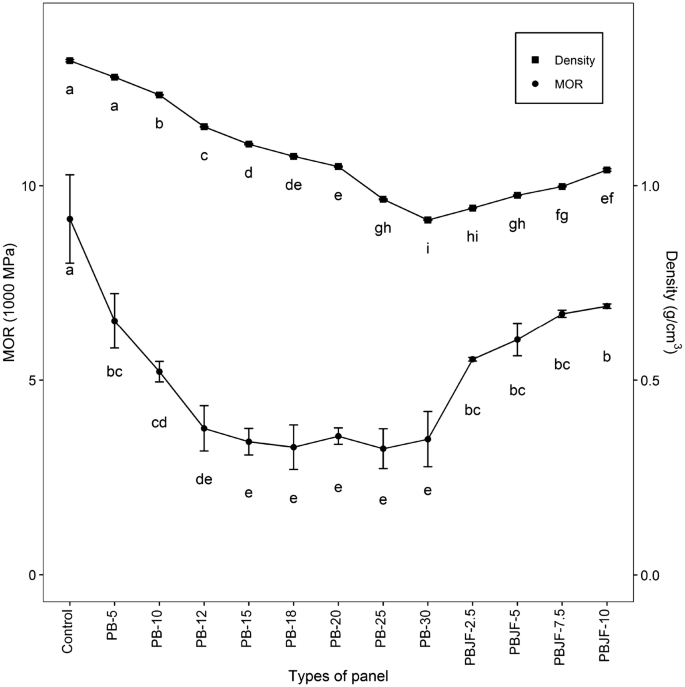

Modulus of rupture and density variation for different types of CBCs. Different letters below each point indicate statistically significant differences among groups (p < 0.05)

Full size image

As can be seen in Fig. 5, MOR was the highest (9.15 MPa) for the controlled CBC, while PB-25 showed the lowest MOR (3.24 MPa). The MOR decreased sharply at the beginning and continued until the addition of 12% EPS beads; however, further EPS beads addition did not change the MOR significantly. Addition of waste jute fibers increased the MOR gradually. Factors affecting the MOR are particle quality, panel compaction and density of board [45]. Addition of EPS beads in CBCs reduced the bonding strength as described by Shalbafan et al. [27], and this strength reduction was optimum when there were 12% EPS beads in the mixture. Introduction of waste jute fibers in the CBCs with EPS beads increased the bondability as well as compaction because of the presence of OH group in it resulting in higher flexural strength, toughness, reinforcing efficiency and durability, which were reported by Savastano Jr et al. [46] and Mendes et al. [4]. The density of the board was highly associated with MOR in this study. Researchers also observed similar trend in their previous studies [50]. Ghosh et al. [23] reported lower MOR (0.98–2.46 MPa and 5.38–15.45 MPa) when lignocellulosic particles were used to make CBCs. Similar results were also reported in previous study [12] where the authors found very low MOR. According to ISO 8335-87 standard, the MOR requirement of cement-bonded panel is 9–10 MPa. Some of the manufactured cement-bonded composites met the MOR requirements.

Conclusions

Low-density cement-bonded particleboards (< 1.0 g/cm3) can be manufactured using jute stick particles and EPS beads following the procedure presented in this study. The thickness swelling of the boards was higher (3.15 and 4.18%, respectively, for 2 and 24 h of immersion in water when 30% EPS beads were incorporated in CBCs) than that of standard. On the other hand, the mechanical properties of the boards were lower (1252 and 3.24 MPa for MOE and MOR, respectively). Nevertheless, the inclusion of jute fiber with the EPS beads significantly improved the mechanical properties (4072 and 9.12 MPa for MOE and MOR, respectively) and thickness swelling (2.75 and 3.2%, respectively, after 2 and 24 h of immersion) though density increased a bit. Hence, this lower density and higher strength lignocellulose-based CBCs can be a very versatile material to be used for a variety of applications and get rid of formaldehyde-based lignocellulosic composites. However, further study is needed to optimize the production conditions and mixing ratios of jute fiber and EPS beads to obtain lower density panel with higher mechanical properties and less TS.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
