Physical and mechanical properties of composites made from bamboo and woody wastes in Taiwan
Journal of Wood Science volume 65, Article number: 57 (2019)
This study investigated the physical and mechanical properties of six groups of bamboo–wood composites (BWC) made from bamboo and wood wastes, which are produced from the industry processing in Taiwan. Results obtained from non-destructive testing (NDT) indicated that the boards made with 100% bamboo residues (Group B) revealed higher ultrasonic-wave velocity (Vu) and tap tone sound velocity (Vt) than other BWC boards. Both Vu and Vt of composite boards were proportional to the ratio of bamboo residues contains. Three-layer composites made with bamboo/wood/bamboo residues at 1:2:1 ratio (Group B/2W/B) had the highest specific strength as well as modulus of elasticity (MOE) and modulus of rupture (MOR) among all the composites. B/2W/B composite board had structural characteristics similar to those of medium-density fiberboards (MDF) and particleboards; thus, it might have better compression resistance than other types of boards. B/2W/B composite board also had the highest screw holding strength (SHS); next was the boards composed entirely of woody wastes (Group W). The results obtained from analysis of water absorption rate (WA%) show a positive correlation with porous bamboo contents; meanwhile, wood chips have higher water-absorption swelling rate than bamboo residues. Hence, it showed greater change in thickness swelling coefficient (TS%) and volume swelling coefficient (S%).
In Taiwan, the agricultural and forestry wastes can be mainly divided into wastes from “woody plants” and “herbaceous plants”. Literature pointed out that agricultural and forestry waste residues are estimated to be approximately 2 million metric tons per year, including residues produced from bamboo or woody processing . The current status for treating these wastes is incinerated, buried, or used as the boiler burning material directly. Considering the environmental protection and sustainable development issues, the concept of the circular economy is becoming a notable topic. Recycling and reusing the wastes could contribute to reduce the greenhouse gases generation and ensure more effective and comprehensive utilization of these lignocellulosic materials. Moreover, according to the circular economy model “resources → products → wastes → recycling”, these processing wastes should be recycled and reused as resources to create economic and social benefits . Moreover, Taiwan has more than 60% of the rich forest resources. To achieve sustainable forest management and plantation development, thinning is an important operation intending of forestry. Hence, nowadays, growing attention is focusing on the timber resources generated by thinning in Taiwan .
Logs left from thinning are mostly of small and medium diameters. In general, the utilization rate of raw wood ranges between 30 and 40%, implying that 60–70% of the raw wood would end up as slabs and residues during processing . Furthermore, makino bamboo culm (Phyllostachys makinoi) is one of the most important bamboo resources in Taiwan. Owing to good mechanical and processing properties of makino bamboo, it has been widely used as construction and furniture materials . Unfortunately, the similar situation for bamboo processing, it leaves lots of residues as woody wastes and have not been fully utilized. Indeed, without systematic recycling and reusing bamboo and woody wastes will increase the processing costs of waste disposal or cause a negative impact on the environment . Besides, recycling and reusing bamboo and timber residues contribute to realize the ideal of circular economy. Bamboo and wood are renewable resources; they are precious, and thus merit conservation and attention to avoid waste. To enhance utilization of wood and bamboo processing residues is an emerging issue for the forest products researchers . Related studies including manufacturing biodegradable composites are made of bamboo processing wastes , agricultural and forestry wastes made into gypsum composites , and recycling of wood wastes to produce energy-saving wood-based boards for floor heating systems .
In the other hand, non-destructive testing (NDT) has been extensively applied to strength assessment of wood products. Ross and Pellerin found a good correlation between modulus of elasticity (MOE) predicted by acoustic wave and wood-based composites bending determined by the longitudinal speed of stress wave transmission . Yang et al.  also used NDT with ultrasonic wave to evaluate the quality of particleboard made from recycled wood-waste chips impregnated with phenol formaldehyde resin and demonstrated that it is a useful technology for analyzing the mechanical strength of particleboard. Moreover, the forest industry has devoted efforts to manufacturing artificial boards with good strength performance using waste materials from wood and bamboo processing . In this study, bamboo-wood composites (BWC) were made with wood and makino bamboo residues obtained at their processing sites. These wastes were chemically treated and mechanically processed, then glued and hot-pressed into BWCs with varying proportions of bamboo and wood mixed or layered in different designs. Besides, both ultrasonic testing technique and tap tone method were performed to examine the physical and mechanical properties of WBC boards. Finally, compression ratio, density distribution, strength characteristics, specific strength, screw retention, and dimensional stability of BWCs were also analyzed. Results obtained in this study might provide the useful information for future related forestry and processing industries.
Materials and methods
Bamboo–wood composites (BWC)
3–5 cm long P. makinoi residues were collected from the bamboo processing waste (including bamboo epidermis) at the Zhushan Industrial Park in Nan-Tou County, Taiwan. The bamboo residues were pre-treated with an alkaline solution containing 2% potassium hydroxide (KOH) at 100 °C for 30 min and then oven-dried at 80 ± 2 °C to constant weight. Woody wastes were collected from residues of Taiwania cryptomerioides, Cunninghamia lanceolate and Cryptomeria japonica after thinning in October 2014. The ages of trees were 25–35 years growing in the Experimental Forest of National Taiwan University in Nan-Tou County, Taiwan. The woody residues were shredded using a towable wood chipper (Type: TC 24; Goodkym Technology Co., Ltd.) into chips of three sizes. That is, 50% of chips are < 16 mesh, 40% are 7 mesh, and 10% are > 4 mesh. Besides, the average density of bamboo residues and woody residues was 0.69 and 0.32 g/cm3, respectively.

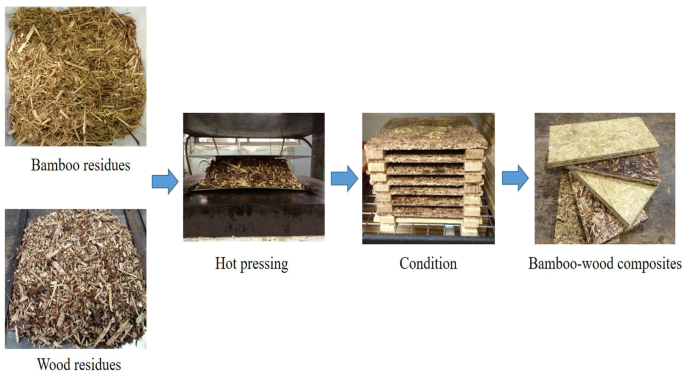

Pretreated and mechanically processed chips of bamboo and woody residues were placed unidirectional in a 450 × 450 × 12 mm (length × width × thickness) iron frame, then glued and hot-pressed to form a 1.0 g/cm3 target density of the board. The adhesive used in this study was water-soluble urea formaldehyde (UF) resin (Wood Glue Industrial Co., Ltd. Tainan) with a 63.6% solid content (pH: 6.25; viscosity: 120 cps; degree of hydration: 1.8; amount of free formaldehyde: 0.85%). The weight of raw materials and glue followed the specifications for particleboard manufacturing according to Chinese National Standards (CNS) 2215 . Hot pressing was conducted under curing temperature of 120 °C at 150 kgf/cm2 for 12 min, followed by 10-min cooling. Before the experiments, all specimens were conditioned in a controlled environment with temperature at 20 °C and relative humidity (RH) at 65% for 2 weeks. Table 1 summarizes the constituents, layering designs and composition ratios of the six groups of experimental BWC boards, each group with nine specimens (n = 9). Figure 1 demonstrated the manufacturing process of the BWCs.
Ultrasonic-wave velocity (V u) and dynamic modulus of elasticity (DMOEu)
NDT was conducted to evaluate the ultrasonic-wave velocity (Vu) and dynamic modulus of elasticity (DMOEu) using a portable ultrasonic non-destructive testing device (Sylvatest Duo, Saint Sulpice, Switzerland) at a frequency of 22 kHz. Specimens were placed between the transmitting and receiving transducers (n =9), and the travel time of the ultrasonic wave (transmission time) was recorded. The specimens were of size 240 × 50 × 12 mm (length × width × thickness). The Vu and DMOEu were calculated by Eqs. 1 and 2, respectively.
where Vu is the ultrasonic transmission speed (m/s), L is the distance from sound wave penetration, length of specimen (m) and t is the duration of sound waves penetrating specimen (s).
where DMOEu is the ultrasound dynamic elastic modulus, Vu is the ultrasonic transmission speed (m/s) and ρ is the density of specimen (kg/m3).
Tap tone sound velocity (V t) and dynamic modulus of elasticity (DMOEt)
Another NDT testing was conducted to evaluate Vt and DMOEt using a tap tone analyzer (Multi-purpose FFT analyser CF-5220, Ono Sokki). Supported at the center by a piece of foam, the BWC specimen was hit on one end with a hard-rubber hammer. The tap tone was transmitted from the hit end and received by the microphone placed at the other end. The instantaneously generated sound waveform was decomposed into a spectrum using the Fast Fourier Transform (FFT) as accurate measurement of the natural vibration frequency. The specimens were of size 240 × 50 × 12 mm (length × width × thickness). The Vt and DMOEt were calculated by Eqs. 3 and 4, respectively.
where Vt is the longitudinal sound velocity (m/s), L is the length of specimen (m), F is the natural frequency (Hz) and ρ is the density of specimen (kg/m3).
Mechanical strength analysis
The mechanical strength of BWC boards was examined using the American Society Testing and Materials (ASTM) D-1037 . The static bending test was carried out using a universal-type testing machine (Shimadzu UH-10A, Tokyo, Japan) according to the center-loading method for specimens. A concentrated bending load was applied at the center with a span 15 times the thickness of the specimen. Both modulus of elasticity (MOE) and modulus of rupture (MOR) were calculated from load–deflection curves using Eqs. 5 and 6, respectively.
where Pmax is the maximum load (N), L is the span (mm), b is the width of specimen (mm), h is the thickness of specimen (mm), Pp is the difference between upper limit load and lower limit load in proportional limit (N) and δ is the amount of bending deformation (mm) of Pp relative to center of span.
Density distribution analysis
BWC specimens for analysis of density distribution (n = 9). The specimens were 450 × 450 × 12 mm (length × width × thickness), divided into 9 pieces. The dimensions of each piece were 150 × 150 × 2.0 mm (length × width × thickness). The density of each pieces was calculated according to its weight and volume measured. Variance analysis of 9 density values of each BWC specimen was descripted to illustrate the density distribution.
Nail withdrawal resistance analysis
According to the test for particle boards (CNS 2215) , the BWC boards were placed in a controlled environment with 65% RH for 3 weeks. The specimens size was 100 × 50 × 12 mm (length × width × thickness). Wood screws size was 2.7 × 16.0 mm (diameter × length), which were drilled vertically into the BWC boards to a depth of 11.0 mm and then pulled up vertically at 2.0 mm/min. The maximum pull loading was measured, and the average of three measurements was taken as the nail withdrawal resistance.
The BWC boards were tested using the ASTM D-1037  to determine water absorption (WA), thickness swelling (TS), and volumetric swelling (S). Initial thickness at the middle of the test specimen was measured with a micrometer. Then, all specimens were placed in parallel 30 mm under water and soaked for 2 and 24 h before the thickness was measured again. WA, TS, and S were determined using Eqs. 7–9, respectively.
where Ww is the weight of saturated state and Wo is the weight of oven-dried state.
where Tw is the thickness of saturated state and To is the thickness of oven-dried state.
where Vw is the volume of saturated state and Vo is the volume of oven-dried state.
Analysis of variance
All multiple comparisons of physical and mechanical properties were subjected to Tukey’s test and analysis of variance (ANOVA). Significant differences between mean values of control and experimental specimens were determined using the Duncan’s multiple range test.
Results and Discussion
Ultrasonic-wave velocity (V u) and dynamic modulus of elasticity (DMOEu)
The average density, compression ratio, density distribution, Vu, and DMOEu of six groups are listed in Table 2. The range of average density of the BWC boards was between 0.98 and 1.02 g/cm3; there was no significant difference in density among the experimental boards (p > 0.05). For density distribution analysis, it also shows no significant difference between 9 density values of each BWC specimens. Boards made with woody wastes alone (Group W; 2141 m/s) or of higher proportion woody material (Group W/B/W; 2144 m/s) have lower Vu. In contrast, Vu is higher in boards made with bamboo residues of higher proportion bamboo residues, indicating a positive linear relationship between bamboo content and Vu. That is, the higher density tissue the bamboo has, the higher the Vu; composite boards made entirely with bamboo have the highest Vu (Group B; 2579 m/s). The boards with higher Vu comprised mainly bamboo residues could be attributed to the slender shape of bamboo residues, which facilitates faster transmission of ultrasonic wave. Our findings were similar to the results (Vu = 2065–2482 m/s) obtained by Yang et al.  for the particleboard made from recycled wood-waste chips impregnated with phenol formaldehyde resin of the similar densities as those in this study (0.8 g/cm3).
Similar trend can be observed for DMOEu of the six groups of BWC boards. As shown in Table 2, boards containing higher proportions of bamboo residues had similar DMOEu with no significant difference (5.92, 5.98 and 5.30 GPa for Groups B, B/W/B, and B/2W/B, respectively; p < 0.05). However, they had significantly higher DMOEu than boards comprising greater amount of wood wastes (4.17 and 4.14 GPa for Groups W and W/B/W, respectively; p > 0.05). The bamboo residues ratio in the manufacture of BWC are difference between these six groups. Slender bamboo fiber contributed to faster transmission of ultrasonic wave as it has a higher density tissue, leading to higher DMOEu. Besides, Table 2 also revealed that values of DMOEu and compression ratio roughly show an inverse relationship.
Longitudinal acoustic velocity (V t) and dynamic modulus of elasticity (DMOEt)
Figure 2 shows the longitudinal acoustic velocity (Vt) and dynamic modulus of elasticity (DMOEt) of the six groups. BWC boards made of 100% bamboo residues had the highest Vt (Group B; 2756 m/s), while those comprising 100% woody residues had the lowest Vt (Group W, 1976 m/s). The other four types of BWC boards had Vt in the order of B/W/B (2578 m/s) > B/2W/B (2368 m/s) > W/B/W (2251 m/s) > BW (2138 m/s). These results indicated that BWC boards comprising alternate layers of chips with higher proportion of bamboo residues had higher Vt, thus implying that Vt of BWC is proportional to the bamboo contents. Again, the DMOEt showed the same trend with Vt. BWC boards made of 100% bamboo residues have the highest DMOEt (B, 6.76 GPa), while those comprising 100% wood slabs have the lowest DMOEt (W, 3.55 GPa). The other four types of BWC boards have DMOEt in the order of B/W/B (6.12 GPa) > B/2W/B (5.10 GPa) > W/B/W (4.56 GPa) > BW (4.02 GPa). Similarly, these results indicated that BWC boards comprising layered chips with higher proportion of bamboo residues have higher DMOEt for its higher density tissue, thus revealing a linear relationship between DMOEt and bamboo content.
Furthermore, the correlation of DMOEu and DMOEt, with MOE within different types of BWC boards was analyzed in this study. As shown in Table 3, the coefficient of determination (R2) of DMOEu/MOE is lower than that of DMOEt/MOE, indicating that the R2 values calculated using DMOE and MOE obtained by the tap tone method are higher than ultrasonic measurement. Moreover, Groups W (100%) and B (100% bamboo) had higher R2 values compared with other BWC boards. The results implied that boards made by single and denser material caused faster and easier transmission through the relatively simple and higher density medium, while boards of mixed composition might slow down transmission through the more complex medium.
Mechanical strength analysis

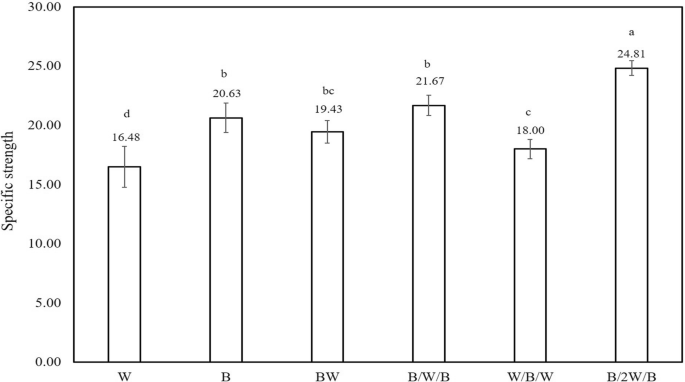

Figure 3 presented the specific strength of the experimental BWC boards. Higher strength was observed in layered boards with the top and bottom layers made of bamboo residue and the middle layer composed of wood chip (24.81 for B/2W/B; 21.67 for B/W/B). For single-layer boards, those made of bamboo residues alone (B) had the highest specific strength, i.e. 20.63; while those composed entirely of wood waste (W) had the lowest specific strength (16.48). As shown in Fig. 3, the strength of the board will be affected by bamboo content and layered structure.

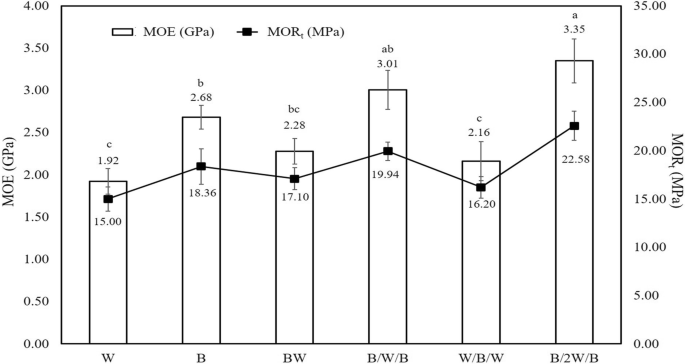

The analyzed results of MOE and MOR for BWC are shown in Fig. 4, it consistence of the specific strength evaluation. BWC boards made with wood alone had the lowest MOE (1.92 GPa) and MOR (15.00 MPa), revealing the poor strength property. It is because wood wastes contain comparatively less cellulose content than bamboo residues, and our related studies also demonstrated that cellulose is the main component of cell wall which affects both physical and mechanical properties [13, 14]. Hence, in contrast, Group B had comparatively higher MOE (2.68 GPa) and MOR (18.36 MPa, respectively), while Group BW comprising equal proportion of bamboo and wood wastes had MOE and MOR (2.28 GPa and 17.10 MPa, respectively) roughly between Groups W and B. As for the groups with layered structure, their MOE and MOR were in the order of B/2W/B (3.35 GPa and 22.58 MPa, respectively) > B/W/B (3.01 GPa and 19.94 MPa, respectively) > W/B/W (2.16 GPa and 16.20 MPa, respectively). Such layered structure is similar to that the cross-sectional structure of medium-density fiberboards and particle board which were found to have better compressive strength .
Nail withdrawal resistance analysis

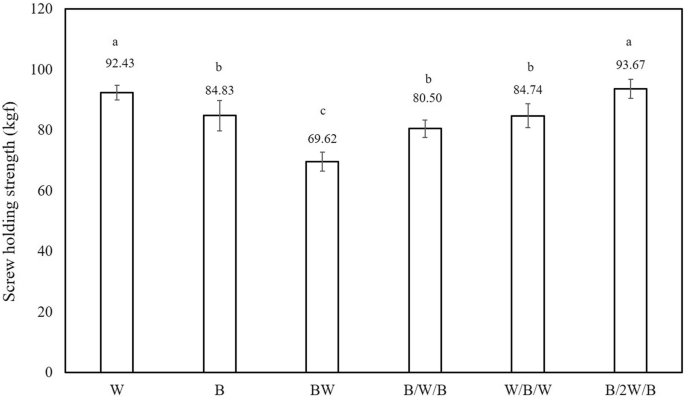

Screw holding strength (SHS) is an important evaluation index for joint strength of wood composites. Figure 5 demonstrated the SHS of BWC boards. The CNS 2215 standard for the particleboard’s SHS is 35–15 kgf. All six groups of BWC boards SHS were surpassing 51 kgf; among them, B/2W/B had the highest SHS (93.67 kgf), followed by B (92.43 kgf); however, there was no significant difference between B/2W/B and B; the Group BW has the lowest SHS (69.62 kgf). In general, wood has shorter fiber than bamboo, implying that wood wastes have better physical interlocking effect on screws, thus accounting for the higher screw retention in BWC boards with higher wood content. On the other hand, in terms of the morphology of the tissue, although bamboo has longer fiber length and higher bending strength than wood, bamboo lacks the horizontal ray tissue of the cross section. Therefore, bamboo has a good longitudinal splitting property, but the physical interlocking effect of the transverse screw is lower than woody residues. Based on the screw holding strength, it indicated that the morphological characteristic of the material will be more significant than their chemical composition and overall bending strength performance. Lai et al.  studied the use of thinned T. cryptomerioides wood as oriented strand board (OSB) material and found a high positive correlation between SHS and internal bond (IB) strength. Lin and Huang also reported that better IB strength of high-density particleboards could be attributed to the greater cohesion among the particles as a result of the hot pressing . In other words, IB strength has significant influence on the SHS of BWC boards.
Water absorption affects the strength between the board structure and fiber interface, which in turn influences dimensional stability, mechanical, and physical properties. After soaked for 2 h, six experimental boards had no significant difference in water absorption rate (WA%) (data not shown). However, the six experimental boards exhibited the different WA% after soaked 24 h. As shown in Fig. 6, the WA% is the highest in B (43.35%) and the lowest in W (31.72%). The other four types of BWC boards have WA% in the order of B/2W/B (42.57%) > B/W/B (41.81%) > BW (38.9%) > W/B/W (38.2%), indicating that boards with higher content of bamboo residues have higher WA%. Bamboo culms are mainly composed of parenchyma cells and vessels, and form a sponge-like porous natural material on the cross section . Moreover, since the bamboo residues of BWC are mechanically processed into an elongated bamboo residues, the presence of vessel pores in bamboo contributes to its high void ratio, resulting in higher water absorption.
Two other indicators of dimensional stability are TS and S. Lignocellulose materials contain richness hydroxyl group in their constituents, which make it extremely susceptible to the influence of temperature and humidity in the external environment to adsorb or remove moisture, thus causing its volume to swell or shrink. This will decrease dimensional stability of wood, which is also a disadvantage when using lignocellulose materials. Moreover, the bonding strength of wood composite panels is inversely related to TS . Table 4 shows the TS% and S% of the six experimental groups. Group W had the highest TS% and S% while Group B had the lowest TS% and S%. Moreover, TS% and S% of the other groups were in the order of W/B/W > BW > B/2W/B > B/W/B, indicating that TS% decreases with increasing bamboo residue content, with significant difference among the groups. Our results revealed the contrasting trends for WA% with TS% and S%. WA% is determined by the change in weight of specimen before and after water absorption. Bamboo is a monocotyledon plant and its fiber can easily adsorb moisture, resulting in higher WA%. Furthermore, wood chips have higher hemicellulose content, lower density tissue, and water-absorption swelling rate than bamboo residues; hence, it showed greater changes in TS% and S% than bamboo.
Physical and mechanical properties of six groups of BWCs made from domestic wood and bamboo residues after processing were examined using NDT. Results obtained showed that Vu and Vt of boards made with 100% bamboo residues (B) were higher than those of BWC boards made with mixed materials or pure materials in layers, while boards made with wood slabs alone (W) had the lowest Vu and Vt. These findings revealed a positive relationship of Vu and Vt with bamboo content in BWC boards. Moreover, mechanical strength analysis showed that Group B/2W/B had the best strength property with the highest MOE and MOR; W showed the lowest strength. The layer design with bamboo residues forming the top and bottom as well as wood in between also contributed higher strength. B/2W/B and B have the same highest SHS value due to their higher content of wood with shorter fiber length, which had better physical cladding effect and thus higher screw retention. Finally, WA% of composite was positively related to the content of bamboo residues in the composite boards, while both TS% and S% had a negative correlation with bamboo content.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
modulus of elasticity
modulus of rupture
volume swelling coefficient
screw holding strength
thickness swelling coefficient
- V u :
water absorption rate
Wei CY (2016) Make stone into gold: agricultural and forestry wastes is used in fuel production and return to farm land. For Res News 23:10–14 (in Chinese)
Obata Y, Takeuchi K, Soma N, Kanayama K (2006) Recycling of wood waste as sustainable industrial resources—design of energy saving wood-based board for floor heating systems. Energy 31:2341–2349
Wang SY (1997) Forest resources and wood utilization in Taiwan. For Prod Ind 16:813–824
Wang SY, Chang FC, Li IC, Yang SL, Lin FC (2005) The study on the effective utilization of Japanese cedar thinned logs. J Exp For Natl Taiwan Univ 19:293–300
Chung MJ, Wu JH, Chang ST (2005) Green colour protection of makino bamboo (Phyllostachys makinoi) treated with ammoniacal copper quaternary and copper azole preservatives. Polym Degrad Stab 90:167–172
Abdul Khalil HPS, Bhata IUH, Jawaid M, Zaidon A, Hermawan D, Hadi YS (2012) Bamboo fibre reinforced biocomposites: a review. Mater Des 42:353–368
Wu TL, Chen TY, Wu JH (2011) Application of bamboo residue for manufacture of the biodegradable plastic composite. Quart J Chin For 44:613–626
Chen TY, Hsu CH, Yu YL (1999) Hydration of gypsum bonded agro-forest-waste composites. For Prod Ind 18:393–402
Ross RJ, Pellerin RF (1988) NDE of wood based composites with longitudinal stress wave. For Prod J 38:39–45
Yang TH, Lin CJ, Wang SY, Tsai MJ (2007) Characteristics of particleboard made from recycled wood-waste chips impregnated with phenol formaldehyde resin. Build Environ 42:189–195
CNS 2215 (2012) Particleboards. Chinese National Standards (CNS), Republic of China, R.O.C
ASTM D-1037 (1999) Standard test method for evaluating properties of wood base fiber and particle panel materials. American Society Testing and Materials (ASTM), West Conshohocken, PA
Chung MJ, Wang SY (2017) Effects of peeling and steam-heating treatment on basic properties of Phyllostachys makinoi and Phyllostachys pubescens culms. J Wood Sci 63:473–482
Chung MJ, Wang SY (2018) Mechanical properties of oriented bamboo scrimber boards made of Phyllostachys pubescens (moso bamboo) from Taiwan and China as a function of density. Holzforschung 72:151–158
Huang YF, Mori M (1986) Studies on the manufacturing of oriented particleboard (I). For Prod Ind 5:1–10
Lai CH, Yang TH, Wang SY (2004) Effect of veneer overlaid on OSB made by Taiwania flakes. For Prod Ind 23:121–132
Lin HC, Huang JC (2001) Apply fade effective image processing analysis technique to evaluate internal bond strength of particleboard. Quart J For Res Taiwan 23:13–24
Kojima Y, Suzuki S (2011) Evaluating the durability of wood-based panels using internal bond strength results from accelerated aging treatments. J Wood Sci 57:7–13
This study was supported by a Grant (107-A03-5) from the Experimental Forest, College of Bioresource and Agriculture, National Taiwan University, Taiwan, ROC. We also thank the Forestry Bureau for financial support.
This study was funded by the Experimental Forest, National Taiwan University (Grant Number 07-A03-5).
