Degradation of shear performance of screwed joints caused by wood decay

Abstract

Shear tests were conducted on screwed joints with decayed main members, and the degradation of shear performance of screwed joints by wood decay was investigated. The differences between decayed and control specimens in yield load (Py), and maximum load (Pmax) were both significant at the 1% level, while the difference in the initial stiffness (Ks) was not significant at the 5% level. The extent of decay was evaluated through Pilodyn penetration depth and the decay depth. Pilodyn penetration depth had no significant relationships with Ks, Py, or Pmax of screwed joints. It is inferred that no significant relationship was found between Pilodyn penetration depth and the strength properties because the range of the measured Pilodyn penetration depth was narrow (16–23.5 mm). The decay depth had a significant inverse correlation with Ks of the decayed specimens. There was no significant relationship between the decay depth and Py, or Pmax. Multiple regression analysis was conducted on Ks, Py, and Pmax using the decay depth and sound wood density (WDh) as 2 explanatory variables. The multiple regression of Ks, Py, and Pmax on the decay depth and WDh were significant at the 1%, 5%, and 1% level, respectively. Ks, Py, and Pmax are inferred to be determined by both the decay depth and WDh. The strength properties of screwed joints with one screw obtained in this study were compared with those of screwed joints with seven screws obtained in a previous study. The difference between Ks, Py, and Pmax of the screwed joints with one screw and those of the screwed joints with seven screws was not significant at the 5% level. It is inferred that shear performance of screw joints with multiple screws are sufficiently estimated from those of screw joints with one screw by simply multiplying the strength properties, even if the main members were decayed.

Introduction

When degradation of wood occurs in wooden construction, the degraded wood member is reinforced or partly replaced. However, the replacing of the timber might necessitate the disassembly of the wooden structure which is difficult, costly, and requires skills and knowledge. For these reasons, reinforcing is often preferred to repair the deteriorated wooden constructions. Among other causes of wood degradation, wood decay by brown-rot fungi significantly degrades wood members. Most of structural damage to the indoors of buildings in Europe and North America is caused by brown-rot fungi [1], and it is estimated that approximately 80% of all in-service wood decay is caused by brown-rot fungi [2].

Numerous studies have reported on the effect of wood decay on the strength properties of wood such as bending strength [3,4,5,6] and compressive strength [7]. Although several studies have been conducted on the performances of joints with wood decay, the accumulated information is insufficient. Information on the remaining strength capacity of joints with decayed wood is required because the strength capacity of joints often affect the structural performance of the construction. Some studies that evaluate the degradation of shear performance of nailed joints caused by wood decay have already been reported [8,9,10].

Screwed joints are used in combination with reinforcing equipment to reinforce the wooden constructions, however, only a few studies have been conducted [11,12,13], and hence data on the strength degradation of those with decayed wood has been poorly accumulated. Furthermore, the deformation characteristics are unknown. In this study, we have investigated the effects of wood decay on the shear performance of screwed joints.

Materials and methods

Specimens

Figure 1 shows the outline of the specimens. The main members of the screwed joints were prepared from solid lumbers of Sakhalin fir (Abies sachalinensis) whose dimensions were 60 mm in width, 60 mm in thickness, and 300 mm in length. The average density was 442 kg/m3 (standard deviation 57.1 kg/m3) and the average moisture content was 10.2% (standard deviation 0.804%). These were measured from the sound part of the specimens after the shear tests. The number of main members prepared as decayed and control specimens were 12 and 9, respectively. Five out of nine control specimens had a width of 45 mm instead of 60 mm. The load–slip curves of screwed joints with a width of 45 mm showed no difference with those with a width of 60 mm (Fig. 7).

Fig. 1
figure1

Outline of the specimen

The side members were steel plates with a thickness of 6 mm, having 2 holes with a diameter of 9.0 mm for fixing to the test machine and a hole with a diameter of 6.1 mm for the screw. The main member and the side member were connected by a “TBA-65D” screw, which was designed to be used with hold-down hardware and made by Tanaka Co., Ltd. “TBA-65D” screws have an outer thread diameter of 6.0 mm, core diameter of 4.0 mm, full length of 69 mm, and length with screw thread of 55 mm as shown in Fig. 2. Average yield point of the screws was 1117 N/mm2, which was obtained from the bending tests conducted by Takanashi et al. [13].

Fig. 2
figure2

Outline of the screw “TBA-65D”

Decay treatment

The species of fungus used was Fomitopsis palustris which is a type of brown-rot fungi [14]. Nutrient agar, floras of Fomitopsis palustris, and 17 small pieces (W16 × L16 × H8 mm) of Sakhalin fir were filled into congealed nutrient agar containers as shown in Fig. 3. The containers were placed in a closed environment at 28 °C and 75% relative humidity for 4 weeks until the hyphae grew sufficiently.

Fig. 3
figure3

Rot fungus feeder unit

Furthermore, each container was attached to two wood specimens using stretch wrap and the specimens were placed in a closed environment at 28 °C and 75% relative humidity for 22 weeks. The center of the container coincided with the screwed point (80 mm) as shown in Figs. 1 and 4. After the decaying period elapsed, the containers were detached from the wood specimens. The specimens were placed in room temperature and humidity for 2 weeks to be air-dried.

Fig. 4
figure4

Attachment of the rot fungus feeder unit

The container in which floras of wood decay fungus and small wood pieces were put on congealed nutrient agar is called “rot fungus feeder unit”. Decay tests using rot fungus feeder units have been conducted on nailed joints [8], multiple screwed joints [13], and column–sill joints [15]. This decaying method is suited to decay only a limited part of a wood member.

Decayed and air-dried wood members were connected to the steel plates by screws without predrilled hole, leaving a slight gap to avoid initial friction between main and side members. The end distance of screwed joints was 80 mm.

Test methods

The main member and the side member were fastened to the testing machine and single shear tests were conducted on the screwed joints. The loading direction was parallel to the grain for the main member. The relative slips between the main and side members of the screwed joints were measured by two displacement transducers, located on the two sides of the main member as shown in Fig. 5.

Fig. 5
figure5

Setup of shear tests for screwed joints

The load was applied to a relative slip of 1.2 mm, and subsequently, reduced to a relative slip of 0 mm. This loading procedure was repeated to produce relative slips of 2.4, 4.8, and 9.6 mm, and subsequently, the load was kept monotonically applied until the tests were terminated when the relative slips reached 30 mm or screw breakages occurred. The slip level was determined from the yield displacement obtained from the preliminary monotonic loading test of the screwed joints with an un-decayed main member, which was 2.4 mm, and the relative slips of 1.2, 2.4, 4.8, 9.6 mm were equivalent to 1/2, 1, 2, 4 times of that yield displacement, respectively.

After the shear test, pin penetration depth using Pilodyn was measured near the location of the screwed point to evaluate the extent of decay. To determine the moisture content and wood density, subsamples were cut from the decayed and sound part of the main members. The size of subsamples from the decayed and sound part were approximately 20–60 mm in width, 60 mm in thickness, and 85–129 mm in length and 18–60 mm in width, 25–60 mm in thickness, and 20—45 mm in length, respectively.

Subsequently, all the specimens were cleaved to observe the failure modes of the screwed joints and determine the decay depth in the screwed point. The decay depth was obtained from the difference between the thickness of the main member and length of the sound part as shown in Fig. 6.

Fig. 6
figure6

Way to determine the decay depth

Results and discussion

Envelop load–slip curve

Figure 7 shows the envelop load–slip curves of the screwed joints. Decayed specimens had roughly lower loads than control specimens, as observed in the curves. The slopes of the load–slip curves up to 10 mm slip of decayed specimens had larger variables in comparison to those of control specimens. The points in the curves where the load drastically drops are the breaking points of the screws as shown in Fig. 8. The screws were ruptured in 11 out of 12 decayed specimens and 7 out of 9 control specimens and this result coincides with the number of curves in which the breaking points are observed.

Fig. 7
figure7

Load–slip curves of screwed joints. Black line curves obtained yield load using 3 points on the curves corresponding to 10, 40, and 90% of the maximum load; red line curves obtained yield load using 3 points on the curves corresponding to 10, 60, and 80% of the maximum load; solid line curves of specimens with a width of 60 mm; broken line curves of specimens with a width of 45 mm

Fig. 8
figure8

Ruptured screw and the specimen after the test

To evaluate the shear performance of the joints, the maximum load (Pmax), yield slips (Dy), yield load (Py), and initial stiffness (Ks) are determined from the curve as follows [16]:

  1. 1.

    Two straight lines were drawn on the envelope load–slip curves. One line (line I in Fig. 9) passes through the 2 points on the curves corresponding to 10 and 40% of Pmax and the other (line II in Fig. 9) passes through the 2 points corresponding to 40 and 90% of Pmax.

    Fig. 9
    figure9

    Method of evaluating shear performance of screwed joints. Note: Pmax, maximum load; Py, yield load; Dy, yield slip; Ks, initial stiffness

  2. 2.

    A straight line (line III in Fig. 9) was drawn as it has the same slope as line II and it is tangent to the curve.

  3. 3.

    The load and slip corresponding to the intersection of line I and III are obtained and defined as Py and the yield slip, Dy, respectively. The slope of the line passing through the origin and the coordinate \( D^{ - }_{\text{y}} \) and Py is obtained and defined as Ks.

Three specimens (1 from decayed specimens and 2 from control specimens) could not be evaluated to obtain the yield load from this method because the slope of line I and line II was nearly the same. These specimens were evaluated to determine Py, Dy, and Ks using 3 points on the curves corresponding to 10, 60, and 80% of Pmax instead of those corresponding to 10, 40, and 90% of Pmax. In the case the specimens other than the three specimens were calculated Py using 3 points on the curves corresponding to 10, 60, and 80% of Pmax, the values were 1.09 times in average of those corresponding to 10, 40, and 90% of Pmax. The former was close to the latter.

The values of Ks, -Py, and Pmax are shown in Fig. 10. The difference between decayed and control specimens in Py and Pmax was both significant at the 1% level. However, the difference in Ks was not significant at the 5% level, though the mean of Ks of the control specimens was higher than that of the decayed specimens. This can be attributed to the large deviation in the values of Ks and presumably does not mean that Ks will not change even if the member was decayed, as is reported in preceding studies [10, 13].

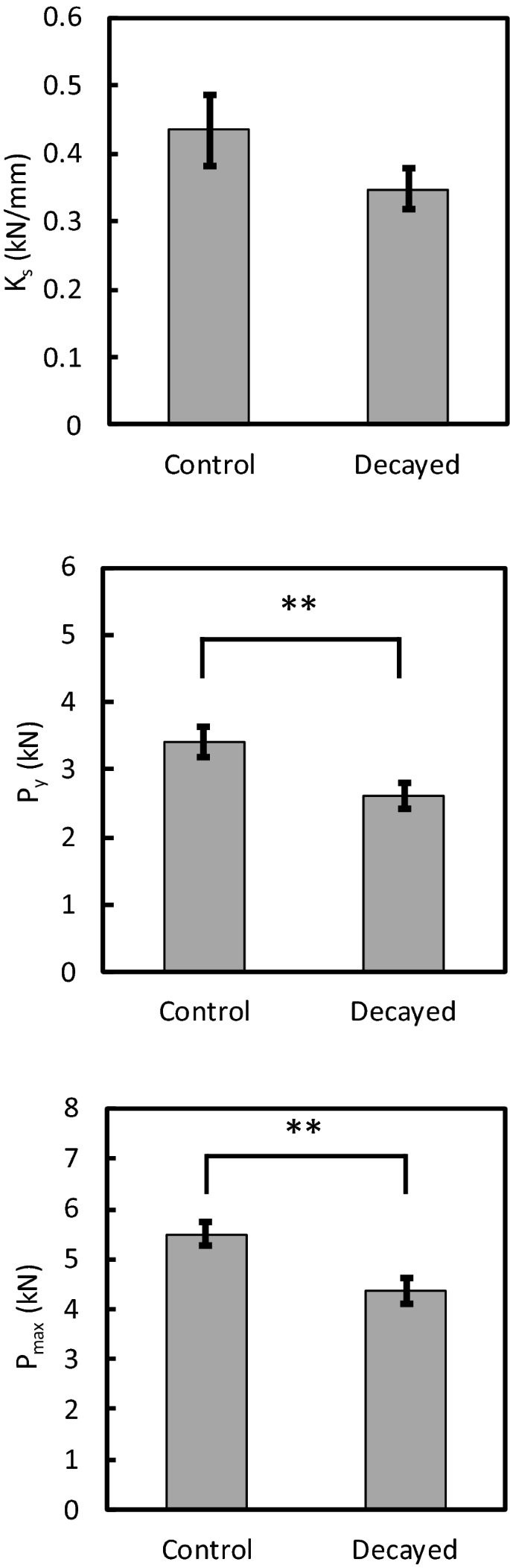

Fig. 10
figure10

Values of Ks, Py, and Pmax

Evaluation of the extent of decay

The extent of decay on the main members was evaluated by Pilodyn penetration depth and the decay depth. The relationships between Pilodyn penetration depth and Ks, Py, and Pmax are shown in Fig. 11.

Fig. 11
figure11

Relationships between strength properties and Pilodyn penetration depth

Pilodyn penetration depth had no significant relationships with Ks, Py, or P-max. Mori et al. reported that Pilodyn penetration depth had an inverse correlation with the yield load of screwed joints with decayed wood [12]. The difference between these results would be attributed to the range of Pilodyn penetration depth obtained from the tests. Whereas the value of Pilodyn penetration depth measured by Mori et al. ranged from 10 to over 40 mm, the value of Pilodyn penetration depth in this study was 16.0 to 23.5 mm. It is inferred that no significant relationship was found between Pilodyn penetration depth and the strength properties in this study because the value of Pilodyn penetration depth was not so widely ranged, and did not cover the whole length of the part with screw thread.

The relationships between decay depth and Ks, Py, and Pmax, are shown in Fig. 12. The decay depth had a significant inverse correlation with Ks at the 1% level and Ks corresponding to 20 mm of decay depth was about 0.5 times that of the mean of control specimens. Py and Pmax corresponding to 20 mm of decay depth were also 0.5 times those of the mean of control specimens, respectively, however, the decay depth had no significant relations with Py or Pmax at the 5% level.

Fig. 12
figure12

Relationships between strength properties and the decay depth. Note: ** = significant at the 1% level

Multiple regression of the shear performance on the decay depth and the sound wood density

Multiple regression analysis was conducted on screwed joints with decayed wood using Ks as a dependent variable and the decay depth and the sound wood density (WDh) as 2 explanatory variables. The result of multiple regression analysis is listed in Table 1. The multiple determination coefficient (R2-) of Ks was 0.85. The multiple regression was significant at the 1% level and the decay depth and WDh were both significant as the explanatory variable at the 1% level. Therefore, Ks of decayed specimens is inferred to be determined by both the decay depth and WDh.

Table 1 Coefficients and determination coefficient (R2) of multiple regressions of Ks, Py, and Pmax on the decay depth and WDh

Likewise, multiple regressions of Py and Pmax on the decay depth and WDh were obtained, respectively. The multiple regression of Py was significant at the 5% level and as explanatory variables, the decay depth and WDh were both significant at the 5% level. The multiple regression of Pmax was significant at the 1% level and as explanatory variables, the decay depth and WDh were both significant at the 1% level. The multiple determination coefficients for Py and Pmax were 0.53 and 0.74, respectively, and those values were significant at the 5% and 1% level, respectively. Py and Pmax of screwed joints with decayed wood also could be estimated by both the decay depth and WDh.

Comparison with the screwed joints with multiple screws of previous study

Previously, Takanashi et al. conducted a research on the screwed joints with seven screws using the same wood species and screws as this study and reported the effect of decay of the main members on the shear strength [13]. Therefore, in this study, we conducted a comparison between joints with a screw and those with multiple screws regarding the effect of decay. The value of Pilodyn penetration depth in the study of Takanashi et al. was about 20–30 mm and the extent of decay of decayed specimens is inferred to be the same as this study. The strength properties per screw of the screwed joints are shown in Fig. 13.

Fig. 13
figure13

Comparison of strength properties between screwed joints with 1 screw and those with 7 screws. Note: n: number of screw

The difference in Ks per screw between screwed joints with one screw and those with seven screws was not significant at the 5% level, regardless of the decay. The differences in Py and Pmax per screw were not significant at the 5% level as well. This means that shear performance of the screwed joints with seven screws can be sufficiently estimated from the results of the loading tests of the screwed joints with one screw. This holds true even if the main members were decayed, so long as the extent of decay is the same.

Conclusions

Shear tests were conducted on screwed joints with a decayed main member and the degradation of shear performance of screwed joints by wood decay was investigated. The extent of the decay was also investigated by means of Pilodyn penetration depth and the decay depth to evaluate shear performance of the screwed joints. The obtained results can be summarized as follows:

  1. 1.

    The differences between decayed and control specimens in Pmax and Py were both significant at the 1% level. In contrast, the difference in Ks was not significant at the 5% level, though the mean of Ks of control specimens was higher than that of decayed specimens.

  2. 2.

    Pilodyn penetration depth did not have significant relationships with Ks, Py, or Pmax of the screwed joints, because the range of Pilodyn penetration depth was not narrow.

  3. 3.

    The decay depth had a significant inverse correlation with the Ks at the 1% level. The multiple regression of Ks on the decay depth and WDh was significant at the 1% level. Ks is inferred to be determined by both the decay depth and WDh. The multiple regressions of Py and Pmax on the decay depth and WDh were significant at the 5% and 1% level, respectively. Therefore, Py and Pmax are also inferred to be determined by both the decay depth and -WDh.

  4. 4.

    The shear performance of screwed joints with a screw obtained in this study was compared with those with seven screws obtained in the previous study. The difference between Ks of the screwed joints with a screw and those per screw with seven screws was not significant at the 5% level, regardless of the decay. The differences in Py and Pmax per screw were not significant at the 5% level as well. Therefore, it is inferred that shear performance of the multi-screw joints could be sufficiently estimated from the results of the loading tests of screw joints with one screw, even if the main members were decayed so long as the extent of decay is the same.
