Skip to main content

Official Journal of the Japan Wood Research Society

  • Original Article
  • Open access
  • Published:

Anatomical, physical, and mechanical properties of four pioneer species in Malaysia

Abstract

The purpose of this study is to evaluate the anatomical, physical, and mechanical properties of four pioneer species, i.e., batai (Paraserianthes moluccana), ludai (Sapium baccatum), mahang (Macaranga gigantea), and sesendok (Endospermum malaccense). Correlation of factors influencing density, shrinkage, and mechanical properties were also discussed. Samples were obtained from the Forest Research Institute Malaysia (FRIM) campus. From the result obtained, these four pioneer species characterised by medium-to-large vessel with absent of tyloses and gum deposit, fine ray, thin walled fibre, runkel ratio less than 1.0, low in density, and mechanical properties. Sesendok has significantly higher value in fibre length, fibre diameter, fibre lumen diameter, fibre wall thickness, vessel diameter, density, MOR, MOE, compression parallel to grain, and shear parallel to grain compared to the other three pioneer species which were 2001 µm, 45 µm, 35 µm, 5.1 µm, 300 µm, 514 kg/m3, 79.5 N/mm2, 9209 N/mm2, 38.7 N/mm2, and 10.1 N/mm2, respectively. Between these four pioneer species, ludai has significantly higher in runkel ratio which was 0.57, whereas mahang shows significantly higher in slenderness ratio and number of vessels/mm2 which were 50.2 and 5 vessel/mm2, respectively. On the other hand, batai has higher tangential, radial and longitudinal shrinkage compared to ludai, mahang, and sesendok which were 3.0%, 2.4%, and 0.8%, respectively. Based on the basic property study, batai, ludai, mahang, and sesendok could be suitable for pulp and paper, plywood, light construction, furniture, interior finishing, and general utility. Fibre length, fibre wall thickness, and vessel diameter correlated significantly with density and mechanical properties. Shrinkage and mechanical properties were significantly influenced by density.

Introduction

Pioneer species is seen as an alternative material to the depleting resources of commercial timber from natural forest. It grows on previously disturbed land, such as areas of clear cutting, damage by the elements of nature, or in former agricultural land. These species adapted well to nutrient-depleted soils and colonize them more easily than other species. They are also known as successional species and make the soil more livable for species that are not good colonizers by putting nutrients back into the soil and providing shade for other plants [1]. Information on the availability of pioneer species was obtained from the National Forest Inventory 4 Report for Peninsular Malaysia conducted by the Forest Department Peninsular Malaysia (JPSM) in 2000–2002 [2]. According to [1], pioneer species such as batai, ludai, mahang, and sesendok have potential for the cellulosic industry due to its fast growth, relatively free from common or major known pests and diseases, and yet produce acceptable wood.

Study on the anatomical, physical, and mechanical properties need to be done on the pioneer species to explore the suitability of these species for various applications in wood-based industry such as in pulp and paper and also in plywood industry where the demands on this product are increased. Anatomical properties study such as the cell structure and fibre morphology are very important to determine the different areas of application. As an example, fibre morphology is an indicator on the suitability of timber for pulp and paper products [3]. Besides that, fibre length and fibre wall thickness are also a determinant to predict the density and mechanical properties [4]. On the other hand, vessel size is related to the treatment ability, where large vessel indicates the easy treatment compared to small vessels [5].

Physical properties such as density and shrinkage are related to wood quality. Density is correlated with shrinkage, drying, machining, and mechanical properties [6, 7]. Shrinkage of wood is another important physical property noted by Kiaei [8]. It is necessary to have good understanding on the shrinkage behavior of wood, since this property is associated with effects such as warping, cupping, checking, and splitting that will contribute to the most troublesome physical properties of the wood [9]. Mechanical properties would affect the wood quality, characterised the suitability of wood for structural applications, and also can be used as an indicator to the quality of sawn lumber [10, 11].

The purpose of this study is to evaluate the anatomical, physical, and mechanical properties of four pioneer species, i.e., batai (Paraserianthes moluccana), ludai (Sapium baccatum), mahang (Macaranga gigantea), and sesendok (Endospermum malaccense). These four pioneer species were selected in this study to meet the needs of the wood industry that requires continuous supply and short-term raw materials. Therefore, batai, ludai, mahang, and sesendok were selected for the study due to their fast growth in which in 10 years which they are able to harvest. Correlation factors influencing density, shrinkage, and mechanical properties were also presented. It is hoped that these basic properties will be useful to the wood-based industry to explore the suitable products from the pioneer timbers species.

Materials and methods

Preparation of materials

Samples of batai (Paraserianthes moluccana), ludai (Sapium baccatum), mahang (Macaranga gigantea), and sesendok (Endospermum malaccense) were obtained from the Forest Research Institute Malaysia (FRIM) campus. The trees were planted at a spacing of 3 × 3 m. Three trees from each species which age of 14 years were felled at 15 cm above the ground. Two discs approximately 3 cm in thickness and billets of 2 m length were cut. Discs were assigned for two different studies, viz., for anatomical and physical properties study, and billets of 2 m long were used for mechanical property study [12].

Determination of anatomical properties

The anatomical feature study was conducted according to the method by Schweingruber and Schulze [13]. A wood block 10 × 10 × 10 mm was each taken from the wood disc. The blocks were boiled in distilled water until they were well soaked and sank. The sledge microtome was used to cut thin sections from the transverse, tangential, and radial surfaces of each block. The thickness of wood sections must be in the range of between 25 µm. The transverse, tangential, and radial sections were kept in separate petri dishes for the staining process. Staining was carried out using 1% safranin-0. These sections were washed with 50% ethanol and dehydrated using a series of ethanol solutions with concentrations of 70%, 80%, 90%, and 95%. Then, one drop of Canada Balsam was placed on top of the section and covered with a cover slip. The slides were oven-dried at 60 °C for a few days.

The maceration technique was used to determine the fibre morphology [14]. A wood block split into matchstick size pieces before being macerated using a mixture of 30% hydrogen peroxide:glacial acetic acid at a ratio of 1:1 at 45 °C for 2 to 3 h until all of the lignin had dissolved and the cellulose fibres appeared whitish. Microscopic observations and measurement of the wood anatomical features were carried out using the light microscope. The descriptive terminology follows the International Association of Wood Anatomists (IAWA) List of Microscopic Features for Hardwood Identification [14]. For all the anatomical property measurements, there were 25 readings which were taken randomly for each species of batai, ludai, mahang, and sesendok. The Slenderness ratio (fibre length/fibre diameter) and Runkel ratio (2 × wall thickness/lumen diameter) [15, 16] were also calculated.

Determination of physical and mechanical properties

Physical properties were tested using British Standard 373:1957 Methods of Testing Small Clear Specimens of Timber [17]. Samples of size 20 mm in radial × 20 mm in longitudinal × 40 mm in tangential directions were cut from the woods for the analyses of density and shrinkage. Density was determined on the basis of oven dry weight and green volume. The shrinkage test was conducted in green to air-dry conditions. The tangential, radial, and longitudinal sections of each sample were marked and measured with a pair of digital vernier callipers (Mitutoyo) to the nearest 0.01 mm. A total of 90 specimens were used for each species of batai, ludai, mahang, and sesendok. Shrinkage was calculated using the following equations:

$$ S_{a} \left( \% \right) = \frac{{D_{i} {-}D_{a} }}{{D_{i} }} \times 100, $$

where Sa: shrinkage from green to air-dry conditions, Di: initial dimension (mm), and Da: air-dry dimension (mm).

Samples for mechanical properties were tested in accordance with British Standard 373:1957 Methods of Testing Small Clear Specimens of Timber [17]. Types of tests that were conducted: static bending of modulus of rupture (MOR) and modulus of elasticity (MOE), compression, and shear parallel to the grain. The standard dimensions for static bending test were 300 × 20 × 20 mm. Dimensions of 20 × 20 × 60 mm specimens were used for the test of compression parallel to the grain. Each specimen was placed in a vertical position. The dimensions of specimens for shear parallel to the grain were 20 × 20 × 20 mm. The direction of shearing was parallel to the longitudinal direction of the grain. The test was made on the tangential and radial planes of the sample. The total number of specimens was 90 for each species of batai, ludai, mahang, and sesendok. All tests were conducted using the 100 KN Shimadzu testing machine.

Statistical analysis

Statistical analysis was performed using Statistical Analysis System (SAS) version 9.1.3 software. Analysis of variance (ANOVA) was used to determine whether or not the differences in means were significant. If the differences were significant, Least Significant Difference (LSD) test was used to determine which of the means were significantly different from one another. The relationship between the properties was analysed using simple correlation analysis.

Results and discussion

Anatomical properties

Anatomical features of batai, ludai, mahang, and sesendok are shown in Figs. 1, 2, 3, and 4. The anatomical features of these four pioneer species are described for their identification and an important indication on the suitability of the timber for its potential usage. Figure 1 shows the anatomical features of batai. It shows that the vessels are predominantly solitary and in radial multiples of 2–4 with simple perforation. The tangential diameter ranges from 282 to 299 µm and the frequency is 1–3/mm2. Tyloses and deposit are absent. The axial parenchyma is vasicentric and diffuse but visible as white dots in cross section when observe with a hand lens than in the microscope. Its rays are usually uniseriate although sometimes present as biseriates with cell height at 310–550 µm and homocellular with procumbent cells. Fibres are non-septate, while crystal is present in chambered axial parenchyma but silica grains absent.

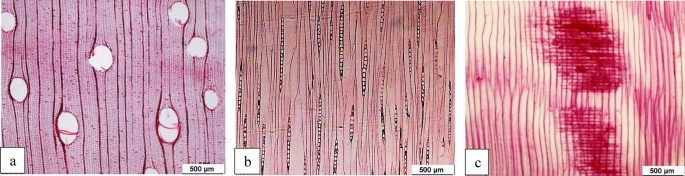

Fig. 1
figure 1

Batai: (a) tranverse section, (b) tangential section, and (c) radial section

Fig. 2
figure 2

Ludai: (a) tranverse section, (b) tangential section, and (c) radial section

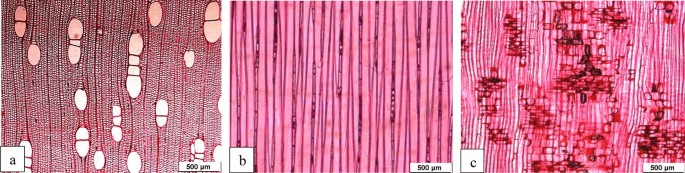

Fig. 3
figure 3

Mahang: (a) tranverse section, (b) tangential section, and (c) radial section

Fig. 4
figure 4

Sesendok: (a) tranverse section, (b) tangential section, and (c) radial section

Anatomical features of ludai (Fig. 2) show that the vessels are predominantly solitary and in radial multiples of 2–6 with simple perforation. The tangential diameter ranges from 243 to 257 µm and frequency is at 3–5/mm2. Tyloses and deposit are absent. Axial parenchyma is irregularly wavy, narrow bands, more distinct with hand lens than in the microscope due to lack of contrast with fibres. Rays are exclusively uniseriate, height ranging from 2500 to 8000 µm, homocellular cells. Fibres are non-septate, while silica grains are present in rays and axial parenchyma.

Anatomical features of mahang (Fig. 3) show that the vessels are solitary and in radial multiples of 2–3 with simple perforations. Tangential diameter ranges from 155 to 167 µm and frequency 4–7/mm2. Tyloses and deposit are absent. Axial parenchyma is in narrow bands. Rays 1–3 seriate, height ranging from 1700 to 3100 µm, heterocellular with procumbent and upright cells. Fibres are non-septate. Crystal is often present in rays or axial parenchyma. Silica grain is absent.

Anatomical features of sesendok (Fig. 4) show that the vessels are predominantly in radial pairs and multiples of 2–7 in a series and occasional clusters with simple perforation. Tangential diameter ranges from 291 to 309 µm and the frequency is 1–3/mm2. Tyloses and deposit are distinctly absent. Axial parenchyma is regularly spaced apotracheal bands, more distinct with hand lens than observing under the microscope. Rays are 1–2 seriate, height of 500–1500 µm, heterocellular with procumbent and upright cells. The fibres are non-septate, while crystal and silica grains are absent.

Table 1 summarizes the result of anatomical properties of batai, ludai, mahang, and sesendok with comparison to other well-known plantation timbers. Results showed that the fibre lengths are significantly different at (p ≤ 0.05), with sesendok having the longest fibre as compared to the other three pioneer species. This present result is similar with the finding by [18] who also found in his study that sesendok has the longest fibre which is very long for hardwood and could be suitable for the pulp and paper. In comparison to other well-known plantation timbers, i.e., rubberwood (Hevea brasiliensis) and Eucalyptus grandis, these four pioneer species show comparable value in terms of fibre length. The fibre wall of sesendok is the thickest at 5.1 µm followed by mahang, ludai, and batai. Fibre wall thickness of these four pioneer species categorised as very thin fibre walled which is the fibre lumen is three times wider than the double wall thickness. Runkel ratio of batai, ludai, mahang, and sesendok is less than 1.0 which were 0.27, 0.57, 0.38, and 0.28, respectively, whilst the slenderness ratio for batai, ludai, mahang, and sesendok were 36.4, 43.2, 50.2, and 45.6, respectively. On the other hand, vessel diameter of batai, ludai, and sesendok is categorised as large with sesendok having the significantly largest vessel diameter. Vessel diameter for mahang is the smallest as compared to the other three pioneer species and categorised as medium-sized vessel. A number of vessels present for these four pioneer species are categorised as very few.

Table 1 Anatomical properties of batai, ludai, mahang, and sesendok in comparison with other well-known plantation timbers

The suitability of the timber for papermaking is based on the runkel ratio. Fibres with a runkel ratio of less than 1.0 are suitable for use as pulp with good strength properties [3]. High runkel ratio indicates inferior raw material for papermaking where the fibre is stiff, less flexible and forms bulkier paper with lower bonded area [19]. Based on the result obtained (Table 1), the mean runkel ratios of all four pioneer species studied were less than 1.0, indicating that the fibres from the timber would produce good quality paper. Besides that, the tearing strength and folding endurance of paper are indicated by the slenderness ratio [20]. Larger slenderness ratio results are better for paper making where it indicates a better formed and well-bonded paper [19, 21]. Present results showed that the slenderness ratio of the four pioneer species is in the range of 36.4–50.2. This result is comparable to the study for Eucalyptus grandis, as shown in Table 1, which ranges from 42.6 to 59.8 [22]. Batai, ludai, mahang, and sesendok also show thin fibre wall and large fibre lumen diameter which, according to [5] this features, contributes to the good adhesive penetration.

Observation on the anatomical features of the four pioneer species shows that all the timbers can be categorised as having medium-to-large vessel according to the vessel category by [14]. Karl [23] stated that wood species with medium-to-large vessel may not be good for printing papers, while [24] reported that generally species with medium-to-large pores are light with course texture which is suitable for general usage. These four pioneer species have larger vessel, absent of tylosis, and gum deposit, which have uniseriate and fine rays which according to [5, 25, 26], and these characteristics make them easy to be impregnated to enhance the wood properties. The absence of gum deposits in batai, ludai, mahang, and sesendok would also make these timbers suitable for veneering into plywood. Adeniyi et al. [5] further reported that timber for plywood should be free from gum deposits as it would interfere with wood gluability. The anatomical features show that these four pioneer species mostly have uniseriate rays which could contribute to the excellent nailing property. As reported by [27], wood with multiseriate rays is poor in nailing property as it has a tendency to split when nailed. However, the presence of silica in ludai would cause a blunting effect on sawteeth. This is also reported by [28] where silica that present in Coelostegia griffithii and Durio griffithii cause a blunting effect on sawteeth.

Physical and mechanical properties

Results of physical and mechanical properties are tabulated in Table 2. Based on the density, batai, ludai, mahang, and sesendok are classified as light timber, which are comparable to rubberwood and Eucalyptus grandis. From the result obtained, sesendok has the highest density, followed by mahang, ludai, and batai. From this result, the trend of density in four pioneer species could be related with the fibre length, fibre wall thickness, and vessel diameter. Longest fibre and thickest fibre wall found in sesendok (Table 1) are directly related to the highest density among the four species studied. On the other hand, batai has the shortest, thinnest fibre, and large vessel diameter (Table 1) which contribute to the lower density. Similar result was also reported by [29] and [30] where density is correlated to the fibre length, fibre wall thickness, and vessel diameter.

Table 2 Physical and mechanical properties of batai, ludai, mahang, and sesendok in comparison with other well-known plantation timbers

In terms of shrinkage (Table 2), batai and sesendok have the highest shrinkage for tangential, radial, and longitudinal. Ludai and mahang shows no significant difference in tangential and longitudinal shrinkage between them. Percentage of shrinkage for sesendok and batai are rated as high, whilst ludai and mahang rated as average. The shrinkage rating is based on the percentage shrinkage of tangential from green to air dry as reported by [31]. The Sesendok shows significantly higher value in MOR, MOE, compression, and shear parallel to grain, followed by mahang, ludai, and the lowest mechanical properties of batai. Van Gelder [32] reported that pioneer species had a significantly lower wood density, MOR, and compression strength.

Correlation factors influencing density, shrinkage, and mechanical properties

Table 3 presented the correlation factors influencing density, shrinkage, and mechanical properties of batai, ludai, mahang, and sesendok. Based on the results, density was positively correlated with fibre length except in batai, where the correlation is moderate-to-strong. Fibre diameter is weakly correlated with density in batai (r = 0.229) and mahang (r = 0.325). Density is positively correlated with fibre wall thickness in all species study with weak-to-moderate correlation. Vessel diameter also significantly correlates with the density with negative and weak-to-moderate correlation in all species. In terms of shrinkage, it shows significantly correlation with fibre length and fibre wall thickness in batai, ludai, mahang, and sesendok. Shrinkage is highly affected by density compared to other anatomical properties with positive and very weak-to-very strong correlation in all species. On the other hand, mechanical properties are significantly correlated with fibre length, fibre wall thickness, and vessel diameter with positive correlation in batai, ludai, mahang, and sesenduk. Among the properties, density is the best factor to be correlated with MOR, MOE, compression parallel to grain, and shear parallel to grain which shows positive and weak-to-strong correlation. Fibre dimeter and fibre lumen diameter are also significantly correlated with some properties, as shown in Table 3.

Table 3 Correlation factors influencing density, shrinkage and mechanical properties of batai, ludai, mahang, and sesendok

This study found the anatomical properties that significantly affect the density and mechanical properties are fibre length, fibre wall thickness, and vessel diameter. Similar findings were also observed by [4, 33] in Pseudolachnostylis maprounaefolia and Azadirachta excelsa, respectively. [5] further stated that strong wood has smaller size of vessel diameter and thick fibre wall. On the other hand, shrinkage was affected significantly by the anatomical properties, namely, fibre length and fibre wall thickness. Significant correlation of fibre with shrinkage was also reported by [34] in Gmelina arborea. Based on the result obtained (Table 3), the number of vessels per mm2 does not significantly influenced the density, shrinkage, and mechanical properties which was also confirmed by [4].

Thus, it can be inferred from the results of this study that shrinkage and mechanical properties are highly dependence on density. Wood with higher density has higher shrinkage and mechanical properties. This is in good agreement with [35,36,37] who also reported significant relationship between density and shrinkage in Melia azedarach, Azadiractha indica, and Pinus pinaster, respectively. Whilst, correlation between density and mechanical properties was also observed by [38,39,40] in Acacia mangium, Acacia melanoxylon, and Tectona grandis, respectively.

Conclusions

Based on the result obtained, sesendok have the largest vessel, longest and thickest fibre, highest in density, and mechanical properties compared to batai, ludai, and mahang. These four pioneer species could be suitable for pulp and paper, since they have longer fibre and a runkel ratio less than 1.0. The absence of gum deposit made the timbers suitable for plywood. Besides that, these four pioneer species have low density and mechanical properties which makes them suitable for light construction, furniture, interior finishing, and general utility. Batai, ludai, mahang, and sesendok have excellent nailing property and could be easily treated. In terms of correlation, fibre length, fibre wall thickness, and vessel diameter are significantly correlated to density and mechanical properties. In this present study, density is a good indicator for predicting shrinkage and mechanical properties. Generally, batai, ludai, mahang, and sesendok could be a promising timber species as an alternative material to the depleting resources of commercial timber.

Availability of data and materials

All data analysed during this study are included in this published article.

Abbreviations

MOR:

modulus of rupture

MOE:

modulus of elasticity

References

  1. Cheah LC (1995) Pioneer species for fast growing tree plantations in Malaysia-an evaluation. FRIM Technical Information No53. Forest Research Institute Malaysia, Kepong, Selangor

  2. Forest Department Peninsular Malaysia (JPSM) (2004) National forest inventory 4 report for Peninsular Malaysia conducted by the Forest Department Peninsular Malaysia (JPSM) in 2000–2002

  3. Takeuchi R, Wahyudi I, Aiso H, Ishiguri F, Istikowati TW, Ohkubo T, Ohshima J, Iizuka K, Yokota S (2016) Wood properties related to pulp and paper quality in two Macaranga species naturally regenerated in secondary forests, Central Kalimantan, Indonesia. TROPICS 25(3):107–115

    Article  Google Scholar

  4. Uetimane EJ, Ali AC (2011) Relationship between mechanical properties and selected anatomical features of Ntholo (Pseudolachnostylis maprounaefolia). J Trop For Sci 23(2):166–176

    Google Scholar

  5. Adeniyi IM, Adebagbo CA, Oladapo FM, Ayetan G (2013) Utilisation of some selected wood species in relation to their anatomical features. Glob J Sci Front Res Agric Veter 13(9):2249–4626

    Google Scholar

  6. Igartua DV, Monteoliva SE, Monterubbianesi MG, Villegas MS (2003) Basic density and fibre length at breast height of Eucalyptus globulus for parameter prediction of the whole tree. IAWA J 24(2):173–184

    Article  Google Scholar

  7. Miyoshi Y, Kojiro K, Furuta Y (2018) Effects of density and anatomical feature on mechanical properties of various wood species in lateral tension. J Wood Sci 64:509–514

    Article  Google Scholar

  8. Kiaei M (2011) Anatomical, physical and mechanical properties of Eldas Pine (Pinus eldarica Medw.) grown in the Kelardasht region. Turkish J Agric For 35:3–42

    Google Scholar

  9. Shukla SR, Sharma SK, Rao RV (2003) Specific gravity and shrinkage behaviour of eight-year-old plantation grown Tecomella undulata. J Trop For Products 9:35–44

    Google Scholar

  10. Hsu CYL, Chauhan SS, King N, Lindstrom H (2003) Modulus of elasticity of stemwood vs branchwood in 7-year-old Pinus radiata families. NZ J Forest Sci 33(1):35–46

    Google Scholar

  11. Karlinasari L, Wahyuna ME, Nugroho M (2008) Non-destructive ultrasonic testing method for determining bending strength properties of Gmelina wood (Gmelina arborea). J Trop For Sci 20(2):99–104

    Google Scholar

  12. Tan YE, Lim NPT, Gan KS, Wong TC, Lim SC, Thilagawaty M (2010) Testing methods for plantation grown tropical timbers. ITTO project on improving utilization and value adding of plantation timbers from sustainable sources in Malaysia project NO. PD 306/04(1). Forest Research Institute Malaysia, Kepong, Selangor

  13. Schweingruber FH, Borner A, Schulze ED (2006) Atlas of woody plant stems: evolution, structure and environmental modifications. Springer, New York

    Google Scholar

  14. Wheeler EA, Baas P, Gasson PE (1989) IAWA List of microscopic features for hardwood identification. IAWA Bull 10(3):219–332

    Article  Google Scholar

  15. Gülsoy SK, Hafizoglu H, Pekgozlu AK, Tumen İ, Donmez İE, Sivrikaya H (2017) Fiber properties of axis and scale of eleven different coniferous cones. Ind Crops Prod 109:45–52

    Article  Google Scholar

  16. Singh S, Mohanty AK (2007) Wood fiber reinforced bacterial bioplastic composites: fabrication and performance evaluation. Compos Sci Technol 67(9):1753–1763

    Article  CAS  Google Scholar

  17. BS (British Standard) 373 (1957) Methods of testing small clear specimens of timber. British Standard Institution

  18. Ogata K, Fujii T, Abe H, Baas P (2008) Identification of the timbers of Southeast Asia and the Western Pacific. Forestry and Forest Product Research Institute, Tsukuba

    Book  Google Scholar

  19. Ashori A, Nourbakhsh A (2009) Studies on Iranian cultivated paulownia: a potential source of fibrous raw material for paper industry. Eur J Wood Wood Prod 67:323–327

    Article  CAS  Google Scholar

  20. Yahya R, Sugiyama J, Silsia D, Grill J (2010) Some anatomical features of an Acacia hybrid, A. mangium and A. auriculiformis grown in Indonesia with regard to pulp yield and paper strength. J Trop For Sci 22:343–351

    Google Scholar

  21. Rodriguez HG, Maiti R, Kumari A, Sarkar NC (2016) Variability in wood density and wood fibre characterization of woody species and their possible utility in Northeastern Mexico. Am J Plant Sci 7:1139–1150

    Article  Google Scholar

  22. Palermo GPM, Latorraca JVF, Carvalho AM, Calonego FW, Severo ETD (2015) Anatomical properties of Eucalyptus grandis wood and transition age between the juvenile and mature woods. Eur J Wood Product 73:775–780. https://doi.org/10.1007/s00107-015-0947-4

    Article  CAS  Google Scholar

  23. Karl FW (1984) Forestry handbook, Society of American Foresters. pp 616–623

  24. Jayeola AA, David OA, Abayomi EF (2009) Use of wood characters in the identification of selected timber species in Nigeria. Not Bot Hort Agrobot 37(2):2832

    Google Scholar

  25. Sint KM, Militz H, Hapla F (2011) Treatability and penetration indices of four lesser-used Myanmar hardwood. J Wood Res 56(1):13–22

    Google Scholar

  26. Sint KM, Stergios A, Gerald K, Frantisek H, Holger M (2013) Wood anatomy and topochemistry of Bombax ceiba L. and Bombax insigne Wall. Bioresource 8(1):530544

    Google Scholar

  27. Lim SC, Nordahlia AS, Abd Latif M, Gan KS, Rahim S (2016) Identification and properties of Malaysian Timbers. Malaysian Forest Records No. 53. Forest Research Institute Malaysia, Kepong, Selangor

  28. Wong WC, Lim SC (1990) Malaysian Timbers-Durian. Timber Trade Leaflet No 113. Forest Research Institute Malaysia, Kepong, Selangor

  29. Nordahlia AS, Ani S, Zaidon A, Mohd Hamami S (2011) Fibre morphology and physical properties of 10-year-old sentang (Azadirachta excelsa) planted from rooted cuttings and seedlings. J Trop For Sci 23(2):222–227

    Google Scholar

  30. Alia-Syahirah Y, Paridah MT, Hamdan H, Anwar UMK, Nordahlia AS, Lee SH (2019) Effects of anatomical characteristics and wood density on surface roughness and their relation to surface wettability of hardwood. J Trop For Sci 31(3):269–277

    Google Scholar

  31. Lim SC, Gan KS, Chung RCK (2019) A dictionary of Malaysian Timbers. Malayan Forest Records No 30. Forest Research Institute Malaysia, Kepong, Selangor

  32. Van Gelder HA, Poorter L, Sterck FJ (2006) In wood mechanics, allometry, and life history variation in a tropical rain forest tree community. New Phytol 171(2):367–378

    Article  Google Scholar

  33. Nordahlia AS, Anwar UMK, Hamdan H, Zaidon A, Mohd Omar MK (2014) Mechanical properties of 10-year-old sentang (Azadirachta excelsa) grown from vegetative propagation. J Trop For Sci 26(2):240–248

    Google Scholar

  34. Okon KE (2014) Relationships between fibre dimensional characteristics and shrinkage behavior in a 25-year-old Gmelina arborea in Oluwa forest reserve, South West Nigeria. Appl Sci Res 6(5):50–57

    Google Scholar

  35. Van Duong D, Matsumura J (2018) Transverse shrinkage variations within tree stems of Melia azedarach planted in northern Vietnam. J Wood Sci 64:720–729

    Article  CAS  Google Scholar

  36. Sotannde OA, Oluyege AO, Adeogun PF, Maina SB (2010) Variation in wood density, grain and anisotropic shrinkage of plantation grown Azadiractha indica. J Appl Sci Res 6(11):1855–1861

    Google Scholar

  37. Muñoz GR, Anta MB (2010) Physical properties of tinning wood in maritime pine (Pinus pinaster Ait): Case study. Eur J For Res 129(103):71045

    Google Scholar

  38. Fanny H, Ramadhani AP, Harry P, Sri S (2018) Pengaruh kecepatan pertumbuhan terhadap sifat fisika dan mekanika kayu Acacia mangium Umur 4 Tahun asal Wonogiri, Jawa Tengah (Effect of growth rate on physical and mechanical properties of 4 year old Acacia mangium wood from Wonogiri, Central Java). J For Sci 12:248–254

    Google Scholar

  39. Machado JS, Louzada JL, Santos AJA, Nunes L, Anjos O, Rodrigues J, Simões RMS, Pereira H (2014) Variation of wood density and mechanical properties of Blackwood (Acacia melanoxylon R.Br.). Mater Des 56:975–980

    Article  Google Scholar

  40. Izekor DN, Fuwape JA, Oluyege AO (2010) Effects of density on variations in the mechanical properties of plantation grown Tectona grandis wood. Appl Sci Res 2(6):113–120

    Google Scholar

  41. Naji HR, Suhaimi MH, Nobuchi T, Bakar ES (2013) Intra and interclonal variation in anatomical properties of Hevea Brasiliensis Muell. Argic Wood Fiber Sci 45(3):268–278

    CAS  Google Scholar

  42. Bal BC, Bektaş İ (2012) The physical properties of heartwood and sapwood of Eucalyptus grandis. Proligno 8(4):35–43

    Google Scholar

  43. Bal BC, Bektaş İ (2013) The mechanical properties of heartwood and sapwood of Flooded gum (Eucalyptus grandis) Grown in Karabucak, Turkey. Ormancilik Dergisi (Forestry Magazine) 9(1):71–76

    Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

Not applicable.

Author information

Authors and Affiliations

Authors

Contributions

All authors have participated sufficiently in the study of wood properties and are responsible for the entire contents. The author read and approved the final manuscript.

Corresponding author

Correspondence to A. S. Nordahlia.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Hamdan, H., Nordahlia, A.S., Anwar, U.M.K. et al. Anatomical, physical, and mechanical properties of four pioneer species in Malaysia. J Wood Sci 66, 59 (2020). https://doi.org/10.1186/s10086-020-01905-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s10086-020-01905-z

Keywords
