Experimental study of lateral resistance of bolted joints using Japanese cedar (Cryptomeria japonica) treated with resin impregnation

Abstract

The development of wooden joints possessing high resistance performance has become an important issue for the construction of newer buildings. This study attempts to strengthen the lateral resistance of bolted joints using the previously reported plasticizing technique. This technique consists of two processing stages: incising the surface of the wood using an ultraviolet wavelength short-pulse laser and impregnating the resin into the incised area. This technique makes it possible to plasticize only a local part of the wood surface. Bolted joint specimens were assembled using plasticized wood around the bolt hole, and the lateral tests were conducted. Acrylic monomer and urethane prepolymer were used as the impregnating resins and their incision depths were set as 4 and 10 mm. When the lateral load acted parallel to the grain, changes in the lateral resistance characteristics were observed, especially for the stiffness and yield load. For example, when acryl was used, and the incision depth was 10 mm, an increment of 73% in the yield load was observed, as compared to the non-impregnated specimens. The specimen groups impregnated with acryl exhibited greater changes in their properties than those using urethane. When loaded perpendicular to the grain, an increase in properties were observed; however, these increments were lower than those of the groups loaded parallel to the grain.

Introduction

Recently, there has been an increase in the interest for large-scale wooden buildings owing to the demand of sustainable building options. Lateral resistance of joints plays an important role in the structural performance of buildings. Bolts are one of the commonly used fasteners for joining wooden members. Bolted joints have been used in wooden buildings worldwide for a long time. The external forces acting on buildings exert a lateral load on these bolted joints. Therefore, it is necessary to understand the lateral resistance of these joints. Consequently, many studies have been conducted, and a review of such studies has been reported by Sawata [1, 2].

To ensure the building safety, the development of wooden joints having higher lateral resistance is essential. An example of load-deformation response for a laterally load acting on a bolted joint is depicted in Fig. 1. Joint response is a combination of localize wood crushing and bolt bending. The wood members slip and the bolt undergoes bending; moreover, embedment deformation was observed in a localized area of the wood member (as indicated by the brown-colored area in the figure). Based on this observation, reinforcing a localized area of the wood against crushing appears to be an effective method for developing a bolted joint possessing high-lateral performance.

Fig. 1
figure1

Deformation image of bolted joint under lateral load

There are some techniques for improving the mechanical properties of wood. Surface densification is one such well-known method. Many researchers have reported improvements in the mechanical properties of wood through surface densification [3,4,5,6,7,8], and it is predicted that the use of densified wood in bolted joints will improve the lateral properties of these joints. However, when surface densification is applied to structural materials, substantial treatment is required because the material is generally large and an extremely high compression load is required. Another approach is the local improvement of the embedment properties (Fig. 1).

The authors saw potential in the plasticizing technique as one viable option for localize improvement of bearing properties. Fukuta et al. [9] used an ultraviolet-wavelength short-pulse laser (hereinafter referred to as a UV laser) to create microscopic incisions on the wood surface and attempted to improve the physical properties by plasticizing the surface layer using impregnating resins. This technique enables plasticizing local areas of the wood surface. The study confirmed sufficient impregnation based on an observation of the scanning electron microscope (SEM) images, and reported that the Brinell hardness and indentation depth against impact load were significantly improved because the resins filled the cells of the wood. The authors expected that impregnation would also be efficient for the improvement of lateral resistance of joints, because the embedment resistance would improve due to the impregnation of resins. An additional advantage is that it can be applied to local areas of the wood surface and involves minimal unnecessary treatment work.

This study attempts to develop high-capacity bolted joints against lateral load by using wood treated with resin impregnation on its surface. A lateral test was conducted with the joint specimens, and the experimental results are reported.

Materials and methods

Material preparation

Solid pieces of Japanese cedar (Cryptomeria japonica D. Don) harvested from Shizuoka prefecture were used for the joint specimens. The size of the specimens was 60 × 105 × 300 mm.

The measured density divided the wood pieces into ten groups, making sure that the difference in density between groups was minimized. Six replicates were assigned to each group. The densities of the center and side members are listed in Table 1.

Table 1 Summary of joint specimen groups

Second, the materials were treated with resin impregnation on their surfaces. Microscopic incisions were created on the solid wood using a UV laser. As can be seen from the dotted areas shown in Fig. 2, the incisions were created in square areas of size 30 × 30 mm. The incisions were not only on the top surface, but also on the reverse side. Diode-pumped solid-state Q-switched lasers (Spectra-Physics, Talon355-15SH) were used. Using a Galvano scanner, the incision pattern (Fig. 3) was drawn, with a hole density of 667 holes/cm2. The target incision depth was set to either 4 or 10 mm, and other laser irradiation parameters are shown in Table 2, which were determined according to a previous study [9]. The processing time for each square was 32 or 134 s for target depths of 4 and 10 mm, respectively.

Fig. 2
figure2

Incision area treated around bolt holes. a Groups loaded parallel to the grain. b Groups loaded perpendicular to the grain

Fig. 3
figure3

Incision pattern

Table 2 Laser irradiation parameters

Finally, the wood was impregnated with resin. Two types of resin were used in this study. The first was acrylic monomer (Toeikasei Co., Ltd., DIAKITE PF-2730) (hereafter, acryl). 0.6 parts by weight of 2,2′-azobisisobutyronitrile was included as a polymerization initiator. The acryl was impregnated on the incised areas using a paint brush. This application was continued until impregnation to the complete depth of the incised area was confirmed visually. As acryl polymerizes in an anaerobic environment, a heating press machine was used with a temperature of 140 ℃ but with no pressure applied (the surface of the solid wood only touched the heating plate of the machine). The heating time was approximately 30 min. The second resin used was urethane prepolymer (Kotobukikakou Co., Ltd., PS-NY6) (hereinafter, urethane). The evaporation residue of urethane is 40%. As in the case of acryl, it was applied with a paint brush until full impregnation was visually observed. Since urethane is a cold-setting polymer, the solid wood was left to stand for over 1 week after impregnation for curing.

The impregnation level of the resins was evaluated using the parameter W obtained by the following equation:

$$W = \frac{{{m_1} - m_0^{}}}{{A \cdot d}},$$
(1)

where m0 and m1 are the mass of the pieces of solid wood before and after impregnation, respectively. A is the area of incised portion (i.e., 900 mm2), and d is the target depth (4 mm or 10 mm).

Joint specimen

The joint specimens were assembled according to standard for structural design of timber structure [10], and similar description is shown in ASTM D5652-12 [11]. The joint specimens loaded parallel and perpendicular to the grain are shown in Fig. 4. Three pieces of solid wood were joined with a bolt of diameter 12 mm. The washer size was 40 mm in diameter and 3.2 mm in thickness, and was selected according to the standard [12]. When assembling the joint specimen, all pieces of solid wood were placed so that the sapwood was facing the bolt head (in Fig. 4, sapwood is on the left side, and heartwood is on the right side). Tightening of the bolt was conducted by hand and continued until the washer was embedded into the wood surface by 1.0–1.5 mm as observed visually. There was no treatment for reducing the friction between the center and side members. In ASTM D5652-15, the nut should be controlled to “finger tightness”. While, in practice, nuts are commonly over-tightened and our tests reflect that in service condition. It is well known that the strong tightness affects the test result and it should be clarified quantitatively in the future.

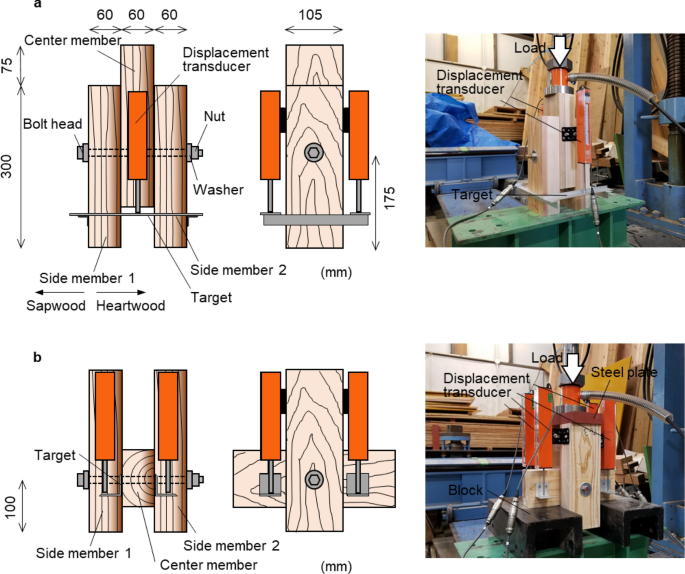

Fig. 4
figure4

Joint specimens and experimental setups. a Groups loaded parallel to the grain. b Groups loaded perpendicular to the grain

The specimen groups are summarized in Table 1. Groups A and F were prepared as control specimens. For the impregnated groups, two types of resin—acryl and urethane—and two incision depths—4 mm and 10 mm—were prepared; thus, a total of ten groups were tested. There were six test specimens in each group; however, for groups A, C, and J, only five measurements were obtained owing to errors during the tests.

Lateral joint test

The lateral tests were conducted as shown in the photographs in Fig. 4. An oil pressure control testing machine (Maekawa Testing Machine MFG Co., Ltd., IPU-B43) was used.

For the test involving the loading parallel to the grain (Fig. 4a), the joint specimen was set on the rigid plate, and a downward load was applied on the top of the center member. The load was measured using a load cell (Tokyo Measuring Instruments Laboratory Co., Ltd., KCM-100KNA, capacity: 100 kN). The slip between the center member and side members was measured using two displacement transducers (Tokyo Measuring Instruments Laboratory Co., Ltd., SDP-100C, capacity: 100 mm) attached to both sides of the center member and the displacement transducer targets attached to the side members. The slip value of the joint was obtained by averaging the two values obtained via the displacement transducers.

For the test with loading perpendicular to the grain (Fig. 4b), the joint specimen was set on the steel block, and the load was applied downward to the top of the side members with a steel plate. The slip was measured with four displacement transducers attached to the side members, and the average value was used for the slip value of the joint.

In both tests, the load was applied at a speed of approximately 2 mm/min. After reaching a maximum value, the load was continuously applied until it decreased to 80% of the maximum.

Results and discussion

Impregnation amount

The average and standard deviation of the impregnation level W are shown in Fig. 5; in sapwood, the values exceed 2000 kg/m3. The values of W were compared to the theoretical maximum impregnation level Wmax calculated using the following equation:

Fig. 5
figure5

Average and standard deviation of impregnation amount

$${W_{\max }} = \left( {1 - \frac{{{\rho _{\text{D}}}}}{{{\rho _{\text{S}}}}}} \right) \times {\rho _{\text{L}}},$$
(2)

where ρD is the oven-dried density of the test specimen, ρS is the density of wood substance, and ρL is the density of the resin liquid. Here, ρD was 321 kg/m3, which was the average value of oven-dried pieces of solid wood from groups A and F (non-impregnated group), ρS was 1500 kg/m3, and ρL was 1070 kg/m3 and 950 kg/m3 for acryl and urethane, respectively. The calculated results of Wmax were 841 kg/m3 for acryl and 747 kg/m3 for urethane. The W values in sapwood were greater than Wmax. Therefore, it is assumed that the resin spread through the lumen of the tracheid or the intercellular space of cells. It should be recognized that this study set the impregnation area as 30 × 30 mm; however, in reality, the resin was not restricted to this area and spread more widely. Because the values of W exceed the Wmax greatly, it is assumed to be difficult to understand the impregnation amount with parameter W in Eq. (1) which is widely used when evaluating the impregnation of chemical liquid. The new method or parameter is required.

The values of W in heartwood were smaller than those of sapwood. In general, the heartwood compounds adhere on the pits in heartwood [13], which may reduce the spread of resin through the lumen.

Figure 6 shows examples of the deformation of the bolt observed after the lateral tests. In the control groups (A and F), the largest bending deflection of the bolt is represented by a black arrow and positioned at almost the center of the width of the center member. In the impregnated groups, the largest deflections were observed slightly closer to the sapwood side of the center member. The reason for this is assumed to be that more resin was impregnated in the sapwood, resulting in a larger bending load acting on this part of the bolt. This result suggests that the impregnation level affects the lateral resistance of bolted joints. To clarify the embedment behavior precisely, it is important to understand how the resins spread in the wood, which may be an important research theme for the future.

Fig. 6
figure6

Examples of bending deformation of bolts occurred in the joint specimens

Load–slip relationships

The load–slip relationships obtained from the lateral tests are shown in Figs. 7 and 8. In all groups, an increase in load without any slip was observed at the start of the tests. This appeared due to the friction between members. When the load reached approximately 4–5 kN, the slip started increasing. After this, the load increased linearly with an increase in slip. When the load reached the yielding point, the slope between the load and slip gradually decreased. After reaching the maximum load, the load value decreased and failure occurred. The failure mode is shown in Fig. 9; splitting in the center members was observed for all specimens.

Fig. 7
figure7

Load–slip relationships of groups loaded parallel to the grain

Fig. 8
figure8

Load–slip relationships of groups loaded perpendicular to the grain

Fig. 9
figure9

Splitting failure of center member. a Groups loaded parallel to the grain. b Groups loaded perpendicular to the grain

In the groups loaded parallel to the grain (Fig. 7), group A began to yield at approximately 15 kN. The maximum load was approximately 25 kN, at a slip of 25 mm. Failure (which was defined as the point where the load decreased to 80% of the maximum) occurred at greater than 30 mm in almost all specimens; therefore, a high deformation capacity was observed. Comparing A to the other groups, the impregnated groups yield a higher stiffness and yielding load, and the maximum loads appear at the lower slip. A comparison of the types of impregnated resin (Group B to D and Group C to E) reveal that a higher stiffness and maximum load was achieved in the groups using acryl, and a higher deformation capacity was observed in the groups using urethane.

In the groups loaded perpendicularly to the grain (Fig. 8), group F began to yield at approximately 13 kN. After yielding, the load gradually increased and the maximum load was approximately 20 kN. A sudden decrease in the load was observed immediately after the maximum load. In the impregnated groups, higher stiffness values were observed. After yielding, the load was almost constant until the joints failed, especially in groups H and J. All the impregnated groups exhibited deformation capacities that were almost identical to that of group F.

Characteristics values

The perfect elasto-plastic model [14] was applied to the load–slip relationships (Figs. 7 and 8). The model is used for evaluating the characteristics values of structural elements including timber joints [15,16,17,18]. The method for obtaining the characteristics values is explained below and Fig. 10. The black line means the load–slip relationship obtained by the test. Pmax and δmax mean maximum load and slip at maximum load, respectively. At first, a direct line is drawn between 0.1Pmax and 0.4Pmax, and 0.4Pmax and 0.9Pmax on the relationship. The former and later are named Line I and II, respectively. Line II shifts until it meets the load–slip relationship, and the shifted line is named Line III. The new line parallel to the horizontal axis which passing through the intersection of Line I and III is drawn and named Line IV. The intersection of Line IV with the load–slip relationship is determined as yield point, and the abscissa and ordinate of the point are slip at yielding δy and yield load Py, respectively. The line connecting origin and yield point is named Line V, and the slope of Line V is determined as stiffness K. Next, the slip at ultimate load δu is determined as the abscissa of point when the load is decreased to 0.8Pmax after surpassing the maximum load. Then the energy on the load–slip relationship from origin to δu (dotted part) is found and it is symbolled as S. The Line VI parallel to the horizontal axis is drawn so that the area of trapezoid which consists of Line V, Line VI, horizontal axis, and X = δu (red part in Fig. 10) becomes same with energy S. The ordinate of Line VI is determined as ultimate load Pu. The average and standard deviation are shown in Table 3. This result enables a quantitative evaluation of the strengthening effect of resin impregnation. Figure 11 shows the ratio of the impregnated groups to the control group. The ratio values were calculated using each average value in Table 3.

Fig. 10
figure10

Method for obtaining the characteristics values by perfect elasto-plastic model

Table 3 Characteristics values obtained with a perfect elasto-plastic model

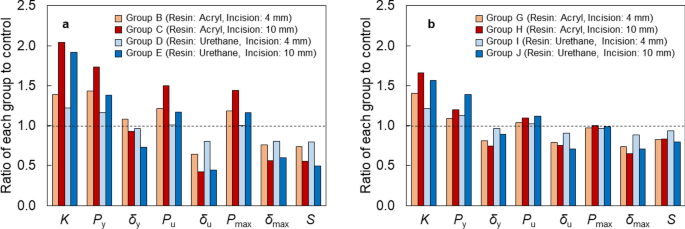

Fig. 11
figure11

Ratio for evaluating the strengthening effect calculated by dividing properties of impregnated group by control group. a Groups loaded parallel to the grain. b Groups loaded perpendicular to the grain

In the groups loaded parallel to the grain (Fig. 11a), clear improvements were observed in the selected parameters: stiffness K, yield load Py, ultimate load Pu, and maximum load Pmax, especially in the groups using acryl. For Group C, the above four parameters, the ratios standardized with group A were 2.04, 1.73, 1.50, and 1.44, respectively. In the case of urethane, the values also increased. The ratios of group E for the four parameters were 1.91, 1.38, 1.17, and 1.17, respectively. The results indicate that the type of resin showed a stronger strengthening effect. It is assumed that the urethane used in this study had an evaporation residue of 40%, and a large lumen existed when curing was complete. The validity of this assumption is confirmed by the SEM image reported in a previous study [9]. The higher ratios for K and Py strongly reflect the mechanical properties of the wood surface, because the embedment of the bolt was concentrated in the surface part of the wood for small values of slip. When the slip reached a value around Pu, embedment also occurred into the inner part of the wood. The decrease in load was caused by splitting, as shown in Fig. 9a. The values of Pmax were mainly determined by the splitting properties, and there was a lower strengthening effect. For an incision depth of 4 mm (groups B and D), increments in the selected parameters were also observed; however, the ratios were lower than those for a depth of 10 mm. A decrease in slip was observed in the impregnated groups. For example, the ratios of slip at maximum load δmax of groups C and E are 0.56 and 0.60, respectively. It is assumed that the resin impregnation reduces the flexibility of wood cells against external forces and causes fracture at a lower level of slip. As a result, energy S was also reduced to almost half of group A for an impregnation depth of 10 mm.

In the groups loaded perpendicular to the grain (Fig. 11b), the differences in stiffness K and yield load Py due to impregnation are clear. The ratios for group H, for example, are 1.66 and 1.20 for K and Py, respectively. The ratios were lower than those of the groups loaded parallel to the grain. The reason for this is that the resin mainly spreads along the longitudinal direction in wood, which causes a high strengthening effect when the load acts parallel to the grain, but a low strengthening effect when the load acts perpendicular to the grain. It is assumed that if the incision area is large in the transverse direction, a high strengthening effect will be observed in the groups loaded perpendicularly. Slight improvement was observed in ultimate load Pu and no improvement was observed in maximum load Pmax. The reason for this is that the decrease of load is dominated by the start of splitting failure, as shown in the description of the groups loaded parallel to the grain and Fig. 9b. The ratios of slip at the maximum load δmax of groups H and J are 0.65 and 0.70, respectively, which shows less reduction than for groups loaded in parallel.

Conclusion

To strengthen the lateral resistance of bolted joints, the resin was impregnated into the wood surface. This study used two types of resins: acrylic monomer and urethane prepolymer. For curing, the former requires heat, and the latter requires time. The effect of incision depth was also investigated. Lateral tests were conducted, and the characteristics were compared with the control group. From the test results, strengthening effects were observed for the impregnated groups. For example, in the specimen groups using acryl loaded parallel to the grain and incised to a depth of 10 mm, the yield load was 24.8 kN, which was an increase of 73% when compared to the control. The maximum load was 36.3 kN, which was a 44% increase. However, the slip at the maximum load was 15.9 mm, which was a decrease of 44% when compared to the control. The specimen groups using acryl showed a higher strengthening effect than that of urethane. When the incision depth was 4 mm, the strength properties were higher than those of the control group; however, they were lower than the cases of 10 mm in depth.

Resin spread beyond the incised area in the wood during the impregnation process. It is suggested that the amount of impregnation affects the lateral resistance of the bolted joints, and understanding the mechanism through which the resin spreads in the wood can be an important research topic in the near future. Additionally, an optimization of incising hole density at sapwood and heartwood is also an important. The optimized results will contribute to the excessive impregnation of resins and the shortening of processing time.

Availability of data and materials

All data discussed during this study are included in this published article.
