Experimental study on partial compression parallel to grain of solid timber

Abstract

This paper describes results and analysis of experimental testing of entire and partial compression strength and stiffness parallel to the grain of solid timber (Japanese cedar). To investigate the spreading effects, the size effect of strength and stiffness, and the mechanism of the damage zone located close to the loading plates, tests on 90 specimens were performed. As a result, it was observed that damage zones existed near the loading plates. The observed spreading effects in the compression parallel to the grain were very small which justifies neglecting them regarding strength and stiffness. Although a presence of a size effect of the compression strength parallel to the grain of glulam specimens with knots was reported, the compression strength parallel to the grain of solid wood specimens without knots does not have a size effect. The height and width of the cross-section of the specimens have an influence on the damage zones and, hence, on the effective modulus of elasticity of the full height of the specimens. The compression strength has a correlation with the density of the timber and the width of the annual rings.

Introduction

In timber buildings, deformations often concentrate on connections that have to be taken into account in the design. In the connections, the timber is often loaded in partial compression parallel to the grain, e.g., a tensile bolt connection (see Fig. 1) which is often used in Japan. Because the deformations under compression perpendicular to the grain are larger than the deformations under compression parallel to the grain by anisotropy of wood, the deformations under compression parallel to the grain are often ignored. However, in recent years, the number of high-rise timber buildings has increased, which urges the need to consider the deformation under compression parallel to the grain also in these buildings.

Fig. 1
figure1

Tensile bolt connection with partial compressive resistance

Partial compression parallel to the grain was studied by Noguchi et al. [1]. Though they proposed a theoretical evaluation method with a spreading effect, the impact of the spreading effect of real wood specimens was not clear.

The compression strength parallel to the grain of large-scale specimens of glulam (glued laminated timber) is presented by Fryer et al. [2]. The report presented the presence of a size effect of the glulam specimens and the size effect was much greater lengthwise than width-wise.

The heterogeneity of the strains in members loaded in compression parallel to the grain was reported in papers (Choi et al. [3] and Dahl and Malo [3]). It is observed that the largest strains are allocated near the loading plates (Zink et al. [5]), which create a zone often called the “damage zone”. The zone between these damage zones is referred to as the “middle zone”. Xavier et al. [6] and Martin et al. [7] investigated the behavior of the damage zones, e.g., the length and the modulus of elasticity, in small clear specimens.

In this present work, the partial compressive property parallel to the grain was investigated using solid timber of Japanese cedar (Cryptomeria japonica). The aims of this work are as follows:

  1. (1)

    to evaluate the spreading effects of partial compression parallel to the grain.

  2. (2)

    to study the relationship between dimensions of specimens and the compression strength and stiffness reduction.

Materials and methods

Specimens

Table 1 shows an overview of the test series of solid timber specimens. The specimens of each of the 15 series were cut from one piece of solid wood of Japanese cedar (Cryptomeria japonica). From 6 pieces of kiln-dried solid wood, a total of 90 specimens were prepared by manufacturing 6 specimens per series. After cutting, the specimens were stored in open indoor climate air for several weeks. Before the tests, these specimens were conditioned in an environmental chamber with a temperature of 20 °C and relative humidity of 65% during a week. The test parameters are the type of test setup and the size of the specimens.

Table 1 Overview of test series of solid timber specimens

The actual dimensions and weight of each specimen were measured before testing. The moisture content of specimens after the testing was 11.0–13.8%, determined by the oven-dry method. The density of specimens measured immediately before the testing was 321–552 kg/m3 when the moisture content was 11.0–13.8%.

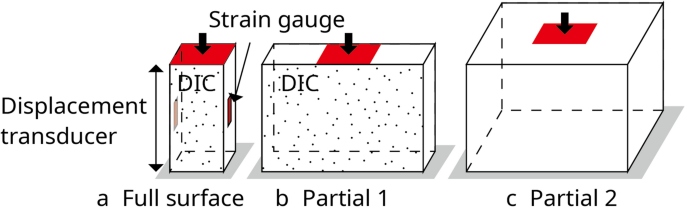

Three types of the test setup, as shown in Fig. 2, were used to investigate the spreading effects of partial compression. The specimens were loaded monotonically in compression parallel to the grain. The series “entire surface” were specimens loaded on the entire surface that did not have any visible defects (knots or cracks). The series “partial 1 and 2” are the specimens loaded on the partial surface that had no defects around the loaded surface either.

Fig. 2
figure2

Test setup of solid timber specimens

Test methods

The compression tests of the specimens with the loaded cross-section of 30 × 30 mm2 were carried out on an Instron testing machine with an in-line 100-kN load cell under displacement controlled loading at a rate of 0.3 mm/min. The compression tests of the specimens with the loaded cross-section of 60 × 60 mm2 and 90 × 90 mm2 were carried out on a testing machine with a 500-kN load cell under displacement controlled loading at a rate of 0.3 mm/min. In all the tests, the tests were stopped after loading drop to 80% of a maximum load and a displacement transducer (50 mm measurement length) was attached to measure loading plate movement as shown in Fig. 3. For the series “entire surface”, strain gauges were attached to two faces to measure the deformations of the middle zone; see Fig. 2. For the series “entire surface” and series “partial 1”, the 2D digital image correlation (DIC) system was used to record the strain of a side of the specimens. A 2D optical system captured images at a frequency of 0.2 Hz during testing. The images were processed with the DIC software, GOM correlate, GOM Gmbh (Braunschweig, Germany) [8]. This software uses an automated computer algorithm to determine local displacements and strains according to deformation images.

Fig. 3
figure3

Test measurements of solid timber specimen (6-9p in Table 1)

Test results and discussion

Stress–strain curves and failure mechanisms

The stress (σc) and strain (ɛ) were calculated from Eq. 1 and Eq. 2:

$$\begin{array}{c}{\sigma }_{c}=\frac{P}{A},\end{array}$$
(1)
$$\begin{array}{c}\varepsilon =\frac{\Delta l}{H},\end{array}$$
(2)

where P is the applied compression load measured by the load cell of the testing machine, A is the loaded area of the specimens, Δl is the average of the deformation in the full height of the specimens measured by the four displacement transducers and H is the initial height of the specimens.

Figure 4 shows the stress (σc)–strain (ɛ) curves of the specimens. The stress (σc)–strain (ɛ) curves have initial slip because a contact surface with the loading plate was flattened in all specimens. In the results of the series “entire surface” (no. 3-3, 3-6, 3-9, 6-3, 6-6, 6-9, 9-3, 9-6 and 9-9 in Table 1), the stress gradually decreased after maximum stress. In the results of the series “partial 2” (no. 3-9, 6-9 and 9-9pp in Table 1), the stress decreased a little after the maximum stress. After that, the stress stayed on a plateau. This may be related to the fact that the series “entire surface” not only deformed under loading plates, but also largely kinked on the middle zone (Fig. 5(a)); however, the series “partial 2” deformed only under the loading plate (Fig. 5(b)) after the maximum stress. The results of the series “partial 1” show a mix of these phenomena.

Fig. 4
figure4

Stress–strain curves of specimens

Fig. 5
figure5

Typical failure mechanisms: (a) large kinking, (b) compressive failure only under loading plate

Damage zone

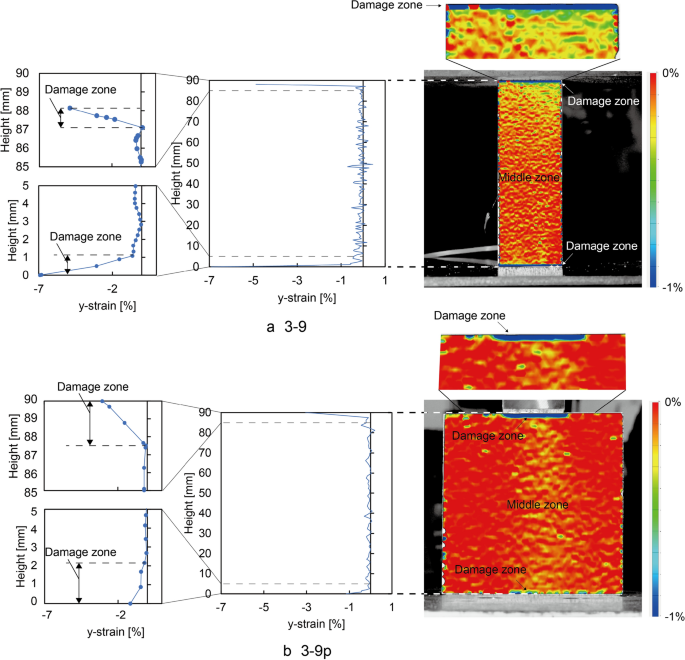

The strain distributions recorded by DIC showed the damage zones in the upper and lower side of the specimens as shown in Fig. 6. In the damage zone, the absolute value of strain exponentially increased as the distance from the loading plate decreased. Figure 7 shows the strain distributions of specimen no. 3-9 in the damage zone at each load. The lengths of the damage zone at each load were approximately the same. The highest absolute value of strain increased as the load increased. The stiffness in full height was a constant value, however, the strains in the damage zone were high level in 0.2Pmax–0.6Pmax (Pmax: the maximum load) as shown in Fig. 7. Though there is a possibility that the damage zone was in the plastic state in 0.2Pmax–0.6Pmax, details of the phenomenon of the damage zone are still unclear and it is a subject of future study. The other specimens also had the same trend. Though strains around the loading plate could not be measured accurately, the length of the damage zone was about 1–4 mm and had a tendency to increase as the cross-sectional area increase. To measure the length of the damage zone accurately by DIC, we need to make the smaller random pattern and paint the loading plate as well.

Fig. 6
figure6

Strain distribution of specimen no. 3-9 and 3-9p in Table 1 at 0.2Pmax

Fig. 7
figure7

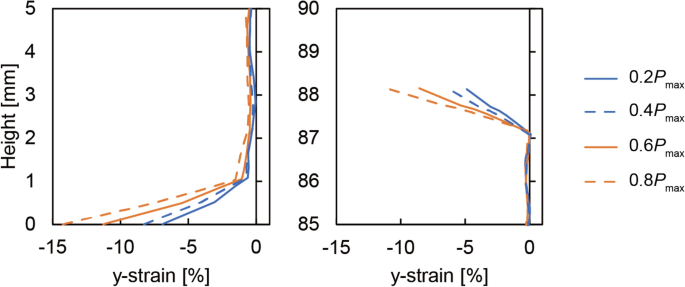

Strain distribution of specimen no. 3-9 in damage zone at each load

Evaluation of the maximum stress and the modulus of elasticities

The compression strength (maximum stress) was calculated as the ratio between the maximum load (Pmax) and the loaded area of the specimens (A):

$$\begin{array}{c}{f}_{c,0}=\frac{{P}_{max}}{A}.\end{array}$$
(3)

According to the equilibrium and linear elastic constitutive equations, the following closed-form solution can be obtained for the identification of the longitudinal modulus of elasticity:

$$\begin{array}{c}{E}_{L}=\frac{P}{A{\varepsilon }_{1}},\end{array}$$
(4)

where P is the applied compression load and ɛ1 is the linear strain along the longitudinal direction. In this study, two types of the EL were calculated: (1) the longitudinal modulus of elasticity in full height (EL,f) using the ɛ1 in the full height of the specimens measured by the displacement transducers, (2) the longitudinal modulus of elasticity in the middle zone (EL,m) using the ɛ1 in the middle zone measured by the strain gauges.

Density and width of annual rings

Figure 8 shows the fc,0 against the density and width of annual rings in all specimens. The value of fc,0 increases as the density increases, whereas the value of fc,0 decreases as the width of annual rings increases. The values of EL,f, of all series and EL,m of the series “entire surface” do not have a strong correlation with the density and width of annual rings; see Fig. 9.

Fig. 8
figure8

fc,0 against density and width of annual rings

Fig. 9
figure9

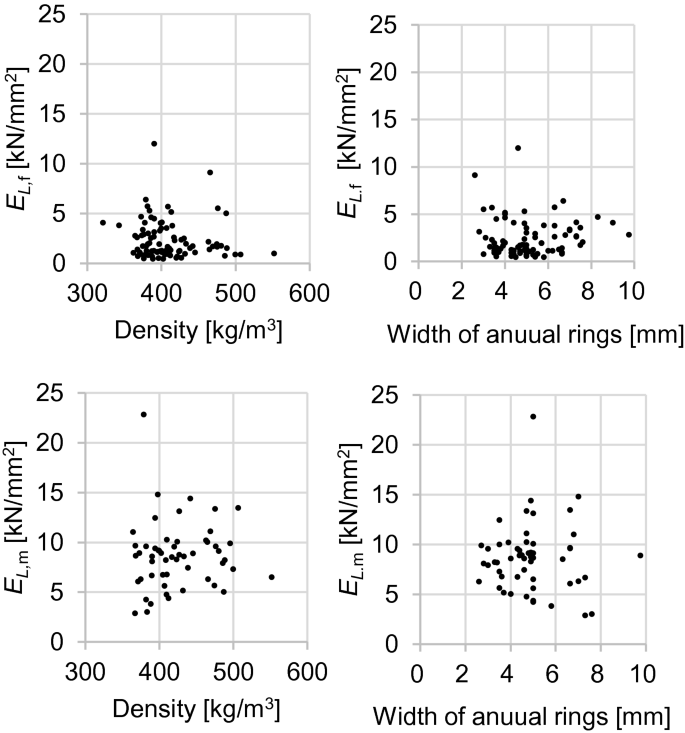

EL,f, and EL,m against density and width of annual rings

Spreading effects

Table 2 contains statistics of all series. Specimens loaded in compression perpendicular to the grain show pronounced spreading effects of stresses as discussed, e.g., by Leijten et. al. [9] and van der Put [10]. The stress spreading (kc) is given by Eq. 5:

Table 2 Mean statistics of entire or partial surface-loaded specimens, stress spreading and ratio of longitudinal modulus
$$\begin{array}{c}{k}_{c}=\frac{{f}_{c,\mathrm{s}}}{{f}_{c}},\end{array}$$
(5)

where fc,s is compression strength loaded on the partial surface and fc is compression strength loaded on the entire surface in the same loaded area. In addition, the ratio of longitudinal modulus of elasticity in full height can be given by Eq. 6:

$$\begin{array}{c}{k}_{E}=\frac{{E}_{L,\mathrm{f},\mathrm{s}}}{{E}_{L,\mathrm{f}}},\end{array}$$
(6)

where EL,f,s is the longitudinal modulus of elasticity loaded on the partial surface and EL,f is the longitudinal modulus of elasticity loaded on the entire surface in the same loaded area. The values of kc were 0.9–1.0 and kE were 1.0–1.1 in this study; see Table 2. It indicates that the spreading effects in the compression parallel to the grain are small enough to be ignored for fc,0 and EL,f. The reasons were considered that kinking failure occurs under the loading plates in the series “partial 1 and partial 2” and the effective cross-sectional area was the size of the loading plate which was equal to the cross-sectional area in the series “entire surface” in the compression strength. Figure 10 shows the load (P)–displacement (Δl or Δlm) curve. The displacement (Δlm), when assuming that there is no damage zone, is given by Eq. 7:

Fig. 10
figure10

Load (P)–displacement (Δl or Δlm) curve of no.3-3 and no.3-9

$$\begin{array}{c}\Delta {l}_{m}={\varepsilon }_{1}H.\end{array}$$
(7)

Δlm was 1%-8% Δl in no.3-3 and Δlm was 13%-36% Δl in no.3-9. It indicates that the large portion of the deformation in full height was the deformation in the damage zone. In addition, because EL,m is much higher than shear modulus GLT, it is assumed that the stress did not spread much. Thus, the compression strength loaded on the partial surface did not have the spreading effect and the spreading effect of the longitudinal modulus of elasticity was very small. However, there is a possibility that the spreading effect of the longitudinal modulus of elasticity becomes bigger in the tall specimen.

Size effects of compression strength (f c,0)

Size effects of the tension strength are often explained by the Weibull weakest-link theory [11]. When the Weibull weakest-link theory is applied, the statistical distribution of the test result should be Weibull distributed. To identify the distribution type fitting best the compression strength of all specimens, the three statistical distributions, normal, lognormal and Weibull were fitted by the Kolmogorov–Smirnov (K-S) test [12]. K-S test is a nonparametric test of the null hypothesis that the population cumulative distribution function (CDF) of the data is equal to the hypothesized CDF. The parameters of normal, lognormal and Weibull distributions were estimated by the maximum likelihood estimation (MLE) method [12]. Table 3 shows the results of estimated parameters and goodness-of-fit tests. P-values are defined as the probability of observing the given value of the test statistic, or greater, under the null hypothesis. Because the p-value of lognormal distribution was the biggest of the three, the K-S test indicated that the lognormal distribution was the fittest for the test result of the three. It is also recognized by Fig. 11. Therefore, it is likely that the compression strength of the specimens does not have a size effect. The reason why compression strength of the specimens does not have a size effect unlike the report by Fryer et al. [2], is thought that the size effect occurs due to the effect of knots and specimens of this test did not have knots.

Table 3 Results of estimated parameters and goodness-of-fit tests
Fig. 11
figure11

Comparison of normal or Weibull distributions and tested compression strength distribution

Longitudinal moduli

The values of EL,m were independent of the dimensions (height and width) of the specimens as shown in Table 4, and were in close agreement with a reference value, 7350 N/mm2, for the Japanese cedar [13]. Figure 12 presents the influence of the heights and the widths of the loaded area on the values of E L,f of the series “entire surface” and “partial 1 and 2”. The values of EL,f had an increasing trend as the height decreases in the series “entire surface” or the width of the loaded area decrease in the series “entire surface” and “partial 1 and 2”. Because the values of EL,m were independent of the dimensions, the dimensions influence on the values of E L,f can be explained by the increasing areas of the damage zone with the increase of the widths of the loaded area. However, the areas of the damage zone do not change when the full height of the specimens increases. Martin et. al. also reported that the area of the damage zone was independent of the height of the specimens in small clear specimens (20 × 20 mm2 cross-section and 30–60 mm high) [7]. It is presumed that the causes of changing the area of the damage zone were the surface roughness of the contact sample surface and loading plates and the fiber misalignment on the contact surface, etc. In this test, it is suggested that the specimens of large cross-sections have a larger roughness or larger fiber misalignment on the contact surface than the specimens of small cross-sections. The influence of the width of the loaded area on the values of EL,f has the possibility to change depending on cutting method and processing accuracy.

Table 4 Mean values and CV of longitudinal modulus of elasticity in middle zone
Fig. 12
figure12

Influence of heights and widths of the loaded area on values of EL,f of the entire and partial surface-loaded specimens

Conclusion

An experimental study on the entire and partial compression behavior parallel to the grain in solid timber specimens has resulted in a greater understanding of the material behavior as summarized below:

  • Damage zones existed near the loading plates in the series “entire surface” and “partial 1 and 2”.

  • The density and width of annual rings have a strong impact on the value of fc,0. However, the values of EL,f and EL,m do not correlate with the density and width of annual rings

  • The spreading effect as observed for compression perpendicular to grain was not observed as pronounced in the compression parallel to the grain. The spreading effects in the compression parallel to the grain are very small and it can be suggested to ignore them for fc,0 and EL,f. However, there is a possibility that the spreading effect of EL,f. becomes bigger in the tall specimen and it is a subject of future study. The partial compression strength may be able to be estimated at the compression strength with the same cross-sectional area.

  • The presence of a size effect of the compression strength parallel to the grain of glulam specimens with knots was reported by Fryer et. al [2]. Meanwhile, there is a possibility that the compression strength parallel to the grain of solid wood specimens without knots does not have a size effect.

  • The values of EL,m were independent of the dimensions of the specimens.

  • EL,f shows an increasing trend as the height decreases in the series “entire surface”, and as the width of the cross-section decrease in the series “entire surface” and “partial 1 and 2”. This may be because the increasing areas of the damage zone with the increase of the widths of the loaded area and the areas of the damage zone do not change when the full height of the specimens increases.
