Experimental study and comparative numerical modeling of creep behavior of white oak wood with various distributions of earlywood vessel belt

Abstract

Many researches have been conducted to investigate creep behavior of wood; however, the effects of structure on wood creep behavior remain unclear. Therefore, the effects of existence and distribution of earlywood vessel belt on creep behavior of white oak (Quercus alba L.) wood were investigated by dynamic thermal mechanical analyzer (DMA) with double cantilever bending in this study. Besides, a comparative numerical modeling simulation on strain curves of white oak specimens was completed using Burger and Five-parameter model. Results revealed that instantaneous strain and 45-min strain of specimens decreased with increase in the distance between earlywood vessel belt and stress acting surface obviously. Additionally, instantaneous strain and 45-min strain of specimens remarkably increased with increase in temperature from 20 to 80 °C. An obvious bending creep behavior was observed with increase in temperature from 20 to 80 °C. Both Burger and Five-parameter model can effectively simulate the creep behavior of white oak specimens with R2 values greater than 0.90. Furthermore, Five-parameter model illustrated a better fitting effect than Burger model in the final creep stage due to the introduction of a non-linear creep strain growth expression. It concluded that creep behavior of white oak wood strongly depends on the existence and distribution of earlywood vessel belt.

Introduction

Wood, a porous, anisotropic and nonhomogeneous biopolymer of cellular structure, is classified as a viscoelastic material with mechanical properties depending on test temperature, moisture content (MC), structure and chemical composition [1, 2]. It exhibits simple bending characteristic due to the viscoelastic behavior with porous structure [3]. Creep behavior of wood has been widely used to improve yield rate and promote the utilization of precious wood in the production process of curved wood products [4], which have been widely used in the production of furniture, arched windows and doors, baskets, barrels, handicrafts, boats and ships, tool handles, agricultural implements and musical instrument [5].

As a polymer of viscoelastic materials, mechanical property of wood is strongly depended on MC, stress, temperature, treatment time and so on. It has been reported that viscous flow of wood is observed to increase with increase in external stress under the high MC condition [6]. Tensile creep of wood has also been reported to increase with increase in MC [7]. It indicated that about 70% of the cells involved in hardwood are vessel cells and wood fiber cells, and all these cells are longitudinally arranged in wood. Effects of vessel cells and wood fiber cells on creep performance have become an important research topic in wood processing. A great deal of research has been conducted to explore the creep characteristics of wood under the static mechanical condition [8, 9]. Most of these researches focused on the effects of test temperature, MC, and texture direction on creep behavior of wood [10, 11]; however, little efforts have been found to analyze the effect of earlywood vessel belt locations on viscoelasticity and creep characteristics of ring-porous wood.

Wood is a polymer material composed of cellulose, hemicellulose, and lignin, and a natural porous polymer material composed of countless cells with different shapes, sizes, and arrangements in comparison with other polymers. Additionally, the arrangement and combination of different types of cells in space constitute wood entity. Existence of these huge numbers of cells with different shapes and sizes makes an extremely complex variable performance of physical and mechanical properties of wood in comparison with other solid materials, especially in hardwood, the cell type and arrangement are more complex and richer. As an important component of hardwood, earlywood vessel plays an extremely important role in certain hardwood such as oak (Quercus spp.), elm (Ulmus pumila), ash (Fraxinus mandshurica) and so on. A vessel is a series of axial cells that combine to form a knotless tubular structure with an infinite length. Rheological behavior of wood is closely related to factors such as MC, temperature and external stress, and it is also closely related to the composition and arrangement of wood cells. In some cases, the latter may have a greater influence. For the annular hardwood with a great deal of earlywood vessels, the effect of earlywood vessel distribution on rheological behavior of wood cannot be ignored. Oak wood has been widely used as raw material for manufacturing flooring, furniture and wooden building beams due to its excellent bending performance and beautiful texture [12, 13]. Many studies have been carried out to investigate the effects of chemical (i.e., polyethylene glycol) treatment, drying methods and other treatments on the creep characteristics of oak wood [14, 15], as well as the effects of texture directions on the creep characteristics of oak wood under the high temperature and humidity conditions [16,17,18]. More efforts have been made to investigate the mechanical behaviors of oak wood [4]. To the best of our knowledge, there has been no report of studying the effect of earlywood vessel belt on creep behavior of white oak. Therefore, it is crucial to analyze and predict the creep behavior of white oak under various distributions of earlywood vessel belt conditions.

In this study, we have systematically investigated the effects of existence and distribution of earlywood vessel belt on bending creep behavior of white oak wood by dynamic thermomechanical analyzer (DMA) under the double cantilever bending loading in the longitudinal direction at different temperatures. The distribution of earlywood vessel in the cross section of white oak specimens with various distributions of earlywood vessel belt was investigated by scanning electron microscopy (SEM) and Image-pro plus (IPP 6.0, Media Cybernetics, Inc., Rockville, USA) software. Burger model and Five-parameter model were selected further to simulate bending creep behavior of tested specimens with various distributions of earlywood vessel belt at different temperatures. This work provides valuable references for the selection of processing technology such as wood bending processing, wood drying, wood heat treatment, and wood plasticization processing technology and can also enrich the theory of wood physics and wood drying.

Materials and methods

Experimental materials

White oak (Quercus alba L.) lumber was obtained from Nanxun Timber Market in Huzhou city of Zhejiang Province in China. Size of tested white oak specimen was 40 mm (L) × 12 mm (W) × 2.2 mm (T). Four types of specimens were prepared, as shown in Fig. 1. A is the specimen with earlywood vessel belt on the stress surface, B is the specimen with earlywood vessel belt in the middle part, C is the specimen with earlywood vessel belt on the back-stress surface and D is the control specimen.

Fig. 1
figure 1

Specimen preparation: Specimen A is the specimen with earlywood vessel belt on the stress surface, B is the specimen with earlywood vessel belt in the middle part, C is the specimen with earlywood vessel belt on the back-stress surface and D is the control specimen

As is well known that earlywood vessel is not evenly distributed in white oak wood, the tested specimens were carefully prepared and selected to ensure the number and distribution state of earlywood vessel in different types of specimens were relatively consistent. Structure of the end faces of tested specimens was required to be uniform and the fiber direction parallel to the four sides of tested specimens in the test process. The end, upper and lower faces of tested specimens corresponded to the cross and tangential section, respectively.

Microstructure analysis and ratio of earlywood vessel belt calculation

Distribution of earlywood vessel in the cross section of white oak specimens was investigated using a SEM (SS-550, Hitachi Limited, Tokyo, Japan). Earlywood vessel belt ratio (RT) in the cross section of Specimen A, B, C and D was calculated according to the thickness of earlywood vessel belt and that of the corresponding specimen from SEM image. Besides, earlywood vessel ratio (Rc) in the cross section of Specimen A, B, C and D was calculated in accordance with the area of earlywood vessel cells and the area of white oak specimens in the cross section from SEM image. Twelve replicate SEM images from three adjacent repeated specimens were applied to calculate RT and Rc for each type of white oak specimen, and the average RT and Rc values were used for the final analysis. Thickness of earlywood vessel belt and tested specimens, area of earlywood vessel cells and tested specimens were calculated by Image-pro plus (IPP 6.0) software in this study.

Experimental methods

Creep behaviors of white oak specimens were investigated by a DMA (DMA-Q800, TA instruments, New Castle, USA) with humidity accessories under the bending loading in the longitudinal direction in this study. The adjustable range of relative humidity (RH) is 5% ~ 95%, and the corresponding temperature ranged from 5 °C to 100 °C. The double cantilever fixture was selected in this experiment. The creep test was conducted with double cantilever bending. The schematic diagram of double cantilever bending is presented in Fig. 2. The tested temperature applied was 20, 40, 60 and 80 °C, respectively, with the corresponding RH of specimens controlled at 66, 72, 76 and 81% to keep the MC (12 ± 0.1%) and dimension parameters of tested specimens consistent. The specimens were adjusted to an equilibrium state under the corresponding temperature and RH in a humidity chamber throughout the creep strain measurement process. This equilibrium state of reset temperature and RH was kept in the test furnace for 100 min to make MC of specimens achieve a stable value throughout the test process. Bending creep characteristics of the tested specimens were investigated under a constant stress of 5 MPa to avoid yielding fracture of white oak specimens and further obtain more creep details of tested specimens in the investigation process in accordance with an earlier study [17]. The corresponding hold time of preset temperature and RH was 45 min. Additionally, the static bending stress was preset to 0.01 N to fix the white oak specimen on double cantilever fixture. The recovery time was 45 min with the removal of 5 MPa constant stress [17]. Data of bending creep characteristics were collected by a DMA and recorded by a computer. The corresponding data graph of strain changes in percent as a function of time was generated under the creep model. Three adjacent repetitions for each type of tested specimen were prepared for the creep measurement.

Fig. 2
figure 2

Schematic diagram of double cantilever bending

Model description

Burger model

A gradual increase is observed to wood strain with increase in application time under a constant external stress due to its obvious viscoelastic behavior of wood. The establishment of mathematical model plays a more and more important role in investigation and prediction of wood creep behaviors [18]. From previous studies, the four-element Burger model connected by Maxwell model and Kelvin model in series, is a useful mechanical model that can accurately describe the creep behavior of materials. Among which, Maxwell model is used to simulate elastic and viscous strains of materials, and Kelvin model is used to simulate viscoelastic strains of materials. The constitutive equation of Burger model is [19, 20]:

$$\varepsilon \left( t \right) = \sigma \left[ {\frac{1}{{E_{0} }} + \frac{1}{{E_{1} }}\left( {1 - e^{{\frac{{ - tE_{1} }}{{\eta_{1} }}}} } \right) + \frac{1}{{\eta_{2} }}t} \right],$$
(1)

where ɛ(t) is the strain; σ is the stress; E0 is the universal elastic modulus reflects the instantaneous response (i.e., ideal elasticity); E1 is the high elastic modulus; ƞ1 is the viscoelasticity coefficient reflects the lag elastic deformation; ƞ2 is the bulk viscosity reflects the unrecoverable deformation left in the recovery process after the removing of external forces; t is the time.

According to the four-element model, the creep formula of Burger model can be simplified as follows [21]:

$$\varepsilon \left( t \right) = p_{1} + p_{2} \left( {1 - e^{{ - p_{3} t}} } \right) + p_{4} t,$$
(2)

where ɛ(t) is the strain; p1 is the instantaneous elastic deformation; p2 is the delayed elastic deformation; p3 is the bulk viscosity; p4 is the viscosity coefficient; t is the time.

Five-parameter model

Although Burger model showed obvious advantages in simulating wood creep behavior, the creep variable of wood was overestimated in the final stage predicted by Burger model. An assumption of a constant deformation rate to the viscous flow deformation of wood is applied in the simulation of Burger model, which is not consistent with the actual creep behavior of wood after the end of test [22]. Increment in the final deformation of wood is regarded as a viscous deformation, and the expression used to simulate the viscous part of wood in Burger model is a linear formula, resulting in a linear trend of the simulated strain curve as a function of time. Actually, the increase rate of viscous flow deformation of wood is non-linear. Therefore, a Five-parameter model assuming of a non-linear increase formula of viscoelastic has been proposed to further simulate wood creep behavior by Dinwoodie et al. [23]. Besides, the only difference between Burger model and Five-parameter model was the formula viscosity coefficient as illustrated in Eqs. (2) and (3). The corresponding creep formula of Five-parameter model is shown as follows:

$$\varepsilon \left( t \right) = \beta_{1} + \beta_{2} \left( {1 - e^{{ - \beta_{3} t}} } \right) + \beta_{4} t^{{\beta_{5} }} ,$$
(3)

where ɛ(t) is the strain; β1 is the instantaneous elastic deformation; β2 is the delayed elastic deformation; β3 is the viscoelasticity coefficient; β4 is the viscosity coefficient; β5 is an additional parameter, which solve the problem of viscosity part nonlinearity, and it has no practical significance; t is the time.

Results and discussion

Microstructure and tissue ratio of earlywood vessel belt

The anatomical structure of white oak specimens with various distributions of earlywood vessel belt is presented in Fig. 3. As illustrated in the figure, earlywood vessel was relatively evenly distributed in the earlywood vessel belt in cross section of Specimen A, B and C. Earlywood vessel belt ratio (RT) and earlywood vessel ratio (RC) in Specimen A, B and C are listed Table 1. It indicated that RT in tested specimens with various distributions of earlywood vessel belt was almost the same, the corresponding values of RT was 36.85 ± 1.70% (Specimen A), 35.82 ± 1.64% (Specimen B) and 36.13 ± 1.73% (Specimen C), respectively. As shown in Table 1, RC of Specimen A (26.44 ± 0.44%), B (24.46 ± 0.69%) and C (26.30 ± 0.28%) was also consistent under different distributions of earlywood vessel belt conditions. It was noted that RT and RC in Specimen A, B and C were the same, providing effective evidence for the reliability of data obtained in this study. Therefore, the number and distribution state of earlywood vessel belt in the tested specimens were relatively consistent to obtain more useful details on creep behavior of white oak specimens with different distributions of earlywood vessel belt.

Fig. 3
figure 3

Anatomy structure of white oak specimens with various distributions of earlywood vessel belt

Table 1 Tissue ratio of earlywood vessel belt (RT) and earlywood vessel (RC) for the specimens with various distributions of earlywood vessel belt

Effects of test temperature

Creep strain curves of white oak specimens at different temperatures are presented in Fig. 4. Results revealed that creep strain of white oak specimens strongly depend on test temperature. As can be seen in Fig. 4, a gradual increase in 45-min strain was observed with increase in test temperature. An obvious increment was generated to creep strain with increase in temperature from 40 to 60 °C, and the increment in creep strain was increased further with increase in temperature from 60 to 80 °C in the initial 45 min. These notable changes are mainly caused by softening of cell wall matrix, which becomes significant with temperature changes and water sorption [23, 24]. It was also found that the creep strain of Specimen A, B and C increased to the maximum value, followed by a slight reduction with the further increase in time at 20 and 40 °C, and the corresponding ultimate residual creep strain values were negative. However, the creep strain was observed to increase rapidly to the maximum value and then followed by a slow increase with the further increase of the temperature to 60 and 80 °C, the corresponding ultimate residual strain values were positive. Furthermore, the ultimate residue creep strain at 80 °C was nearly double or triple higher than that at 60 °C. For the white oak specimens with various distribution of earlywood vessel belt, an obvious creep phenomenon was generated with the further increase in temperature to 80 °C. This may be due to the transient elastic response of wood under small loads provided by the elastic deformation of micro-fibrils and cells. The thermal expansion of micro-fibrils was increased with increase in test temperature, resulting in the changes in lattice internal of cellulose and further reduction of cohesion among cellulose molecules, and further promoting the softening of cellulose in wood [25]. Moreover, mechanical strength of white oak wood was sharply decreased with the further increasing temperature to 80 °C or above as expected.

Fig. 4
figure 4

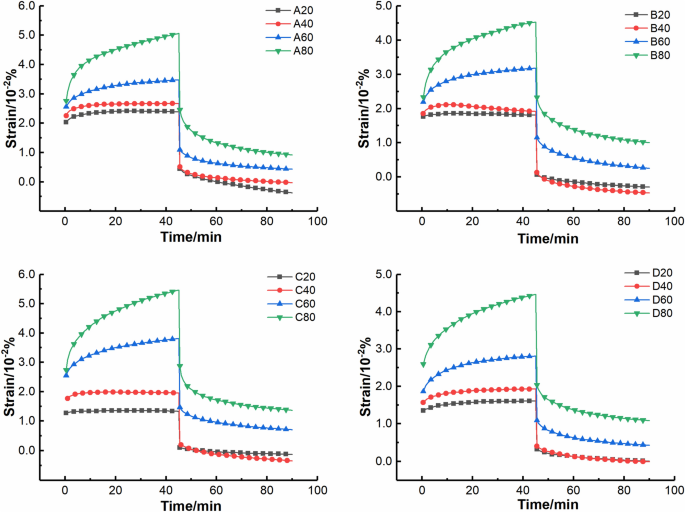

Creep behaviors of the specimens at different temperatures

Figures 5 and 6 show instantaneous strain and 45-min strain of white oak specimens at different temperatures and distributions of earlywood vessel belt. An obvious increment in instantaneous strain and 45-min strain of white oak specimens was observed with the increase of temperature from 20 to 80 °C. Activation energy required for the moving unit was increased with increase in temperature, and the corresponding intermolecular interaction force was decreased, resulting in the increase in intermolecular distance and moving unit activity space. Therefore, an obvious change in creep strain of the tested specimens was expected [26, 27]. In addition, it was reported that the glass transition temperature of lignin in general wet wood ranges from 72 to 128 °C [17]. The state of lignin molecular chain segment was changed from the frozen state to a moving state, and the glass transition of the specimens was reached at 80 °C. In addition to the expansion of molecular occupation volume, expansion of free volume of the lignin in wood occurs with the increase of temperature [28]. Therefore, movement space of motion unit is increased greatly, so did the creep deformation of the specimens. Moreover, the difference between energy elasticity and entropy elasticity may also result in the difference in creep behavior of tested specimens at different earlywood vessel distributions.

Fig. 5
figure 5

Instantaneous strain of white oak specimens at different temperatures and distributions of earlywood vessel belt

Fig. 6
figure 6

45-min strain of white oak specimens at different temperatures and distributions of vessel layer

It was also noted that creep strain of Specimen D was smaller than that of Specimen A, B and C, which is related to the existence and distribution of earlywood vessel belt and various tested temperatures. An obvious creep phenomenon occurred in the specimens with various distributions of earlywood vessel belt and the corresponding strain obviously increased with the further increase of temperature to 80 °C. Energy acquired for the extension or sliding of molecular chain in wood cell wall was increased with increase in testing time, leading to a violent molecular movement and the break of chemical bond among molecules. There was an increase in the fluidity and ductility of molecular chain [29, 30], an increase in the creep rate and creep compliance finally as expected [31, 32]. Additionally, most of wood cells are arranged along the axial direction, which determines that the axial creep compliance of wood is generally smaller than that of the radial creep compliance [8]. However, the radial wood ray cells have the effect of strengthening on the radial orientation in comparison with that of the tangential direction arranged along the thickness direction, resulting in a greater radial creep compliance [24, 33].

Effects of existence and distribution of earlywood vessel belt

Creep strain curves of white oak specimens with various earlywood vessel belt distributions are illustrated in Fig. 7. It was found that creep strain of white oak specimens was obviously affected by the existence and various distributions of earlywood vessel belt. For different temperature values chosen, the 45-min strain of Specimen A, B and C was decreased with increase in distance between earlywood vessel belt and stress acting surface. Creep strain of Specimen A, B and C was greater than that of Specimen D at the same tested temperature. However, the 45-min strain of Specimen A and B was decreased with increase in distance between earlywood vessel belt and stress acting surface, and increased with the further increasing distance between earlywood vessel belt and stress acting surface (Specimen C) at 80 °C. It also indicated that creep strain of Specimen A was slightly greater than that of Specimen C, and creep strain curves of Specimen B and D almost coincided with the 45-min strain. As described in the stress concentration problem of holes or circular holes in elasticity on the basis of Lamet equation of elasticity, stress at the edge of hole is much greater than that without hole, and it will also be greater than the stress slightly away from the hole as an elastic body with small holes subjected to external stress [34]. The effects of stress on circular hole or circular channel were decreased with increase in distance between the circular hole or circular channel and stress in accordance with the Saint-Venant’s principle of elastic mechanics. The stress concentration phenomenon of earlywood vessel was more obvious with increase in distance between the stress and earlywood vessel as the specimens subjected to an external stress. It was also observed that the earlywood vessel was compressed, bent, and deformed to a certain extent, which led to a brittle fracture of wood.

Fig. 7
figure 7

Creep behaviors of the specimens with various distributions of earlywood vessel belt

As can also be seen in Figs. 5 and 6, instantaneous strain and 45-min strain of the specimens were obviously decreased with the enlargement of distance between earlywood vessel belt and stress acting surface at 20, 40 and 60 °C. A reduction of instantaneous strain and 45-min strain of Specimen C was nearly 40% and 50% in comparison with Specimen A at 20 °C. Moreover, the reduction of instantaneous strain was decreased by 18.2 and 19.2% with the further increase of temperature to 40 and 60 °C, respectively, and that of 45-min strain was decreased by 24.0 and 17.1%, respectively. However, instantaneous strain and 45-min strain only slightly decreased at 80 °C, and the corresponding difference between Specimen A and C was 10.0 and 11.8%, respectively. This may be due to the generation of slippage among micro-fibrils in the earlywood vessel cell wall of tested specimens under the action of stress, the wall layer of earlywood vessel cell wall to fold. Besides, the compression surface of specimen was folded, and the tension surface was wrinkled under the action of bending moment [3]. The longitudinal bending tensile strength of wood is generally greater than the compressive strength as known from previous researches. The effect of stress on vessel cell increases with reduction in distance between earlywood vessel belt and stress acting surface, the tensile and compressive effect were increased as the specimens were bent longitudinally, leading to a tendency to deform easily and the creep is more distinct in white oak specimen. Obvious creep phenomenon occurred in the tested specimens at 80 °C. While cellulose and hemicellulose will be softened at high temperature, simultaneously, the lignin will undergo glass transition. The volume expansion of lignin (i.e., occupied volume expansion and free volume expansion) will lead to an obvious increase in activity space of moving unit with increase in temperature, which is shown as the increase of creep deformation [17], and the effect of earlywood vessel belt on creep strain of white oak specimens declined. Obvious creep phenomenon was generated in the specimens and their mechanical strength was sharply decreased with the further increasing temperature to 80 °C or above. Therefore, it was concluded that the existence and distribution of earlywood vessel belt affects the creep strain of white oak specimens obviously.

It was also found that creep phenomenon of white oak specimens was not obvious at 20 and 40 °C, the corresponding creep curves of white oak specimens were intensified, and creep effect was more obvious with the further increasing temperature from 40 to 60 °C and 80 °C, respectively. Increasing rate of creep strain for white oak samples at 80 °C was greater than that of the creep strain tested at 20, 40 and 60 °C. It was also noted that obvious creep phenomenon occurred in all the tested specimens. Difference of creep strain among the tested specimens with various distribution of earlywood vessel belt was limited, and the effect of earlywood vessel belt distribution on creep strain of white oak specimen was not obvious. Therefore, it was concluded that the white oak is not suitable for application in environments with temperature above 80 °C. The reason was that most of the cellulose segments in wood exist in crystalline state, a few in amorphous form, both lignin and hemicellulose exist in amorphous form. Free volume of molecules is increased, and the movement is accelerated especially for the amorphous polymers such as lignin and hemicellulose with the rise in temperature, leading to a sharp increase in wood creep [35, 36].

Comparative numerical modeling results of Burger and Five-parameter model

Comparison between fitting results of Burger and Five-parameter model is presented in Tables 2 and 3, respectively. The fitting results revealed that instantaneous elastic deformation (β1) of Five-parameter model was basically consistent with that of Burger model (P1). Both of instantaneous elastic deformation coefficient in Burger model (P1) and Five-parameter model (β1) of Specimen A, B and C were increased with increase in temperature from 20 °C to 80 °C. However, the corresponding values of instantaneous elastic deformation coefficient for Burger model (P1) and Five-parameter model (β1) were decreased with the enlargement of distance between earlywood vessel belt and stress acting surface. It was also noted that the correlation coefficient (R2) related to Five-parameter model was greater than that of Burger model under the same test condition (Tables 2 and 3). The reason was that creep variable of wood was overestimated in the ultimate stage predicted by Burger model due to a constant viscous deformation rate assumed in the last stage of creep behavior, which is inconsistent with the actual creep behavior of wood and the increment of ultimate deformation belongs to viscous deformation [37]. The expression used in the simulation of viscosity part in Burger model is a linear formula, resulting in a linear change rule of simulated curve as a function of time [18, 20]. Nevertheless, the fifth parameter (β5) was introduced into Five-parameter model, which makes the last stage of creep show a non-linear growth trend. This is evidently consistent with the actual creep deformation change [38]. Therefore, Five-parameter model exhibits obvious advantage in predicting and describing creep characteristics of white oak wood due to the introduction of a non-linear growth expression of creep strain which is more consistent with the actual creep process of wood.

Table 2 Fitting parameters of Burger model for the specimens at different temperatures
Table 3 Fitting parameters of Five-parameter model for the specimens with various distributions of earlywood vessel belt

Effects of test temperature on fitting results of creep model parameters

Comparison between the model simulation and experimental points of white oak specimens at different temperatures is presented in Fig. 8 (BM is for the simulation of Burger model and FM for the simulation Five-parameter model). It indicated that the creep curves of specimens at different temperatures can be accurately modeled by Burger model and Five-parameter model. Besides, results related to Burger model are listed in Table 2. Instantaneous elastic deformation viscosity coefficients (P1) of Specimen A, B and C were increased with increase in tested temperature as illustrated in Table 2. This is mainly because instantaneous elastic response of wood is generated as the elastic deformation of micro-fibrils and the corresponding cells under a small external load. Thermal expansion was generated in the micro-fibrils with increase in test temperature, resulting in the lattice spacing change of cellulose. The decrease of force among the cellulose molecules results in the softening of cellulose [39]. Instantaneous elastic deformation (P1) of Specimen D was decreased with the increase of temperature from 20 to 60 °C, and rapidly increased as a function of time under the constant stress of 5 MPa with further increasing temperature to 80 °C. For the data related to Five-parameter model shown in Table 3, instantaneous elastic deformation (β1) of Specimen A, B and C were like the fitting results from Burger model. However, the fitted results of Specimen D were not. The correlation coefficient (R2) fitted using Five-parameter model was greater than that of the Burger model under the same temperature condition (Tables 2 and 3).

Fig. 8
figure 8

Comparison between the model simulation and experimental points of white oak specimens at different temperatures

Effects of existence and distribution of earlywood vessel belt on the fitting results of creep model parameters

Comparison between the model simulation and experimental points of white oak specimens with various distributions of earlywood vessel belt is illustrated in Fig. 9 (BM is for the simulation of Burger model and FM for the simulation Five-parameter model). It indicated that the creep curves of specimens with various distributions of earlywood vessel belt can be accurately modeled by Burger model and Five-parameter model. As shown in Table 2, it indicated that instantaneous elastic deformation (P1) of Specimen A, B and C was decreased with increase in distance between earlywood vessel belt and stress acting surface at 20, 40 and 60 °C. It has been reported that vessel cells are widely distributed in hardwood such as oak, elm, ash and so on. The reinforcement effect of earlywood vessel is weakened with increase in distance between earlywood vessel belt and the stress acting surface in the bending process, the creep effect offset by earlywood vessel belt is also reduced [34]. The counteraction effect of earlywood vessel belt on creep behavior is also weakened at 80 °C and the effect of temperature on wood creep behavior was more remarkable. Instantaneous elastic deformation (P1) of Specimen D was greater than that of Specimen A, B and C at 20 °C and it became smaller with further increase in temperature to 40, 60 and 80 °C. In addition, the variation rule of instantaneous elastic deformation (β1) of Specimen A, B and C using Five-parameter model shown in Table 3 was similar with that of Burger model. Moreover, the correlation coefficient (R2) fitted using Five-parameter model was greater than that of Burger model under the same distribution of earlywood vessel belt condition (Tables 2 and 3).

Fig. 9
figure 9

Comparison between the model simulation and experimental points of white oak specimens with various distributions of earlywood vessel belt

Conclusion

This work systematically investigated the effects of existence and distribution of earlywood vessel belt on creep behavior of white oak under the double cantilever bending condition. Results revealed that existence and distribution of earlywood vessel belt significantly affected creep behavior of white oak. Instantaneous strain and the 45-min strain of white oak specimens were decreased with increase in distance earlywood vessel belt and stress acting surface and increased with increase in temperatures. A counteraction effect was obtained in creep behavior of white oak due to the existence of earlywood vessel belt and decreased with increase in distance between earlywood vessel belt and stress acting surface and temperature. Both Burger model and Five-parameter model can predict the effects of temperature, existence and distribution of earlywood vessel belt on creep behavior of wood. Moreover, Five-parameter model showed a better fitting effect than Burger model according to the R2 value. It was concluded that the introduction of a non-linear creep strain growth expression exhibited greater agreement with the experimental data of creep behavior of wood.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

ɛ(t):

The strain of white oak specimen

t :

Time

σ :

Stress

E 0 :

The universal elastic modulus reflects the instantaneous response (i.e., ideal elasticity)

E 1 :

The high elastic modulus

ƞ 1 :

The viscoelasticity coefficient reflects the lag elastic deformation

ƞ 2 :

The bulk viscosity reflects the unrecoverable deformation left in the recovery process after the removing of external forces

p 1 :

The instantaneous elastic deformation in Burger model

p 2 :

The delayed elastic deformation in Burger model

p 3 :

The bulk viscosity in Burger model

p 4 :

The viscosity coefficient in Burger model

β 1 :

The instantaneous elastic deformation in Five-parameter model

β 2 :

The delayed elastic deformation in Five-parameter model

β 3 :

The viscoelasticity coefficient in Five-parameter model

β 4 :

The viscosity coefficient in Five-parameter model

β 5 :

An additional parameter, which solves the problem of viscosity part nonlinearity in Five-parameter model, and it has no practical significance

R 2 :

Correlation coefficient
