Prediction of cellulose nanofibril (CNF) amount of CNF/polypropylene composite using near infrared spectroscopy

Abstract

The final goal of this study is to establish a classification method of cellulose nanofibril (CNF)/plastic composites such as their CNF amount, CNF types, and resin types, which are expected to progress the commercialization in the future, using near infrared (NIR) spectroscopy. To achieve this goal, NIR spectra of injection and film samples with different types and addition ratios of CNFs in CNF/polypropylene (PP) composites were measured and analyzed in the range of 1000–2200 nm. The results of the principal component analysis using all samples suggest that CNF addition ratio and sample shape could be expressed by principal component (PC) 1 and PC2 scores, which relate to the chemical components of PP and CNF complexly. Furthermore, the partial least-squares (PLS) regression model was able to predict the CNF addition ratio with about 2.0% accuracy, regardless of CNF type and sample shape. To develop an easier model compared to the PLS model, it was calculated to the simple linear regression model, which used the absorbance quotient of optimum wavelengths combination (OWC). Although this model did not have the accuracy to use the quality control, it is able to discriminate CNF addition ratio of CNF/PP composites with almost the same accuracy as the PLS model. However, if it is possible to separate the sample shapes before the analysis, it is suggested that the OWC regression model is able to predict CNF addition ratio of CNF/PP composites with less than 1% accuracy.

Introduction

The production of cellulose nanofibril (CNF)/plastic composites gains attention due to their better physical and mechanical properties [1,2,3]. Furthermore, CNF has some benefit compared to other fibers to use plastic composites such as biodegradability and renewability. The global market of nanocellulose-added composite materials including CNF/plastic composites was 390.8 metric ton (MT) in 2020 and the volume is expected to reach 922.5 MT in 2026 [4]. However, this rapid increase may possibly result in CNF/plastic composites causing excessive waste in the near future. Therefore, it is necessary to find the effective and efficient recycling method of CNF/plastic composites. The products of commercial plastics and plastic composites have been successfully recycled from end products such as automobile parts, appliances, and films. Mastellone [5] reported that the recycling methods of plastics could be allocated to four major categories, viz., re-extrusion (primary), mechanical (secondary), chemical (tertiary) and energy recovery (quaternary). In these categories, re-extrusion and mechanical recycling are waste plastic reusing methods without a chemical reaction process. The advantage of the recycled plastics and composites is that they can be easily applied to the same purpose as original products though these methods. It was reported that the plastic composites with cellulose-based materials did not decrease physical and mechanical properties after these types of recycling [6, 7]. Thus, it is considered that these recycling methods are suitable for CNF/plastic composites. To conduct these types of recycling effectively, it is required to classify the composites into the smallest possible groups such as groups of resin types and additive types in advance.

Many researchers have reported that the optimum CNF addition ratio on CNF/plastic composites varied in each type of physical and mechanical properties. For example, the Young’s modulus of these composites increased with increasing CNF addition ratio [8,9,10,11]. On the other hand, their elongation and toughness decreased with an increase in CNF addition ratio. In addition, it was reported that there was an optimum CNF addition ratio to maximize the cell density and minimize the cell diameter of CNF/polypropylene (PP) foam [12]. These properties are also influenced by CNF and the types of plastic; however, these reports suggest that the classification of CNF/plastic composites in each CNF addition ratio is important when the re-extrusion and mechanical recycling are conducted. Therefore, near infrared (NIR) spectroscopy is focused on this study.

NIR spectroscopy is a non-destructive analytical method based on the reflectance or absorption of electromagnetic radiation at wavelength range of 800–2500 nm (12,500–4000 cm−1) [13]. Since NIR spectra allow clear discrimination of various organic compounds, NIR spectroscopy is known to be a useful technique for discriminating different types of wood-based materials, plastics and these wastes [14,15,16,17,18]. Therefore, it is considered that NIR spectroscopy would have a potential to evaluate the quantity of CNF from CNF/plastic composite. Furthermore, the practical use of CNF/plastic composite classification using NIR spectroscopy should be easily implemented, because a plastic sorting device using this method has been already used in the industry.

The final goal of this study is to establish a discrimination method of CNF/plastic composites using NIR spectroscopy. In this study, NIR spectra of CNF/PP composites with various CNF addition ratio were measured and the prediction models for CNF addition ratio were evaluated. We selected PP for the base plastic in this study because PP is one of the most common plastic bases of composite material. Absorption and scattering in the NIR region are strongly affected by the thickness of the material; however, the shapes and thickness of CNF/plastic composite wastes would not be uniform. Therefore, NIR spectra of CNF/PP composites with two kinds of sample shapes and two types of CNFs were investigated.

Material and methods

Materials

Table 1 shows the detail of sample conditions, viz., sample name, the shape of the sample, CNF type, CNF addition ratio, and the number of samples. In this study, two kinds of CNFs which are the trial products of companies made by mechanical processes (called CNF-A and CNF-B in this study) were prepared to investigate the effect of CNF types. Although there is also a mixture of around 10–100 nm width and a few µm length CNFs, the raw materials of these CNFs are different. These types of CNFs are defined in ISO/TS 21346:2021 [19]. Before making samples, pellets were made of one type of PP and each of CNFs by Toclas Corporation in Japan. In the pellets with CNF-A, the CNF addition ratio was adjusted to 0, 1.0, 3.1, 5.0, 6.2, 10, and 20 wt%. On the other hand, the addition ratios in the pellets with CNF-B were 0, 1.0, 2.0, 3.3, 5.0, 6.5, 8.0, and 10 wt%.

Table 1 The details of sample conditions: sample name, sample shape, cellulose nanofibril (CNF) types, CNF addition ratios, and number of samples

Sample preparation

Each of the pellets including CNF-A of 0, 1.0, 3.1, 5.0, and 6.2 wt% or CNF-B of 0, 1.0, 2.0, 3.3, 5.0, 6.5, 8.0, and 10 wt% was molded to an injection sample (60 × 10 × 3 mm) with an injection pressure of 5 MPa at 200 °C using an injection-molding machine (Babyplast 6/10P, Cronoplast, Italy). In this study, the injection samples made of the pellets with CNF-A and with CNF-B were called Injection-A and Injection-B, respectively. Furthermore, the pellets with CNF-A of 0, 5.0, 10 and 20 wt% were molded to films with size of 0.5 mm thickness and 130 mm width at 200 °C by a T-die extrusion machine (Research Laboratory of Plastics Technology Co., Ltd, Japan). Afterward, these films were cut into 150 × 10 × 0.5 mm. The film samples were called Film-A in this study. All samples were conditioned at room temperature over 1 week prior to the NIR measurement.

Measurement of NIR spectra

NIR diffuse reflectance spectra were measured using a spectrophotometer (UV-3600 Plus, Shimadzu Co. Ltd, Japan). The NIR spectra were obtained at 2 nm intervals over the wavelengths from 1000 to 2200 nm. Three scans were repeated and averaged in each sample.

Data analysis

To remove the scattering effect due to the difference of sample thickness, standard normal variate (SNV) was performed. Each sample of Injection-A, Injection-B, and Film-A were randomly split into the calibration and test sets. The number of each sample set for analysis is shown in Table 1.

A principal component analysis (PCA) was performed for SNV spectra of the calibration set to verify the spectral variation and sample parameters such as sample shape, CNF type, and CNF addition ratio. The data were analyzed in the mean-centered states before PCA.

After that, the partial least-squares (PLS) regression analysis of CNF addition ratio was performed on the basis of the mean-centered SNV spectral data of calibration set. Prediction accuracy of the PLS model was evaluated by full cross-validation and external test set.

In addition, the absorption quotient of all wavelengths in each sample was calculated using the raw spectra (\({t}_{ij}\)) as in the following equation:

$${t}_{ij}=\frac{{\uplambda }_{i}}{{\uplambda }_{j}},$$
(1)

where \({\uplambda }_{i}\) and \({\uplambda }_{j}\) are the absorbances at i and j nm, respectively.

The highest regression coefficient (R) between \({t}_{ij}\) and CNF addition ratio in CNF/PP composites was searched and then the linear regression model to predict CNF addition ratio was established using the \({t}_{ij}\) at the highest R. We defined this model as the optimum wavelength combination (OWC) regression model in this study. The OWC model was constructed to develop an easier model compared to the PLS model.

Results and discussion

Raw and SNV NIR spectra

Figure 1 shows the raw NIR spectra of each calibration set of CNF/PP composites. The baseline of all samples decreased with an increase in the CNF addition ratio, due to the increase of scattering by the CNF as a scattering medium. In film samples under the same CNF addition ratios, uneven absorbances were observed under the lower 10 wt% CNF addition ratios, especially in 1800–2200 nm wavelength, may be due to the non-uniform thickness of the sample edge caused in the cutting process. The variation in thickness was clearly shown in the low CNF addition ratio samples. In all samples, the strong peaks of second overtone CH symmetric stretching vibration (about 1210 nm) and the first overtone CH degenerate stretching vibration (about 1720 nm) were observed. The peak of the CH combined vibration of stretching and deformation (about 1410 nm) was also observed; however, this peak became weak and broad in Film-A with 20 wt% CNF addition ratio (Fig. 1c). These peaks were mainly assigned to the CH2 and CH3 groups in PP. Furthermore, a weak and broad peak increase occurred at about 2110 nm according to the increasing CNF addition ratio, attributed to the OH combined vibration of stretching and deformation derived from CNF.

Fig. 1
figure 1

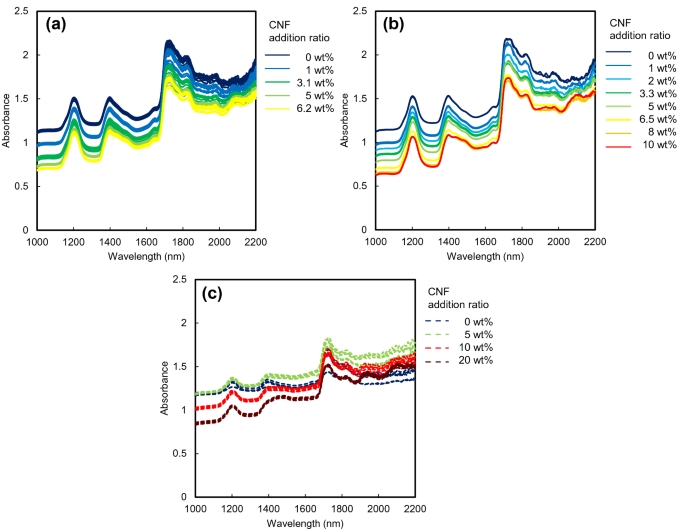

The raw near infrared (NIR) spectra of each calibration set of CNF/polypropylene (PP) composites: a Injection-A, b Injection-B, c Film-A. The details of sample conditions are shown in Table 1

Figure 2 shows the NIR spectra of each calibration set of CNF/PP composites after SNV treatment. After SNV treatment, the baseline became almost uniform regardless of CNF addition ratio. The SNV treatment reduced the variability between film samples with the same CNF addition rates (0 and 5 wt%) observed in the raw spectra (Figs. 1c, 2c). On the other hand, some films with 5 and 10 wt% CNF showed similar absorbance values. It is thought that the diffuse reflection by NIR ray decreases in thinner samples. It may also be strongly affected by topical CNF aggregation. In addition to the chemical peaks shown in raw NIR spectra, a weak and broad peak was observed around 1490 nm (intermolecular and intramolecular hydrogen bonds in CNF) and about 1930 nm (OH combination vibration of asymmetric stretching and deformation band) in SNV-NIR spectra. According to increase in CNF addition ratio, the peaks derived from PP decreased, whereas these from CNF increased. On comparing the sample shapes, the spectral shapes of Injection-A and B were almost the same (Fig. 2a, b). In this study, the base plastic and sample shapes were the same in all injection samples. Thus, it is natural that the absorption of Injection-A and B without CNF is almost the same. A difference in absorbance of NIR between Infection-A and Infection-B including different kinds of CNFs was also not observed. This result suggests that CNF kinds do not affect the CNF/PP composites on the NIR spectra. The base material of these CNFs was different; however, their size and might not be significantly different in this study. CNF has significantly different size and shape types, such as TEMPO-oxidized CNF [20]. This type of CNF is prepared by the chemical modification process and has 3–4 nm width and the characteristic functional groups on the outer surface of the fibril. It is called individualized CNF in ISO/TS 21346:2021 [19]. Hence, it will be necessary to confirm the spectra of composites using these types of CNFs for clarification of the effect of CNF types in the future. Furthermore, the absorbance changes of films (Fig. 2c) were smaller than those of injections (Fig. 2a, b). This is the effect of the sample thickness, which can be explained by Lambert–Beer law.

Fig. 2
figure 2

The NIR spectra of each calibration set of CNF/PP composites after standard normal variate (SNV): a Injection-A, b Injection-B, c Film-A. The details of sample conditions are shown in Table 1

PCA

Figure 3 shows the result of PCA for SNV-NIR spectra with all CNF/PP composites. PC1 and PC2 described 79% and 14% of data variance, respectively. Therefore, 93% of the existing variances in all the studied spectra can be captured by two PC. As shown in Fig. 3a, the CNF addition ratio increased with an increase in the PC1 score with all samples; however, the score was different between the injection and film samples with the same CNF addition ratio. The PC2 score identified the CNF addition ratio, though it was not remarkable compared to the PC1 score. Furthermore, a difference in the PC2 score was observed between the sample shapes.

Fig. 3
figure 3

The result of principal component analysis (PCA) for SNV-NIR spectra with all CNF/PP composites: a principal component (PC)1 and PC2 score plots, b loading plots of PC1 and PC2. The details of sample conditions are shown in Table 1

In the loading plot of PC1 and PC2 (Fig. 3b), PC1 showed the highest positive loading around 2100 nm and the highest negative loading at 1760 nm. PC2 showed the highest positive loading at 1730 nm and the highest negative loading at 1930 nm. These wavelengths derived from chemical bonds of PP and CNF can be observed in the SNV-NIR spectra except for 1760 nm (Fig. 2).

The results of PCA suggest that the CNF addition ratio and sample shape could be expressed by PC1 and PC2. With these results, we deemed that it was possible to make the model to predict CNF addition ratio in CNF/PP composites. Therefore, linear regression analyses were carried out to develop the prediction model as follows.

PLS regression

The results of the PLS regression model for estimating CNF addition ratio using SNV-NIR spectra are shown in Table 2. It is required to configure an appropriate number of factors which show the same coefficient of determination (R2), standard error (SE), and the ratio of performance to standard deviation (RPD) in calibration and test sets. Furthermore, it is needed to avoid the overfitting caused. However, this model resulted in a little overfitting, may be due to the small number of samples for Injection-B and Film-A. Furthermore, it may be related to no difference of SNV-NIR spectra of some films with 5 wt% and 10 wt% CNF (Fig. 2c). In this study, the optimum number of factors, where R2, SE and RPD did not deviate significantly, was three. In this case, the RPD of cross-validation (RPDV) and prediction (RPDP) were 5.42 and 6.55, respectively. When RPD exceeds five, the model can be used for quality control in general. Even this model has the problem of overfitting; however, the prediction accuracy is sufficiently adapted to quality control of CNF content. Furthermore, a 95% reliable section is double of standard deviation (SE/√2), which was 1.26 for the calibration set (SECV) and 0.93 for the test set (SEP). Thus, it was assumed that this model could predict CNF addition ratio with about 2.0 wt% accuracy in this study.

Table 2 The results of the partial least-squares (PLS) regression model for estimating CNF addition ratio using SNV-NIR spectra

Figure 4 shows the regression plot of the optimum PLS regression models. The regression coefficient showed a high positive value at 1480 and 1930 nm and a high negative value at 1850 and 2200 nm. A lot of wavelengths of the high regression values were similar in wavelengths of the high PCA loading of the PC1 and PC2 scores (Fig. 3), especially the 1930 nm showed the highest value of regression and PC2 values.

Fig. 4
figure 4

The regression plot of the optimum PLS regression models

OWC regression

The PLS regression model in this study was able to predict the CNF addition ratio with about 2.0 wt% CNF accuracy regardless of CNF type and sample thickness. However, to apply the method to actual production line, it is desirable to establish a simple estimation method which can compute the CNF addition ratio with simple data with narrow wavelength range. It was reported that it was possible to estimate the wood flour amount in wood/plastic composite with the quotients of wood and polyethylene infrared absorption peaks [21]. It is considered that a similar method can be used for CNF/PP composite quantification in this study because of the presence of PP and CNF absorption peaks in the NIR spectra. However, a lot of peaks related to PP and CNF were observed in the NIR spectra in this study. Hence, we calculated the absorbance quotient of all wavelength combinations. Then, the linear regression model, viz., OWC regression model, was established using the best wavelength combination using raw NIR spectra. Here, the OWC models were constructed in each of the sample shape as well as the model established using all sample data.

Figure 5 shows the 2D images of R between CNF addition ratio and the raw absorbance quotients of all wavelengths combination. In the 2D image of all samples, wavelengths of 1200, 1400, and 1700–2100 nm were used for one of the wavelength combinations, resulting in high R (Fig. 5a). On the other hand, the R of the higher 0.8 was found in many combinations by the sample shape classified models (Fig. 5b, c).

Fig. 5
figure 5

The 2D images of the regression coefficient (R) between CNF addition ratio and the raw absorbance quotients of all wavelengths combination (\({t}_{ij}\)): a all, b injection shape, and c film shape samples. The details of sample conditions and \({t}_{ij}\) are shown in Table 1 and Eq. (1), respectively. The y and x axis show the wavelengths i and j in Eq. (1)

The results of the OWC regression models of each sample shape are shown in Table 3. R2, SEP, and RPDP of the OWC model of all samples were 0.93, 1.11, and 3.87, respectively. Because the RPD value is from 2.5 to 5, the model cannot be applied to the quality control in product line; however, it has a certain accuracy. Compared to the PLS model (Table 2), the RPD value was lower, whereas overfitting did not occur. Furthermore, because a 95% reliable section of this model was ± 1.57, it was able to estimate a CNF addition ratio with about 2% accuracy as well as the PLS model. In the model of injection shape samples, R2, SEP, and RPDP were 0.99, 0.11, and 24.7, respectively. On the other hand, in the model of film shape samples, R2, SEP, and RPDP were 0.99, 0.44, and 17.8, respectively. Although the sample number of films was not enough, it is assumed that the OWC model of the film could predict CNF addition ratio with less than 1 wt% CNF accuracy, because the 95% reliable section of the film samples model was 0.62 in the test set in this study. Therefore, if it is possible to classify the sample shapes before the analysis, and the OWC model can predict CNF addition ratio of CNF/PP composites of less than 1% accuracy.

Table 3 The result of optimal wavelength combination (OWC) regression models for each sample shape

The OWCs in injection, film, and combined sample models were 1518/1310, 1468/1362, and 1418/1220 nm, respectively. Looking at the optimal wavelengths of all the sample models, 1418 nm appeared between the combination of the CH stretching vibration of 1410 nm and the CH deformation vibration and the associated OH (1435–1480 nm). The other (1210 nm) was the second overtone of the CH symmetric stretching vibration. The all sample models obtained the highest R2 for the combination of the peaks related to CNF and PP as expected. The OWC in the injection sample model was observed in the combination of the wavelengths of CNF-derived absorption band (1500–1595 nm, intermolecular hydrogen bonding, associated OH and without absorption band. The film samples model was found in the combination of wavelengths of CNF-derived absorption band (1435–1480 nm) and no absorption band. In the wavelengths without chemical bands (1310, 1362 nm), the baseline significantly varied due to change in CNF addition ratio (Fig. 2). It is thought that nonchemical band wavelength became the best-contributed wavelength on these models to separate sample shape, because the effect of variation of NIR ray inside the sample is enhanced.

Conclusion

This study aimed to propose an effective and efficient method to predict CNF content of CNF/PP composites using NIR spectroscopy. Therefore, the effect of CNF type, sample shape and CNF addition ratio on NIR spectra was evaluated. The results of PCA suggest that CNF addition ratio and sample shape could be expressed by the PC1 and PC2 scores, which are related to the chemical components of PP and CNF complexly. Furthermore, the PLS regression model was able to predict the CNF addition ratio with about 2.0% accuracy regardless of CNF type and sample shape in this study. Furthermore, even though the OWC regression model of all samples is not sufficient for quality control, it has the same level of sorting accuracy as the PLS regression model. Thus, it is found that the OWC linear regression drawn through all sample data can be used to develop a simpler prediction model with similar prediction accuracy of the PLS model. If the sample shapes can be classified before the analysis, the OWC model is able to predict CNF addition ratio of CNF/PP composites with a better accuracy than 1 wt%.

They are useful results to predict the CNF addition ratio of CNF/PP composites which have higher added value than other plastics effectively and efficiently. In future studies, it is required to evaluate the effect of sample shapes, surface roughness, CNF types, CNF aggregation, CNF dispersion, and resin types and these combinations for putting into use.
