Study on the strength of glued laminated timber beams with round holes: proposal of the design formula for the splitting strength

Abstract

When a glued laminated timber (GLT) beam with a round hole is subjected to a shear force and bending moment, the hole will crack and fail due to a large tensile stress perpendicular to the grain and shear stresses. If the stresses acting on the hole are known, it is possible to estimate the fracture load. However, it is necessary to obtain the stresses acting on the hole by finite element analysis, which is very time consuming. In this study, to easily estimate the fracture load, we proposed a formula to estimate the bearing capacity at the time of a hole fracture by obtaining the stress acting on the hole through finite element analysis and an approximate formula. The validity of the proposed formula was verified using the existing experimental data of a GLT beam. As a result, it was confirmed that the proposed equation can estimate the fracture load of GLT beams in Japan and that the proposed equation can estimate the fracture load of GLT beams in countries other than Japan with some accuracy.

Introduction

When a glued laminated timber (GLT) beam with a round hole is affected by a shear force or bending moment, a large tensile stress perpendicular to the grain acts on the cracking plane, and the tensile stress decreases exponentially with the distance from the hole (Fig. 1). Since the shear force and bending moment act at the same time, a crack occurs in the range of θ = 45° to 60° in Fig. 1, where the tensile stress perpendicular to the grain is the maximum tensile stress. When there is a stress gradient, as shown in Fig. 1, it is difficult to estimate the bearing capacity at the moment of split fracture based on material mechanics. Therefore, a mean stress method (a generalization of linear elastic fracture mechanics, as shown in Fig. 2) applicable to beams with notches or holes has been proposed [1]. However, the mean stress method has a problem associated with overestimating the bearing capacity at fracture when the hole is very small or large. Therefore, the authors proposed Eqs. (1) and (2), which take the size effect into account in the mean stress method. Equations (1) and (2) were validated against GLT beams of Scots pine and Japanese larch specified in the Japanese Agricultural Standard (JAS) [2,3,4]:

$${\text{ max}}\left\{ {\sqrt {\left( {\overline{\sigma }/F_{t90} } \right)^{2} + \left( {\overline{\tau }/F_{s} } \right)^{2} } } \right\} \le k_{{{\text{vol}}}} ,$$
(1)
$$k_{{{\text{vol}}}} = \left( {\frac{30}{{{\text{max}}\left( {0.2D,30} \right)}}} \right)^{0.14} ,$$
$$x = \frac{{a_{{{\text{ms}}}} }}{{1 + \frac{{a_{{{\text{ms}}}} }}{\alpha \cdot D}}},$$
(2)
$$a_{{{\text{ms}}}} = \frac{2}{\pi } \cdot \frac{{G_{{{\text{\rm I}}c}} }}{{F_{t90}^{2} }} \cdot \sqrt {\frac{{2 \cdot E_{x} \cdot E_{y} }}{{\sqrt {\frac{{E_{x} }}{{E_{y} }}} \cdot \frac{{E_{x} }}{{2 \cdot G_{xy} }} - \nu_{xy} \cdot \frac{{E_{x} }}{{E_{y} }}}}} ,$$

where D is the diameter of the hole, Ft90 is the tensile strength perpendicular to the grain, Fs is the shear strength, \(\overline{\sigma }\) and \(\overline{\tau }\) are the mean values of the tensile stress σ and the shear stress τ perpendicular to the grain in the potential fracture area of length x (Fig. 2), kvol is the factor of the size effect, GIc is the mode I fracture energy, Ex is the modulus of elasticity parallel to the grain, Ey is the Young’s modulus perpendicular to the grain, Gxy is the shear modulus, νxy is the Poisson’s ratio, α is a constant (if the hole is small, α = 1 [3] and for D/H ≤ 0.5, α = 1 because the shape of the stress distribution is the same), and H is the beam height. Since \(\overline{\sigma }\) is the dominant stress at fracture, ams is set to the value of pure mode I.

Fig. 1
figure 1

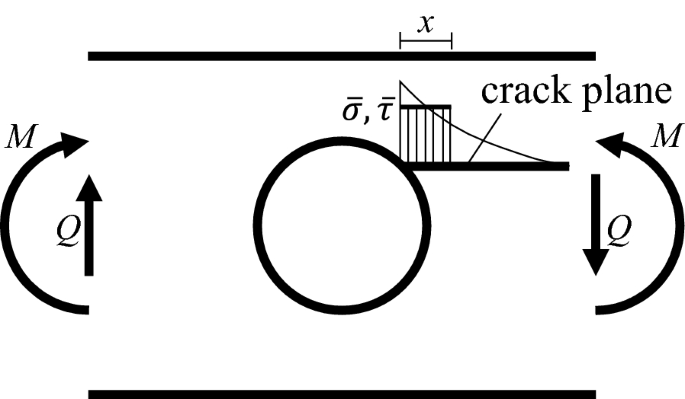

Distribution of the tensile stress perpendicular to the grain in the highest stress zone around the hole

Fig. 2
figure 2

Mean stress method

Equations (1) and (2) can be used to estimate the bearing capacity of a hole at the time of fracture, but this is very time consuming because the stresses acting around the hole must be determined by finite element analysis (FEA). Therefore, in this study, the maximum stress acting around the hole and the maximum value of the average stress over a certain length were formulated using FEA. Then, a simple calculation formula was proposed to estimate the bearing capacity at the time of a hole fracture. The validity of the formula was verified using existing experimental data. However, in the design code for laminated wood with round holes, the maximum value of the hole diameter (D)/beam height (H) is 0.5 at most [5], so D/H ≤ 0.5 is selected as the applicable range.

Materials and methods

Finite element analysis

The stresses acting on the holes in the beam were determined by two types of two-dimensional finite element analysis (2D-FEA), “analysis of stress around the hole” and “analysis of the stress distribution in the direction parallel to the grain”. The stresses acting on the holes in the beam were determined by 2D-FEA using ANSYS 18.2. The specification of the 2D-FEA was a case where only the shear force or bending moment acts on the center of the hole with D/H as a variable. Then, an approximate expression for the average stress for Eq. (1) was derived from the stresses obtained by the 2D-FEA. The details of the 2D-FEA are described below.

The numerical finite element (FE) model was set up for a case where the stress at the center of the hole was shear force only (Q= τ1BH (N), M = 0, and τ1 = 1 N/mm2) and bending moment only (Q = 0, M = τ1BH2 (N mm), and τ1 = 1 N/mm2), as shown in Fig. 3. “Edge and node parallel to the grain” is the edge and node provided to obtain the stress distribution in the direction parallel to the grain. “Edge and node parallel to the grain” is not placed in “analysis of stress around the hole”, but “edge and node parallel to the grain” is placed in “analysis of stress distribution in the direction parallel to the grain”. “Edges and nodes parallel to the grain” were located every 0.01D in the range of y = 0.25D (at θ = 60° in Fig. 1) to y = 0.4D (at θ = 36.9° in Fig. 1) perpendicular to the grain (y-direction) from the center of the hole. The D/H values were set to 0.05, 0.1, 0.2, 0.3, 0.4, and 0.5. However, analysis of D/H values of 0.6, 0.7, 0.8, and 0.9 was also performed for reference only in “analysis of stress around the hole”. Since the stresses around the hole when the shear force of Q = τ1BH (N) or the bending moment of M = τ1BH2 (N mm) acts on the beam are the same even if the beam height H is different, H = 300 mm was used. The material parameters of the elements were determined in the same way as in [3, 4]. The results are the same even if the value of the Young's modulus Ex in the fiber direction is different, but for the time being, Ex = 10,000 N/mm2 was used. The Young's modulus perpendicular to the grain was set to Ey = Ex/25, the shear modulus was set to Gxy = Ex/15, and the Poisson's ratio was set to νxy = 0.4. The wood was treated as a four-node planar element, and the elements were less than 5 mm (H/60). The range of 10 mm (H/30) from the hole was divided into small sections so that the nodes were placed at less than one degree. The mesh size of the FE model for “analysis of stress around the hole” is shown in Additional file 1: Fig. S1. The mesh size of the FE model for "analysis of the stress distribution in the direction parallel to the grain" is shown in Additional file 1: Fig. S2. The elements were very finely divided around only the hole, so some 3-node planar elements were placed. For the numerical FE results, when all the elements were reduced in size and the number of elements was doubled, the error in the stress around the holes was less than 1%, so we concluded that the optimal solution could be obtained by the element division shown in Additional file 1: Figs. S1 and S2.

Fig. 3
figure 3

Geometry and material properties of the FE model. "Edges and nodes parallel to the grain" is not placed in "(1) Analysis around the hole"

Experimental data for beams with round holes

The existing experimental data [3, 4, 6,7,8,9,10,11,12,13] of a GLT beam with only one round hole with D/H ≤ 0.5 in the center were used to verify the validity of a simple calculation formula to estimate the bearing capacity at the time of a hole fracture. Table 1 shows the experimental data for GLT beams in Japan [3, 4, 6, 7], and Table 2 shows the experimental data for GLT beams in countries other than Japan [8,9,10,11,12,13]. Table 2 uses the values summarized in detail by Danielsson [14].

Table 1 Experimental data of GLT beams with round holes in Japan
Table 2 Experimental data of GLT beams with round holes from outside Japan [14]

Material properties

Ex, Fs, Ft90, and GIc used in Eqs. (1) and (2) were obtained from the density of the wood in the area where a hole was provided. Ey, Gxy, and νxy were the same as those in the 2D-FEA, with Ey = Ex/25, Gxy = Ex/15, and νxy = 0.4. The density of the wood in the hole area was set to 522 kg/m3 for OKAc[4], 458 kg/m3 for PEN [9], 489 kg/m3 for HOF [12], and 471 kg/m3 for AIC [13], as shown in Tables 1 and 2. OKAa [3], OKAb [3], KAR [6], and HIJ [7] are GLT beams composed of heterogeneous grades, and the density of the wood in the area where a hole is provided is not known. Therefore, the density was estimated from the grade of the inner layer lamina (D/H = 0.3 at H = 150 mm for OKAa [3] and OKAb [3] is the middle layer lamina) in the area where the hole is provided. Figure 4 shows the relationship between the grade L and density ρ of the specimens extracted from the existing experimental lamina data [15]. The density of the lamina was taken as obtained from the least-squares approximation line in Fig. 4, which is 446 kg/m3 for the inner lamina of OKAa [3] and OKAb [3] with L80, 482 kg/m3 for the middle layer lamina of OKAa [3] and OKAb [3] with L100, and 464 kg/m3 for the inner lamina of KAR [6] and HIJ [7] with L90. BEN [8] and JOH [10] are assumed to be equivalent to PEN [9] of the same grade, so 458 kg/m3 is used. HAL [11] ranges from 350 to 550 kg/m3, so an intermediate value of 450 kg/m3 is used.

Fig. 4
figure 4

Relationship between lamina grade L and density ρ

Ex was obtained from the density ρ of wood using Eq. (3) [16]:

$${ }E_{x} \left( {{\text{N}}/{\text{mm}}^{2} } \right) = 23.536 \times \rho \left( {{\text{kg}}/{\text{m}}^{3} } \right) .$$
(3)

Figure 5 shows a comparison of the results of Eq. (3) with existing intensity data [17, 18] and previous experimental data [3]. Since the lamina grade shows the lower limit, using the least-squares approximation line in Fig. 4 and Eq. 3 results in a value higher than the lamina grade.

Fig. 5
figure 5

Relationship between the modulus of elasticity, parallel to grain Ex and density ρ

Fs was obtained from the density ρ of wood using Eq. (4) [19]:

$${ }F_{s} \left( {{\text{N}}/{\text{mm}}^{2} } \right) = 0.02256 \times \rho \left( {{\text{kg}}/{\text{m}}^{3} } \right) - 2.97.$$
(4)

Figure 6 shows a comparison of Eq. (4) with existing intensity data [17, 18] and previous experimental data [3, 4].

Fig. 6
figure 6

Relationship between shear strength Fs and density ρ

Ft90 was obtained by multiplying Fs by a constant. According to the “Standard for Structural Design of Timber Structures” (Japan) [20], Fs was multiplied by 1/3 to obtain Ft90, so the constant was set to 1/3. However, Ft90 of Japanese larch is low [3], and a load of splitting fracture perpendicular to the grain against the density has also been confirmed to be lower in Japanese larch than in spruce, Japanese cedar, and Douglas fir [21]. Therefore, the constant was determined separately for Japanese larch. Figure 7 shows a comparison of the calculated values of Ft90 with existing intensity data [17] and experimental data from the authors' previous studies [3, 4, 22]. Figure 8 shows a schematic diagram of the test method used to determine Ft90 in the authors' previous studies [3, 4, 22]. In the studies of beams with round holes [3, 4], a specimen height of h = 150 mm was used, but in the study of the tension perpendicular to the grain strength of the GLT beams of Scots pine [22], a specimen height of h = 100 mm was found to be optimal. Although the optimum value of specimen height h for Japanese larch is not known, Fig. 7 shows the experimental values for h = 150 mm [3] and new experimental values for h = 100 mm. Since the experimental values of h = 100 mm and h = 150 mm for larch are almost the same, it was assumed that h = 100 mm and h = 150 mm are the optimum values for Ft90. Then, based on the results in Fig. 7, the constant multiplied by Fs for Japanese larch was set to 1/4.

Fig. 7
figure 7

Relationship between the tensile strength perpendicular to the grain Ft90 and density ρ

Fig. 8
figure 8

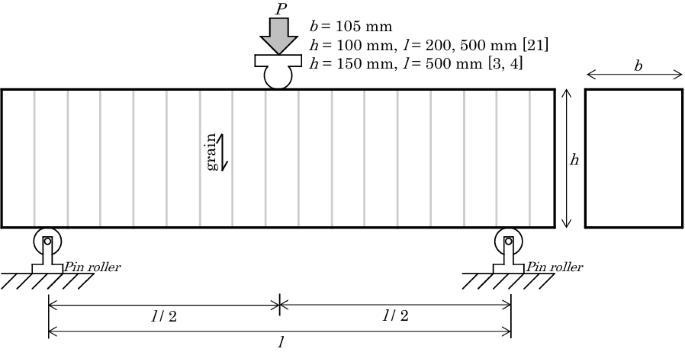

Bending test method of tensile strength perpendicular to the grain

Equation (5) was used to obtain GIc from the density ρ of wood [23]:

$${ }G_{{{\text{\rm I}}c}} \left( {{\text{N}} \cdot {\text{m}}/{\text{m}}^{2} } \right) = 1.07 \times \rho \left( {{\text{kg}}/{\text{m}}^{3} } \right) - 162.$$
(5)

Figure 9 shows a comparison of the results from Eq. (5) with the experimental data from the authors’ previous studies [3, 4, 24]. Since Japanese larch has low GIc and Ft90 values, we decided to use the value obtained by multiplying Eq. (5) by 3/4 as the same reduction for Ft90.

Fig. 9
figure 9

Relationship between mode I fracture energy GIc and density ρ

Results and discussion

FE results

(1) Analysis around the hole

The tensile stresses perpendicular to the grain σQ and σM and the shear stresses τQ and τM acting around the hole obtained from the analysis in Fig. 3 and Additional file 1: Fig. S1 are shown in Fig. 10. The stresses when only shear force Q acts on the center of the hole are σQ and τQ, and the stress levels when only bending moment M acts on the hole are σM and τM. The vertical axis represents the stress/maximum stress, with the maximum value normalized to 1.0. The horizontal axis represents y/D. The stresses acting on the hole are symmetric or inversely symmetric with respect to the center of the hole [4], so only a quarter of the hole is shown in Fig. 10. From Fig. 10, it was found that the stress distribution is different from D/H of 0.6 or more but almost the same when D/H is 0.5 or less. This indicates that there is a possibility to approximate the stress distribution with a simple equation when D/H is 0.5 or less.

Fig. 10
figure 10

Stress around the hole with maximum stress normalized to 1.0. a Tensile stress perpendicular to the grain. b Shear stress parallel to the grain

Therefore, the coefficients αQ and αM for finding Q = αQτ1BH and M = αMτ1BH2 acting when the maximum values of σQ and σM are almost 1.0 N/mm2 were derived from σQ, max and σM, max in Fig. 10. αQ is shown in Eq. (6), and αQ is shown in Eq. (7). Equations (6) and (7) were obtained by trial and error to make them as simple as possible:

$${ }\alpha_{Q} = \frac{1}{{3 \cdot \left( {D/H} \right)^{2} + 2}} \left( {D/H \le 0.5} \right) ,$$
(6)
$${ }\alpha_{M} = \frac{1.5}{{D/H}} \left( {D/H \le 0.5} \right).$$
(7)

σQ and τQ when Q = αQτ1BH and σM and τM when M = αMτ1BH2 are shown in Fig. 11. σQ, max is at y ≈ 0.38D and σM, max is at y ≈ 0.25D. Additional file 1: Table S1 shows the coefficients obtained by regressing the stress distribution of σQ, σM, τQ and τM in the range of 0.2D ≤ y ≤ 0.4D in Fig. 11 with the 5th-order polynomial in Eq. (8):

$${ }\sigma_{Q} ,\sigma_{M} ,\tau_{Q} ,\tau_{M} = \mathop \sum \limits_{k = 0}^{5} a_{k} \cdot \left( \frac{y}{D} \right)^{k} .$$
(8)
Fig. 11
figure 11

Stress around the hole normalized by αQ or αM

The effect of σ on the splitting fracture of the hole is very large, while the effect of τ is very small (since kτ = 1.015–1.075 in Eq. (17), the effect of shear stress is approximately 1.5–7.5%). Therefore, it is assumed that the splitting fracture of the hole is in the range of 0.25 ≤ y/D ≤ 0.40 (30° ≤ θ ≤ 53° in Fig. 1) to derive the bearing capacity formula.

(2) Analysis of the stress distribution in the direction parallel to the grain

A part of the stress distributions of σQ, σM, τQ and τM in the direction parallel to the grain (x-direction) obtained from the analysis of Fig. 3 and Additional file 1: Fig. S2 is shown in Additional file 1: Fig. S3. The abscissa is x/D, and the stress distribution originates around the hole. The stress when only shear force Q acts on the center of the hole is σQ and τQ, and the stress level when only bending moment M acts on the hole is σM and τM. In the case of D/H = 0.5, there was a slight deviation, but the stress distributions were almost the same. Additionally, although not shown in the figure, the stress distributions were almost the same except when y/D = 0.25 and 0.40. This indicates that it is possible to approximate the stress distribution with a simple equation. Additional file 1: Tables S2 and S3 show the coefficients obtained by regressing the stress distributions of σQ, σM, τQ and τM in the direction parallel to the grain (x-direction) in the range of 0.0 ≤ x/D ≤ 0.5 obtained from the analysis in Fig. 3 and Additional file 1: Fig. S2 with the 5th-order polynomial in Eq. (9):

$${ }\sigma_{Q} ,\sigma_{M} ,\tau_{Q} ,\tau_{M} = \mathop \sum \limits_{k = 0}^{5} a_{k} \cdot \left( \frac{x}{D} \right)^{k} .$$
(9)

Figure 12 (A case of D/H = 0.3) shows a part of the result of the calculation obtained by Eq. (9) and Additional file 1: Tables S2 and S3. The average stress in the length x in the direction parallel to the grain can then be obtained by Eq. (10) using the coefficients in Additional file 1: Tables S2 and S3:

$${ }\overline{\sigma }_{Q} ,\overline{\sigma }_{M} ,\overline{\tau }_{Q} ,\overline{\tau }_{M} = \mathop \sum \limits_{k = 0}^{5} \frac{{a_{k} }}{k + 1} \cdot \left( \frac{x}{D} \right)^{k} .$$
(10)
Fig. 12
figure 12

Results of the calculations using Eq. (9) and Additional file 1: Tables S2 and S3 for the stress distribution. D/H = 0.3. a Tensile stress perpendicular to the grain; b shear stress parallel to the grain

Formulation of the maximum stress acting around the hole

\(\overline{\sigma }_{Q}\), \(\overline{\tau }_{Q}\), \(\overline{\sigma }_{M}\) and \(\overline{\tau }_{M}\) can be obtained from Eq. (10) by finding the constant length x in the direction parallel to the grain in Eq. (2) and from Q and M acting on the hole. Then, it is possible to determine the bearing capacity of the hole at the time of splitting fracture using Eq. (1) via \(\overline{\sigma } = \overline{\sigma }_{Q} + \overline{\sigma }_{M}\) and \(\overline{\tau } = \overline{\tau }_{Q} + \overline{\tau }_{M}\). However, the left side of Eq. (1) is very time consuming to compute because the maximum value needs to be obtained. Therefore, it was decided to formulate the maximum value of the left side of Eq. (1) and derive a relatively simple equation for determining the bearing capacity at the time of splitting fracture of a hole. The left side of Eq. (1) is difficult to formulate because it is a compound stress equation and therefore cannot be obtained from the maximum values of \(\overline{\sigma }\) and \(\overline{\tau }\). Therefore, since the effect of τ on the splitting fracture of a hole is very small (since kτ = 1.015 to 1.075 in Eq. (17), the effect of shear stress is approximately 1.5% to 7.5%), and we decided to change the left side of Eq. (1) to Eq. (11) and formulate it by expressing the effect of τ in terms of the incremental coefficient of stress:

$${ }\frac{{k_{\tau } \cdot \overline{\sigma }_{{{\text{max}}}} }}{{F_{t90} }} = {\text{max}}\left\{ {\sqrt {\left( {\frac{{\overline{\sigma }}}{{F_{t90} }}} \right)^{2} + \left( {\frac{{\overline{\tau }}}{{F_{s} }}} \right)^{2} } } \right\}.$$
(11)

(1) Maximum value of σ around the hole

Since the maximum value of σQ when Q = αQτ1BH (τ1 = 1 N/mm2) is 1 N/mm2 and the maximum value of σM when M = αMτ1BH2 (τ1 = 1 N/mm2) is 1 N/mm2, the maximum values of σQ and σM can be obtained using Eqs. (12) and (13):

$${ }\sigma_{{Q,{\text{max}}}} = \frac{{3 \cdot \left( {D/H} \right)^{2} + 2}}{B \cdot H} \cdot Q ,$$
(12)
$${ }\sigma_{{M,{\text{max}}}} = \frac{D/H}{{1.5 \cdot B \cdot H^{2} }} \cdot M.$$
(13)

\(\sigma = \sigma_{Q} + \sigma_{M}\), but \(\sigma_{{{\text{max}}}} = \sigma_{{Q,{\text{max}}}} + \sigma_{{M,{\text{max}}}}\) is not true. Therefore, the FE results in Eq. (9) and Additional file 1: Table S2 can be used to obtain the relationship between M/(QH) and σmax by determining the relationship between M/(QH) and σ for y = 0.25D to 0.40D, as shown in Additional file 1: Fig. S4 (a case of D/H = 0.3). Then, an approximation formula for σmax (Eq. (14)) using Eqs. (12, 13) was created by trial and error to make the formula as simple as possible:

$${ }\sigma_{{{\text{max}}}} = \sigma_{{Q,{\text{max}}}} + \sigma_{{M,{\text{max}}}} \cdot k_{M/Q} ,$$
(14)
$$k_{M/Q} = \frac{0.7}{{\frac{Q \cdot H}{M} \cdot \frac{H}{D} + 1}} + 0.3.$$

A comparison between the FE results for σmax and the calculation results of Eq. (14) is shown in Fig. 13. It was confirmed that the results can be estimated with good accuracy in the range of M/(QH) = 1–100.

Fig. 13
figure 13

Comparison of the FEA results (Fig. 16) and calculated values (Eq. (14)) for σmax. σmax is the stress when Q = τ1BH and M = τ1BH2 are acting

(2) Maximum value of \(\overline{\user2{\sigma }}\) around the hole

Using the FE results in Eq. (10) and Additional file 1: Table S2, we obtained the relationship between x/D and \(\overline{\sigma }\) for y = 0.25D to 0.40D, as shown in Additional file 1: Fig. S5 (a case of D/H = 0.3, M/(QH) = 0.1, 5, 10, 100). We obtained the relationship between x/D and \(\overline{\sigma }_{{{\text{max}}}}\) for each M/(QH). Then, an approximation formula for \(\overline{\sigma }_{{{\text{max}}}}\) (Eq. (15)) using Eqs. (1214) was created by trial and error to make the formula as simple as possible:

$${ }\overline{\sigma }_{{{\text{max}}}} = \sigma_{{Q,{\text{max}}}} \cdot k_{{Q,{\text{ms}}}} + \sigma_{{M,{\text{max}}}} \cdot k_{M/Q} \cdot k_{{M,{\text{ms}}}} ,$$
(15)
$$k_{{Q,{\text{ms}}}} = \frac{1}{1 + 1.8 \cdot x/D},$$
$$k_{{M,{\text{ms}}}} = 1.6 \cdot k_{{Q,{\text{ms}}}} - 0.6.$$

A comparison between the FE results for \(\overline{\sigma }_{{{\text{max}}}}\) and the calculation results of Eq. (15) is shown in Fig. 14. (A case of D/H = 0.3. All results are shown in Additional file 1: Fig. S6.) It was confirmed that the results can be estimated with good accuracy in the range of M/(QH) = 0.1–100, although there is a slight shift when x/D is large.

Fig. 14
figure 14

Comparison of the FEA results and calculated values (Eq. (15)) for \(\overline{\sigma }_{{{\text{max}}}}\). D/H = 0.3. \(\overline{\sigma }_{{{\text{max}}}}\) is the stress when Q = τ1BH is acting

(3) Maximum value of \(\overline{\user2{\sigma }}\) incorporating the effect of shear stress around the hole

The effect of the shear stress is determined by Eq. (16), which is the reformulation of Eq. (11) obtained using the FE results in Eq. (10) and Additional file 1: Tables S2 and S3:

$${ }k_{\tau } \cdot \overline{\sigma }_{{{\text{max}}}} = {\text{max}}\left\{ {\sqrt {\left( {\overline{\sigma }_{Q} + \overline{\sigma }_{M} } \right)^{2} + \left( {\frac{{\overline{\tau }_{Q} + \overline{\tau }_{M} }}{{F_{s} /F_{t90} }}} \right)^{2} } } \right\} .$$
(16)

The FE results in Eq. (10) and Additional file 1: Tables S2 and S3 were used to obtain the relationship between x/D and \(k_{\tau } \cdot \overline{\sigma }\) for y = 0.25D to 0.40D, as shown in Additional file 1: Fig. S7 (a case of D/H = 0.3, Fs/Ft90 = 3.0, and M/(QH) = 0.1, 5, 10, 100). We obtained the relationship between x/D and \(k_{\tau } \cdot \overline{\sigma }_{{{\text{max}}}}\) for each M/(QH). Then, an approximation formula for kτ (Eq. (17)) was created by trial and error to make the formula as simple as possible. However, since we judged from Fig. 9 that Fs/Ft90 = 3 to 4, we only obtained kτ for the cases of Fs/Ft90 = 3.0, 3.5, and 4.0:

$${ }k_{\tau } = A + B \cdot e^{{ - 0.1 \cdot \frac{M}{QH}}} ,$$
(17)

where A = 1.025 and B = 0.05 for Fs/Ft90 = 3.0. A = 1.02 and B = 0.035 for Fs/Ft90 = 3.5. A = 1.015 and B = 0.025 for Fs/Ft90 = 4.0.

Comparisons between the FE results for \(k_{\tau } \overline{\sigma }_{{{\text{max}}}}\) and the calculation results of Eqs. (1215) and (17) are shown in Fig. 15. (A case of D/H = 0.3, Fs/Ft90 = 3.0. All results are shown in Additional file 1: Figs. S8–10.) It was confirmed that the results can be estimated with good accuracy in the range of M/(QH) = 0.1–100, although there is a slight shift when x/D is large. kτ = 1.025 to 1.075 for Fs/Ft90 = 3.0, kτ = 1.02 to 1.055 for Fs/Ft90 = 3.5, and kτ = 1.015 to 1.04 for Fs/Ft90 = 4.0, thereby indicating that the effect of shear stress is small.

Fig. 15
figure 15

Comparison of the FEA results and calculated values (Eq. (15, 17)) for \(k_{\tau } \overline{\sigma }_{{{\text{max}}}}\). D/H = 0.3, Fs/Ft90 = 3.0. \(k_{\tau } \overline{\sigma }_{{{\text{max}}}}\) is the stress when Q = τ1BH is acting

(4) Maximum value of \(\overline{\user2{\sigma }}\) around the hole in GLT beams composed of heterogeneous grades

When a hole is made in the inner lamina of a GLT beam composed of heterogeneous grades, the stress acting on the hole is smaller than that of a GLT beam composed of homogeneous grades [4]. By multiplying the stress acting on the hole in the GLT beam composed of homogeneous grades by the reduction coefficient in Table 3 [4], as shown in Fig. 16, the stress acting on the hole in the inner lamina of the GLT beam composed of heterogeneous grades in JAS [2] can be obtained. The reduction coefficient from Table 3 to Eqs. (12), (12–15), and (17) can be added, and the design equation for splitting fracture of a hole in a GLT beam with a round hole is given in Eq. (18):

$${ }\frac{{k_{\tau } .\overline{\sigma }_{{{\text{max}}}} }}{{F_{t90} \cdot k_{{{\text{vol}}}} }} \le 1,$$
(18)
$$k_{{{\text{vol}}}} = \left( {\frac{30}{{{\text{max}}\left( {0.2D,30} \right)}}} \right)^{0.14} ,$$
$$k_{\tau } = A + B \cdot e^{{ - 0.1 \cdot \frac{M}{QH}}} ,$$
$$\overline{\sigma }_{{{\text{max}}}} =\, \sigma_{{Q,{\text{max}}}} \cdot k_{{Q,{\text{ms}}}} \cdot k_{{Q,{\text{comp}}}} + \sigma_{{M,{\text{max}}}} \cdot k_{M/Q} \cdot k_{{M,{\text{ms}}}} \cdot k_{{M,{\text{comp}}}} ,$$
$$\sigma_{{Q,{\text{max}}}} = \frac{{3 \cdot \left( {D/H} \right)^{2} + 2}}{B \cdot H} \cdot Q,$$
$$\sigma_{{M,{\text{max}}}} = \frac{D/H}{{1.5 \cdot B \cdot H^{2} }} \cdot M,$$
$$k_{M/Q} = \frac{0.7}{{\frac{Q \cdot H}{M} \cdot \frac{H}{D} + 1}} + 0.3,$$
$$k_{{Q,{\text{ms}}}} = \frac{1}{1 + 1.8 \cdot x/D},$$
$$x = \frac{{a_{{{\text{ms}}}} }}{{1 + \frac{{a_{{{\text{ms}}}} }}{D}}},$$
$$a_{{{\text{ms}}}} = \frac{2}{\pi } \cdot \frac{{G_{{{\text{\rm I}}c}} }}{{F_{t90}^{2} }} \cdot \sqrt {\frac{{2 \cdot E_{x} \cdot E_{y} }}{{\sqrt {\frac{{E_{x} }}{{E_{y} }}} \cdot \frac{{E_{x} }}{{2 \cdot G_{xy} }} - \nu_{xy} \cdot \frac{{E_{x} }}{{E_{y} }}}}} ,$$
$$k_{{M,{\text{ms}}}} = 1.6 \cdot k_{{Q,{\text{ms}}}} - 0.6,$$
Table 3 Stress reduction factor for GLT beams composed of heterogeneous grade [4]
Fig. 16
figure 16

Stress distribution in the direction parallel to the grain, Hetero. and Homo. [4]. a Tensile stress distribution perpendicular to the grain. b Shear stress parallel to the grain

where D/H ≤ 0.5. A = 1.025 and B = 0.05 for Fs/Ft90 = 3.0. A = 1.02 and B = 0.035 for Fs/Ft90 = 3.5. A = 1.015 and B = 0.025 for Fs/Ft90 = 4.0. kQ, comp and kM, comp are 1.0 for GLT composed of homogeneous grade, and Table 3 gives the results for GLT composed of heterogeneous grade [4].

Validation of the formulas

Ex, Ey, Gxy, Fs, Ft90 and GIc were obtained from the density ρ of the existing experimental data [3, 4, 6,7,8,9,10,11,12] in Tables 1 and 2, and the splitting fracture load of GLT beams with a round hole was calculated from Eq. (18). A comparison of the experimental values of the initial crack load and maximum load with the calculated values of the splitting fracture load is shown in Fig. 17. The calculated values were compared with the experimental values of the GLT beams from Japan (Table 1), and for the initial crack load of the experimental values, OKAc [4] and HIJ [7] were approximately the same as the calculated values, but OKAa [3] and OKAb [3] were lower than the calculated values. For the maximum load of the experimental values, KAR [7] was approximately the same as the calculated value, but OKAa [3], OKAb [3], OKAc [4], and HIJ [7] were lower than the calculated values. The experimental and calculated values of GLT beams from countries other than Japan (Table 2) were compared, and the experimental values were approximately the same as the calculated values at the maximum load except for HOF [12]. However, some of the calculated values were slightly higher than the experimental values for the initial crack load. For HOF [12], the calculated value was higher, but the reason for this is not known.

Fig. 17
figure 17

Checking the validity of Eq. (18)

For reference, we compared the calculated values of Eq. (18) with that of the existing design code for the experimental data shown in Tables 1 and 2. The existing design codes are the design method of the "end-notched beam analogy method" in Limträhandbok [5], the design method in DIN EN 1995-1-1/NA [25] and Limträhandbok [26], and the Weibull-based design proposal by Aicher and Höfflin [27]. The values of Fs and Ft90 used in the calculation of the existing design code are the same as those used in Fig. 17. Figure 18 shows a comparison of the calculated values. The calculated value of the existing design code is about 2.5 to 3.0 times higher than the calculated value of Eq. (18).

Fig. 18
figure 18

Comparison of calculated values

Conclusion

The tensile stresses perpendicular to the grain and shear stresses acting on the hole when a shear force or bending moment was applied to a GLT beam with a round hole are determined by FEA, and these stresses were formulated. Only the maximum stress acting on the hole was formulated, and a formula for calculating the splitting fracture capacity was proposed. Then, the validity of the proposed formula was verified using existing experimental data for GLT beams in Japan and outside Japan. As a result, it was confirmed that the proposed equation can estimate the fracture load for GLT beams of JAS [2] with a smaller value and that the proposed equation can estimate the fracture load for GLT beams from outside Japan with some accuracy except for a few cases. Since Fs used in the practical design will be lower than Fs used in this calculation, the proposed equation may have the potential to be used in the design of GLT beams of JAS [2] with a round hole.
