Control of system parameters by estimating screw withdrawal strength values of particleboards using artificial neural network-based statistical control charts

Abstract

In this study, with data obtained from a particleboard factory, screw withdrawal strength (SWS) values of particleboards were estimated using artificial neural networks (ANNs). Predictive control charts were also created. A total of seven independent variables were used for the ANN model: modulus of elasticity (MoE), surface soundness (SS), internal bond strength (IBS), density, press time, press temperature, and press pressure. The results showed that the ANN-based individual moving range (I-MR) and cumulative sum (CUSUM) control charts created for SWS values detected out-of-control signal points close to those of the real-time control charts. Among the selected independent variables, IBS was the most important parameter affecting SWS. The most suitable press temperatures and times for high SWS values were determined as 198–201 °C and 165–175 s, respectively. Moreover, the boards with 2500–2800 N/mm² MoE and 0.55 N/mm² IBS values exhibited the best SWS.

Introduction

In today’s markets, strong competition is forcing businesses to seek more productive and economically effective undertakings. Meeting the ever-changing expectations and demands of customers is the main condition for the survival and development of a business. In this situation, because of the desire to obtain long-term market success, quality has become the main element in business strategy [1].

Businesses have increasingly begun to recognize that quality is a crucial factor in the success of their enterprises. The “total quality management” concept involves quality cost and its measurement [2]. Quality cost is the key factor necessary to put the total quality management philosophy into practice. Adopting quality cost management can enable businesses to lower their costs without compromising the quality of their product or customer satisfaction [3, 4]. Strategic decision making based on quality cost will facilitate profit generation. Business status can be boosted by analyzing achievements and committing to improvements through the application of the quality cost account as part of efficient management [1].

Having full control of product efficiency and producing fewer faulty products are among the ways to reduce quality costs. Consequently, during the production process, industries use monitoring procedures that apply various technologies and methods to record the quality and properties of the product and to identify defective products. Quality control researchers often employ engineering process control (EPC) and statistical process control (SPC) techniques. These are useful applications for monitoring engineering processes and controlling them [5,6,7,8].

The SPC is used to analyze information about sample products and to make decisions about processes. Such statistical approaches are crucial for quality assurance. This statistical method provides the main means of sampling, testing, and evaluating a product, and information from these data is utilized to control the manufacturing process and improve it [8, 9]. Thus, significant progress has been achieved in terms of revealing the deviations that may occur in quality characteristics and accordingly, in reducing production costs, increasing labor productivity, and protecting the consumer.

In the production process, the most important tools for understanding and interpreting the variability and chance of implementation are the control charts [10]. The main function of the SPC is to monitor the process for any early signs of external problems in the process via the use of control charts. Moreover, the SPC can propose possible joint measures to avoid the manufacture of any abnormal or defective products. A standard chart can also identify unstable conditions or aberrant variations that need to be investigated [5].

Under good quality management, warning signs would be provided in the early stages of a manufacturing project to facilitate timely interventions and to avoid limited options late in the process. Consequently, it is important to predict certain parameter values throughout various stages of the project with the aim of controlling these parameters during its implementation and thus ensuring that the desired quality is achieved in the final product [11].

Particleboards are produced from particles or chips of wood (or other lignocellulosic fibrous sources) held together by a binder and subjected to elevated pressure at a high temperature [12]. Particleboards have a smooth surface, can be produced in the desired thickness, have a relatively homogeneous structure, can be joined using nails, screws, and glues, can be produced in large sizes, and allow the application of top surface treatments [13]. These properties and important features of this composite product enable its extensive application in many usage areas.

Wood-based products (furniture, cabinets, tables, desks, etc.) made of particleboard are often subjected tosignificant loads, and thus threaded steel fasteners (screws) are used to join these products. The strength of these fasteners is at least 10 times higher than the strength of the wood-based materials. Because of overload on joinings made with steel screws, ruptures can occur in the wood-based board. Therefore, the bonding force is determined by the strength of the wood-based panel boards rather than by the screws [14, 15].

During the manufacturing process, the quality control measures applied are crucial for ensuring the production of a quality final product that satisfies customer expectations. However, certain costs and expenditures of time are required for such processes [16].

The main purpose of this study was to predict different variables and screw withdrawal strength (SWR) values obtained from the particleboard production process without measuring, but rather by modeling via artificial neural networks (ANNs), and to create predictive control charts. Thus, the aim was to keep the production process under control with less measuring and to contribute to the reduction of the quality cost of businesses.

Previous studies have used different methods for estimating particleboard SWR [17,18,19] and for estimating different mechanical properties of particleboard [16, 20,21,22,23,24]. In addition, studies have also been carried out in different sectors on the estimation of different control charts [7, 25,26,27,28]. In this study, unlike other studies, in addition to estimating SWS values using ANNs, predictive control charts were also created. Thus, a model was developed that enables a business to receive early warning of errors. Moreover, to date, no studies on the particleboard industry have been conducted using ANNs to predict individual moving range (I-MR) and cumulative sum (CUSUM) control charts. The factors effective on SWS were also determined and the relationships between them were revealed in detail in this study.

Preliminaries

Artificial neural networks

ANNs are mechanisms for processing information that are based on the biological processes of the nervous system. Like the nervous system, ANNs are composed of a great number of interconnected, and in this case artificial, neurons acting as processing elements working together to solve specific problems [29]. Thus, the ANN is a mathematical model attempting to simulate biological neuron behavior [30]. A neuron can generate an output signal on the basis of a specific number of input signals. The activation function processes input signals generated by other neurons. To generate an output signal, the activation function value is transmitted to the transfer function. A neural network is composed of three layers: the input layer, the output layer, and the hidden layer. Data from outside the ANN are received by the neurons of its input layer, whereas data processing results are presented by the neurons of the output layer [31]. Equation (1) describes the function of the network [16, 32]:

$${Y}_{j}=f(\sum_{i}{w}_{ij}{x}_{ij})$$

(1)

where Y_j represents the node j output, f represents the transfer function, W_ij represents the weight connecting node j and node i in the lower layer, and X_ij represents the input signal from node i in the lower layer node j.

The three main phases necessary to set up an ANN include: (1) establishment of the ANN architecture, (2) definition of the appropriate training algorithm necessary for the ANN learning phase, and (3) determination of the mathematical functions describing the mathematical model [30]. The ANN is used in many areas such as classification, modelling, data association—interpretation, control, clustering, and optimization [33, 34]. When applied to a network, the learning algorithm and its structure will determine the learning performance. The classification ability and prediction quality of the network depend on application of a learning algorithm based on synaptic weights between the neurons.

I-MR control chart

I-MR charts can monitor individual values and detect any variations in the process over time by taking process samples over hours, shifts, days, weeks, months, etc. [35]. These I-MR control charts were chosen for the study, because the values estimated by the ANN were the averages of the SWS values, and therefore, it was not possible to create a range of variation (R) graph for the estimated control charts. A moving range (MR) graph was constructed by plotting the Upper Control Limit (UCL), Lower Control Limit (LCL), and Center Line (CL) as given in Eq. (2) [8, 36]:

$${\text{UCL}}={D}_{4}\overline{MR }$$

$${\text{CL}}=\overline{MR }$$

(2)

$${\text{LCL}}={D}_{3}\overline{MR }$$

where $\overline{MR }$ is the average of the moving range computed from a preliminary set of data.

The MR was calculated using the following equation:

$$M{R}_{i}=\left|{x}_{i}-{x}_{i-1}\right|, i=\mathrm{2,3},\dots$$

(3)

Finally, the individual (I) chart was set up by plotting the individual observations, x_i, on a chart with limits, as in Eq. (4):

$${\text{UCL}}=\overline{x }+3\frac{\overline{MR}}{{d }_{2}}$$

$${\text{CL}}=\overline{x }$$

(4)

$${\text{LCL}}=\overline{x }-3\frac{\overline{MR}}{{d }_{2}}$$

where D₃, D_4, and d₂ are functions of the sample size. According to the sample size, tables were created for these values.

CUSUM control chart

In 1954, Page [37] the CUSUM control chart, which consists of a series of consecutive operations used to detect any deviations in a process. The CUSUM control scheme is based on probability ratios and its principal feature is its ability to calculate the difference between an observed value and a predetermined target value [38]. The cumulative sum is determined using x_j as the average of the jth sample and ${\mu }_{0}$ as the target for the process mean; C_i denotes the cumulative sum up to and including the ith sample:

$${C}_{i}=\sum_{j=1}^{i}({\overline{x} }_{j}-{\mu }_{0})$$

(5)

The tabular CUSUM statistic is used to detect an increase (C_i⁺) or decrease (C_i⁻) in the process mean shift:

$${C}_{i}^{+}=\mathrm{max}\left[0,{x}_{i}-\left({\mu }_{0}+K\right)+{C}_{i-1}^{+}\right]$$

(6)

$${C}_{i}^{-}=\mathrm{min}\left[0,{x}_{i}-\left({\mu }_{0}-K\right)+{C}_{i-1}^{-}\right]$$

where ${\mu }_{0}$ is the acceptable process mean.

The K value (i.e., the reference/allowance/slack value) is often set to half the distance between the target ${\mu }_{0}$ and the out-of-control value of the mean ${\mu }_{1}$, for which a rapid detection is sought in Eq. (7):

$$K=\frac{\delta }{2}\sigma =\frac{\left|{\mu }_{1}-{\mu }_{0}\right|}{2}$$

(7)

The process is said to be out of control if

$${C}_{i}\ge H$$

(8)

where H is the decision interval. It is also customary to take K = 0.5 and H = 4 or 5 as decision parameters for the optimum average run length (ARL) [8, 39, 40].

Minor changes in the process average can be quite effectively detected by the CUSUM control charts [41, 42]. These charts have the advantage of being able to detect unstable processes for data subgroups and single notations [43].

Materials and methods

The data used in the study were obtained between February and July 2016 from a large-scale furniture enterprise operating in Turkey. The boards from which the samples were taken were 18 mm thick, with a density of 630 kg/m³ and were 2100 × 2800 mm in size. They were produced for interior hardware applications in dry conditions determined according to TS EN 310, TS EN 311, TS EN 319, and TS EN 320 standards [44,45,46,47]. In the said period, each particleboard from the production process was evaluated in terms of the screw withdrawal strength (SWS, N), modulus of elasticity (MoE, N/mm²), surface soundness (SS, N/mm²), internal bond strength (IBS, N/mm²), and density (Kg/m³) values and values related to press conditions, including press time (s), press temperature (°C), press pressure (Pa), were measured. The sample size (n) was 3 and the number of samples (m) was 110, i.e., 110 × 3 = 330 measurements taken for each variable. From these data, 80 were used in the creation of the ANN model (training, testing, and validation), and the remaining 30 were used in the verification of the established model and in the creation of control charts to measure its success.

Our ANN model consisted of the input layer that receives the data from the outside, the output layer that yields the outputs of the network, and the multilayer perceptron, which consists of at least one hidden layer between the other two. Multilayer perceptrons are commonly used in the literature. These are feed-forward supervised networks with full connectivity between the layers [48,49,50]. The ANN model used in the study was designed as a feedforward back propagation model and is presented in Fig. 1.

Fig. 1

Structure of the ANN model

In the figure, the input layer consists of the MoE, SS, tensile strength, density, press time, press temperature, and press pressure values as the independent variables to be used for estimation. These determined variables also form the number of neurons in the input layer of the ANN model. The number of hidden layers in the model was 1. There is no fixed rule for determining the number of neurons in the hidden layer. In general, keeping the number of hidden neurons low can cause learning problems in the network, whereas keeping it high can cause the network to memorize instead of learning. For this reason, trials were carried out for 1–10 hidden neurons to determine the best number for the model and the result was found to be 8. The output neuron was directly related to the problem under study, and therefore, it was considered as being equal to the number of dependent variables estimated in the prediction problems. Thus, the output neuron here was the SWS. The sigmoid activation function is the one most commonly used in ANNs, and therefore, it was chosen as the activation function. Of the data in the model, 70% were used for training, 15% for validation, and 15% for testing. During the training phase of the network, the number of cycles was kept constant at 1000 and as a result of different trials, the most appropriate learning coefficient was determined as 0.1 and the momentum coefficient as 0.8. After the training and testing stages of the model were carried out successfully, 30 average SWS values were estimated using the established model. Separate I-MR and CUSUM control charts were created for these prediction and real-time measurement values, and the prediction performance of the model was evaluated. In the last part of the study, the statistical effect of the selected independent variables on the SWS values was investigated and analyzed in detail. MATLAB (MathWorks Inc.) software was used to establish the ANN model, and MINITAB software was used for quality control charts and statistical analyses.

Results

Establishment of the ANN: training, testing, and validation

Figure 2 shows the variation in the error values of the training, validation, and test sets in each iteration of the ANN model established for the estimation of the SWS values. Graphs showing the status of the training and the regression values are also presented. The regression values obtained for the training, validation, and testing stages were more than 80% and thus within the limits that can be used for estimation.

Fig. 2

ANN training, validation, and test results

The established model was assessed in terms of the success of its predictive ability using never-before-seen data to test the network, and this approach yielded positive results. A comparison of the estimated ANN values with the measured SWS values and their mean absolute percentage error (MAPE) performance values are given in Table 1. According to the MAPE values, the estimation process had been quite successful. In the literature, models with MAPE values below 10% are rated “very good”, 10–20% “good”, 20–50% “acceptable”, and models over 50% “wrong and erroneous” [51,52,53]. The mean MAPE value of all predicted values was 5.79%.

Table 1 SWS estimated, measured, and MAPE values

Creation of control charts

Figure 3 shows the I-MR charts created for the measured and estimated SWS values. When the graphs are compared, the points that give out-of-control signals in the production process are shown as almost the same in both graphs. Sample nos. 26, 27, and 28 on both charts are outside the LCL. However, one point in the measurement values (sample no. 2) exceeded the UCL, and the I-MR graph created via estimation was unable to detect this. However, sample no. 2 in the estimation chart was very close to the UCL limit, but because a high SWS is desirable, this situation did not last for long.

Fig. 3

I-MR of measured and estimated SWS values

In Fig. 4, the measured and estimated SWS values for the CUSUM control charts are given. The CUSUM charts are particularly effective at detecting minor shifts in the process. Both graphs were very close in clearly determining the shifts in the process. In particular, the estimated (predicted) CUSUM graph detected the negative shift after sample no. 26 in the same way as did the real (measured) CUSUM graph.

Fig. 4

CUSUM charts of measured and estimated SWS values

Correlation analysis

This section gives the results of the investigation into the effect of the selected independent variables on the SWS. Table 2 shows that in general, all variables except the SS exhibited a significant positive correlation with the SWS at 1% and 5% significance levels. The IBS was the most important parameter affecting the SWS. In the literature, correlation values with an r coefficient of 0.40–0.59 are defined as “moderate” [54,55,56,57,58]. Figure 5 presents surface plots and contour plots showing the relationships between moderately significant parameters and SWS values.

Table 2 Pearson correlation results

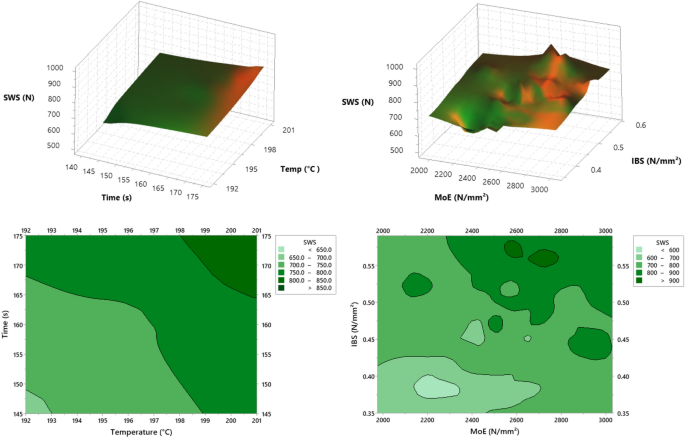

Fig. 5

Surface plot and contour plots of parameters affecting SWS values. Green colors: SWS values, Orange colors: points where SWS tends to increase

The temperature–time graph of SWS values shows generally, the SWS of the particleboards also increased with the increase in press temperature and press time (Fig. 5). Again, in the contour plot, the highest SWS value was reached at press temperatures of 198–201 °C and at press times in the range of 165–175 s. In previous studies, increases in press temperature [59,60,61,62] and press time [60, 63, 64] have been reported to affect SWS positively. Examination of the MoE-IBS graphs of the SWS shows that the high IBS and MoE values had a positive effect on SWS. In the literature, similar associations have been found between IBS and SWS [19, 21, 65,66,67,68,69,70,71,72,73] and between SWS and MoE [65, 66, 68,69,70, 73, 74] In the counter graph, the boards with MoE values of 2500–2800 N/mm² and an IBS value of 0.55 N/mm² have the highest SWS values.

Conclusion and recommendations

In this study, particleboard SWS values were estimated in a production process via modeling using an ANN. Statistical control charts were created with these estimated values and compared with the real-time production values. For the established ANN model, the most appropriate learning coefficient was determined as 0.1, the momentum coefficient as 0.8, and the number of neurons in the hidden layer as 8. A regression value of over 80% was obtained in the training, validation, and testing stages of the particleboard SWS values estimated using seven independent variables in the input layer. The MAPE values of the measured and estimated SWS values were within the limits accepted as “very good” in the literature, with an average of 5.79%. The control charts created with these estimates yielded results very similar to those in the control charts created with the real values. The predicted CUSUM and I-MR control charts detected the values that exceeded the LCL, which is very important for a business. In addition, among the independent variables selected in the Pearson correlation analysis, the most important parameter affecting the SWS was determined as IBS, with a correlation of 0.69. The most suitable press temperatures and times for high SWS values were determined as 198–201 °C and 165–175 s, respectively. In addition, the boards with 2500–2800 N/mm² MoE and 0.55 N/mm² IBS values exhibited the best SWS values.

Numerous parameters affect the mechanical properties of particleboard. In future studies, new models could be developed using different parameters such as chip mixing ratios, glue type and amount, or based on wood species. Control charts could be created by estimating different technological and mechanical properties of the board, thus contributing to the reduction of quality costs for businesses.
