Hydrothermal decomposition of various crystalline celluloses as treated by semi-flow hot-compressed water

Journal of Wood Science volume 60, pages 278–286 (2014)Cite this article

An Erratum to this article was published on 08 August 2014

Abstract

Various types of crystalline celluloses I, II, IIII, IIIII, IVI and IVII that have been adjusted for their degree of polymerization were treated by semi-flow hot-compressed water (HCW) at 230–270 °C/10 MPa/15 min to study their hydrothermal decomposition. The treatments resulted in either partial or complete decomposition of the celluloses and the decomposed products were primarily recovered as hydrolyzed, dehydrated and fragmented ones as well as organic acids in the water-soluble (WS) portions. Their results of hydrothermal decomposition and its kinetics revealed that the celluloses decomposition is dependent on the types of crystalline celluloses as well as temperature of the HCW treatment. The outcome from the WS portions at 270 °C/10 MPa/15 min showed that the degree of difficulty for decomposition is lower in group II (cell II, cell IIIII, cell IVII) than group I (cell I, cell IIII, cell IVI), indicating that group II is less resistant to decomposition by HCW treatment. Therefore, the decomposition behaviors of the cellulose are due to the inherent differences in the crystalline structures.

Introduction

Currently, almost all ethanol from renewable carbon is obtained from food-based sources such as starch and molasses. The shortage of capacity and competition from food requirement drives the need for lignocellulose, such as grasses and woods, to serve carbon resources for promising biofuels [1]. Cellulose as one of the main components in lignocellulose with approximate production of 1.5 × 1012 tons each year globally has high potential to be exploited for this purpose [2, 3]. It can be chemically converted into fermentable saccharides; however, this is usually hindered by its great resistance to hydrolysis [4].

Cellulose is a linear crystalline homopolymer consisting of β-1,4-linked d-glucopyranose units. It exists in six known polymorphs of celluloses (I, II, IIII, IIIII, IVI, IVII) identified by their characteristic X-ray diffraction (XRD) patterns as well as 13C nuclear magnetic resonance (NMR) spectra. In nature, cellulose has high degree of polymerization (DP), in a range of about 6000–15000 glucopyranose units [5] which makes it highly crystalline and not easy to be separated or dissolved in almost any solvents [6, 7]. Thus, numerous biological, chemical, and/or physical treatments such as enzymatic saccharification, acid/alkali treatments, steam explosion, supercritical and subcritical treatments have been applied and developed for cellulose hydrolysis [8–14].

Hydrothermal treatment in hot-compressed water (HCW) has been proposed as a promising method to hydrolyze cellulose mostly due to its non-toxic, non-catalytic and environmentally benign properties [15–18]. Furthermore, over conventional method, it has advantages such as limited corrosion problem, no sludge generation, low capital and operational cost, as well as no significant degradation of cellulose at normal operating conditions [19]. The conventional methods such as acid/alkali treatment and acid/alkali pretreatment followed by enzymatic hydrolysis are associated with serious economic and environmental constraints due to the heavy use of chemicals.

Hot-compressed water is highly pressurized, high-temperature liquid water at subcritical condition, below the critical point of water at 374 °C/22.1 MPa [20]. It is characterized by a higher ionic product and thus higher concentration of H+ and OH− ions, compared to ambient water, offering a highly interesting reaction medium for hydrolysis processes. In addition, acid neutralization is not required because the concentration of H+ ion is a function of temperature and decreases when the temperature is lowered. Many studies have confirmed that cellulose can be largely hydrolyzed in subcritical water without addition of a catalyst [21–26].

The experimental results using a flow-type HCW treatment showed that glucose yield increases with increasing temperature [27]. It has less significant degradation reactions as compared to batch-type treatment that makes it preferable for hydrolysis process of lignocellulose [28–30]. It has been reported that 4–22 % of cellulose could be hydrolyzed by flow-type HCW treatment (200–230 °C/34.5 MPa/15 min) [31].

To the best of authors’ knowledge, studies have been done on analysis of cellulose hydrolysis using HCW treatment; however, the comprehensive investigation has been rarely conducted on various crystalline celluloses as feedstocks. The physical characteristics such as crystallinity and DP of various crystalline cellulose residues as treated by semi-flow HCW were thoroughly explored in previous study together with a brief evaluation on the water-soluble (WS) portions [32]. Therefore, as a further approach, the primary objective of this work is to study quantitatively the chemical decomposition from various crystalline celluloses as treated by semi-flow HCW through the yields of WS portions.

Materials and methods

Preparation of various types of crystalline cellulose samples

Cotton linter (Buckeye 1AY-500), in the form of cellulose I (cell I), was used to prepare various types of crystalline celluloses. Cellulose II (cell II) was prepared from cell I through mercerization by soaking it into 20.0 % of aqueous NaOH solution for 24 h at ambient condition of temperature (20 °C) and pressure (0.1 MPa), followed by washing thoroughly with water and freeze-drying [33]. As for celluloses IIII (cell IIII) and IIIII (cell IIIII), they were prepared from cell I and cell II, respectively. Cell I and cell II were soaked in 100 % ethylenediamine for 24 h at ambient condition, washed with dried methanol and kept under vacuum.

The prepared cell IIII and cell IIIII were further used for the preparation of celluloses IVI (cell IVI) and IVII (cell IVII), by firstly soaking them in glycerol for 3 days at ambient condition. They were then heated in a reaction vessel at 260 °C/0.6 MPa for 30 min and cooled down to ambient condition [34]. The product was, then, washed with water and acetone successively, and dried in vacuum. Basically, the converted celluloses consisted of group I (celI I, cell IIII, cell IVI) and group II (cell II, cell IIIII, cell IVII). Their chemical compositions were also analyzed and all these celluloses were found to contain similar monosaccharide components of about 99.9 wt% glucose and 0.1 wt% xylose [35].

To compare the decomposition products from WS portions on various types of crystalline celluloses by semi-flow HCW treatment, cellulose with similar DP are necessary for their evaluation. Consequently, these celluloses were adjusted by trial and error for their DPs by changing the treatment condition mentioned above for converting cell I to various forms of celluloses.

The determination of DP and crystallinity of the celluloses

The celluloses were dissolved in 0.5 M cupriethylenediamine (Cuen) by viscometry as per TAPPI method [36]. The DP of the celluloses was then calculated from the intrinsic viscosity [η] according to the equation DP0.905 = 0.75[η] [37]. For the crystallinity determination, Gaussian functions were used to deconvolute the XRD patterns of various crystalline celluloses [38]. These XRD patterns were recorded by X-ray diffractometer Rigaku RINT 2200 [32].

Treatment of various crystalline cellulose samples by semi-flow HCW treatment

The prepared celluloses as starting materials were then treated individually in a semi-flow HCW system. The conversion system and its operational procedures as explained elsewhere were adapted for this study [24–26]. Briefly, about 0.4 g of cellulose was treated individually within a 5-mL reaction vessel. The ambient distilled water from a water tank was flown through the reaction vessel by a pump to pressurize the system at 10 MPa controlled by a back-pressure regulator. To raise the temperature, the preheating unit monitored by thermocouples was used to reach at the designated temperatures of 230, 250 and 270 °C for about 20 min under 10 MPa and remains constant for additional 15 min, totally 35 min. In addition, another heating unit was installed at the reaction vessel to maintain the designated temperature in the reaction vessel, into which the HCW was passed through at the flow rate of 10 mL/min.

These treatments yielded insoluble residues [32] and WS portions. After the HCW passing through the reaction vessel, the WS portions were cooled down immediately by the cooling system to terminate all reactions and collected every 5 min. They were allowed to settle in ambient temperature and pressure for a minimum of 12 h. Though no precipitation was observed after at least 12 h, it was filtered by 0.45-μm membrane prior to the subsequent analyses.

Analytical methods

The WS portions collected were analyzed and characterized using high-performance anion exchange chromatography (HPAEC), high-performance liquid chromatography (HPLC) and capillary electrophoresis (CE). The HPAEC system (Dionex ICS-1000 system) equipped with the CarboPac PA-1 column (4 mm × 250 mm) and electrochemical detector for pulsed amperometric detection was employed and operated at 35 °C and flow rate of 1.0 mL/min under the helium atmosphere for monosaccharides and cello-oligosaccharides in the WS portions. The mobile phase was a gradient-programmed mixture of deionized water, 0.2 M NaOH and 2.0 M CH3COONa, as eluents. All eluents contained in 3 separate reservoirs were degassed by an aspirator and subsequently purged with helium to prevent the absorption of CO2.

The HPLC system (Shidmadzu, LC-10A) equipped with a Shodex Sugar KS-801/Ultron PS-80P columns and refractive index/UV–Vis detector was applied. The eluent used was deionized water at a flow rate of 1.0 mL/min and oven temperature was set to be 80 °C for the columns. The CE (Agilent; Germany) was used to assay the low molecular weight organic acids. A fused-silica capillary (Agilent; 75 μm diameter, 104 cm total length, 95.5 cm effective length) was used at 15 °C.

Concentrations of the products in the WS portions were calculated based on the peak areas on chromatograms obtained from HPAEC, HPLC and CE. A set of standards with known concentrations, containing the compounds that were to be identified both quantitatively and qualitatively, was prepared and analyzed together with the samples using the relevant analytical equipment as mentioned above [18, 24, 25].

Results and discussion

To investigate the decomposition behaviors on various types of crystalline celluloses by semi-flow HCW treatment, the celluloses must have the same DPs as the starting materials. Thus, a direct comparison between the celluloses is feasible, as listed in Table 1. Treatments by semi-flow HCW were then carried out for these celluloses at temperatures of 230, 250 and 270 °C under 10 MPa for 15 min (230–270 °C/10 MPa/15 min).

Table 1 The crystallnity and DP for various types of crystalline celluloses prepared in this study
Full size table

Decomposition kinetics

The semi-flow HCW treatment decomposed various crystalline celluloses either partially or completely to the WS portions. The yield on WS portions from various crystalline celluloses, as shown in Fig. 1, is a function of treatment temperatures. At constant treatment time, the yield on WS portions increased as the temperature increased. They were measurable even at lower temperature, 230 °C/10 MPa, with approximately 10–30 wt% and increased to more than 70 wt% at higher temperature, 270 °C/10 MPa. At 270 °C/10 MPa/15 min, cell II was shown to be totally decomposed to WS portions as compared to other celluloses. The overall results from Fig. 1 illustrated that higher yields were obtainable for group II celluloses than group I.

Fig. 1
figure 1

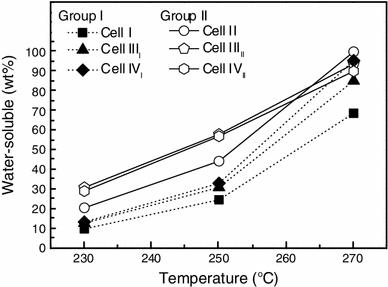

The yield on WS portions from various types of crystalline celluloses as treated at different temperatures under 10 MPa for 15 min (230–270 °C/10 MPa/15 min) by semi-flow HCW

Full size image

Figure 2 shows the Arrhenius plot of the present results according to the pseudo-first-order reaction kinetics. The relationship between natural logarithms of reaction constants, ln k, and T −1 shows good linear fits with the results indicating that the decomposition follows the pseudo-first-order reaction kinetics. Every parameter used such as time, pressure and DP on the celluloses were kept constant, satisfying the assumption that the Arrhenius plot is temperature dependent. Though, the data points obtained in this study are only based on three different temperature profiles, the degree of decomposition could be determined reliably and the comparison of kinetics on various crystalline celluloses can be done directly.

Fig. 2
figure 2

The Arrhenius plot for various crystalline celluloses using pseudo-first-order reaction kinetics as treated by semi-flow HCW at 230–270 °C/10 MPa/15 min

Full size image

The apparent activation energies, E a, for the celluloses can be calculated from Fig. 2. Activation energy of any reaction mainly explains its degree of temperature sensitiveness; reactions with higher E a are high in temperature sensitiveness, while the reactions with lower E a are low temperature-sensitive [39]. It can also be said that E a is defined as the minimum energy required for decomposition to occur. The smaller E a for decomposition of cellulose signifies the requirement of less energy for its decomposition and vice versa. In Fig. 2, it was shown that different slopes obtained for each of the celluloses suggested different E a for cellulose decomposition in the studied temperature range.

Table 2 shows the obtained E a for all celluloses within the treatment temperatures. The E a for group I and group II celluloses are, respectively, >70 kJ/mol and in between 50 and 60 kJ/mol. It is apparent that the celluloses in group I have higher E a than those in group II, which implies an easier decomposition process for group II celluloses by semi-flow HCW treatment. However, due to the aforementioned limitations such as limited numbers of experiments carried out in a relatively narrow temperature range, the obtained E a must be judged critically. The acquired E a was based on the best-fit curves. As a result, a higher E a was obtained for cell IVI as compared to cell I and cell IIII. Since comparison of E a was done between group I and group II, the above observation of group I having higher E a than group II is valid.

Table 2 The apparent activation energies of various types of crystalline celluloses as treated by semi-flow HCW at 230–270 °C/10 MPa/15 min
Full size table

These E a are lower than previously reported, 164 kJ/mol [7] and 145 kJ/mol [40] without catalysts, whereas 144 and 100 kJ/mol [41] in dilute sulfuric acid catalyst. The differences in E a could be due to various definitions of decomposition processes and treatment conditions used. For instance, Sasaki et al. [40] studied just the kinetics of cellulose hydrolysis only at elevated temperatures (above 290 °C/25 MPa), whereby in this work the kinetics of various cellulose decomposition was measured at 230–270 °C/10 MPa.

Here, the observed decomposition of cellulose in subcritical water appears to be as good as that occurring in dilute sulphuric acid hydrolysis [41]. Cellulose firstly undergoes a rapid weight loss and followed by a slow hydrolysis step of the remaining cellulose. The high reactivity is associated with accessible amorphous regions in cellulose that are more vulnerable to chemical attacks than the crystalline regions [42]. The reaction temperature has influence on the solvent properties of water [15, 43]. It has been suggested that the shift in solvent properties affects the kinetics of cellulose decomposition [44, 45]. However, in this present work, the constant E a implies that the reaction mechanism of the hydrothermal decomposition is not distinctly affected. The lower E a obtained indirectly showed that the decomposition of various celluloses in this system is a catalytic process, in agreement with the literature [41].

Quantification of water-soluble (WS) portions

Figure 3 shows the reaction scheme of cellulose I decomposition into hydrolyzed and degraded products as treated by semi-flow HCW treatment, adapted from [32]. In the present work, the WS portions for various crystalline celluloses obtained from each treatment were found to follow a similar decomposition pathway as in Fig. 3. It is important to know the decomposition pathway of cellulose as the degraded products inhibit the fermentation process for ethanol production [46].

Fig. 3
figure 3

Decomposition pathway of crystalline cellulose I as treated by semi-flow HCW

Full size image

Under the HCW conditions, the ionization constant of water increases with temperature and the amount of dissociation also increases, compared with normal temperature and pressure. The glucosidic linkages of cellulose are cleaved and cellulose starts to hydrolyze into cello-oligosaccharides, and subsequently, hydrolyzed to monosaccharide of glucose [20, 25, 47, 48]. Isomerization of glucose occurred producing fructose and mannose. These monosaccharides are unstable at high temperature and thus some parts of them are further converted into their degraded products such as furfural, 5-hydroxymethyl furfural (5HMF), levoglucosan through dehydration, and erythrose, glycolaldehyde, methylglyoxal through fragmentation [49]. Prolonged treatment, however, allows further degradation to take place, generating other products such as organic acids.

The resulted WS portion percentages based on the dried weight of cellulose samples clearly indicated that the celluloses have been converted to the hydrolyzed and degraded products. The hydrolyzed products comprise cello-oligosaccharides, glucose, fructose and mannose, whereas the degraded products consist of dehydrated and fragmented products, as well as organic acids. Their productions were recorded higher in hydrolyzed products as compared to degraded products, and more yields were obtained as treatment temperatures increased.

These WS portions were calculated similarly as in the previous studies [24, 25]. The cello-oligosaccharides were consisted of cellobiose, cellotriose, cellotetraose, cellopentaose, cellohexaose and other cello-oligosaccharides with the higher DP. The more existence of the cello-oligosaccharides with the higher DP shows that the cellulose has more resistance against hydrolysis by semi-flow HCW treatment. In addition to cello-oligosaccharides and glucose, a smaller amount of fructose was also detected and only traces of mannose were identified.

A much lower yield of the WS portions obtained at 230 °C/10 MPa/15 min (data not shown) was due to the difficulty of the crystalline structures of celluloses to be hydrolyzed at such lower temperature [26]. The cello-oligosaccharides observed could be obtained from the paracrystalline cellulose. The observed fructose is not a sugar component in cotton linter, but it may be isomerized from glucose after hydrolysis from cellulose [50, 51].

To evaluate the decomposition behavior of various crystalline celluloses in details, the results from 270 °C/10 MPa/15 min would be more appropriate, as at this condition, crystalline cellulose is known to decompose [20, 25, 26]. Table 3 shows the comparison between hydrolyzed and degraded products for the two groups of cellulose samples at 270 °C/10 MPa/15 min. It can be seen that for both group I and group II celluloses, more than 50 wt% of hydrolyzed products were obtained as compared to degraded products. It was reported that about 31.2, 28.1 and 20.5 wt% of hydrolyzed products were obtained from the cellulose of Japanese cedar, Japanese beech and Nipa frond, respectively [52]. However, there were no results for DP of the cellulose from this study that it can be compared with. The higher yield in WS portions observed in this present work could probably be due to the shorter DP celluloses used for the starting materials.

Table 3 The total hydrolyzed and degraded products of WS portions from various types of crystalline celluloses as treated by semi-flow HCW at 270 °C/10 MPa/15 min
Full size table

According to Fig. 3, the hydrolyzed products were produced at the early stage of cellulose decomposition pathway. This could signify that these celluloses have resistance against decomposition. The total hydrolyzed products for cell I and cell IIII is similar but much lesser than cell IVI, whereas the highest hydrolyzed products obtained in group II is from cell IIIII, followed by cell IVII and cell II. Overall, celluloses in group II have resulted more hydrolyzed products than those in group I. The observation is similar for the degraded products.

Figures 4 and 5, respectively, illustrated how the hydrolyzed and degraded products were obtained at every 5 min intervals at 270 °C/10 MPa/15 min. In Fig. 4, only the yields of cello-oligosaccharides, glucose and fructose were shown. These yields are comparable with the results in the literatures [20, 24–26]. Based on these results, the cellulose has been cleaved into cello-oligosaccharides at the early stage of the treatment time and the production of glucose and fructose was seen to occur simultaneously. Celluloses in both group I and group II have similar behaviors; however, more products were seen from group II celluloses. The cello-oligosaccharides and glucose were recovered from the treatment time of 35 min. The crystalline structure of cellulose remained unchanged at temperatures around 230 °C [53]; thus, the WS portions emerged from the time-up (0–20 min treatment time) could be from paracrystalline cellulose, and the time-at (20–35 min treatment time) was from cellulose.

Fig. 4
figure 4

The hydrolyzed products of cello-oligosaccharides, glucose and fructose in the WS portions from various types of crystalline celluloses as treated by semi-flow HCW at 270 °C/10 MPa/15 min. Top figure corresponds to treatment temperature (open squares)

Full size image
Fig. 5
figure 5

The dehydrated, fragmented products and organic acids in the WS portions from various types of crystalline celluloses as treated by semi-flow HCW at 270 °C/10 MPa/15 min. Top figure corresponds to treatment temperature (open squares)

Full size image

Generally, these monosaccharides are further degraded by dehydration or fragmentation process [15, 24, 54, 55]. Figure 5 illustrated that more dehydrated products were obtained than fragmented products and organic acids. During the treatments, it can be seen that the degraded products were generated at almost similar time as the hydrolyzed products (Fig. 4). Moreover, the productions of dehydrated and fragmented products as well as organic acids were generated concurrently. Both group I and group II celluloses in Fig. 5 have the same trends as in Fig. 4, i.e., more products resulted from group II celluloses. The generation of hydrolyzed products started to be noticeable from around 3 min (Fig. 4) and followed by degraded products (Fig. 5) about 10 min later. This sequence is parallel with that shown in Fig. 3 at which the hydrolyzed products were produced earlier in the decomposition pathway, and later on followed by the production of degraded products.

Figure 6 shows the yield in wt% for the individual degraded products in the WS portions for both group I and group II celluloses as treated by semi-flow HCW at 270 °C/10 MPa/15 min. The dehydrated products detected were consisted of levoglucosan, furfural and 5HMF whereas fragmented products consisted of erythrose, glycolaldehyde and methylglyoxal. While for organic acids, lactic, acetic, glycolic and formic acids were identified. The furfural in Fig. 6 can not only be produced from pentose but also from hexose such as glucose. This means that the formation of furfural is possible without pentose via five-carbon ketoses pathway as proposed in the literature [56].

Fig. 6
figure 6

The degraded products in WS portions from various types of crystalline celluloses as treated by semi-flow HCW at 270 °C/10 MPa/15 min

Full size image

Glycolaldehyde and erythrose were formed via retro-aldol condensation in glycolaldehyde/erythrose pathway [44, 51], while methylglyoxal was produced via glyceraldehyde/dihydroxyacetone pathway in hexose fragmentation. Nevertheless, the production of methylglyoxal in this case was too minute that it was excluded from Fig. 6. The production of furfural and 5HMF was significant as compared to other degraded products. The organic acids produced are the results of further degradation of dehydrated and fragmented products [51, 57]. Formic acid production was only a trace to be included in Fig. 6. All the sequences of degradation reactions and productions are agreeable with Fig. 3.

Based on those results above, it can be seen that group II celluloses dominated both the hydrolyzed and degraded products as compared to group I celluloses. The result on the WS portions at 270 °C/10 MPa/15 min revealed that the degree of difficulty for decomposition is greater for celluloses in group I than those in group II.

Conclusion

This study reveals the essential effects of various crystalline celluloses on their hydrothermal decomposition and its kinetic behaviors as treated by semi-flow HCW. Both decomposition rate and E a are helpful in defining the degree of difficulty for decomposition of various crystalline celluloses; however, the E a obtained were merely based on empirical relationships of Arrhenius equation. Consequently, the direct method is more preferable than the latter. Nevertheless, this study showed the new kinetic data as there were no previous data on these specific reaction systems.

These treatments can be used as viable decomposition media for celluloses at which under the given treatment conditions, cellulose is more readily hydrolyzed with less degraded products. Group I celluloses (cell I, cell IIII, cell IVI) have shown to have more resistance to decompose than group II celluloses (cell II, cell IIIII, cell IVII). Based on this evidence, it was clear that the decomposition behaviors are due to the different crystalline forms of celluloses. Therefore, it is recommended to transform cellulose I to the other for a better hydrolysis reaction. These presented data are useful for understanding how various types of crystalline celluloses are hydrothermally decomposed, providing useful insights to efficient utilization of lignocellulose for biofuels and biochemicals.

References

  1. Bommarius AS, Katona A, Cheben SE, Patel AS, Ragauskas AJ, Knudson K, Pu Y (2008) Cellulase kinetics as a function of cellulose pretreatment. Metab Eng 10:370–381

    Article  CAS  PubMed  Google Scholar

  2. O’Sullivan AC (1997) Cellulose: the structure slowly unravels. Cellulose 4:173–207

    Google Scholar

  3. Klemm D, Heublein B, Fink HP, Bohn A (2005) Cellulose: fascinating biopolymer and sustainable raw material. Angew Chem Int Ed 44:3358–3393

    CAS  Google Scholar

  4. Galbe M, Zacchi G (2002) A review of the production of ethanol from softwood. Appl Microbiol Biotechnol 59:618–628

    CAS  PubMed  Google Scholar

  5. Zugenmaier P (2008) Crystalline cellulose and cellulose derivatives: characterization and structures. Heidelberg, Germany, pp 3–4

    Google Scholar

  6. Mes-Hartree M, Dale BE, Craig WK (1988) Comparison of steam and ammonia pretreatment for enzymatic hydrolysis of cellulose. Appl Microbiol Biotechnol 29:462–468

    CAS  Google Scholar

  7. Schacht C, Zetzl C, Brunner G (2008) From plant materials to ethanol by means of supercritical fluid technology. J Supercrit Fluids 46:299–321

    CAS  Google Scholar

  8. Grous WR, Converse AO, Grethlein HE (1986) Effect of steam explosion pretreatment on pore size and enzymatic hydrolysis of poplar. Enzyme Microb Technol 8:274–280

    CAS  Google Scholar

  9. Inoue H, Yano S, Endo T, Sasaki T, Sawayama S (2008) Combining hot-compressed water and ball milling pretreatments to improve the efficiency of the enzymatic hydrolysis of eucalyptus. Biotechnol Biofuels 1:1–9

    Google Scholar

  10. Mosier N, Wyman C, Dale B, Elander R, Lee YY, Holtzapple M, Ladisch M (2005) Features of promising technologies for pretreatment of lignocellulosic biomass. Bioresour Technol 96:673–686

    CAS  PubMed  Google Scholar

  11. Camacho F, González-Tello P, Jurado E, Robles A (1996) Microcrystalline cellulose hydrolysis with concentrated sulphuric acid. J Chem Tech Biotechnol 67:350–356

    CAS  Google Scholar

  12. Karr WE, Holzapple MT (2000) Using lime pretreatment to facilitate the enzymatic hydrolysis of corn stover. Biomass Bioenergy 18:189–199

    Google Scholar

  13. Targoński Z (1985) Alkali process for enhancing susceptibility of autohydrolysed beech sawdust to enzymatic hydrolysis. Enzyme Microb Technol 7:126–128

    Google Scholar

  14. Saka S, Konishi R (2001) Chemical conversion of biomass resources to useful chemicals and fuels by supercritical water treatment. In: Bridgwater AV (ed) Progress in thermochemical biomass conversion. Blackwell, Oxford, pp 1338–1348

    Google Scholar

  15. Kruse A, Dinjus E (2007) Hot-compressed water as reaction medium and reactant. Properties and synthesis reactions. J Supercrit Fluids 39:362–380

    CAS  Google Scholar

  16. Bobleter O, Niesner R, Rohr M (1976) The hydrothermal degradation of cellulosic matter to sugars and their fermentative conversion to protein. J Appl Polym Sci 20:2083–2093

    CAS  Google Scholar

  17. Bobleter O, Bonn G, Concin R (1983) Hydrothermalysis of biomass-production of raw material for alcohol fermentation and other motor fuels. Altern En Sour 3:323–332

    Google Scholar

  18. Yu Y, Wu HW (2010) Understanding the primary liquid products of cellulose hydrolysis in hot-compressed water at various reaction temperatures. Energy Fuels 24:1963–1971

    CAS  Google Scholar

  19. Hsu T-A (1996) Pretreatment of biomass. In: Wyman CE (ed) Handbook on bioethanol: production and utilization. Taylor and Francis, Bristol, pp 179–195

    Google Scholar

  20. Phaiboonsilpa N, Yamauchi K, Lu X, Saka S (2010) Chemical conversion of lignocellulosics as treated by two-step hot-compressed water. In: Yao T (ed) Zero-Carbon Energy Kyoto 2009. Green Energy and Technology, Springer, Tokyo, pp 166–170

    Google Scholar

  21. Sasaki M, Kabyemela B, Malaluan R, Hirose S, Takeda N, Adschiri T, Arai K (1998) Cellulose hydrolysis in subcritical and supercritical water. J Supercrit Fluids 13:261–268

    CAS  Google Scholar

  22. Saka S, Ueno T (1999) Chemical conversion of various celluloses to glucose and its derivatives in supercritical water. Cellulose 6:177–191

    CAS  Google Scholar

  23. Kumar S, Gupta RB (2008) Hydrolysis of microcrystalline cellulose in subcritical and supercritical water in a continuous flow reactor. Ind Eng Chem Res 47:9321–9329

    CAS  Google Scholar

  24. Lu X, Yamauchi K, Phaiboonsilpa N, Saka S (2009) Two-step hydrolysis of Japanese beech as treated by semi-flow hot-compressed water. J Wood Sci 55:367–375

    CAS  Google Scholar

  25. Phaiboonsilpa N, Yamauchi K, Lu X, Saka S (2010) Two-step hydrolysis of Japanese cedar as treated by semi-flow hot-compressed water. J Wood Sci 56:331–338

    CAS  Google Scholar

  26. Phaiboonsilpa N, Tamunaidu P, Saka S (2011) Two-step hydrolysis of nipa (Nypa fruticans) frond as treated by semi-flow hot-compressed water. Holzforschung 65:659–666

    CAS  Google Scholar

  27. Adschiri T, Hirose S, Malaluan RM, Arai K (1993) Non-catalytic conversion of cellulose in supercritical and subcritical water. J Chem Eng Jpn 26:676–680

    CAS  Google Scholar

  28. Ehara K, Saka S (2002) A comparative study on chemical conversion of cellulose between the batch-type and flow-type systems in supercritical water. Cellulose 9:301–311

    CAS  Google Scholar

  29. Sakaki T, Shibata M, Sumi T, Yasuda S (2002) Saccharification of cellulose using a hot-compressed water-flow reactor. Ind Eng Chem Res 41:661–665

    CAS  Google Scholar

  30. Liu C, Wyman CE (2003) The effect of flow rate of compressed-hot water on xylan, lignin, and total mass removal from corn stover. Ind Eng Chem Res 42:5409–5416

    CAS  Google Scholar

  31. Mok WS, Antal MJ Jr (1992) Uncatalyzed solvolysis of whole biomass hemicelluloses by hot-compressed liquid water. Ind Eng Chem Res 31:1157–1161

    CAS  Google Scholar

  32. Abdullah R, Ueda K, Saka S (2013) Decomposition behaviors of various crystalline celluloses as treated by semi-flow hot-compressed water. Cellulose 20:2321–2333

    CAS  Google Scholar

  33. Isogai A, Atalla RH (1998) Dissolution of cellulose in aqueous NaOH solutions. Cellulose 5:309–319

    CAS  Google Scholar

  34. Isogai A, Usuda M, Kato T, Uryu T, Atalla RH (1989) Solid-state CP/MAS 13CNMR study of cellulose polymorphs. Macromolecules 22:3168–3172

    CAS  Google Scholar

  35. TAPPI Standard Methods T222 om-88 1988

  36. TAPPI Standard Methods T230 om-82 1982

  37. Sihtola H, Kyrklund B, Laamanen L, Palenius I (1963) Comparison and conversion of viscosity and DP-values determined by different methods. Pap Puu 45:225–232

    Google Scholar

  38. Park S, Baker JO, Himmel ME, Parilla PA, Johnson DK (2010) Cellulose crystallinity index: measurement techniques and their impact on interpreting cellulase performance. Biotechnol Biofuels 3:1–10

    Google Scholar

  39. Xin J, Imahara H, Saka S (2009) Kinetics on the oxidation of biodiesel stabilized with antioxidant. Fuel 88:282–286

    CAS  Google Scholar

  40. Sasaki M, Adschiri T, Arai K (2004) Kinetics of cellulose conversion at 25 MPa in sub- and supercritical water. J Am Inst Chem Eng 50:192–202

    CAS  Google Scholar

  41. Mok WSL, Antal MJ, Varhegyi G (1992) Productive and parasitic pathways in dilute acid-catalyzed hydrolysis of cellulose. Ind Eng Chem Res 31:94–100

    CAS  Google Scholar

  42. Sasaki M, Fang Z, Fukushima Y, Adschiri T, Arai K (2000) Dissolution and hydrolysis of cellulose in subcritical and supercritical water. Ind Eng Chem Res 39:2883–2890

    CAS  Google Scholar

  43. Marshall WL, Franck EU (1981) Ion product of water substance, 0–1000 °C, 1–10000 bars new international formulation and its background. J Phys Chem Ref Data 10:295–304

    CAS  Google Scholar

  44. Sasaki M, Furukawa M, Minami M, Adschiri T, Arai K (2002) Kinetics and mechanism of cellobiose hydrolysis and retro-aldol condensation in subcritical and supercritical water. Ind Eng Chem Res 41:6642–6649

    CAS  Google Scholar

  45. Deguchi S, Tsujii K, Horikoshi K (2008) Crystalline-to-amorphous transformation of cellulose in hot and compressed water and its implications for hydrothermal conversion. Green Chem 10:191–196

    CAS  Google Scholar

  46. Palmqvist E, Hahn-Hägerdal B (2000) Fermentation of lignocellulosic hydrolysates. II: Inhibitors and mechanisms of inhibition. Bioresour Technol 74:25–33

    CAS  Google Scholar

  47. Antal MJ, Mok WSL (1990) Four-carbon model compounds for the reactions of sugars in water at high temperature. Carbohydr Res 199:111–115

    CAS  Google Scholar

  48. Kruse A, Gawlik A (2003) Biomass conversion in water at 330–410 °C and 30–50 MPa. Identification of key compounds for indicating different chemical reaction pathways. Ind Eng Chem Res 42:267–279

    CAS  Google Scholar

  49. Antal MJ Jr, Mok WSL (1990) Mechanism of formation of 5-(hydroxymethyl)-2-furaldehyde from d-fructose and sucrose. Carbohydr Res 199:91–110

    CAS  PubMed  Google Scholar

  50. Srokol Z, Bouche AG, Estrik AV, Strik RCJ, Maschmeyer T, Peters JA (2004) Hydrothermal upgrading of biomass to fuel; studies on some monosaccharide model compounds. Carbohydr Res 339:1717–1726

    CAS  PubMed  Google Scholar

  51. Kabyemela BM, Adschiri T, Malaluan RM, Arai K (1999) Glucose and fructose decomposition in subcritical and supercritical water: detailed reaction pathway, mechanisms and kinetics. Ind Eng Chem Res 8:2888–2895

    Google Scholar

  52. Phaiboonsilpa N, Saka S (2012) Hydrolysis behaviors of lignocellulosics as treated by two-step semi-flow hot-compressed water. Proceedings of the 10th International Symposium on Supercritical Fluids (ISSF 2012), May 13-16, 2012, San Fransisco, California, USA: http://issf2012.com/handouts/documents/144_004.pdf Accessed 10 April 2014

  53. Phaiboonsilpa N, Lu X, Yamauchi K, Saka S (2009) Chemical conversion of lignocellulosics as treated by two-step semi-flow hot-compressed water. In: Proceedings of the World Renewable Energy Congress 2009—Asia, May 19–21, 2009, Bangkok, pp 235–240

  54. Kumar S, Gupta R, Lee YY, Gupta RB (2010) Cellulose pretreatment in subcritical water: Effect of temperature on molecular structure and enzymatic reactivity. Bioresour Technol 101:1337–1347

    CAS  PubMed  Google Scholar

  55. Xiao LP, Sun ZJ, Shi ZJ, Xu F, Sun RC (2011) Impact of hot-compressed water pretreatment on the structural changes of woody biomass for bioethanol production. Bioresource 6:1576–1598

    CAS  Google Scholar

  56. Kallury RKMR, Ambidge C, Tidwell TT, Boocock DGB, Anglevor FA, Steward DJ (1986) Rapid hydrothermolysis of cellulose and related carbohydrate. Carbohydr Res 158:253–261

    CAS  Google Scholar

  57. Yoshida K, Kusaki J, Ehara K, Saka S (2005) Characterization of low molecular weight organic acids from beech wood treated in supercritical water. Appl Biochem Biotechnol 121–124:795–806

    PubMed  Google Scholar

Download references

Acknowledgments

This work was supported by the Kyoto University Global GCOE program of ‘Energy Science in the Age of Global Warming’, to which authors are thankful.
