Evaluation of CO₂ emissions reductions by timber check dams and their economic effectiveness

Abstract

We calculated the life cycle CO₂ emissions and direct installation costs for two types of timber check dams (all-wood timber and hybrid timber) developed in Akita Prefecture and non-timber check dams (concrete and steel). Additionally, we evaluated the effect of timber check dams in reducing CO₂ emissions and their economic efficiency compared with non-timber check dams. We found that switching from concrete to all-wood timber and hybrid timber check dams reduced CO₂ emissions by 54 and 43 %, respectively. Switching from steel to all-wood timber and hybrid timber check dams reduced CO₂ emissions by 28 and 11 %, respectively. In terms of direct installation costs, all-wood timber check dams were 241 % that of concrete check dams and 179 % that of steel check dams, but hybrid timber check dams were only 132 and 98 %, confirming that they could be competitive in terms of price. From the perspective of reducing CO₂ emissions costs, we found that a policy for switching from concrete to all-wood or hybrid timber check dams did not constitute a low-cost means of reducing CO₂ emissions, compared with other policies for reducing CO₂ emissions.

Introduction

Recent years have seen calls for the effective use of timber by forestry civil engineering businesses from the viewpoints both of measures to deal with global warming and the fact that the trees planted during the post-war period in Japan are now mature and ready for use. In particular, check dams, which are constructed to prevent the flash flooding and erosion of mountain streams, have a volume that may reach several hundred cubic meters. As such, if timber could be used for their construction, the use of large amounts of wood would be anticipated. Timber consumes less energy and produces less CO₂ emissions during the production process compared with alternative materials such as steel and aluminum [1], and its use as a substitute for other materials may thus contribute to alleviating global warming. Effectively utilizing a moderate number of trees that are mature and ready for use would also result in appropriate forest management, and maintaining forests in a good state of growth might help prevent damage due to intense rainfall, which has become more frequent in recent years. Against this backdrop, Akita Prefecture has been engaged in the research and development of all-wood timber check dams made from timber and connectors alone (Fig. 1a), as well as hybrid timber check dams made from a steel frame containing thinnings obtained during forest management as a filler (Fig. 1b) [2, 3, 4].

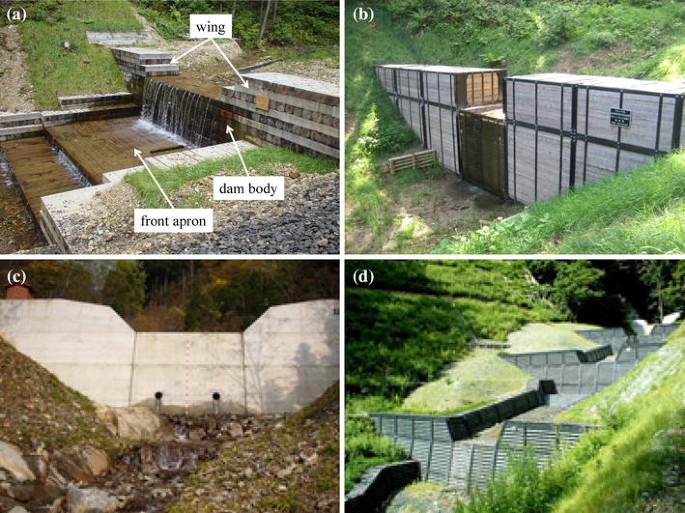

Fig. 1

Types of check dam a All-wood timber check dam, b hybrid timber check dam, c Concrete check dam, d Steel check dam

Investigation of the effectiveness of replacing other materials with timber in alleviating global warming requires the concept of life cycle assessment (LCA), which takes into account the environmental burden of a product throughout its entire life cycle, from resource extraction through product manufacture and use to disposal. Various studies using the LCA method have already been carried out with respect to the reduction in life cycle CO₂ emissions achieved through the use of timber. Previous studies of structures other than check dams include Jönsson et al.’s [5] evaluation of the life cycle CO₂ emissions and other environmental effects of linoleum, vinyl, and wood as flooring materials. Börjesson and Gustavsson [6] compared the life cycle energy consumption and greenhouse gas (GHG) emissions of wooden and concrete building construction. Petersen and Solberg [7] compared the life cycle energy consumption, GHG emissions, and cost of the use of laminated wood and steel in the construction of Oslo airport. Kayo et al. [8] compared the life cycle of GHG emissions from a sand compaction pile, cement deep mixing, and a log pile, which are used as measures against soil liquefaction.

As yet, however, no peer-reviewed academic study has performed an LCA of check dams, and there has not been any adequate investigation of the extent to which the use of timber in check dams might be expected to reduce CO₂ emissions. Although conference presentations have been made by Takaoku et al. [9], Noda et al. [10], and Hosokawa et al. [11], these have only compared timber and concrete as materials, without taking account of the fact that timber construction may involve several different methods of construction, nor has any comparison been made with check dams made of steel or other materials apart from concrete. The functional units that must be made consistent to enable the comparison of different construction methods in LCAs are also unclear; it is possible that appropriate evaluation is not being performed.

In light of these problems with previous studies, in the present study we designed check dams to prevent the same volume of sediment runoff in the same location to ensure consistency of functional units, and investigated concrete check dams, which have a long track record of construction, steel check dams, and the two types of timber check dams developed in Akita Prefecture (all-wood timber and hybrid timber). We then carried out a comparative evaluation of life cycle CO₂ emissions, and investigated the effectiveness of timber check dams in reducing CO₂ emissions compared with non-timber check dams. We also analyzed the economic efficiency of each type of check dam, with the aim of conducting a comprehensive evaluation that takes into account economic as well as environmental perspectives, and considered the advantages of and issues with timber check dams.

Overview of the check dams studied

What is a check dam?

A check dam is a forestry civil engineering structure that prevents flash flooding and slope failure along the banks of mountain streams by smoothing out the gradient of the stream bed and moderating water flow, thus preventing erosion and stopping unstable sediment that has deposited on the stream bed from being swept downstream from streams that have undergone or are at risk of flash flooding. The check dams that were the subjects of this study are described below.

All-wood timber check dams

All-wood timber check dams (Figs. 1a, 2) are structures made by squared-off timbers of width 300 mm, height 250 mm, and length 600–3600 mm alternately along and crosswise to the orientation of the dam, and fastening these timbers together vertically with 460 mm long connectors in a zigzag fashion to form the dam body. They utilize large-diameter timbers with a top end diameter of over 300 mm, for which there is little demand as construction material, meaning that they are forestry civil engineering structures that can contribute to the effective utilization of mature trees producing large-diameter timber. Metal fittings called “lag screws” (16-mm diameter) are used as connectors at sites where the dam body is subject to a tensile load, and wing parts that are expected to exchange timber for repairs. On the other hand, steel bars (the reinforcing bars in reinforced concrete, known as “D 16 mm”) are used at other sites. In Akita Prefecture, a front apron (Fig. 1a) must be installed when an all-wood timber check dam is built, to prevent scouring on the downstream side of the structure by the flow of water from the upstream side.

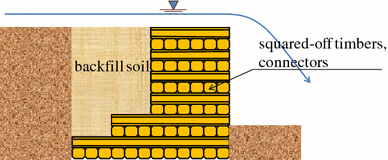

Fig. 2

All-wood timber check dam cross-sectional diagram

Hybrid timber check dams

Hybrid timber check dams (Figs. 1b, 3) are constructed by putting together an external frame made of steel and bolts, which is then stuffed with thinnings with bark, large amounts of which are generated during forest management, as a filler. Crushed stone (particle size specification c-40) is then used to stop up the gaps between the timbers. As for all-wood timber check dams, the objective of hybrid timber check dams is to make the most effective use of resources, and the size of the thinnings used as filler is therefore left unspecified. Only low-level processing is required to cut the timber to the prescribed length, and almost no waste ends are generated in preparing it for use.

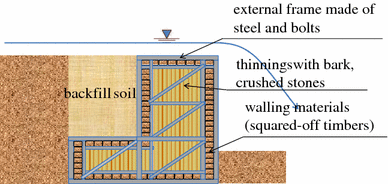

Fig. 3

Hybrid timber check dam cross-sectional diagram

As shown in Fig. 3, squared-off timbers (dressed on three sides) are placed upstream and downstream of the dam body with no gaps between them as walling materials to prevent the filling material being washed away. These dams are also constructed so that extra walling material can be added on the downstream side, to take account of the fact that the filling material may be washed away as a result of future rotting of the walling material due to biodegradation.

Concrete check dams

Concrete check dams (Fig. 1c) are the most common structural type of check dam, as they are both highly durable and appropriate for gravity-type structures that function by weight. Conventionally, the construction of concrete check dams formerly involved the use of a steel form into which concrete was cast and cured, then the form was removed. Since the Act for Promotion of the Use of Wood in Public Buildings (2010, Law no. 36) [12] was put into force in October 2010, however, wooden forms that are left in place have been used as the forms for all concrete check dams in Akita Prefecture (Fig. 4). In this study, we looked at two types of concrete check dam design: those for which the forms are removed (Fig. 1c, “concrete check dams (without forms)”) and those for which the forms are left in place (Fig. 4, “concrete check dams (with forms)”).

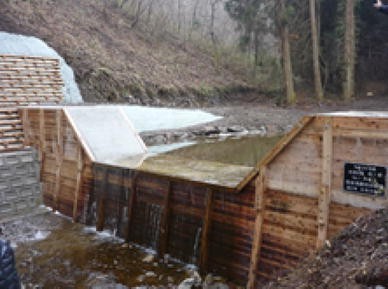

Fig. 4

Concrete check dam with timber forms left in place

Steel check dams

Steel check dams (Fig. 1d) are generally made by constructing an external frame from steel and bolts, and packing it with a filler consisting of rubble of roughly 150–200 mm in diameter. The structural body itself is lighter in weight than that of concrete check dams, and the fact that its components are fastened together with bolts make the dam body a flexible structure with a high degree of resilience to exposure and submersion. As putting the structural components together mainly involves assembling the steel components and pouring in rubble, without the curing period required for concrete, this type is suited for use when short-term installation is required, such as in times of disaster, and when filling materials such as pebbles and boulders are easily obtainable. It should not be used, however, if there is a risk of a landslide or other impact load.

Materials and methods

Method of evaluating CO₂ emissions

Design of check dams covered by the study

We chose a site at which timber check dams could be installed, and designed timber, concrete, and steel check dams to prevent the same volume of sediment runoff at the same site in order to ensure consistency of functional units. We calculated the use of materials and fuels from the operation of machinery at the construction site for each type of check dam. Table 1 lists the dimensions of each type of check dam, and the materials used and fuel used at the construction site. Variation in the legal requirements (see “All-wood timber check dams” through “Steel check dams”) for the installation of different kinds of dams resulted in somewhat different dimensions. Nonetheless, they all prevented the same amount of sediment runoff, ensuring that the functional unit was consistent.

Table 1 Sizes of each type of check dam and materials and fuels used

Scope of evaluation and inventory analysis

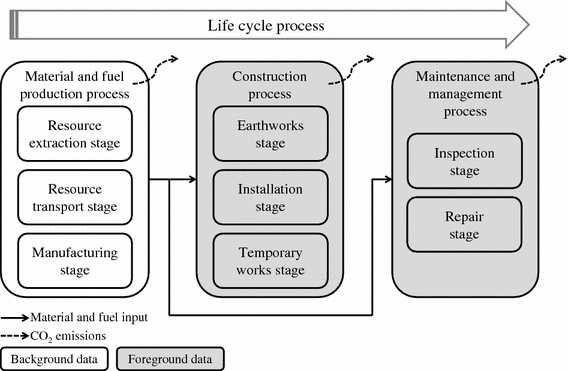

The life cycle processes evaluated in this study are shown in Fig. 5. The scope of our study included processes from the production of materials and fuels to construction, maintenance, and management. We also calculated the amount of CO₂ emissions derived from fossil fuel consumption in each process. Background data were used for the material and fuel production processes, whereas foreground data were used for the construction process, maintenance, and management process. The disposal process was omitted from this study as none of these types of check dam is generally dismantled and removed. The evaluation period was set at 50 years on the basis of the period of durability for the maintenance and management process described below (see “Maintenance and management process”). The carbon sequestered in timber was not evaluated in this study.

Fig. 5

The life cycle processes evaluated in this study

Material and fuel production process

The material and fuel production processes took into account the processes for extracting the resources for materials and fuel (used to operate machinery at the construction site) through to the transport of these resources and their manufacturing processes. CO₂ emissions during each stage of resource extraction, resource transport, and manufacturing processes were calculated by multiplying the amount of each material and fuel used (Table 1) by its corresponding CO₂ emissions conversion factor [13, 14], (Table 2). The figures used for the conversion factors were obtained from the MiLCA Database [13] to assure maximum consistency of the system boundary and the accuracy of the conversion factors among the types of check dam. Because local wood is generally used in the construction of timber check dams, it is desirable to use the conversion factors of squared-off timber based on local conditions. However, such conversion factors are not available in the MiLCA Database; therefore, the values of “Lumber products” category of the database were used. An artificial lawn was not listed in the MiLCA, and therefore the values were obtained from Social Capital LCA Database [14]. The forms used in the construction of concrete check dams (without forms) are removed after construction and reused at other sites several times (although the number of uses is limited), and hence they were not taken into account in CO₂ emissions.

Table 2 CO₂ emissions conversion factors during the production processes for materials and fuels used in each type of check dam

Construction process

The construction process is the process of installing the check dam, divided into three work stages: earthworks (ground excavation, backfilling, etc.), installation (check dam assembly, etc.), and temporary works (stream water drainage, etc.). The construction of roads was not included in the evaluation range. The study covered the CO₂ emissions produced by the combustion of fuel (light oil and gasoline) for the backhoes, truck-mounted cranes, concrete-pump vehicles, generators, and other vehicles used during these various work stages. Fuel use was calculated from the duration of use of each type of machinery with reference to the Chisan and Forest Road Manual, Quantity Surveying and Construction Volume [15] (Table 1), and multiplied by the conversion factor for the CO₂ emissions produced by the combustion of each type of fuel [16] to obtain CO₂ emissions. The conversion factors used were 2.59 kg-CO₂/l for light oil and 2.32 kg-CO₂/l for gasoline.

Maintenance and management process

In terms of the period of durability and the period of maintenance and management for each type of check dam, a timber dam constructed in Aomori Prefecture in 1916 has functioned for more than 80 years [17]. In Akita Prefecture as well, some timber check dams constructed of Akita-grown Cryptomeria cedar timber have also maintained their functionality for over 40 years [3]. The Ministerial Ordinance concerning the Useful Life, etc. of Depreciable Assets [18] states that among structures constructed of steel-framed reinforced concrete or steel-reinforced concrete, water-use dams have a period of durability of 50 years. In this study, we therefore assumed a period of durability of 50 years for all the different types of dam, and set the maintenance and management period as 50 years.

The maintenance and management process is divided into inspection and repair stages. We assumed that inspections would be performed once every 5 years for a total of 10 times for timber check dams, and once every 10 years for a total of 5 times for concrete or steel check dams. CO₂ emissions during inspections were calculated in terms of the gasoline consumption of a light van (1500 cm³) used by the staff carrying out the inspections. Based on interviews with staff of the Akita Prefecture Management Office, the distance from the Management Office to the dam location was set as 15 km each way, and the time required as 30 min. This was used to calculate gasoline consumption according to the Chisan and Forest Road Manual, Quantity Surveying and Construction Volume [15] and CO₂ emissions were then calculated according to the same method used for the fuel production and combustion processes, as described above.

For repairs, it was assumed that all-wood timber check dams would require timber replacement every 20 years, and that this would therefore be performed twice. The repair period was set at once every 20 years because at present, 13 years after their installation, the all-wood timber check dams constructed thus far do not yet exhibit sufficient loss of functionality to require repairs, and have been judged not to require repairs for around 20 years. Previous on-site surveys [19, 20, 21] of all-wood timber check dams and other timber check dams have revealed progressive decay in the wings due to repeated drying and submersion. It was therefore assumed that the components requiring replacement would consist of the top layer of timbers in the wings, together with their lag screws (Fig. 6). Because there has been no previous work on hybrid timber check dams, it was assumed that these check dams would require timber replacement every 20 years, as is the case for all-wood timber check dams. This would require that new walling materials equivalent to 40 % of the volume of materials used for the downstream wall would need to be added to the portion of the downstream wall that is exposed above ground (Fig. 7). Concrete and steel check dams are generally constructed so as to be maintenance free, although some steel dams have required repairs owing to corrosion; we assumed that no repairs would be performed. CO₂ emissions during repair were therefore calculated for timber check dams as the emissions during the material manufacturing process for the timber and lag screws to be replaced, by the same method as described above. The timbers replaced during repairs were assumed to be left in the forest rather than disposed of, in line with previous experience.

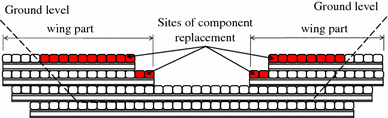

Fig. 6

Sites of component replacement in all-wood timber check dam (front elevation)

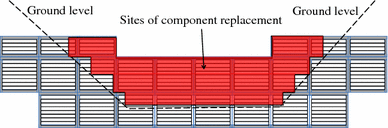

Fig. 7

Sites of component replacement in hybrid timber check dam (front elevation)

Method of evaluating economic efficiency

We calculated the cost required to install each type of check dam. This cost was evaluated in terms of direct installation costs, incorporating the costs of both materials and construction. Materials costs comprised the procurement costs of the materials used to construct each type of check dam, including the cost of timber, stone, concrete, and steel. The cost of materials used for repairs during the maintenance and management process was also added. Construction costs comprised the costs of machinery use and labor during the construction of each type of check dam, including the cost of the use of vehicles such as backhoes, truck-mounted cranes, and concrete-pump vehicles as well as the wages of the workers engaged in construction tasks. The types of machinery and days used, as well as the categories of workers and number of working days, were calculated from the construction yardsticks set out by Akita Prefecture [15, 22]. Table 3 shows the unit prices for the materials, machinery, and fuel used.

Table 3 Unit prices of materials, machinery use and fuels

Results and discussion

Results of evaluation of CO₂ emissions

Table 4 shows the results of the evaluation of CO₂ emissions for check dams during each process. In terms of the different types of construction, CO₂ emissions were lowest for all-wood timber check dams, followed by hybrid timber, steel, concrete (without forms),and concrete (with forms). CO₂ emissions for all-wood timber check dams were 48 % of those for concrete check dams (without forms) and 46 % of those for concrete check dams (with forms), whereas the corresponding figures for hybrid timber check dams were 59 and 57 %, respectively, indicating that switching from concrete check dams to timber check dams would reduce CO₂ emissions. Previous case studies that have evaluated timber and concrete check dams [9, 11], have reported that CO₂ emissions for timber check dams are 47–60 % of those for concrete check dams; the check dams investigated differed from those addressed in this study in terms of factors including method of construction, size, period of durability, and functional units. Although this suggests that a simple comparison is impossible, both sets of results show the same general trend. CO₂ emissions for all-wood check dams and hybrid timber check dams were 72 and 89 %, respectively, of those for steel check dams; this indicates that switching from steel check dams to either type of timber check dam would reduce CO₂ emissions, although the difference between steel and hybrid timber check dams was only slight. A comparison of the two types of timber check dam shows that all-wood timber check dams used 184 % more timber than hybrid timber check dams and produced 81 % of their CO₂ emissions. This reveals that although their structural forms differ, a construction method using large amounts of timber may be expected to result in greater reductions in CO₂ emissions. It is also possible that hybrid timber check dams show greater CO₂ emissions than all-wood timber check dams because they use steel, which entails high CO₂ emissions during the steel production process.

Table 4 CO₂ emissions for each type of check dam (kg-CO₂/dam)

In terms of each separate life cycle process, CO₂ emissions were greatest from the production processes for material and fuel for all types of check dam, accounting for 75 % of the total in all-wood timber check dams and over 90 % of the total in the other types. Focusing on a breakdown of the emissions during the material and fuel production processes, timber, which is used in large quantities in all-wood timber check dams, accounts for over 60 %, and connectors for over 20 %. Steel accounts for over 80 % of hybrid timber check dams and steel check dams. Concrete accounts for over 90 % of concrete check dams, irrespective of the use or otherwise of timber forms. This shows that for steel check dams and concrete check dams, almost all the CO₂ emissions produced during the construction of check dams are generated during the production process for their main materials. The CO₂ emissions per dam volume from the concrete-dam construction process used in this study and that from a previous study [9] were 8.2 and 18.4 kg-CO₂/m³, respectively; i.e., the emissions were smaller for this study. This is mainly because this study used manpower to build the forms, while the previous study assumed the use of a machine (rough-terrain crane) for the same task. Had the present study also used a machine, the emissions would have increased up to 16.0 (=8.2 + 7.8) kg-CO₂/m³, which is not significantly different from those obtained in the previous study.

There was little difference between with and without forms, with respect to CO₂ emissions from concrete check dams. Moreover, since wooden forms have been used for all concrete check dams by legal requirements (see “Concrete check dams”), we discuss only the case with forms for concrete check dams from next section.

Results of evaluation of economic efficiency

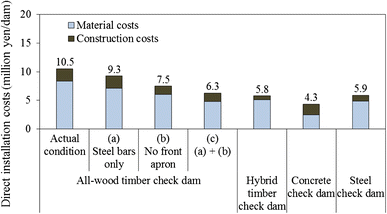

Figure 8 shows the direct installation costs of each type of check dam. The costs were cheapest for concrete check dams, followed by hybrid timber check dams, steel check dams, and all-wood timber check dams (values of actual condition in Fig. 8). The cost of all-wood timber check dams was 241 % that of concrete check dams, whereas for hybrid timber check dams the corresponding figures were 132 %, confirming that they could be competitive in terms of price. The costs of all-wood timber check dams and hybrid timber check dams were 179 and 98 %, respectively, of that of steel check dams, with hybrid timber check dams costing slightly less.

Fig. 8

Direct construction costs for each type of check dam

Focusing on the relative proportions of material and construction costs, for concrete check dams material costs accounted for 57 % and construction costs for 44 %. In contrast, the corresponding figures were 80 and 20 % for all-wood timber check dams, 89 and 11 % for hybrid timber check dams, and 83 and 17 % for steel check dams. Material costs accounted for a high proportion of direct construction costs for the three types of check dam other than those made of concrete, and the cost of material procurement was a factor driving up direct construction costs. Attempting to reduce material costs will therefore be a more effective cost-cutting measure than improving construction efficiency to keep down direct construction costs.

We investigated the possibility of reducing the costs of all-wood timber check dams, which had the highest costs among the five types of check dam addressed in this study. When considering measures for keeping down the costs of all-wood timber check dams, reducing the amount of timber used is undesirable from the perspective of timber use, and it would be preferable to investigate cost-cutting in areas other than timber. We therefore calculated the direct construction costs for three different cases: (a) using steel bars for all connectors, (b) not taking into account front apron construction, and (c) not taking into account front apron construction and also using only steel bars for all connectors. The assumption that steel bars could be used for all connectors was based on initiatives currently underway to replace lag screws with steel bars, as their material procurement costs are less than 10 % of those of lag screws [2, 3, 4]. We also considered not taking into account front apron construction, because although this is mandatory for the design of all-wood timber check dams in Akita Prefecture, it is not required for other types of check dams.

Direct construction costs in these three cases (values of (a), (b) and (c) in Fig. 8) were 88 % of current costs (values of actual condition) in case (a), 72 % in case (b), and 60 % in case (c). Compared with concrete check dams, however, the respective figures were 213 % in case (a), 173 % in case (b), and 144 % in case (c), showing that although they might be competitive with concrete check dams in terms of costs if these could be reduced to the level of case (c), further cost reductions or subsidies would be required to make them competitive in cases (a) and (b). To reduce the cost differential between their current structural forms and concrete check dams may require cost-cutting by means such as either a major reduction in the amount of timber used, which accounts for the greater part of material cost, or by promoting the commercialization of an on-site production system that integrates all the stages from timber procurement through to material preparation, processing, and construction at the construction site [23]. Focusing on the price of timber, to keep the direct construction costs of all-wood timber check dams in their present form down to around 1.5 times those for concrete check dams would require the price of timber (dressed on four sides) to fall to 42 % of its current level, and to 60 % of this level in case (a) and 78 % in case (b) above. The direct construction costs in the three cases described above were 158, 128, and 107 % of those for steel check dams in cases (a), (b), and (c), respectively. In case (c), the cost was very nearly equivalent to that for steel check dams, and even cases (a) and (b) might possibly be cost-competitive. The CO₂ emissions for all-wood timber check dams in these three cases were (a) 19.9 t-CO₂, (b) 16.0 t-CO₂, and (c) 14.7 t-CO₂, respectively. These results indicate cutting costs would also contribute to reducing CO₂ emissions at the same time.

Marginal abatement cost of reducing CO₂ emissions

As described above, although timber check dams entail lower CO₂ emissions compared with concrete or steel check dams, their cost is higher. The extra costs generated by switching from concrete or steel check dams to timber can be regarded as additional costs required to reduce CO₂ emissions (marginal abatement costs) [24]. We performed calculations of these marginal abatement costs using Eqs. (1) and (2) below.

$$ C = (\alpha \times C_{a} \text{ - }\alpha \times C_{b} ) \, /R $$

(1)

$$ \alpha = r/(1 - \left( {1 + r} \right)^{ - n} ) $$

(2)

Here, C (yen/t-CO₂) is the cost required to reduce carbon emissions by 1 t/year, C _a (yen/year) is the direct installation cost of a timber check dam (all-wood or hybrid construction), C _b (yen/year) is the direct installation cost of a non-timber check dam (concrete or steel construction), R (t-CO₂/year) is the yearly reduction in CO₂ emissions resulting from the switch from a non-timber check dam to a timber check dam, r (%) is the social discount rate (assumed to be 4 %), and n (years) is the period of durability of a check dam (assumed to be 50 years for both timber and non-timber check dams, from “Maintenance and management process” above). These equations did not take account of the yearly maintenance and management costs for each facility, nor of cost conversions of secondary effects such as amenity value, safety, and preventing air pollution.

Table 5 shows the results of these calculations for the marginal abatement costs. Switching from concrete or steel check dams to all-wood timber check dams would be a high-cost measure of reducing CO₂ emissions, whereas if (c) all-wood timber check dams using without a front apron and only steel bars were used to replace concrete or steel check dams, the marginal abatement costs would be only 25 or 5 %, respectively, of those of switching to all-wood timber check dams. The corresponding figure if steel check dams were to be replaced by hybrid timber check dams is around −83 thousand yen/t-CO₂, suggesting that this might be an effective method of reducing CO₂ emissions while gradually reducing costs.

Table 5 Marginal abatement costs and CO₂ emission reductions by switching from non-timber to timber check dams

For comparison with other measures of reducing CO₂ emissions [24], the marginal abatement costs of switching from concrete check dams to all-wood timber check dams would come to a similar amount to improvements to the urban automotive driving environment (the use of intelligent transport systems), for example. If (c) all-wood timber check dams without a front apron and only steel bars were used instead of steel check dams, this would cost around the same amount as using gas turbine combined-cycle power generation. These costs are around 4–38 times greater than the marginal abatement cost of 15 thousand yen/t-CO₂ (54 thousand yen/t-C) for using thinnings or logging residues as an energy source to reduce CO₂ emissions (average emission factors for all power sources) [24], suggesting that switching from concrete or steel check dams to timber check dams would not constitute a cheap means of reducing CO₂ emissions compared to other methods for reducing CO₂ emissions. Further cost reduction measures, as well as political support such as subsidy systems, are required for the use of timber in check dams.

Conclusions

We carried out a comparative evaluation life cycle CO₂ emissions and direct installation costs for concrete check dams, which have a long track record of construction, steel check dams, and two types of timber check dams developed in Akita Prefecture (all-wood and hybrid timber), and investigated the effectiveness of timber check dams in reducing CO₂ emissions and their economic efficiency compared with non-timber check dams. We found the following results.

• (a) Switching from concrete to all-wood and hybrid timber check dams would reduce CO₂ emissions by 54 and 43 %, respectively. Switching from steel to all-wood and hybrid timber check dams reduced CO₂ emissions by 28 and 11 %, respectively.

• (b) In the various life cycle processes, CO₂ emissions were greatest during the production processes for materials and fuel for all types of check dam, with 75 % of the emissions for all-wood timber check dams and over 90 % of those for hybrid timber, concrete, and steel check dams emitted during this process.

• (c) In terms of economic efficiency, all-wood timber check dams are the most expensive, whereas concrete check dams are the cheapest, with all-wood timber check dams being expensive at 241 % of the cost of concrete check dams. However, it is possible to reduce the cost of all-wood timber check dams to around 60 % of its current level by changing the construction method and materials. Hybrid timber check dams are 132 % of the costs of concrete check dams, and slightly less expensive than steel check dams, and can therefore be competitive with them in terms of cost.

• (d) The marginal abatement costs required to reduce CO₂ emissions when switching from concrete to timber check dams are around 143–577 thousand yen/t-CO₂ for all-wood timber check dams and around 164 thousand yen/t-CO₂ for hybrid timber check dams. Therefore, switching from non-timber check dams to timber check dams does not constitute cheap means of reducing CO₂ emissions compared with other policies.

This study placed an emphasis on integrating the evaluation conditions for timber and non-timber check dams, and on obtaining widely applicable results that do not depend on local characteristics. Based on the concept, data were collected about the production processes of construction materials. However, an important challenge in the near future is to evaluate using data that are based on local conditions, and make a comparative review with the results from this study. Areas for future study includes the investigation of how to deal with the carbon sequestered in timber, which was excluded from the evaluation in this study, as well as with GHGs as a whole rather than CO₂ alone. With respect to economic efficiency, future topics could include studies covering on-site production systems, as well as investigations of procurement prices for resources such as timber, steel, and fuel, which are subject to comparatively large fluctuations. Consideration of costs associated with secondary effects, such as amenity value, safety, and preventing air pollution, is also a topic for future research on marginal abatement costs.
