Official Journal of the Japan Wood Research Society

  • Original article
  • Published:

Molecular cloning, characterization, and expression analysis of a β-N-acetylhexosaminidase (LeHex20B) from the shiitake mushroom, Lentinula edodes

Abstract

We previously reported on a β-N-acetylhexosaminidase, LeHex20A, belonging to glycoside hydrolase family 20 (GH20), from the fruiting body of Lentinula edodes (shiitake mushroom). In this study, we purified, cloned, and characterized another β-N-acetylhexosaminidase, LeHex20B, from L. edodes fruiting bodies. The cDNA of LeHex20B includes an open reading frame of 1,686 bp encoding a 20 amino acid signal peptide and a 541 amino acid mature protein. The amino acid sequence identity of LeHex20A and LeHex20B was 57 %, and LeHex20B had high sequence identity to GH20 proteins; thus, LeHex20B belongs to GH family 20. LeHex20B showed β-N-acetylhexosaminidase activity and catalyzed degradation of chitooligosaccharides (GlcNAc2-6) exolytically with N-acetylglucosamine (GlcNAc) production. The maximum LeHex20B activity was observed at pH 5.0 and at 60 °C. LeHex20B had highest catalytic efficiency (k cat/K m) for GlcNAc3 and showed high affinity for GlcNAc3-6. The transcript level of LeHex20A was significantly increased in fruiting bodies after harvest, suggesting that LeHex20A is mainly involved in fruiting body autolysis. On the other hand, LeHex20B was highly expressed in young fruiting bodies and mycelia. Therefore, LeHex20B seems to be mainly involved in elongation of fruiting bodies and mycelia.

Introduction

Chitin, a polysaccharide composed of β-1,4 linked N-acetylglucosamine (GlcNAc) residues, is one of the main cell wall components in fungi, together with glucans (mainly β-1,3-glucan and β-1,6-glucan). In fungal cell walls, chitin generally occurs as a highly crystalline microfibril (α-chitin) form and makes up approximately 2–8 % of the dry mass [13]. Most of the filamentous fungi, including ascomycetes and basidiomycetes, produce enzymes associated with chitin, and some of them act on the chitin in their own cell walls. These enzymes cause morphological changes involving enzymatic synthesis, reorienting, and lysis of the cell wall chitin [4, 5].

Enzymatic degradation of chitin requires two kinds of glycoside hydrolases (GHs), chitinases (EC 3.2.1.14) and β-N-acetylhexosaminidases (EC 3.2.1.52). Chitinases hydrolyze β-1,4 linkages in chitin polymers endolytically, and GlcNAc oligosaccharides (chitooligosaccharides) are produced [6, 7]. Subsequently, β-N-acetylhexosaminidases degrade the chitooligosaccharides formed by chitinases, especially chitobiose, into monomers [8, 9]. The enzymes hydrolyze nonreducing terminal monosaccharide residues of β-N-acetylgalactosaminides and β-N-acetylglucosaminides. Fungal β-N-acetylhexosaminidases belong to GH family 20 (GH20) in the CAZy database [10]. GH20 enzymes perform substrate-assisted catalysis; a glutamate of the enzyme acts as the catalytic acid/base and the acetamido group of the substrate acts as a nucleophile [11, 12]. The physiological function and role of fungal β-N-acetylhexosaminidases are mainly investigated in ascomycetes. Mycoparasitic fungi such as Trichoderma spp. produce extracellular chitinolytic enzymes for hydrolysis of host cell walls during host invasion [13, 14]. López-Mondéjar et al. [15] reported that T. atroviride produces two kinds of β-N-acetylhexosaminidase, and the enzymes are essential for the use of chitin as a nutrient source. On the other hand, some fungal chitinolytic enzymes act on their own cell walls during morphological changes. For example, it has been reported that the filamentous fungi Aspergillus nidulans produce some chitinolytic enzymes used in autolysis at late stages of cultures, and a β-N-acetylhexosaminidase from this strain is suggested to have an important role in cell death [16]. Furthermore, chitinolytic enzymes containing β-N-acetylhexosaminidases seem to act in hyphal growth and branching in filamentous fungi [17, 18].

Most basidiomycetes form a fruiting body (mushroom) during sporulation as part of their usual life cycle. The cell walls of the fruiting body are also constructed mainly from chitin and β-glucans [19]. Therefore, GHs for chitin and β-glucans also act in morphological changes of the fruiting bodies. Kamada et al. [4] detected chitinase, β-1,3-glucanase, and β-1,6-glucanase activities in the stipe of Coprinopsis cinerea, and suggested that the enzymes act in stipe elongation. Furthermore, Iten and Matile [20] reported that the cell wall chitin of fruiting bodies undergoes autolysis by chitinolytic enzymes after harvesting. However, little is known about the physiological function or role of chitinolytic enzymes in basidiomycetes.

Recently, we purified a β-N-acetylhexosaminidase, LeHexA, from L. edodes fruiting bodies. LeHexA was the first cloned and characterized GH20 β-N-acetylhexosaminidase from basidiomycetes [21]. LeHex20A has a molecular mass of 79 kDa, and the corresponding gene (lehex20a) has 1,659 nucleotides, encoding 553 amino acid residues. In this study, we purified and characterized another β-N-acetylhexosaminidase, LeHex20B, from L. edodes fruiting bodies. The gene encoding LeHex20B (lehex20b) was cloned, and expression patterns of lehex20a and lehex20b were analyzed to discuss their biological functions.

Materials and methods

Materials

L. edodes strain H600 (Hokken. Co., Ltd., Tochigi, Japan) was used in all experiments. Fruiting bodies were prepared using the method of Nagai et al. [22]. L. edodes samples for real-time PCR were prepared as described previously [23]. The mycelia were cultured in MYPG liquid medium (0.25 % malt extract, 0.1 % yeast extract, 0.1 % peptone, and 0.5 % glucose) for 2 weeks at 25 °C with shaking as described previously [24]. Young fruiting bodies were grouped by height (<1, 1–2, 2–3, and 3–5 cm). Mature fruiting bodies were separated into pileus, gill, and stipe parts. Harvested mature fruiting bodies were immediately transferred to a desiccator at 25 °C and 80 % humidity for post-harvest preservation. All samples were stored at −80 °C.

Purification of LeHex20B

Proteins were extracted from gill parts of fresh fruiting bodies (400 g). Samples were crushed in liquid nitrogen, suspended in 400 ml 10 mM sodium phosphate buffer (pH 7.0), and incubated with rotation for 30 min at room temperature. Ammonium sulfate was added until the concentration reached 70 % saturation, and the resulting precipitates were dissolved in 10 mM sodium phosphate buffer (pH 7.0) containing ammonium sulfate at 30 % saturation. LeHex20B was purified sequentially by column chromatography on a Phenyl-Toyopearl column (1.6 × 10 cm, Tosho Co., Ltd., Tokyo, Japan), a MonoQ 5/50 GL anion exchange column (0.5 × 5 cm, GE Healthcare, Little Chalfont, UK), a Toyopearl DEAE-650S anion exchange column (0.8 × 7.5 cm, Tosoh Co., Ltd.), and a Superdex 75 10/30 gel filtration column (GE Healthcare) using the same strategy described previously for LeHexA purification [21]. Purified LeHex20B was analyzed by SDS-PAGE, and proteins were stained by Oriole fluorescent gel stain solution (Bio-Rad, CA, USA). The N-terminal amino acid sequence was analyzed as described in Sakamoto et al. [24].

Cloning of cDNA-encoding LeHex20B

Total RNA were extracted from the fresh fruiting bodies using a MasterPure Yeast RNA Purification Kit (EPICENTRE, WI, USA). cDNA was synthesized from total RNA extracted using a SMART PCR RACE kit (BD Biosciences, CA, USA), according to the manufacturer’s protocol. Based on L. edodes genome information [25], lehex20b-specific primers (5′-ATCTGGCCGATACCCCGTTCTCTG-3′ and 5′-TTCATCGCACATCTGCGGCCTCAAAG-3′) were designed. PCR was performed as described previously [26]. The presence of a signal peptide in the deduced amino acid sequence was predicted using the SignalP server [27]. Comparative analysis of homology with the enzymes registered in the GenBank databases was carried out using the NCBI BLAST algorithm [28] with the default parameters.

Analysis of mRNA levels by real-time PCR

Total RNA from mycelia, young fruiting bodies during development, and fruiting bodies after harvest were extracted as described above, and then reverse transcribed using a QuantiTect Reverse Transcription kit (QIAGEN GmbH, Hilden, Germany) according to the manufacturer’s instructions. Real-time PCR was performed with lehex20a-specific primers (5′-TCTCGTGGTCGCTACCGTTAT-3′ and 5′-CGTCGAAAAGTCCGTAGGAAGA-3′) and lehex20b-specific primers (5′-AAATGACCCAACCGGTAATAGCT-3′ and 5′-TGGCGAGTGGATTGAAAGTG-3′) on a Step One Plus Real-Time PCR System (Applied Biosystems, CA, USA) [23]. The real-time PCR data were normalized against the glyceraldehyde-3-phosphate dehydrogenase gene (gpd) expression [29] detected with gpd-specific primers (5′-CCGCTACCCAGAAGACTGTTG-3′ and 5′-GAACGACCTCCACGCCAAT-3′). The expression patterns were analyzed by ΔΔC T method [30], and the expression level of gills of fresh fruiting bodies was used as a calibrator.

Enzyme assays

β-N-Acetylhexosaminidase activity was measured in 20 mM sodium acetate buffer (pH 4.2) at 37 °C for 15 min. During purification, activity was determined using 0.5 mM p-nitrophenyl-N-acetyl-β-d-glucosaminide (pNP-GlcNAc) (Sigma-Aldrich Inc., St. Louis, MO, USA) as a substrate. The reaction was quenched with 0.4 M Na2CO3, and the amount of pNP released was determined spectrophotometrically at 405 nm. The extinction coefficient of pNP was assumed to be 17,100 M−1 cm−1. To elucidate substrate specificity of the enzyme, assays were performed using the following substrates: pNP-GlcNAc, p-nitrophenyl-N-acetyl-beta-d-galactosaminide (pNP-GalNAc), p-nitrophenyl-d-glucoside (pNP-Glc) (Sigma-Aldrich), chitooligosaccharides (GlcNAc2-6, Seikagaku Biobusiness Co., Tokyo, Japan), chitin (Wako Pure Chemicals Co., Osaka, Japan), and colloidal chitin, which were prepared according to [31]. The amounts of GlcNAc released from chitin oligomers were measured by the Morgan-Elson assay according to the method of [8]. One unit (U) of enzyme activity was defined as the amount of enzyme that produces 1 µmol GlcNAc per minute. To determine the kinetic properties of LeHex20B, the reactions were performed with 0.05–0.5 mM of substrate [21]. To analyze the effect of pH on the activity, assays were performed using the following buffers: 50 mM citric acid-sodium phosphate at pH 3–5, 50 mM sodium acetate at pH 4.0–6.0, 50 mM sodium phosphate at pH 6.0–8.0, and 50 mM Tris/HCl at pH 8.0–9.0. The pH stability of the enzyme was estimated by measuring residual activity after incubation in the buffer at 4 °C for 20 h. The effect of temperature on the activity was determined by conducting the assays for 15 min at temperatures in the range of 10–80 °C. To analyze thermostability, aliquots of the enzyme were treated in 20 mM sodium phosphate buffer (pH 4.2) at 10–80 °C for 30 min. The effects of pH and temperature on the enzymatic activities were measured using pNP-GlcNAc, GlcNAc2, and GlcNAc4.

Thin-layer chromatography (TLC) of reaction products

GlcNAc2-6 (0.7 mM) were incubated with LeHex20B (0.46 nM) in 20 mM sodium acetate buffer (pH 4.2) at 37 °C, and the reaction mixtures were applied to a TLC plate (Silica 60 F254, Merck Co., Darmstadt, Germany). The reaction products were developed with n-butanol/methanol/25 % ammonia solution/water (5:4:2:1 by volume), and detected using aniline-diphenylamine reagent [32].

Nucleotide sequence accession number

The nucleotide sequence encoding LeHex20B has been deposited in the DDBJ/EMBL/GenBank databases under the accession number [DDBJ: AB981197].

Results and discussion

Purification of LeHex20B and cloning of its gene, lehex20b

LeHex20B (0.92 μg) was purified from fresh fruiting bodies of L. edodes (400 g) by a four-step column chromatographic method in a similar manner to LeHexA purification. In the first step, a (Phenyl-Toyopearl column), LeHex20A, and LeHex20B were separable as distinct peaks with activity toward pNP-GlcNAc. Although LeHex20A went through the Phenyl-Toyopearl column in buffer containing ammonium sulfate at 30 % saturation, LeHex20B was absorbed to this column and was eluted with buffer containing ammonium sulfate at 10 % saturation. As a result, a single major band was obtained by SDS-PAGE, and the deduced molecular mass of the purified LeHex20B was 75 kDa (Fig. 1). The N-terminal amino acid sequence of the protein was IWPIPRSLDSG. A search for this sequence in the L. edodes genome database yielded one matching region in the sequence designated AUGUSTUS01_g3889.t1.

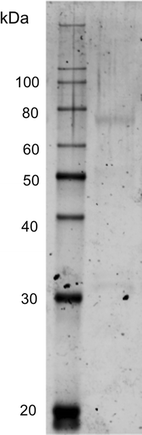

Fig. 1
figure 1

SDS-PAGE of purified LeHex20B. Approximately, 1 μg of sample was separated on a 10 % (w/v) polyacrylamide gel. Lane 1, molecular mass standards (kDa); lane 2, purified LeHex20B

Based on the nucleotide sequence of AUGUSTUS01_g3889.t1, primers were designed. cDNA-encoding LeHex20B was cloned from total RNA extracted from the gills of fresh fruiting bodies. The cDNA contained an open reading frame of 1,686 bp, encoding 561 amino acid residues. According to SignalP analysis, the first 20 amino acid residues in the N-terminal region are expected to be a signal peptide. This expected N-terminal region was identified as a result of N-terminal analysis. Therefore, mature LeHex20B, consisting of 541 amino acids, is an extracellular or cell wall protein. The deduced amino acid sequence was analyzed using the blastp algorithm of the NCBI protein database. Search results indicated that the amino acid sequence contains GH20 domains. The amino acid sequence identity of LeHex20A and LeHex20B was 57 %. The BLAST search found that LeHex20B has high sequence identity to putative GH20 proteins (containing putative β-N-acetylhexosaminidase sequences) from basidiomycetous species such as Gloeophyllum trabeum (sequence ID, EPQ54817; identity, 65 %), Serpula lacrymans (EGN97893; 63 %), Phanerochaete carnosa (EKM49790; 62 %), and Fomitiporia mediterranea (EJC97794; 62 %). These results support LeHex20B belonging to GH20. The sequence was further analyzed using the blastp algorithm in genome sequence databases of basidiomycetes [33]. These searches revealed that LeHex20B has high levels of similarity to proteins of basidiomycetes including Coprinopsis cinerea (DOE Joint Genome Institute ID number 2961; similarity 53 %), Postia placenta (112369; 54 %), Heterobasidion annosum (61259; 58 %), Agaricus bisporus (186352; 51 %), Polyporus arcularius (649991; 59 %), Schizophyllum commune (66483; 59 %), and Phanerochaete chrysosporium (140587; 62 %). Thus, homologs of lehex20b seem to be conserved in basidiomycetes.

Multiple sequence alignment of GH20 members indicates that a glutamate, Glu316 in LeHex20B, acts as the catalytic acid/base [34, 35]. GH20 enzymes from bacteria, plants, insects, mammals, and ascomycetes have a consensus H–x-G–G motif preceding the catalytic residue [36, 37]. We reported that LeHex20A and its homologs from basidiomycetes have the sequence S-x-G–G in the corresponding position [21]. LeHex20B and the homologs shown above commonly have the S-x-G–G motif, suggesting that this sequence is unique for basidiomycete GH20 enzymes.

Enzymatic properties of LeHex20B

The enzymatic characteristics of purified LeHex20B were investigated. Effects of pH and temperature on enzyme activity were examined using pNP-GlcNAc and chitooligosaccharides (GlcNAc2 and GlcNAc4) as substrates. The maximum LeHex20B activity was observed at pH 5.0 in 50 mM sodium acetate buffer, and the enzyme was stable across a pH range from 5 to 8 when incubated at 4 °C for 20 h. LeHex20B showed maximum activity at 60 °C (incubation time, 15 min). However, the enzyme was inactivated after incubation at 60 °C for 30 min. These properties were similar to those of LeHex20A.

The substrate specificity of purified LeHex20B was also investigated. LeHex20B showed hydrolytic activity toward pNP-GlcNAc, pNP-GalNAc, and GlcNAc2-6, but none toward pNP-Glc or crystalline chitin. LeHex20B had no hydrolytic activity toward colloidal chitin, while LeHexA did. The enzymatic reaction products of GlcNAc2-6 (GlcNAc2, GlcNAc4, and GlcNAc6) were analyzed by TLC (Fig. 2). GlcNAc2 was rapidly degraded to GlcNAc monomers. When GlcNAc4 and GlcNAc6 were used as substrates, the initial (30 min) products were monomers and oligomers that were shorter than the original substrate. The enzyme further degraded these oligomers, and the accumulation of monomers was eventually observed, suggesting typical exo-type activity. These results indicate that LeHex20B is a β-N-acetylhexosaminidase in the EC 3.2.1.52 classification.

Fig. 2
figure 2

TLC analysis of LeHex20B action on chitooligosaccharides (GlcNAc2-6). GlcNAc2-6 (0.7 mM) were incubated with LeHex20B (0.46 nM) in 20 mM sodium acetate buffer (pH 4.2) at 37 °C. Standards (Std.) were GlcNAc and GlcNAc2-6. DP degree of polymerization

The kinetic parameters of LeHex20B for pNP-GlcNAc, pNP-GalNAc, and GlcNAc2-6 were investigated (Table 1). LeHex20B showed values for the kinetic constant k cat/K m as follows: GlcNAc3 > GlcNAc4 > pNP-GlcNAc > GlcNAc5 > GlcNAc6 > GlcNAc2 > pNP-GalNAc. LeHex20B showed the highest k cat toward pNP-GlcNAc, but almost half the value toward GlcNAc2-6. The k cat values of LeHex20B toward GlcNAc2-6 were equivalent, while the k cat value of LeHex20A for GlcNAc2 was 2.0-fold higher than for GlcNAc4 and 2.5-fold higher than for GlcNAc6, On the other hand, LeHex20B showed high affinity for GlcNAc3-6: the K m value for GlcNAc3 was 1.6-fold lower than for GlcNAc2 and 1.9-fold lower than for GlcNAc6. This tendency in the kinetic parameters of LeHex20B was similar to that of LeHex20A. Generally, β-N-acetylhexosaminidases hydrolyze nonreducing terminal monosaccharide residues of substrates with binding between a subsite (−1) of the enzymes and the nonreducing terminal residue of the substrate. In our last paper [21], we noted that some β-N-acetylhexosaminidases containing LeHexA might have other GlcNAc-binding subsites. The biggest reduction in the K m value of LeHex20B was observed between GlcNAc2 and GlcNAc3, implying that a subsite (+2) of the enzyme strongly binds to the substrate [38].

Table 1 Kinetic parameters of LeHex20B. The activity was measured in 20 mM sodium acetate buffer (pH 4.2) at 37 °C for 15 min. To determine the kinetic properties of LeHex20B, the reactions were performed with 0.05–0.5 mM of substrate

Expression pattern of lehex20a and lehex20b

The expression patterns of lehex20a and lehex20b in mycelia, young fruiting bodies during development, and mature fruiting bodies were analyzed by real-time PCR (Fig. 3). The lehex20a expression was observed at every stage and in every part of fruiting bodies. In contrast, no expression was detected at the mycelial stage. These results indicate that lehex20a was specifically expressed in the fruiting body. Moreover, expression was particularly high in the fruiting bodies 3 days after harvesting, (59.6 times higher in gills, 17.5 times in pilei, and 4.6 times in stipes, compared with the level in fresh fruiting bodies), suggesting that LeHex20A is mainly involved in fruiting body autolysis after harvest. On the other hand, lehex20b was expressed at almost all stages and in mycelia and fruiting bodies. Expression was high in young fruiting bodies, particularly in the stipes of young fruiting bodies 3–5 cm high, a stage showing remarkable stipe elongation. High expression of lehex20b was also detected at the mycelial stage (8 times higher than in gills of fresh fruiting bodies). These results suggested that LeHex20B is mainly involved in growth of hyphae and fruiting bodies.

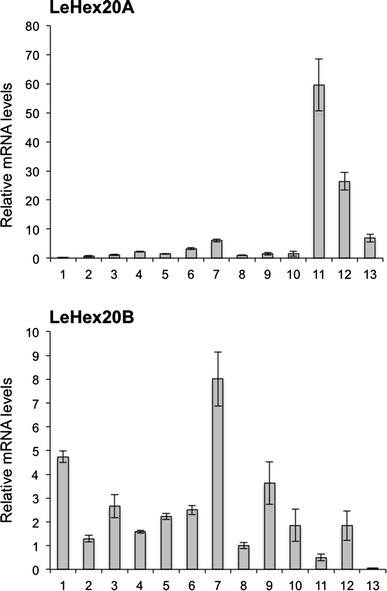

Fig. 3
figure 3

Analysis of the transcription level of lehex20A and lehex20b using real-time PCR. Quantities of mRNAs were relative to the level in gills of fresh fruiting bodies. All data points are mean ± SD (n = 3). 1 mycelia grown in liquid culture for 2 weeks; 2 primordia less than 1 cm high; 3 primordia 1–2 cm high; 4 pilei of young fruiting bodies 2–3 cm high; 5 stipes of young fruiting bodies 2–3 cm high; 6 pilei of young fruiting bodies 3–5 cm high; 7 stipes of young fruiting bodies 3–5 cm high; 8 gills of fresh fruiting bodies (calibrator); 9 pilei of fresh fruiting bodies; 10 stipes of fresh fruiting bodies; 11 gills of fruiting bodies 3 days after harvesting; 12 pilei of fruiting bodies 3 days after harvesting; 13 stipes of fruiting bodies 3 days after harvesting

The cell walls of fungi are constructed mainly from chitin and β-1,3/1,6-glucans. We reported four β-1,3-glucanases (EXG1, EXG2, TLG1, and GLU1) and one β-1,6-glucanase (LePus30A) from L. edodes fruiting bodies [23, 24, 26, 3941]. EXG1 is suggested to have a role in stipe elongation of young mushrooms during development. In contrast, TLG1, GLU1, and LePus30A are mainly involved in cell wall autolysis during fruiting body senescence after harvesting. EXG2 also seems to operate on both of the processes described above. Thus, sharing of roles in the degradation of cell wall polysaccharides seems to occur commonly in fungi. In the cell wall of L. edodes mushrooms, chitin exists as a highly crystalline microfibril. Sakamoto et al. [40] reported two L. edodes genes showing homology with GH family 18 endochitinases. Kang et al. [42] cloned GH family 18 endochitinases from the mushroom tissues of Coprinellus congregatus, and the endochitinase was suggested to be involved in the degradation of mushroom cell walls during autolysis. Therefore, LeHex20A and LeHex20B may act in cooperation with other chitinolytic enzymes, especially endochitinases, on cell walls.

References

  1. Gow NAR, Gooday GW (1983) Ultrastructure of chitin in hyphae of Candida albicans and other dimorphic and mycelial fungi. Protoplasma 115:52–58

    Article  Google Scholar

  2. Kamada T, Takemaru T, Prosser JI, Gooday GW (1991) Right and left handed helicity of chitin microfibrils in stipe cells in Coprinus cinereus. Protoplasma 165:64–70

    Article  Google Scholar

  3. Vetter J (2007) Chitin content of cultivated mushrooms Agaricus bisporus, Pleurotus ostreatus and Lentinula edodes. Food Chem 102:6–9

    Article  CAS  Google Scholar

  4. Kamada T, Hamada Y, Takemaru T (1982) Autolysis in vitro of the stipe cell wall in Coprinus macrorhizus. Microbiology 128:1041–1046

    Article  CAS  Google Scholar

  5. Kües U (2000) Life history and developmental processes in the basidiomycete Coprinus cinereus. Microbiol Mol Biol Rev 64:316–353

    Article  PubMed Central  PubMed  Google Scholar

  6. Brurberg MB, Nes IF, Eijsink VG (1996) Comparative studies of chitinases A and B from Serratia marcescens. Microbiology 142:1581–1589

    Article  CAS  PubMed  Google Scholar

  7. Tanaka T, Fukui T, Imanaka T (2001) Different cleavage specificities of the dual catalytic domains in chitinase from the hyperthermophilic archaeon Thermococcus kodakaraensis KOD1. J Biol Chem 276:35629–35635

    Article  CAS  PubMed  Google Scholar

  8. Keyhani NO, Roseman S (1996) The chitin catabolic cascade in the marine bacterium Vibrio furnissii. Molecular cloning, isolation, and characterization of a periplasmic β-N-acetylglucosaminidase. J Biol Chem 271:33425–33434

    Article  CAS  PubMed  Google Scholar

  9. Yang Q, Liu T, Liu F, Qu M, Qian X (2008) A novel β-N-acetyl-d-hexosaminidase from the insect Ostrinia furnacalis (Guenée). FEBS J 275:5690–5702

    Article  CAS  PubMed  Google Scholar

  10. Lombard V, Golaconda Ramulu H, Drula E, Coutinho PM, Henrissat B (2014) The Carbohydrate-active enzymes database (CAZy) in 2013. Nucleic Acids Res 42:D490–D495

    Article  PubMed Central  CAS  PubMed  Google Scholar

  11. Drouillard S, Armand S, Davies GJ, Vorgias CE, Henrissat B (1997) Serratia marcescens chitobiase is a retaining glycosidase utilizing substrate acetamido group participation. Biochem J 328:945–949

    PubMed Central  CAS  PubMed  Google Scholar

  12. Jones CS, Kosman DJ (1980) Purification, properties, kinetics, and mechanism of β-N-acetylglucosamidase from Aspergillus niger. J Biol Chem 255:11861–11869

    CAS  PubMed  Google Scholar

  13. Carsolio C, Gutiérrez A, Jiménez B, Van Montagu M, Herrera-Estrella A (1994) Characterization of ech-42, a Trichoderma harzianum endochitinase gene expressed during mycoparasitism. Proc Natl Acad Sci U S A 91:10903–10907

    Article  PubMed Central  CAS  PubMed  Google Scholar

  14. Seidl V, Druzhinina IS, Kubicek CP (2006) A screening system for carbon sources enhancing β-N-acetylglucosaminidase formation in Hypocrea atroviridis (Trichoderma atroviride). Microbiology 152:2003–2012

    Article  CAS  PubMed  Google Scholar

  15. López-Mondéjar R, Catalano V, Kubicek CP, Seidl V (2009) The β-N-acetylglucosaminidases NAG1 and NAG2 are essential for growth of Trichoderma atroviride on chitin. FEBS J 276:5137–5148

    Article  PubMed  Google Scholar

  16. Shin KS, Kwon NJ, Kim YH, Park HS, Kwon GS, Yu JH (2009) Differential roles of the ChiB chitinase in autolysis and cell death of Aspergillus nidulans. Eukaryot Cell 8:738–746

    Article  PubMed Central  CAS  PubMed  Google Scholar

  17. Rast DM, Horsch M, Furter R, Gooday GW (1991) A complex chitinolytic system in exponentially growing mycelium of Mucor rouxii: properties and function. J Gen Microbiol 137:2797–2810

    Article  CAS  PubMed  Google Scholar

  18. Kim S, Matsuo I, Ajisaka K, Nakajima H, Kitamoto K (2002) Cloning and characterization of the nagA gene that encodes β-N-acetylglucosaminidase from Aspergillus nidulans and its expression in Aspergillus oryzae. Biosci Biotechnol Biochem 66:2168–2175

    Article  CAS  PubMed  Google Scholar

  19. Shida M, Ushioda Y, Nakajima T, Matsuda K (1981) Structure of the alkali-insoluble skeletal glucan of Lentinus edodes. J Biochem 90:1093–1100

    CAS  PubMed  Google Scholar

  20. Iten W, Matile P (1970) Role of chitinase and other lysosomal enzymes of Coprinus Zagopus in the autolysis of fruiting bodies. J Gen Microbiol 61:301–309

    Article  CAS  Google Scholar

  21. Konno N, Takahashi H, Nakajima M, Takeda T, Sakamoto Y (2012) Characterization of β-N-acetylhexosaminidase (LeHex20A), a member of glycoside hydrolase family 20, from Lentinula edodes (shiitake mushroom). AMB Express 2:29

    Article  PubMed Central  PubMed  Google Scholar

  22. Nagai M, Kawata M, Watanabe H, Ogawa M, Saito K, Takesawa T, Kanda K, Sato T (2003) Important role of fungal intracellular laccase for melanin synthesis: purification and characterization of an intracellular laccase from Lentinula edodes fruit bodies. Microbiology 149:2455–2462

    Article  CAS  PubMed  Google Scholar

  23. Konno N, Sakamoto Y (2011) An endo-β-1,6-glucanase involved in Lentinula edodes fruiting body autolysis. Appl Microbiol Biotechnol 91:1365–1373

    Article  CAS  PubMed  Google Scholar

  24. Sakamoto Y, Irie T, Sato T (2005) Isolation and characterization of a fruiting body-specific exo-β-1,3-glucanase-encoding gene, exg1, from Lentinula edodes. Curr Genet 47:244–252

    Article  CAS  PubMed  Google Scholar

  25. Forestry and Forest Products Research Institute, Tsukuba, Japan, Forestgen, http://forestgen.ffpri.affrc.go.jp/ja/info_le.html. Accessed 25 July 2013

  26. Sakamoto Y, Minato K, Nagai M, Kawakami S, Mizuno M, Sato T (2005) Characterization of the Lentinula edodes exg2 gene encoding a lentinan-degrading exo-β-1,3-glucanase. Curr Genet 48:195–203

    Article  CAS  PubMed  Google Scholar

  27. Petersen TN, Brunak S, von Heijne G, Nielsen H (2011) SignalP 4.0: discriminating signal peptides from transmembrane regions. Nat Methods 8:785–786

    Article  CAS  PubMed  Google Scholar

  28. Altschul SF, Madden TL, Schäffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ (1997) Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res 25:3389–3402

    Article  PubMed Central  CAS  PubMed  Google Scholar

  29. Hirano T, Sato T, Okawa K, Kanda K, Yaegashi K, Enei H (1999) Isolation and characterization of the glyceraldehyde-3-phosphate dehydrogenase gene of Lentinus edodes. Biosci Biotechnol Biochem 63:1223–1227

    Article  CAS  PubMed  Google Scholar

  30. Livak KJ, Schmittgen TD (2001) Analysis of relative gene expression data using real-time quantitative PCR and the 2(−Delta Delta C(T)) Method. Methods 25:402–408

    Article  CAS  PubMed  Google Scholar

  31. Hsu SC, Lockwood JL (1975) Powdered chitin agar as a selective medium for enumeration of actinomycetes in water and soil. Appl Microbiol 29:422–426

    PubMed Central  CAS  PubMed  Google Scholar

  32. Tanaka T, Fujiwara S, Nishikori S, Fukui T, Takagi M, Imanaka T (1999) A unique chitinase with dual active sites and triple substrate binding sites from the hyperthermophilic archaeon Pyrococcus kodakaraensis KOD1. Appl Environ Microbiol 65:5338–5344

    PubMed Central  CAS  PubMed  Google Scholar

  33. Grigoriev IV, Cullen D, Goodwin SB, Hibbett D, Jeffries TW, Kubicek CP, Kuske C, Magnuson JK, Martin F, Spatafora JW, Tsang A, Baker SE (2011) Fueling the future with fungal genomics. Mycology 2:192–209

    Google Scholar

  34. Drouillard S, Armand S, Davies GJ, Vorgias CE, Henrissat B (1997) Serratia marcescens chitobiase is a retaining glycosidase utilizing substrate acetamido group participation. Biochem J 328:945–949

    PubMed Central  CAS  PubMed  Google Scholar

  35. Jones CS, Kosman DJ (1980) Purification, properties, kinetics, and mechanism of β-N-acetylglucosamidase from Aspergillus niger. J Biol Chem 255:11861–11869

    CAS  PubMed  Google Scholar

  36. Intra J, Pavesi G, Horner DS (2008) Phylogenetic analyses suggest multiple changes of substrate specificity within the glycosyl hydrolase 20 family. BMC Evol Biol 8:214

    Article  PubMed Central  PubMed  Google Scholar

  37. Mayer C, Vocadlo DJ, Mah M, Rupitz K, Stoll D, Warren RA, Withers SG (2006) Characterization of a β-N-acetylhexosaminidase and a β-N-acetylglucosaminidase/β-glucosidase from Cellulomonas fimi. FEBS J 273:2929–2941

    Article  CAS  PubMed  Google Scholar

  38. Suginta W, Chuenark D, Mizuhara M, Fukamizo T (2010) Novel β-N-acetylglucosaminidases from Vibrio harveyi 650: cloning, expression, enzymatic properties, and subsite identification. BMC Biochem 11:40

    Article  PubMed Central  PubMed  Google Scholar

  39. Sakamoto Y, Watanabe H, Nagai M, Nakade K, Takahashi M, Sato T (2006) Lentinula edodes tlg1 encodes a thaumatin-like protein that is involved in lentinan degradation and fruiting body senescence. Plant Physiol 141:793–801

    Article  PubMed Central  CAS  PubMed  Google Scholar

  40. Sakamoto Y, Nakade K, Sato T (2009) Characterization of the post-harvest changes in gene transcription in the gill of the Lentinula edodes fruiting body. Curr Genet 55:409–423

    Article  CAS  PubMed  Google Scholar

  41. Sakamoto Y, Nakade K, Konno N (2011) Endo-β-1,3-glucanase GLU1, from the fruiting body of Lentinula edodes, belongs to a new glycoside hydrolase family. Appl Environ Microbiol 77:8350–8354

    Article  PubMed Central  CAS  PubMed  Google Scholar

  42. Kang Y, Kim H, Choi HT (2013) Biochemical characterization of chitinase 2 expressed during the autolytic phase of the inky cap Coprinellus congregatus. J Microbiol 51:189–193

    Article  PubMed  Google Scholar

Download references

Acknowledgments

We thank Ms. Akiko Uchidate, Ms. Miyuki Ito, Ms. Junko Kawaguchi, and Ms. Shiho Sato for their help with experiments. We are grateful to Dr. Arend F. van Peer for his suggestion and comments. This research was supported by a Grant-in-Aid for Scientific Research to N. K. (no. 2510648) from the Japan Society for the Promotion of Science (JSPS), by grants for project research (Development of fundamental technology for analysis and evaluation of functional agricultural products and functional foods).
