Production and mechanical performance of scrimber composite manufactured from poplar wood for structural applications

Abstract

The use of wood-based composite material for structural purposes is of increasing interest. A scrimber composite, which is manufactured from thermally modified fast-growing wood, is introduced in this paper. The production of such scrimber is able to reduce the inherent variability in mechanical properties of natural wood material, and also allows the effective utilization of fast-growing wood, which is widely available with a low price in China. Experimental tests were conducted to determine the mechanical properties of the scrimber composite. A comparison of mechanical properties of the proposed scrimber composite with other timber/bamboo-based materials is then reported. It is shown that the scrimber composite has desirable mechanical performance as a construction material, which is comparable or superior to those of engineered timber/bamboo products. This study contributes to a potential utilization of fast-growing tree species, and the presented mechanical tests can serve as a fundamental basis for more applications of such composite material in practical engineering.

Introduction

Wood is one of the oldest natural building materials in the world. A number of desirable factors, such as simplicity in fabrication, thermal insulation, and environmental compatibility, have made wood one of the most popular construction materials. However, due to stricter environmental regulations and decreasing number of natural forests, fast-growing wood is expected to be used in building structures because of its ease of reproduction.

Initially, most fast-growing tree species were used to produce pulp and paper due to their low density and poor mechanical properties. However, with increasing demand for wood-based structural materials, many studies have been conducted to investigate the potential and properties of engineered wood products made from fast-growing tree species. Particleboard is a widely used reconstituted wood panel, which does not require high quality raw materials [1]. Previous researches show that density and press time are the main parameters influencing the properties of particleboards made from fast-growing wood [25]. Many fast-growing tree species have been used in the production of laminated veneer lumber (LVL), such as Scots pine (Pinus sylvestris) [6], radiata pine (Pinus radiata) [7], eucalyptus [8], poplar [9, 10], and Gmelina arborea [11]. Previous researches prove that laminated wood possesses superior bending strength and modulus when compared to the same species of solid wood [9]. Using fast-growing tree species in the inner plies of laminated materials can also reduce the producing costs without much decrease in mechanical properties. According to the research by Moya et al. [12], I-beams fabricated from fast-growing wood can be used in roofing and flooring systems. It is also found by researchers that glulam beams made from fast-growing wood can be used as structural elements in building constructions [13].

To improve the structural competitiveness of wood products made from fast-growing tree species, several modification processes have been introduced to change its physical and mechanical characteristics. Zephyr strand board and zephyr strand lumber produced from poplar veneer, possess superior mechanical properties to ordinary poplar plywood and LVL [14]. Modifying wood porous structure is quite effective to improve the properties of fast-growing wood. Wood-polymer composites have been proved to have increased mechanical properties compared to untreated wood [15], and the improved properties of hybrid poplar hardened with methyl methacrylate (MMA) are even comparable to some hardwood species [16].

Scrimber is a reconstituted wood product made from integrated parallel strips, and it always has a comparatively higher raw material utilization rate. Several researches have been conducted to determine the feasibility of manufacturing scrimber from eucalyptus, pinus radiata [17], bamboo [18], and mulberry branches [19], proving that scrimber made from fast-growing species may serve as a promising alternative source for wood products because of its excellent mechanical properties and abundant supply.

In this paper, a veneer-based scrimber composite manufactured from fast-growing wood is introduced. The wood species used is poplar, which is extensively planted in China [20]. This paper introduces the production of the scrimber composite, investigates its main mechanical properties by experimental tests and provides a comparison between such scrimber and other timber/bamboo-based materials.

Materials and methods

Scrimber manufacturing

The manufacturing method to produce scrimber composite from low-quality and fast-growing poplar is presented in Fig. 1. The producing process has six main steps consisting of mechanical slicing, drying, thermal treatment, impregnation, cold molding, and hot curing. Several industrial equipments, such as wood veneer lathe, veneer dryer, modification tank, cold-press mold, and hot curing chamber have been used. The detailed producing steps are listed as follows:

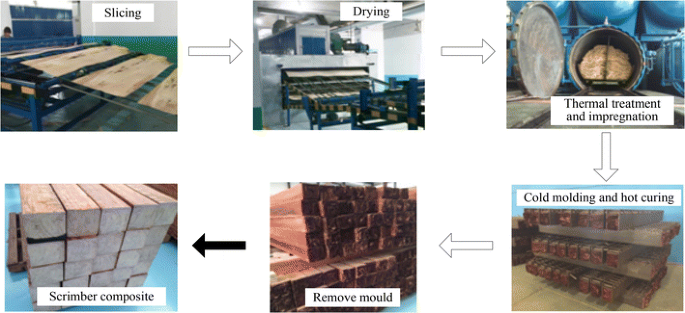

Fig. 1
figure1

Production of the scrimber composite

  1. 1.

    Natural poplar logs are first sliced circumferentially to form veneers with a thickness of about 2 mm. The uniformity of veneer lumber is quite important for physical and mechanical properties of the scrimber composite.

  2. 2.

    The veneers are dried in a kiln to approximately 20 % moisture content and treated by modifiers to achieve mold proof and fire retardant properties. This treatment can contribute to a good dimensional stability and durability of the product.

  3. 3.

    The modified veneers are saturated in resin and dried again after saturation. The veneers are stored to keep the moisture content of around 20 %.

  4. 4.

    Cold molding, hot curing and hot pressing are included in the forming process. Laminate the veneers with their original size and coil the veneers into a rectangular cross section. After cold molding and hot curing, compress the scrimber composite in two orthogonal directions on the cross section plane, and thus cross section featured by curved thin laminates can be observed, which is quite different from existing veneer-based laminated products, as shown in Fig. 2. The density of the scrimber composite is increased to 780–940 kg/m3, and the surface appearance of the composite can be improved as well.

    Fig. 2
    figure2

    Cross section of the scrimber composite

Mechanical properties

The scrimber composite has an average density of 885 kg/m3. Before testing, all specimens are conditioned in a climate room for 2 weeks at a constant temperature of 20 °C and a relative humidity of 60 %, and the average moisture content of the specimens is 18 %.

The following mechanical properties of the scrimber composite were tested: (1) compressive strength (parallel and perpendicular to the grain), (2) tensile strength (parallel and perpendicular to the grain), (3) shear strength, (4) static bending strength, (5) bending modulus.

Compression test parallel to the grain

Parallel-to-grain compression test was conducted according to Chinese standard GB/T 1935-2009 [21]. Sixty specimens with the size of 20 × 20 × 80 mm (tangential × radial × longitudinal) were prepared. The experiment was conducted on a universal testing machine with an ultimate capacity of 50 kN. Compressive load was applied continuously at a rate of 0.5 mm/min. The test setup is shown in Fig. 3. The modulus of elasticity and compressive strength were calculated by:

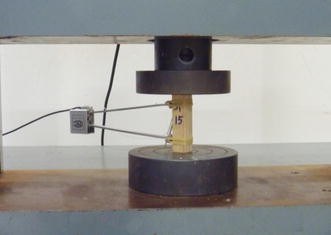

Fig. 3
figure3

Setup of compression test parallel to the grain

$$ E_{\parallel }^{\text{c}} = \frac{{\Delta F_{\parallel }^{\text{c}} }}{{wd\Delta \varepsilon_{\parallel }^{\text{c}} }},\;f_{\parallel }^{\text{c}} = \frac{{F_{\parallel }^{\text{cp}} }}{wd} $$
(1)

where ΔF c and Δɛ c are compressive load increment and strain increment along the longitudinal direction within the linear elastic loading stage, respectively; F cp is the ultimate compressive load applied on the specimens; w and d are the actually measured cross sectional dimensions of the specimens. The average compressive strength parallel to the grain is obtained as 101 MPa, and the modulus of elasticity is obtained as 16,780 MPa. The variation coefficients for compressive strength and modulus of elasticity are 9.9 and 13.3 %, respectively.

A typical stress–strain curve and three main failure modes of the scrimber composite are shown in Fig. 4. The proportional limit corresponds to the maximum stress in the linear segment of the strain–stress curve, as shown in Fig. 4a. With the applied load increasing beyond the proportional limit, primary crack was observed and the crack gradually extended along the longitudinal direction. Crushing failure was observed when the specimen reached the ultimate load-carrying capacity, as shown in Fig. 4b. It was found that wood pieces were separated from each other along the glue layer in a few specimens, corresponding to their ultimate limit state, as shown in Fig. 4c. Some specimens were divided into several sub-columns by cracks, and buckling failure was observed in the sub-columns, as shown in Fig. 4d. Moreover, a secondary inelastic behavior can be observed in the stress–strain curve, which indicates a ductile post-yielding behavior.

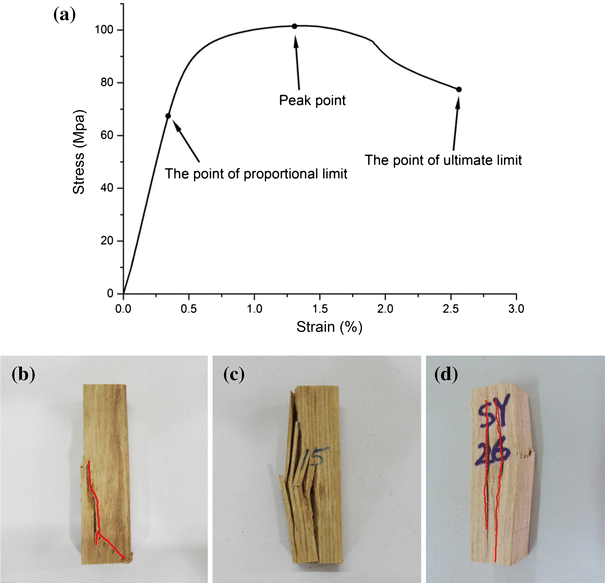

Fig. 4
figure4

Parallel-to-grain compressive test results: a typical stress–strain curve; b crushing failure with crack propagation along the grain direction; c failure with wood pieces separated along the glue layer; d buckling failure in sub-columns

Compression test perpendicular to the grain

Perpendicular-to-grain compression test was conducted according to Chinese standard GB/T 1939-2009 [22]. Sixty specimens with the size of 25 × 25 × 100 mm were prepared for the test. Thirty specimens were loaded in the radial direction and the others were loaded in the tangential direction. Compressive load was applied monotonically at a rate of 0.5 mm/min. The test setup is presented in Fig. 5. The modulus of elasticity and compressive strength were obtained by:

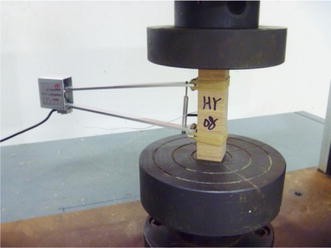

Fig. 5
figure5

Setup of compression test perpendicular to the grain

$$ E_{ \bot }^\text{c} = \frac{{\Delta F_{ \bot }^\text{c}}}{wd \Delta \varepsilon_{ \bot }^\text{c}},\;\;f_{ \bot }^\text{c} = \frac{{F_{ \bot }^\text{cp}}}{wd}$$
(2)

where ΔF c and Δɛ c are the compressive force increment and its corresponding strain increment perpendicular to the grain within the linear elastic loading stage, respectively; F cp is the peak force applied on the specimens; w and d are the actually measured cross sectional dimensions of the specimens. The average compressive strength perpendicular to the grain is obtained as 21 MPa, and the modulus of elasticity is obtained as 1242 MPa. The variation coefficients for compressive strength and modulus of elasticity are 14.3 and 8.5 %, respectively.

The typical stress–strain curve and failure modes of the scrimber composite under compressive force perpendicular to the grain are shown in Fig. 6. An initial linear elastic range can be observed in the stress–strain curve, and the proportional limit in the radial direction is much lower than that in the tangential direction, as shown in Fig. 6a. For the specimens loaded in the tangential direction, a crack along the glue layer was observed beyond the proportional limit, and the crack gradually propagated along the glue line with the increasing compressive force, as shown in Fig. 6b. However, for specimens loaded in the radial direction, a crack slope to the loading direction was found, and finally, a slipping shear surface was formed, as shown in Fig. 6c. Both the compressive strength and modulus in the radial direction are lower than those in the tangential direction, as listed in Table 1.

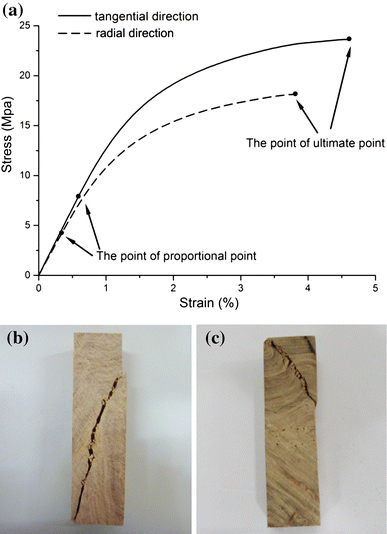

Fig. 6
figure6

Perpendicular-to-grain compressive test results: a typical stress–strain curve for tangential and radial directions; b failure with crack propagation along glue line for tangential specimens; c crushing failure with a diagonal crack for radial specimens

Table 1 Mechanical properties for the scrimber composite

Tension test parallel to the grain

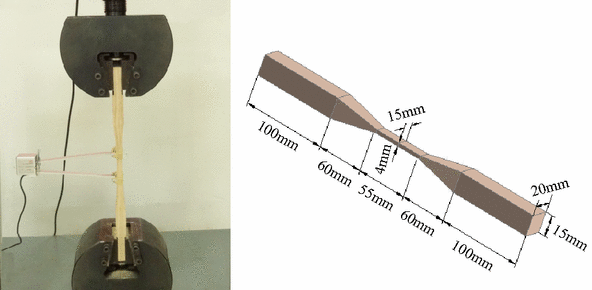

The geometric configuration of the specimens for parallel-to-grain tensile test, which was designed according to Chinese standard (GB/T 1938-2009 [23]), is shown in Fig. 7. Sixty specimens were prepared for the tension test. A pair of grips was used to hold the specimens and the tensile strain along the grain was measured by an electronic extensometer, which was installed in the middle part of the specimens. The tensile load was applied continuously at a rate of 1 mm/min. The modulus of elasticity and tensile strength were obtained by:

Fig. 7
figure7

Test setup and specimen geometry of tension test parallel to the grain

$$ E_{\parallel }^\text{t} = \frac{{\Delta F_{\parallel }^ \text{t}}}{{bt}\Delta \varepsilon_{\parallel }^\text{t}},\;f_{\parallel }^\text{t} = \frac{{F_{\parallel }^\text{tu}}}{{bt}} $$
(3)

where ΔF t and Δɛ t are the tensile force increment and its corresponding strain increment parallel to the grain within the linear elastic loading range, respectively; F tu is the peak tensile load applied on the specimens; b and t are the actually measured dimensions at the critical cross section of the specimens. The average tensile strength parallel to the grain is obtained as 108 MPa, and the modulus of elasticity is obtained as 11,069 MPa. The variation coefficients for tensile strength and modulus of elasticity are 23.1 and 6.6 %, respectively.

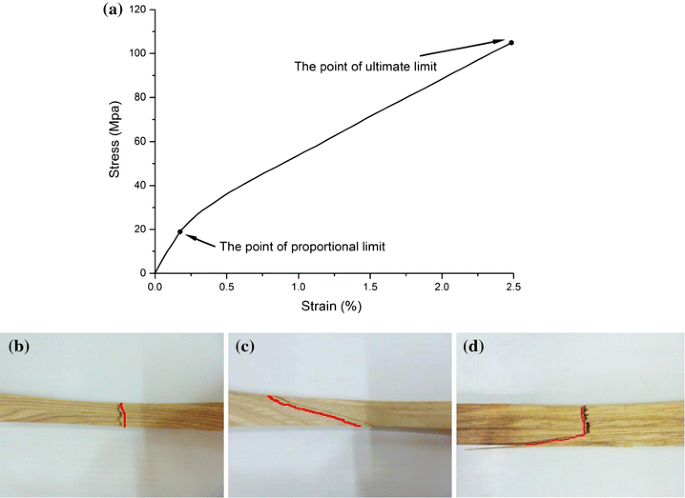

Figure 8 shows a typical stress–strain curve and failure modes of the scrimber composite under tension parallel to the grain. The scrimber composite exhibits a bilinear behavior prior to failure, as shown in Fig. 8a. Rupture failure was observed in the center part of most specimens followed by a sudden loss of the load-carrying capacity. Flat and diagonal fracture surfaces appeared in the middle part of the specimens, as shown in Fig. 8b, c, respectively. Rupture failure with a crack propagating along the grain direction was also observed in several specimens, as shown in Fig. 8d. It should be noted that no significant difference of test results was found among these three failure modes.

Fig. 8
figure8

Parallel-to-grain tensile test results: a typical stress–strain curve; b rupture failure at center part with a flat fracture surface; c rupture failure at center part with a diagonal fracture surface; d rupture failure with crack propagation along the grain direction

Tension test perpendicular to the grain

The geometric configuration of the specimens for perpendicular-to-grain tensile test is shown in Fig. 9. The specimens were designed according to ASTM D143-14 [24]. Thirty specimens were loaded in the radial direction, and the others were loaded in the tangential direction. Tensile load was applied continuously at a rate of 0.5 mm/min. The test setup is presented in Fig. 9. The modulus of elasticity and tensile strength were obtained by:

Fig. 9
figure9

Test setup and specimen geometry of tension test perpendicular to the grain

$$ E_{ \bot }^\text{t} \; = \;\frac{{\Delta F_{ \bot }^\text{t} }}{{{{bt}}\Delta \varepsilon_{ \bot }^\text{t} }},\;f_{ \bot }^\text{t} \; = \;\frac{{F_{ \bot }^\text{tu} }}{{bt}}$$
(4)

where ΔF t and Δɛ t are the tensile force increment and its corresponding strain increment perpendicular to the grain within the linear elastic loading range, respectively; F tu is the ultimate tensile load applied on the specimen; b and t are the actually measured dimensions at the critical cross section of the specimens. The average tensile strength perpendicular to the grain is obtained as 3.4 MPa with a variation coefficient of 25.2 %.

Figure 10 presents a typical stress-displacement relationship and failure modes of the scrimber composite under tensile force perpendicular to the grain. The slope of stress-displacement curve increases gradually and then goes into a linear segment, as shown in Fig. 10a. For specimens under tension in the tangential direction, failure is featured by a running through crack along the grain direction, as shown in Fig. 10b, c. However, for specimens loaded in the radial direction, tensile failure occurred near the center part through the glue layer, as shown in Fig. 10d. The obtained tensile strength in the radial direction is lower than that in the tangential direction, as listed in Table 1.

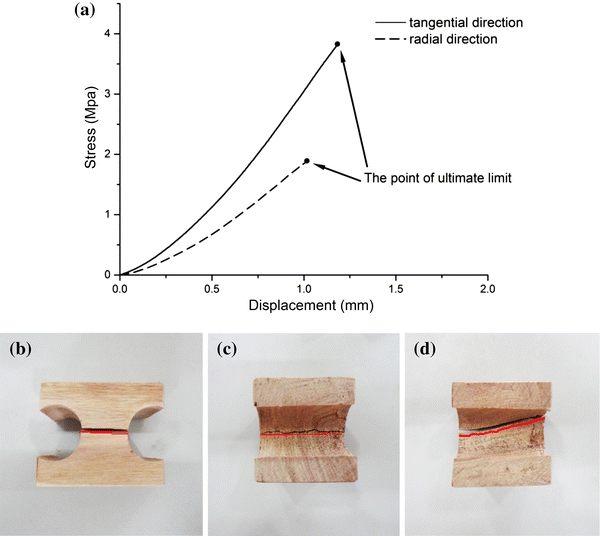

Fig. 10
figure10

Perpendicular-to-grain tensile test results: a typical stress-displacement curve for tangential and radial specimens; b failure with crack propagation along the grain direction; c transverse tensile failure for tangential specimens; d failure with separation near the center part along glue layer

Shear test

Shear test was conducted according to Chinese standard GB/T 1937-2009 [25]. The geometric configuration of the specimens for shear test is shown in Fig. 11. The specimens were divided into two groups. Thirty specimens were machined for shear test along the tangential-longitudinal shear plane, and the other thirty specimens were machined for shear test along the radial-longitudinal shear plane. The loading rate was set at 0.6 mm/min. The shear strength was obtained by:

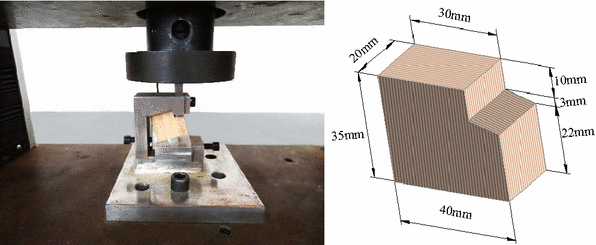

Fig. 11
figure11

Test setup and specimen geometry for shear test

$$ f_{\parallel }^\text{s} = \frac{{0.96F_{\parallel }^\text{su} }}{{bl}} $$
(5)

where F su is the peak shearing load applied on the specimens; b and l are the actually measured bidirectional dimensions of the shear plane. The average shear strength is obtained as 17 MPa with a variation coefficient of 13.0 %.

The failure mode was almost the same among all the specimens, as shown in Fig. 12. Cracks always extended along the grain direction, and consequently, the specimens were separated into two parts along the shear plane, as shown in Fig. 12a, b. Rough failure surface was observed after shear test, as shown in Fig. 12c.

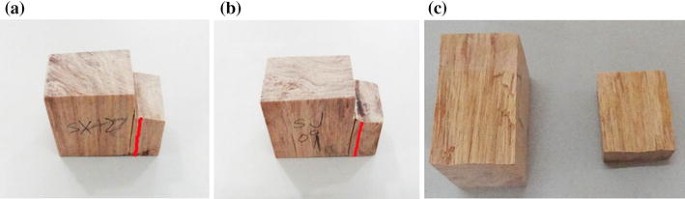

Fig. 12
figure12

Shear test results: a failure mode of tangential-longitudinal shear plane; b failure mode of radial-longitudinal shear plane; c observed failure surface after shear test

Bending strength test

Bending strength test was conducted according to Chinese standard GB/T 1936.1-2009 [26]. Thirty specimens with the dimension of 20 × 20 × 300 mm were prepared. The longitudinal direction of the specimens is along the grain direction. The bending strength test was conducted with a point load applied in the middle of the specimens, as shown in Fig. 13. The loading rate was set at 3.5 mm/min. The bending strength was calculated by:

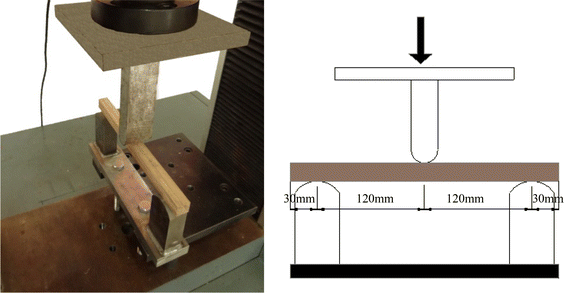

Fig. 13
figure13

Test setup and specimen dimension of static bending strength test

$$ f^\text{b} = \frac{{3F^\text{bu} l}}{{2{{bh}}^{2} }} $$
(6)

where F bu is the peak load corresponding to the ultimate load-carrying capacity of the specimens; l is the span length between the two supports; b and h are the actually measured cross sectional dimensions of the specimens. The average bending strength is obtained as 140 MPa with a variation coefficient of 12.1 %.

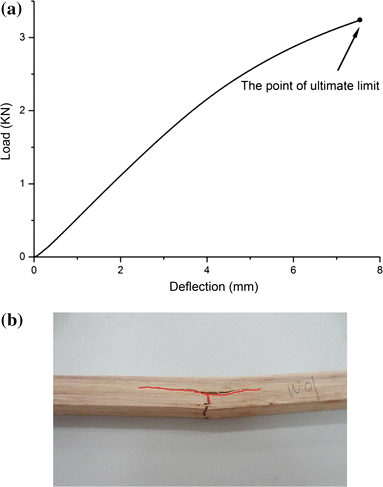

A typical load–deflection curve and the failure mode of bending specimens are shown in Fig. 14. The bending behavior exhibits a clear linear elastic range initially and then the slope of load–deflection curve decreases gradually with tension failure of the bottom veneers, as shown in Fig. 14a. On further loading, more sheets failed in tension and the crack began to extend along the grain up to the maximum load-carrying capacity, as shown in Fig. 14b.

Fig. 14
figure14

Static bending test results: a typical load–deflection curve; b failure at the mid-span

Bending modulus test

Bending modulus test was conducted according to Chinese standard GB/T 1936.2-2009 [27]. Thirty specimens with the dimension of 20 × 20 × 300 mm were prepared. The test setup is shown in Fig. 15. All the specimens for bending modulus test were loaded at two points with a distance of 80 mm. The load was applied continuously up to the upper limit (i.e., 40 % of the ultimate load-carrying capacity of the specimen) at a rate of 1.5 mm/min and then unloaded to the lower limit (i.e., 10 % of the ultimate load-carrying capacity of the specimen) with the same rate. The loading and unloading processes were repeated for four times. The bending modulus was calculated by:

Fig. 15
figure15

Test setup of static bending modulus test

$$ E^\text{b} = \frac{{23{{Pl}}^{3} }}{{108{{bh}}^{3} f}}$$
(7)

where P = P upper − P lower, P upper is the upper limit in the loading protocol, and P lower is the lower limit in the loading protocol; f is the deformation of the specimens when the load varies from lower limit to the upper limit; l is the span length between the two bearings; b and h are the actually measured cross sectional dimensions of the specimens. The average bending modulus is obtained as 22,310 MPa with a variation coefficient of 9.4 %.

Discussions

The main mechanical parameters obtained from the experiments are given in Table 1. In the longitudinal direction, it can be found that the tensile strength is almost identical to the compressive strength, while the compressive stiffness is almost 50 % larger than the stiffness in tension. In the radial direction, the compressive strength is eight times larger than the tensile strength. In the tangential direction, the compressive strength is five times larger than the tensile strength. Both for compression and tension tests, the parallel-to-grain strength values are much larger than the perpendicular-to-grain strength values. Furthermore, the compressive stiffness parallel to the grain is almost eleven times higher than the compressive stiffness perpendicular to the grain.

Comparisons of mechanical parameters of the scrimber composite with Sitka spruce [28], Spruce-pine-fir (SPF) glulam [29], Douglas-fir LVL [30], glubam [31] and glulam Guadua [32] are shown in Table 2. In the parallel-to-grain direction, it is noted that compressive strength of the scrimber is significantly larger than the other five species or products. The tensile strength of the scrimber is almost 25 % lower than that of glulam Guadua, but it is larger than the other species or products. In the perpendicular-to-grain direction, it can be observed that compressive strength of the scrimber is four times larger than the compressive strength of SPF glulam. The tensile strength of the scrimber is almost identical to that of glulam Guadua, but is much larger than that of SPF glulam. Shear strength of the scrimber also far surpasses the other species or products, and it is almost five times the shear strength of SPF glulam. Table 2 also gives the flexural strength and flexural modulus values. The flexural strength of the scrimber is 14 % larger than that of glulam Guadua, and is up to three times higher than that of SPF glulam. The scrimber also has a considerably larger modulus of elasticity (MOE) value than the other five species or products, up to almost twice larger than that of Sitka spruce. Its flexural strength to density ratio is slightly lower than those of Sitka spruce and glulam Guadua, but is larger than those of the other three products.

Table 2 Mechanical properties for the scrimber and comparable timber/bamboo-based materials

Comparisons of selected mechanical parameters of the scrimber composite with those of solid poplar and other poplar-based products are also conducted. Static flexural strength and MOE values of solid poplar [9], poplar oriented strand board (OSB) [33], poplar LVL [9] and hybrid poplar LVL [34] are shown in Table 3. It can be found that the flexural strength of the scrimber is approximately twice the value of solid poplar or poplar OSB, and is about 50 % larger than the flexural strength values of the two types of LVL. Moreover, the scrimber has a considerably larger MOE than solid poplar and the other three poplar products.

Table 3 Selected mechanical properties for the scrimber and comparable poplar-based materials

It is noted that the scrimber composite has larger strength values in almost all mechanical properties. The increased capacity is attributed to the confinement of fibers. With desirable strength and MOE values, the scrimber composite is able to serve as a promising alternative for existing wood/bamboo-based composite materials in building constructions. Furthermore, utilization of fast-growing wood for manufacturing scrimber composite is quite beneficial to the natural forests and building industries due to its low price and sustainability.

Conclusions

This paper presents the production and mechanical properties of a scrimber composite manufactured from poplar wood. Various experiments were conducted to determine mechanical parameters of the scrimber. Furthermore, comparisons of mechanical properties of the scrimber with those of other types of timber/bamboo-based materials were presented. According to the test results and comparisons, the main conclusions can be summarized as follows,

  1. 1.

    The scrimber composite is produced through mechanical slicing, drying, thermal treatment, impregnation, cold molding and hot curing. The cross section of the scrimber composite is featured by curved thin laminates, which is quite different from existing veneer-based laminated products.

  2. 2.

    Results from the tests indicate that the stiffness and strength properties of the scrimber composite are dramatically affected by grain directionality.

  3. 3.

    Comparisons of mechanical parameters of the scrimber with those of other timber/bamboo-based products indicate that with high strength and MOE values, the scrimber can be used as a feasible construction material. Such scrimber is suitable to serve as a good substitute for wood/bamboo-based composite materials in building constructions.

  4. 4.

    To evaluate the behavior of structural components made of such scrimber, experimental and numerical studies on the mechanical behavior of full-scale scrimber members or assemblies are still needed to further provide technical bases for their structural applications in practical engineering.
