Changes of chemical properties and the water vapour sorption of Eucalyptus pellita wood thermally modified in vacuum

Abstract

The aim of this study was to evaluate the chemical composition and the dynamic water vapour sorption properties of Eucalyptus pellita wood thermally modified in vacuum. For this purpose, wood samples were thermally modified in a vacuum oven at 160–240 °C for 4 h. Chemical composition were investigated by wet chemical analysis, elemental analysis, as well as Fourier transform infrared (FTIR) analysis, and dynamic water vapour sorption properties were evaluated by dynamic vapour sorption apparatus. The results showed that holocellulose and alpha-cellulose contents decreased and lignin and extractives contents relatively increased during the heat process. Elemental analysis showed a reduction in hydrogen content and an increase in carbon content. FTIR analysis indicated that the degradation of hemicellulose and condensation reactions of lignin occurred. In addition, the thermo-vacuum resulted in a reduction in the equilibrium moisture content of wood during the adsorption or desorption process. And the sorption hysteresis had a decreasing trend with increasing treatment temperature. The development of the hygroscopicity was related to the increase in the relative content of lignin, the degradation of the carbonyl groups in xylan and the loss of carbonyl group linked to the aromatic skeleton in lignin after heat treatment.

Introduction

In China, plantation forestry has played an important role in the supply of raw material to the wood industry. Eucalyptus is one of the most important plantation tree species in China. Eucalyptus wood has a number of desirable properties, including its attractive color, high density, strength, and hardness [1]. However, it has a strong dimensional instability, which is a limitation for its utilization. Heat treatment has been known as a process enhancing wood properties by reducing moisture absorption, improving dimensional stability and biological durability [25].

Wood is mainly composed of cellulose, hemicellulose, lignin, and extractives. The changes of wood properties are related to its chemical composition. The extent of the change of wood chemical properties depends on the type of the heat-treatment process, temperature, time, wood species as well as its initial moisture content. The chemical changes of wood during heat treatment have been evaluated through wet chemical analysis, Fourier transform infrared (FTIR) spectroscopy, elemental composition, nuclear magnetic resonance (NMR) [58]. Several studies indicated that heat treatment led to a relative increase in the contents of lignin and extractives, and a decrease in the content of holocellulose [912]. The increase in carbon content has been observed for black locust and beech wood by elemental analysis during heat treatment [13, 14]. In addition, FTIR has been applied to track the chemical changes of wood before and after heat treatment. Those studies revealed that heat treatment resulted in the formation of condensation products, low-molecular-weight phenolic substances and oxidation products, as well as the reduction of acetyl groups, fats, waxes, and resin acids [1517].

In recent years, the thermo-vacuum modification of wood has been developed as a new method to decrease the effects of oxygen on the loss of mechanical properties during heat treatment [18, 19]. It has been found that the thermo-vacuum modification can also improve the dimensional stability of wood [1, 20]. Up to date, several observations have been reported on the physical and mechanical properties of heat-treated wood in vacuum [2123]. However, no results have been reported on the dynamic vapour sorption properties of thermo-vacuum treated wood. Therefore, the aim of this study was to investigate the effect of thermo-vacuum treatment on the chemical changes and dynamic water vapour sorption properties of Eucalyptus pellita wood to better understand sorption behavior of thermo-vacuum treated wood.

Materials and methods

Wood samples and thermo-vacuum treatment protocols

Eucalyptus pellita F. Muell. was obtained from China Eucalypt Research Centre in Guangdong Province, China. Eucalypt wood blocks of size 330 mm × 40 mm × 40 mm (L × T × R) were prepared from defect-free wood and air-dried. The samples were oven-dried at (103 ± 2) °C until a constant weight before thermo-vacuum treatment. Thermo-vacuum treatment was performed at 160, 180, 200, 220, and 240 °C for 4 h under the negative pressure (−0.02 to −0.08 MPa), as described in Sun et al. [1]. The untreated wood blocks were used as control samples.

Wet chemical analysis of wood components

Wet chemical analyses of wood components have been performed on untreated and heat-treated E. pellita wood. Before chemical analysis, the wood samples were grinded, sieved (0.425–0.250 mm), and air-dried. The moisture content (MC) of the samples was determined by oven drying at 105 °C to a constant weight and the ash content was determined by ashing in a muffle furnace at 575 ± 25 °C for 6 h based on National Standard of the People’s Republic of China [24, 25]. The contents of Klason lignin, holocellulose, alpha-cellulose in holocellulose, alcohol-benzene solubility, and 1% NaOH extractives in E. pellita wood were determined according to National Standard of the People’s Republic of China [2630], which were described by Sun et al. [31]. The amount of each chemical component is reported as % based on ash-free dry organic matter. Chemical analyses were performed in duplicate.

Elemental analysis

The analyses in the carbon and hydrogen contents were performed on a CHNOS Elemental Analyzer (vario EL III, Elementar Analysensysteme GmbH, Germany). Before analysis, the untreated and heat-treated E. pellita wood were grinded (≥0.075 mm) and oven-dried to a constant weight.

FTIR analysis

FTIR spectra were collected with a spectrometer Spectrum GX FTIR (Perkin-Elmer Inc., USA), equipped with a deuterated triglycine sulfate (DTGS) detector. Each spectrum was recorded in the region of 4000–400 cm−1 by an average of 32 scans at a resolution of 4 cm−1. The samples were chopped into small sticks, grinded, and sieved (0.150–0.124 mm). Then it was blended with KBr and compressed at a pressure of 8.5 t cm−2 to prepare a tablet. Three spectra were taken from each sample and the presented FTIR spectra were average value spectra.

Dynamic water vapour sorption analysis

The moisture sorption characteristics of the untreated and heat-treated wood samples were determined on micro-specimens of approximately 5 mg in the range of relative humidity (RH) between 0 and 95% at 25 ± 0.1 °C using a dynamic vapour sorption (DVS) apparatus (IGAsorp, Hiden Isochema Ltd., UK). The weight changes of the wood samples were determined by an electronic microbalance with an accuracy of 0.1 μg. The instrument maintained a constant target RH until the mass change in the sample (dm/dt) was less than 0.002% per minute over a 600 s period. The mass change was related to the dry weight of the sample.

Results and discussion

Wet chemical analysis of wood components

The changes in chemical composition of E. pellita wood before and after heat treatment are presented in Table 1. The chemical analyses revealed that during the thermo-vacuum treatment, the proportion of lignin and extractives increased, whereas the relative contents of holocellulose and alpha-cellulose decreased. Similar results have been reported by previous studies [8, 3234].

Table 1 Chemical analysis of the wood components of untreated and heat-treated eucalypt wood

The decrease in holocellulose contents can be mainly due to the reduction of hemicelluloses (polyoses) contents [35]. In general, hemicelluloses are less thermally stable than other wood constituents owing to their low molecular weight, amorphous and branched structure. According to previous studies [36, 37], the degradation of hemicelluloses begins with deacetylation, followed by depolymerization catalysed by the released acetic acid. This leads to the reduction in polyoses contents. Cellulose is more stable than hemicelluloses because of its crystalline nature and is therefore affected less by heat treatment [38].

Lignin is considered as the most thermally stable constituent in the three main chemical components of wood. Previous results indicated that when the treatment temperature was 600 °C, the mass losses of hemicelluloses were over 95%, and those of cellulose were more than 80%, whereas the mass losses of lignin were under 60% [39]. In this study, the relative content of lignin increased as the treatment temperature rose. This does not mean that there is an increase in the amount of lignin but the reduction in polysaccharides is higher. In addition, the condensation reactions might also lead to an increase of the lignin proportion [40, 41].

The content of alcohol-benzene extractives increased gradually as the treatment temperature rose. This is probably caused by the degradation of polysaccharides during heat treatment [42]. The content of 1% NaOH extractives increased at low treatment temperature, reaching a maximum value at 160 °C. After that, the relative content of extractives decreased. Similar results have been reported for heat-treated pine and eucalypt wood [10, 41]. This trend may be due to the appearance of new extractable compounds resulting from polysaccharide degradation at 160 °C. As the treatment temperature increases further, new compounds degrade to volatiles that leave the wood, resulting in a decrease in the extractives content.

Elemental analysis

Chemical structure modifications can result in the elemental changes of the molecules. The relative contents of carbon and hydrogen before and after thermo-vacuum treatment are shown in Fig. 1. As shown in Fig. 1, there was a decrease in the content of hydrogen, whereas the carbon content had an increasing trend as the treatment temperature rose. Therefore, the ratios of H/C decreased with the increase of treatment temperature, which might be due to the elimination of water caused by dehydration of the carbohydrates [43, 44]. During heat treatment, carbonic acids are formed as a result of cleavage of the acetyl groups in polyoses. In the meantime, polyoses are hydrolyzed into oligomeric and monomeric structures. Subsequently, the monomeric structures are dehydrated to aldehydes [36, 37]. Such reactions could also contribute to a further decrease of hydrogen content.

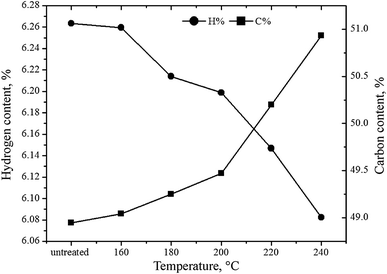

Fig. 1
figure1

Carbon and hydrogen contents of untreated and heat-treated eucalypt wood

FTIR analysis

The FTIR spectra of untreated and heat-treated E. pellita wood are shown in Figs. 2 and 3. The bands in the 3800–2750 cm−1 region are assigned to the hydroxyl and methyl/methylene stretching vibrations. As shown in Fig. 2, a broad band with a maximum at 3420 cm−1 was observed. This band shifted to lower wavenumbers with the increase of treatment temperature. According to previous studies [45, 46], the broadening of the OH band is considered as a result of a mixture of intermolecular and intramolecular hydrogen bonds.

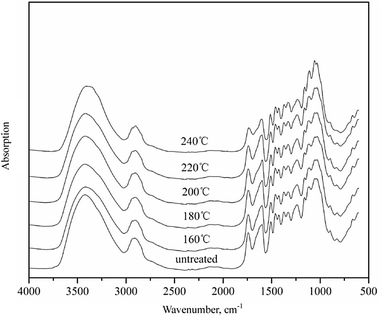

Fig. 2
figure2

FTIR spectra of untreated and heat-treated eucalypt wood (4000–600 cm−1)

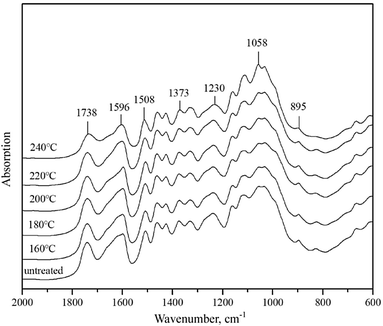

Fig. 3
figure3

FTIR spectra of untreated and heat-treated eucalypt wood (2000–600 cm−1)

The “fingerprint” region 2000–600 cm−1 is mainly analyzed because it reflects the changes in the functional groups of wood components after thermo-vacuum treatment. As can be observed from Fig. 3, there was a decrease in the intensity of the absorbance at 1738 cm−1, assigned to C=O vibration of the non-conjugated acetyl or carbonyl groups in xylan [47]. This indicated that a part of acetyl groups in the wood were deacetylated during thermo-vacuum treatment. The intensity of the band at 1596 cm−1, assigned to the aromatic skeletal vibrations plus C=O stretch of lignin [48, 49], showed a decrease after thermo-vacuum treatment, indicating that the treatment resulted in a loss of the C=O group linked to the aromatic skeleton in lignin. This change might be due to the occurrence of a cross-linking reaction in the lignin by heat treatment [50]. The slight increase of the intensity in the band at 1508 cm−1, assigned to the stretching vibrations of the C=C bonds of aromatic skeletal in lignin, suggested that the amorphous carbohydrates (especially hemicelluloses) degraded and that the relative amount of lignin in the samples increased as treatment temperature rose. A gradual shift in this band was observed from 1508 to 1512 cm−1 with the increase of treatment temperature, suggesting the splitting of aliphatic side chains and cleavage of β–Ο–4 linkages in the lignin structure, followed by condensation reactions [51, 52]. The intensity of the peak at 1373 cm−1, assigned to the C–H bending vibrations in cellulose and hemicelluloses [50, 53], varied slightly after treatment. Similar results have been reported for bamboo and Gympie messmate wood [35, 54]. The decrease in the intensity of the band at 1230 cm−1, assigned to C–O stretching vibrations in lignin and acetyl and carboxylic vibrations in xylan, indicated that the formation of condensed structures in lignin and the occurrence of deacetylation in hemicelluloses [53]. The increase in the intensity of the band at 1058 cm−1, assigned to C–O stretching vibrations in cellulose and hemicelluloses [42, 53], suggested the formation of aliphatic alcohols during thermo-vacuum treatment. The intensity of the band at 895 cm−1, assigned to β-glycosidic stretching of the sugars [35, 54], decreased after heat treatment. This can be due to the results of thermal degradation of hemicelluloses [35].

Dynamic water vapour sorption analysis

Wood as a hygroscopic material contains a certain percentage of water and is sensitive to the changes of environmental moisture (adsorbing water as the relative humidity increased and desorbing water as the relative humidity decreased) [55]. The moisture sorption isotherms curves of the untreated and heat treated samples are shown in Fig. 4. In this study, the characteristic sigmoidal shape sorption curves for cellulose-based materials can be observed in the untreated and heat-treated samples. As shown in Fig. 4, the equilibrium moisture content (EMC) in the untreated and heat-treated samples increased with the increasing RH. There was a reduction in the equilibrium moisture content recorded during the adsorption and desorption process resulting from the thermo-vacuum modification of wood. The equilibrium moisture content decreased as the temperature of treatment rose. It is well known, hygroscopicity is highly related to the accessible hydroxyl groups of wood [49, 56]. The reduction in hygroscopicity after thermo-vacuum treatment is probably due to the reduction of the hydrophilic groups. As indicated by the FTIR spectra in this study, the degradation of the carbonyl groups in xylan and the loss of the C=O group linked to the aromatic skeleton in lignin could contribute to the decrease of wood hygroscopicity. According to previous studies, the number of accessible hydroxyl groups of wood was quantified by the hydrogen–deuterium exchange and 2H NMR spectroscopy before and after heat treatment [57]. The results showed that there was a steady decrease in accessible hydroxyl groups as the temperature of heat treatment increased and it coincided with the decrease in hygroscopicity after heat treatment. Furthermore, after heat treatment, there may be an increase in the relative cellulose crystalline content due to the ultrastructural reorganization of cellulose from the paracrystalline (less ordered) state to the crystalline one, which effectuated a further reduction in the available sorption sites [58]. This also resulted in the decrease in hygroscopicity of wood. Due to its aromatic structure, lignin is more hydrophobic than the holocellulose fraction. Thus, the increase in the relative content of lignin may result in the decrease of wood hygroscopicity. In addition, it has been shown that the cross-linking of lignin took place during thermo-vacuum treatment. The cross-linking of lignin resulted in a restraining effect on cell-wall expansion, which is responsible for binding water molecules during sorption [58, 59].

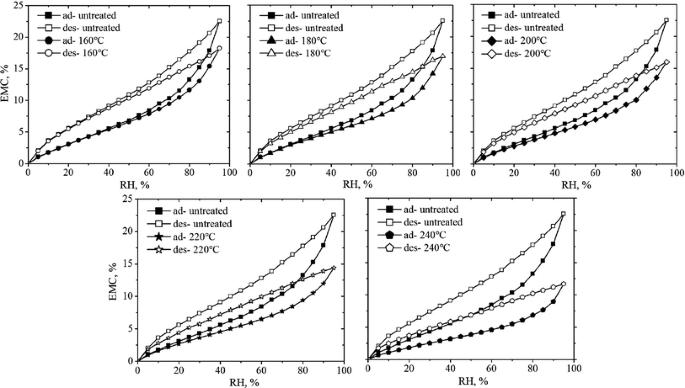

Fig. 4
figure4

Moisture sorption isotherms of untreated and heat-treated eucalypt wood

The hysteresis is usually defined as the differences of the equilibrium moisture content values between desorption and adsorption processes at the same relative humidity. The hysteresis of the untreated and heat-treated E. pellita wood is shown in Fig. 5. As shown in Fig. 5, in general, the hysteresis had a decreasing trend with the increasing treatment temperature. Similar results have been reported by the previous studies [50]. However, contradictory results have been obtained on the effects of heat treatment on sorption hysteresis. On the one hand, previous studies indicated that heat treatment had no effect on the sorption hysteresis of wood [60]. On the other hand, other researchers observed that the sorption hysteresis for poplar and beech wood increased as treatment temperature rose during heat treatment [61]. The differences in the changes of sorption hysteresis of heat-treated wood might be due to several factors such as the process parameters of treatment, the state of specimens and the treatment methods. So far, the effects of heat treatment on sorption hysteresis are still unclear. Therefore, further studies are needed to investigate the mechanism of changes in sorption hysteresis of heat-treated wood.

Fig. 5
figure5

Sorption hysteresis of untreated and heat-treated eucalypt wood

Conclusions

Thermo-vacuum treatment led to clear changes in the chemical properties of E. pellita wood. Holocellulose and alpha-cellulose contents decreased, whereas lignin and extractives contents increased with increasing treatment temperature. The decrease in the content of hydrogen and the increase in the content of carbon indicated the loss of functional groups containing hydrogen during heat treatment. The equilibrium moisture content and sorption hysteresis of wood decreased after heat treatment. FTIR indicated a degradation of the carbonyl groups in xylan and a loss of the C=O group linked to the aromatic skeleton in lignin. These chemical changes resulted in a decrease of the accessible moisture sorbing sites in the wood and explained the reduction of hygroscopicity in heat-treated wood.
