Functional evaluation of horse chestnut seed and its application in the production of compounded paper for effective utilization of an untapped resource

Abstract

Many streets in Europe and the US are lined with horse chestnut trees. However, its fruit is inedible and poorly utilized. Therefore, its effective utilization has been a big issue. For recycling of horse chestnut seed, it was separated into “sarcocarp and endodermis” and “outer theca”; each part was finely ground for analysis of its functions. Ground horse chestnut seed showed excellent antibacterial activity toward Staphylococcus aureus, Escherichia coli, and Streptococcus mutans. Antibacterial activity was particularly strong against E. coli, which is a Gram-negative bacterium. The “outer theca” part showed a higher antibacterial activity than did the “sarcocarp and endodermis” part. It was found that the polyphenol content of the “outer theca” of the horse chestnut fruit was approximately three times that of the “sarcocarp and endodermis”; these polyphenols are believed to play a role in the seed’s antioxidation capacity. The ground outer theca of horse chestnut seed showed oxygen radical absorbance capacity (ORAC) of 531 mmol Trolox equivalent (TE)/g. Antioxidant activity was assumed to contribute to the antibacterial activity. In other words, antioxidant activity was assumed to damage the peptidoglycan layer of the bacterial cell wall. For possible recycling of horse chestnut seed, compounded paper containing the ground outer theca blended with pulp fibers was prepared. In this study, compounded paper containing ground “outer theca” was prepared using a traditional Washi paper-making method. The compounded paper was found to retain high deodorizing activity of the ground theca. Furthermore, although mechanical properties deteriorated as the proportion of the ground outer theca increased, these parameters remained adequate for practical applications. The compounded paper may be expected to have a wide range of applications as a highly functional paper with high gas permeability, deodorant activity, and antibacterial activity.

Introduction

Horse chestnut (marronnier) is a tall deciduous tree that belongs to genus Aesculus of family Hippocastanaceae [1, 2]. It is a magnificent tree with loosely expanding big branches. Space created by horse chestnut trees lining a street has beneficial effects such as charm and the feeling of peace. This is why streets are lined with many horse chestnut trees in Europe. The US horse chestnut trees bear seed from September to November, and the fallen seed abundantly covers roadsides. The fallen seed is taken away by rodents for caching [3]. Nonetheless, the fallen seeds, which are quite large, remain concentrated under canopies of mother trees and need to be removed. The horse chestnut seed is covered with a hard theca. When the theca is cracked, a seed appears that closely resembles a chestnut seed. Horse chestnut seed contains a high concentration of saponin as well as aesclin and coumarin glycoside, which exert antithrombotic action and can be used as pharmaceutical drugs [4]. On the other hand, because horse chestnut seed is not edible, it is not much utilized and is treated as waste. Its effective utilization is a big issue at present. To effectively utilize horse chestnut seed, it is necessary to examine the properties of ground seed.

In this study, horse chestnut seed was separated into two parts: one consisting of the sarcocarp and endodermis and the other consisting of the outer theca. Various characteristics of each part were analyzed for the purpose of effective utilization. The above-mentioned experiment revealed high antibacterial activities of horse chestnut seed toward all the tested bacterial species. This activity was found to be particularly strong in the outer theca. In addition, an attempt was made to prepare compounded paper to take advantage of this product. The compounded paper was tested for its performance, which is described in this report.

Materials and methods

Samples

Horse chestnut seed

These seeds were sampled from horse chestnut trees (Scientific name: Aesculus hippocastanum L.) lining Dahlemer Strasse, in the Zehlendorf area of Berlin in Germany, in October 2013. A piece of seed was 3–4 cm in diameter (Fig. 1). Horse chestnut seed dried at room temperature was notched in the pericarp to separate the seed from pericarp (Fig. 1). The seed and pericarp were separately ground in an Oster blender (SUN BEAM OSTER) at 15,000 rpm for approximately 2 min, and then sifted through a 1-mm-mesh sieve to obtain particles approximately 1 mm in diameter. Because the sarcocarp and the endodermis firmly adhered to each other such that they could not be separated, the outer theca alone was peeled off to separate the “sarcocarp and endodermis” from the “outer theca” (Fig. 1).

Fig. 1

Separation of parts of the horse chestnut seed by peeling

Testing for effects on bacteria

Staphylococcus aureus (NBRC 12732), Escherichia coli (NBRC 3301), and Streptococcus mutans (NBRC 13955) were obtained from the National Institute of Technology and Evaluation, Independent Administrative Institute, and used to evaluate the sarcocarp and endodermis and the outer theca for antibacterial activities toward various bacteria. S. aureus is a Gram-positive coccus, E. coli is a Gram-negative rod, and S. mutans is a Gram-positive, anaerobic streptococcus also known to cause dental caries.

Preparation of compounded papers

Compounded paper was prepared by the method reported previously [5,6,7]. Briefly, outer theca of horse chestnut seed was ground under wet conditions with a mass colloider (stone mill type crusher) with a clearance of 40 μm, before blending with desired amounts of pulp and latex binder. The pulp used was prepared by refining Canadian-bleached conifer kraft pulp to a standard freeness of 550 mL with a refiner. Aica Aibon RAX117 (Aica Kogyo, Kiyosu, Aichi, Japan), a latex binder (emulsion) made of styrene-butadiene rubber (SBR), was used to improve the adhesion between pulp and the ground outer theca of horse chestnut seed. Then, the ground outer theca of horse chestnut seed was blended with a prescribed amount of the bleached conifer kraft pulp and the latex binder. Compounded papers containing the ground outer theca of horse chestnut seed were prepared as described previously. The ground horse chestnut seed content was adjusted to 20, 40, 60 wt% in the formulation; the latex binder content was 0.3 wt% of the combined amount of the ground outer theca of horse chestnut seed and the pulp in all the formulations. Distilled water was added to the mixtures of the foregoing ratios, which were then stirred with a mixer for 10 s to obtain slurries of even dispersion. An angular-sheeting machine (PU-401; Tester Sangyo, Saitama, Japan) was used to adjust the slurries to a paper weight of 100 g/m². The sheets were pressed at 410 kPa at room temperature and dried at 120 °C with a rotating drier to prepare compounded papers containing the ground outer theca of horse chestnut seed.

Measurement method

Soluble polyphenol concentration

Soluble polyphenol concentration was measured using the Folin method [8]. A test liquid was prepared by extracting 25 mg of a ground part of horse chestnut seed with 1 mL of distilled water in a 1.5-mL microtube (Violamo, AS ONE Corporation, Osaka, Japan) at 100 °C for 10 min. Briefly, 90 μL extract, 90 μL Folin–Ciocalteu reagent, and 90 μL 10% sodium carbonate were mixed in the well of a 96-well microplate (VIORAMO 96-well plate, Azone, Japan, Round-bottom type). After incubation for 60 min at room temperature, the reaction color was measured with a Sunrise-Thermo microplate reader (Tecan Inc., Salzburg, Austria) at 690 nm. The quantity was expressed proportionally as mg (+)-catechin per 100 g powder (mg/100 g dry weight: “mg catechin eq./100 gDW”) [8].

Oxygen radical absorbance capacity (ORAC)

A test liquid was prepared by extracting 25 mg of a ground part of horse chestnut seed with 1 mL of distilled water in a 1.5-mL microtube (Violamo, AS ONE Corporation, Osaka, Japan) at 100 °C for 10 min. A fluorescence plate reader (SH-9000Lab, CORONA ELECTRIC Co., Ltd., Ibaragi, Japan) kept at 37 °C was used to measure fluorescence intensity of fluorescein after we placed 35 µL of a test liquid or a Trolox solution and then 115 µL of a fluorescein solution (94.4 nM/75 mM-phosphate buffer solution, pH 7.4) in a well of a 96-well microplate (#3072, Becton–Dickinson). Then, 8 min after addition of 50 µL of an 2,2′-azobis-2-methyl-propanimidamide, dihydrochloride (AAPH) solution (31.7 mM/75 mM-phosphate buffer solution, pH 7.4) and shaking, the microplate reader was used to take measurements at intervals of 2 min for 90 min to register the time course of fluorescence intensity. An excitation wavelength of 485 nm and a detection wavelength of 520 nm were used for measurement on the microplate reader. Hydroxyl Radical Antioxidant Capacity (H-ORAC) values were expressed in Trolox equivalents (mmol TE/g).

Antibacterial properties

With JIS-L-1902 as a Ref. [9], antibacterial activity assays were performed on the ground parts of horse chestnut seed and compounded paper. A sample weighing 0.04 g was placed in a 15-mL tube (Falcon™ 15 mL Conical Centrifuge Tubes), which was then autoclaved at 121 °C for 15 min. For S. aureus, a liquid culture medium was prepared with peptone [1.0 wt%, Becton, Dickinson and Company (BD)], yeast extract (0.5 wt%, BD), and sodium chloride (0.5 wt%). For E. coli, peptone (1.0 wt%) from BD, yeast extract (0.5 wt%), and sodium chloride (0.5 wt%) were used to prepare a liquid culture medium. For S. mutans, the liquid culture medium was prepared from Trypticase™ Soy Broth (Soybean-Casein Digest Medium) (3.0 wt%, BD) and yeast extract (0.3 wt%). These liquid culture media were used to adjust bacterial concentration to 1.0 ± 0.3 × 10⁵ colony-forming units (CFU)/mL for S. aureus and E. coli, 1.67 × 10⁸ CFU/mL for S. mutans, respectively. A sample was inoculated with 0.10 mL of a bacterial suspension and tightly sealed. Culturing conditions were 37 °C for 18 h for S. aureus and E. coli and 37 °C for 48 h for S. mutans.

Sodium chloride (0.85 wt%) and Tween 80 (0.20 wt%) from Santa Cruz Biotechnology, Inc., were added into and incubated in the culture tube (Falcon™ 15 mL Conical Centrifuge Tubes) for adjustment to a desired bacterial concentration, followed by the addition of 10 mL of physiological saline for washing and shaking to disperse the bacteria. Physiological saline prepared from sodium chloride (0.85 wt%) was added to each stock bacterial suspension for up to 10⁷-fold dilution of a given concentration.

Mannitol salt agar (Code 05236, Nissui Pharmaceutical Co., Ltd., Tokyo, Japan) plates adjusted to 11.1 wt% were prepared for S. aureus; MacConkey agar (Code 05036, Nissui Pharmaceutical Co., Ltd., Tokyo, Japan) plates adjusted to 5.0 wt% were prepared for E. coli; and agar plates with Trypticase™ Soy Broth adjusted to 3.0 wt%, yeast extract adjusted to 0.3 wt%, and agar powder (Code 018-08721, Wako Pure Chemical Industries, Ltd., Osaka, Japan) for bacterial media adjusted to 1.5 wt% were prepared for S. mutans. A plate was inoculated with a bacterial suspension diluted to desired concentrations. Inoculation involved dropping 5 µL of a diluted bacterial suspension at five spots in each of the four quadrants of a plate [5,6,7, 10].

The plates were inverted and incubated at 37 °C for 20 h for S. aureus and E. coli (personal Incubator PIC-100, AS ONE, Osaka, Japan) and at 37 °C for 44 h for S. mutans. Colonies were counted after the incubation, and each number was multiplied by a respective dilution factor to obtain a viable cell count. An Anello Pack Gas Detection System by Mitsubishi Gas Chemical, Inc., was employed for the incubation of S. mutans, which is an anaerobic bacterium.

Evaluation of deodorant ability

A quantity of 400 mL each of acetic acid, ammonia, trimethylamine, and acetaldehyde was placed in a separate 500-mL glass bottle (AS ONE, Osaka, Japan) at room temperature. A 2.0-mL syringe (All glass Type, AS ONE, Osaka, Japan) was used to take an appropriate amount of saturating vapor from the bottle via suction. Each of the highly concentrated odorous gases mentioned above was injected via a syringe into a separate Tedlar bag (AS ONE, Osaka, Japan) containing 20 L of pure air. Additional pure air was added to the Tedlar bags to adjust the concentrations of the gases to the following values: acetic acid, 25 ± 0.5 ppm; ammonia, 60 ± 2 ppm; trimethylamine, 60 ± 2 ppm; and acetaldehyde, 20 ± 2 ppm.

An 1 ± 0.0001 g sample of paper was placed in a 5-L Tedlar bag, to which 3.0 L of an odorous gas was transferred at a flow rate of 500 mL/min with a measuring pump (DP0105, Nitto Kohki Co., Ltd., Tokyo, Japan). The gas concentration in the bag was measured using a Gas Sampling Pump (GV-100 Type, Gastec Corporation, Kanagawa, Japan) at 10 min, 30 min, 1, 3, 6, and 24 h from the time of the gas injection into the Tedlar bag. The initial concentration of the gas was converted to 100% and a plot of the odor residual rate was mapped against time. The odor residual rate of the sample was calculated by the Eq. (1) given below [7, 10, 11].

$${\text{Odor}}\,{\text{residual}}\,{\text{rate}}\,(\% )\, = \,\frac{{{\text{The}}\,{\text{measured}}\,{\text{gas}}\,{\text{concentration}}}}{{{\text{Initial}}\,{\text{concentration}}}}\, \times \,100.$$

(1)

Observation under a scanning electron microscope

A carbon tape for vapor deposition was pasted on a stage for electron microscopy, and a sample was fixed onto the tape. After the fixed sample was dried at room temperature for 24 h, gold was vapor-deposited on the sample using an ion sputterer (E-1010, Hitachi High-Technologies Corp., Tokyo, Japan). An S-3000 N scanning electron microscope (Hitachi Science Systems Co., Ltd., Tokyo, Japan) was then used to observe the surface of the crushed horse chestnut’s shell and papers. The SEM was operated at an accelerating voltage of 20 kV.

Mechanical properties of paper

The tensile strength of a test piece was tested under dry conditions in compliance with JIS-P8113 [12, 13]. The test piece was cut to a width of 15.0 ± 0.1 mm and length of 250 ± 1 mm. The maximum load at failure of the test piece was measured with a tensile tester at a chuck interval of 180 ± 1 mm and tension speed of 20 mm/min. The elongation when the test sample broke owing to tension was measured, and the tensile elongation ratio was calculated. In both tests, the measurement was carried out in the longitudinal direction only. In addition, the test piece was swollen with water for 1 h. The test piece was tested under wet conditions in the same manner as described above.

The Clark stiffness of the paper was measured in compliance with JIS-P8143 [14]. A test piece with a width of 30 mm and length of 80 mm was sandwiched between two rollers that can be rotated in the clockwise and counterclockwise directions. The critical length of the test piece was measured; the critical length is the length of the test piece when it bends at an angle (critical turning angle) of 90°, caused by its empty weight, with the rotation of the rollers. The Clark stiffness is calculated by raising the critical length to the third power and dividing by 100; this value represents the bending resistance of a test piece owing to its empty weight—that is, the hardness of paper.

Using the following formula (2), the Clark stiffness was calculated:

$${\text{Clark}}\,{\text{stiffness}}\,S\, = \,\frac{{L^{3} }}{100}.$$

(2)

Here, S is the Clark stiffness; L is the critical length (cm).

Gurley-type air resistance

The air resistance of the paper was measured using a Gurley testing machine in compliance with JIS-P8117 [13, 15]. First, 300 mL of air that was compressed by the weight of an inner cylinder was passed through a 50 mm × 50 mm test piece fixed to a tightening plate with a circular hole having a diameter of 28.6 ± 0.1 mm (air permeation area: 642 mm²). The time period required for 300 ml of the compressed air to pass through the hole was represented by t (s). A shorter t meant higher air permeability for the paper.

Results and discussion

Shapes of particles of ground horse chestnut seed

Electron microscopic analysis at 700× magnification was carried out for the ground outer theca as well as ground sarcocarp and endodermis of horse chestnut seed, which were described in section “Samples” (Fig. 2). Many pieces of the ground sarcocarp of horse chestnut seed were found to have a round shape 10–20 µm in diameter (Fig. 2a). Furthermore, there were long ground pieces of the endodermis indicated by a circle of a dotted line (Fig. 2a).

Fig. 2

Scanning electron micrographs of ground horse chestnut seed (×700). Acceleration Voltage: 20 kV. a sarcocarp and endodermis, b outer theca. The circle of a broken curve shows parts of the endodermis

On the other hand, pieces of the ground outer theca were found to be relatively large: approximately 30 µm in width and approximately 100 µm in length (Fig. 2b). Unlike the ground sarcocarp, ground pieces of the outer theca were not round. As described above, the outer theca was so hard to grind that its ground pieces remained relatively large, whereas the sarcocarp of horse chestnut seed was ground to relatively small pieces.

Antibacterial activities of ground horse chestnut seed

Gram-positive S. aureus, Gram-negative E. coli, and anaerobic S. mutans were used to conduct assays of antibacterial activities of the ground seed. Table 1 shows the results. The results revealed that all three bacteria species yielded growth values of 0.5 or higher, which is the JIS standard for the assay [9]. In other words, all three species grew without any problem in the antibacterial assays.

Table 1 Antibacterial properties of the ground horse chestnut seed against different species of bacterium

S. aureus grew from a viable count of 1.00 × 10⁵ CFU/mL before incubation to that of 9.44 × 10⁸ CFU/mL after 18 h of incubation in the culture medium alone. In short, this bacterium was found to proliferate roughly 10⁴-fold. In contrast, when inoculated on to the endodermis and seed of the horse chestnut seed, incubation decreased the viable count to 3.20 × 10⁴ CFU/mL, or approximately 1/10 of the viable count before the incubation. Considering the viable count of 9.44 × 10⁸ CFU/mL when the bacterium alone was incubated, the effect was found to correspond to approximately 1000-fold decrease in the cell count. The outer theca of the horse chestnut seed did not show any viable cells of the bacterium at all. In short, the bacterium was effectively killed. These data indicated that horse chestnut seed, especially the outer theca, has antibacterial properties.

Neither the sarcocarp nor endodermis of horse chestnut seed showed any viable cells of E. coli, a Gram-negative bacterium, after 18 h of incubation. These data showed that every part of the horse chestnut seed has a strong antibacterial activity toward E. coli.

The viable cell count of S. mutans, a Gram-positive anaerobic bacterium, was 1.67 × 10⁸ CFU/mL before incubation and 6.31 × 10¹⁰ CFU/mL after 48 h of incubation in the culture medium alone. In brief, when the bacterium alone was incubated, the viable count increased 100-fold. In contrast, when the bacterium was inoculated onto the endodermis and sarcocarp of the horse chestnut seed, the viable cell count decreased to 1.2 × 10⁷ CFU/mL or 1/10-fold. Furthermore, after inoculation onto the outer theca of horse chestnut seed, the viable cell count decreased to 6.73 × 10⁴ CFU/mL. Compared with the incubation of the bacterium alone, the viable count was found to decrease by as much as 1/10,000-fold. In conclusion, the outer theca of the horse chestnut seed clearly possesses excellent antibacterial activity toward S. mutans.

Such a difference in antibacterial activity between assays of S. aureus and of E. coli was assumed to result from the difference in bacterial cell wall. That is, S. aureus and S. mutans, both of which are Gram-positive, have a thick layer of the cell wall mostly consisting of peptidoglycan, whereas Gram-negative E. coli has a cell wall containing a small amount of peptidoglycan. In general, Gram-positive bacteria have a peptidoglycan layer as thick as 20–80 nm, whereas Gram-negative bacteria have a layer 7–8 nm thick, i.e., Gram-positive bacteria have a far thicker cell wall. The dry weight of the bacterial cell wall is only 10% in Gram-negative bacteria. In contrast, it is as high as 90% in Gram-positive bacteria. As a consequence, the antibacterial activity of horse chestnut seed more easily damaged the cell wall of Gram-negative bacteria and more easily acted on E. coli in particular.

JIS stipulates that a value of 2.0 or higher in an assay of antibacterial activity (a kill ratio of 99% or higher) means an antibacterial effect [9]. Horse chestnut seed yielded high values of antibacterial activity, higher than 2.0, toward all the bacteria tested. The horse chestnut seed was found to have high antibacterial effects also on the basis of the JIS standard.

The difference in antibacterial activity between the “sarcocarp and endodermis” of horse chestnut and its “outer theca” is believed to be due to their different components. Generally, polyphenols are thought to be closely involved in antibacterial activity. Thus, we examined the soluble polyphenol concentration in the “sarcocarp and endodermis” and “outer theca”, and the results are presented in Table 2. The results showed that the soluble polyphenol concentration was 3476 mg catechin eq./100 gDW in the “outer theca” and 1184 mg catechin eq./100 gDW in the “sarcocarp and endodermis”. Thus, the polyphenol content of the “outer theca” was approximately three times higher than that of the “sarcocarp and endodermis”. Table 2 also shows the soluble polyphenol concentration in compounded paper, which is discussed later.

Table 2 Soluble polyphenol concentration

To study the mechanism behind the antibacterial activity of horse chestnut seed, it was decided to measure ORAC values as an indicator of antioxidant activity. The concept of ORAC was developed by the researchers at the USDA and National Institute on Aging. ORAC is a numerical value showing oxygen radical absorbance capacity (antioxidant capacity). Two measurements must be made: one with a substance in a ground state and the other with an extract (Fig. 3). The results revealed that both the ground outer theca of the horse chestnut seed and its extract yielded approximately 4.2-fold greater ORAC values than the sarcocarp and endodermis did. The higher antibacterial activity in the “outer theca” than in the “sarcocarp and endodermis” was believed to be due to the difference in the soluble polyphenol concentration. The polyphenols contained in them potentially acted as antioxidants [16, 17]. In brief, antioxidant activity damaged the peptidoglycan layer [18] of the bacterial cell wall and thus suppressed bacterial growth. Nevertheless, it cannot necessarily be stated that antioxidant function alone is responsible for the antibacterial activity. Some receptors on the surface of bacterial cells may conceivably be also involved [19]. Moreover, ORAC was approximately 40-fold higher in the ground state than in the extract. This finding revealed that the extraction removed approximately 2.5% of antibacterial activity from the ground sample.

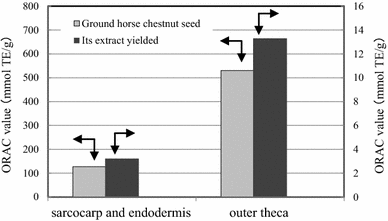

Fig. 3

ORAC values per gram for ground parts of the horse chestnut seed and extracts

Deodorizing activity of the outer theca of horse chestnut seed

It was decided to focus on the outer theca, which showed high antioxidant and antibacterial activities. We also wanted to examine the deodorizing activity of the outer theca against various kinds of odor. Odorous gases used in the deodorization assays were ammonia and trimethylamine as basic odors, acetic acid as an acidic odor, and acetaldehyde as a neutral odor.

Figure 4 shows how the odor residual rate depended on time. The results revealed that the outer theca of horse chestnut seed effectively deodorized such a basic odor as ammonia and trimethylamine as well as acetic acid, which is an acidic odor. The odor residual rate of ammonia gas in particular decreased down to 0% in only 10 min. This amazing effect should be marked for further analysis.

Fig. 4

Time course analyses of various odorous gases showing odor residual ratios for the ground outer theca of the horse chestnut seed

Concerning the mechanism of deodorization of ammonia gas by the ground outer theca of horse chestnut seed, it was assumed that hydroxyl groups of polyphenol in the outer theca formed hydrogen bonds with ammonia molecules to form a salt, which was then released into moisture in the air. To sum up, we assumed that some OH groups of polyphenol in the ground outer theca were chemically transformed to O⁻NH₄ ⁺ to incorporate ammonia gas into its molecular structure [7].

In addition, the odor residual rate for acetic acid gas was found to substantially decrease to 1.9% in only 30 min. In short, the ground outer theca was also found to possess good deodorization capacity against acidic odor.

According to the Weber–Fechner law, sensory intensity of an odor is proportional to the logarithm of the concentration of the odorant. That is, a 10-fold increase in odorant concentration is perceived as approximately two-fold increase in the intensity of the odor. Conversely, one tenth of the concentration is perceived half as intense in terms of odor. In conclusion, ground horse chestnut seed was found to halve the sensory intensity of a basic odor and an acidic odor. In stark contrast, the ground theca of horse chestnut was found to have a negligible deodorizing activity toward acetaldehyde, a neutral odor.

Performance of compounded paper containing the theca of horse chestnut seed

As described above, good antibacterial and deodorizing activities were found in the ground outer theca of horse chestnut seed. A product with a large specific surface area may be considered suitable for effective practical use of these properties. An attempt was made to prepare compounded paper as a way to effectively utilize the outer theca of horse chestnut seed. The ground outer theca was blended with pulp in ratios of 20, 40, or 60 wt% to prepare compounded paper by the traditional Washi paper-making method. Stable production of compounded paper with uniform weight distribution was achieved.

Electron microscopy was used to examine the structure of compounded paper containing the ground outer theca of horse chestnut seed. Figure 5a, b show the surface and cross-section of compounded paper containing the ground theca at a 60 wt% proportion. The ground outer theca was found to be present as lumps in some parts of the pulp fiber network. That is, the ground outer theca was not found to be completely uniformly distributed among pulp fibers. Nonetheless, the ground theca did not come off when the compounded paper was touched with a hand.

Fig. 5

Scanning electron micrographs of compounded papers containing the ground theca at a 60 wt% proportion (×200). Acceleration voltage: 20 kV. a Surface, b cross-section

Subsequently, the compounded paper prepared as described above was examined for antibacterial activity. E. coli, toward which the ground theca showed the highest antibacterial activity, was used in the assays of antibacterial activity. Each sample was inoculated with a bacterial suspension at a concentration adjusted to 10⁵ CFU/mL and incubated for 20 h before viable cell counts were determined.

Figure 6 presents photographs of the culture medium incubated for 20 h. Many colonies were observed in cases of compounded paper containing 100 wt% pulp or only 20 wt% of the ground theca. Especially in the quadrants of 10²- or 10³-fold dilutions colonies were so numerous that they were found to overlap and form aggregates. In the case of compounded paper containing 40 wt% of ground theca, the number of colonies was somewhat smaller than that in cases of 0 or 20 wt% of the ground theca. The number of colonies was found to further decrease in the case of compounded paper containing 60 wt% of the ground theca. In particular, a comparison of 10³-fold dilution quadrants clearly showed that the number of colonies in the case of 60 wt% of the ground theca was smaller than in cases of other compounded paper samples containing a smaller proportion of the ground theca. In contrast, no colonies were detected in the culture medium containing the ground theca alone. That is, the ground theca itself was found to possess very high antibacterial activity.

Fig. 6

Antibacterial properties of compounded papers containing the ground outer theca for different proportions. Photographs of the culture medium incubated for 20 h for Escherichia coli

Viable cell counts obtained in the antibacterial activity assays were analyzed next (Table 3). The data revealed that the viable count was 1.10 × 10⁷ CFU/mL in the case of compounded paper containing 20 wt% of the ground theca in contrast to 1.58 × 10⁷ CFU/mL in the case of compounded paper of 100 wt% pulp, revealing little or no difference. When the proportion of the ground theca increased to 40 wt%, viable counts decreased a little, down to 9.20 × 10⁶ CFU/mL. When the proportion of the ground theca further increased to 60 wt%, the viable cell count was found to decrease to 3.96 × 10⁵ CFU/mL. To sum up, the antibacterial activity increased with the increasing proportion of ground theca in compounded paper to suppress bacterial growth 1/100-fold. Nevertheless, a comparison with the case of the ground theca alone indicated that the viable cell count was very high in case of compounded paper.

Table 3 Antibacterial properties of compounded papers containing the ground theca against Escherichia coli

The traditional Washi paper-making method adopted for the preparation of compounded paper was assumed to be responsible for the observed lack of the effect. In other words, effective antibacterial components may be eliminated or destroyed in that paper-making process. Therefore, the soluble polyphenol concentrations of those compounded papers were examined (Table 2). The results showed that compounded papers with higher antibacterial activities had a higher soluble polyphenol concentration. However, the compounded papers were found to have much lower soluble polyphenol concentration than the ground seed of horse chestnut. To use compounded paper containing horse chestnut seed in applications that require high antibacterial activity, it may be helpful to do further adjustments and optimizations, such as adopting a manufacturing process other than the traditional Washi paper-making method.

After that, compounded paper containing the ground outer theca of horse chestnut seed was examined for deodorizing activity. In the testing, we used ammonia gas, toward which the ground outer theca had shown high deodorizing activity. Figure 7 presents the results. Compounded paper containing 60 wt% of the ground outer theca of horse chestnut seed showed a strong deodorizing activity: the odor residual rate was only 0.8% within only 30 min. Furthermore, the odor residual rate was found to be low, at 9.2%, after 30 min even in the case of compounded paper with ground-theca content of 20 wt%. Ammonia gas is said to be faintly odorous and detectable even at 1 ppm (detectable threshold concentration). As for the method for evaluation of deodorizing textiles, Japan Textile Evaluation Technology Council states that a deodorizing textile needs to decrease odor concentration of >40 ppm (which is said to be intensely odorous) to under a detectable threshold concentration within 24 h [20]. In addition, by this criterion, compounded paper containing the outer theca of horse chestnut seed can be said to possess an excellent deodorizing activity against ammonia gas.

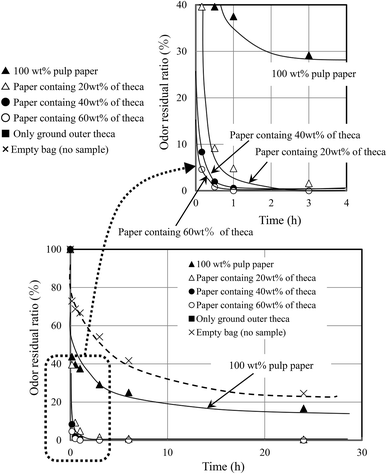

Fig. 7

Time course of ammonia gas showing an odor residual ratio for compounded paper containing the ground outer theca of the horse chestnut seed

Mechanical properties of compounded paper containing the outer theca of horse chestnut seed

Various applications may be considered for compounded paper with such excellent antibacterial and deodorizing activities. Nonetheless, practical applications of compounded paper often require certain mechanical properties and gas permeability. First, compounded paper samples with different proportions of the ground theca were examined for such mechanical properties as tensile strength, tensile elongation, and Clark stiffness. Figure 8 shows the results. All the properties were found to deteriorate with the increasing proportion of outer theca of horse chestnut seed. Mechanical properties for compounded paper were also found to worsen with the decreasing proportion of pulp fiber. That is, the ground outer theca was found to worsen mechanical properties.

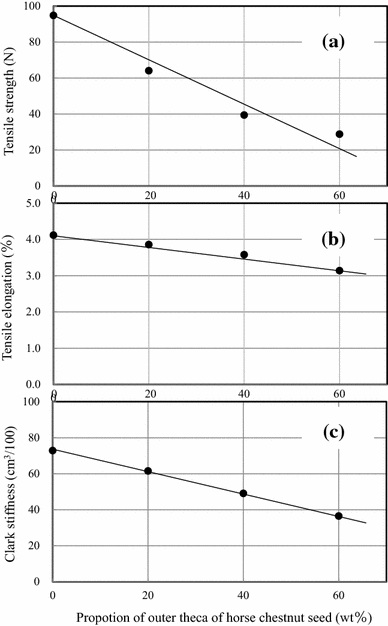

Fig. 8

Mechanical properties of compounded paper containing the outer theca of horse chestnut seed (temperature: 23 °C, relative humidity: 50%). a tensile strength, b tensile elongation and c Clark stiffness

Hence, to examine the fracture mechanism of compounded paper, a double logarithmic graph was prepared to identify a relation between fracture strength and Clark stiffness (Fig. 9). The results showed a single straight line without dependence on ground outer theca content. The slope was approximately 1/2. According to Griffith’s theory, Eq. (2) shown below describes fracture stress α _b and elastic modulus E in brittle fracture [20]. Crack length is represented by c, and surface energy per unit area for a new plane is denoted by γ in the Eq. (3).

$$\alpha_{b} = \sqrt {2\gamma E/c} .$$

(3)

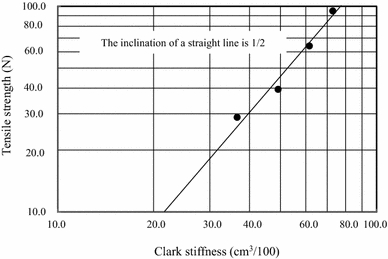

Fig. 9

Relationship between Clark stiffness and tensile strength of compounded paper containing the outer theca of horse chestnut seed

In this experiment, tensile strength of compounded paper corresponded to stress at fracture, and Clark stiffness of compound paper corresponded to elastic modulus, which is resistance to transformation. The results depicted in Fig. 9 indicated that breaking strength of compounded paper containing the ground outer theca can be expressed by Griffith’s fracture mechanism [21]. That is, Fig. 9 shows that fracture of compounded paper containing the ground outer theca originated in a crack caused by the ground theca inside compounded paper and extended along the development from the original crack. This finding is in agreement with the nonuniform distribution of the ground theca among pulp fibers, as determined by electron microscopy of compounded paper shown in Fig. 5.

Although mechanical properties of compounded paper deteriorated when the ground theca of horse chestnut seed was incorporated, they were also found to be maintained with pulp to some extent. Even at a 60 wt% proportion of the ground theca, tensile strength was 28.9 N and tensile elongation was 3.1% (Fig. 8). These values were found to be adequate for practical use. Furthermore, compounded paper with 20 wt% ground theca content had better mechanical properties, and adequate antibacterial and deodorizing activities. This finding revealed that compounded paper may be used in a wide range of applications.

Gas permeability was examined next. Figure 10 presents Gurley-type air resistance versus ground theca content. Air resistance, which corresponds to gas permeability of compounded paper, was found to decrease as the proportion of the ground theca of horse chestnut seed increased. In other words, the greater the ground theca content is, the higher the gas permeability of compounded paper is. These data suggest that ground outer theca created small gaps among pulp fibers in compounded paper to increase gas permeability. This finding offers some directions for the development of practical applications of compounded paper containing the ground theca of horse chestnut seed. For example, high gas permeability may be useful in seed wrapping paper with excellent antibacterial activity. Furthermore, various applications may be feasible for multifunctional paper that has such properties as deodorizing and antibacterial activities.

Fig. 10

Gurley-type air resistance of compounded paper containing the outer theca of horse chestnut seed (temperature: 23 °C, relative humidity: 50%)

Conclusions

For recycling of horse chestnut seed, it was separated into “sarcocarp and endodermis” and “outer theca”; each part was finely ground for analysis of its functions. Compounded paper containing outer theca was prepared and its properties were examined.

• 1. Ground horse chestnut seed showed excellent antibacterial activity toward S. aureus, E. coli, and S. mutans. Antibacterial activity is particularly strong against E. coli, which is a Gram-negative bacterium. The “outer theca” part showed a higher antibacterial activity than did the “sarcocarp and endodermis” part.

• 2. The ground theca of horse chestnut seed was found to have ORAC of 531 mmol TE/g and to possess high antioxidant capacity. The reason why ground horse chestnut seed showed a high antibacterial activity may be its antioxidant properties. In other words, antioxidant activity was assumed to damage the peptidoglycan layer of the bacterial cell wall.

• 3. The outer theca of horse chestnut seed was found to have a high deodorizing activity against basic or acidic odors. For example, it was found to decrease ammonia gas to 0% (odor residual rate) only in 10 min.

• 4. Compounded paper was prepared that contained the ground outer theca of horse chestnut seed blended with pulp fibers. The compounded paper was found to possess high deodorizing activity. Furthermore, although mechanical properties deteriorated as the proportion of the ground outer theca increased, these parameters remained adequate for practical applications.
