Relative improvements in flame resistance of coir fiberboards treated with fire-retardant solution

Abstract

In this study, medium-density coir fiberboard samples treated with fire-retardant (FR) solutions were found to be effective in resisting fires. This study sought the most favorable combination of FR boron solution for imparting flame resistance to coir fiberboards. The samples were chemically treated with FR solutions of various combinations of borax and boric acid. The treated samples showed substantial improvements in their resistance to flammability and flame penetration time, a reduced rate of burning, and a higher resistance to spread of flame. A regression analysis was performed to determine the relationship between the weight percentage of FR boron present in the solution and the flame resistance characteristics of treated coir fiberboards, in which the predictions were found to be accurate, within ± 3%. The study concluded that any difference in the weight percentage of FR boron in the solution affected the flame resistance, and a solution that contained 35% boron imparted maximum fire resistance to coir fiberboard samples.

Introduction

The ever-increasing demand for new biodegradable and sustainable raw materials has encouraged both manufacturers and engineers of the wood products industry to focus on renewable, alternative resources for an eco-friendly environment. Wood and its substitutes remain the major raw materials in the furniture and construction industries, while composite panel board manufacturing accounts for one of the fastest growing sectors of the wood and allied product industries. Among natural fibers, wood has been the most extensively used reinforcement in polymer matrices. However, due to expensive manufacturing processes and the desire for sustainability, a shift in interest has occurred towards other sustainable natural fibers that would, otherwise, be treated as agro-wastes [1,2,3]. Coir fiber is a biodegradable natural fiber extracted from the fibrous husks (mesocarp) of the seeds of coconut palms (Cocos nucifera L.). Coir fiber has traditionally been used for manufacturing ropes, carpets, or mattresses, but it is also useful for manufacturing composite panel boards. These fiberboards can substitute for wood and other engineered wood products in a range of applications from packaging to construction materials. Natural fibers like coir can substitute for synthetic fibers in a variety of applications. In addition to exhibiting good mechanical and acoustical properties, they are also biodegradable and buoyant [4]. Coconuts are grown in around 90 countries in the world, and the total annual production of coir fiber is 877,100 tons [4, 5]. The coir composite panel board is a structural composite material made from coir needled felt that is bonded together with phenol formaldehyde resin; it is a useful substitute for wood and other wood composites [4].

Coir fiber, being a lignocellulosic material, is flammable, and fires can propagate promptly. Coir fiber has evident environmental and sustainability benefits over its synthetic counterparts, and applying flame retardants could further help in meeting relevant fire standards [6, 7]. Reducing the risk of fire also contributes to substantial improvements in quality of living. A fire accident and the successive combustion of wood, or any wood substitutes, in habitable structures like high-rise apartment buildings and other skyscrapers can be life-threatening. To reduce the risks of flammability and improve safety, composite panel boards can be treated with fire-retardant (FR) chemicals [8]. Fire resistance of composite panel boards is an important concern as the market for structural panel boards expands; these products are being used in wider and more demanding applications, including the construction sector and the furniture industry. It is widely accepted that the fire performance of wood-based composites can be considerably improved through various chemical treatments, making them suitable for a variety of applications. Fire-retardant-treated (FRT) panel board products are gaining acceptance where an improved level of fire safety is desired [9].

Borates are naturally found in the earth as compounds of boron. Two of these minerals, borax (BX) and boric acid (BA), are particularly well suited for use as flame-retardant materials due to their complementary flame-retardant characteristics. Their low toxicity to humans and the environment makes them qualified for use as flame retardants in residential settings [10]. BA, BX, and their combinations have been widely used in the fire protection industry due to their thermal resistance because they reduce surface flame propagation [6]; they have low melting points and form a glassy film layer on the surface when exposed to extreme heat [10]. The presence of BX tends to eliminate flame spread but promotes glowing, while BA enhances carbonization and suppresses glowing; consequently, they exhibit a synergic effect when used in combination [11]. The mixtures of BA and BX are complementary nature and adding more BX can compensate for the adverse effects of BA on board strength, as it buffers the acidic pH to neutral pH levels [12]. An estimated loading levels of at least 7.5% boron are required for the material to be flame-retardant post-treatment [13].

Unlike various species of solid wood that are affected by microorganisms, coir composite boards show a higher resistance to biodeterioration. However, they are still susceptible to biological attack under favorable conditions. FR chemicals in treated panels are susceptible to leaching from moisture when exposed to weathering, and it decreases the effectiveness of the chemical against biodeterioration [10]. Boron-based compounds are particularly effective for cellulosic materials, and their neutral pH, preservative effectiveness, and relatively low impact on mechanical properties make them a desirable choice as a fire retardant. They are also well known for their excellent protective characteristics against biodegrading microorganisms like termites [13].

In a scenario where the usefulness and viability of the mass-scale production of biocomposite materials are still debated, it is critical to ensure that the material is compatible with various treatments and is capable of self-extinguishing any fire, making it suitable for a variety of functions. Several attempts have been made to improve the fire resistance of natural fiber-based composite panel boards by treatment with different FR additives, and boron has been extensively reported for this purpose. Nevertheless, it is unlikely to conclude that all lignocellulosic materials behave in a generalized manner when treated with boron. This study primarily aims at determining an optimum concentration of boron-based FR solution for the chemical treatment of coir composite panel boards to have a positive effect on fire resistance. It also attempts to establish a relation between the boron present in an FR solution and the performance of composite board materials when exposed to fire.

Experimental

Materials

Coir fiber-based panel boards designated as medium-density coir boards, as per IS 15491:2004 [14], were prepared and chemically treated using an aqueous preservative solution containing combinations of laboratory grade BA (H3BO3; Merck Specialties Pvt. Ltd., Mumbai, India) and BX (Na2B4O7·10H2O; Nice Chemicals Pvt. Ltd., Kochi, India). The chemically treated samples were then subjected to various fire-resistance tests to assess the relative improvements in their flame resistance.

Preparation of coir composite boards

Medium-density coir composite boards were manufactured as per IS 15491: 2004 [14] via hot-pressing coir fiber mats impregnated with phenol formaldehyde resin. Coir fibers from coconut husk (Cocos nucifera L.) were extracted and prepared as per IS 9308: 1999 [15], and fed through a needle felt machine to make uniform non-woven fiber mats with appropriate density. Fine jute fibers were carded and spread to form a uniform layer. The fiber mats thus produced were impregnated with phenol formaldehyde resin and dried before processing. After drying, the impregnated fiber mats are stacked, one atop the other, for the required thickness and density in a hydraulic hot press (Srichakra Engineering Equipments, Bangalore, India), and are pressed at a temperature of 140 °C and a pressure of 1.17 MN/m2 for about 5 min to form coir composite boards with an average density of 650 kg/m3.

Chemical treatment

Different levels of boron, from 10%, were added to water to form solutions until maximum solubility was achieved. The maximum solubility of BA and BX in water without precipitation was observed with a combination of 15% BA, 20% BX, and 65% water, yielding approximately 35% boron in the FR solution (Table 1). Any addition of boron beyond this combination was found to be not fruitful as it seldom dissolved completely into solution and the remaining existed as precipitate in the solution.

Table 1 Composition of FR solutions

Coir board samples were cut into suitable dimensions required for various fire-resistance tests and were then FR-treated using an accelerated hot-and-cold bath method without affecting the laminate. The samples to be tested was immersed in FR solution at 100 °C for 30 min and then transferred to the cold bath where it was dipped in FR solution at 38 °C for 6 h. Later, the samples were dried in sunlight to control the moisture content level within 5–7% of their weight [6]. During the initial phase of treatment, air present in the sample expands as a result of heating and is driven out, while the residual air in the sample contracts during the subsequent cooling stage, creating a partial vacuum that allows the preservative boron to penetrate the coir fiberboard. When treated with an FR solution having combination of BA and BX for maximum solubility, the average density of coir boards increased from 650 to 846 kg/m3 and coir boards exhibited an average retention of 140 kg/m3.

Methods

Determination of fire resistance

To investigate the degree of fire resistance imparted to the samples after FR treatment, a combination of fire-resistance tests which includes a flammability test, a flame penetration test, and a rate of burning test was conducted as per IS 1734: 1983 [16]. In addition, a resistance to spread of flame test was performed according to IS 15491: 2004 [14].

Flammability test

A total of 48 specimens were subjected to the flammability test, with three trials performed for every set of samples. Two test specimens that measured 125 mm × 125 mm × 12 mm were prepared for each set of tests. The specimens were held vertically, 15 mm apart with one 40 mm higher than the other. Figure 1 shows the flammability test apparatus in operation, fixed with a Bunsen burner, so that the flame was directed against the inner face of the specimens. Liquefied petroleum gas that was fed to the burner burned as a blue flame and ignited the face of the lower specimen, which in turn ignited the opposite face of the higher specimen. The response variable, flammability, was the time taken (min) for the higher specimen to be ignited after igniting the lower specimen. The specimen was deemed ignited if the burning was uninterrupted for at least 50 s.

Fig. 1
figure1

Flammability test apparatus

Flame penetration test

Three trials were performed for each of the eight sets of samples, a total of 24 specimens, for the flame penetration tests. They were conducted on specimens that measured 125 mm × 125 mm × 12 mm. The test specimens were held 50 mm above the nozzle of a Bunsen burner, as shown in Fig. 2, and the time taken for the flame to penetrate the thickness of each sample was recorded as the flame penetration time (min). The moment of penetration is identified as the exact time at which a visible flame is spotted on the opposite surface of the sample. The time taken for flame penetration shall not be less than 15 min for every 6 mm thickness, i.e., for a thickness ‘t’ mm, the minimum time required for a sample to successfully pass flame penetration test would be 15t/6 min.

Fig. 2
figure2

Flame penetration test apparatus

Rate of burning test

Three trials were performed for each of the eight sets of samples, a total of 24 specimens, for the rate of burning tests on specimens that measured 100 mm × 12.5 mm × 12 mm. Figure 3 shows a test specimen ignited by a blue flame during the rate of burning test.

Fig. 3
figure3

Rate of burning test apparatus

The test specimen was suspended vertically 30 mm from the nozzle of the burner. The weight of the sample was monitored throughout the test by keeping the whole arrangement in a sensitive-weighing scale, and the time taken for 10% loss in mass and all subsequent loss by 10% of the initial mass thereof was recorded. The time taken for the mass loss of sample from 30 to 70% was recorded for the purpose of comparison.

Resistance to spread of flame test

The tests for determining resistance to spread of flame were performed according to IS 15491: 2004 [14]. The specimens tested measured 150 mm × 25 mm × 12 mm. Three trials were performed for each of the eight sets of samples, for a total of 24 specimens. Figure 4 shows the setup for this test.

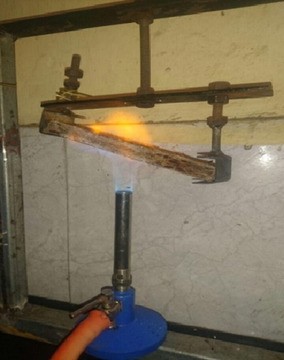

Fig. 4
figure4

Resistance to spread of flame test apparatus

The samples held at an angle of 45° to the horizontal and 50 mm away from the nozzle of the burner were exposed to a Bunsen burner flame intermittently for 30 s, and the cycle was repeated until ignition. The ignited sample subsequently burning for more than 20 s suggests flame spread. The times for which the coir fiberboard samples were able to withstand ignition and flame spread were recorded to compare the resistance to flame spread.

Regression analysis

A regression analysis was performed to investigate the extent to which the weight percentage of boron present in the FR solution predicted the fire resistance of the medium-density coir fiberboards. The program used was Minitab 17 (Minitab, Inc., State College, PA, USA). Linear, quadratic, and cubic regression models were all considered for analysis. Of those, it was found that the cubic model gave the best fit and most accurate predictions. Therefore, a third-degree polynomial (cubic) regression model was used with the weight percentage of boron compounds present in FR solution as predictor (X) and the results of the various fire-resistance tests (in min) as the responses (Y). The relationships between the predictor (X), i.e., weight percentage of boron present in the solution and the different responses (Y), i.e., the values for flammability, flame penetration, rate of burning, and resistance to flame spread, were investigated. The significance threshold was set at p < 0.05 for all four of the fire performance tests. Because fire resistance is a collective measure of different fire-resistance tests, each test was analyzed separately in the regression analysis.

Confirmation of regression analysis

The obtained results indicated that the fire performance is a maximum when there is 30–35% boron compounds present in the FR solution. Therefore, three set of coir fiberboard samples were chemically treated with a solution that contained 33% boron compounds (19% BX and 14% BA) and 67% water and confirmation experiments were performed with all four of the fire performance tests to assess the validity of the regression analysis.

Results and discussion

The various physical Boron-treated samples can offer greater resistance to fire and flame propagation than untreated samples of wood and other engineered wood products, such as plywood, which contain combustible organic carbon and hydrogen compounds. The general procedures practiced for the preservation and treatment of wood for extended life and fire resistance were expected to hold well for medium-density coir fibreboard samples as well, due to the presence of common constituents such as lignin, cellulose, or hemicelluloses in the structure. The effects of treatment of coir composite boards with an FR solution containing boron compounds were encouraging, with a better fire resistance than untreated samples.

Flammability time

A regression analysis was performed to predict the flammability of coir fiberboards after treatment with a solution of varying concentrations of FR boron compounds.

A regression equation was generated with F(3,20) = 187.16, p < 0.001, and R2 = 96.6%. Figure 5 shows a fitted curve plot with flammability (min) (Y1) as the ordinate and wt% FR boron (X) as the abscissa.

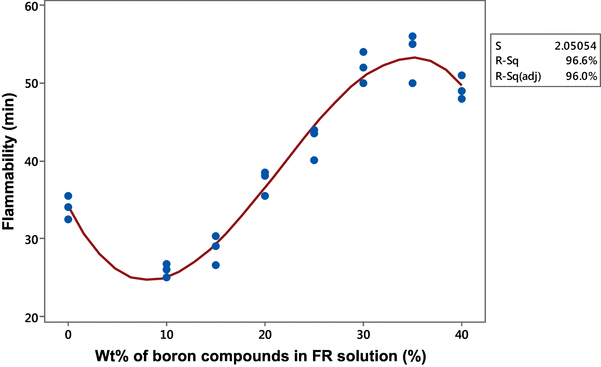

Fig. 5
figure5

Fitted curve of flammability vs. weight percentage of boron compounds present in fire-retardant (FR) solution

The regression equation used to predict flammability was:

$${Y_1}={\text{ }}34.19 - 2.543X+0.1928{X^2} - 0.002989{X^3}.$$
(1)

Flame penetration time

A regression equation was generated with F(3,20) = 34.31, p < 0.001, and R2 = 83.7%. Figure 6 shows a fitted curve plot with flame penetration time (min) (Y2) as the ordinate and wt% FR boron (X) as the abscissa.

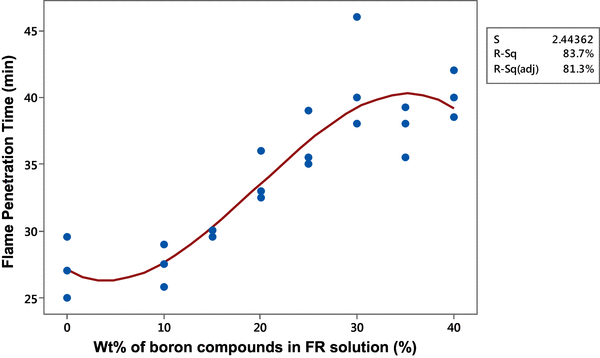

Fig. 6
figure6

Fitted curve of flame penetration time vs. weight percentage of boron compounds present in fire-retardant (FR) solution

The regression equation used to predict flame penetration time of the coir fiberboard samples was:

$${Y_2}=27.05 - 0.4014X+0.05477{X^2} - 0.000929{X^3}.$$
(2)

Rate of burning

A regression equation was generated with F(3,20) = 63.33, p < 0.001, and R2 = 90.5%. Figure 7 shows a fitted curve plot with rate of burning (min) (Y3) as the ordinate and wt% FR boron (X) as the abscissa.

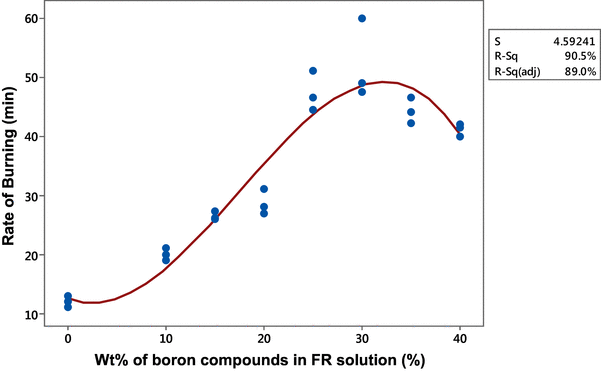

Fig. 7
figure7

Fitted curve of rate of burning vs. weight percentage of boron compounds present in fire-retardant (FR) solution

The regression equation that predicted the rate of burning of the samples was:

$${Y_3}=12.49 - 0.6698X+0.1472{X^2} - 0.002829{X^3}.$$
(3)

Resistance to flame spread

A regression equation was generated with F(3,20) = 179.62, p < 0.001, and R2 = 96.4%. Figure 8 shows a fitted curve plot with the resistance to flame spread (min) (Y4) as the ordinate and wt% FR boron (X) as the abscissa.

Fig. 8
figure8

Fitted curve of resistance to flame spread vs. weight percentage of boron compounds present in fire-retardant (FR) solution

The regression equation used to predict the resistance to flame spread was:

$${Y_{\text{4}}}={\text{ 7}}.0{\text{71 }}+{\text{ 5}}.{\text{936}}X - {\text{ }}0.{\text{2}}00{\text{7}}{X^{\text{2}}}+{\text{ }}0.00{\text{2125}}{X^{\text{3}}}.$$
(4)

Optimum composition of boron compounds in FR solution

Table 2 consolidates the results of the fire-resistance tests. These data were investigated using a regression analysis to determine relationships between the weight percentage of boron compounds and the results of the different fire-resistance tests. It was seen from the data that the chemically treated medium-density coir fibreboard samples gained notable resistance to ignition and flame spread when compared to the untreated samples. It suggests that a fire-retardant chemical solution (FRCS) having boron compounds between 25 and 35% of the total weight of the solution imparted the highest flame resistance to coir fiberboards. The peak values for the flame penetration, rate of burning, and flame spread tests were exhibited by coir fiberboard samples treated with a 30% boron solution, designated as FRCS 3, while the samples treated with a 35% boron solution, designated as FRCS 2, exhibited the maximum value for the flammability test.

Table 2 Fire-resistance test results

Table 3 shows the prescribed minimum time to pass each test and gives a fair reference for judging the values exhibited in Table 2 for each test. It also helps in determining if the presence or differences in the weight percentage of boron can contribute to flame resistance of the material.

Table 3 Prescribed minimum time to pass the tests

The regression-derived equations (1)–(4) were used to predict the values of flammability, flame penetration, rate of burning, and flame spread for coir fiberboards treated by solutions with FR boron compounds between 25 and 35 wt%. The regression analysis predicted the maximum values for the flammability and flame penetration tests for samples treated with 35 wt% boron solution. The predicted values of rate of burning were found to be a maximum for the samples treated with 33% boron solution. However, flame spread was largely unaltered by the variations in boron for the FR treatment and only slight variations were present among their values which conform to the treatment with 30% boron solution.

Table 4 shows both the measured values and regression-predicted values for all fire-resistance characteristics of coir fiberboard samples treated with a solution containing 33% boron compounds (19% BX and 14% BA) and 67% water. The predictions were accurate, within ± 3%. The results suggested the use of a combination of BA and BX in a 1:1.5 ratio for maximum solubility in water [6, 7]. The solution containing 35% boron compounds (15% BA and 20% BX) and 65% water imparted maximum fire resistance to coir fiberboard samples.

Table 4 Results of confirmation test with 33% boron FR solution

Conclusion

This study evaluated the flame resistance of chemically treated coir composite panel boards with different weight percentages of borates in the solutions and identified an optimal solution composition. Regression analysis successfully predicted the values of flammability, flame penetration, rate of burning, and resistance to flame spread tests with respect to the weight percentage of FR boron present in the solution for chemical treatment, and the equations which fit were found to be statistically significant. An aqueous solution containing 35% boron compounds (15% BA and 20% BX) imparted substantial fire resistance to FRT coir fiberboards.
