Genetic analyses of causal genes of albinism (white fruiting body) in Grifola frondosa

Abstract

The tyrosinase 2 gene (tyr2) from two compatible strains of Grifola frondosa, the albino-type monokaryon strain IM-WM1-25 and the wild-type monokaryon strain IM-BM11-P21, were amplified and characterized (designated tyr2^−Δ25 and tyr2⁺, respectively). A single base deletion in the coding region of tyr2^−Δ25 from IM-WM1-25 was discovered, and this mutation is predicted to cause a frame-shift in translation, yielding inactive protein tyrosinase protein 2 (TYR2). Polymerase chain reaction (PCR) primer pairs were designed to detect normal tyr2⁺ and mutant tyr2^−Δ25, and then the tyr2 genotype of F1 progenies, which was obtained from basidiospore isolation of IM-BM11-P21 × IM-WM1-25 (tyr⁺ × tyr2^−Δ25) strain, was analyzed. Back-crossing (F1 progenies × IM-WM1-25) was performed and fruiting body colors of the crossed strains were analyzed. The fruiting bodies of all crossed strains were white and beige, and the corresponding genotypes were tyr2^−Δ25 × tyr2^−Δ25 and tyr⁺ × tyr2^−Δ25. These results suggest that the causal gene of the albino mutation is tyr2 and this study provides a new strategy for the breeding of albino mushrooms belonging to G. frondosa.

Introduction

Grifola frondosa is a polyporous basidiomycete that grows on decaying wood and an economically important edible mushroom called ‘‘Maitake’’ [1]. Due to recent advances in bottle or plastic bag cultivation technology in Japan, this mushroom is now available in domestic markets throughout the year. In 2016, Japanese annual production of Maitake was 48,523 ton [2]. Maitake is a delicious mushroom but dark brown pigment was extracted from fruiting body into supernatant. Therefore, the meal that used Maitake become black; therefore, Maitake is used for limited cooking.

Generally speaking, the fruiting body of G. frondosa consists of a dark brown cap that is colored with visible dark and white stripes. This mushroom exhibits pigmentation from the primordia stage until mature fruiting body formation. In a previous study, the brown pigment in the fruiting body of G. frondosa was thought to be melanin, which was absent in the white fruiting body of albino strains. The corresponding genes for the melanin synthesis pathway, such as tyrosinase genes (tyr1, tyr2), were also identified and characterized. Only tyr2 transcript levels increased gradually from primordia to the mature fruiting body. However, whether tyr2 is responsible for melanin formation was not investigated in G. frondosa [3]. A similar phenomenon was observed in Polyporus arcularius. Brown pigmentation of mycelia in P. arcularius occurred only in a dikaryotic strain grown under visible light before the development of primordia and did not occur in a monokaryon strain, even when grown under visible light. Moreover, transcription of tyrosinase 1 gene in P. arcularius closely related pigmentation of mycelia and primordia [4].

It is very important for mushroom industry to develop high-yield white color strain of Maitake. In Japan, the white fruiting bodies of Flammulina velutipes (Enokitake) [5] and Bunashimeji (Bunapie, Hokuto co., Japan) are very popular, but it is unclear why the fruiting bodies of some strains become white. The objective of the present study is to understand the morphological and genetic characteristics of G. frondosa. Here, we report the sequence diversity of tyr2 in both wild-type and albino-type strains, and describe the relationship between tyr2 and brown phenotypes by back-crossing. This research is one of the attempts to develop useful white strain of Maitake.

Materials and methods

Fungal strains

The wild dikaryotic strain IM-BM11 and the albino dikaryotic strain IM-WM1 were used in this study, and were stocked in Ichimasa Kamaboko Co., Ltd. Basidiospore isolates IM-WM1-16 and IM-WM1-25 were isolated from the fruiting bodies of albino strain IM-WM1. Monokaryotic strain IM-BM11-P21 was derived from regenerated protoplasts of wild-type dikaryotic strain IM-BM11. Hybrid strain IM-BW1 was obtained by crossing IM-WM1-25 with IM-BM11-P21 (Fig. 1).

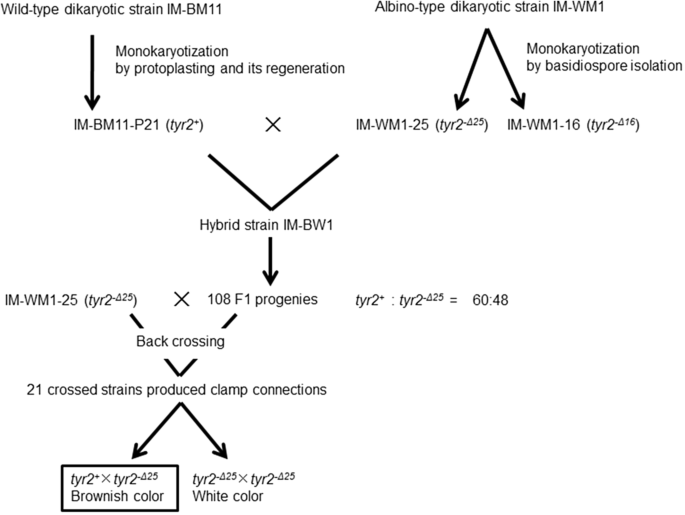

Fig. 1

Diagrams to explain a back-crossing involving strains, genotypes and colors

Method for producing dikaryotic hybrids and cultivation of fruit bodies of dikaryotic hybrid stocks

The dikaryotic stock of this mushroom was prepared by crossing two compatible monokaryotic stocks. The two monokaryotic stocks were placed 4 mm apart in the center of a potato dextrose agar (PDA) plate (Nissui Seiyaku, Tokyo, Japan). After incubation for 7–10 days at 25 °C, the mycelia on the PDA plate at the contact zone between the two parental monokaryotic colonies were inspected under a microscope for the formation of clamp connections as evidence for dikaryotization. The hybrid dikaryotic strain was maintained on a PDA slant.

Cultivation of fruit bodies from the test hybrid stock was carried out on a sawdust substrate. Substrate was prepared by mixing beech sawdust and rice bran at a volumetric ratio of 5:1 and adjusting the moisture content to 65%. Mature fruit bodies were removed with a knife and placed in a Petri dish to obtain spore print.

Isolation of basidiospore-derived monokaryotic stocks

Sterilized water (5 ml) was pipetted onto the spore print in the Petri dish, and the plate was vigorously shaken to prepare a spore suspension. The spore densities in the suspensions were determined by counting the number of spores with a hemocytometer under a microscope. The suspension was then diluted to approximately 1 × 10⁴ to l × 10⁶ cells/ml. Next, 0.1 ml of the suspension was mixed in a test tube with 2 ml of melted PDA soft agar (agar concentration, 0.7%) medium at 50 °C and then poured onto a PDA plate to prepare a double-layer agar culture. After incubating the cultures at 25 °C for a week, colonies that appeared on the plate were isolated and transferred onto PDA slants. These slants were incubated for approximately 7 days at 25 °C before being used for crossing experiments. The absence of clamp connections among all basidiospore-derived strains was confirmed under the microscope, and the strains without clamp cell were stocked as monokaryotic strain.

Isolation of monokaryon via protoplast regeneration

To collect protoplasts from dikaryotic mycelia, an MYG (10-g malt extract, 4-g yeast extract and 4-g glucose) plate (2% agar) was inoculated with the IM-BM11 strain and incubated at 25 °C for 2 weeks. Five agar blocks (2 × 2 mm²) cut from the plate were inoculated onto 100-ml Erlenmeyer flasks containing 10-ml MYG liquid medium and incubated statically at 25 °C MYG for 2 weeks. The mycelial mats were filtered through a stainless steel net and washed with buffer (0.6-M mannitol, 0.2-M Na₂HPO₄, 0.1-M citric acid, pH 5.6), suspended in 3-ml buffer containing 2% lywallzyme (Guangdong Institute of Microbiology, Guangdong, China), and incubated at 30 °C for 4 h with gentle shaking at 30-min intervals to release the protoplasts into suspension. Protoplasts were filtered through a 3G1 glass filter into 15-ml polypropylene conical tubes, centrifuged (4 °C, 340×g for 5 min) and washed with buffer twice, and suspended again with buffer. Protoplast densities in the suspensions were determined by a hemocytometer under a microscope. The suspension was then diluted to approximately 1 × 10⁴ to l × 10⁶ cells/ml. Next, 0.1 ml of the suspension was spread onto regeneration medium [glucose, 20 g; (NH₄)₂SO₄, 1.5 g; KH₂PO₄, 1.5 g; MgSO₄, 1.0 g; peptone, 2.0 g; yeast extract, 2.0 g; agar, 15 g (pH 5.5); 500 ml of H₂O plus 500 ml of 1.0 M sucrose]. After incubating cultures at 25 °C for a week, the colonies that appeared on the plate were isolated and transferred onto PDA slants. These slants were incubated for approximately 7 days at 25 °C before being used for the crossing experiments.

Genome sequencing and annotation

Genomic deoxyribonucleic acid (DNA) extraction followed the method of Dellaporta et al. [6]. The complete nucleotide sequence of the genomic DNA of albino monokaryotic strain WM1-25 was determined using Illumina HiSeq2000 paired-end technology provided by Hokkaido System Science Co., Ltd. (Sapporo, Hokkaido, Japan). This sequencing run yielded 34,502,348 high-quality filtered reads with 101 bp paired-end sequencing. The genomic sequence was assembled using velvet assembler version 1.1.02 (hash length, 75 bp). The final assembly contained 7354 contigs of total length 35,343,167 bp, with an n50 length of 94,048 bp.

Amplification DNA sequence of TYR2 from G. frondosa

In a previous study, we showed that TYR2 is closely related to the fruiting body color and melanin production [3]. Therefore, we focused on tyr2 in this study. The DNA sequence of tyr2 was identified using a tblastn search against the draft genome database of WM1-25 with the tyrosinase protein sequences of Lentinula edodes (BAB71736.1). Based on the DNA sequence of tyr2, oligonucleotide primers (Table 1) were designed to amplify the entire DNA sequence of tyr2 from the genomic DNAs of monokaryotic strains IM-WM1-16, IM-WM1-25 and IM-BM11-P21, respectively. All amplified DNA fragments were sequenced directly and used as templates for cycle sequencing. These sequences were then compared using the Clustal X program to identify potential restriction fragment length polymorphism (RFLP) and mutations.

Table 1 Primers used in this study

Amplification complementary DNA (cDNA) sequence of tyr2 ^−Δ25 from G. frondosa

Total ribonucleic acid (RNA) was extracted from wild-type monokaryotic strain IM-BM11-P21 using a MagExtractor Kit (Toyobo, Osaka, Japan). The cDNA was synthesized using total RNA as a template by ReverTra Ace qPCR RT Master Mix with gDNA Remover Kit (Toyobo). For amplification of full-length cDNA of tyr2^−Δ25, 3′-rapid amplification of cDNA ends (RACE) was performed with a Takara RNA PCR (AMV) version 3.0 kit (Takara Bio, Shiga, Japan) and 5′-RACE with a 5′-Full RACE Core Set (Takara Bio). PCR was carried out according to the kit manufacturer’s instructions using the oligonucleotide primers listed in Table 1. Amplified fragments were subcloned into a pMD20 T-vector (Takara bio) and sequenced.

The full-length cDNA of tyr2^−Δ16 and tyr2^−Δ25 from monokaryotic strain IM-WM1-16 and IM-WM1-25, respectively, was deduced by alignment of the previously defined tyr2⁺ cDNA of IM-BM-11-P21. The location of the initiation and stop codons, and the exons and introns of the gene were determined from the full-length cDNA of tyr2⁺ of IM-BM-11-P21. All of the introns started with GT and ended with AG. These cDNA sequences were translated into amino acid sequences by GENETYX, and were then compared to one another using the Clustal X program to identify potential mutations in the tyr2^−Δ16 and tyr2^−Δ25 amino acid sequence from the albino-type strains.

Determination of genotypes of single-spore isolates

The 6-bp deletion was present at position 1206 bp from start codon (ATG) in tyr2 albino monokaryotic strains (Fig. 2), as compared with nucleotide sequences of wild-type tyr2⁺ from monokaryotic strains. Based on this region, the two primer pairs were designed to produce polymorphic markers for distinguishing the tyr2 genotype of G. frondosa strains. The primer pair Btyr2F and Btyr2R was used for detection of wild-type tyr2 gene (tyr2⁺) isolated from wild-type strain IM-BM11-P21. The primer pair Wtyr2F and Wtyr2R was used for detection of mutant tyr2 gene (tyr2^−Δ25) isolated from albino-type strain IM-WM1-25. PCR was carried out in a 50-μl reaction volume containing 20 ng of extracted genomic DNA, 50 pmol of each primer, 0.2-mM deoxynucleotide triphosphate (dNTP), 1 × PCR buffer and 1.25 U Blend Taq polymerase (Toyobo). Thermal cycling parameters were an initial denaturation step at 95 °C for 3 min followed by 30 cycles of denaturing at 95 °C for 30 s, annealing at 57 °C for 30 s, extension at 72 °C for 2 min, and a 10-min final extension at 72 °C. PCR products were electrophoresed in a 1.5% agarose gel, stained with ethidium bromide, and photographed under ultraviolet light.

Fig. 2

Comparison of the genomic DNA sequences of the tyrosinase 2 gene of G. frondosa. B and W represented nucleotide sequences of tyr2 from brown-colored wild-type monokaryotic strain IM-BM11-P21 and white-colored albino strain IM-WM1-25, respectively. Nucleotide sequences of tyr2 of albino strain (tyr2^−Δ25) that are identical with wild-type strain are indicated by dots. Codons that are containing nucleotide substitution with amino acid changing are underlined and amino acid residues are shown under the codon. The deletion mutation that was the possible main reason for deficiency of tyrosinase activity is boxed. Bold case letters indicate primer positions

χ² test

Segregation values were calculated, and Chi-squared (χ²) goodness of fit tests were performed to determine the significance of segregation [i.e., any skewing from the expected Mendelian segregation ratio of 1:1, using Excel (Microsoft)].

Back-crossing

The pedigree diagrams for each strain are shown in Fig. 1. F1 progenies of IM-BW1 were obtained by basidiospore isolation. The 108 monokaryotic isolates were randomly selected for crossing, and then the genotypes of these monokaryotic isolates were confirmed by specific primers. According to the monokaryotic–monokaryotic (mon–mon) crossing method, each monokaryotic isolate was confronted to parental strain IM-WM1-25 (tyr2^−Δ25) in Petri dishes using 4-mm-diameter blocks as inoculum to breed new strains. The new dikaryotic strains were derived from the mon–mon crossing method, which means that mating occurred. Each crossbred stain was cultured in sawdust medium to produce fruiting bodies. Morphological descriptions used color terms and notations from the Royal Horticulture Society color chart.

Results

Comparison of tyr2 in wild-type and albino-type strains

Tyr2 from wild-type monokaryotic strain IM-BM11-P21 is designated tyr2⁺, with a nucleotide sequence from the initial ATG to the stop codon of the coding region consisting of 1866 bp and encoding 621 amino acids. The signal peptide sequence may be lacking in tyr2⁺, as predicted by SignalP 4.1 (http://www.cbs.dtu.dk/services/SignalP/), suggesting that it may be an intracellular enzyme.

Two monokaryotic strains IM-WM1-25 and IM-WM1-16 were selected from basidiospores isolated from albino-type dikaryotic strain IM-WM1. The two strains were compatible with IM-BM11-P21 and carried mutant allelic tyr2. The mutant allelic tyr2 from IM-WM1-25 and IM-WM1-16 were designated tyr2^−Δ25 and tyr2^−Δ16, respectively. The DNA sequences of tyr2^−Δ25 and tyr2^−Δ16 were analyzed and compared with those of tyr2⁺ from IM-BM11-P21 to detect polymorphisms of tyrosinase genes. The results are summarized in Table 2.

Table 2 Comparison of TYR2 between wild-type (tyr2⁺) and albino-type (tyr2^−Δ25) monokaryotic strains

In the comparison of nucleotide sequences from the TYR2 coding regions between wild-type monokaryotic strain IM-BM11-P21 and albino-type monokaryotic strain IM-WM1-25, a single base deletion at nucleotide 617 (A) was discovered in the IM-WM1-25. The tyr2^−Δ25 translational reading frame is shifted by a single nucleotide deletion and translation will stop at a TAG stop codon newly generated at amino acid 412 (Fig. 2) by the frame-shift mutation. This stop codon produces a truncated with 53 fewer amino acids than TYR2⁺ protein and TYR2^−Δ25 protein was completely different from TYR2⁺ protein.

In comparisons of the tyr2^−Δ16 coding sequence with the tyr2⁺ coding sequences, we observed that the length did not vary, except for a 23 amino acid substitution (Table 2). tyr2^−Δ16 shared 94% identity with tyr2⁺. Although many missense and silent mutations were observed in tyr2^−Δ16 of IM-WM1-16 isolated from the same parent strain IM-WM1 with IM-WM1-25, relationships between TYR2⁺ function and mutation were not clear in this strain. Therefore, the frame-shift mutation was considered to be a cause of brown color loss and we focused on tyr2^−Δ25 from IM-WM1-25 in the current study.

Linkage analysis and DNA polymorphisms

To reveal genetic relationships between the F1 progenies and tyr2 genotype, and to develop efficient breeding method, linkage analysis was carried out. A total of 108 F1 progenies of IM-BW1 (IM-BM11-P21 × IM-WM1-25) were randomly isolated, designated IM-BW1-1 to IM-BW1-108. Genotypes of all F1 progenies were determined using the specific primer pairs Wtyr2F/Wtyr2R and Btyr2F/Btyr2R, respectively. In all tyr2⁺ genotype monokaryotic DNA, the detected band was around 770 bp, but it was around 582 bp in the tyr2^−Δ25 genotype (Fig. 3). We found that 60 monokaryotic strains showed the tyr2⁺ genotype, while the other 48 monokaryotic strains showed the tyr2^−Δ25 genotype. To determine whether the clone region is linked to genotype, we tested whether the ratio of the genotype in progeny fit a theoretical 1:1 ratio using χ² tests. Because χ² = 1.333 is less than χ ²_0.05  = 3.841, p > 0.05, we concluded that the cloned region fits a 1:1 ratio. This DNA polymorphic marker showed a significant segregation that was used for further analysis.

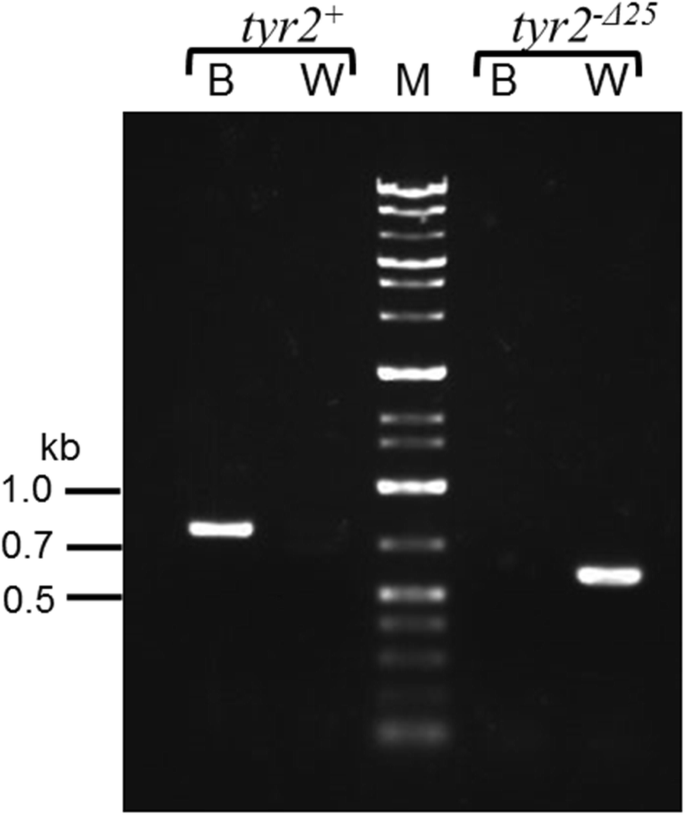

Fig. 3

PCR amplification of tyr2⁺ and tyr2^−Δ25 genes from IM-BM11-P21 and IM-WM1-25 strains, respectively. The specific primer pairs Btyr2F/Btyr2R (for tyr2⁺) and Wtyr2F/Wtyr2R (for tyr2^−Δ25) were used for amplification of genomic DNA. B and W represented PCR product of tyr2⁺ from brown-colored wild-type monokaryotic strain IM-BM11-P21 (770 bp) and that of tyr2^−Δ25 from white-colored albino strain IM-WM1-25 (582 bp), respectively. 100 bp DNA Step Ladder markers (Nippon gene, Toyama, Japan) was used for molecular size calibration (lane M)

Characteristics of crossbred strains

A classical genetic technique (back-crossing) was used to analyze the characteristics of fruiting body color in G. frondosa. The parental IM-WM1-25 (tyr2^−Δ25) was crossed with each of the 108 F1 progenies. The 108 crossbred strains were screened based on the presence of clamp connections under a microscope. Only 21 monokaryotic strains, IM-BW1-6, 8, 9, 13, 29, 36, 38, 39, 54, 55, 58, 66, 69, 73, 80, 82, 83, 103, 104, 105 and 108, produced clamp connections with IM-WM1-25. The IM-WM1-25 × IM-BW1-6, 29, 55, 58, 66, 69, 80 and 105 did not produce basidiocarps. Comparison of basidiocarps focused on color. The genotype of tyr2 and color of basidiocarps of backcross strains are shown in Table 3 and Fig. 4. Two colors were observed in the F₀ and subsequent generations. The colors could be classified as white and beige, and the corresponding genotypes were tyr2^−Δ25 × tyr2^−Δ25 and tyr2⁺ × tyr2^−Δ25. We believe that tyr2⁻ may be a recessive gene and defective tyr2 genes in the both alleles were required for albinism. Therefore, we could identify the tyr2^−Δ16 mutation, but tyr2^−Δ16 might be also a defective mutant gene. We attempted to compare productivity in crossbred strains based on fresh weight. IM-BW1-54 (tyr2^−Δ25) × IM-WM1-25 (tyr2^−Δ25) weighed 548.1 g and was the heaviest among the crossbred strains, while IM-BW1-39 (tyr⁺) × IM-WM1-25 (tyr2^−Δ25) weighed 226.2 g, which was lower than other crossbred strains.

Table 3 Characteristics of strains used in this study

Fig. 4

Thirteen fruiting body of crossbred strains of G. frondosa. Each fruiting body has individual color and morphological characteristics. A IM-BW1-8; B IM-BW1-9; C IM-BW1-13; D IM-BW1-36; E IM-BW1-38; F IM-BW1-39; G IM-BW1-54; H IM-BW1-73; I IM-BW1-82; J IM-BW1-83; K IM-BW1-103; L IM-BW1-104; M IM-BW1-108, W wild-type dikaryotic strain IM-BM1

Discussion

In a previous study, we demonstrated that the brown pigments of the G. frondosa fruiting body are mainly melanin [3]. G. frondosa produces melanin via the l-3,4-dihydroxyphenylalanine (l-DOPA) melanin biosynthetic pathway, and tyrosinase is a key enzyme for melanization in this process. Therefore, the color of the fruit body of the mushroom is primarily determined by a single tyrosinase gene. In the Agaricales mushroom, the color of the fruiting body is also related to polyphenol oxidases, such as tyrosinase and laccase. The mechanisms of mushroom browning have been investigated extensively in Agaricus bisporus [7]. Browning in this species is mainly due to melanin [8], and tyrosinase seems to be the principal enzyme in its synthesis [9]. In Pholiota microspora, tyrosinase gene (tyr) and laccase gene 9 expression were markedly increased during the primordia and fruiting body stage [10]. These phenomena indicate that the content of melanin in the fruiting body may be determined by the complementary activity of more than two types of phenol oxidase in the Agaricales mushroom. The brown pigment was produced in primordia stage of wild-type strain but was not produced in albino strain throughout its all developmental stage (data not shown). Brown pigment production was not necessary for fruiting body development. Melanin was not necessary for Rosellinia necatrix pathogenesis but is involved in survival through morphogenesis [11]. Therefore, in G. frondosa, Brown pigment production might be involved in survival such as protection of DNA from damage of ultra violet in the nature.

tyr2 was the first candidate gene to be tested in G. frondosa, and the results of this study confirmed that color of the fruiting body was affected by tyr2. In addition, approximately 200 tyr mutations have been described in humans (http://albinismdb.med.umn.edu/) [12]. A frame-shift mutation generating a premature stop codon (TGA₄₉₁) resulting in a truncated TYR protein that is shortened by 21 amino acids has been reported in humans. This mutation is found in the putative transmembrane region in exon 5 of the tyr gene (between nucleotides 1420 and 1500) and results in the elimination of the carboxyl-terminal portion. In G. frondosa, the detected mutation occurs in exon 4 of the tyr2 gene (nucleotide 1236), generating a premature stop codon, and as in humans, the carboxyl-terminal portion is also eliminated. This region contains a short amino acid sequence (serine–histidine–leucine) that acts as a targeting signal for the transport of several peroxisomal enzymes into peroxisomes. Our data demonstrate that a frame-shift mutation is present in the coding region of the tyr2 gene. This mutation would disrupt the reading frame of wild-type tyr2. Disruption of translation appears to be responsible for the absence of melanin synthesis in G. frondosa. Therefore, understanding this mutation should facilitate a more detailed explanation of the mechanisms of melanin synthesis in G. frondosa.

Previously, marker-assisted breeding provides ways to improve breeding efficiency [13, 14]. In this study, we demonstrated that dikaryotic strains carrying homozygous tyr2^−Δ25 were produced white-colored fruiting body. Therefore, the detection procedure of genotype of tyr2^−Δ25 among basidiospore isolates using PCR procedure developed in this study can strongly contribute efficient breeding for useful white strains.

Conclusions

A single base deletion in the coding region of tyr2^−Δ25 from IM-WM1-25 was discovered, and this mutation is predicted to cause a frame-shift in translation, yielding inactive protein TYR2. Oligonucleotide primer pairs were designed to detect tyr2^−Δ25 and tyr⁺ by PCR amplification. The fruiting bodies of all crossed strains were white and beige, and the corresponding genotypes were tyr2^−Δ25 × tyr2^−Δ25 and tyr⁺ × tyr2^−Δ25. These results suggest that the causal gene of the albino mutation is tyr2 and this study provides a new marker-assisted selection method for the albino-type monokaryon.
