Structural changes in sugarcane bagasse cellulose caused by enzymatic hydrolysis
Journal of Wood Science volume 66, Article number: 11 (2020)
Cellulose I is not completely saccharified to glucose at a low cellulase concentration. In this study, sugarcane cellulose saccharification residues were investigated. Transmission electron microscopy images indicated that the cellulose microfibrils became shorter in the early stages of saccharification and gradually became narrower. The degree of polymerization also decreased in the early stages of saccharification. Cellulose saccharification residues were deuterated by immersing them in deuterium oxide. Infra-red spectra of the deuterated residues indicated that the deuterated hydroxyl group ratio decreased as saccharification progressed. This indicated that cellulose microfibrils were hydrolyzed in their hydrophobic planes by cellulase as if the surfaces were scraped. The increase of hydrophobic planes caused microfibril aggregation, poor accessibility of cellulase to the microfibrils, and a low saccharification rate.
Sugarcane has been cultivated to produce sugar for a long time. Increasing amount of sugarcanes has been used to produce bioethanol over the past few decades. Producing bioethanol from cellulose economically requires saccharification to be achieved using the smallest possible amount of enzymes. However, cellulose I (native cellulose) is not completely saccharified to glucose at a low cellulase concentration . It has been suggested in numerous studies that the low saccharification rate is caused by the non-specific adsorption of enzymes to substrates (making the enzymes inactive) [2,3,4,5], enzyme deactivation through other processes , inhibition caused by the products , and the effects of certain cellulose characteristics. It has been suggested that the problem of low saccharification rates may be related to using substrates with high hemicellulose contents, high lignin contents, and certain surface pore sizes , but the saccharification rate is low at a low cellulase concentration even for pure cellulose I (with hemicellulose and lignin removed). However, cellulose IIII is almost completely hydrolyzed at low enzyme concentrations . Cellulose IIII is produced from cellulose I but has a different crystalline form from cellulose I . The saccharification limit is therefore caused by a combination of the hemicellulose and lignin contents and the cellulose I structure.
In the study described here, cellulose residues after saccharification were analyzed, because we assumed that a poor saccharification rate will be related to the structures of the residue. Cellulose residues were first analyzed by transmission electron microscopy (TEM) and by making small-angle X-ray scattering (SAXS) measurements to assess the morphologies of the residues. Cellulose residues were then deuterated to allow the hydrophilicities of the residues to be determined. Cellulose has been deuterated in numerous previous studies. Infra-red (IR) spectra of the deuterated cellulose were acquired. The OH stretching bands at 3500–3300 cm−1 were completely translated to wavelengths ~ 1000 cm−1 lower without any loss of resolution , and the deuteration ratio was easily determined . Only OH groups on the surfaces and in disordered regions are deuterated when cellulose is stored in deuterium oxide , but OH groups even in crystalline regions are deuterated when cellulose is treated with a sodium deuteroxide solution at a high temperature and a high pressure . In the study described here, a saccharification residue was stored in deuterium oxide under conditions that caused only OH groups on the surfaces and in disordered regions to become deuterated, to allow the residue surfaces to be analyzed.
Materials and methods
Preparation of bagasse cellulose
Sugarcane bagasse powder that had been passed through a 1-mm sieve was treated with acidified sodium chlorite solution at 70 °C using the Jayme–Wise method . This process was repeated 5 times until IR absorption bands at 1510 and 1600 cm−1 (assigned to aromatic skeletal vibrations of the lignin) had completely disappeared. The sample was then boiled in 5% sodium hydroxide for 2 h to remove hemicellulose. Obtained samples were then processed twice using a disk mill to be fibrillated.
The enzyme Accellerase 1500 (DuPont, Wilmington, DE, USA) was used in the study. Accellerase 1500 is produced using a genetically modified strain of Trichoderma reesei. Bagasse cellulose (10 mg on a dry matter basis) was placed in a test tube, then 1 mL of 100 mM acetate buffer (pH 5.0) and 10 µg of Accellerase 1500 were added. The mixture was incubated at 50 °C in a water bath with shaking at 150 rpm. The d-glucose concentration in the supernatant was measured 1, 24, 72, 142, 168, and 196 h after incubation started using a d-glucose assay kit (Roche, Basel, Switzerland). The saccharification rate was defined as the ratio between the measured amount of glucose and the total amount of glucose calculated from the amount of cellulose present, expressed as a percentage.
Degree of polymerization
The weight-averaged molecular weight of cellulose was estimated using the method described by Horikawa et al.  modified as described by Hallac et al. . Cellulose was derivatized using a tricarbanilation process performed using anhydrous pyridine and phenyl isocyanate. The products were dissolved in tetrahydrofuran, and the soluble material was subjected to the procedure described below. Gel permeation chromatography analysis was performed using a high-speed liquid chromatography system. Calibration curves were produced using polystyrene standards. The degree of polymerization (DP) was calculated by dividing the weight-averaged molecular weight by 519 (the molecular weight of the cellulose tricarbanilate repeating unit).
The cellulose residue after the saccharification had been performed was washed thoroughly with distilled water and suspended in water. The suspension was then applied to a grid covered with carbon. Excess water was removed with a filter paper, and then the grid was negatively stained with 2% uranyl acetate. Photographs of the sample were acquired using a 2000EX TEM system (JEOL, Tokyo, Japan) using a voltage of 100 kV.
The lengths and widths of the cellulose microfibril residues after the saccharification for 1, 24, and 196 h were determined from the TEM images using Image J software.
Slurries of nanofibrillated cellulose before and after the saccharification for 142 h were subjected to SAXS measurements using the BL8S3 beamline at the Aichi Synchrotron Radiation Center (Aichi, Japan). After removing of enzymes from the cellulose residues by washing with 0.2% sodium hydroxide and water, the cellulose concentrations in the slurries of the samples that had been saccharified for 0 and 142 h, determined using the anthrone–sulfuric acid reaction described previously , were ~ 0.39% w/v and ~ 0.24% w/v, respectively. To perform a measurement, a slurry sample was loaded into a liquid cell (made in-house) with a 3-mm optical path and 0.02-mm-thick quartz plate windows. The cell was placed in a temperature-controlled sample holder. SAXS measurements were performed using X-rays with an energy of 13.5 keV (wavelength 0.092 nm) and a sample-to-camera distance of 2.1 m. The parameters relating to the geometry of the experiment were calibrated using silver behenate. A scattering pattern was recorded using an R-Axis IV++ imaging plate detector (Rigaku, Tokyo, Japan) using a 600 s exposure time. Azimuthal integration of the scattering pattern was performed using the beamline program to give one-dimensional data for the scattering intensity (I) based on the scattering vector q = (4π·sin θ)/λ. The intensity was normalized by the X-ray absorbance estimated from the photon count measured using ionizing chambers in front of and behind the sample. The one-dimensional data were visualized and analyzed using Python 3.7.0 software.
Acquisition of IR spectra for deuterated bagasse cellulose
Saccharification residues after 0, 24, 72, and 196 h of incubation were treated with 0.2% sodium hydroxide to remove the enzymes, and then each sample was washed thoroughly with distilled water. Each sample was then washed twice with deuterium oxide (99.9% D atoms; Sigma-Aldrich, St. Louis, MO, USA) and then stored in deuterium oxide at room temperature for 24 h.
The Fourier transform (FT) IR spectrum of each sample was acquired using a Frontier FT-IR spectrometer (PerkinElmer, Waltham, MA, USA). The wave number range for a spectrum was 500–4000 cm−1, and the resolution was 4 cm−1. For each spectrum, 16 scans were performed in attenuated total reflection (ATR) mode. The ATR prism was covered with a plastic Petri dish with a small hole in the center (Fig. 1). The cellulose suspension to be analyzed (2.5 μL) was applied to the ATR prism through the hole. Ultra-high purity nitrogen that had been passed through a liquid nitrogen trap was blown over the sample from the hole to dry it. An IR spectrum was acquired 5 min after the absorbance characteristics of deuterium oxide were last detected. The spectrum was smoothed and baseline corrected, then the spectrum was normalized to the heights of the CH and CH2 absorbance peaks. The OD ratio was calculated using the equation shown below .
Results and discussion
It has previously been found that cellulose is not completely enzymatically hydrolyzed at low cellulase concentration .
In this study, the saccharification rate reached a maximum at 142 h (Fig. 2), as was found previously . The saccharification rate was lower at 196 h than at 168 h, but the difference was not significant.
The hydrolysis of cellulose by endoglucanase causes the weight-averaged DP (DPw) to decrease rapidly . This is because endoglucanase cuts cellulose chains at random points in amorphous regions. In this study, the DPw decreased rapidly in the first hour of incubation but the saccharification rate remained below 20% at that time (Fig. 2). This indicated that the cellulose chains had been cut into shorter molecules but that not much glucose was produced at the beginning of the hydrolysis process. The DPw then slowly decreased but the saccharification rate increased rapidly, mainly through the actions of two cellobiohydrolases.
The cellulose microfibrils before saccharification had been performed were more than several micrometers long. The ends of the microfibrils could not be seen, so it was not possible to determine the actual lengths of the microfibrils (Fig. 3a). The microfibrils had become drastically shorter after 1 h of saccharification (Fig. 3b), and the microfibrils were slightly shorter still after 196 h of saccharification (Fig. 3c). The lengths and widths of the microfibrils were determined using Image J software. The microfibrils became shorter during the first phase of the saccharification process, which lasted ~ 24 h. The saccharification process caused the cellulose microfibrils to become both shorter and narrower (Fig. 4). This agreed with the decrease in DPw. The saccharification residues became aggregated (Fig. 3b, c). Large cellulose aggregates were also visible by eye when the saccharification process had been occurring for 24 h.
Structural changes in the cellulose caused by cellulase were identified by performing SAXS analysis of an aqueous sample. The cellulose residue after 142 h of saccharification was subjected to SAXS analysis. The saccharification rate had reached a maximum at 142 h, as shown in Fig. 2, so it was reasonable to use the residue after 142 h of saccharification as a substitute for the residue after 196 h of saccharification. The q-region of the SAXS signal was limited, so we qualitatively interpreted the q–I curve shown in Fig. 5. The SAXS data were prepared by subtracting the SAXS profile of pure water from the SAXS profile of the aqueous residue sample.
A shoulder feature was found at around q = 1 nm−1 for cellulose both before and after treatment with cellulase. This could be explained by the presence of highly dispersed cellulose microfibrils with sharp interfaces with the solvent, as was found in previous studies [16, 17]. The higher q-region of this shoulder feature (1.5–2.5 nm−1) was successfully fitted using the power law in the form I (q) ∝ q−D, where D = 4 for both samples, as shown in Fig. 5. This could be interpreted as indicating that scattering occurred at the cellulose interface with a surface fractal dimension of 2 (i.e., 6 − D). The cellulose interface (i.e., the cellulose microfibril surface) was assumed to be, on average, smooth before and after hydrolysis by cellulase. The lack of change in this parameter indicated that the surfaces of the cellulose microfibrils that remained after 142 h of cellulase hydrolysis were as smooth as the surfaces of the microfibrils before they were hydrolyzed. A similar study with more frequent sampling times will need to be performed to allow a more detailed interpretation to be made.
Another important feature of the SAXS profile was monotonic scattering decay in the range q = 0.2–0.7 nm−1. This q-region was fitted to the power law I (q) ∝ q−D, and the values of D for the 0- and 142-h hydrolysis time samples were 2.2 and 2.6, respectively. Perfectly dispersed plant cellulose microfibrils would be expected to exhibit scattering decay along a q−1 asymptote in this q-region, as found in a previous study . The D values used in this study were > 2, clearly indicating that the cellulose microfibrils were aggregated rather than dispersed. Hydrolysis by cellulase clearly increased the D value in this q-region. The increase in the D value indicated that the structures at the size corresponding to the q values became denser. This change in the SAXS profile probably indicated that cellulose microfibrils were more densely packed after hydrolysis by cellulase than before. This agreed with the conclusion drawn from the TEM images that cellulase hydrolysis removed dispersed long microfibrils and caused cellulose microfibrils with similar lengths (~ 200 nm) to form aggregates (Fig. 3a, c).
IR spectra of deuterated bagasse cellulose
Cellulose has numerous hydroxyl groups that form intracellular and intercellular hydrogen bonds with each other. However, free hydroxyl groups are exposed on cellulose microfibril surfaces, and the hydrogen atoms in these groups can easily be replaced with deuterium when the cellulose is stored in deuterium oxide. It is difficult to acquire an IR spectrum of deuterated cellulose because the OD groups in deuterated cellulose easily return to being OH groups when the system is exposed to H2O in the air. IR spectra of deuterated cellulose in deuterium oxide vapor have been acquired [11, 18]. In this study, a cellulose suspension in deuterium oxide was applied to an ATR prism and a spectrum was acquired while the cellulose was enveloped in a dry nitrogen atmosphere. No absorbance was found at ~ 2500 cm−1 (absorbance by OD) before the cellulose was deuterated (Fig. 6). However, the spectrum of the deuterated cellulose both before and after 196 h of saccharification contained an OD absorption peak (Fig. 6). As more saccharification occurred, the OD ratio decreased from > 40 to < 20% (Fig. 2). It has previously been found that cellulase binds to hydrophobic planes of cellulose and then starts to hydrolyze the cellulose [19, 20]. The exposed hydroxyl group ratio decreased and more hydrophobic planes became exposed as cellulose I was hydrolyzed from the hydrophobic planes (Fig. 7). Cellulose I has two crystal forms, cellulose Iα and cellulose Iβ . Cellulose Iβ is dominant in sugarcane, a higher plant. The cellulose microfibrils are synthesized by the cellulose synthase enzyme complex visualized in the plasma membrane as rosettes. It has been proposed that the microfibril consists of 36 molecular chains . In recent years, various models (e.g., 18 molecular chains, 24 molecular chains) have been proposed by some researchers [23,24,25]. In this study, theoretical OD ratios were calculated for the conventional 36 molecular chains’ model. A cellulose microfibril consisting of 36 molecules will have the cross-section before saccharification shown in Fig. 7a. The saccharification rate was 15%, and the microfibrils became shorter after an hour of saccharification. The cellulose molecules have been hydrolyzed from two hydrophobic planes, and the cross-sections would have the structures shown in Fig. 7b. The microfibrils were then saccharified further and the hydrophobic plane areas increased. Once the saccharification reached the limit, the short microfibrils aggregated through hydrophobic effects (Fig. 7c). This was consistent with the cellulose residue aggregation observed by TEM. The ratio of hydroxyl groups exposed on the outsides of the microfibrils was calculated (Fig. 8). The ratio before saccharification was 31%, although the ratio of deuterated hydroxyl groups determined from the IR spectrum was 47%. The discrepancy was caused by microfibrils having some disordered parts with hydroxyl groups that could be deuterated. As saccharification progressed, the ratio of exposed hydroxyl groups gradually decreased to ~ 20%, as did the ratio of deuterated hydroxyl groups (Fig. 8). The accessibility of the cellulose to cellulase decreased as the hydrophilicity decreased and aggregation increased, and this explained the cellulose residues becoming more difficult to hydrolyze. Cellulose IIII can be more easily hydrolyzed than cellulose I, and does not have a saccharification limit . This is because cellulose IIII has wider moderately hydrophobic planes that enzymes can become attached to and hydrolyze . Moderately hydrophobic planes also have free hydroxyl groups on their surfaces (Fig. 9). The ratio of free hydroxyl groups on moderately hydrophobic plane surfaces will probably not decrease even though enzymes will hydrolyze cellulose IIII along its planes. It is likely that the remaining hydroxyl groups on cellulose IIII crystals prevent them from spontaneous aggregation, which leads to the complete degradation. Recently, it was reported that the saccharification residue of cellulose II at a low cellulase concentration was cellulose I . This is a case of the aggregation of cellulose I by increase of hydrophobic planes.

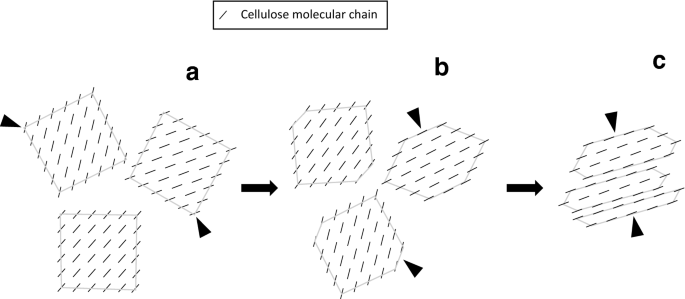

Sugarcane bagasse cellulose microfibrils decreased in length to ~ 200 nm in the early stages of saccharification and also gradually became narrower. Cellulose I was hydrolyzed from the hydrophobic planes, and the hydrophilicity decreased as saccharification proceeded. Aggregation of the saccharification residues was observed by TEM. This was supported by SAXS analysis results, including of a complete cellulose suspension. Aggregation was caused by hydrophobic effects derived from exposed wide hydrophobic planes. The results indicated that exposure of hydrophobic planes and hydrophilicity are required for enzymatic saccharification to occur. Decreasing hydrophilicity during saccharification is probably one of the reasons for enzymatic saccharification of cellulose is limited.
