Self-healing coatings for inhibiting corrosion of ferrous metals exposed to preservative-treated bamboo

Journal of Wood Science volume 66, Article number: 18 (2020) Cite this article

Abstract

This study aims to provide an effective method of inhibiting the corrosion of ferrous metals exposed to preservative-treated bamboo, thereby prolonging material service life and reducing maintenance costs. The synthesis and characterization of microcapsules were first described. The characterization included the particle size, surface morphology, thermal stability, and core content of microcapsules. The results showed that microcapsules had good thermal stability and high core loading. Then, the self-healing performance and corrosion resistance of self-healing coatings were evaluated. The results indicated that self-healing coatings can identify and heal the damage automatically and had a more positive effect on inhibiting metal corrosion. Also, the mechanical properties of self-healing coatings were analyzed. The results demonstrated that microcapsule embedment did not almost affect the mechanical properties of self-healing coatings.

Introduction

Bamboo is an important renewable biomass material with characteristics of high strength, high hardness, strong toughness, low weight, fast growth and low costs [1, 2]. Currently, bamboo has been used in engineering, construction, packaging, furniture and decoration [3,4,5]. Nevertheless, bamboo is extremely susceptible to attack by decay fungi and mold fungi due to containing plentiful organic nutrients, such as starch, protein, sugar and fat [6]. Preservative treatment can prevent bamboo from biodegradation [7, 8], but it may bring a risk to facilitate ferrous metal corrosion in humid environment.

Over the past decades, studies have showed that preservative-treated wood can lead to the corrosion of ferrous metals [9, 10]. Although there has been no report on the metal corrosion of treated bamboo to date, the metal corrosion mechanism of treated bamboo can be partially inferred from the research results of treated wood since wood chemical compositions are similar to bamboo [11, 12]. The corrosion of ferrous metals exposed to treated wood is essentially an electrochemical corrosion cell [13, 14]. It involves the transfer of ions and electrons between a metal surface and an electrolytic solution. This transfer is believed to be an aqueous process. Baechler [15] evaluated the corrosion of metal fastenings in zinc chloride-treated wood and pointed out that the severity of corrosion increased with relative humidity. Dennis et al. [16] and Short and Dennis [17] studied the influence of moisture content on the corrosion rate of metals embedded in preservative-treated timber and found a sigmoidal dependence of corrosion rate on moisture content. At the same time, moisture can accelerate hydrolysis of the O-acetyl groups lying in the hemicellulose to form organic acids, consequently facilitating metal corrosion [18]. Therefore, controlling moisture content has an important influence on inhibiting the ferrous metal corrosion of treated bamboo.

Coatings can act as a protective barrier that is available for preventing moisture from entering the interface between bamboo and metal, consequently controlling or delaying the onset of corrosion. Although coatings are a cost-effective and facile method for corrosion prevention, they undergo changes in surface morphology in high humidity leading to the formation and propagation of microcracks which subsequently result in the coating failure. This failure behavior will result in the economic losses in inspection, maintenance and repair. Hence, the introduction of a novel and creative technology is needed to improve the coating quality. Self-healing coatings can identify and heal the microcracks autonomically, thereby restoring effectively the functionality and structural integrity of coatings after the damage. The concept of self-healing has its roots in biology [19]. According to the healing ways, self-healing coatings can be divided broadly into three classes [20]: (i) intrinsic—the intrinsic system achieves self-healing functionality through inherent reversibility of bonding of the material itself; (ii) vascular and (iii) microcapsule-based—the vascular and microcapsule-based systems trigger self-healing mechanism through the release and reaction of the secondary phase healing agent in the region of damage. Recently, much attention has been paid to self-healing coatings embedded by microcapsules. Compared with the intrinsic and vascular systems, the microcapsule-based self-healing system has the advantages of fast response to crack, simple synthesis, low cost and ease of dispersion in the polymer matrix [21, 22].

A typical microcapsule-based system employs a microencapsulated healing agent and a (microencapsulated) catalyst. In the system, catalysts must be dispersed into the matrix or need to be encapsulated to maintain their activity in some cases, which would make the self-healing mechanism quite complex. And catalysts, as a second separated phase, can lead to an increased discontinuity in the coating matrix. At the same time, the cost, availability, stability and toxicity of catalysts can limit the application of self-healing coatings. Use of an oxidative healing agent can solve this problem. Tung oil is a drying oil obtained from the nut of the tung tree (Aleurites fordii), which is a natural triglyceride containing high percentage of polyunsaturated fatty acids with air-drying property. These polyunsaturated fatty acids are readily oxidized to form a three-dimensional network that isolates moisture. Some researchers [23,24,25,26] have showed the self-healing ability of encapsulated tung oil in poly(urea–formaldehyde) (PUF) shell without any catalysts.

In the past, copper-based preservatives [27, 28], such as chromated copper arsenate (CCA), alkaline copper quat (ACQ) and copper azole (CuAz), were widely used to protect bamboo. Although these preservatives are very efficient in preventing biodegradation, they are harmful or threatening to the local ecosystems and the health of human and animal [27]. In recent years, people are increasingly concerned about the effect of wood preservatives on their health. Some scholars consider that organic preservatives are more environmentally friendly and have more development potential [27,28,29]. And there is a general expectation that organic preservatives can replace copper-containing preservatives for outdoor applications [28]. Triazoles, iodopropynyl butylcarbamate (IPBC) and isothiazolinones are several commercialized organic preservatives with advantages of high efficiency, low toxicity, broad spectrum and colorless [27, 30]. They were originally designed and introduced as agricultural biocides and cosmetic preservatives and are currently used as bamboo preservatives with good prospects for development.

Currently, there has been no research on self-healing coating for preservative-treated bamboo (and wood), although several studies on self-healing coating for steel or concrete have been reported [23, 25, 31,32,33,34]. It is well known that the material properties of steel or concrete and bamboo are obviously different [35]. The hygroscopic nature of bamboo results in the continuous volumetric change of treated bamboo leading to coating damage. This effect increases permeability, driving the occurrence of corrosion. Hence, it is necessary to investigate whether self-healing coatings are suitable for inhibiting the corrosion of ferrous metals exposed to preservative-treated bamboo.

In the present study, the effect of self-healing coatings on the corrosion of ferrous metals exposed to preservative-treated bamboo was investigated. The characterization included the morphology and thermal stability of microcapsules as well as the self-healing behavior, corrosion resistance and mechanical property of self-healing coatings. This study aims to provide an effective method of inhibiting the corrosion of ferrous metals exposed to preservative-treated bamboo, thereby prolonging material service life and reducing maintenance costs.

Materials and methods

Materials

Moso bamboo (Phyllostachys edulis) of 4 years old and 5–7% moisture content was collected from Hangzhou, Zhejiang Province, China. Tung oil was obtained from Enshi, Hubei Province, China. Carbon steel (Q235) and spring steel (65Mn) were purchased from the market [36, 37]. Waterborne coatings are considered to be more environmentally friendly and have more development potential [38]. Therefore, waterborne polyurethane and waterborne acrylate, two of the most popular varnishes in the Chinese market, were selected in this study. Waterborne polyurethane varnish (CYWNC-200) and waterborne acrylate varnish (CYWNC-201) were supplied by Hebei Chenyang Industry and Trade Group Co., Ltd., Baoding, China.

Propiconazole (PPZ) (96.4 wt%) and tebuconazole (TEB) (97 wt%) were provided by Shanghai Shengnong Pesticide Co., Ltd., Shanghai, China. IPBC (AR, 99 wt%) was provided from Shanghai Huilong Chemical Co., Ltd., Shanghai, China. Isothiazolinone (MCI-MI) (14 wt%) was provided from Beijing Sunpu Biochemical Technology Co., Ltd., Beijing, China. Urea (AR) and ammonium chloride (NH4Cl) (AR) were procured from Xilong Scientific Co., Ltd., Shantou, China. Resorcinol (AR, 99 wt%), poly(vinyl alcohol) (PVA) (alcoholysis degree: 92.0–94.0 mol% and viscosity: 23.0–30.0 mPa s), sodium dodecyl sulfate (SDS) (≥ 99.0 wt%) and octanol (AR, 99.0 wt%) were procured from Aladdin Industrial Corporation, Shanghai, China. Formaldehyde (37 wt%) was purchased from Shandong Baiqian Chemical Co., Ltd., Jinan, China. All chemicals were used as received.

Synthesis and characterization of microcapsules

The microencapsulation of tung oil was adapted from the methodology described by Samadzadeh et al. [23]. The encapsulation process of microcapsules is as follows.

At room temperature, 260 ml of deionized water and 10 ml of aqueous solution of 4 wt% PVA and 1 wt% SDS were mixed in a beaker. Under mechanical agitation, 5 g urea, 0.5 g NH4Cl and 0.5 g resorcinol were added into the resultant solution. One to two drops of octanol was added to eliminate surface bubbles. The pH was adjusted to 3.0–3.5 with a 1 wt% HCl aqueous solution. After 10 min of agitation, 50 ml of tung oil was added slowly to form an emulsion and allowed to stabilize for 20–30 min under agitation. After stabilization, 13.0 g of 37 wt% formaldehyde solution was poured into the emulsion. The emulsion was covered and slowly heated and maintained at 60 °C under stirring at 400 rpm for 4 h. At the completion of the reaction, the mechanical agitation and heating were stopped and the reaction mixture was cooled to room temperature. Microcapsules were separated by filtration under vacuum with coarse filter paper. After separation, the solids were washed twice with deionized water and acetone, and then air-dried for 48 h prior to use.

The particle size of microcapsules was determined using an optical microscopy (Leica DMLB2, Wetzlar, Germany). The surface morphology of microcapsules was observed using a scanning electron microscope (SEM) (FEI XL-30 ESEM, Amsterdam, Netherlands) operated with 7 kV acceleration voltage. Before performing the SEM observation, the samples were sputter-coated with gold using a vacuum sputter coater (Bal-tec SCD 005, Los Angeles, CA, USA) operated at 30 mA for 90 s, to prevent the accumulation of static electric charge on the sample during electron irradiation. The thermal stability of microcapsules was evaluated using a thermogravimetric analyzer (TA Instruments TGA Q500, New Castle, DE, USA) under a nitrogen atmosphere at a heating rate of 10 °C min−1 from 25 to 600 °C. The samples were previously dried during 24 h at 40 °C to remove the moisture. The core content of microcapsules was determined by Soxhlet extraction at approximately 120 °C in an oil bath. Xylene was used as solvent to extract tung oil for 5 h [23] and the collected deposit was dried at 60 °C for 24 h. Then the core content of microcapsules was calculated by:

$$ w_{\text{core}} = \frac{{M_{\text{microcapsule}} - M_{\text{shell}} }}{{M_{\text{microcapsule}} }} \times 100\% , $$
(1)

where Wcore is the core content of microcapsule (wt%), Mmicrocapsule is the weight of microcapsule (g), and Mshell is the weight of microcapsule sell (g).

Preparation and characterization of self-healing coatings

Microcapsules were incorporated into polyurethane varnish and acrylate varnish by mechanical stirring at 200 rpm for 5 min. The addition was done at 10–12 wt% concentrations. Either a self-healing coating or a control coating was coated on one side of the glass slide and then kept aside for curing for 7 days. The control coating was prepared with polyurethane varnish or acrylate varnish. After curing, the self-healing and control coatings were cut along a straight line with a razor blade. The healing behavior was observed using an optical microscopy (Leica DMLB2, Wetzlar, Germany) after 0 and 4 days. The healed region was observed using a scanning electron microscope (FEI XL-30 ESEM, Amsterdam, Netherlands) operated with 7 kV acceleration voltage.

Preparation of preservative-treated bamboo

The preservatives were prepared referring to a Chinese patent [39] (Table 1). After removing outer skin and inner skin, bamboo samples with a dimension of 70 mm (longitudinal) × 20 mm (tangential) × 5 mm (radial) were prepared. The prepared bamboo samples were impregnated as follows: (i) impregnate at a vacuum of − 0.85 MPa for 5 min; (ii) impregnate at atmospheric pressure for 5 min; (iii) impregnate at a vacuum of − 0.85 MPa for 10 min, and (iv) impregnate at atmospheric pressure for 10 min. The retention of each preservative was calculated by [40]:

$$ {\text{Ret}} = \frac{{c \times m_{\text{G}} \times 1000}}{V}, $$
(2)

where Ret is the preservative retention (kg m−3), c is the concentration of preservative (wt%), mG is the mass of preservative absorbed by bamboo (g), and V is the volume of bamboo (cm3). The retentions are shown in Table 1. Finally, the treated bamboo samples were air-dried in a well-ventilated place for 21 days prior to use.

Table 1 Concentration and retention of preservatives
Full size table

Accelerated corrosion tests

A bamboo/metal composite specimen was assembled by placing a metal sample between four pieces of the preservative-treated bamboo, and fastening each with four nylon tapes (Fig. 1). The sizes of Q235 steel and 65Mn steel samples were 50 mm (length) × 30 mm (width) × 2 mm (thickness). The prepared composite specimens of each metal were randomly divided into five groups, four of which were coated with a self-healing coating or a control coating on the outer surface. In a previous test, we found that mechanical brushing seemed to be causing microcapsules to rupture, so manual brushing was adopted in this study. Finally, the coated composite specimens were air-dried in a well-ventilated place for 7 days prior to use.

Fig. 1
figure 1

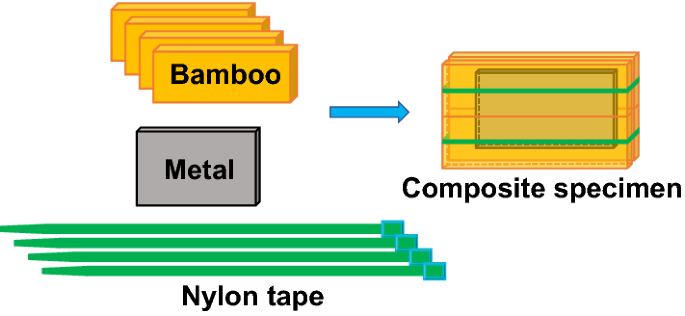

Schematic illustration of preparing a bamboo–metal composite specimen

Full size image

Each of the above five groups of composite specimens was evenly divided into two groups. Referring to AWPA E12-08 [41] standard, the two groups were exposed to an atmosphere maintained at 49 ± 3 °C and 90 ± 3% RH for 720 h and 2160 h, respectively. For each kind of composite specimen, four samples were tested. After accelerated corrosion, the coatings were removed and the equilibrium moisture content of bamboo was measured.

Referring to AWPA E12-08 [41] and GB/T 16545-2015 [42] standards, the metal samples were cleaned and weighted (accurate to 0.001 g). The procedure was as follows: before corrosion—(i) rinse metal samples with ethanol–acetone mixture (1:1 v/v) to remove oil and grease and wipe dry; (ii) dry metal samples in a forced-draft or convection oven set at 40 °C for 12 h, and (iii) place metal samples in a desiccator and then weigh after cooling to room temperature; and after corrosion—(i) brush lightly metal samples with a nylon brush to remove loose corrosion products; (ii) rinse metal samples with distilled water–37% HCl mixture (1:1 v/v) containing 3.5 g of hexamethylenetetramine (C6H12N4) under microsonic for 10 min; (iii) dry metal samples in a forced-draft or convection oven set at 40 °C for 12 h, and (iv) place metal samples in a desiccator and then weigh after cooling to room temperature.

Mechanical property tests

The probable negative effect of microcapsule embedment on the mechanical properties of self-healing coatings was investigated by impact damage test and adhesion strength test. According to the method reported by Chen et al. [25], impact damage test was carried out. The samples were impacted with an energy of 2.9219 J, using an impact tester (Instron Dynatup 9250HV, Norwood, MA, USA). It should be noted that when the energy was greater than this value, the bamboo samples cracked. For each kind of coating, eight samples were tested and then the photographs of the damaged regions were analyzed to measure the areas. Referring to ASTM D3359-17 [43] standard, tape test was conducted for investigation of the effect of microcapsule embedment on the adhesion strength. An X-cut was made through coatings to bamboo, pressure-sensitive tape was applied over the cut and then removed, and the adhesion strength was assessed qualitatively on the 0A to 5A scale (5A, no peeling or removal; 4A, trace peeling or removal along incisions or at their intersection; 3A, jagged removal along incisions up to 1.6 mm on either side; 2A, jagged removal along most of incisions up to 3.2 mm on either side; 1A, removal from most of the area of the X under the tape; and 0A, removal beyond the area of the X). For each kind of coating, eight samples were tested.

Results and discussion

Morphology and analysis of microcapsule

To ensure uniformity throughout test [44, 45], five batches of microcapsules were combined in this study. The microcapsules recovered from the suspension were slightly yellow substances which could be observed with the naked eye (Fig. 2a). When the microcapsules ruptured, a yellow liquid consistent with the color of tung oil was released. Optical micrographs showed that microcapsules were spherical particles (Fig. 2b) and their diameter varied between 22 and 185 µm (Fig. 2c). The mean, median and standard deviation of microcapsule diameter were 97 μm, 95 μm and 29 μm, respectively. SEM micrographs confirmed the non-porous and smooth surface morphology of microcapsules (Fig. 2d). Compared with the vascular systems, the morphology of microcapsules guarantees the storage role and the easy dispersion into the matrix [21, 23, 46, 47]. The core content plays an important role in the self-healing functionality of coating. The mean content of tung oil in microcapsules was found to be about 77 wt%. This high core loading allows for more effective healing of microcracks in coating.

Fig. 2
figure 2

a Microcapsules recovered from the suspension; b optical micrographs of microcapsules; c diameter distribution of microcapsules; d SEM micrographs of microcapsules

Full size image

The thermal stability of microcapsules plays a great role in their storage and practical applications. The thermogravimetric (TG) curves of microcapsules and PUF are shown in Fig. 3. The TG curve of PUF consisted of two stages of weight loss with a rise in temperature, i.e., 25–220 °C and 220–600 °C. The first stage attributed to the elimination of free formaldehyde, the decomposition of small molecule minor product and the evaporation of moisture. The second stage was mainly due to the decomposition of PUF. Tung oil is a material with excellent thermal stability and does not degrade at temperature below 350 °C [26]. Therefore, the thermal stability of microcapsules was limited by the PUF. With an increase in temperature to 350 °C nearby, a large scale of decreasing in mass was observed for the combined decomposing of tung oil and PUF. Accordingly, it is confirmed that the microcapsules contain both materials, i.e., tung oil (as core) and PUF (as shell). And the microcapsules can be stored and used under 220 °C.

Fig. 3
figure 3

TG curves of microcapsules and PUF

Full size image

Self-healing behavior of coating

As shown in Fig. 4a, b, a light-colored band was observed along the cut on the self-healing coatings after 4 days. SEM micrographs of healed region are shown in Fig. 4c, d. SEM micrographs confirmed that tung oil filled the damaged region. The results indicated that the self-healing coatings had the ability of self-healing damage. The self-healing mechanism of the coatings is the curing effect of tung oil released by the microcapsules. When microcracks propagate through the coating, tung oil is released from ruptured microcapsules by capillary action and automatically oxidized to repair the damaged region. Chemically, the healing mechanism could be that the C–H bond adjacent to one of the double bonds within fatty acid of the tung oil automatically oxidizes to form an oxidized cross-linked film [48]. Moreover, it should be noted that the band only partially healed the microcracks, suggesting that the effectiveness of self-healing coatings may be limited to the size, orientation, and location of the damage site.

Fig. 4
figure 4

Optical micrographs of the healed region on self-healing coatings after a 0 and b 4 days; SEM micrographs of the healed region on self-healing coating; c self-healing coatings; d control coatings

Full size image

Corrosion of ferrous metals exposed to preservative-treated bamboo

Because local corrosion was observed on the surface of ferrous metals exposed to treated bamboo, the corrosion rate calculated by using Eq. (3) is inaccurate [41]:

$$ R = \frac{C \times W}{A \times T \times D}, $$
(3)

where R is the corrosion rate (mil year−1), C is the units conversion constant, 3.44 × 106 (h mil year−1 cm−1), W is the weight loss due to corrosion (g), A is the area of metal surface exposed (cm2), T is the time of exposure (h) and D is the density of metal (g cm−3). Hence, the severity of corrosion was analyzed by weight loss in this study.

As shown in Fig. 5, the weight loss values of Q235 steel and 65Mn steel samples in the bamboo–metal composite specimens with the self-healing coatings were significantly lower than those with the control coatings after accelerated corrosion tests. After applying the self-healing polyurethane and acrylate coatings, the average weight loss values of Q235 steel were reduced by 76.4% and 73.1% at 720 h and 44.2% and 43.0% at 2160 h, respectively, and those of 65Mn steel were reduced by 74.3% and 69.8% at 720 h and 55.0% and 54.0% at 2160 h, respectively. Moreover, the control coatings almost failed at 720 h. This indicated that the self-healing coatings had a more positive effect on inhibiting corrosion than control coatings.

Fig. 5
figure 5

Weight loss of Q235 steel and 65Mn steel exposed to preservative-treated bamboo after a, b 720 and c, d 2160 h of accelerated corrosion. Error bars represent the standard deviation

Full size image

Unlike steel and concrete, the ferrous metal corrosion of treated bamboo is affected by preservatives and bamboo chemical compositions. Generally, the preservatives and chemicals are corrosive only after forming an electrolytic solution. Thus, the ferrous metal corrosion of treated bamboo is directly affected by the moisture content of bamboo. As shown in Fig. 6, the equilibrium moisture contents of treated bamboo with the self-healing coatings were lower than those with the control coatings at 720 h. This indicated that the self-healing coatings can better control the moisture content of bamboo, thereby inhibiting the occurrence of corrosion. Additionally, it should be noted that the equilibrium moisture contents of treated bamboo with the self-healing coatings was close to those with the control coatings at 2160 h. This suggested that self-healing coatings also gradually failed over time. However, the self-healing coatings failed much slower than the control coatings.

Fig. 6
figure 6

Equilibrium moisture content of preservative-treated bamboo after a, b 720 and c, d 2160 h of accelerated corrosion

Full size image

The coating thickness was considered as a potential variable affecting waterproof performance. To avoid the influence of the thickness on the test, the coating thickness was adjusted by the number of brushing. The self-healing coatings were applied twice and the control coatings were applied three times. This brushing process was done by one person. As shown in Fig. 7, the mean thickness of the four types of coatings was 347 μm, 375 μm, 356 μm, and 363 μm, respectively. And there was no significant difference in coating thickness (p > 0.05). In addition, in a previous test, we found that the coating failure time of manual brushing seemed earlier than that of mechanical brushing, although the coating thickness of manual brushing was thicker than that of mechanical brushing. This may be due to the result that manual brushing is relatively more prone to defects. Therefore, further study will focus on the influence of brushing method on coating performance.

Fig. 7
figure 7

Thickness of coatings. Error bars represent the standard deviation

Full size image

Zelinka and Lebow [49] investigated the corrosiveness of Cu-TEB-, Cu-PPZ-TEB- and PPZ-TEB-imidacloprid-treated wood towards galvanized wires and concluded that the difference between PPZ-TEB-imidacloprid and the untreated control was not statistically significant while Cu-TEB and Cu-PPZ-TEB were significantly higher than PPZ-TEB-imidacloprid and the untreated control. Also, IPBC and MCI-MI themselves may be not corrosive, since they are often used as metalworking fluids. Moreover, in our previous study on the corrosion rates of Q235 steel in PPZ-TEB solution and its emulsifier [50], it was found that the corrosion rates were positively correlated with the emulsifier content. Thus, in this study, the emulsifier may be the corrosion source of the organic preservatives. Use of low-corrosive emulsifiers will be the second research objective in further work.

Mechanical property of coating

It was suspected that microcapsule embedment may interfere with the mechanical bonding between bamboo and coating and the curing and three-dimensional crosslinking of coating, consequently reducing the mechanical property of coating. Thus, impact damage test and adhesion strength test were performed. As shown in Fig. 8, the damaged areas of the self-healing coatings were close to those of the control coatings. Furthermore, all coatings exhibited impact dents exclusively, and no debonding and delamination were observed. This indicated no significant loss in the impact resistance offered by the self-healing and control coatings. And the mean adhesion strength of all the coatings can reach 5A, i.e., no peeling or removal, indicating that the incorporation of microcapsules did not almost reduce the ability of the coating adhesion.

Fig. 8
figure 8

Damaged area of coatings. Error bars represent the standard deviation

Full size image

Conclusion

This study investigated the effect of self-healing coatings on the corrosion of ferrous metals exposed to preservative-treated bamboo. The characterization of microcapsules revealed that microcapsules were spherical, non-porous and smooth-faced particles with good thermal stability and high core loading. Optical and SEM micrographs confirmed that upon coatings damage, tung oil released from the ruptured microcapsules filled and cured the damaged region. In accelerated corrosion tests, the weight loss values of Q235 steel and 65Mn steel samples in the bamboo–metal composite specimens with the self-healing coatings were significantly lower than those with the control coatings. Compared with the control coatings, the self-healing coatings can better control the moisture content of bamboo. However, the self-healing coatings also gradually failed over time. In mechanical property tests, microcapsule embedment has no negative effect on the mechanical properties of self-healing coatings. These results indicated that self-healing coating is a feasible method of inhibiting effectively the corrosion of ferrous metals exposed to preservative-treated bamboo.
