Synchronizations of tree-ring δ¹⁸O time series within and between tree species and provinces in Korea: a case study using dominant tree species in high elevations

Abstract

The current study was initiated to test the synchronizations of tree-ring δ¹⁸O (hereafter δ¹⁸O_TR) time series within and between tree species and provinces, which are about 144 km apart from each other in Korea. For the test, a 50-year δ¹⁸O_TR time series (1966–2015) was developed using four trees from each tree species which are Pinus densiflora and Quercus mongolica from Songnisan National Park and Taxus cuspidata, Pinus koraiensis, Abies koreana, and Quercus mongolica from Jirisan National Park. Their synchronizations were evaluated using t-value, Gleichläufigkeit (Glk), and Expressed Population Signal (EPS). The mean t-values and Glk scores within the tree species ranged 5.2–11.2 (p < 0.05) and 69–83%, and between the tree species ranged 6.1–13.2 (p < 0.05) and 73–81%, respectively. The mean t-value and Glk score between the regions were 4.3 (p < 0.05) and 72%, respectively. Furthermore, the EPS showed higher than 0.85, which is the generally accepted threshold value in dendrochronology, except for Q. mongolica at Songnisan National Park for which the value is 0.83 calculated by only two δ¹⁸O_TR time series. Based on the statistical results, we concluded that a δ¹⁸O_TR chronology established using more than four trees could serve as a promising reference for dating an undated wood without considering the tree species, as well as for research on climate in the past.

Introduction

Tree-ring dating is an accepted scientific method to determine the exact year when a ring was formed [1]. The tree-ring dating not only plays an important role in dating archaeological wooden materials [2,3,4,5], but also in investigating the climatic and environmental conditions during the dated years [6,7,8,9,10].

Dendrochronology was introduced in the Republic of Korea in the early 1990s [11, 12], whereas the first paper on dating archaeological woods using the tree-ring dating method was published in the early 2000s [13]. Due to difficulty in obtaining permission to collect tree-ring samples from archaeological woods and lack of long local tree-ring chronologies for dating, it took some time to publish research work related to dendroarchaeological dating. Although a 893-year-long (1126–2018 CE) ring-width chronology was established through many dated archaeological woods of Pinus densiflora (known as the red pine), which has been used to date as the most common archaeological woods in Korea [14,15,16], long chronologies have not yet been established using other tree species from various regions. Various local master chronologies comprising different tree species from different regions are required for successful tree-ring dating, because the annual patterns of the ring widths vary depending on the tree species and locations. To this end, archaeological woods containing various tree species need to be found in archaeological relics, buildings, and artifacts, which cover long time range without any interruption. According to past studies [17,18,19,20], tree species used for buildings, Buddhist statues, furniture and charcoals were different in some cases with respect to time and region in the Republic of Korea. Due to a lack of long local master chronologies for various tree species, most studies on dating archaeological woods rely on the radiocarbon dating method [21,22,23].

With the help of developed equipment, measured values of different cell traits, such as cell size, wall thickness and density [9, 24, 25], and stable isotopes such as carbon and oxygen [26,27,28,29] were used to establish inter-annual time series for dendrochronological research. Among them, the tree-ring δ¹⁸O time series, which has been established using the ratios between ¹⁸O and ¹⁶O for each year, is considered as a reliable reference chronology, and has been used in dating tree-ring δ¹⁸O time series without considering the tree species [30, 31]. For instance, Li et al. [32] published that tree-ring δ¹⁸O time series from pine and oak trees under similar growing conditions in Japan showed well synchronization. Furthermore, Jessica et al. [33] reported that tree-ring δ¹⁸O time series established within 1000 km in Bolivia also showed good correlations. Apart from such attractive advantage, a tree-ring δ¹⁸O chronology, established using a lesser number of trees than the other measurement parameters, can play a role as a reliable proxy representing a potential climate signal at a site [30, 34, 35]. Recently, we verified the synchronizations of tree-ring δ¹⁸O time series between different tree species, viz. Pinus densiflora, Abies koreana, Taxus cuspidata, and Quercus mongolica, from Jirisan National Park in Korea, by using four trees per tree species [36]. This study was conducted only at a single site, and therefore, it does not suffice for application of the tree-ring δ¹⁸O chronology for cross-dating and/or dating tree-ring δ¹⁸O time series for other regions.

In the current study, we aimed to test synchronizations of tree-ring δ¹⁸O (hereafter δ¹⁸O_TR) time series within and between tree species and provinces in the Republic of Korea. The results are expected to offer useful tips to the dendrologists who lack the necessary resources for reliable dating of archaeological woods using ring-width data, and those who are interested in investigating the past climate of Korea.

Materials and methods

Study sites and tree species

Wood samples from living trees were collected at Songnisan (36˚ 33ʹ N, 127˚ 51ʹ E) and Jirisan (35˚ 17–20ʹ N, 127˚ 32–43ʹ E) National Parks which are located at the central and southern provinces of the Republic of Korea, respectively (Fig. 1). The highest peaks of Songnisan and Jirisan National Parks are 1029 m a.s.l. and 1915 m a.s.l., respectively. The Songnisan National Park is about 144 km away to the north from Jirisan National Park.

Fig. 1

Locations of the sampling sites (triangles) and the meteorological stations (open circles) close to the sampling sites (SN: Songnisan National Park, JR: Jirisan National Park)

In order to establish tree-ring δ¹⁸O (hereafter δ¹⁸O_TR) time series, 24 tree-ring samples were selected from archived increment cores at Tree-Ring Research Center (www.dendro.kr) at the Chungbuk National University (Table 1). All of them were already cross-dated using ring-width data for publications [36, 37]. At Songnisan National Park, two tree species, viz. Pinus densiflora and Quercus mongolica, and at Jirisan National Park, four tree species, viz. Taxus cuspidata, Pinus koraiensis, Abies koreana, and Quercus mongolica, were chosen as experimental tree species, which are also the dominant species at high altitude of Songnisan [38] and Jirisan National Parks [39, 40]. Based on the previous studies [30, 34, 37], four trees of each tree species were used to establish the δ¹⁸O_TR time series for living trees.

Table 1 Details of the experimental sites and trees used to establish the δ¹⁸O_TR time series

The δ¹⁸O_TR time series

Only one core per tree was used to establish the δ¹⁸O_TR time series. The plate method [29] was conducted to facilitate the processing of several rings simultaneously. First, an increment core was transversely cut into several 1-mm-thick wood plates using a diamond wheel saw, and then the plates were sandwiched between 1-mm-thick Teflon-punch sheets (Fig. 2a, b). A 1.0-mm gap was left between the Teflon-punch sheets to allow flow of the chemical solutions and reach all the surfaces of the wooden plate. Second, α-cellulose was extracted directly from the wood plate using a modified Jayme–Wise method [41, 42], which consists of two principal processes: (1) removal of lignin using an acidified sodium chlorite solution, followed by (2) removal of hemicellulose using sodium hydroxide solution in a water bath heated between 70 and 80 °C (Fig. 2c). Third, each annual ring (120–250 μg) of α-cellulose was partially separated from the cellulose plate under a microscope (Fig. 2d), and then loaded on a silver foil (Fig. 2e). The silver-wrapped sample was finally used to determine oxygen isotope ratio in the α-cellulose of each tree ring using an isotope ratio mass spectrometer (Delta V Advantage, Thermo Fisher Scientific) interfaced with a pyrolysis-type high-temperature conversion elemental analyzer (TC/EA, Thermo Fisher Scientific). The oxygen isotope ratio was expressed in δ notation (‰) with respect to the international oxygen isotope standard (Vienna Standard Mean Ocean Water) as follows:

$$\delta^{18} {\text{O}} \left( \permil \right) = \left( {\frac{{R_{{{\text{sam}}\left. {\text{p}} \right|{\text{e}}}} }}{{R_{\text{standard}} }} - 1} \right) \times 1000,$$

(1)

where $R_{\text{sample}}$ and $R_{\text{standard}}$ are the ¹⁸O/¹⁶O ratios in the sample and standard, respectively.

Fig. 2

Preparation process to measure δ¹⁸O of α-cellulose in each tree ring: a cutting an increment core of 1 mm thickness (C: cross plane, R: radial plane, T: tangential plane); b vial with a thin wood plate fixed between Teflon-punch sheets; c chemical treatment to extract lignin and hemicellulose in solutions of NaClO₂ and NaOH in a water bath at temperature 70 and 80 °C, respectively; d separating α-cellulose from each tree ring of same width from early- to latewood at 120–250 μg, and e wrapped α-cellulose in a thin silver foil

Owing to contamination in the process of cellulose extraction, two individual tree cores collected from Q. mongolica were not used for further analysis.

Synchronization tests

To verify synchronization within and between the tree species and provinces, the t-value and Glk (Gleichläufigkeit) scores were used for cross-dating [43]. The t-value and Glk scores are well-known parameters which represent the matching strength between time series at a certain overlapping position in dendrochronology [44]. The t-values were calculated using the correlation coefficients between time series and the number of their overlapping years (Eq. 2), whereas the Glk scores were calculated based on the matching ratios of the time series compared in the overlapping years (Eq. 3).

$$t = \frac{{r \times \sqrt {n - 2} }}{{\sqrt {\left( {1 - r^{2} } \right)} }},$$

(2)

where $r$ is the correlation coefficient and $n$ is the number of overlapped tree rings between time series.

$$G_{{\left( {x,y} \right)}} = \frac{1}{n - 1}\mathop \sum \limits_{i = 1}^{n - 1} \left[ {G_{ix} + G_{iy} } \right]$$

(3)

If ($x_{i + 1} - x_{i}$) > 0, $G_{ix}$ = + 1/2,($x_{i + 1} - x_{i}$) = 0, $G_{ix}$ = 0,($x_{i + 1} - x_{i}$) < 0, $G_{ix}$ = − 1/2, where $G_{{\left( {x,y} \right)}}$ is the Glk value and $x_{i}$ is the measurement value at $i$-year tree ring.

The TSAPWin program (RINNTECH, Germany) was applied to calculate the t-values and Glk scores which were further used to test the synchronizations between the δ¹⁸O_TR time series. Fifty-year δ¹⁸O_TR time series (1966–2015) from living trees were used for analyzing the strength of common variations between the different trees.

We also used the expressed population signal (EPS) to evaluate the chronology signal strength [27, 45]. The EPS can be described as shown in Eq. 4:

$${\text{EPS}} = n*R_{\text{bar}} /\left( {n*R_{\text{bar}} + \left( {1 - R_{\text{bar}} } \right)} \right),$$

(4)

where n is the number of trees at the site and R_bar is the mean correlation coefficient of all the time series. With increase in n and/or R_bar, the EPS was found to increase and reach 1. The suggested threshold value was higher than 0.85 over the entire period.

Results and discussion

Oxygen isotope measurement of α-cellulose from each tree ring was done so that we could establish δ¹⁸O_TR time series for individual sample trees. Due to operating error of the equipment, however, two Q. mongolica at Songnisan National Park could not be measured. Therefore, only two oak δ¹⁸O_TR time series were used for further analysis (Table 2).

Table 2 The t-values and Glk scores of δ¹⁸O_TR time series within tree species

Synchronization tests within and between tree species

From the synchronization test of δ¹⁸O_TR time series within tree species, the mean t-values (min.–max.) for P. densiflora and Q. mongolica at Songnisan National Park were 5.2 (4.2–6.4) and 6.9 (none), respectively, while their Glk scores were 74% (66–83%) and 79% (none), respectively (Table 2). In addition, the mean t-values (min.–max.) for T. cuspidata, P. koraiensis, A. koreana, and Q. mongolica at Jirisan National Park were 9.5 (5.9–15.6), 11.2 (7.5–14.0), 7.3 (4.9–11.3) and 6.4 (4.0–11.0), respectively, and their Glk scores were 78% (68–87%), 83% (78–86%), 76% (65–84%), and 69% (62–86%), respectively (Table 2). In all the above cases, the conifer tree species at Jirisan National Park showed higher t-values and Glk scores than that at Songnisan National Park; however, Q. mongolica showed lower values in reverse. Although the statistical values showed some differences, the inter-annual δ¹⁸O_TR time series within the tree species showed similar patterns (Fig. 3).

Fig. 3

Synchronization tests of the δ¹⁸O_TR time series within tree species (gray lines) and their mean inter-annual variations (solid bold lines)

In the synchronization test of δ¹⁸O_TR chronologies between tree species, the mean t-value and Glk score between P. densiflora and Q. mongolica at Songnisan National Park were 6.6 and 73%, respectively, while the mean t-values and Glk scores among T. cuspidata, P. koraiensis, A. koreana, and Q. mongolica at Jirisan National Park ranged from 6.1 (P. koraiensis: Q. mongolica) to 13.2 (T. cuspidata: A. koreana) and 73% (P. koraiensis: Q. mongolica) to 81% (T. cuspidata: A. koreana and P. koraiensis: A. koreana), respectively (Table 3, gray background). Except the t-value between P. koraiensis and Q. mongolica in Jirisan National Park, all other statistical values in Jirisan National Park were higher than those in the Songnisan National Park. In these comparisons, we could identify distinct similar patterns among inter-annual δ¹⁸O_TR chronologies of individual tree species (Fig. 4).

Table 3 The t-values and Glk scores of δ¹⁸O_TR time series between tree species in the same national parks (gray backgrounds) and both national parks (white background)

Fig. 4

Synchronization tests of the δ¹⁸O_TR chronologies between the tree species

In all the synchronization tests of δ¹⁸O_TR time series within and between tree species, we verified reliable homogenous patterns as well as meaningful t-values and Glk scores. The oxygen isotope ratios of the tree-ring cellulose were primarily determined by evaporative enrichment of leaf water ¹⁸O, which was modulated by relative humidity at the site [26, 27]. Non-climatic factors such as ecological competition did not alter annual variations in δ¹⁸O_TR values of individual trees significantly. In fact, the δ¹⁸O_TR time series established from different tree species under the same and/or similar growing conditions were shown to be well correlated with one another [30, 32, 36, 46]. Unlike Q. mongolica, the conifer trees at Jirisan National Park showed higher t-values and Glk scores than the conifer trees (P. densiflora) at Songnisan National Park, and the statistical results between the conifer species tended to be higher than between conifer species and Q. mongolica. According to previous publication [31], such results might occur from differences in the fraction of carbohydrate oxygen that undergoes exchange with oxygen of xylem water, the net fractionation factor between them, differences in root depth and growing seasons of the tree species.

The mean correlation coefficients within trees (R_bar) and expressed population signal (EPS)

R_bar and EPS of δ¹⁸O_TR time series for the Songnisan National Park were higher than 0.61 and 0.83, respectively (Table 4). By contrast, for the Jirisan National Park, the former was higher than 0.70 and the latter higher than 0.90. Except Q. mongolica at Songnisan National Park, the EPS from the four trees showed higher than the threshold value 0.85 [27, 45]. The δ¹⁸O_TR chronologies from the four trees therefore were verified as a promising chronology for dating of the undated archaeological woods, as well as for capturing past climate condition.

Table 4 Mean correlation coefficients (R_bar) and expressed population signal (EPS) of δ¹⁸O_TR time series within tree species

Through previous publications on dendroclimatic researches [47, 48], it was verified that δ¹⁸O_TR chronologies established using more than four trees could serve as a promising chronology in dendroclimatic reaches based on EPS. In this result, the R_bar from each group, consisting of the same tree species showed high values, so that EPS higher than the threshold value (0.85) could be obtained (Table 4). Only EPS from Q. mongolica at Songnisan National Park, which was calculated using R_bar from two trees, was lower than the threshold due to insufficient sample size.

Synchronization tests between the study regions

Comparing the δ¹⁸O_TR chronologies originating from Songnisan National Park and Jirisan National Park, the mean t-values and Glk scores (min.–max.) were 4.5 (3.6–5.4) and 72% (68–78%), respectively (Table 3, white background). To verify the synchronization strength between the two regions regardless of tree species, we compared the local δ¹⁸O_TR chronologies between Songnisan and Jirisan National Parks. It turned out that the mean t-value and Glk score were 3.5, and 65%, respectively. In addition, the local chronologies showed a significant correlation of 0.60 (p < 0.01) (Fig. 5).

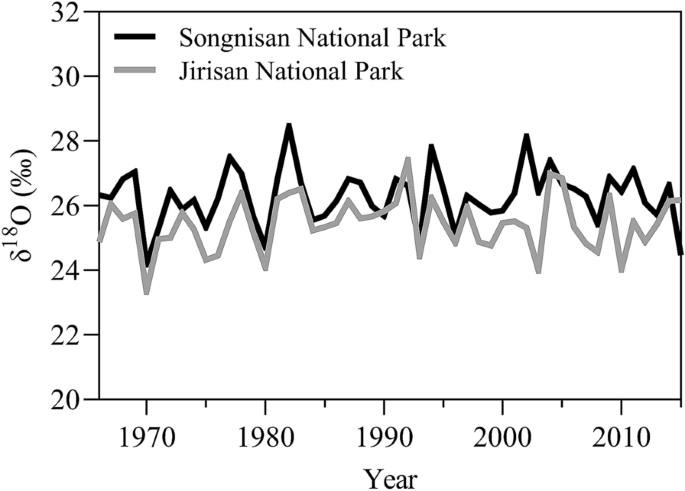

Fig. 5

Synchronization tests of local δ¹⁸O_TR chronologies between Songnisan and Jirisan National Parks

According to the correlation analysis between individual δ¹⁸O_TR chronologies and monthly temperature and precipitation from meteorological stations close to Songnisan and Jirisan National Parks (Fig. 1) for the last 43 years (1973–2015), all chronologies at both the national parks showed relatively high positive correlation coefficients with April and July temperatures of the current year (Fig. 6). These results signify that these monthly temperatures at both the research areas play an important role in modulating δ¹⁸O of the source water and local humidity [27, 32]. It should also be noted that there are significant linear relationships between April temperatures of Songnisan and Jirisan National Parks, and between the July temperatures of them as well (Fig. 7). Although Songnisan and Jirisan National Parks are about 144 km apart from each other, our results indicate that the δ¹⁸O_TR was controlled by large-scale variations in the growing season temperature as well as variations in the April and July temperatures (Fig. 6). Significant correlations of δ¹⁸O_TR chronologies were also found between different provinces in Bolivia which are about 1000 km far from each other [33].

Fig. 6

Correlation coefficients between individual δ¹⁸O chronologies and monthly temperature and precipitation from October in the previous year to September in the current year from Boeun meteorological station close to Songnisan National Park and Sancheong and Namwon meteorological stations close to Jirisan National Park for the last 43 years (1973–2015)

Fig. 7

Linear relationships between April temperatures and between July temperatures of Songnisan and Jirisan National Parks

Application to dendroarchaeology and dendroclimatology

In order to date wooden materials using tree-ring chronology, establishing a long chronology using the same tree species growing under similar environmental condition is a fundamental requirement [49]. Dendrologists in Korea have a limitation in making such a long chronology. This is due to the chance of finding a living tree older than 300 years being rare, as well as, it is difficult to find archaeological woods to extend the chronology from the living trees. Based on the current results, it was verified that a δ¹⁸O_TR chronology established using four trees could play a promising reference in dating archaeological woods excavated from a region between Songnisan and Jirisan National Parks, and in research on reconstructing the past climate of the region.

Conclusions

Based on a 50-year δ¹⁸O_TR time series, we tested synchronization between and within-tree species in the Songnisan and Jirisan National Parks, which are about 144 km apart. The δ¹⁸O_TR time series was established using increment cores from Pinus densiflora and Quercus mongolica in the Songnisan National Park, and Taxus cuspidata, Pinus koraiensis, Abies koreana and Quercus mongolica in the Jirisan National Park. All the δ¹⁸O_TR chronologies showed significant correlations with one another irrespective of species and locations. In addition, the EPS from the four δ¹⁸O_TR time series were higher than 0.85, which is the threshold value in research on climate in the past. Based on the statistical results, we conclude that a δ¹⁸O_TR chronology established using more than four trees could play a promising reference for dating an undated wood without considering the tree species, as well as for research on climate in the past, where the regions are from Songnisan to Jirisan National Parks.
